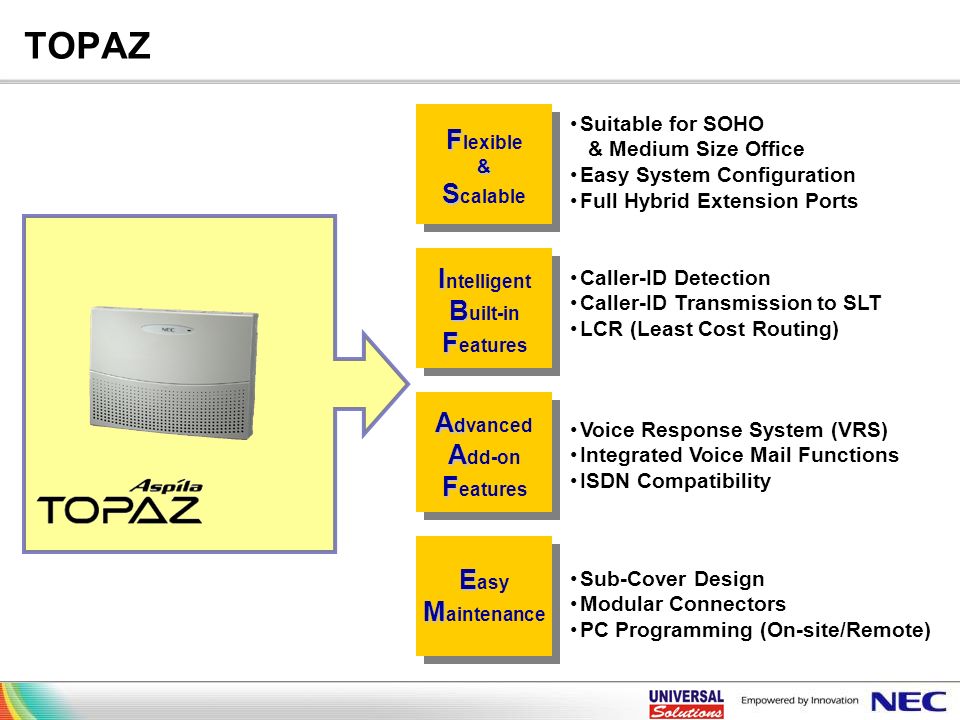

1. Sub-Cover Design Modular Connectors PC Programming (On-site/Remote) TOPAZ Caller-ID Detection Caller-ID Transmission to SLT LCR (Least Cost Routing) Suitable for SOHO & Medium Size Office Easy System Configuration Full Hybrid Extension Ports Voice Response System (VRS) Integrated Voice Mail Functions ISDN Compatibility E E asy M M aintenance F F lexible& S S calable A d A dvanced A A dd-on F F eatures I I ntelligent B B uilt-in F F eatures

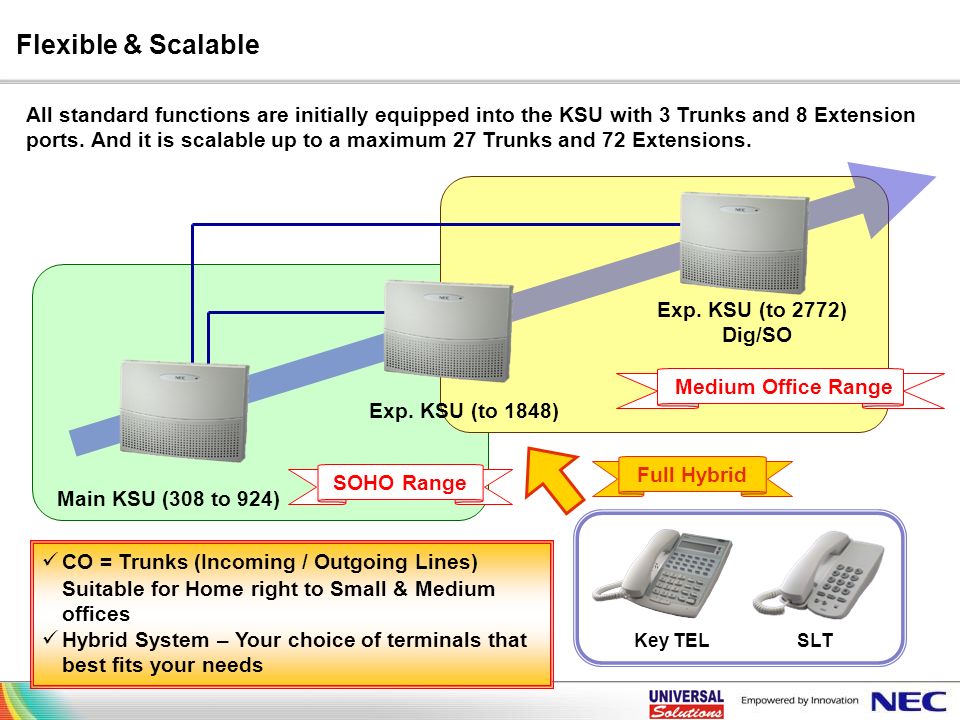

2. All standard functions are initially equipped into the KSU with 3 Trunks and 8 Extension ports. And it is scalable up to a maximum 27 Trunks and 72 Extensions. Main KSU (308 to 924) SOHO Range Medium Office Range Key TELSLT Full Hybrid CO = Trunks (Incoming / Outgoing Lines) Suitable for Home right to Small & Medium offices Hybrid System – Your choice of terminals that best fits your needs Exp. KSU (to 1848) Exp. KSU (to 2772) Dig/SO Flexible & Scalable

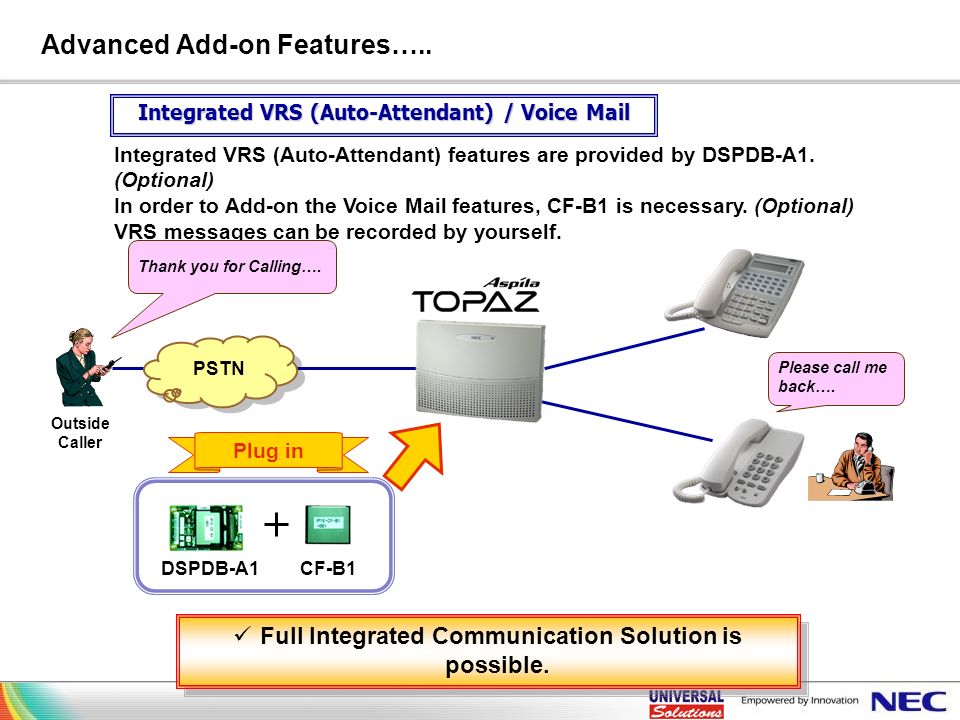

3. Integrated VRS (Auto-Attendant) features are provided by DSPDB-A1. (Optional) In order to Add-on the Voice Mail features, CF-B1 is necessary. (Optional) VRS messages can be recorded by yourself. PSTN Integrated VRS (Auto-Attendant) / Voice Mail Outside Caller Thank you for Calling…. Please call me back…. Full Integrated Communication Solution is possible. DSPDB-A1CF-B1 Plug in Advanced Add-on Features…..

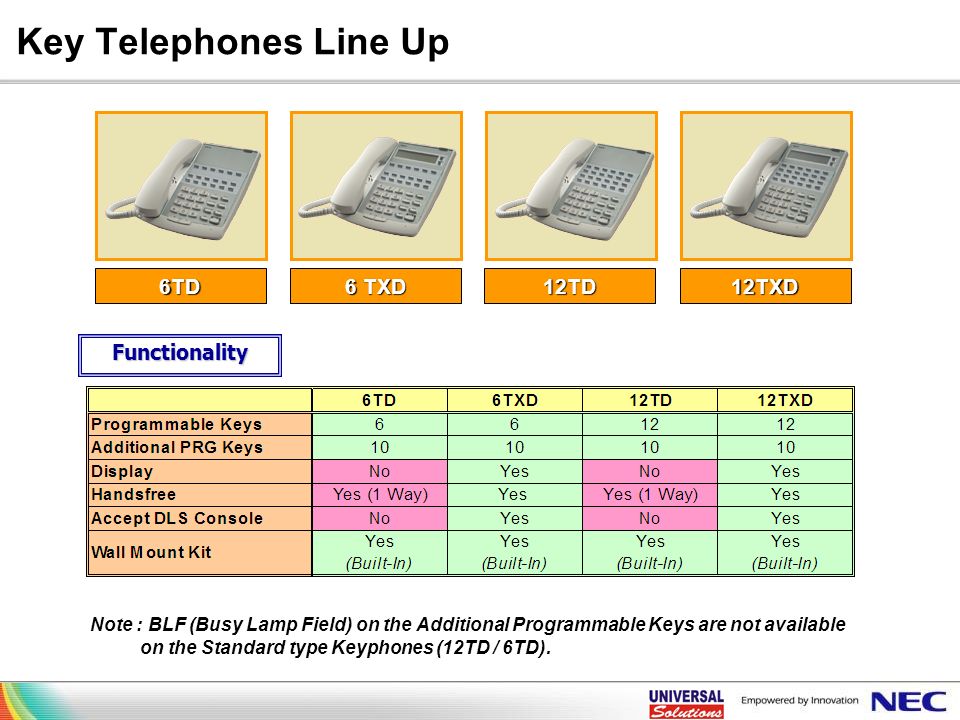

4. Key Telephones Line Up Functionality Note : BLF (Busy Lamp Field) on the Additional Programmable Keys are not available on the Standard type Keyphones (12TD / 6TD). 6TD 6 TXD 12TD 12TXD

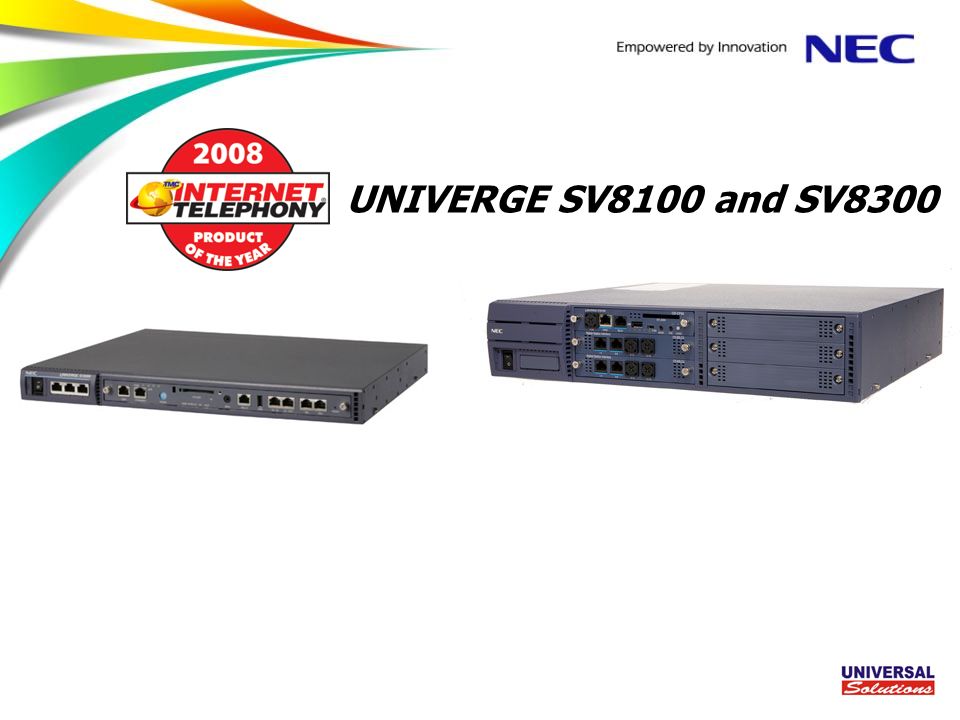

5. UNIVERGE SV8100 and SV8300

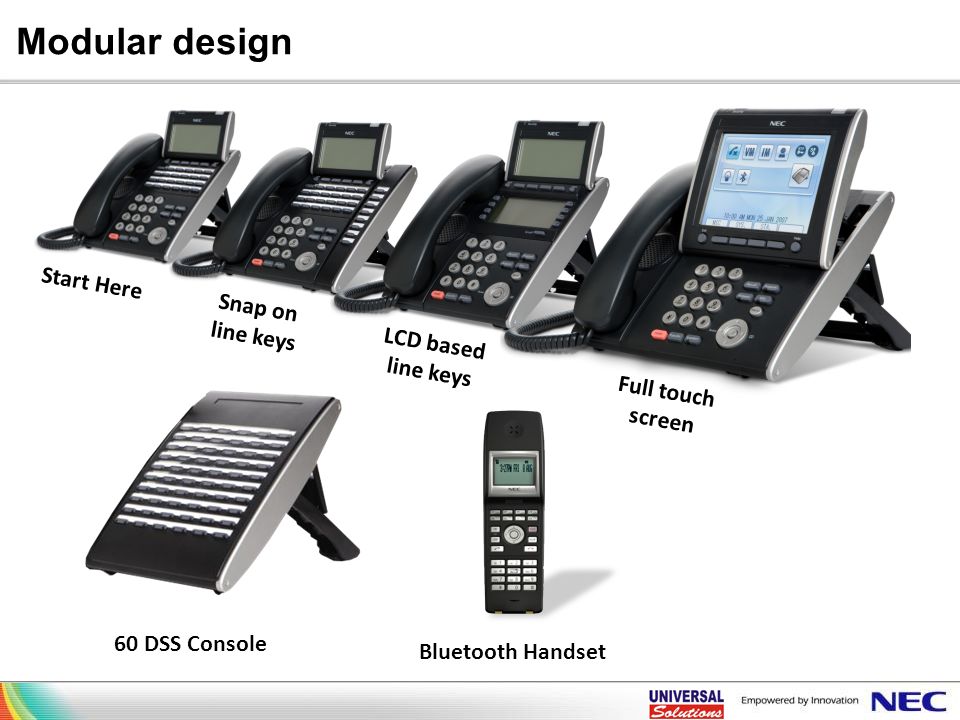

6. Modular design Start Here Snap on line keys LCD based line keys Full touch screen Bluetooth Handset 60 DSS Console

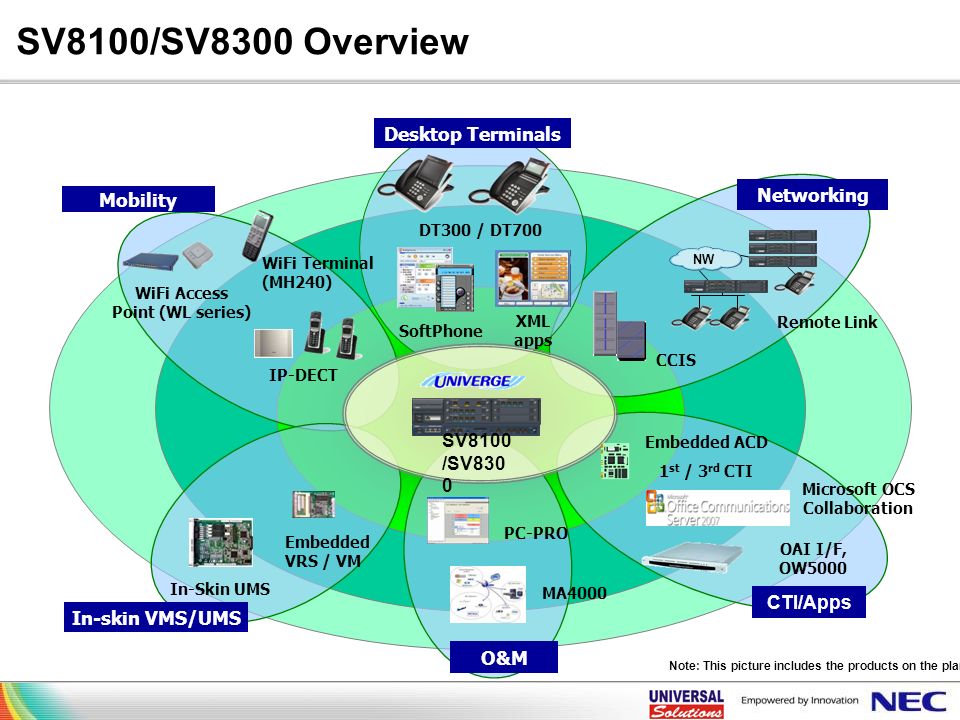

7. SV8100/SV8300 Overview Desktop Terminals Networking CTI/Apps In-skin VMS/UMS Mobility SV8100 /SV830 0 MA4000 PC-PRO O&M Embedded ACD 1 st / 3 rd CTI OAI I/F, OW5000 Microsoft OCS Collaboration Remote Link CCIS NW SoftPhone DT300 / DT700 In-Skin UMS Embedded VRS / VM WiFi Access Point (WL series) WiFi Terminal (MH240) IP-DECT Note: This picture includes the products on the plan XML apps
