1 1 Visualizer for Audit Graphical Business Intelligence Display & Analysis Tool

2 2 Visualizer Helps you Understand & Implement Security “With Visualizer, understanding and implementing security is easy!” 65 Or get an analysis of security data in graphical user-friendly format. …and create a security rule based on an actual event. 4 3 With Visualizer you can easily isolate a single event out of millions of log entries… 2 “To create a security rule, I have to actually write a program…” 1 “There are millions of log entries – it’s so hard to find a specific entry.”

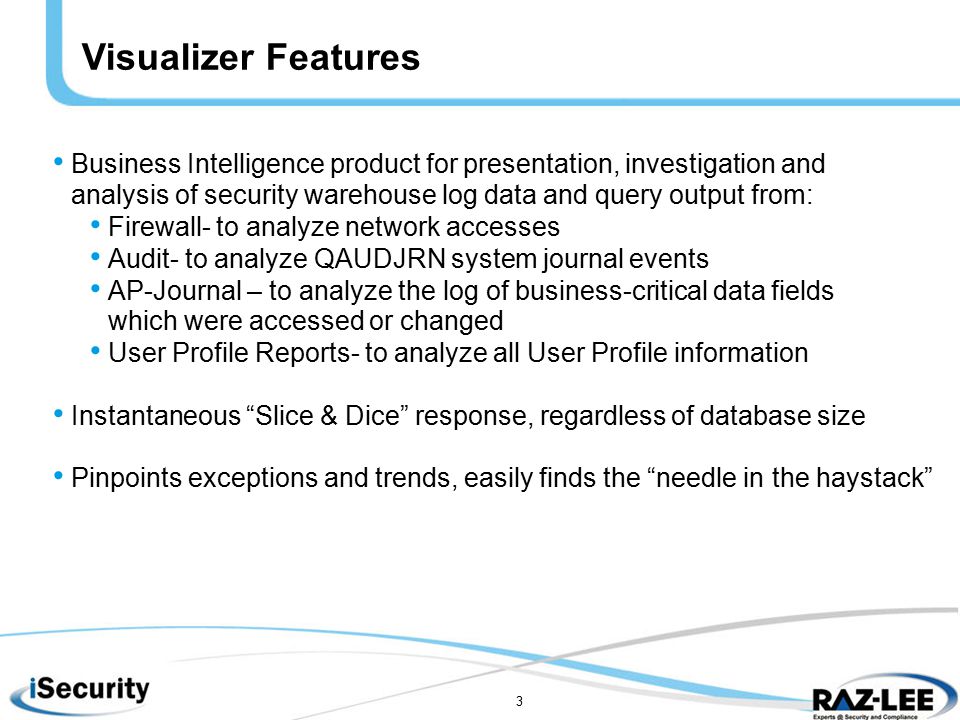

3 3 Business Intelligence product for presentation, investigation and analysis of security warehouse log data and query output from: Firewall- to analyze network accesses Audit- to analyze QAUDJRN system journal events AP-Journal – to analyze the log of business-critical data fields which were accessed or changed User Profile Reports- to analyze all User Profile information Instantaneous “Slice & Dice” response, regardless of database size Pinpoints exceptions and trends, easily finds the “needle in the haystack” Visualizer Features

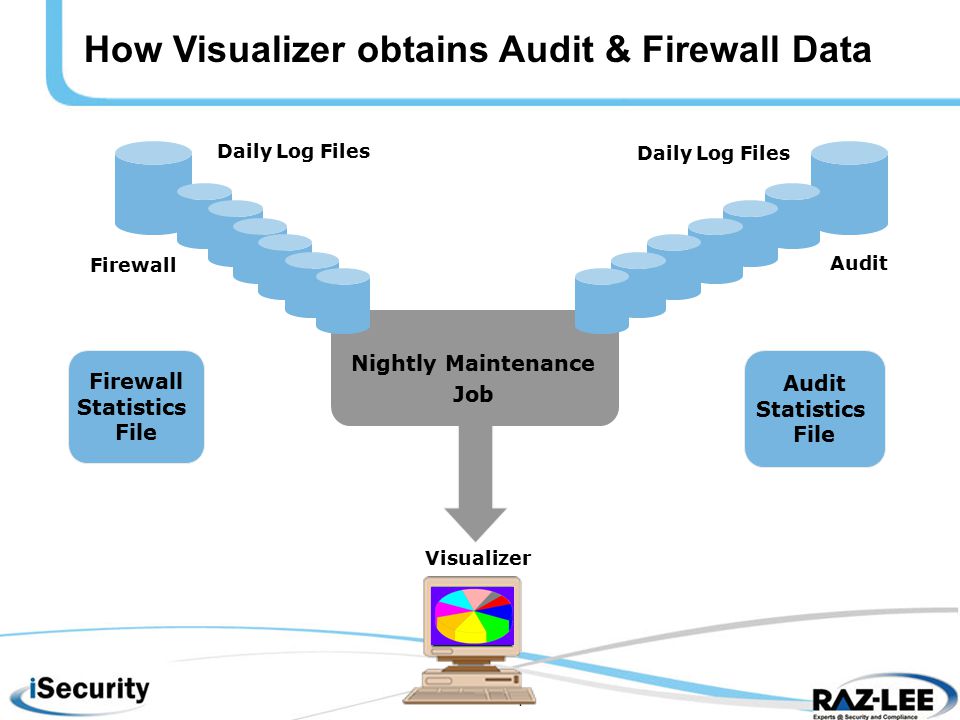

4 4 Nightly Maintenance Job Audit Statistics File Firewall Statistics File Firewall Audit Visualizer How Visualizer obtains Audit & Firewall Data Daily Log Files

5 5 Accessing Visualizer from the iSecurity GUI

6 6 Filter Audit Log Data No. of Entries on each Date Graphical display of most frequent Dates Visualizer’s workspace Lower tabs for “slice and dice’

7 7 Supports 3D/2D, Vertical and Horizontal Graphs

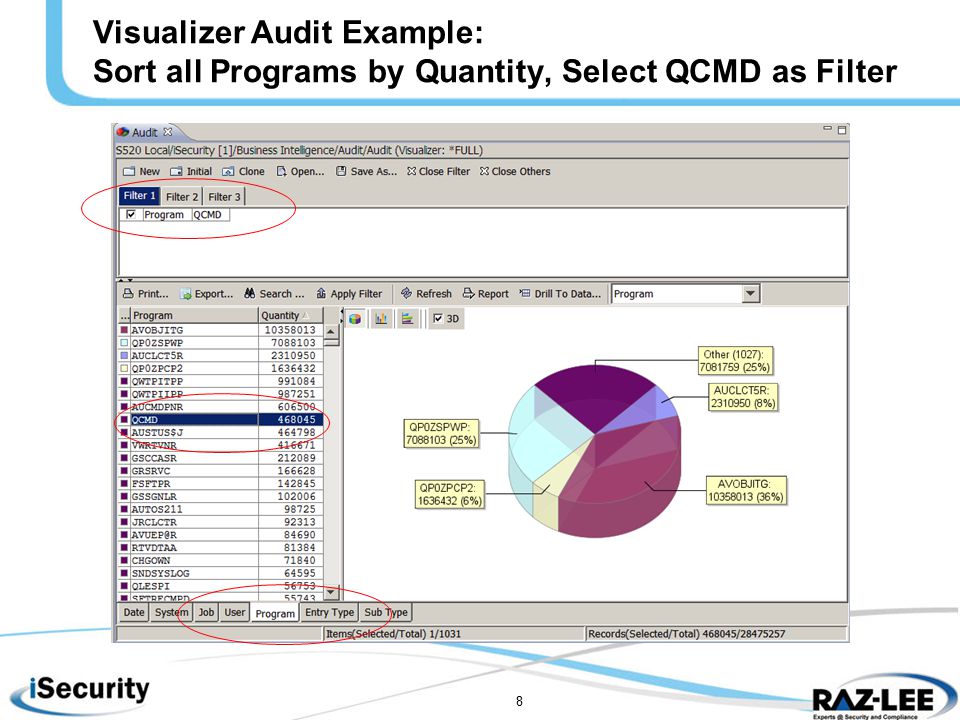

8 8 Visualizer Audit Example: Sort all Programs by Quantity, Select QCMD as Filter

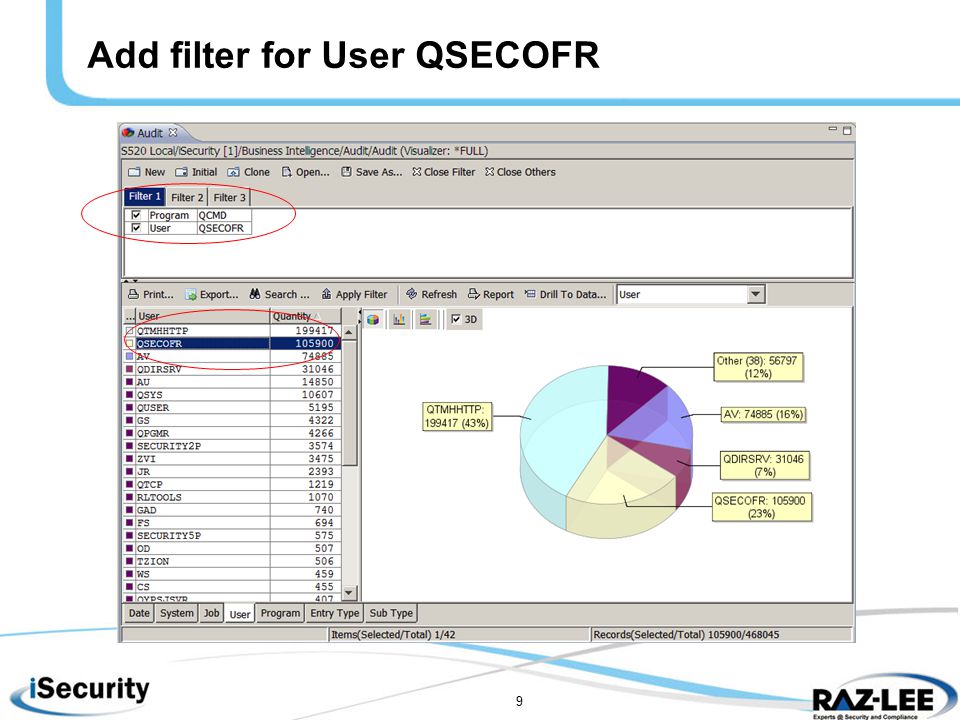

9 9 Add filter for User QSECOFR

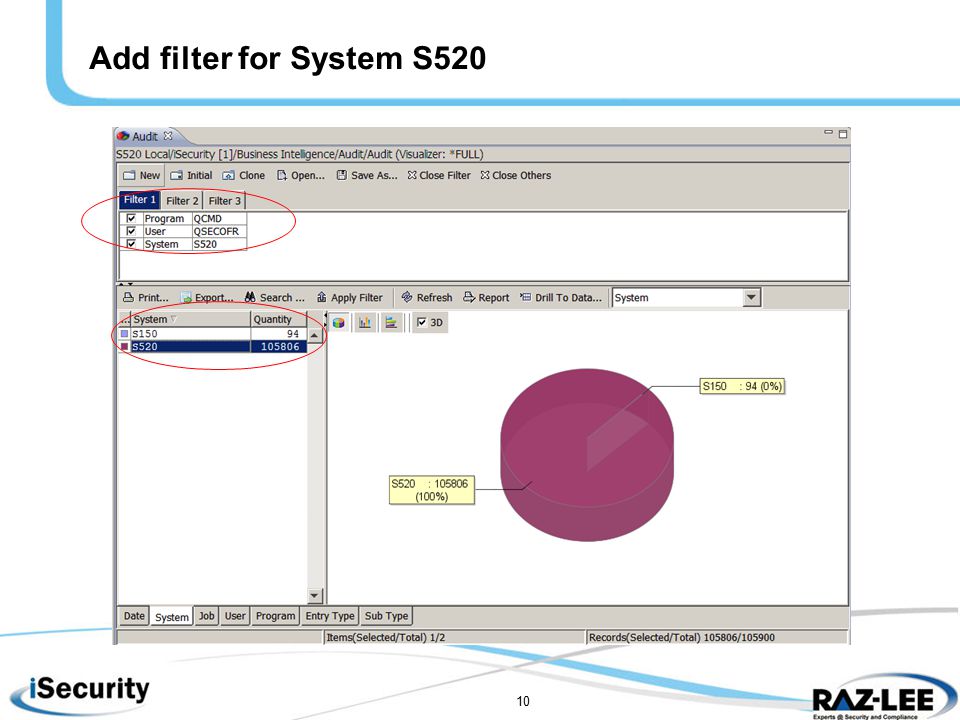

10 10 Add filter for System S520

11 11 Add filter for last 5 days

12 12 Add filter by unique iSecurity Entry Type User Profile Changed

13 13 Select Sub Type “User Profile Changed: STATUS (*ENABLED)”; note 2 entries selected Click “Drill to Data”

14 14 View 2 QAUDJRN records, select one and click on Create Detection Rule

15 15 Detection Rule pre-populated with data from actual QAUDJRN event

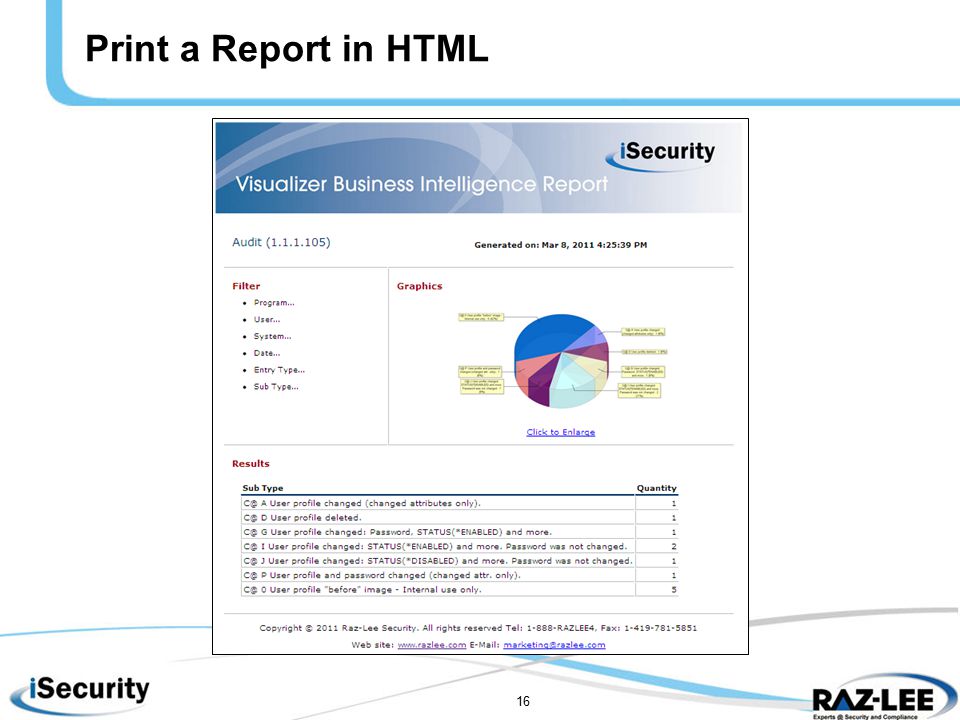

16 16 Print a Report in HTML

17 17 Please visit us at Thank You!
