1. 1 Visualizer for Firewall Display & Analysis Tool

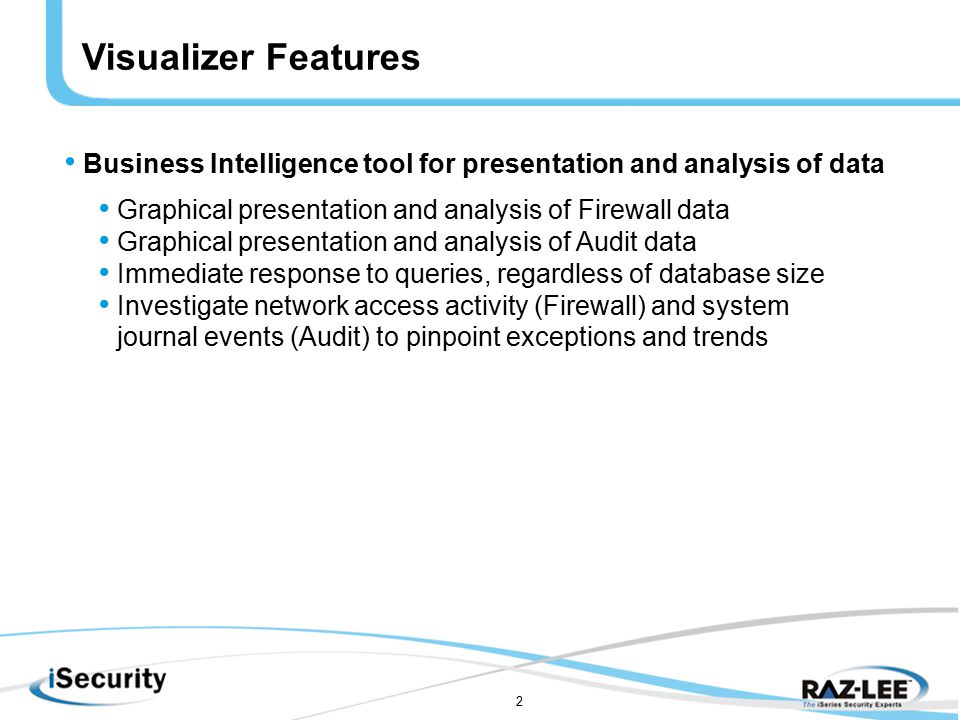

2. 2 Graphical presentation and analysis of Firewall data Graphical presentation and analysis of Audit data Immediate response to queries, regardless of database size Investigate network access activity (Firewall) and system journal events (Audit) to pinpoint exceptions and trends Business Intelligence tool for presentation and analysis of data Visualizer Features

3. 3 Visualizer Helps you Understand & Implement Security “With Visualizer, understanding and implementing security is easy!” 65 Or get an analysis of security data in graphical user-friendly format. …and create a security rule based on an actual event. 4 3 With Visualizer you can easily isolate a single event out of millions of log entries… 2 “To create a security rule, I have to actually write a program…” 1 “There are millions of log entries – it’s so hard to find a specific entry.”

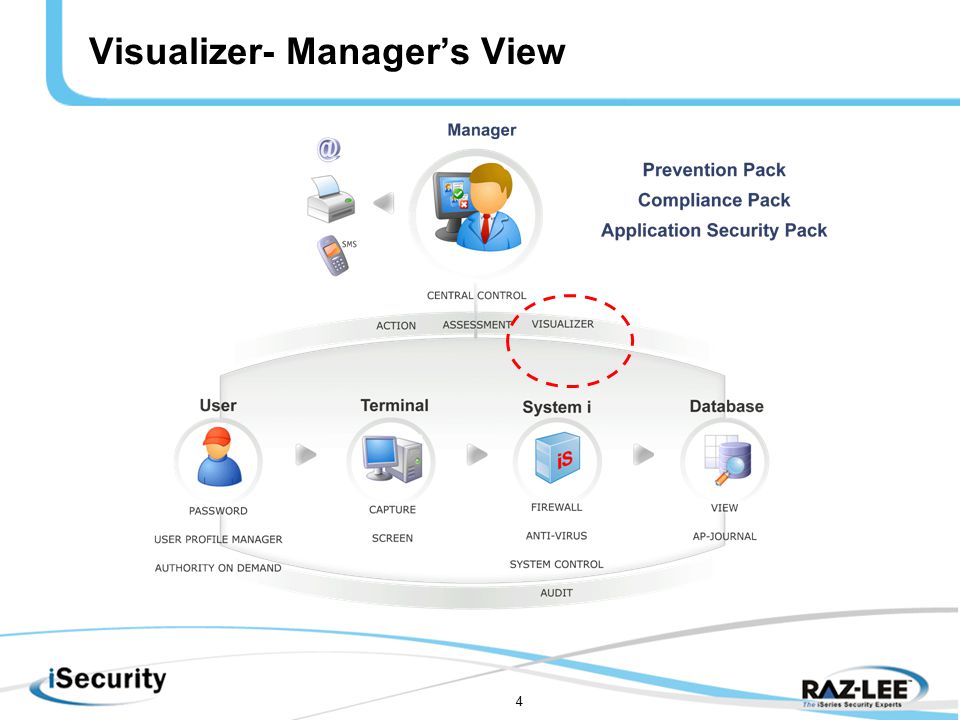

4. 4 Visualizer- Manager’s View

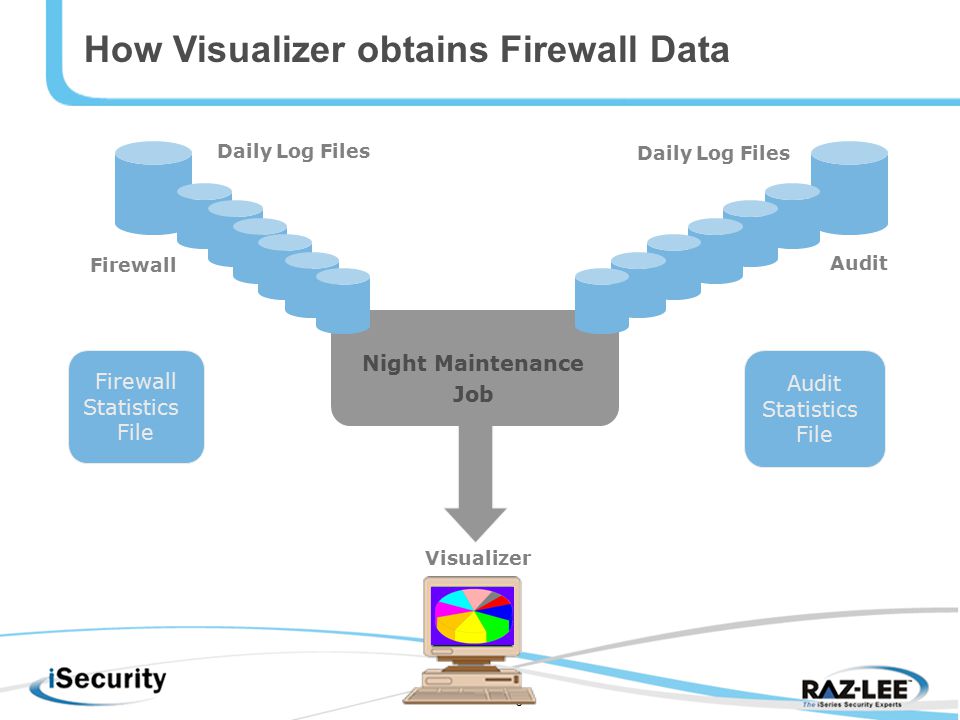

5. 5 Night Maintenance Job Audit Statistics File Firewall Statistics File Firewall Audit Visualizer How Visualizer obtains Firewall Data Daily Log Files

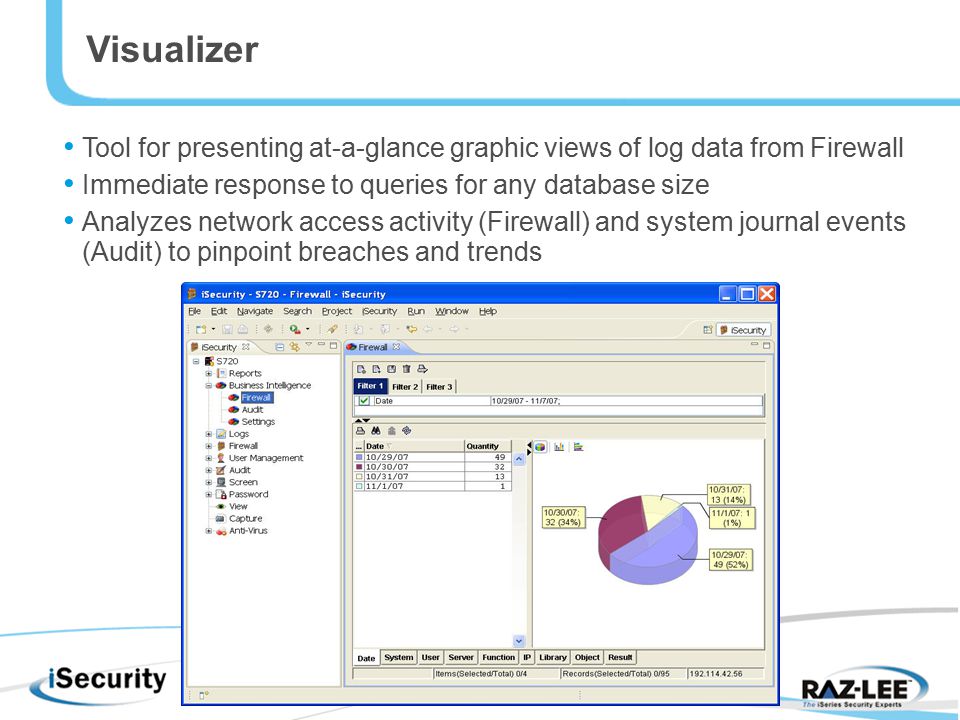

6. 6 Tool for presenting at-a-glance graphic views of log data from Firewall Immediate response to queries for any database size Analyzes network access activity (Firewall) and system journal events (Audit) to pinpoint breaches and trends Visualizer

7. 7 Visualizer – Analysis of Firewall Log

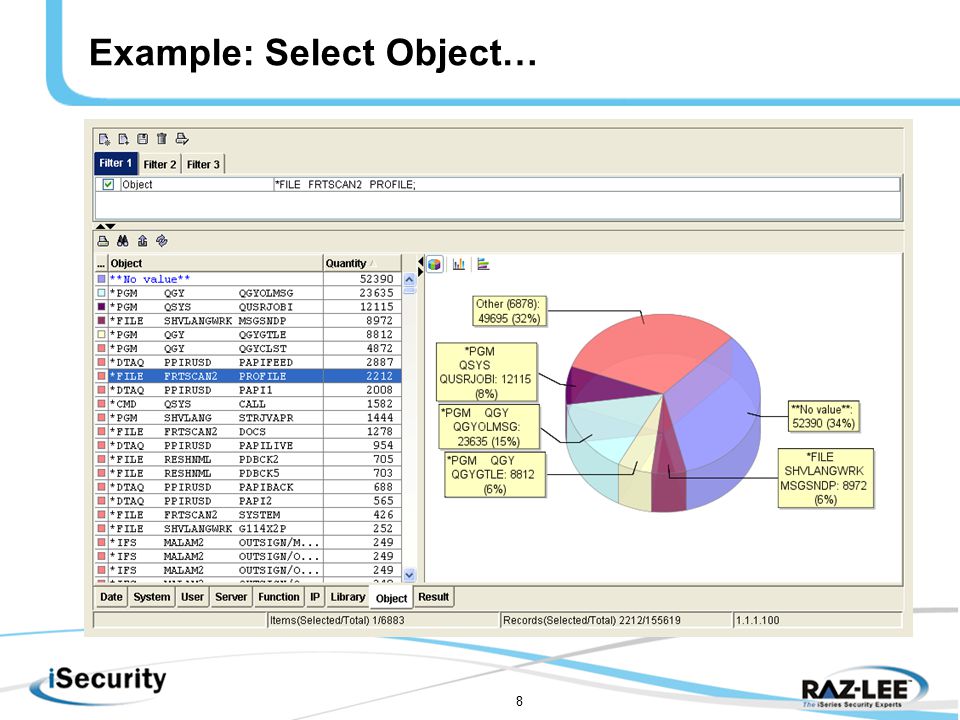

8. 8 Example: Select Object…

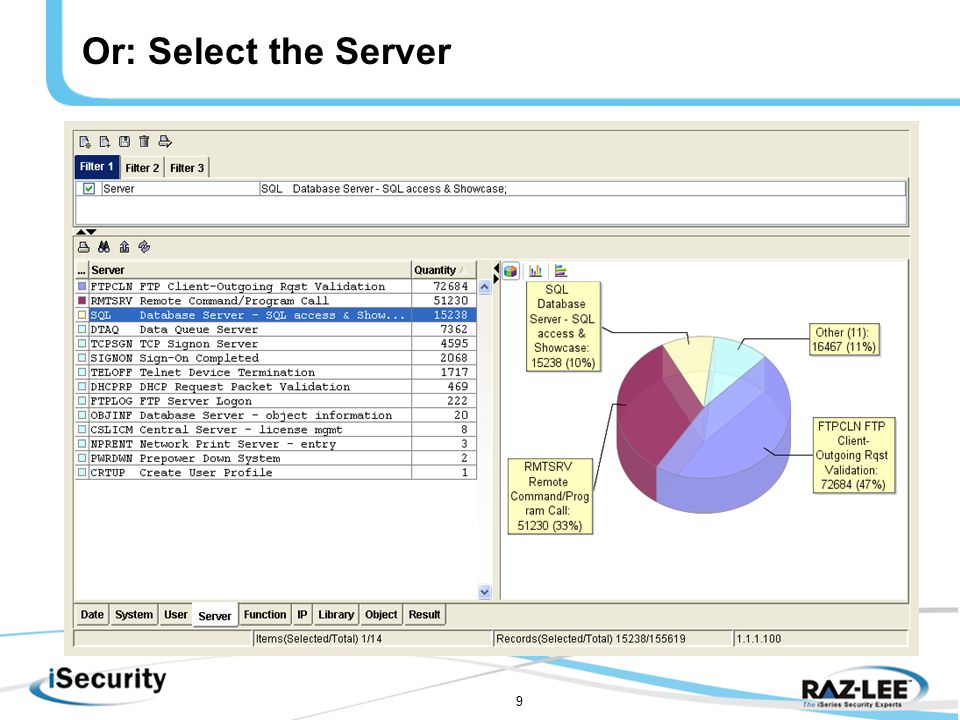

9. 9 Or: Select the Server

10. 10 And Continue investigating, filtering by Directory & down to the SQL Verb level!

11. 11 Please visit us at www.razlee.com Thank You!
