1 Background and Capabilities Presentation 2010

2 1976: Elreha GmbH was established in Hockenheim, Germany, designing and manufacturing temperature controls to supply the European Market. 1990: Elreha Printed Circuits Corp. was founded in St. Petersburg, FL as a means to provide cost effective PCBs to Germany and later become a leading PCB supplier in the North and South American Market. 1995: EPC ELREHA Leiterplattentechnik GmbH was founded to provide PCBs to the European market and further support our controls division. 1998: HT Global Circuits was established as a division of Elreha to provide our customers with offshore products/pricing 2000: Elreha Jordan was established, specializing in hardware, software and web solutions. It was also a strategic expansion of our manufacturing capability at offshore cost for controls assembly.

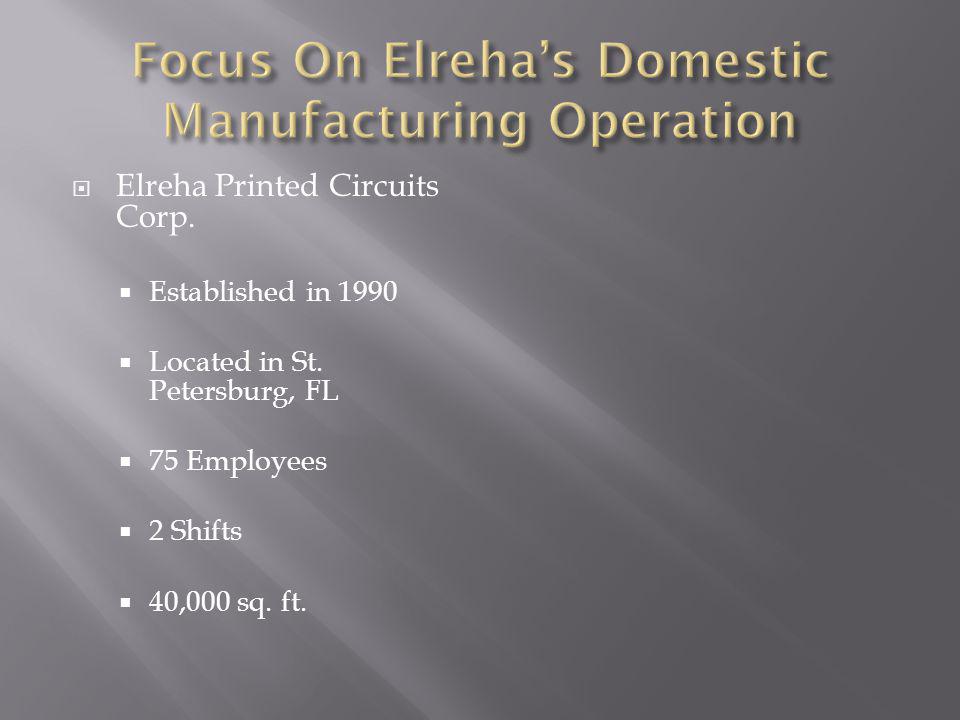

3 Elreha Printed Circuits Corp. Established in 1990 Located in St. Petersburg, FL 75 Employees 2 Shifts 40,000 sq. ft.

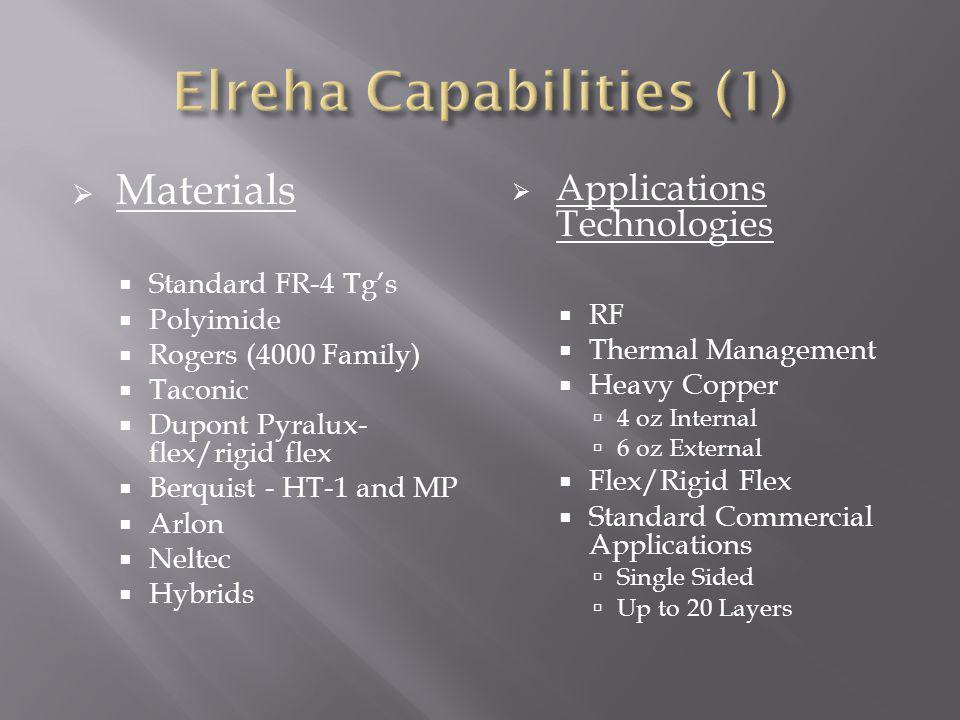

4 Materials Standard FR-4 Tgs Polyimide Rogers (4000 Family) Taconic Dupont Pyralux- flex/rigid flex Berquist - HT-1 and MP Arlon Neltec Hybrids Applications Technologies RF Thermal Management Heavy Copper 4 oz Internal 6 oz External Flex/Rigid Flex Standard Commercial Applications Single Sided Up to 20 Layers

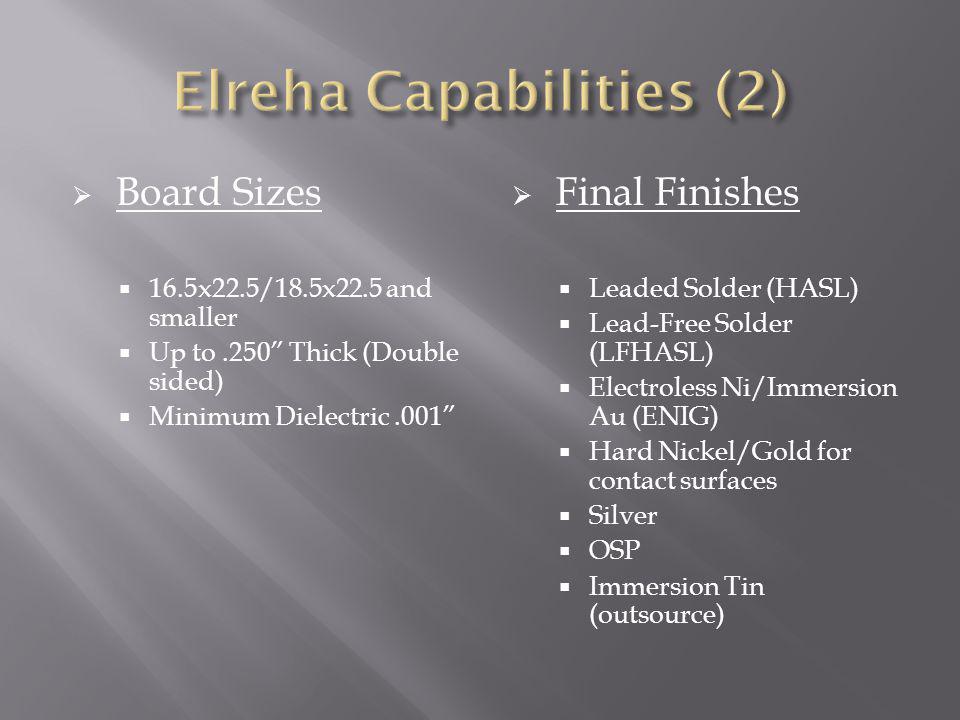

5 Board Sizes 16.5x22.5/18.5x22.5 and smaller Up to.250 Thick (Double sided) Minimum Dielectric.001 Final Finishes Leaded Solder (HASL) Lead-Free Solder (LFHASL) Electroless Ni/Immersion Au (ENIG) Hard Nickel/Gold for contact surfaces Silver OSP Immersion Tin (outsource)

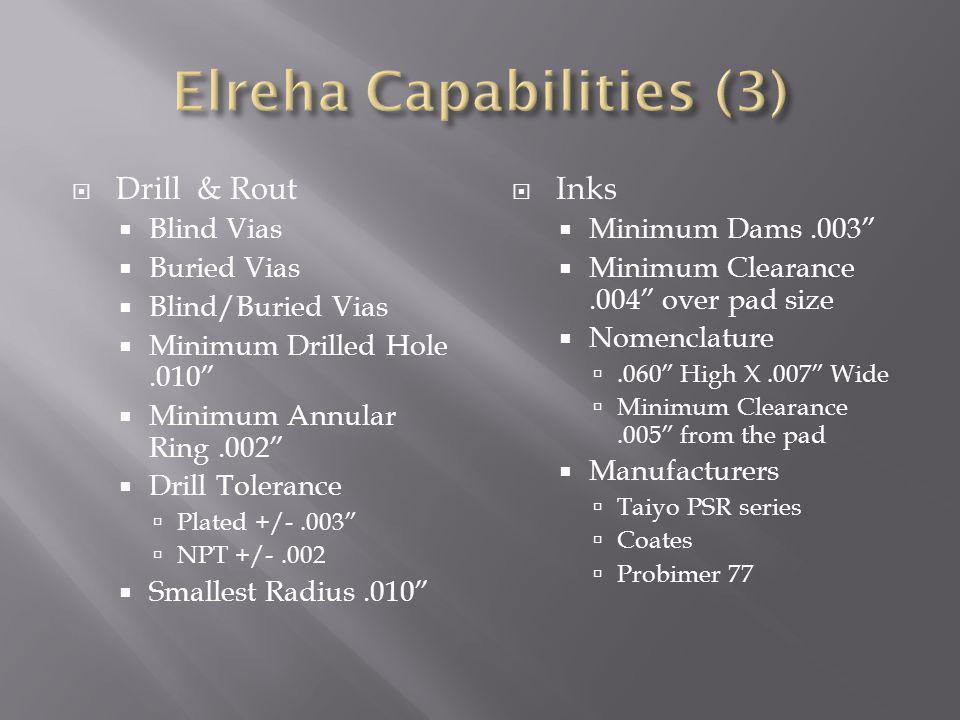

6 Drill & Rout Blind Vias Buried Vias Blind/Buried Vias Minimum Drilled Hole.010 Minimum Annular Ring.002 Drill Tolerance Plated +/-.003 NPT +/-.002 Smallest Radius.010 Inks Minimum Dams.003 Minimum Clearance.004 over pad size Nomenclature.060 High X.007 Wide Minimum Clearance.005 from the pad Manufacturers Taiyo PSR series Coates Probimer 77

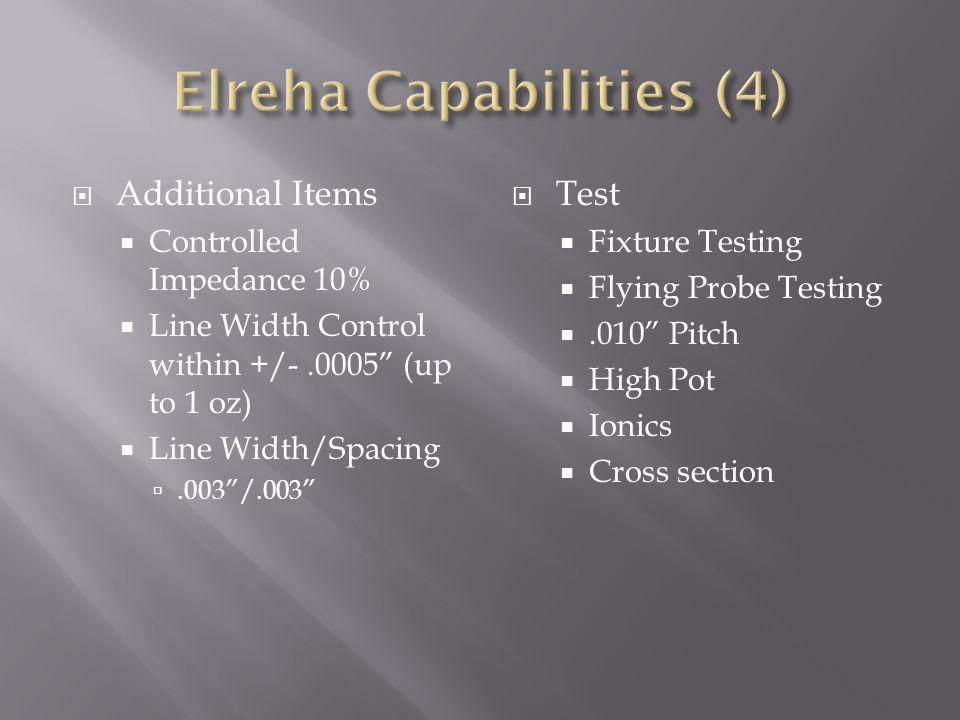

7 Additional Items Controlled Impedance 10% Line Width Control within +/ (up to 1 oz) Line Width/Spacing.003/.003 Test Fixture Testing Flying Probe Testing.010 Pitch High Pot Ionics Cross section

8 Reverse Engineering Capability PCB Design Layout Capability Global Engineering Staff with Universal Tooling Altium Software

9 Certifications and Standards UL 94v-0 (US and Canada) ISO 9001 TS MIL ITAR IPC 6012/ IPC-600
