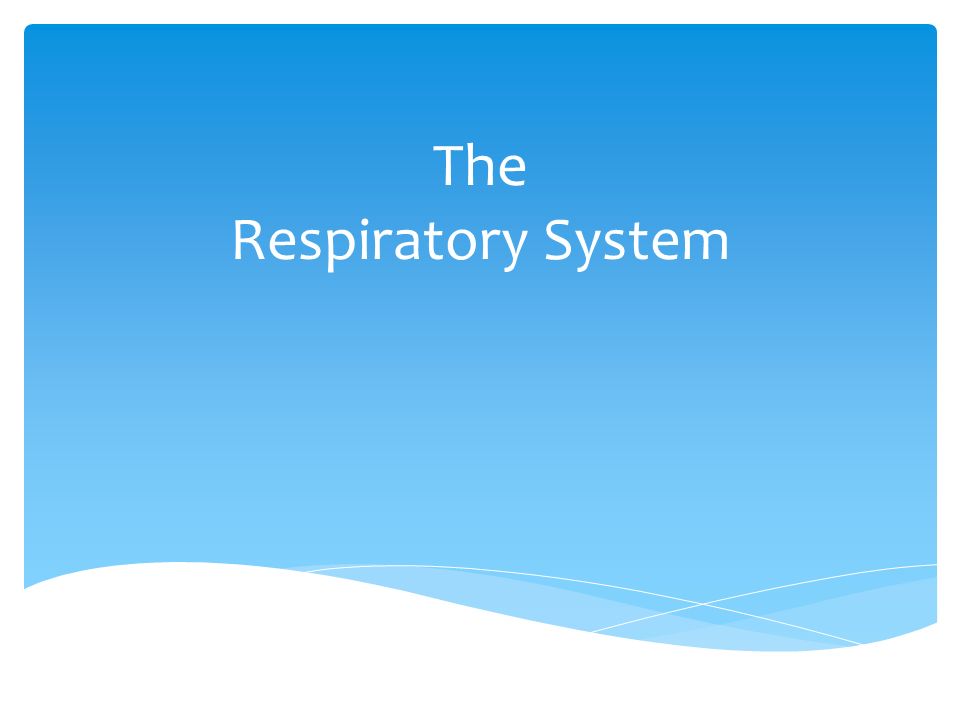

1. The Respiratory System

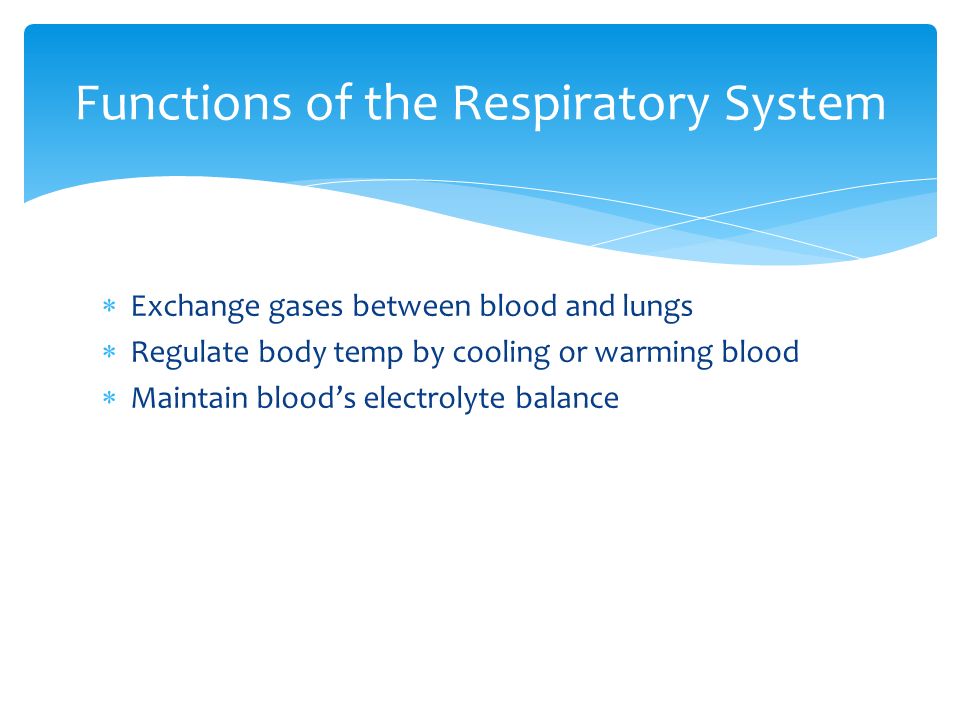

2.  Exchange gases between blood and lungs  Regulate body temp by cooling or warming blood  Maintain blood’s electrolyte balance Functions of the Respiratory System

3.  External respiration (ventilation): brings O2 into lungs  Internal respirations: exchange O2 & CO2 between blood & body cells  Cellular respiration: changes acid produced during metabolism into harmless chemicals in the cells. Types of Respiration

4. Structures of the Respiratory System

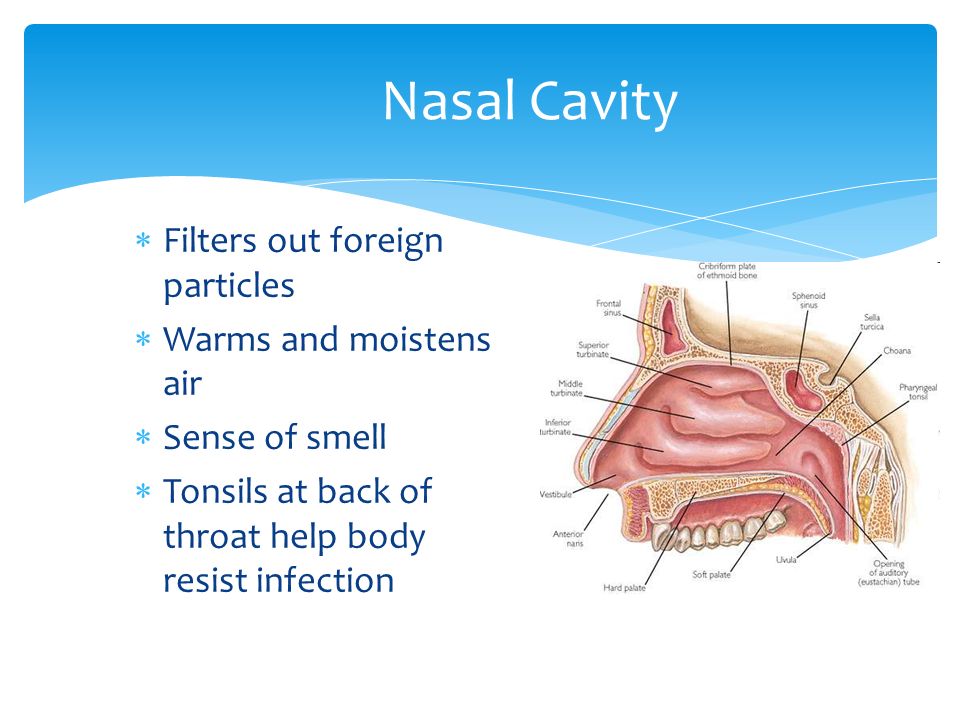

5. Nasal Cavity  Filters out foreign particles  Warms and moistens air  Sense of smell  Tonsils at back of throat help body resist infection

6. Nasal Cavity  Tears drain into nose to provide additional moisture for air

7. Sinuses  Air filled cavity that is lined with mucous membrane  Regulates temperature of air before reaching lungs  Help give resonance to voice

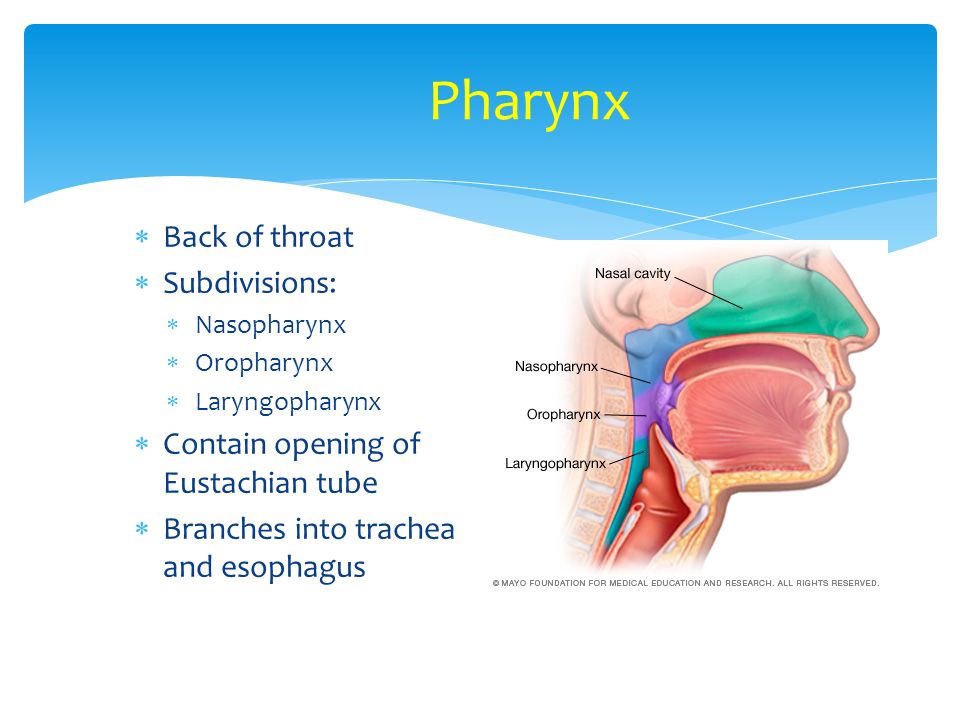

8. Pharynx  Back of throat  Subdivisions:  Nasopharynx  Oropharynx  Laryngopharynx  Contain opening of Eustachian tube  Branches into trachea and esophagus

9. Larynx  AKA: Voice box  Below pharynx-two folds of cartilage  Epiglottis  Covers larynx during swallowing  Prevent food and liquid from entering lungs

10. Trachea  AKA: Windpipe  Extending from larynx to center of chest  Lined with C-shaped cartilage to keep passageway open  Dorsal surface open to allow expansion of esophagus when swallowing

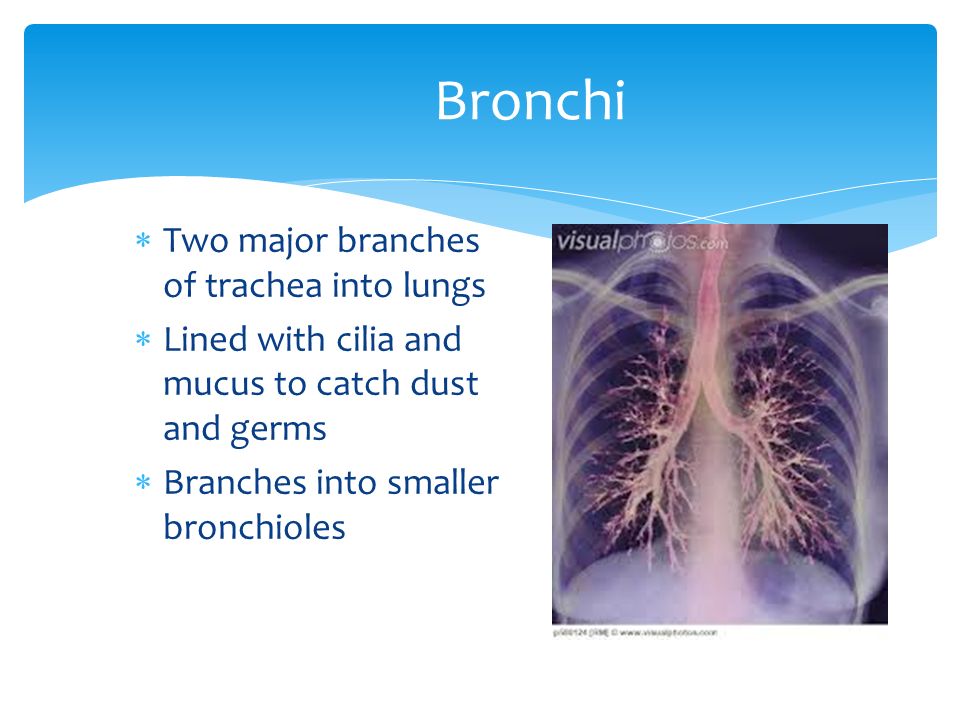

11. Bronchi  Two major branches of trachea into lungs  Lined with cilia and mucus to catch dust and germs  Branches into smaller bronchioles

12. Alveoli  Air sacs at terminal ends of bronchioles  Surrounded by capillaries where exchange of oxygen/carbon dioxide occurs by diffusion

13. Lungs  Divided into sections called lobes  Right lung  Three lobes  Left lung  Two lobes  Surrounded by double membrane (pleura) which separates and lubricates lung tissue

14. Diaphragm  Large, flat muscle separating thoracic cavity from abdominal cavity  Contraction causes inhalation, relaxation causes exhalation

15. Process of Respiration

16.  Occurs in two phases  Inspiration and expiration

17. Process of Respiration  Inspiration or inhalation  Diaphragm and intercostal muscles contract and enlarge thoracic cavity  Creates a vacuum causing air to rush in

18. Process of Respiration  Expiration or exhalation  Diaphragm and intercostal muscles relax  Air forced out of lungs and air passages

19.  Process controlled in brain  Increase in CO2 causes increased rate of respirations  Usually involuntary, but can be controlled Process of Respiration

20. Lung Function Assessment Techniques

21.  Rate: # of breaths per minute  Normals:  Adults: 14-18  Children: >20  Types of respirations:  Eupnea: normal respiration  Dyspnea: painful or difficult  Bradypnea: <10  Tachypnea: >24  Apnea: no respiration Assessment Techniques

22.  Character:  Should have regular rhythm at regular intervals  Described as:  Regular/ Irregular  Dry/Wet  Deep/Shallow Assessment Techniques

23.  Character (cont)  Normal breath sounds:  Dry  Clear  Abnormal breath sounds:  Wheezing  Rales (mucus in trachea) Assessment Techniques

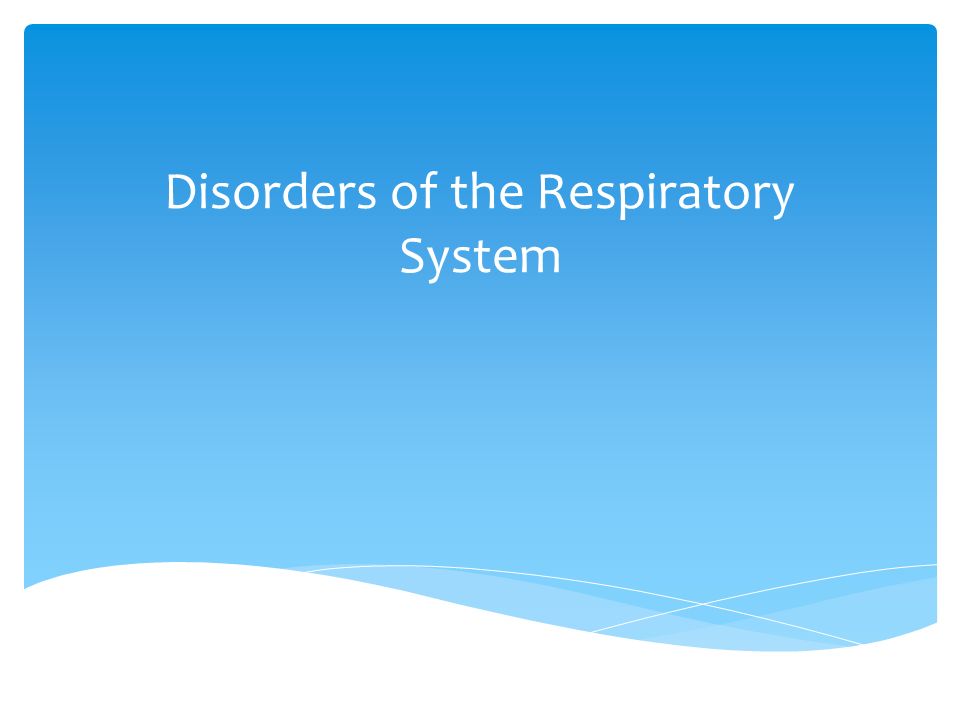

24. Disorders of the Respiratory System

25. COPD-Chronic Obstructive Pulmonary Disease  A group of chronic respiratory disorders  Asthma  Chronic bronchitis  Emphysyma  Cystic fibrosis  Symptoms:  Shortness of breath  Dyspnea  Tissue hyperplasia

26. Asthma  Causes:  Allergic reaction or cells in airway trigger attack  Cold temps  Exercise  Strong emotion  Symptoms:  Bronchi narrow and spasm  Wheezing  Difficulty exhaling  Treatment:  Relaxation  Medication

27. Chronic Bronchitis  Causes:  Infection of bronchi  Symptoms:  Inflammation of bronchi  Heavy cough  Sputum production  Treatment:  Expectorants  Postural drainage

28. Emphysema  Causes:  Mostly from smoking  Symptoms:  Alveoli lose elasticity >50 years old  Dyspnea  Treatment:  Pursed lip breathing  Constant O2

29. Cystic Fibrosis  Causes:  Genetic disorder  Diagnosed by 6 months  Symptoms:  Mucus becomes thicker  Excess salt appears on skin  Treament:  No cure  Intensive pulmonary care

30. Upper Respiratory Infection  Cause:  virus or bacteria in nose, pharynx, and/or larynx  Symptoms:  Pharyngitis  Laryngitis  Difficulty swallowing  Swollen tonsils & lymph nodes  Treatment:  Palliative care

31. Pneumonia  Causes:  Infection of the lungs by pathogens  Chemical irritants  Symptoms:  Inflammation of the lungs  Buildup of excessive moisture/mucus  Dyspnea  Treatment:  Antibiotics  Meds to decrease moisture

32.  When alveoli do not inflate properly  Adult Respiratory Distress Syndrome (ARDS):  Results from inhaling foreign substances causing swelling of tissues  Infant Respiratory Distress Syndrome (IRDS):  Leading cause of death of preemies  Use of surfactants to develop lungs  Sudden Infant Death Syndrome (SIDS):  Unexplained, sudden death of infant < 1 year  Runs in families  Use of heart and respiratory monitors Respiratory Distress Syndrome

33. The End

35. Lung Function Chart TestNormals (from notes) Your Results Norm? High? Low? Why? Vital Capacity Expiratory Reserve Tidal Volume Inspiratory Capacity Your normal from calculation

36.  Residual volume  Amount air remaining after as much air as possible can be expelled to keep lungs inflated  Normal: 900-1200 ml  Vital Capacity  Total capacity of lungs except for residual volume  Normals:3-5L Lung Function Testing

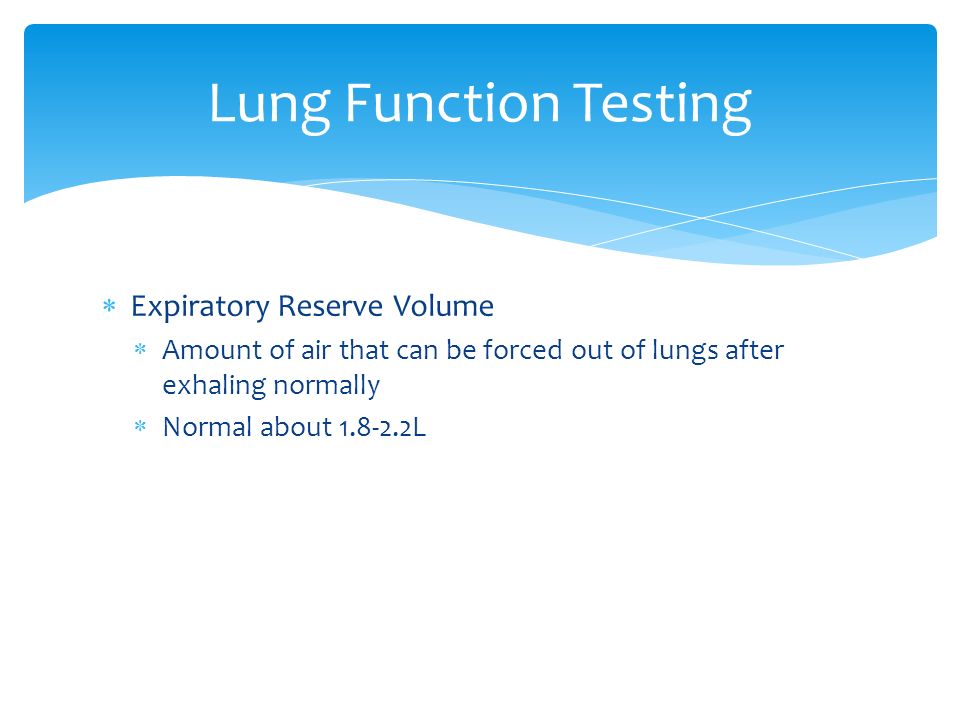

37.  Expiratory Reserve Volume  Amount of air that can be forced out of lungs after exhaling normally  Normal about 1.8-2.2L Lung Function Testing

38.  Tidal volume  Amount of air taken in during normal breathing  Normal: 400-500 ml  Inspiratory reserve volume  Amount of air that may be taken in by lungs when taking deep breath  Normal: 2-3L Lung Function Testing
