1. The Complete Training/Knowledge Guide

2. Session 2: Phone Basics  Removing the Back Cover  Installing the Battery  Removing the Battery  Installing the SIM Card  Installing the microSD™ Card

3. Removing the Back Cover  Hold the device securely with the front facing down. With your thumb or finger, lift up the top of the back cover. Lift up from the narrow opening

4. Installing the Battery Step One  Align the battery’s exposed copper contacts with the battery connectors inside the battery compartment and then insert the contact side of the battery. Battery contacts

5. Installing the Battery Step One  Align the battery’s exposed copper contacts with the battery connectors inside the battery compartment and then insert the contact side of the battery. Step Two  Gently push the battery into place. Battery contacts

6. Removing the Battery  Remove the back cover. Lift up the battery from the small opening at the top of the battery compartment. Lift up from here

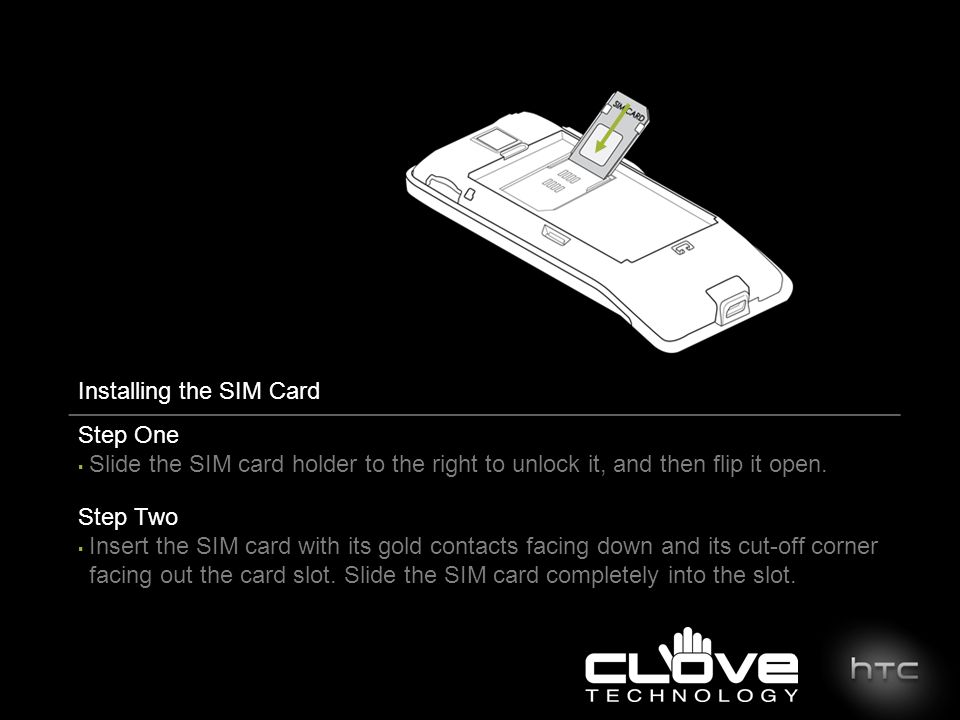

7. Installing the SIM Card Step One  Slide the SIM card holder to the right to unlock it, and then flip it open.

8. Installing the SIM Card Step One  Slide the SIM card holder to the right to unlock it, and then flip it open. Step Two  Insert the SIM card with its gold contacts facing down and its cut-off corner facing out the card slot. Slide the SIM card completely into the slot.

9. Installing the SIM Card Step One  Slide the SIM card holder to the right to unlock it, and then flip it open. Step Two  Insert the SIM card with its gold contacts facing down and its cut-off corner facing out the card slot. Slide the SIM card completely into the slot. Step Three  Close the SIM card holder. Slide it to the left to lock it.

10. Installing the microSD TM Card  Insert the microSD card into the slot with its gold contacts facing down and then press it all the way in until you hear a click.. microSD card slot

11. Session 3: Getting Started  Setting Up Your Phone for the First Time  Exploring the Home Screen  Working with the Extended Home Screen  Using the Onscreen Keyboard  Making Calls Using the Dialer  Copying Files to the Storage Card

12. Setting Up Your Phone for the First Time  You can start setting up your email accounts and social networks right away.  Google™, Facebook™, Flickr ®, Twitter™, Microsoft ® Exchange ActiveSync and other email accounts.  Choose which accounts you want to set up. Tap Skip if you do not want to set up accounts. Tap Finish to finish the setup process and go to the Home screen.*

13. Exploring the Home Screen  The Home screen gives you a lot of real estate to work with so you can add the items you want and need on the Home screen.  Add items like application icons, shortcuts, folders, and HTC or Google widgets to give you instant access to information and applications.  Press HOME to go back to the Home screen. All programs button Status bar Add to Home button

14. Working with the Extended Home Screen  The Home screen extends beyond the screen width to provide more space for adding icons, widgets, and more.  Press HOME, then slide your finger horizontally across the screen to go to the left or right side of the extended Home screen.  While on an extended Home screen, press HOME to return to the main Home screen.

15. Using the Onscreen Keyboard  When you start a program or select a field that requires text or numbers, the onscreen keyboard becomes available.  You can choose from three keyboard layouts: QWERTY, Compact QWERTY, and Phone keypad. Switch to Numeric and Symbol Keyboard Hide Keyboard Open Touch Input Settings Word candidate list

16. Making Calls Using the Dialer Step One  Press the CALL button or tap Phone on the Home screen.

17. Making Calls Using the Dialer Step One  Press the CALL button or tap Phone on the Home screen. Step Two  Tap the keys on the Phone keypad to enter the first few digits or characters of the contact you want to call. You can enter the first letter of the name or number of a contact. As you type, the screen simultaneously displays corresponding matches.*

18. Making Calls Using the Dialer Step One  Press the CALL button or tap Phone on the Home screen. Step Two  Tap the keys on the Phone keypad to enter the first few digits or characters of the contact you want to call. Step Three  Tap the contact to make the call.**

19. Copying Files to the Storage Card Step One  Connect the phone to the computer. Step Two  Press and hold the status bar when you see this icon, and then slide your finger downward to open the Notifications panel. Step Three  Tap USB connected and then on the message that is displayed, tap Mount. You can start using your storage card as a USB drive.

20. For More Information  Visit www.htchero.co.ukwww.htchero.co.uk  Email sales@clove.co.uksales@clove.co.uk  Call +44 (0)1202552936
