2. Remote Display Management Within the server software is the Remote Management function. This is an advanced version of Samsung’s MDC or Multiple Display Control software. The Remote Management system can be accessed by left clicking the fourth icon in the server software toolbar.

3. Remote Display Management From within the Remote Management, any display control available from the remote or through the on screen menus is available. Note: These functions must be done in real time, they cannot be scheduled or automated.

4. Remote Display Management The user can also monitor the display and client PC health from the Remote Management window. From the Diagnosis option, the display’s lamp, fan, and temperature status can be monitored. The display’s Max Temperature is the user controlled safety setting that will shut down the display when it reaches the specified temperature.

5. Remote Display Management If a display malfunctions, an Alert will notify the user of the issue, to allow it to be corrected. This will be shown in the toolbar of the server software, as the Alert icon.

6. Real Time Text Messaging MagicInfo Pro offers the ability for a user to issue a real time text message out to the network, in any combination of displays. The Message control can be accessed by left clicking the Message icon on the server software toolbar. Note: This message will be overlaid over whatever content is currently running on screen. These functions cannot be scheduled, and must be done manually, in real time.

7. Real Time Text Messaging The user can use the list of available MagicInfo Pro displays on the left hand side to select which displays will run the real time message. Each display that needs to show the text message should be checked. If the message is to be sent to all displays, the box for Network should be checked.

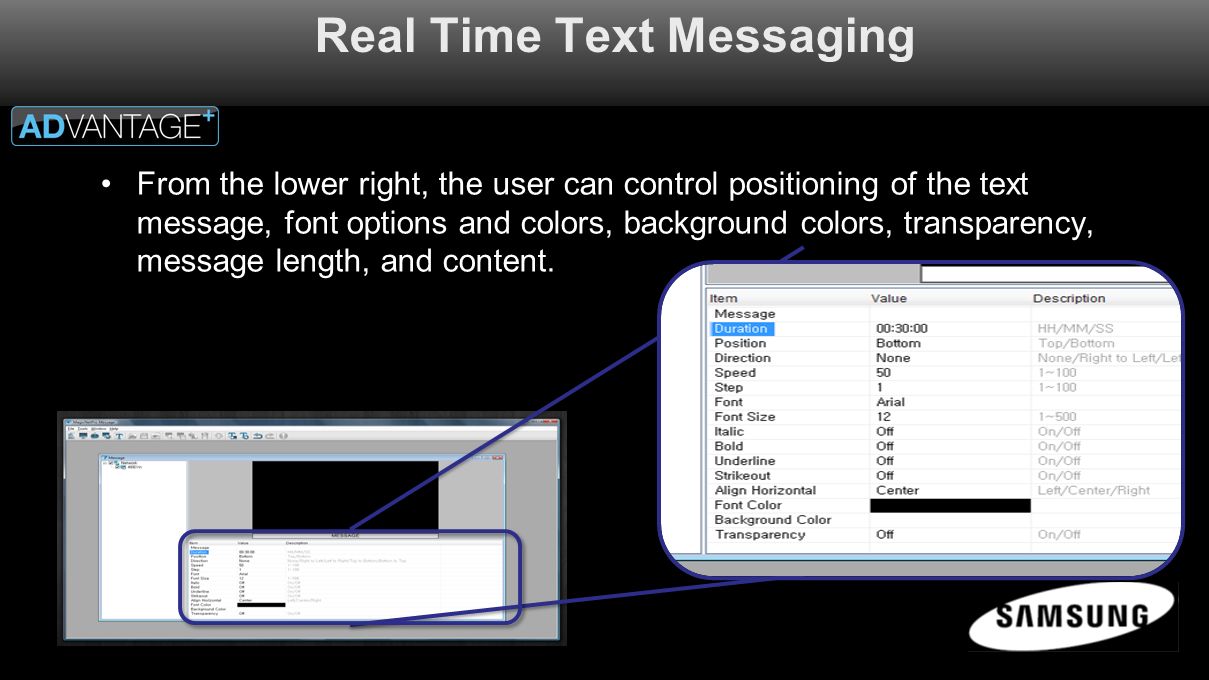

8. Real Time Text Messaging From the lower right, the user can control positioning of the text message, font options and colors, background colors, transparency, message length, and content.

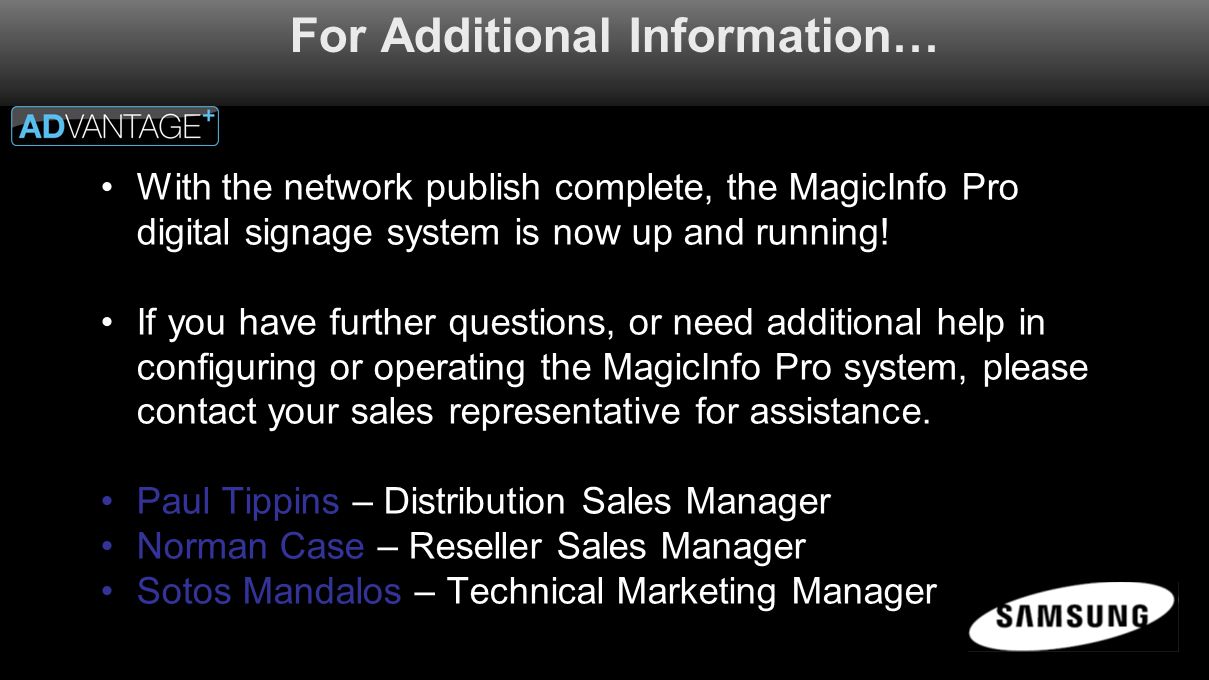

9. For Additional Information… With the network publish complete, the MagicInfo Pro digital signage system is now up and running! If you have further questions, or need additional help in configuring or operating the MagicInfo Pro system, please contact your sales representative for assistance. Paul Tippins – Distribution Sales Manager Norman Case – Reseller Sales Manager Sotos Mandalos – Technical Marketing Manager

10. For Additional Information…
