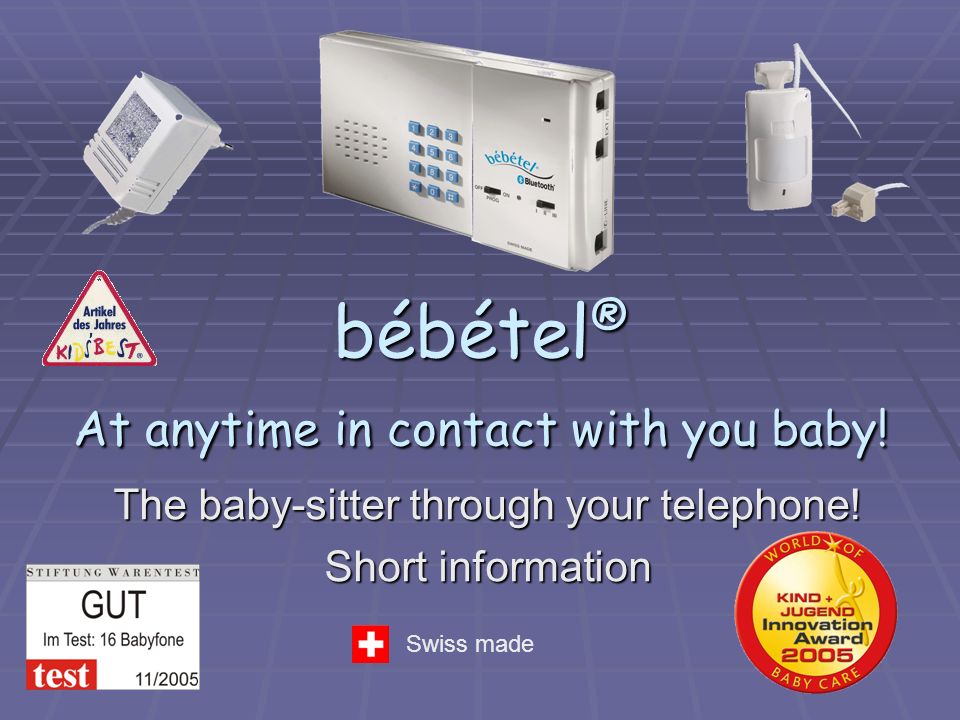

2. bébétel® At anytime in contact with you baby! The baby-sitter through your telephone! Short information Swiss made

3. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com bébétel ® – The babyminder over the phone with remarkable advantages  Unrestricted range Alarm goes over the phone network  Safe and reliable connection no influences through other system (no coding required)  Hands free communication you can talk to your child  Free from interference no radiation  Intelligent acoustical monitoring to avoid false alarm  Additional motion detection calls you if you child tries to leave the room without making noise

4. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com How to install bébételEXTRA ® 1 1.Insert 9V battery into battery compartment on rear side of device 2.Plug the AC-adapter into mains socket and then into one of the EXT jacks 3.Plug enclosed cord into  -LINE-jack and into the wall outlet: å or using country specific telephone adapter å directly using RJ11 cord (i.e. for hotels, in US, Spain, Portugal) 2 3 Option: Plug cable of the motion detector or bébételTWIN into the other EXT jack

5. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com 1 1.Insert 9V battery into battery compartment on rear side of device 2.Plug the AC-adapter into mains socket and then into one of the EXT jacks 3.Plug enclosed cord into  -LINE-jack and into the wall outlet: 2 mobile A 3 Option: Plug cable of the motion detector or bébételTWIN into the other EXT jack 3.In mobile application (i.e. in hotel without telephone line, holiday apartment, camping ground) you can pair bébételBLUETOOTH with a BLUETOOTH mobile phone as hands-free device phone B Attention: mobile A stays with bébétel  phone B with you! How to install bébételBLUETOOTH ® å using country specific telephone adapter å directly using RJ11 cord only (i.e. for hotels, in US, Spain, Portugal)

6. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.comProgramming 1.Set function switch to PROG 2.Enter calling number Number remains stored even if bébétel ® is switched off 3.Set function switch to OFF OFF ON PROG How to program telephone number 1.Set function switch to PROG 2. Press key # 3. Enter PIN-Code (4 to 7 digits) 4. Press key # 5. Re-enter PIN-Code for verification 6. Press key # 7.Set function switch to OFF OFF ON PROG OFF ON PROG How to program PIN-Code (used for check call through dialling in) OFF ON PROG

7. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com Test call (= direct alarm for older children) 1. Set function switch to ON 2. Press any key 3. Wait until connection is established and speak 4. Disconnect: Press key 0 or set function switch to OFF OFF ON PROG OFF ON PROG bébétel ®  bébétel ® self test at power on three beep  replace battery six beep   Landline mode: Idle tone not detected Bluetooth mode: Mobile A not detected

8. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.comMonitoring bébétel ® 1. Place bébétel ® into the child‘s room ( reduce potential noise sources: i.e. close windows) 2. Set function switch to ON and select sensitivity level 3.The inactive Waiting period after power on (2 minutes  indication LED is green (Landline mode) or blue (Bluetooth mode))  could be bypassed by pressing key 9 bébétel ® 5.As soon as the alarm condition is fulfilled bébétel ® start to dial the pre-programmed calling number Alarm conditions: approx. three noises on level HIGH, five on level MED, eight on level LOW or if the motion sensor detects movement.  Colour of the indicator LED changes to orange during telephone connection 6.If you answer the call you can listen into the room while the loudspeaker remains silent. During connection you can change mode using your key on your handset: Key 0: Disconnect Key 1: Switch to hands free mode (Loudspeaker is activated) Key 3: Restart connection timer for another two minutes ON PROG OFF 4.Monitoring: Indication LED flashes every four seconds and if the noise level is exceeded LOW HICH MED bébétel ®  bébétel ® self test at power on three beep  replace battery six beep   Landline mode: Idle tone not detected Bluetooth mode: Mobile A not detected phone B

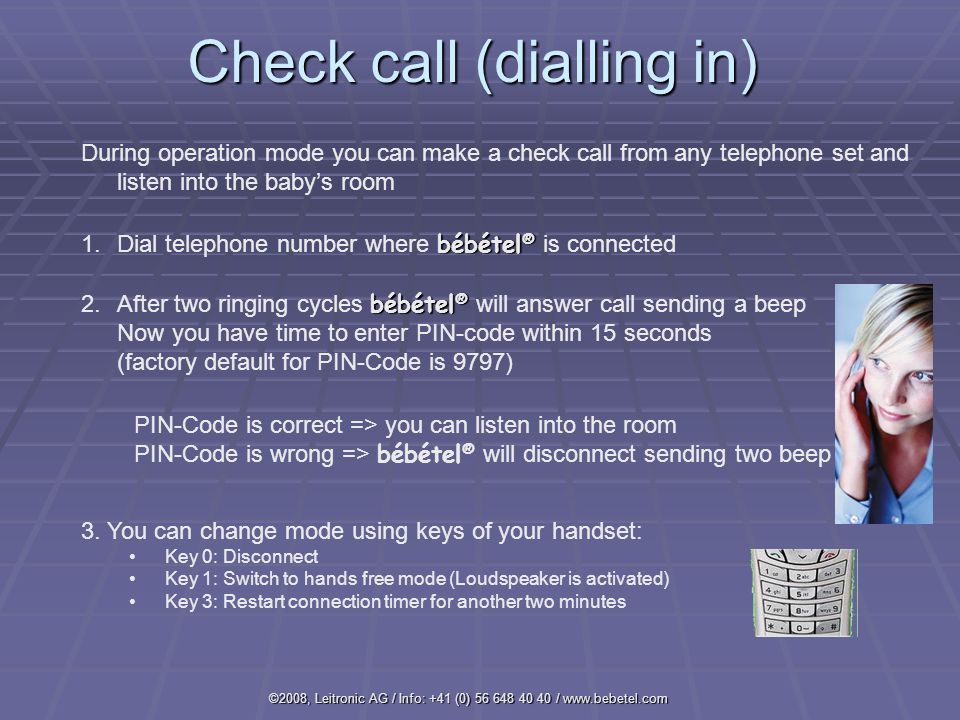

9. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com Check call (dialling in) During operation mode you can make a check call from any telephone set and listen into the baby’s room bébétel ® 1.Dial telephone number where bébétel ® is connected 3. You can change mode using keys of your handset: Key 0: Disconnect Key 1: Switch to hands free mode (Loudspeaker is activated) Key 3: Restart connection timer for another two minutes bébétel ® 2.After two ringing cycles bébétel ® will answer call sending a beep Now you have time to enter PIN-code within 15 seconds (factory default for PIN-Code is 9797) PIN-Code is correct => you can listen into the room PIN-Code is wrong => bébétel ® will disconnect sending two beep

10. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.comAccessories Telephone adapter set for use abroad Including different telephone adapter and 8m extension telephone cord PIR-Set Motion detector incl. 8m-connection cord Stand-alone smoke detector Alarm forwarding happens indirectly by the acoustic room monitoring bébételTWIN ® Extension unit to monitor a second room connected to bébétel ® with 8m-connection cord

11. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com Added value  Manufacturer helpdesk and Info-  : +41 (0)56 648 40 40  Swiss made: two years warranty  Homepage: www.bebetel.com with different reference sheets, interactive error handling sheets, Hotel-reference … www.bebetel.com

12. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com Frequently asked questions Connection to ISDN bébétel ® is designed to connect to the analogue telephone line, but can be used with ISDN. We recommend selecting a subscriber number (MSN) for the bébétel ® other than the main-number. NT1+2ab-terminal (for installations in Switzerland only) bébétel ® has to be connected to one of the analogue ports (a/b1) or (a/b2). ISDN private exchange Connect bébétel ® to one of the analogue ports of your private exchange. If your private exchange does not support an analogue port you probably can connect it to an analogue port of your ISDN terminal equipment (modem, telephone) or you have to buy an interface converter (S a/b).

13. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com Frequently asked questions Connection fee due to alarm cal bébétel ® only starts a call in case an alarm condition is detected. Please note that you will incur costs for calls to your mobile or pager. These may vary according to certain factors such as time of day or day of the week and should therefore be confirmed by your individual service provider. Pay attention to not divert rejected calls to an answering-machine. Monitoring two rooms a) Install bébételTWIN ® in the second location and connect to bébétel ® using 8m cable b) Because bébétel ® is very sensitive on position HIGH it is possible to supervise two rooms next to each other. You can place the alarm-unit between the two rooms, leaving the doors open! Please check sensitivity by creating some noise activity. We recommend to use the additional motion detector monitoring to ensure that the child cannot leave the room unnoticed.

14. ©2008, Leitronic AG / Info: +41 (0) 56 648 40 40 / www.bebetel.com Other products from Leitronic AG  EasyAlarm BASIC Technical alarms  EasyAlarm SENIOR Emergency dialler for elderly people/patients  EasyAlarm HOME Home security with wireless sensors  EasyAlarm WRL HOME Home security with wireless sensors  EasyAlarm MANDOWN Personal safety (Man Down)  EasyAlarm ELEVATOR Elevator emergency dialler Simple to install Simple to install Easy to use due to fully voice-guided user interface Easy to use due to fully voice-guided user interface up to nine calling numbers up to nine calling numbers
