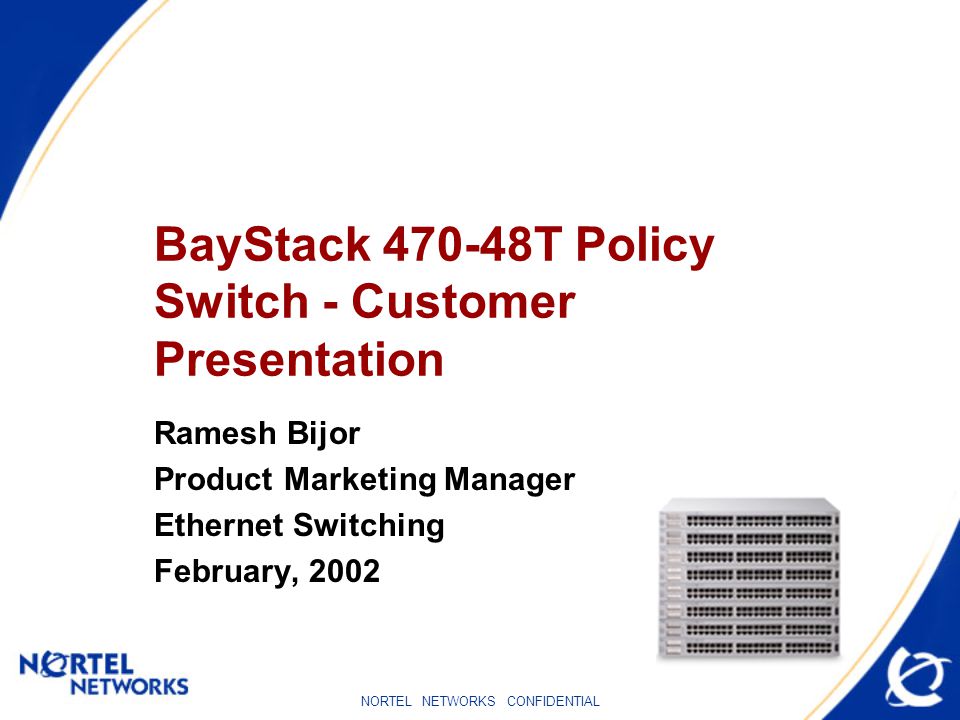

1. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Policy Switch - Customer Presentation Ramesh Bijor Product Marketing Manager Ethernet Switching February, 2002

2. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 1 BayStack 470-48T Agenda BayStack Portfolio Positioning Product Highlights Value Proposition Enterprise Solution with Passport 8600 Competitive Positioning BayStack Portfolio – Key Differences Plan of Record Pricing and Ordering Information

3. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 2 Price/port Feature/Function BayStack 470-48T BayStack 420-24T BayStack Portfolio Positioning BayStack 450-24T Business Policy Switch BayStack 380-24T Cost-effective 10/100 Stackable Switch for small & medium business Resilient Fail-safe 10/100 Stacking switch for medium & large enterprise Resilient Fail-safe 10/100 Stacking switch With QoS for medium and large enterprise High-density Resilient Fail- safe 10/100 Stacking switch with QoS for medium & large enterprise Cost-effective High-density 10/100/1000 Gigabit switch for medium & large enterprise BayStack 460-24T-PWR Resilient fail-safe 10/100 Power over Ethernet stackable switch with QoS Cost-effective High- density Gigabit Aggregation switch for small & medium Business BayStack 380-24F

4. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 3 BayStack 470-48T Policy Switch Product Highlights (v2.2) 48 10/100 Mbps stackable QoS-enabled switch –Ports 47 and 48 may be configured as 10/100 or GBIC port 2 Built-in GBIC slots for uplink ports 2 Built-in stacking ports (no cascade module needed) Technology Innovators –Distributed MultiLink Trunking (DMLT) –Split MultiLink Trunking (SMLT) with Passport 8600 Security features include IEEE 802.1x based security (EAP over LAN), SNMPv3, BaySecure and Radius support QoS-enabled for mission-critical users, applications, or devices with L2/L3/L4 packet classification & prioritization* Ideal for medium-to-large enterprise wiring closets *Feature released with v2.2.1. Now available from the web

5. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 4 BayStack 470-48T Policy Switch Product Highlights (continued) Fail-safe stacking 2.5 Gbps stacking bandwidth Multiple Spanning Tree groups Slot for DC-to-DC converter module for RPS support with BayStack 10 Power Supply Unit (PSU) Common software platform 1U High compact design Web-Based Management Auto MDI/MDIX hardware detection

6. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 5 Distributed MultiLink Trunking Passport 8600 Switch Server MultiLink Trunking Provides High Bandwidth and Fault Tolerance Stack connections to servers and the network center is protected, even if one switch should fail (Distributed MultiLink Trunking) Load-balancing, fail-over protection for uninterrupted access to servers or network center

7. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 6 SMLT (Split MultiLink Trunking) Split Multi-Link Trunking –A Fresh approach to the spanning tree problem –Current network rules mean that one connection must be blocked. –Both Links are active Advantages –Fail-over reduced to <1sec –None wasted - You can use what you pay for! IST Core Passport 8600 BayStack 470-48T IST: Inter Switch Trunk

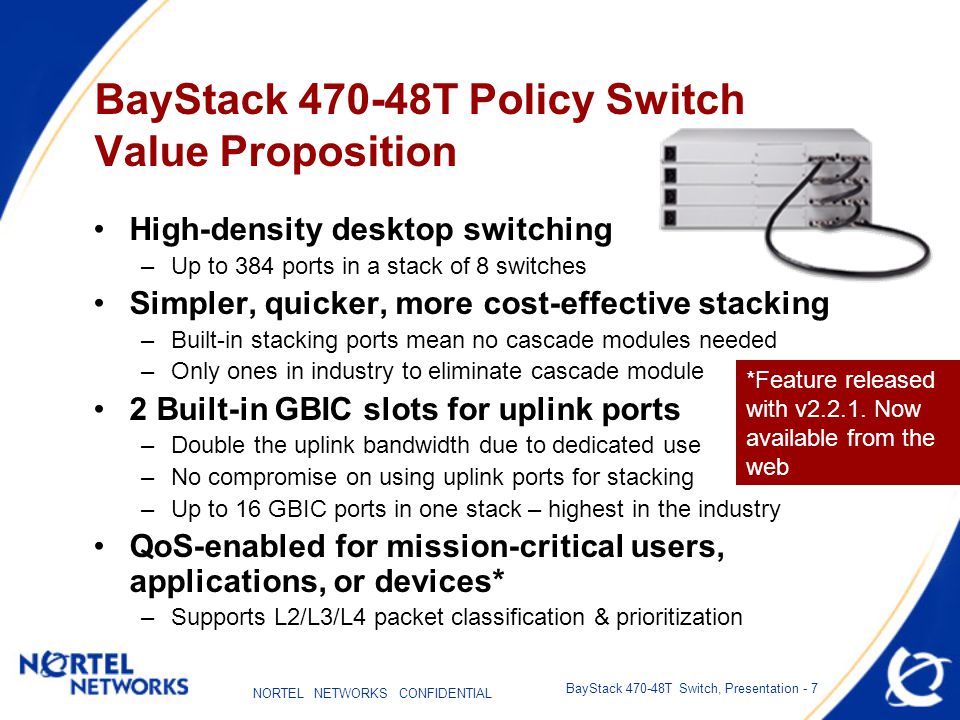

8. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 7 BayStack 470-48T Policy Switch Value Proposition High-density desktop switching –Up to 384 ports in a stack of 8 switches Simpler, quicker, more cost-effective stacking –Built-in stacking ports mean no cascade modules needed –Only ones in industry to eliminate cascade module 2 Built-in GBIC slots for uplink ports –Double the uplink bandwidth due to dedicated use –No compromise on using uplink ports for stacking –Up to 16 GBIC ports in one stack – highest in the industry QoS-enabled for mission-critical users, applications, or devices* –Supports L2/L3/L4 packet classification & prioritization *Feature released with v2.2.1. Now available from the web

9. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 8 Typical Traffic Flow User A Passport 8600 Core Switch E-Mail/FTP/Web Server User B E-mail sent by User A 6 Switch forwards E- mail from server E-mail received by User B Server response to User B E-mail received by server 25 1 3 4 Switch forwards E-mail request to server Most traffic flows via the uplink. Uplink

10. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 9 Typical Competitor’s Implementation Need to sacrifice 1 GBIC port per switch for stacking Trunking is not allowed across different switches in a stack Hence uplink to the core is limited to only 1 GBIC for the whole stack Single-point-of-failure as only one uplink connection is available to the core Uplink to the Core Switch Uplink Bandwidth Limited to 1 Gbps (Half-duplex).

11. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 10 Distributed MultiLink Trunking (DMLT) DMLT allows trunking across different switches in the stack No single-point-of-failure as multiple uplinks are used Each trunk can have up to 8 Gbps uplink bandwidth (Full- duplex) Up to 4 trunks can be configured using all 16 GBIC ports For higher resiliency, trunks can connect to separate Passport 8600s running SMLT Trunk #1 Up to 16 GBIC ports available with DMLT. Trunk #2 Trunk #3 Trunk #4 Fail-Safe Stacking with Built-in stacking ports To Network Core Switch

12. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 11 BayStack 470-48T Switch Value Proposition -continued Redundancy –Fail-safe stackability –Load-balancing and fail-over protection with DMLT & SMLT – Technology innovation –Redundant power & UPS support with BayStack 10 PSU Saves valuable rack space with Compact 1U High design Lowers training and installation costs with common “look and feel”

13. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 12 BayStack 470-48T Switch - Fail-safe Stacking Fail-Safe Stackability –Redundant, self-healing cascade stacking design –Unlike other stackable switches, BayStack 470 Switches have no single point of failure (non-matrix) Hot Swappable Switches –48V DC-to-DC converter module must be ordered to connect to BayStack 10 Power Supply System for RPSU Unit 8 Unit 7 Unit 6 Unit 5 Unit 4 Unit 3 Unit 2 Unit 1

14. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 13 BayStack 470-48T Switch Security Support for IEEE 802.1x based security –Prevents network connectivity without password authorization for added security and control in physically non-secure areas –Authenticated users are placed in dynamically assigned VLAN –Interoperates with Microsoft Windows XP –Also known as Extensible Authentication Protocol (EAP over LAN) The first major vendor with SNMPv3 support –User authentication, Data encryption Distributed Access List Security –SNMP/Web/Telnet RADIUS Authentication Support BaySecure –MAC address based securityUnauthorizedUSER Security Filters

15. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 14 Common Software Platform BayStack Switches Management Tools Common Interface Optivity Network Mgmt. System (NMS) Web- Manage- ment Optivity Switch Manager (OSM) Command Line Interface (CLI) Menus Optivity Policy Server (OPS) Business Policy Switch BayStack 450 BayStack 460-24T- PWR BayStack 380 Switches BayStack 420-24T Common look & feel Saves training costs Device Manager BayStack 470-48T

16. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 15 Servers Distributed MultiLink Trunks Split MultiLink Trunks BayStack 470 stack Desktop users 10/100 Mbps connections Desktop users Floor 1 Floor 2 10 Mbps 100 Mbps Gigabit links Passport 8600 Switch Passport 8600 Switch IST IST = Inter Switch Trunk BayStack 470 stack Enterprise Solution with PP8600 using Split MultiLink Trunking

17. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 16 BayStack 470 Switch – Competitive Positioning

18. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 17 BayStack stackable switches – Key Differences

19. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 18 BayStack 470-48T Policy Switch Software version Shipping with v2.2 software –Stackability with BayStack 470-48T Software v2.2.1 available free from web –Supports QoS features –BayStack 470 Release 2.2.1 Download Instructions Go to www.nortelnetworks.com, click on Support, click on BayStack, click on Software under “BayStack: Switches - 470- 48T Switch”. Download agent, diagnostic and MIB files.www.nortelnetworks.com

20. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 19 BayStack 470-48T Policy Switch Plan of Record – Software Release v3.0 BoSS (BayStack operating system Switching Software) v3.0 –Stackability with BPS and BayStack 460-24T –SSH (Secure Shell Access) Allows you to log into the switch from a SSH client & perform a secure Telnet session using CLI commands Perfect for security conscious customers such as Federal government Provides strong authentication and secure encrypted communications Availability - April, 2003 –Download from the web at no charge

21. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 20 Pricing and Ordering Information Order No.DescriptionList (US) AL2012?34*BayStack 470-48T Switch -- 48 10/100BaseTX ports plus 2 built-in GBIC slots and built-in stacking ports (18 in. stacking cable included) $4495 AL1904005-48V DC-to-DC converter module for BS 470 for use with BayStack 10 Power Supply System (Q1, 03) $339 AL2018001BayStack 400-SRC Cascade Return Cable (1 meter), needed for fail-safe stackability $195 AL2018002BayStack 400-SSC Spare Cascade Cable (18 inch)$95 AL2018004BayStack 400-SRC Cascade Return Cable (3 meter), needed for fail-safe stackability $245 AA14190011-port 1000BASE-SX Gigabit Interface Connector (GBIC)$345 AA14190021-port 1000BASE-LX Gigabit Interface Connector (GBIC)$995 AA14190031-port 1000BASE-XD Gigabit Interface Connector (GBIC) – 40km$4,995 AA14190041-port 1000BASE-ZX Gigabit Interface Connector (GBIC) – 70km$6,995 * The seventh character (?) of the switch order number must be replaced with the proper code to indicate desired product nationalization.

22. NORTEL NETWORKS CONFIDENTIAL BayStack 470-48T Switch, Presentation - 21 Collateral & Sales Tools Visit the following Nortel Networks page for Product Brief: –http://www.nortelnetworks.com/baystack470-48thttp://www.nortelnetworks.com/baystack470-48t Nortel Partners may visit the Partner Information Center (PIC) for more collateral & sales tools: –www.nortelnetworks.com/picwww.nortelnetworks.com/pic User ID and Password required –Product Brief & Product Bulletin –Customer Presentation –Competitive Brief –Frequently Asked Questions
