1 A 16-Bit Kogge Stone PS-CMOS adder with Signal Completion Seng-Oon Toh, Daniel Huang, Jan Rabaey May 9, 2005 EE241 Final Project

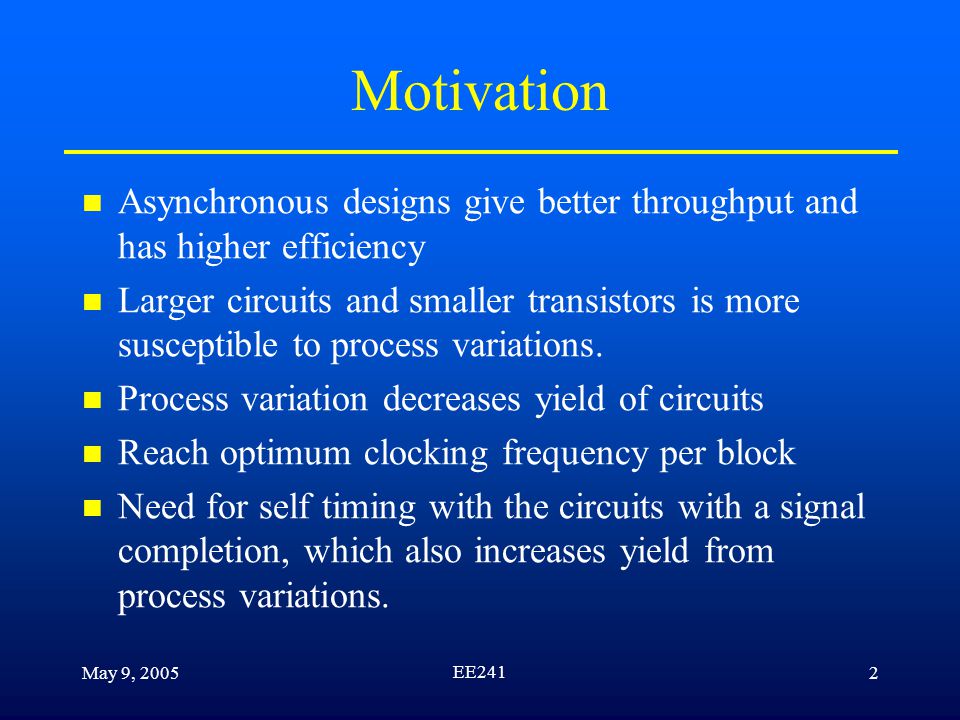

2 May 9, 20052 EE241 Motivation Asynchronous designs give better throughput and has higher efficiency Larger circuits and smaller transistors is more susceptible to process variations. Process variation decreases yield of circuits Reach optimum clocking frequency per block Need for self timing with the circuits with a signal completion, which also increases yield from process variations.

3 May 9, 20053 EE241 Past Solution GALS DCDVSL IEEE, 1998

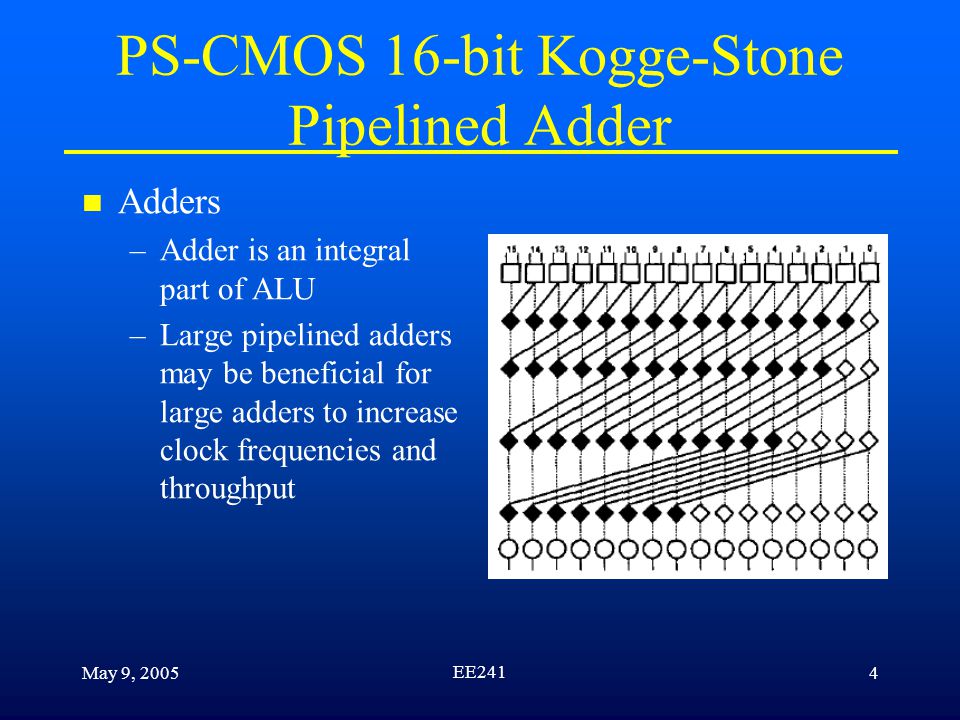

4 May 9, 20054 EE241 PS-CMOS 16-bit Kogge-Stone Pipelined Adder Adders –Adder is an integral part of ALU –Large pipelined adders may be beneficial for large adders to increase clock frequencies and throughput

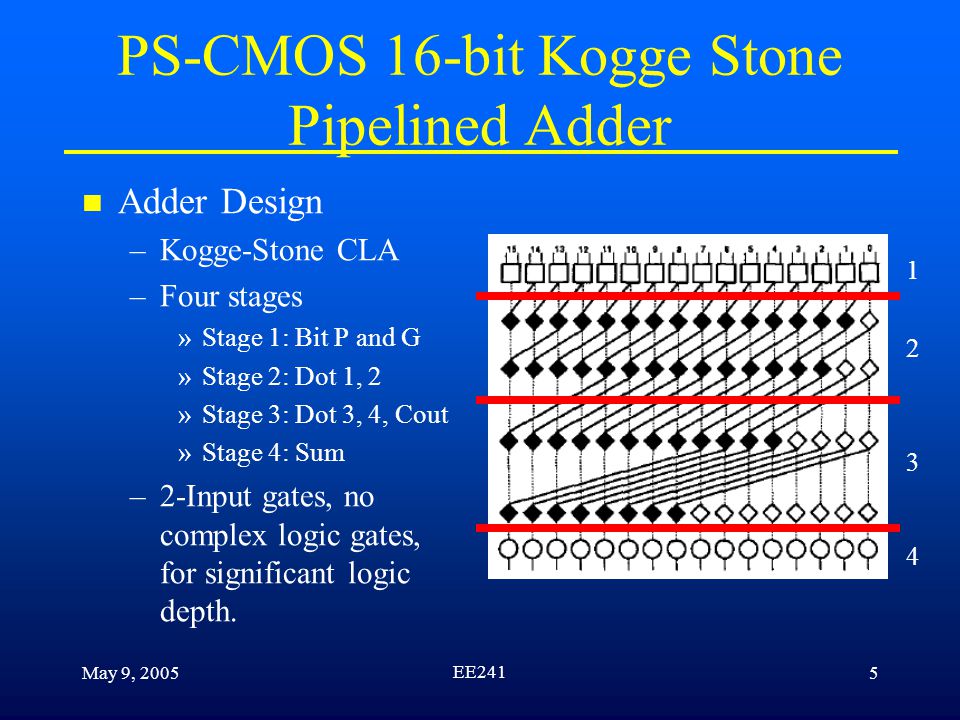

5 May 9, 20055 EE241 PS-CMOS 16-bit Kogge Stone Pipelined Adder Adder Design –Kogge-Stone CLA –Four stages »Stage 1: Bit P and G »Stage 2: Dot 1, 2 »Stage 3: Dot 3, 4, Cout »Stage 4: Sum –2-Input gates, no complex logic gates, for significant logic depth. 1 2 3 4

6 May 9, 20056 EE241 PS-CMOS 16-bit Kogge Stone Pipelined Adder PS-CMOS –Monotonic output transition –Noise Immunity –Pseudo-dynamic, fast evaluate

7 May 9, 20057 EE241 PS-CMOS 16-bit Kogge Stone Pipelined Adder Completion Signal –Simple scheme that is compatible with PS- CMOS »DCDVSL »Dummy paths –Take advantage of monotonic output transition –Input the worst case input vector upon startup to find clock frequency –Calibrate in situ

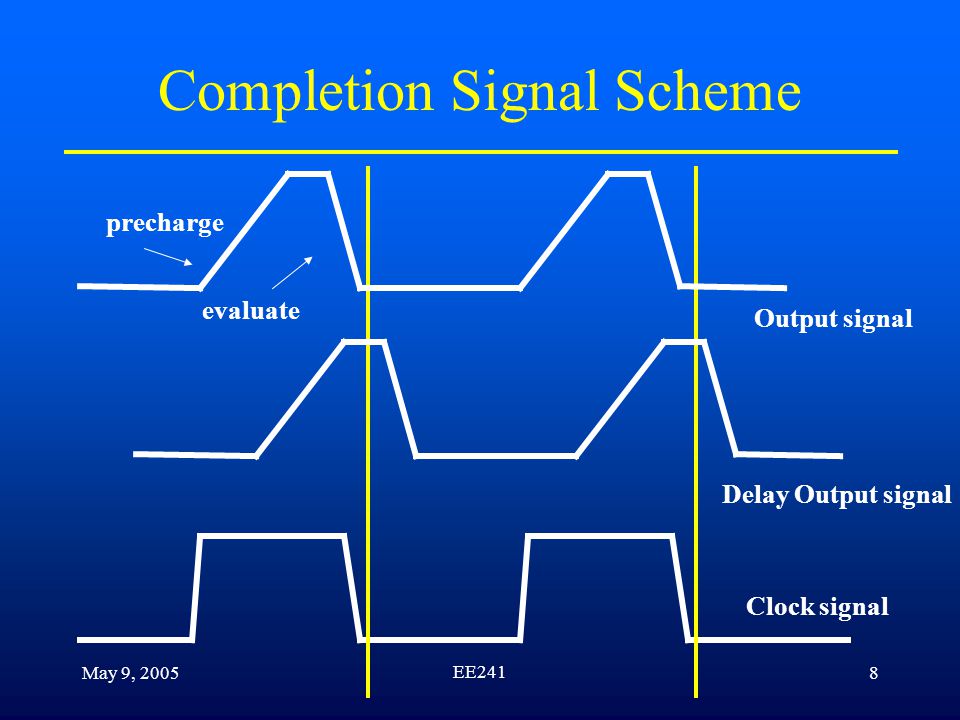

8 May 9, 20058 EE241 Completion Signal Scheme Output signal Clock signal Delay Output signal precharge evaluate

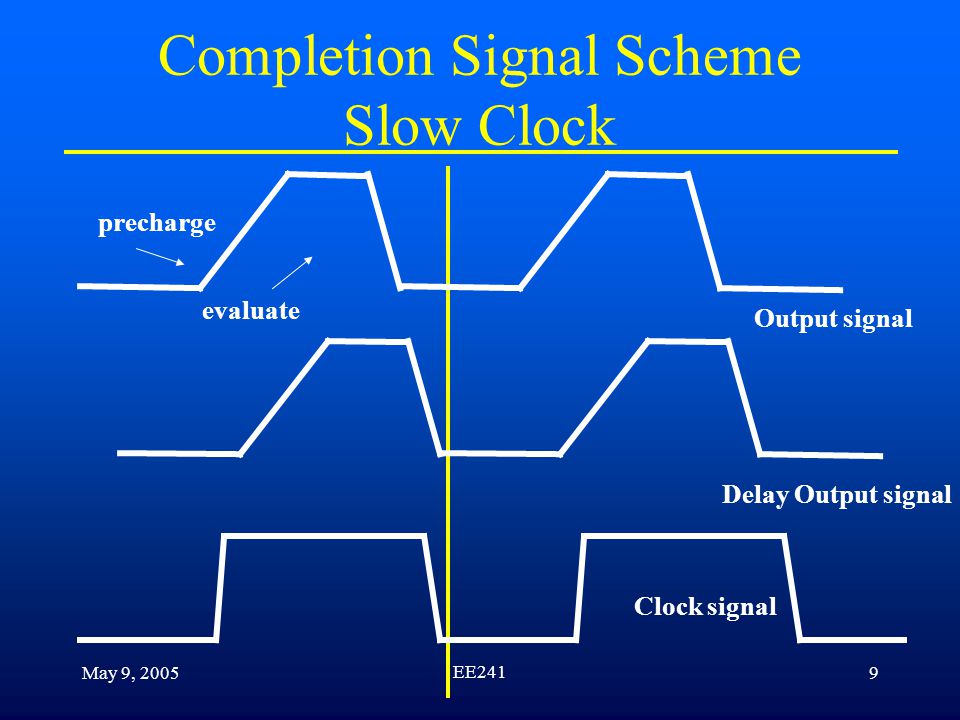

9 May 9, 20059 EE241 Completion Signal Scheme Slow Clock Output signal Clock signal Delay Output signal precharge evaluate

10 May 9, 200510 EE241 Completion Signal Scheme Fast Clock Output signal Clock signal Delay Output signal precharge evaluate

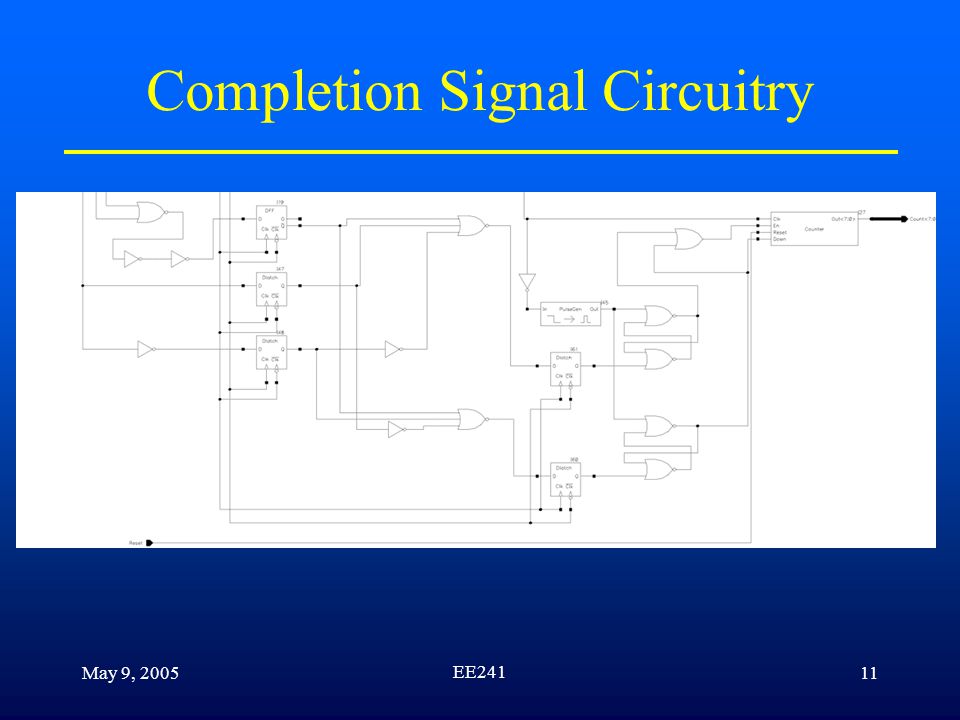

11 May 9, 200511 EE241 Completion Signal Circuitry

12 May 9, 200512 EE241 Completion Signal Circuitry Input OutputCritical path Input check sum Check for delay Increase, decrease, stop counting 8-bit Counter VCO Clock Generation DAC Stage 3

13 May 9, 200513 EE241 Results

14 May 9, 200514 EE241 Results

15 May 9, 200515 EE241 Results Theoretical delay 714ps, measure 850ps For in situ calibration how often will the worst case input vector appear? –Assuming perfectly random inputs –Worst case input vector will appear approximately once every 10 5 switches –Circuit runs approximately 10 9 switches per second –Every second there can be a potential of 10 4 updates. –This sets the optimum clock speed to clock for the calibration circuitry

16 May 9, 200516 EE241 Results Counter able to count up as well as down –Speed up and slow down based on conditions Ability to calibrate for different supply voltages Ability to test at startup and in situ

17 May 9, 200517 EE241 Discussion Ideal sensor has 0 capacitance –We have small capacitance –1 inverter, 1 latch Circuit Overhead low Probability of Switching –Maximum clock frequency for test circuit –Calibration frequency is high –Multiple paths available for detection Closes feedback path for DVS

18 May 9, 200518 EE241 Discussion During clock change no evaluation is allowed Slack margin 100 ps built in delay from detection –Nonexistant with registers, because of intrinsic need of delay for registers PS-CMOS –Difficult to implement XOR –Not straight forward logic –When used with latches timing of precharge and evaluate is difficult Frequency increments –Small time step necessary for stability

19 May 9, 200519 EE241 Future Improvements Fix delay overhead of detection circuit Fix problems from latch based design Circuitry for multiple path detection Super Pipeline 256-bit adder Ability to run adder slower –Monitor precharge

20 May 9, 200520 EE241 Conclusion Shown a simple completion signal scheme for a pipelined PS-CMOS adder Small amount of overhead Ability to adjust clock frequencies during operation not only on startup Because I could not stop for Death, He kindly stopped for me; The carriage held but just ourselves And Immortality. -Emily Dickinson, 1924
