1 CMOS Transistors

2 Outline Qualitative Description of CMOS Transistor g m /I D Design Biasing a transistor Using g m /I D Approach Design Using Cadence

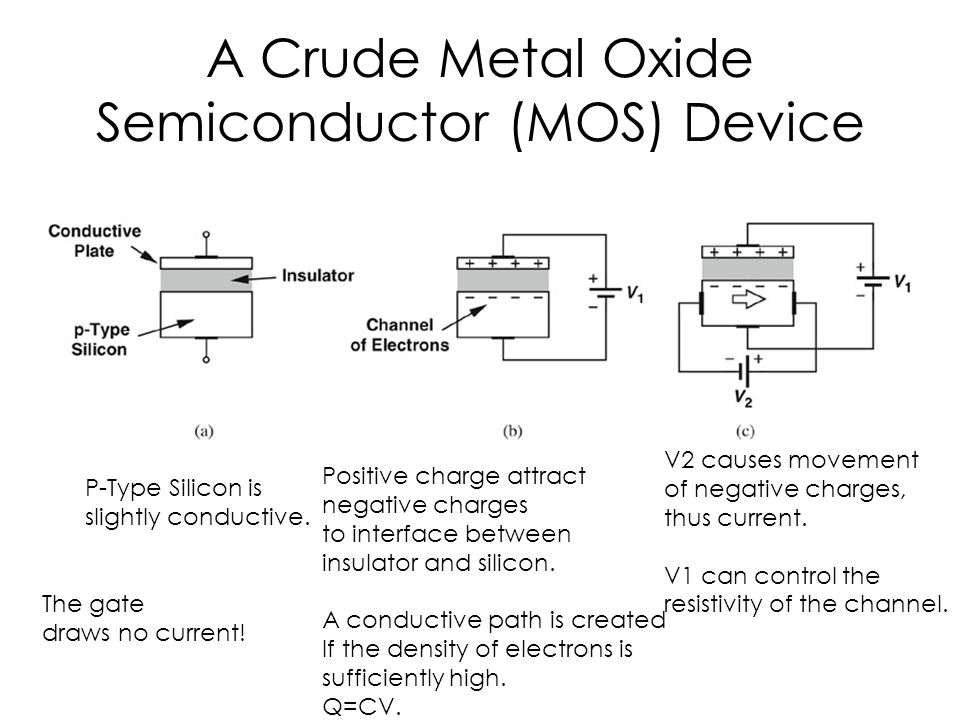

3 A Crude Metal Oxide Semiconductor (MOS) Device P-Type Silicon is slightly conductive. Positive charge attract negative charges to interface between insulator and silicon. A conductive path is created If the density of electrons is sufficiently high. Q=CV. V2 causes movement of negative charges, thus current. V1 can control the resistivity of the channel. The gate draws no current!

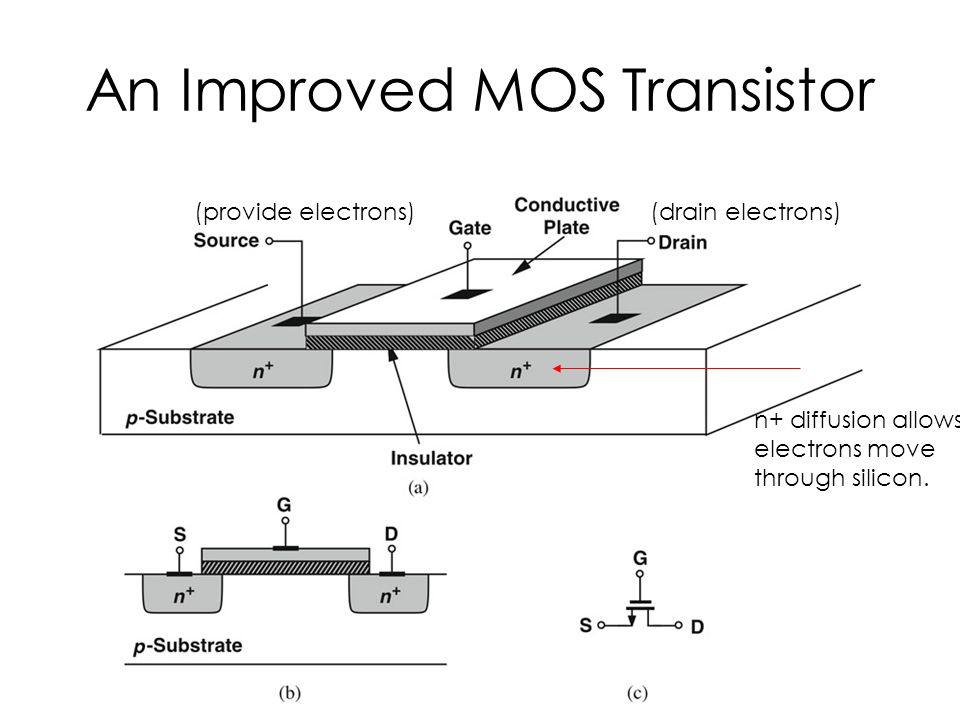

4 An Improved MOS Transistor n+ diffusion allows electrons move through silicon. (provide electrons)(drain electrons)

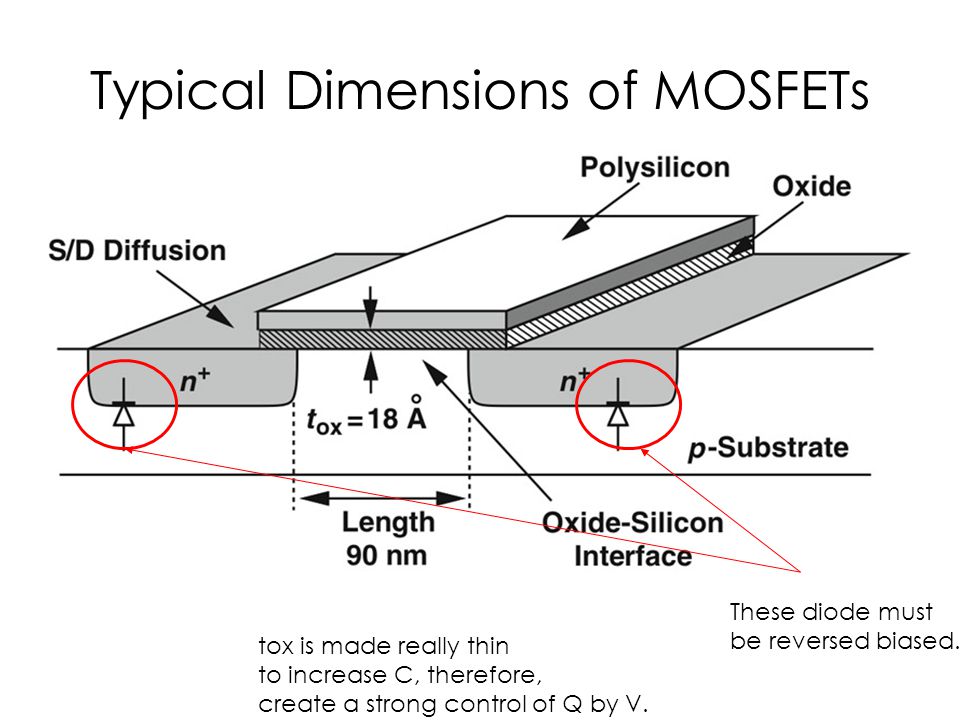

5 Typical Dimensions of MOSFETs These diode must be reversed biased. tox is made really thin to increase C, therefore, create a strong control of Q by V.

6 A Closer Look at the Channel Formulation Need to tie substrate to GND to avoid current through PN diode. Positive charges repel the holes creating a depletion region, a region free of holes. Free electrons appear at VG=VTH. VTH=300mV to 500 mV (OFF)(ON)

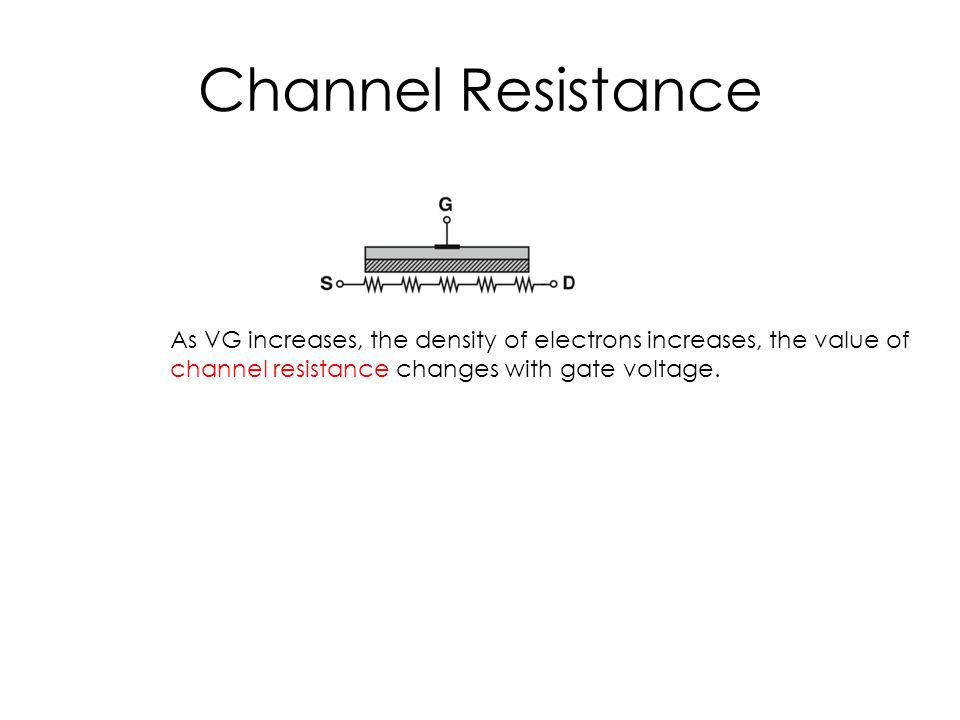

7 Channel Resistance As VG increases, the density of electrons increases, the value of channel resistance changes with gate voltage.

8 Drain Current as a function of Drain Voltage Resistance determined by VG.

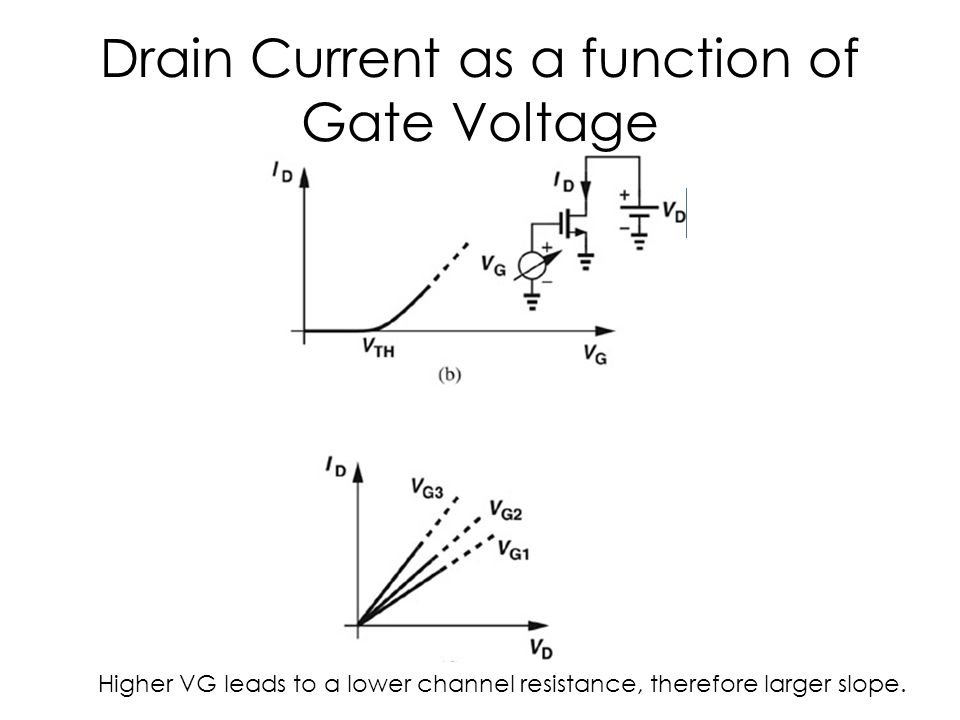

9 Drain Current as a function of Gate Voltage Higher VG leads to a lower channel resistance, therefore larger slope.

10 Length Dependence The resistance of a conductor is proportional to the length.

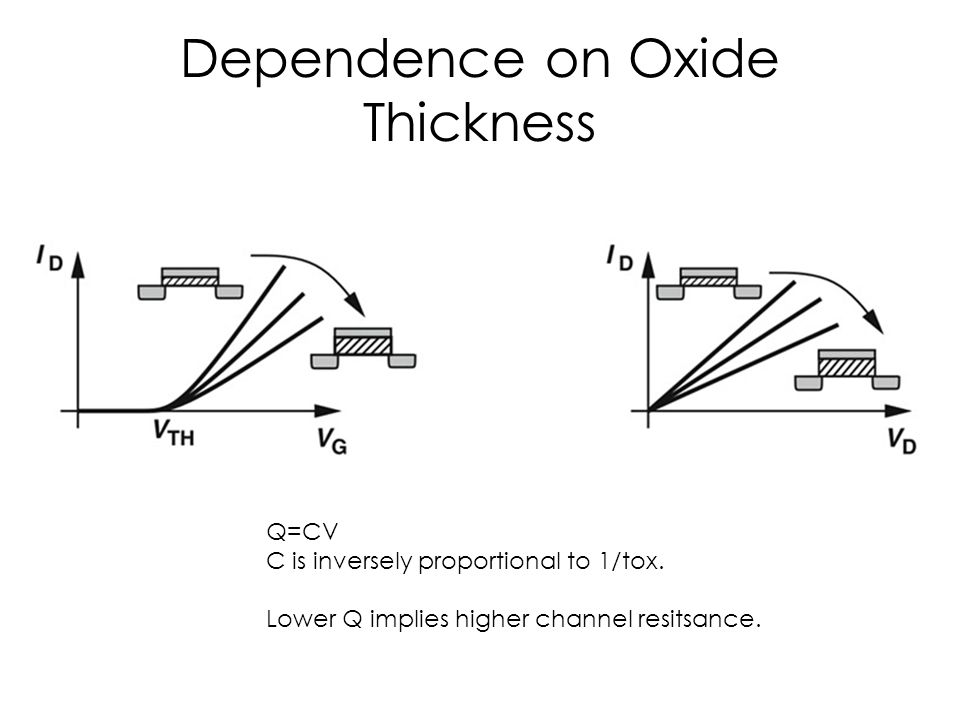

11 Dependence on Oxide Thickness Q=CV C is inversely proportional to 1/tox. Lower Q implies higher channel resitsance.

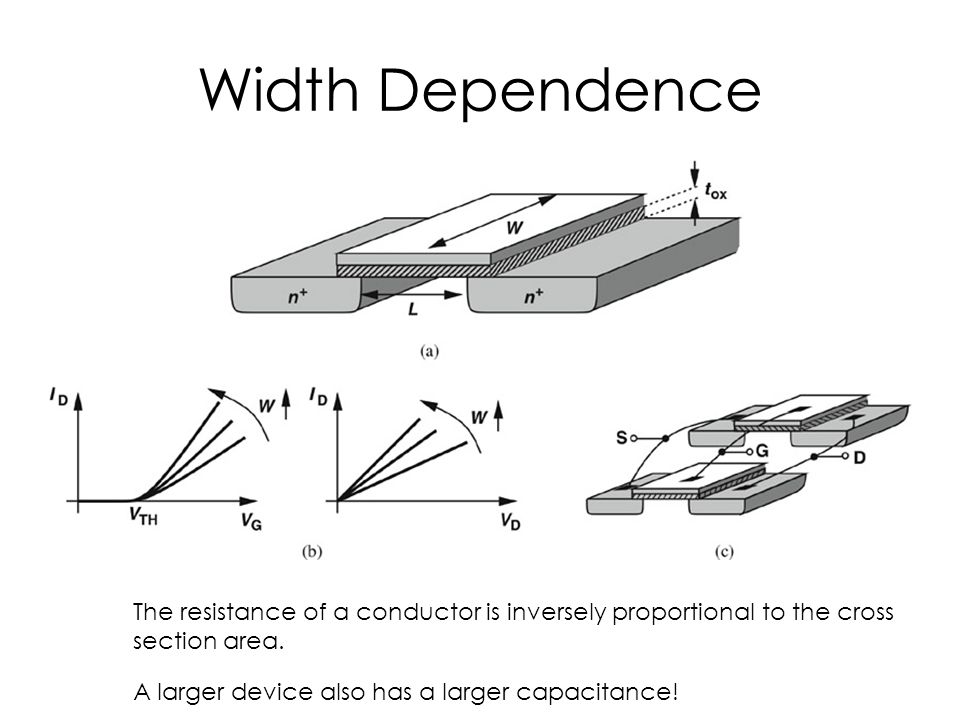

12 Width Dependence The resistance of a conductor is inversely proportional to the cross section area. A larger device also has a larger capacitance!

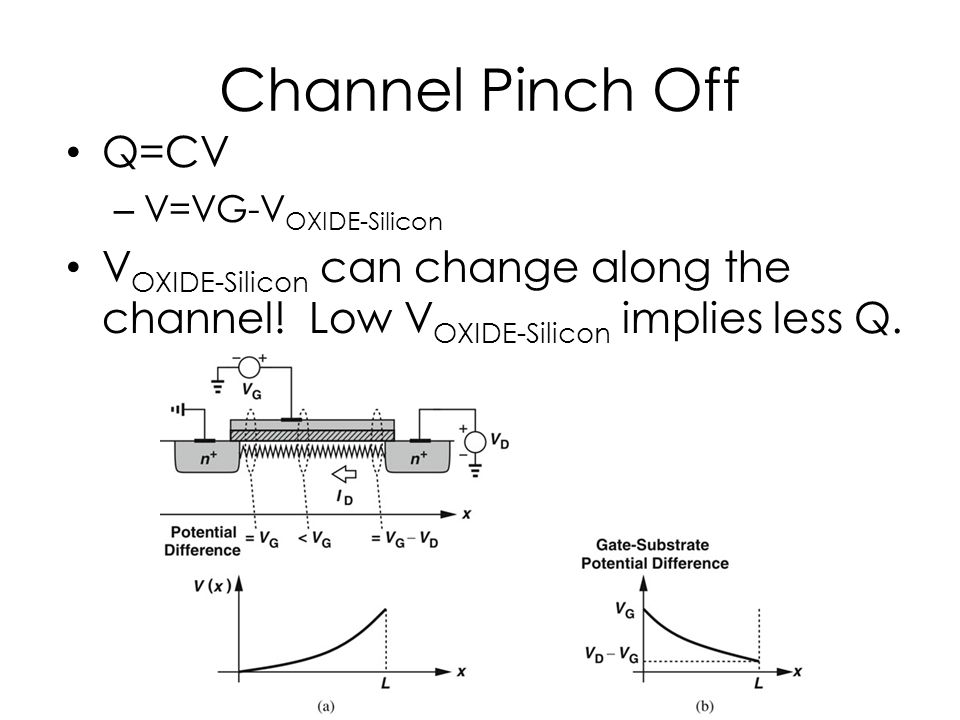

13 Channel Pinch Off Q=CV – V=VG-V OXIDE-Silicon V OXIDE-Silicon can change along the channel! Low V OXIDE-Silicon implies less Q.

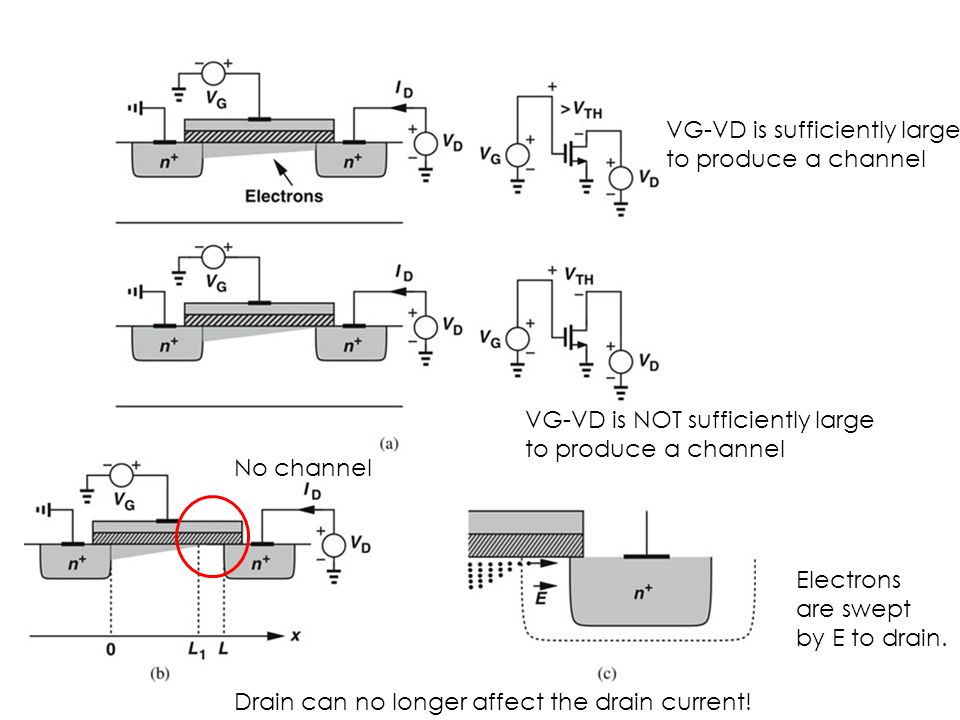

14 VG-VD is sufficiently large to produce a channel VG-VD is NOT sufficiently large to produce a channel No channel Electrons are swept by E to drain. Drain can no longer affect the drain current!

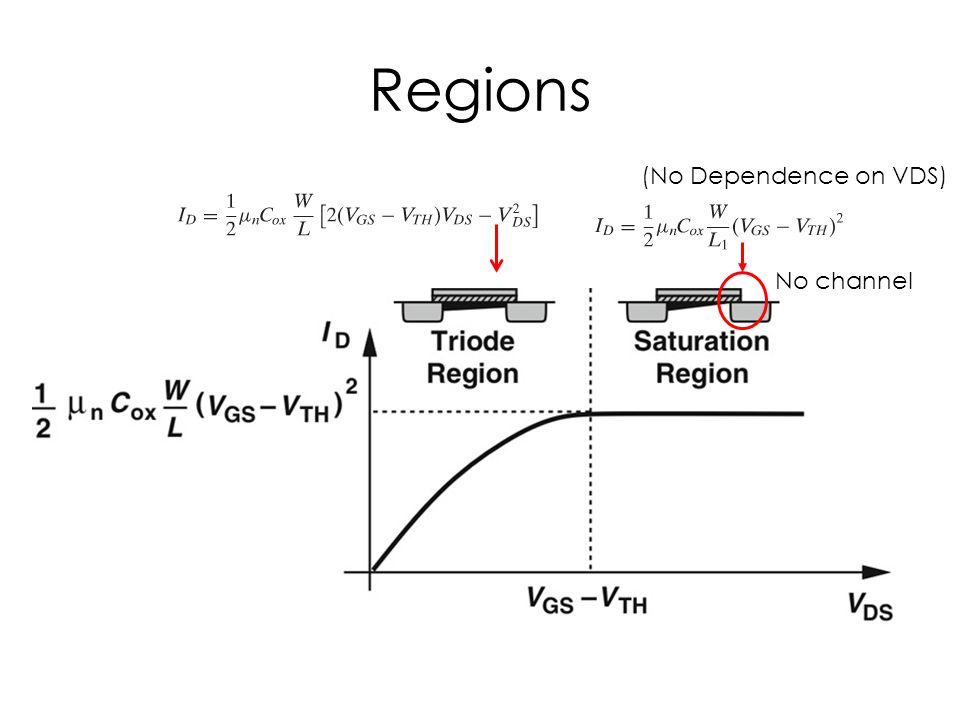

15 Regions No channel (No Dependence on VDS)

16 Determination of Region How do you know whether a transistor is in the linear region or saturation region? – If VDS>(VGS-VTH) and VGS>VTH, then the device is in the saturation region. – If VDS VTH, then the device is in the linear region.

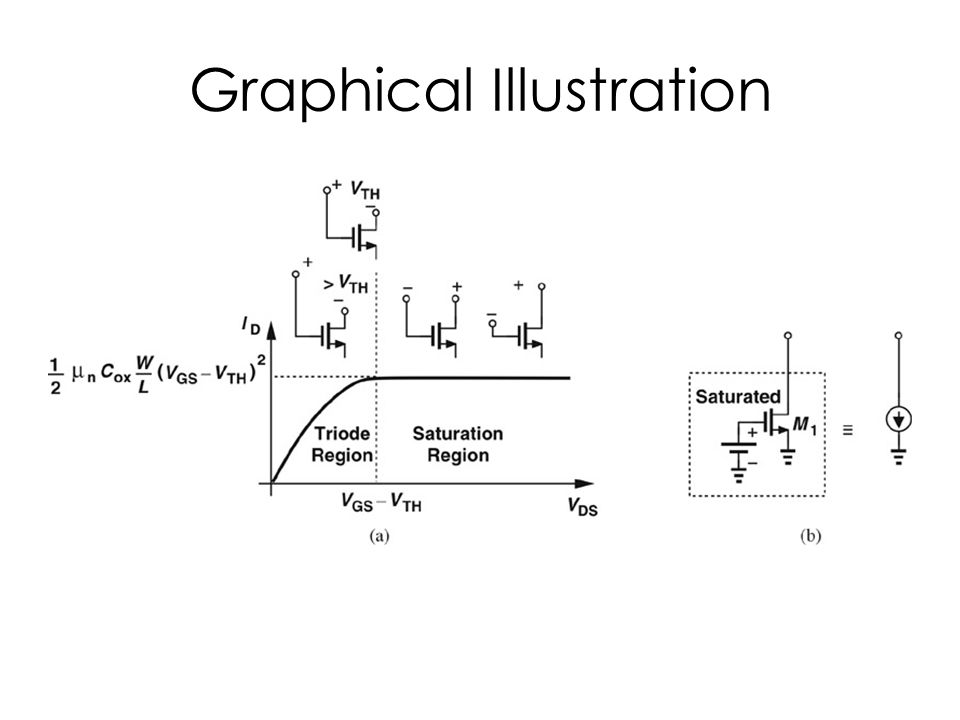

17 Graphical Illustration

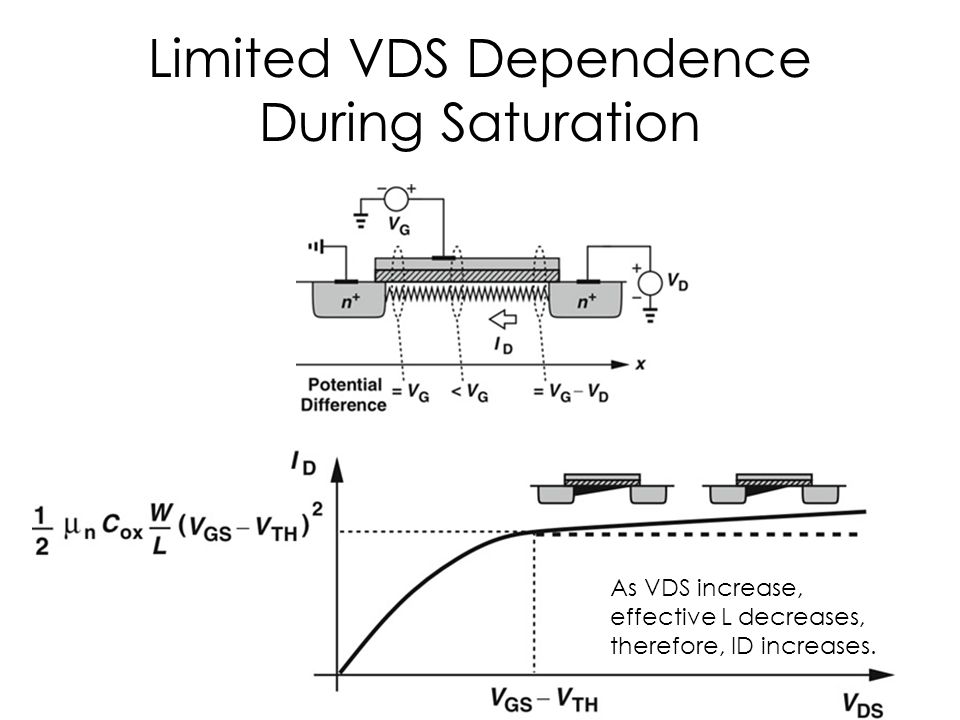

18 Limited VDS Dependence During Saturation As VDS increase, effective L decreases, therefore, ID increases.

19 Pronounced Channel Length Modulation in small L

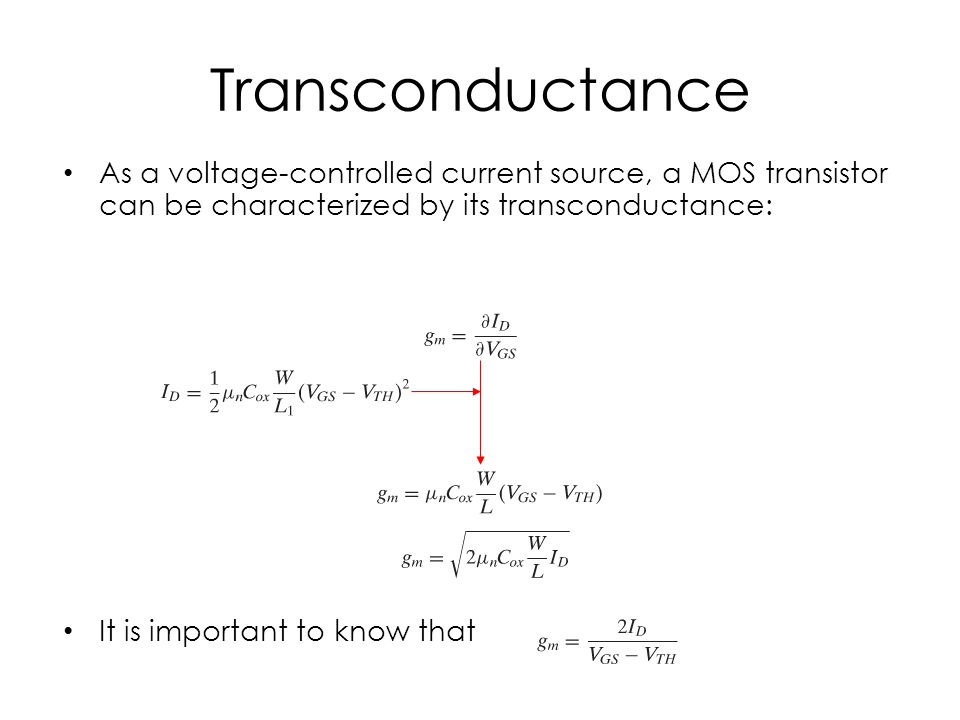

20 Transconductance As a voltage-controlled current source, a MOS transistor can be characterized by its transconductance: It is important to know that

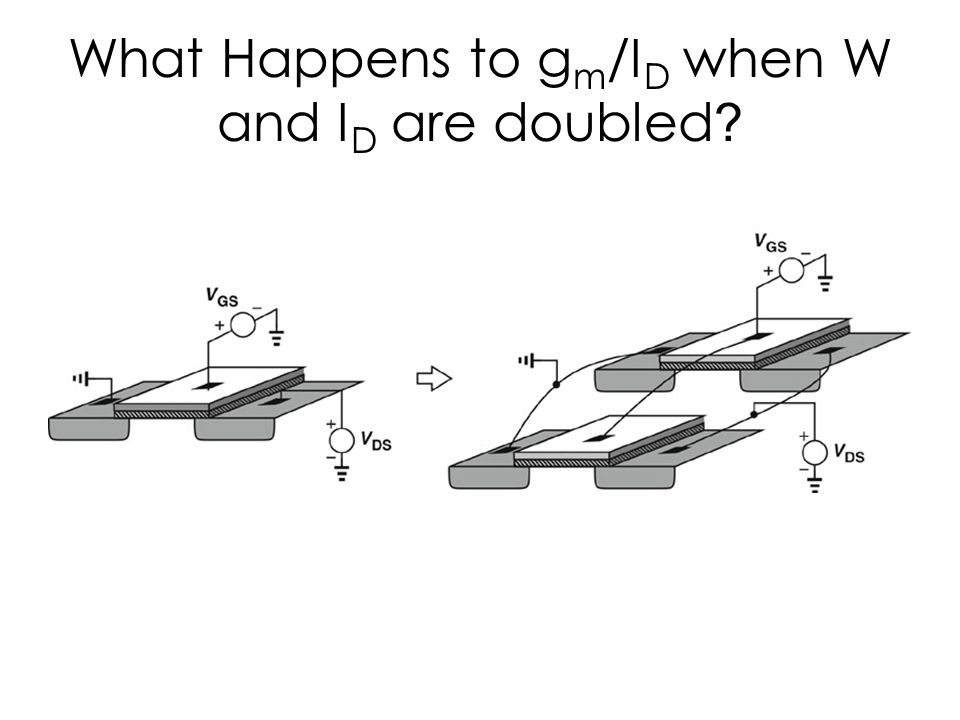

21 What Happens to g m /I D when W and I D are doubled ?

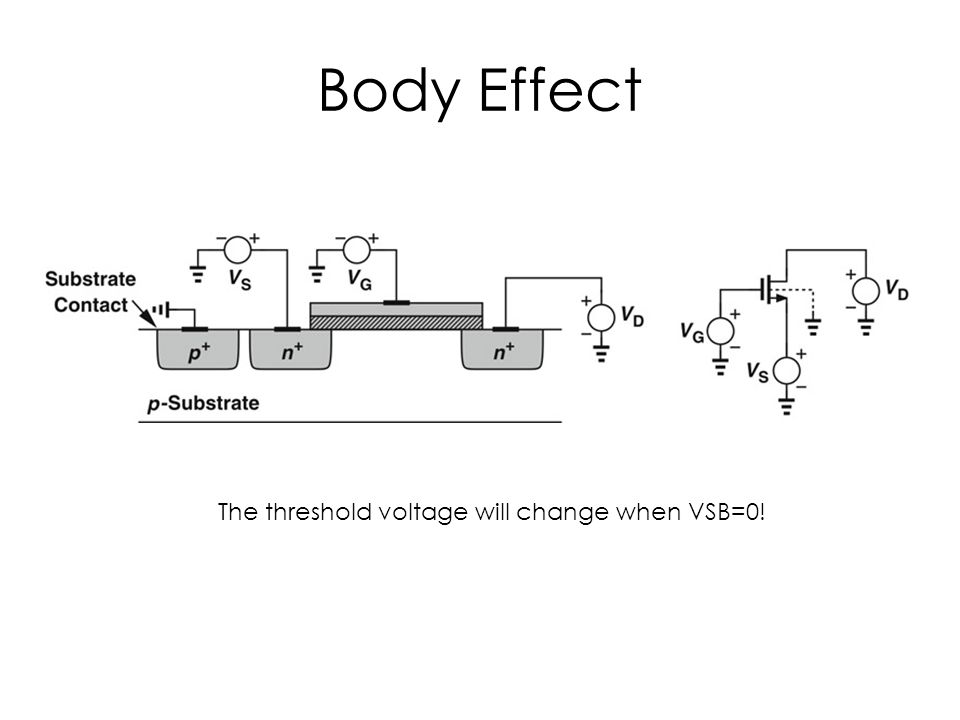

22 Body Effect The threshold voltage will change when VSB=0!

23 Experimental Data of Body Effect The threshold voltage will increase when VSB increases.

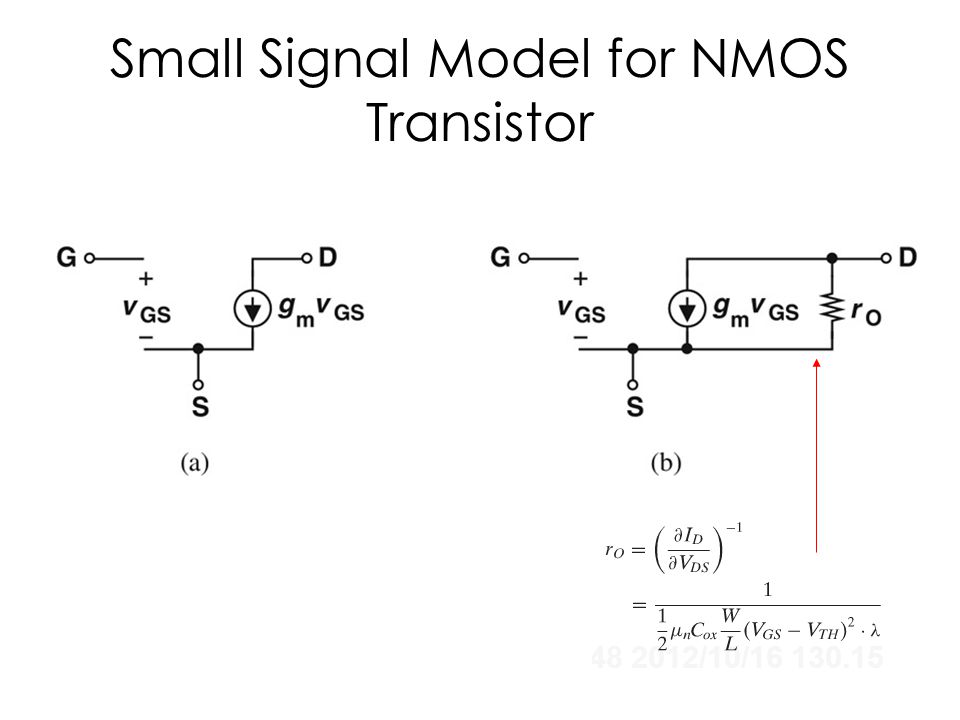

24 Small Signal Model for NMOS Transistor

25 PMOS Transistor

26 IV Characteristics of a PMOS

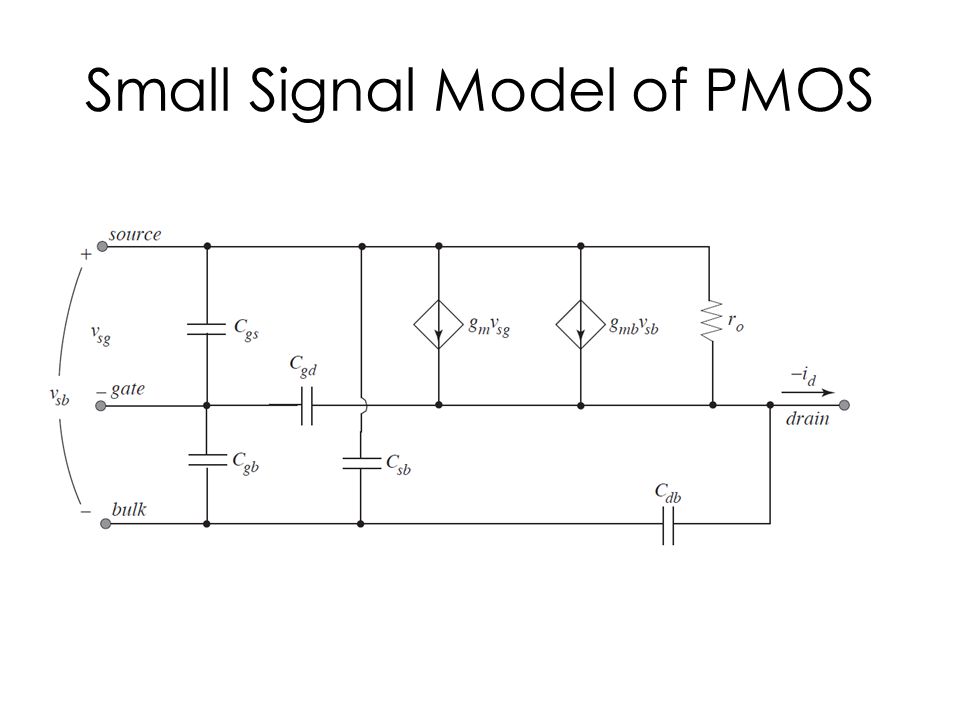

27 Small Signal Model of PMOS

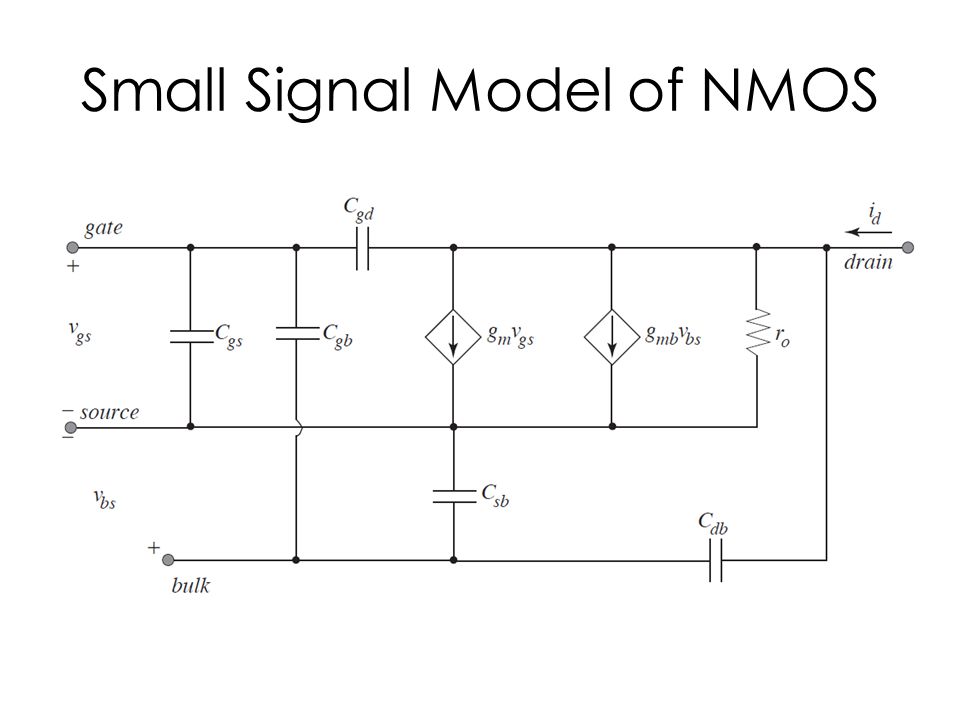

28 Small Signal Model of NMOS

29 g m /I D Design Approach

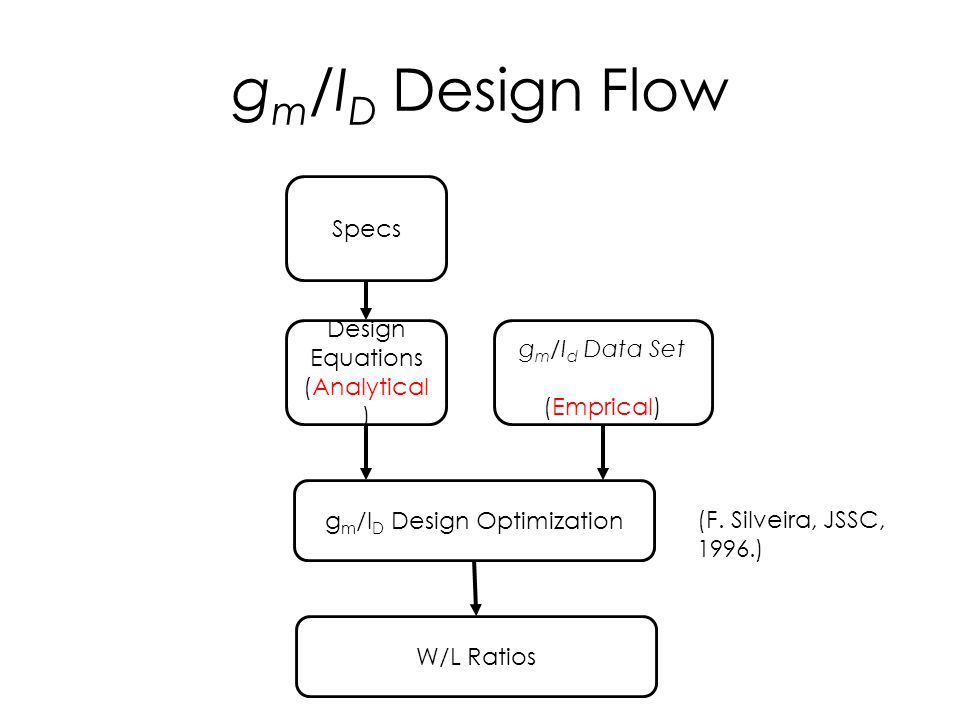

30 g m /I D Design Flow Specs Design Equations (Analytical ) g m /I d Data Set (Emprical) g m /I D Design Optimization W/L Ratios (F. Silveira, JSSC, 1996.)

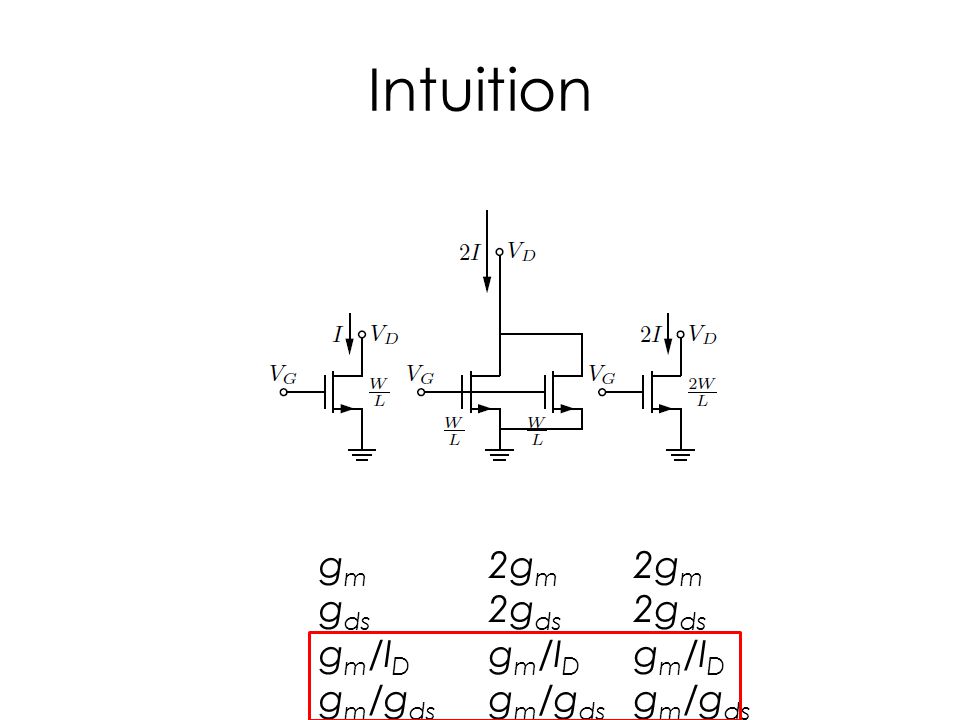

31 Intuition g m g ds g m /I D g m /g ds 2g m 2g ds g m /I D g m /g ds 2g m 2g ds g m /I D g m /g ds

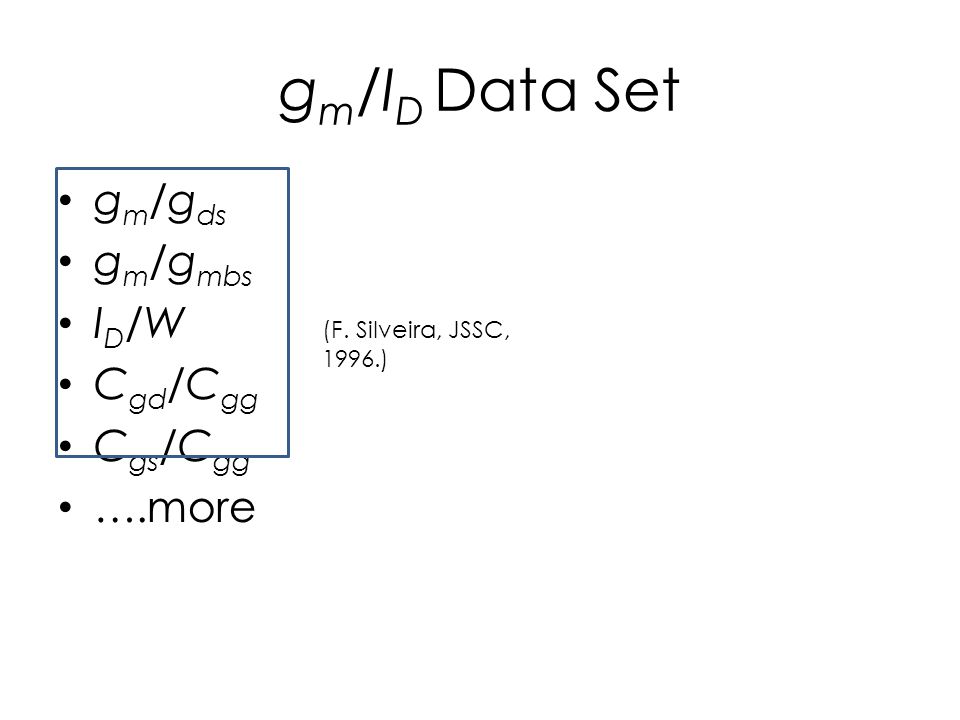

32 g m /I D Data Set g m /g ds g m /g mbs I D /W C gd /C gg C gs /C gg ….more (F. Silveira, JSSC, 1996.)

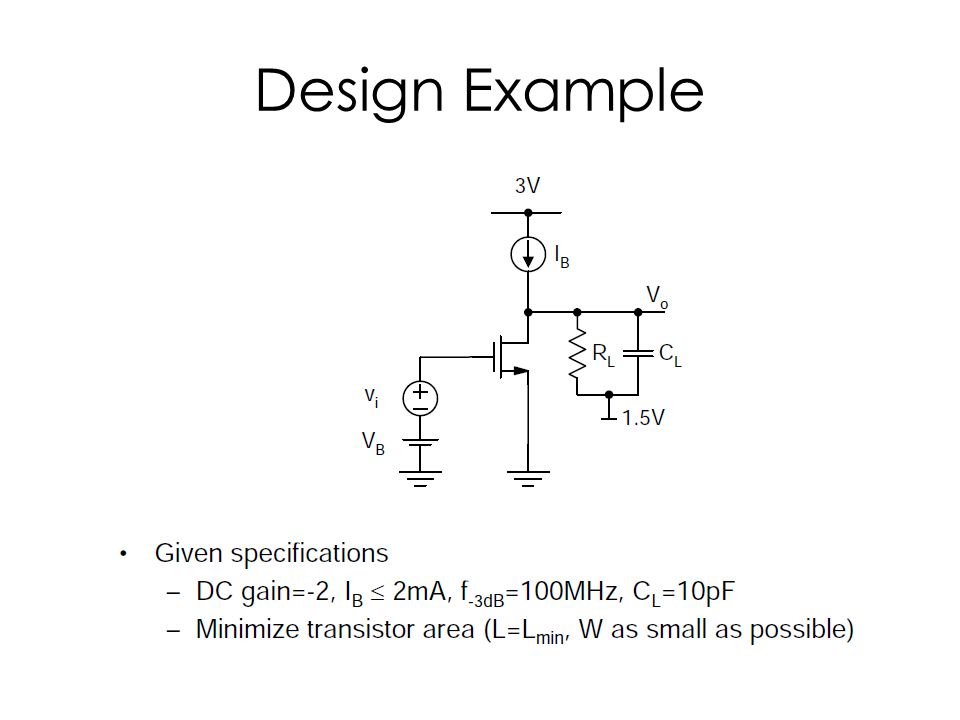

33 Design Example

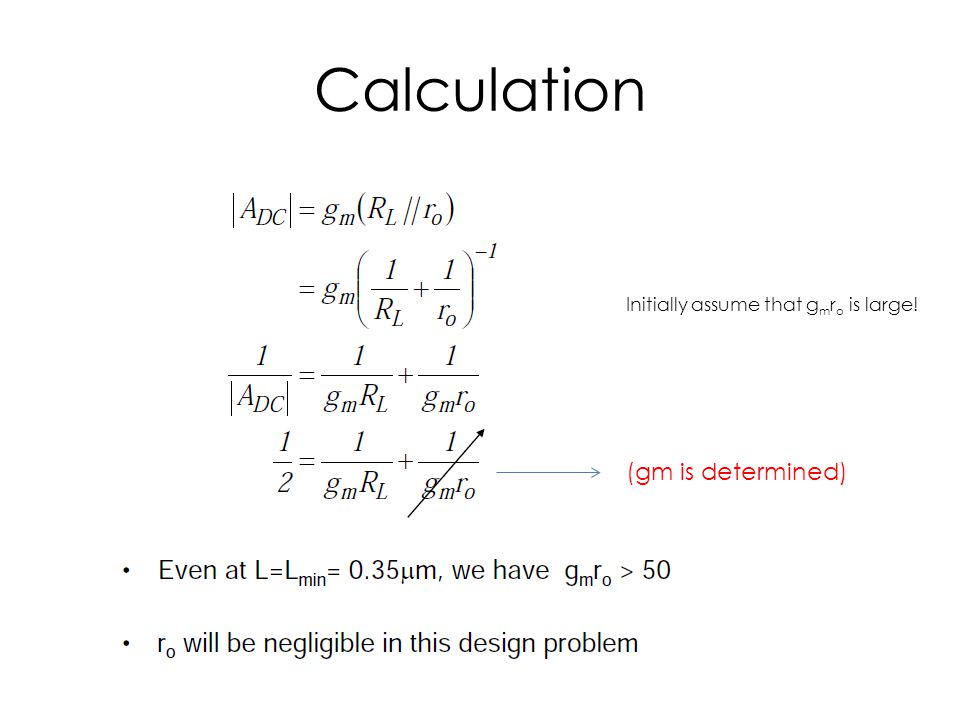

34 Calculation (gm is determined) Initially assume that g m r o is large!

35 gm/gds (50)

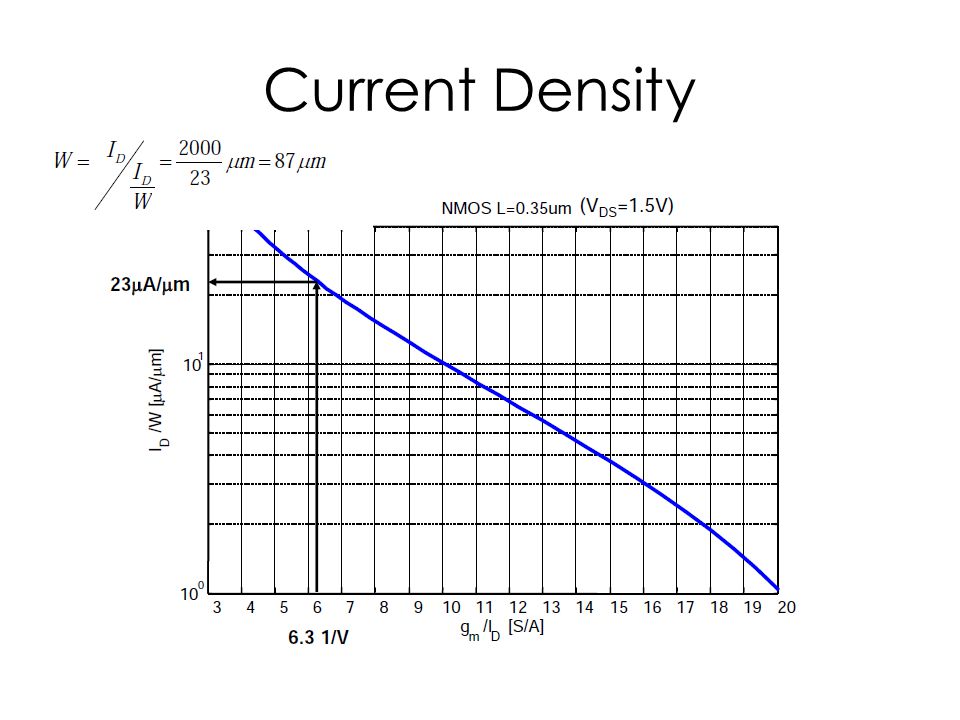

36 Current Density

37 Biasing an MOS Transistor Using g m /I D technique Section 7.1 J.Ou Sonoma State Univeristy

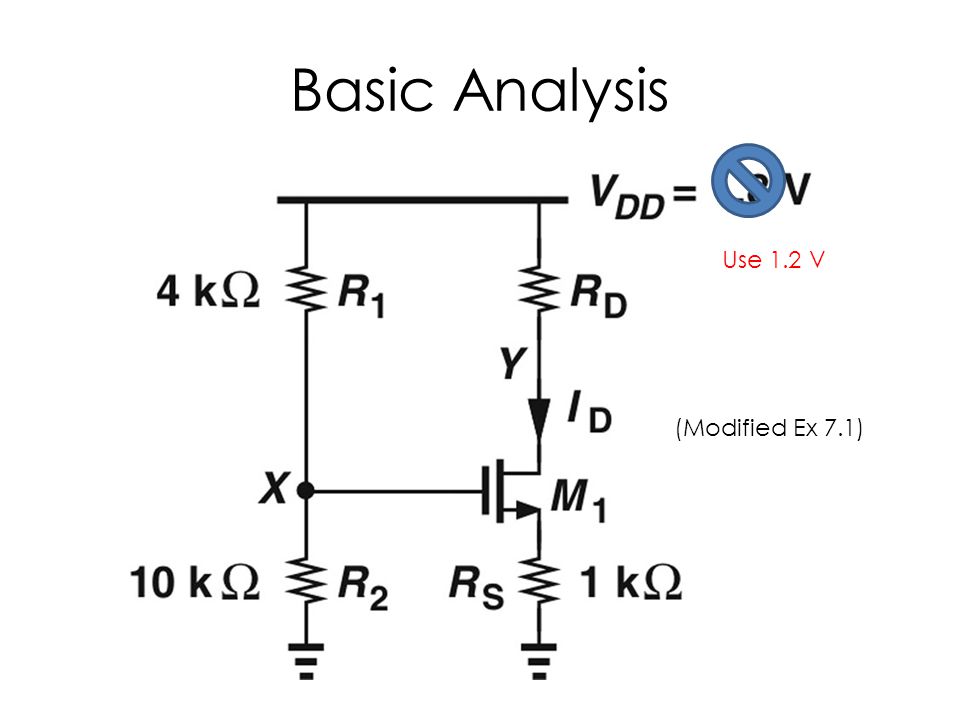

38 Basic Analysis Use 1.2 V (Modified Ex 7.1)

39 Design Equations

40 Assumption: VDD=1.2 V Transistor Information: Type: 120 nm Specify VDS Note var1_1 is ‘vsd’ if pmos is used Note var2_1 is ‘vns’ if nmos is used. In this example, is initially unknown, so we will assume that it is 0.0

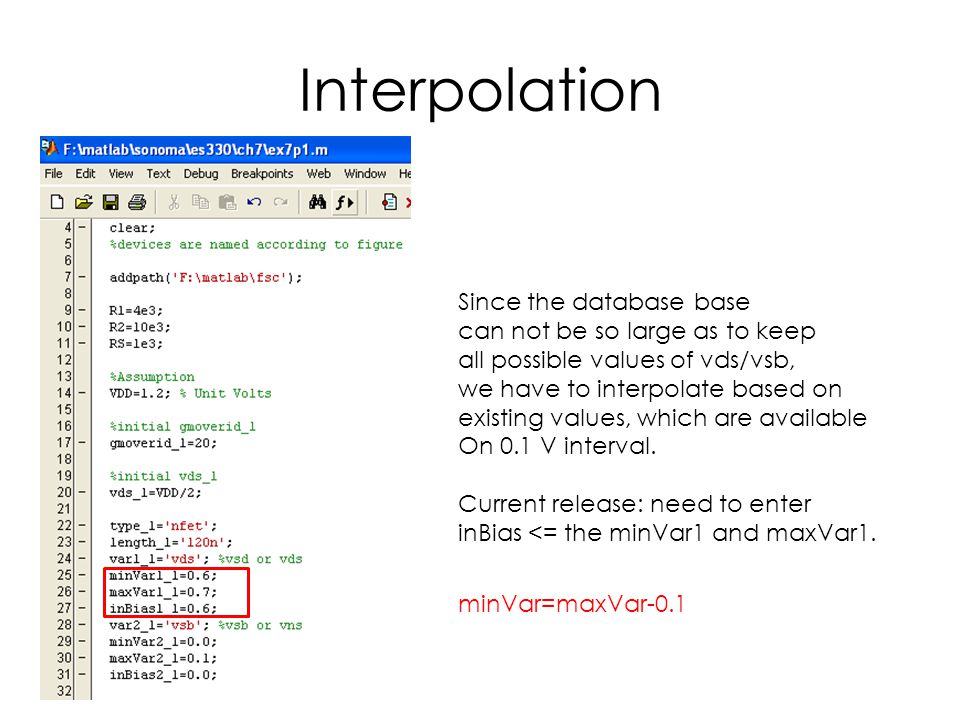

41 Interpolation Since the database base can not be so large as to keep all possible values of vds/vsb, we have to interpolate based on existing values, which are available On 0.1 V interval. Current release: need to enter inBias <= the minVar1 and maxVar1. minVar=maxVar-0.1

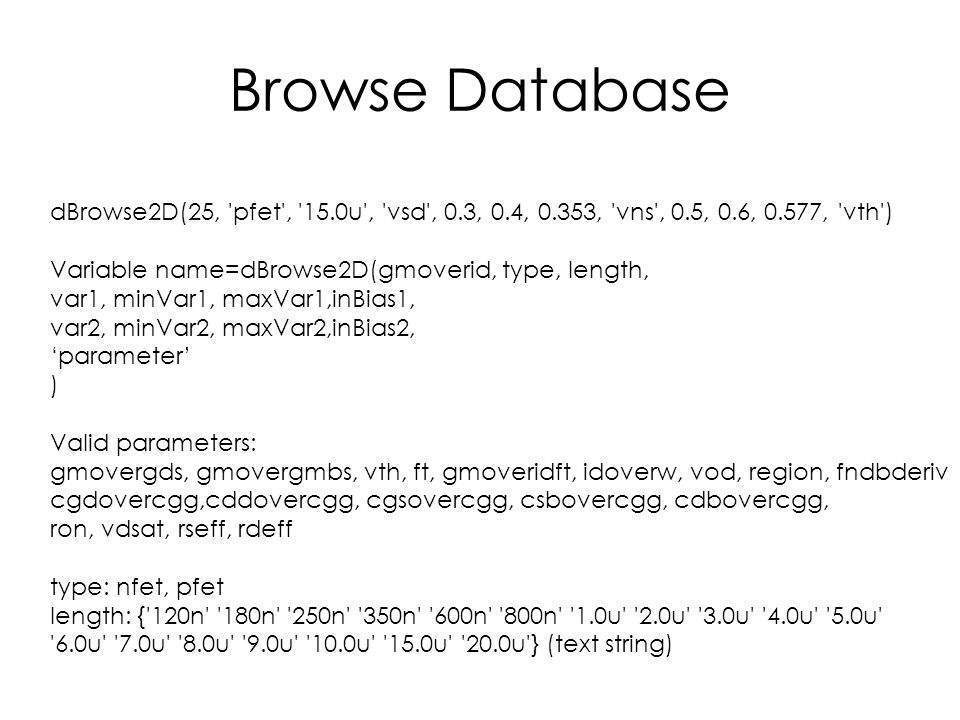

42 Browse Database dBrowse2D(25, 'pfet', '15.0u', 'vsd', 0.3, 0.4, 0.353, 'vns', 0.5, 0.6, 0.577, 'vth') Variable name=dBrowse2D(gmoverid, type, length, var1, minVar1, maxVar1,inBias1, var2, minVar2, maxVar2,inBias2, ‘parameter’ ) Valid parameters: gmovergds, gmovergmbs, vth, ft, gmoveridft, idoverw, vod, region, fndbderiv cgdovercgg,cddovercgg, cgsovercgg, csbovercgg, cdbovercgg, ron, vdsat, rseff, rdeff type: nfet, pfet length: {'120n' '180n' '250n' '350n' '600n' '800n' '1.0u' '2.0u' '3.0u' '4.0u' '5.0u' '6.0u' '7.0u' '8.0u' '9.0u' '10.0u' '15.0u' '20.0u'} (text string)

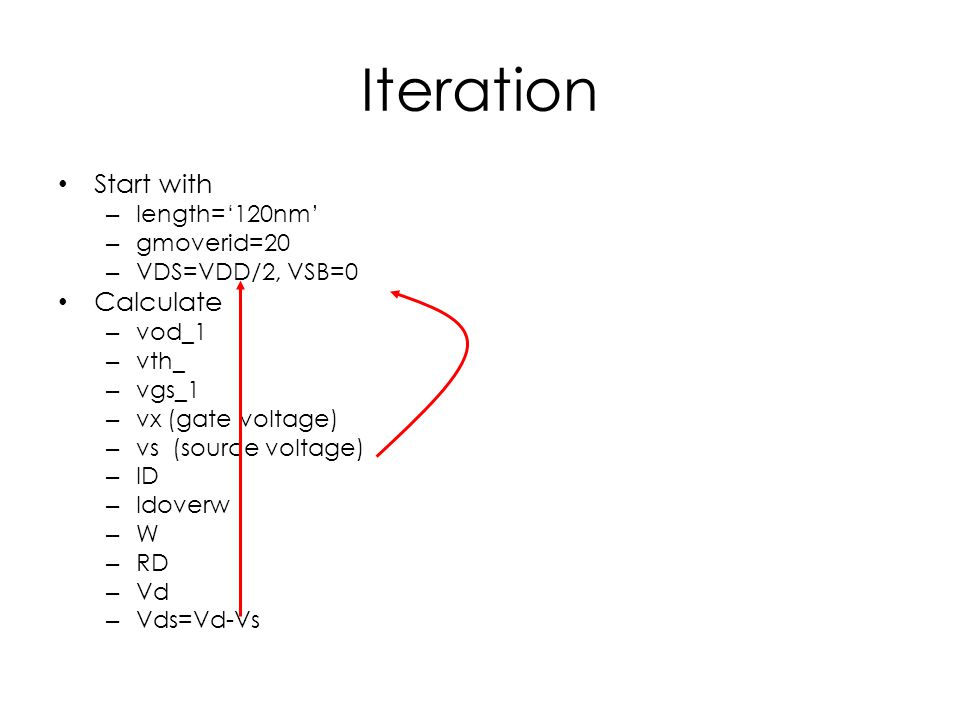

43 Iteration Start with – length=‘120nm’ – gmoverid=20 – VDS=VDD/2, VSB=0 Calculate – vod_1 – vth_ – vgs_1 – vx (gate voltage) – vs (source voltage) – ID – Idoverw – W – RD – Vd – Vds=Vd-Vs

44 Iteration Example

45 Design Iterations Iteratio n VSIDSWRDVds 00.1 V392uA53.06 um 1.529K ohms 0.207 V 10.321322 uA45.16 um 1.89 Kohms 0.278 V 20.340340.4 uA 46.86 um 1.762 Kohms 0.259 30.335335 uA46.441.788 Kohms 0.265

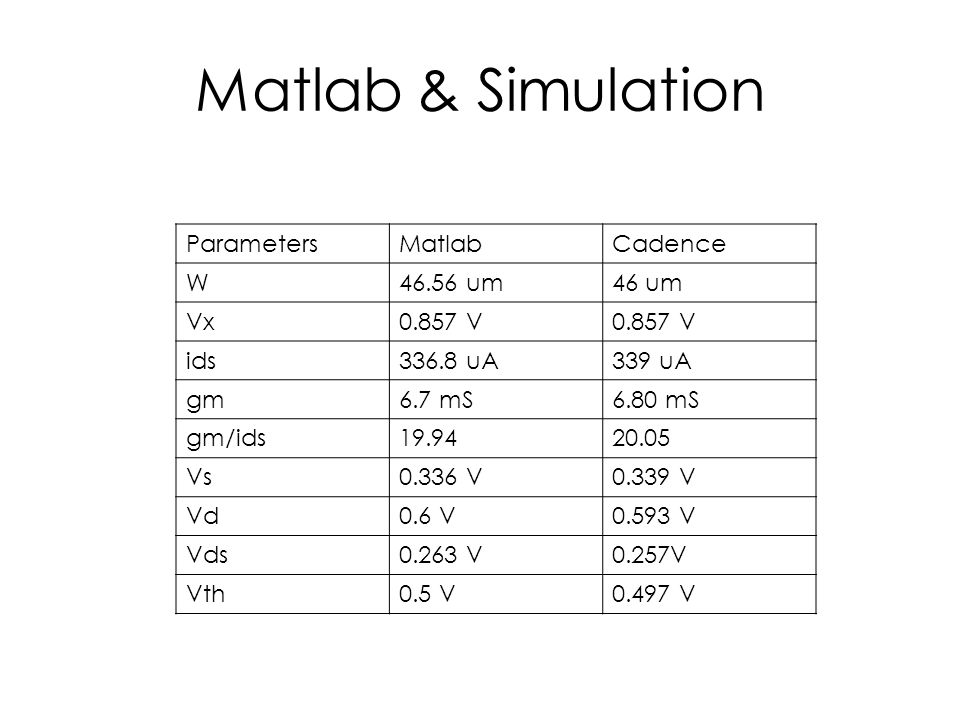

46 Matlab & Simulation ParametersMatlabCadence W46.56 um46 um Vx0.857 V ids336.8 uA339 uA gm6.7 mS6.80 mS gm/ids19.9420.05 Vs0.336 V0.339 V Vd0.6 V0.593 V Vds0.263 V0.257V Vth0.5 V0.497 V

47 Circuit Design Using Cadence J.Ou

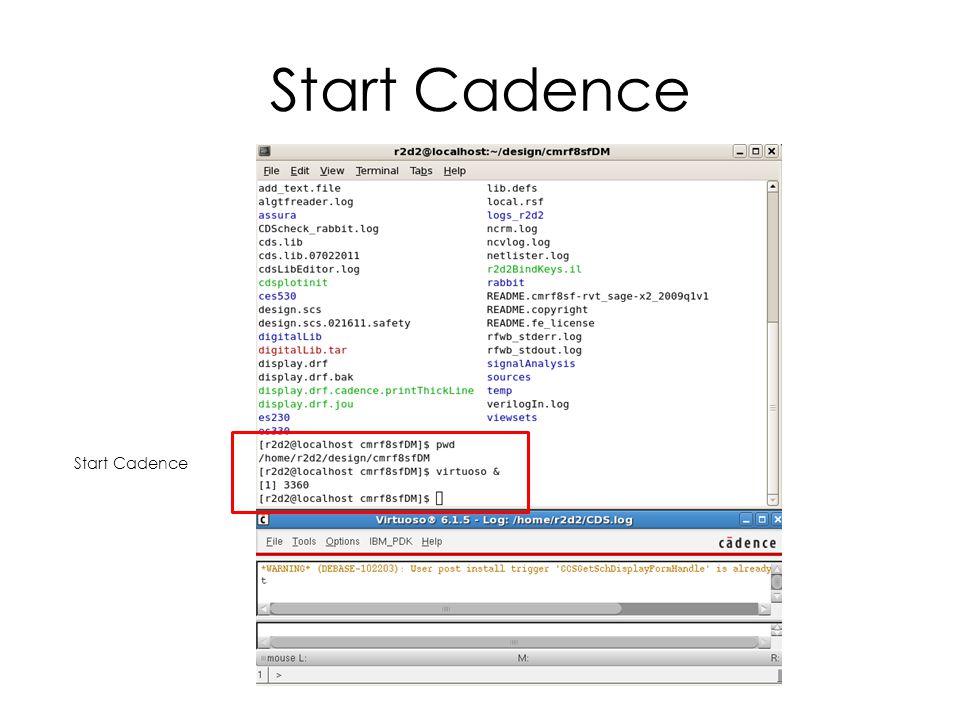

48 Start Cadence

49 Create New Cellview

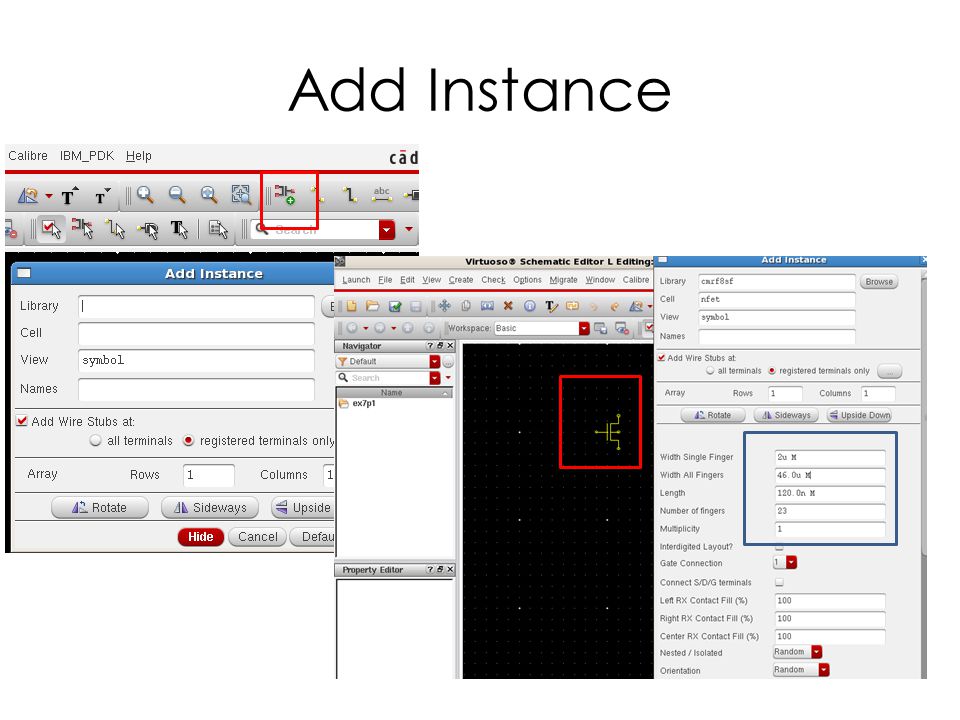

50 Add Instance

51 Add a Resistor

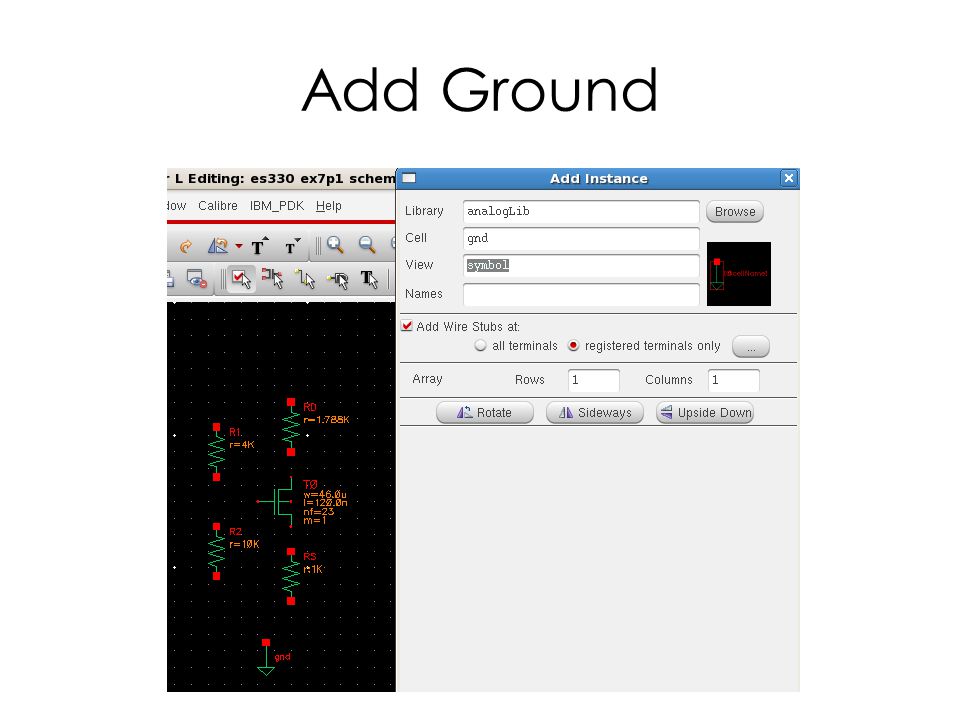

52 Add Ground

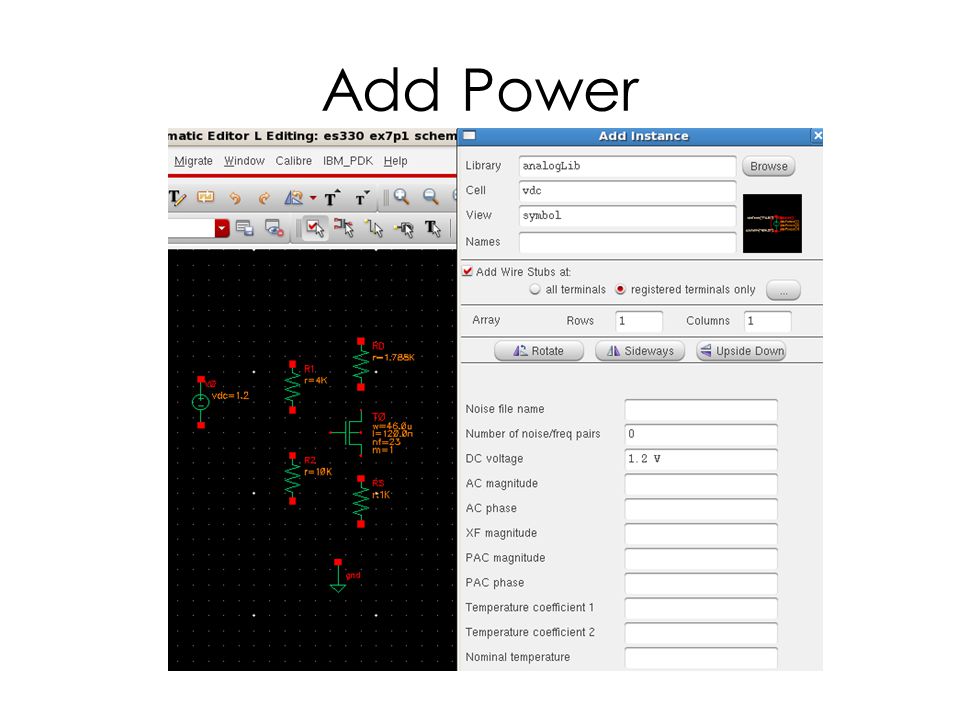

53 Add Power

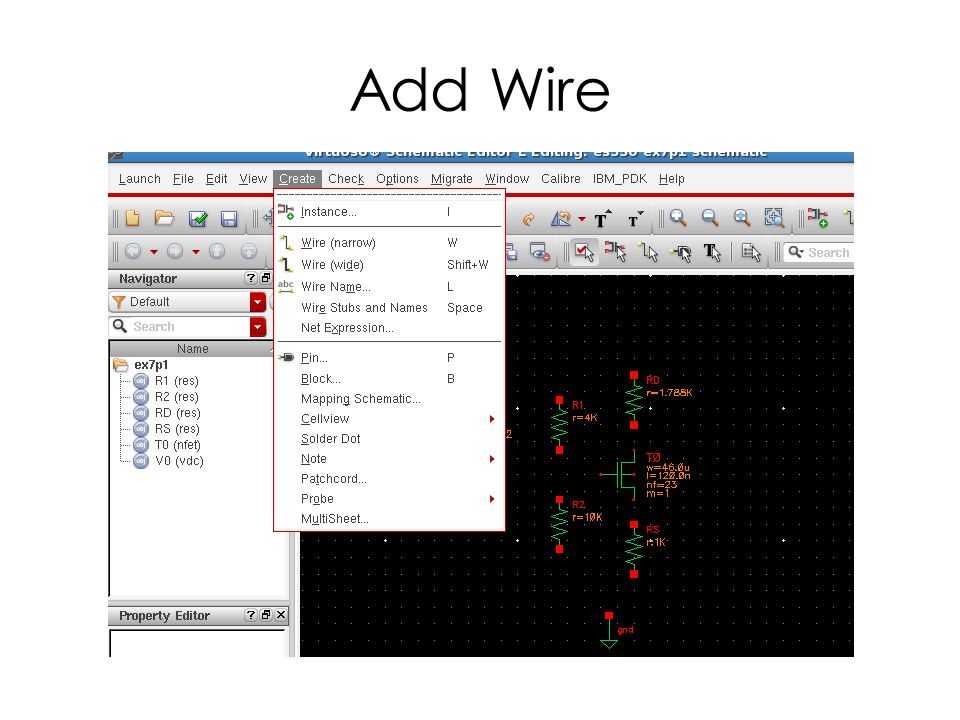

54 Add Wire

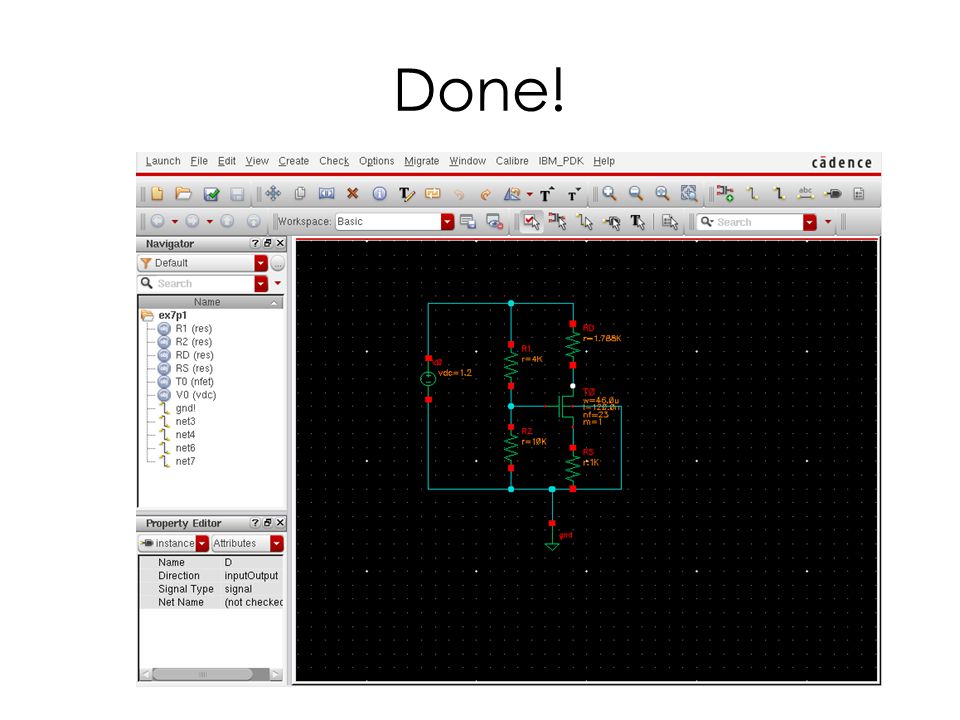

55 Done!

56 Start ADE L

57 Start DC Analysis

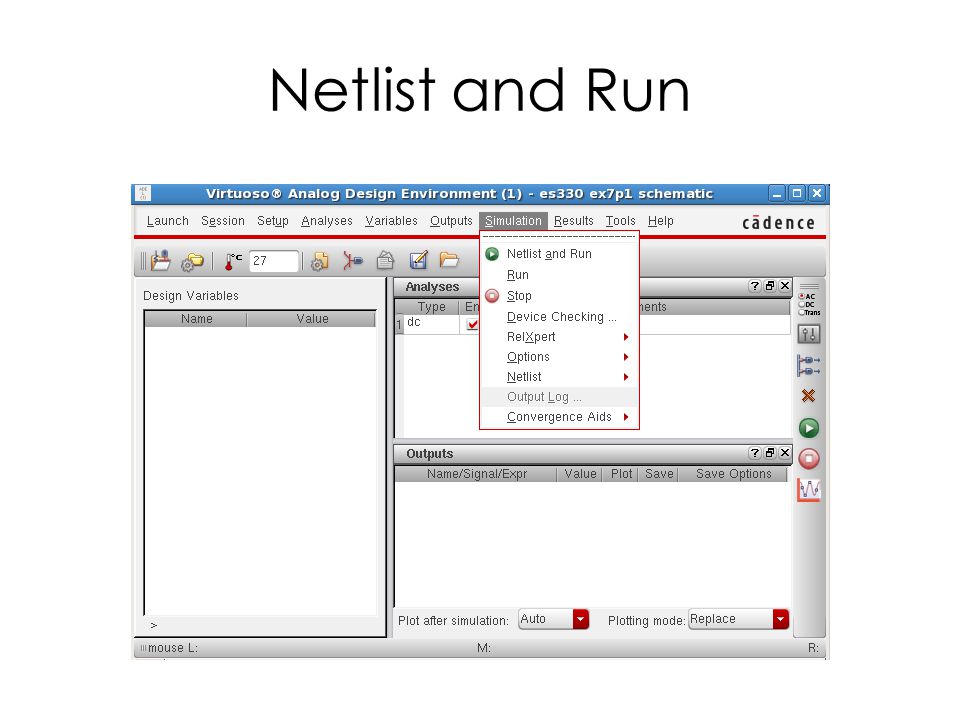

58 Netlist and Run

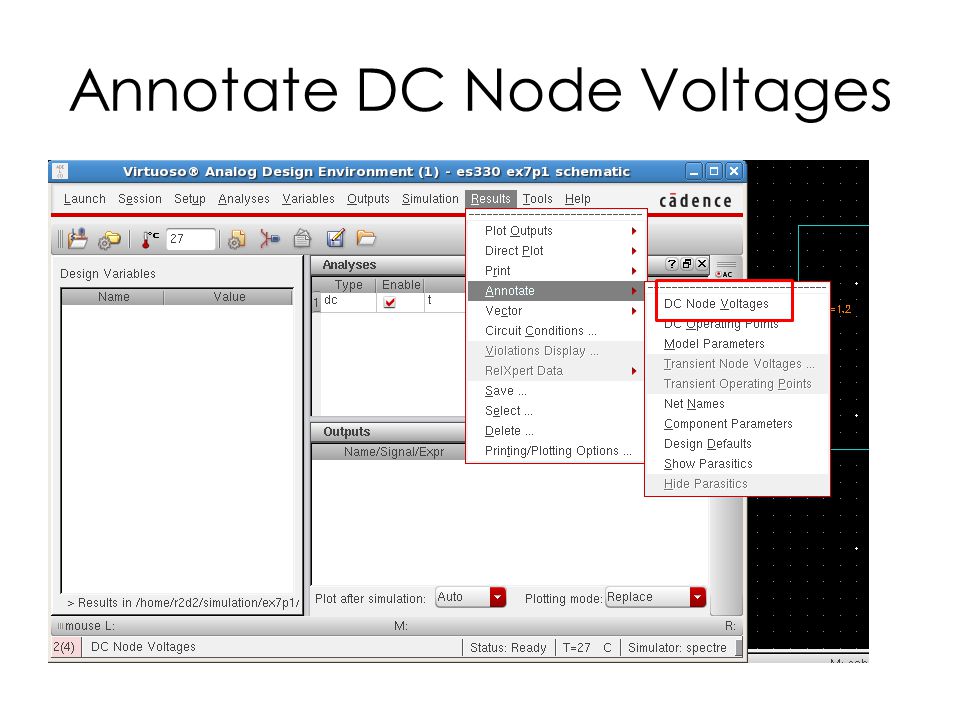

59 Annotate DC Node Voltages

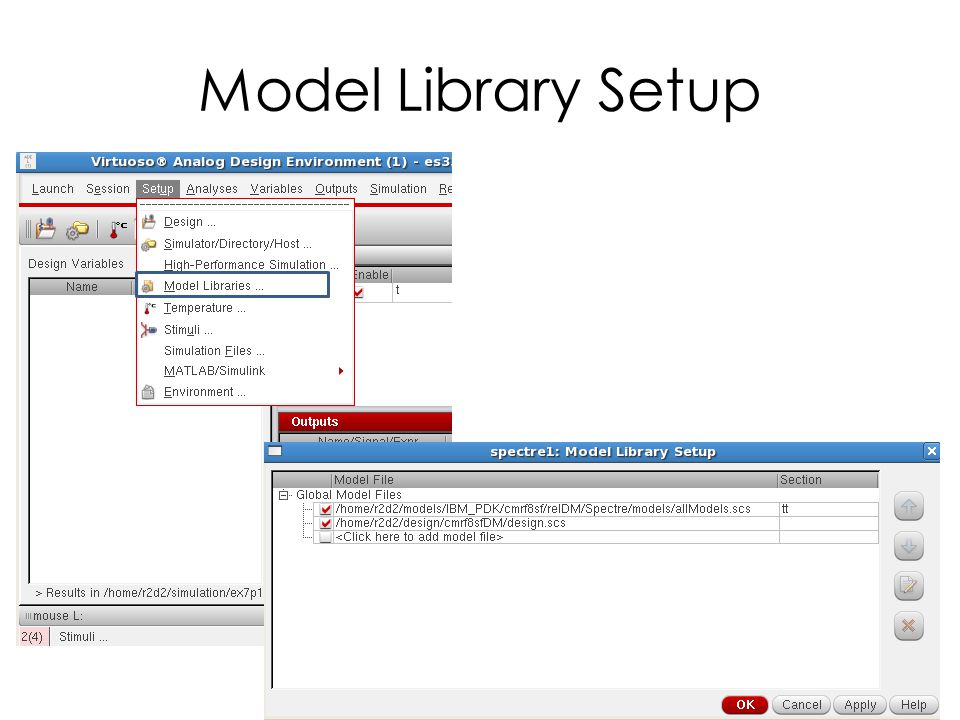

60 Model Library Setup

61 DC Voltage Annotated

62 Component Display

63 Display DC Operating Point Click on the device to display values!

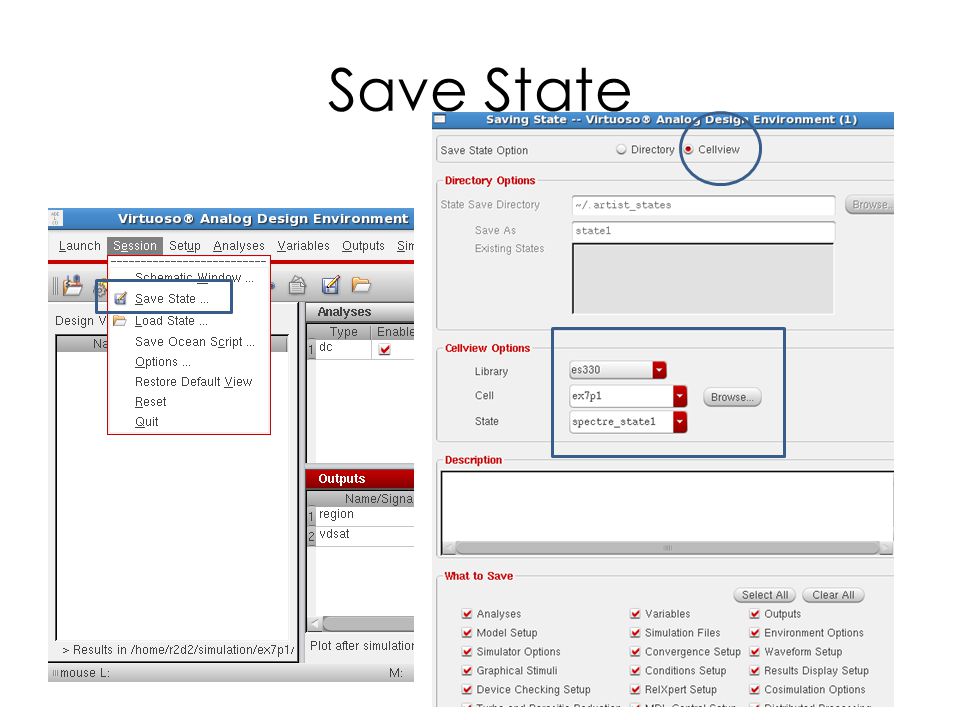

64 Save State
