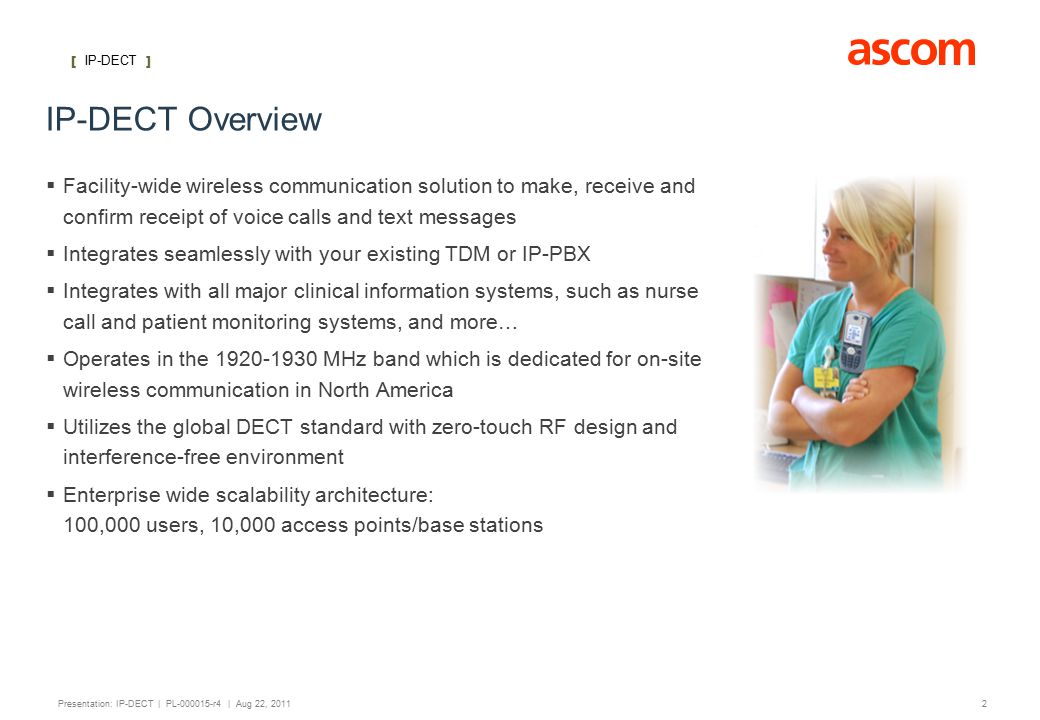

[ IP-DECT ] 2 Presentation: IP-DECT | PL r4 | Aug 22, 2011 IP-DECT Overview Facility-wide wireless communication solution to make, receive and confirm receipt of voice calls and text messages Integrates seamlessly with your existing TDM or IP-PBX Integrates with all major clinical information systems, such as nurse call and patient monitoring systems, and more… Operates in the MHz band which is dedicated for on-site wireless communication in North America Utilizes the global DECT standard with zero-touch RF design and interference-free environment Enterprise wide scalability architecture: 100,000 users, 10,000 access points/base stations
[ IP-DECT ] 3 Presentation: IP-DECT | PL r4 | Aug 22, 2011 Key Benefits of IP-DECT Lower initial investment if voice grade WLAN is not in place FCC protected interference-free spectrum Ability to use Ethernet LAN for backhaul and deployment for remote locations Flexible access point/base station options available No need to invest in or manage voice grade wireless LAN Diversification by separating voice and data on different networks State-of-the-art purpose-built DECT handset portfolio
[ IP-DECT ] 4 Presentation: IP-DECT | PL r4 | Aug 22, 2011 IP-DECT Access Point Overview Dedicated VoIP wireless access point Utilizes Ethernet backbone for wired infrastructure (shared or dedicated) Easily powered from a PoE source (PoE switch or injector) Supports up to eight simultaneous conversations per access point Internal antennas RF coverage – 100 ft. indoor and up to 1000 ft. line of sight Provides seamless handovers with over-air synchronization Web-based administration Scalable for single, multi-site and remote deployments Scalable and cost effective for small businesses
[ IP-DECT ] 5 Presentation: IP-DECT | PL r4 | Aug 22, 2011 BS330 Base Station Overview Dedicated base station for IP-DECT gateway systems Transports power & data over dedicated, unshielded CAT5 twisted pairs (minimum two pairs) Supports up to eight simultaneous conversations per base station Internal antennas RF coverage – 100 ft. indoor and up to 1000 ft. line of sight Cabling distance can reach up to 4,900 ft.

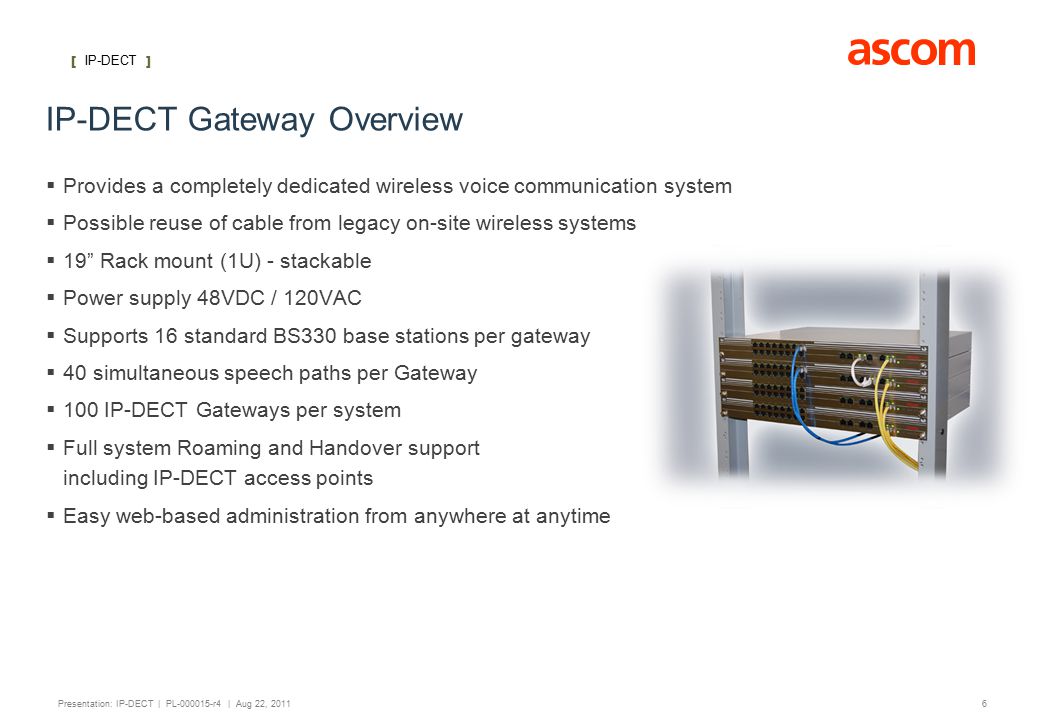

[ IP-DECT ] 6 Presentation: IP-DECT | PL r4 | Aug 22, 2011 IP-DECT Gateway Overview Provides a completely dedicated wireless voice communication system Possible reuse of cable from legacy on-site wireless systems 19” Rack mount (1U) - stackable Power supply 48VDC / 120VAC Supports 16 standard BS330 base stations per gateway 40 simultaneous speech paths per Gateway 100 IP-DECT Gateways per system Full system Roaming and Handover support including IP-DECT access points Easy web-based administration from anywhere at anytime
[ IP-DECT ] 7 Presentation: IP-DECT | PL r4 | Aug 22, 2011 Interoperability Partners Focus on Infrastructure [ IP-DECT & VoWiFi ] Distr. Antenna SystemsIP-PBX with SIPWLAN Infrastructure

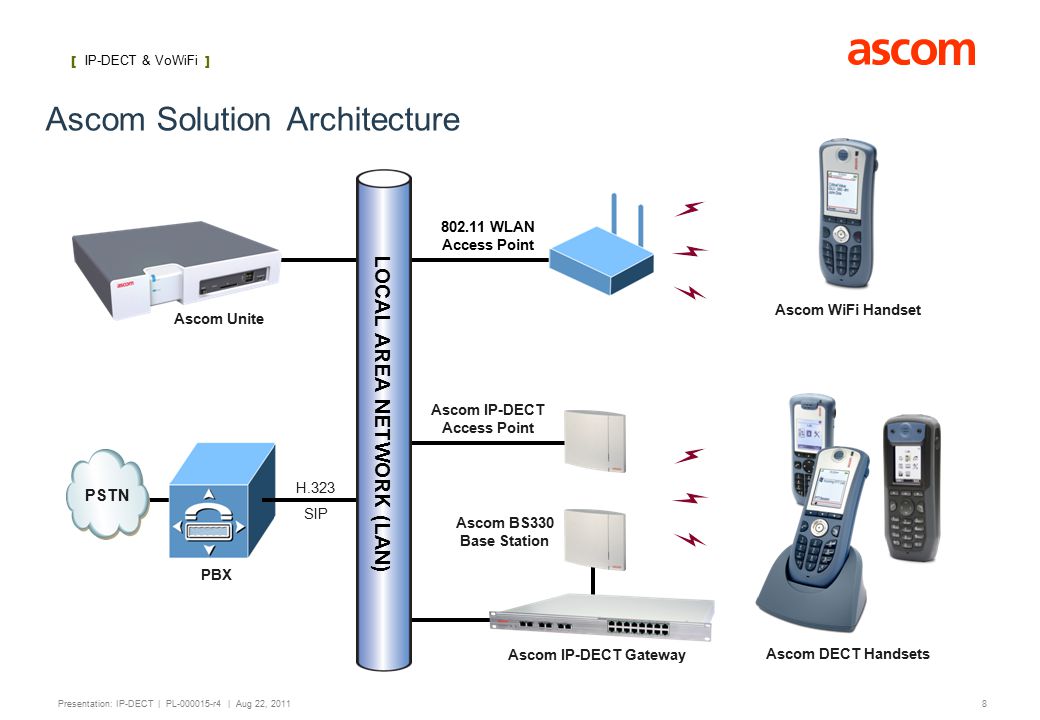

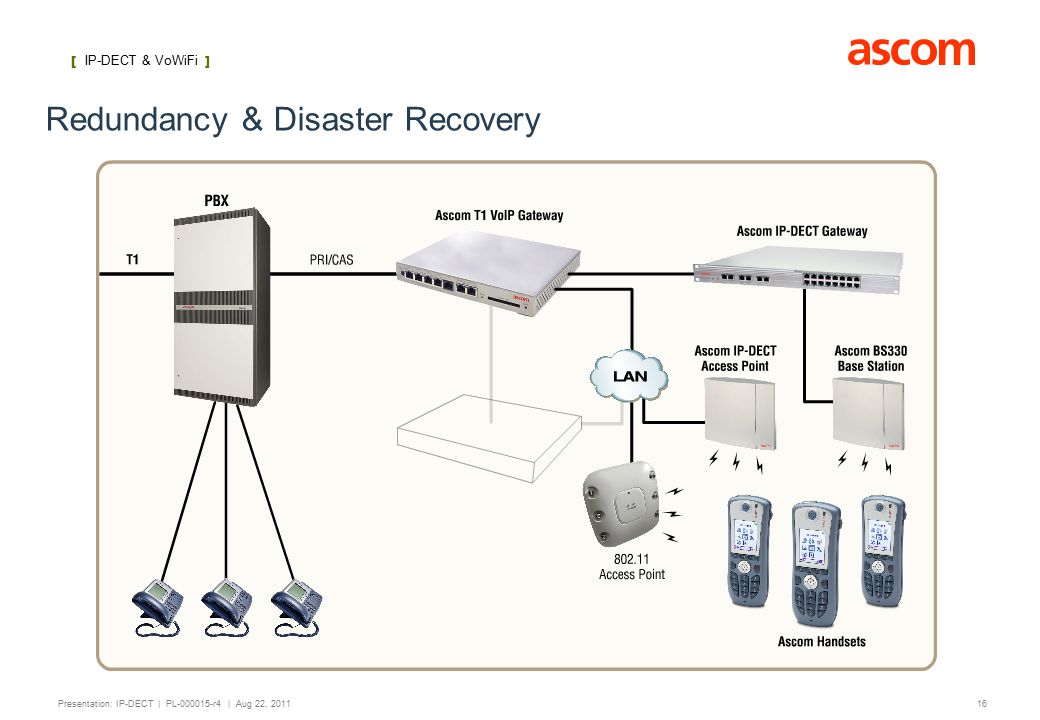

[ IP-DECT ] 8 Presentation: IP-DECT | PL r4 | Aug 22, 2011 H.323 SIP Ascom Solution Architecture Ascom IP-DECT Access Point Ascom IP-DECT Gateway Ascom BS330 Base Station Ascom DECT Handsets [ IP-DECT & VoWiFi ] PBX Ascom WiFi Handset Ascom Unite WLAN Access Point LOCAL AREA NETWORK (LAN) PSTN

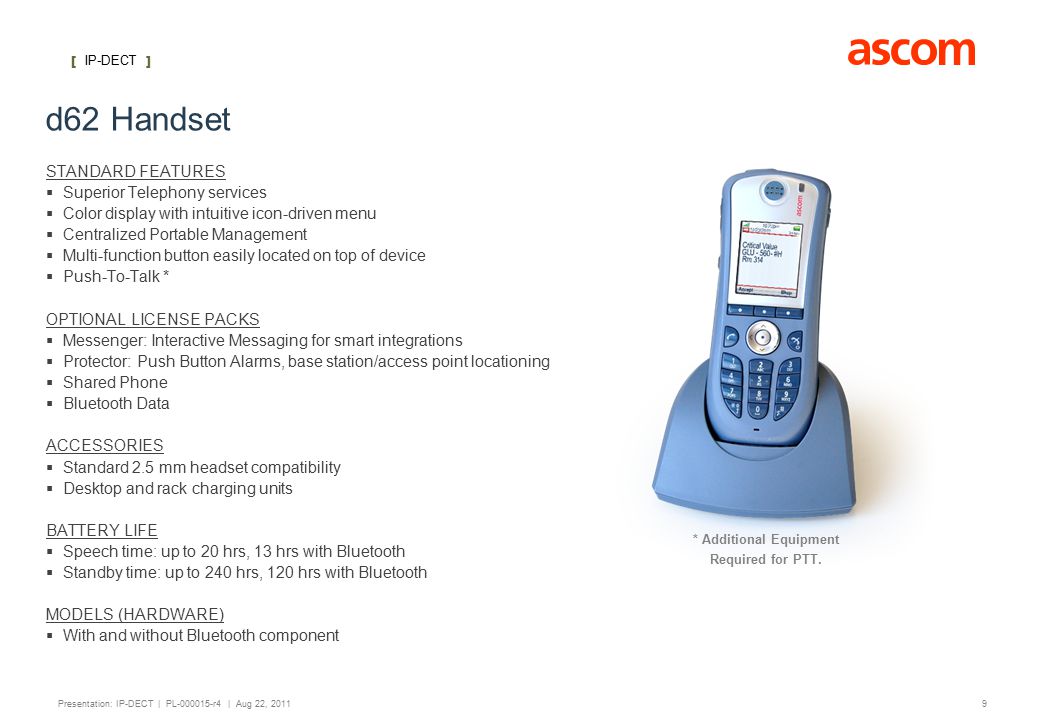

[ IP-DECT ] 9 Presentation: IP-DECT | PL r4 | Aug 22, 2011 d62 Handset STANDARD FEATURES Superior Telephony services Color display with intuitive icon-driven menu Centralized Portable Management Multi-function button easily located on top of device Push-To-Talk * OPTIONAL LICENSE PACKS Messenger: Interactive Messaging for smart integrations Protector: Push Button Alarms, base station/access point locationing Shared Phone Bluetooth Data ACCESSORIES Standard 2.5 mm headset compatibility Desktop and rack charging units BATTERY LIFE Speech time: up to 20 hrs, 13 hrs with Bluetooth Standby time: up to 240 hrs, 120 hrs with Bluetooth MODELS (HARDWARE) With and without Bluetooth component * Additional Equipment Required for PTT.

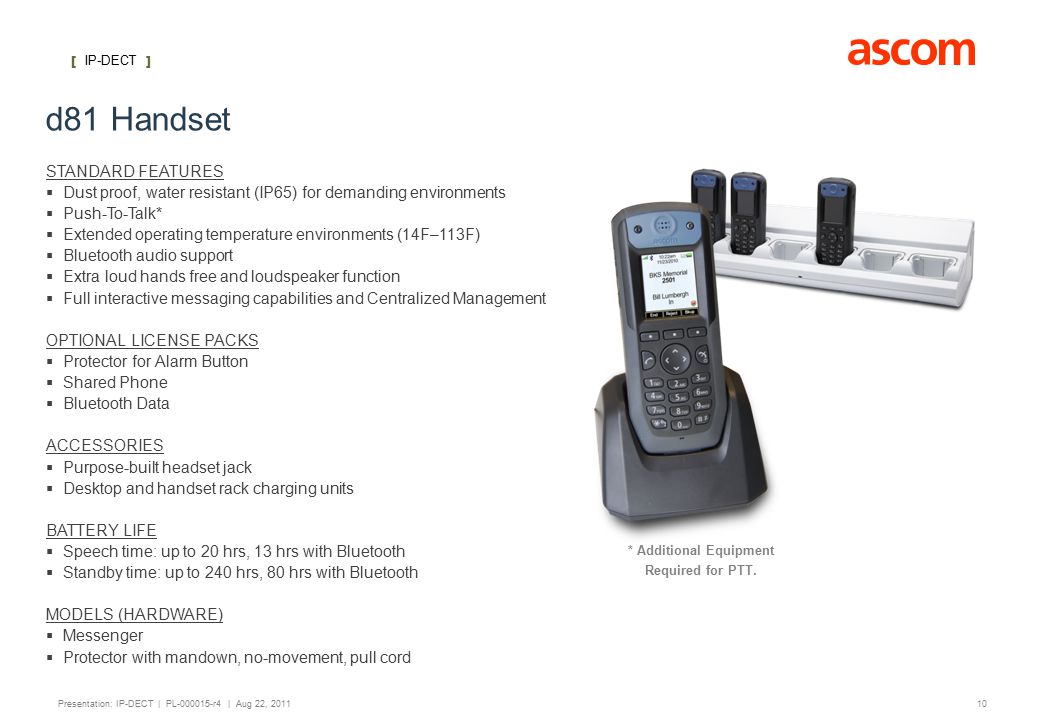

[ IP-DECT ] 10 Presentation: IP-DECT | PL r4 | Aug 22, 2011 d81 Handset STANDARD FEATURES Dust proof, water resistant (IP65) for demanding environments Push-To-Talk* Extended operating temperature environments (14F–113F) Bluetooth audio support Extra loud hands free and loudspeaker function Full interactive messaging capabilities and Centralized Management OPTIONAL LICENSE PACKS Protector for Alarm Button Shared Phone Bluetooth Data ACCESSORIES Purpose-built headset jack Desktop and handset rack charging units BATTERY LIFE Speech time: up to 20 hrs, 13 hrs with Bluetooth Standby time: up to 240 hrs, 80 hrs with Bluetooth MODELS (HARDWARE) Messenger Protector with mandown, no-movement, pull cord * Additional Equipment Required for PTT.

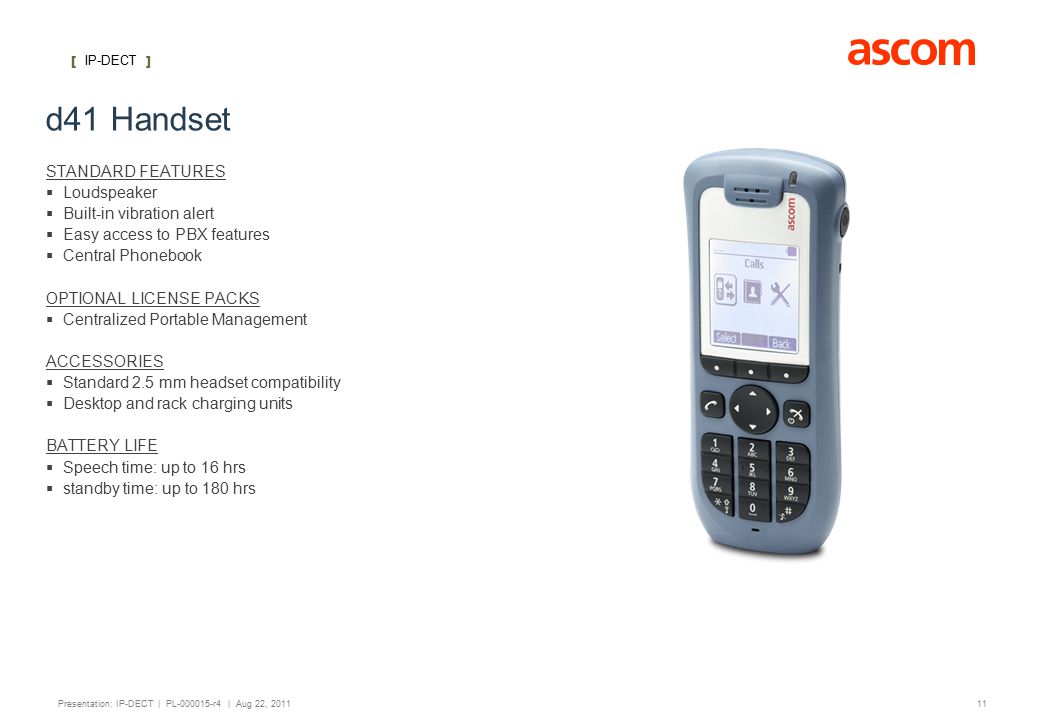

[ IP-DECT ] 11 Presentation: IP-DECT | PL r4 | Aug 22, 2011 d41 Handset STANDARD FEATURES Loudspeaker Built-in vibration alert Easy access to PBX features Central Phonebook OPTIONAL LICENSE PACKS Centralized Portable Management ACCESSORIES Standard 2.5 mm headset compatibility Desktop and rack charging units BATTERY LIFE Speech time: up to 16 hrs standby time: up to 180 hrs
[ IP-DECT ] 12 Presentation: IP-DECT | PL r4 | Aug 22, 2011 d41/d62 Handset Accessories DESKTOP CHARGER Basic or advanced (central management) MODULAR RACK CHARGERS Up to six handsets or batteries ACCESSORIES Leather case, swivel clip, security string HEADSET OPTIONS Standard 2.5 mm jack and Bluetooth Batteries for d62 Handset only.
[ IP-DECT ] 13 Presentation: IP-DECT | PL r4 | Aug 22, 2011 T1 VoIP Gateway High reliability appliance, contains no moving parts Provides a telephony interface toward a PBX PRI support: 5ESS, QSIG, NI-2, DMS100, T1 CAS (E&M) Supports all typical telephony services/features IP to IP call switching handled within (Gatekeeper) 19” rack mountable (1U), stackable 2 Ethernet ports with separate addressing 2 T1 ports per gateway Up to 46 simultaneous speech channels toward PBX Power over Ethernet (PoE) support Redundancy planning Single management of multiple gateways via web browser [ IP-DECT & VoWiFi ]
[ IP-DECT ] 14 Presentation: IP-DECT | PL r4 | Aug 22, 2011 Analog VoIP Gateway Provides PBX analog port interfaces for IP-DECT & VoWiFi systems Compact, embedded appliance w/ 5 Ethernet ports (1 WAN, 4 LAN) 8 analog (FXO) ports per Gateway Supports activation of PBX feature codes (Transfer, Hold, etc.) Supports delivery of Message Waiting Indication Supports Presentation of Caller Line Identity (Name and Number) Built-in Meet Me Conferencing for Push-To-Talk* solutions Web-based intuitive GUI for easy administration [ IP-DECT & VoWiFi ] * Additional Equipment Required for PTT
[ IP-DECT ] 15 Presentation: IP-DECT | PL r4 | Aug 22, 2011 Ascom Voice Appliance Provides enhanced services for voice communication systems: - Meet-me conference unit for Push-to-Talk* and IGC - Call manager to expand Analog VoIP Gateway systems Appliance hardware with Asterisk Business Edition software Supports a SIP trunk interface (connectivity with Ascom T1 VoIP GWs) Supports TDM interfaces (T1/E1 and Analog FXO) Easy to manage conference rooms with advanced options: Shutdown conference when originator exits call Maximum 50 participants in a single conference room 75 concurrent calls [ IP-DECT & VoWiFi ] *Additional Equipment Required for PTT.
