1 Rad 270 Skull Lecture

2 Skull Anatomy Comprised of 22 separate bones divided into two groups: –Cranial bones – 8 –Facial bones – 14 Cranial bones further subdivided into –Calvaria –Floor

3 Cranial Bones Calvaria –Frontal –Occipital –R. parietal –L. parietal Floor –Ethmoid –Sphenoid –R. temporal –L. temporal

4 Skull Anatomy Sutures = fibrous joints that connect the bones of the skull –Coronal = between frontal and parietal bones –Sagittal = on top of head between two parietal bones –Squamosal = between temporal bone and the parietal bones –Lambdoidal = between occipital and the parietal bones

5 Skull Morphology Typical skull = mesocephalic –Petrous pyramids project anteriorly and medially at angle of 47 degrees from MSP Brachycephalic skull –Petrous pyramids project anteriorly and medially at angle of 54 degrees from MSP –Short from front to back, broad from side to side, and shallow from vertex to base

6

7 Skull Morphology Dolichocephalic skull –Petrous pyramids project anteriorly and medially at angle of 40 degrees from MSP –Long from front to back, narrow from side to side, and deep from vertex to base Asymmetry of outer features should be noted while positioning; for example, the nose may not always be in the midline

8 Slide 8

9 Frontal Bone Landmarks to note –Frontal eminences –Supraorbital margins –Supraciliary arches –Supraorbital foramina –Glabella

10

11

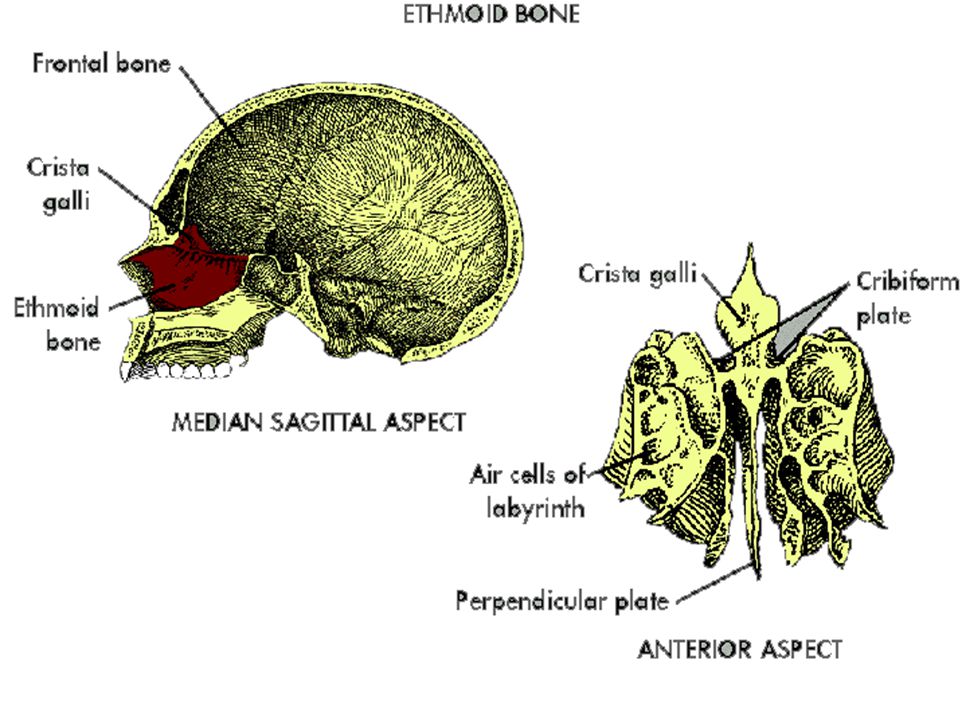

12 Ethmoid Bone Consists of –Horizontal plate –Vertical plate –Two light, spongy masses = labyrinths

13

14

15 Parietal Bones Somewhat square-shaped Have a convex external surface and concave internal surface Parietal eminence = prominent bulge near center of external surface of each bone –This is the point where the width of the skull should be measured to set technique

16

17 Sphenoid Bone Irregular, wedge-shaped bone that resembles a bat (somewhat) Located in base of cranium anterior to temporal bones and basilar portion of occipital

18

19

20

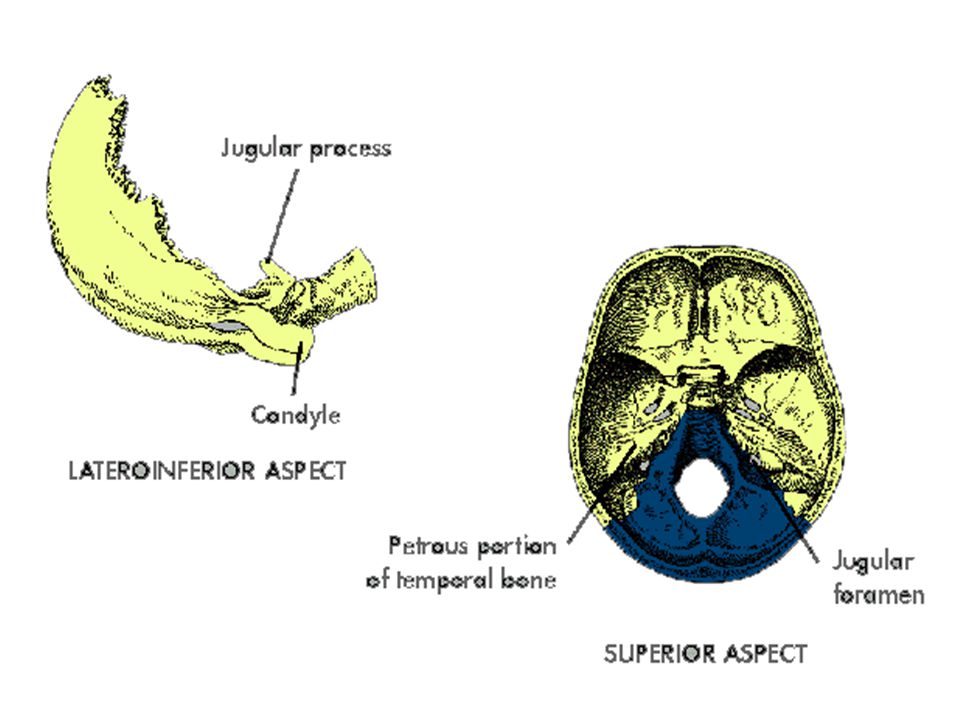

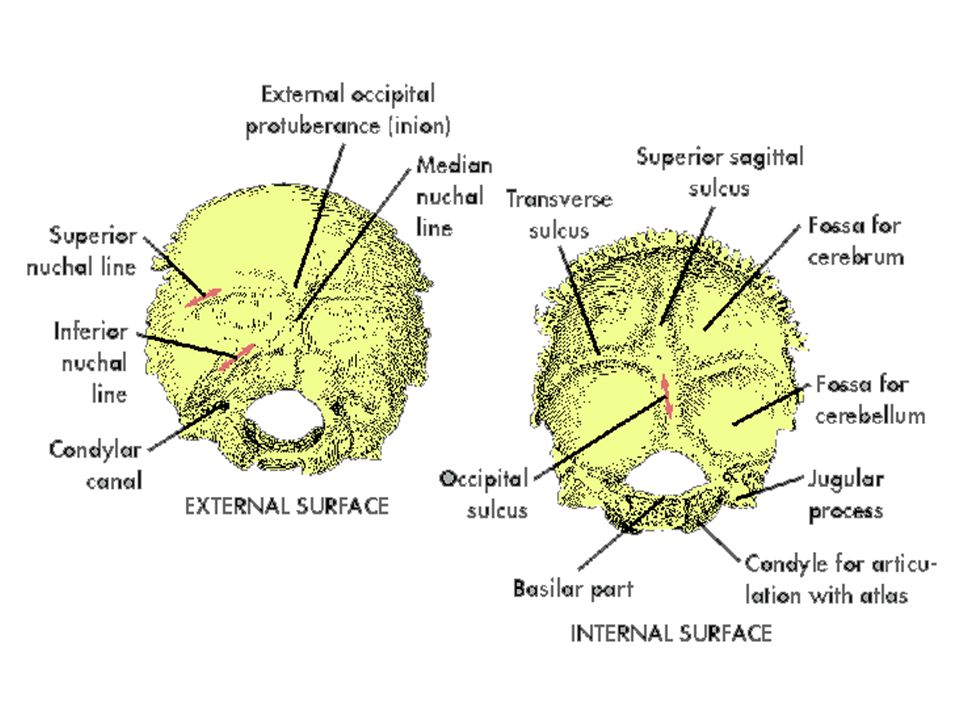

21 Occipital Bone Situated at posteroinferior part of cranium Forms posterior half of cranial base and greater portion of posterior cranial fossa Has four parts –Squama –Two occipital condyles –Basilar portion

22

23

24 Temporal Bones Consist of –Squamous portion –Tympanic portion –Styloid process –Zygomatic process –Petromastoid portion which contain the organs for hearing and equilibrium

25

26

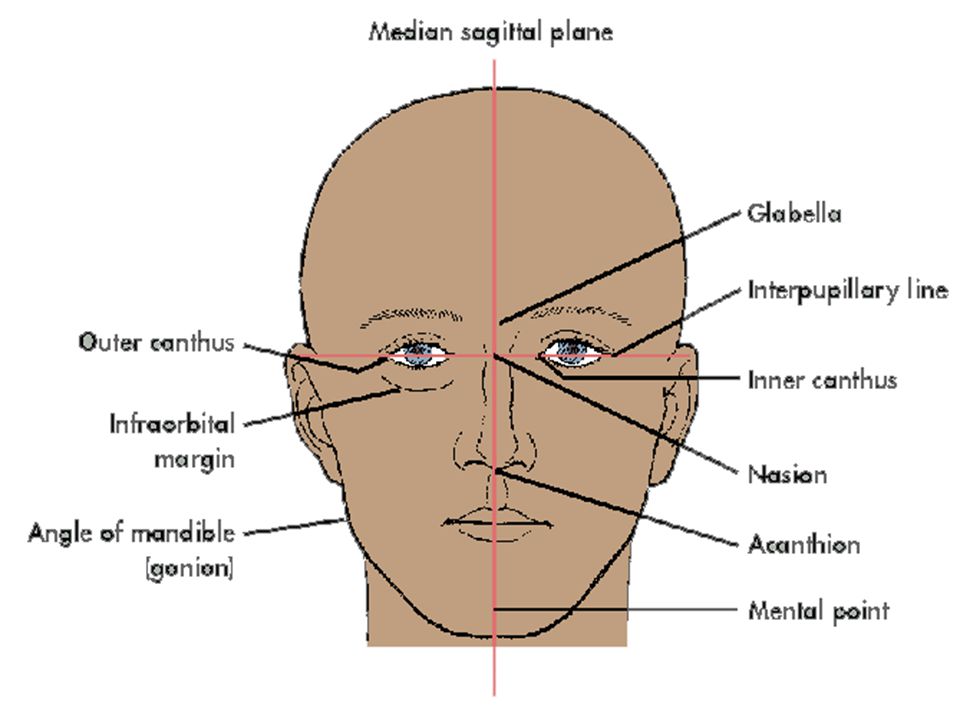

27 Skull Topography Glabella Inner canthus Outer canthus Nasion Infraorbital margin Acanthion Gonion Mental point External auditory meatus (EAM) Auricular point Top of ear attachment (TEA) Be able to locate the following landmarks:

28

29

30 Hyposthenic/Asthenic Patients

31 Hypersthenic Patients

32 Essential Projections: Cranium Lateral PA PA axial (Caldwell method) AP AP axial AP axial (Towne method) PA axial (Haas method) Submentovertical (SMV) –For cranial base

33

34 Lateral Projection Patient position –Seated upright or semiprone Part position –MSP of head parallel to IR –IPL perpendicular –IOML parallel to transverse axis of cassette CR –Perpendicular to center of IR –Enters 2  superior to EAM

35 Lateral Projections Entire cranium without rotation or tilt Superimposed orbital roofs and greater wings of sphenoid Superimposed mastoid regions and EAMs Superimposed TMJs Sella turcica in profile Penetration of parietal region No overlap of C-spine by mandible

36

37 PA/PA Axial (Caldwell) Patient position –Seated erect or prone –MSP centered to midline –Forehead and nose resting on table or upright Bucky Part position –OML perpendicular to IR plane –MSP perpendicular to IR –IR centered to nasion

38 PA/PA Axial (Caldwell) CR for PA projection –Perpendicular –Exits nasion CR for PA axial (Caldwell) –Angled 15 degrees caudad –Exits nasion

39

40

41

42

43 PA Projection Entire cranial perimeter showing three tables of squamous bone No rotation –Equal distance from lateral borders of skull to lateral border of orbits –Symmetric petrous ridges Petrous ridges fill orbits Penetration of frontal bone without excessive density at lateral borders of skull

44

45 PA Axial (Caldwell Method) Same as for PA projection, except –Petrous ridges demonstrated in lower one third of orbit

46

47 AP/AP Axial Projection Same as PA and PA axial projections Anatomy more magnified in AP and AP axial projections

48 AP Axial (Towne Method) Patient and part position –Supine or seated erect –MSP centered to midline –MSP perpendicular –OML or IOML perpendicular IR top border level with skull vertex IR center at or near foramen magnum CR –Directed through foramen magnum –OML – 30 degrees caudal –IOML – 37 degrees caudal

49

50 AP Axial (Towne Method) No rotation –Equal distance from lateral border of skull to lateral margin or foramen magnum –Symmetric petrous ridges Dorsum sellae and posterior clinoid processes visible within foramen magnum Penetration of occipital bone without excessive density at parietals

51

52 PA Axial (Haas) Projection of dorsum sellae and posterior clinoid processes within foramen magnum Equal distance from lateral border of skull to lateral margin of foramen magnum Symmetric petrous pyramids Entire cranium

53

54 SMV Projection (Schüller) Patient position –Seated upright or supine –Torso elevated if supine Part position –MSP centered to midline –IOML parallel with IR –MSP perpendicular to IR

55 SMV Projection (Schüller) CR –Through sella turcica perpendicular to IOML –Enters MSP of throat between angles of mandible –Passes through a point ¾  (1.9 cm) anterior to level of EAM –Center IR to CR

56

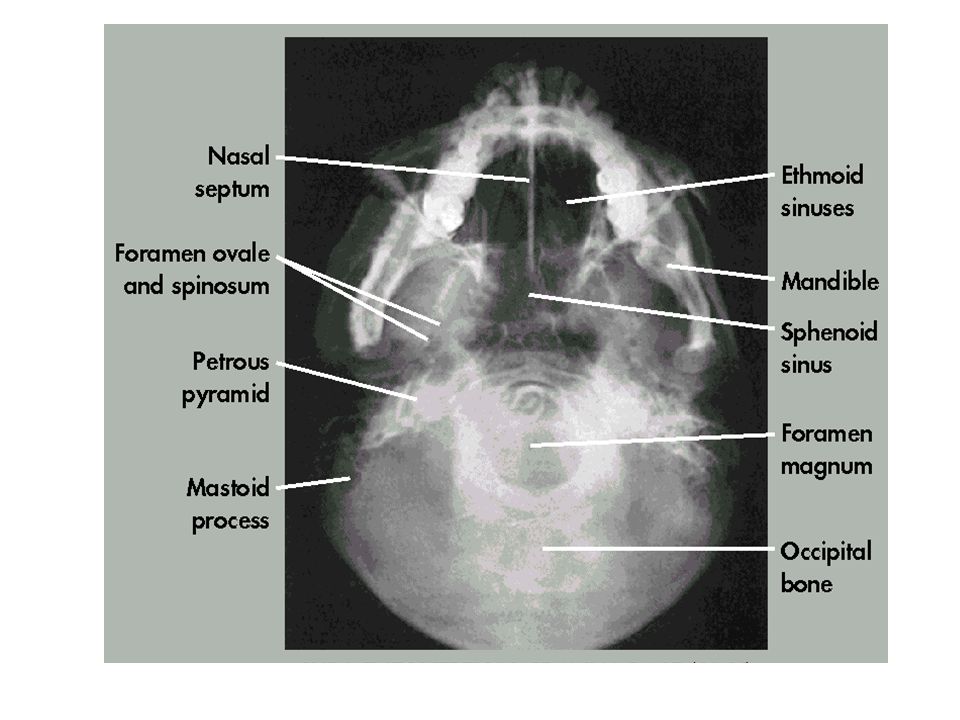

57 SMV Projection (Schüller) No rotation or tilt –Equal distance from lateral border of skull to mandibular condyles –Symmetric petrous pyramids Penetration sufficient to demonstrate structures of cranial base Superimposition of mental protuberance over anterior frontal bone, indicating full neck extension Mandibular condyles anterior to petrous pyramids

58 SMV Projection (Schüller) Superimposition of mental protuberance over frontal bone – indicates full neck extension Condyles of mandible anterior to petrous pyramids

59

60

61

62
