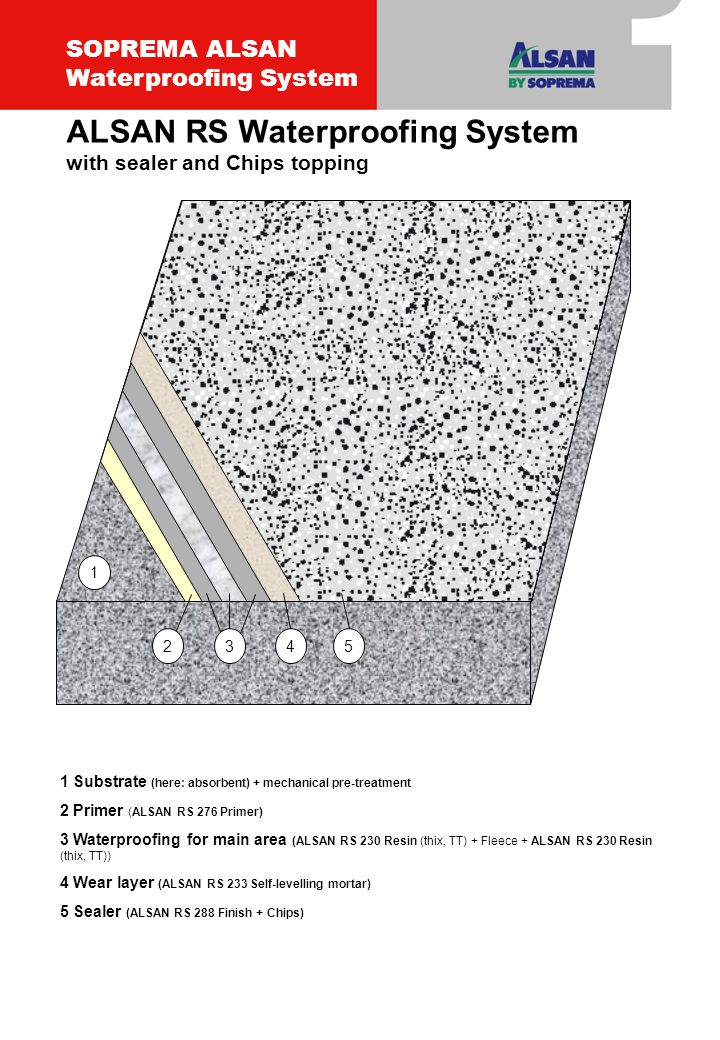

1 Substrate (here: absorbent) + mechanical pre-treatment 2 Primer (ALSAN RS 276 Primer) 3 Waterproofing for main area (ALSAN RS 230 Resin (thix, TT) + Fleece + ALSAN RS 230 Resin (thix, TT)) 4 Wear layer (ALSAN RS 233 Self-levelling mortar) 5 Sealer (ALSAN RS 288 Finish + Chips) 34 1 52 ALSAN RS Waterproofing System with sealer and Chips topping SOPREMA ALSAN Waterproofing System
1 Substrate (here:absorbent) + mechanical pre-treatment 2 Primer (ALSAN RS 276 Primer) 3 Waterproofing for main area (ALSAN RS 230 Resin (thix, TT) + Fleece + ALSAN RS 230 Resin (thix, TT)) 4 Wear layer (ALSAN RS 233 Self-levelling mortar) + quartz and topping 5 Sealer (ALSAN RS 288 Finish) 34 1 52 ALSAN RS Waterproofing Sytem with quartz sand topping and sealer SOPREMA ALSAN Waterproofing System
1 Substrate (here: absorbent) + mechanical pre-treatment 2 Primer (ALSAN RS 276 Primer) 3 Waterproofing for main area (ALSAN RS 230 Resin (thix, TT) + Fleece + ALSAN RS 230 Resin (thix, TT)) 3 1 2 ALSAN RS Waterproofing System under covering by other supplier, loose SOPREMA ALSAN Waterproofing System

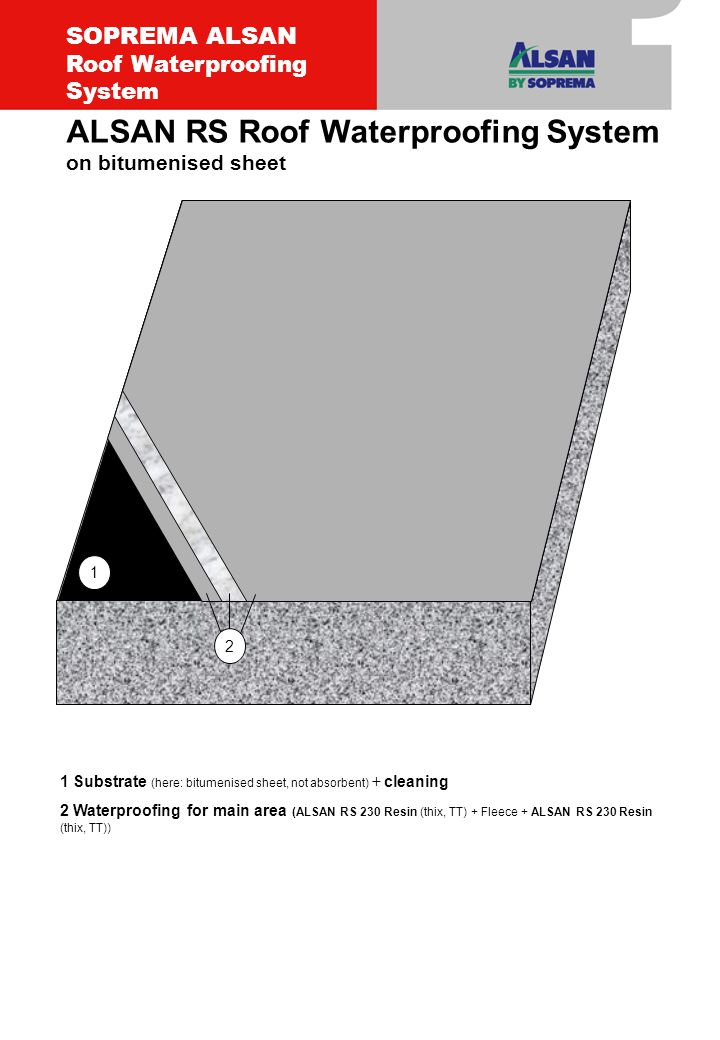

1 Substrate (here: bitumenised sheet, not absorbent) + cleaning 2 Waterproofing for main area (ALSAN RS 230 Resin (thix, TT) + Fleece + ALSAN RS 230 Resin (thix, TT)) 2 1 ALSAN RS Roof Waterproofing System on bitumenised sheet SOPREMA ALSAN Roof Waterproofing System
1 Substrate (here: absorbent) + mechanical pre-treatment 2 Primer (ALSAN RS 276 Primer) 3 Wear layer (ALSAN RS 233 Self-Levelling Mortar) 4 Sealer (ALSAN RS 288 Finish + Chips) 34 1 2 ALSAN RS Thick-Layer System with sealer and Chips topping SOPREMA ALSAN Thick-Layer System
1 Substrate (her: absorbent) + mechanical pre-treatment 2 Primer (ALSAN RS 276 Primer) 3 Wear layer (ALSAN RS 233 Self-Levelling Mortar) + quartz sand topping 4 Sealer (ALSAN RS 288 Finish) 34 1 2 ALSAN RS Thick-Layer System with quartz sand topping sealer SOPREMA ALSAN Thick-Layer System
1 Substrate (here: absorbent) + mechanical pre-treatment 2 Primer (ALSAN RS 276 Primer) 3 Sealer (ALSAN RS 288 Finish + Chips) 3 1 2 ALSAN RS Thin-Layer System with Chips topping SOPREMA ALSAN Thin-Layer System
