The Carbon Atom  Can bond with 4 other elements.  Has ability to form millions of different large and complex structures.  Living organisms all contain.

Similar presentations


Presentation on theme: "The Carbon Atom  Can bond with 4 other elements.  Has ability to form millions of different large and complex structures.  Living organisms all contain."— Presentation transcript:

1

2 The Carbon Atom  Can bond with 4 other elements.  Has ability to form millions of different large and complex structures.  Living organisms all contain carbon.

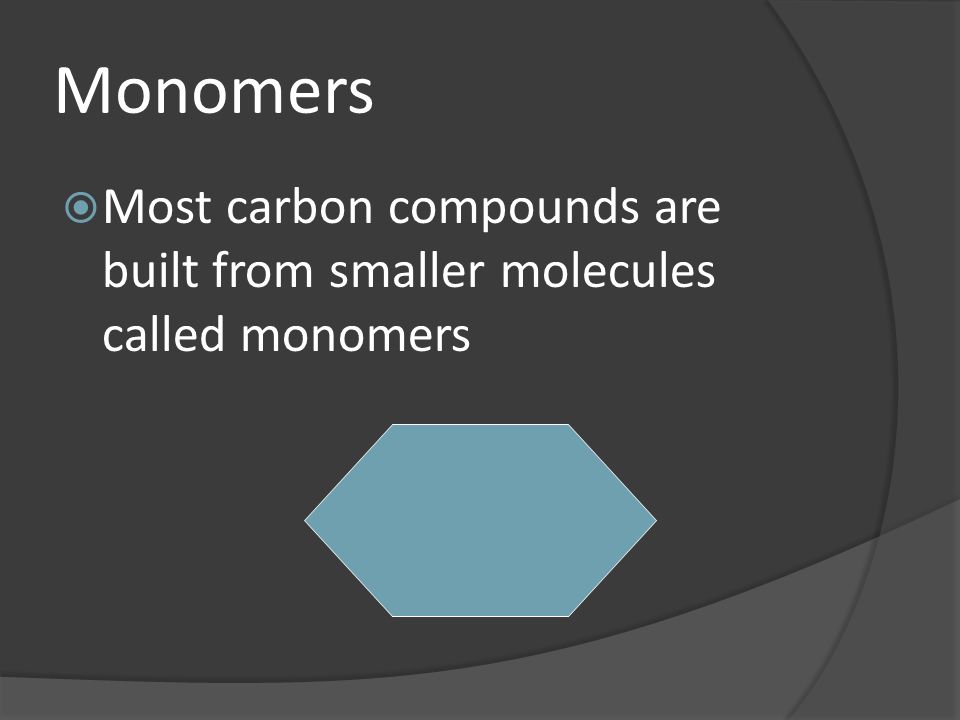

3 Monomers  Most carbon compounds are built from smaller molecules called monomers

4 Polymers  Monomers link together to form polymers  Examples of polymers include carbohydrates, lipids, nucleic acids and proteins.

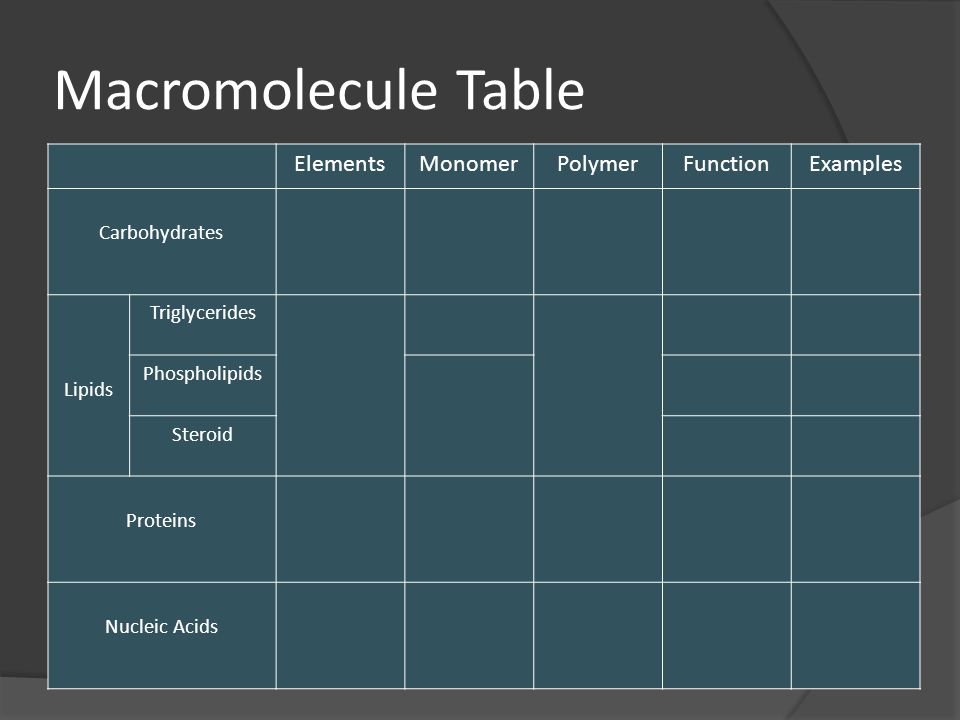

5 Macromolecule Table ElementsMonomerPolymerFunctionExamples Carbohydrates Lipids Triglycerides Phospholipids Steroid Proteins Nucleic Acids

6 Carbohydrates  Contain carbon (C), hydrogen (H) and oxygen (O)  Monomer = monosaccharide (ex: glucose)  Two monomers= disaccharide (ex: lactose)  Many monomers= polysaccharide (ex: starch)  Examples: sugars, starch, cellulose and glycogen  Provide energy for the cell and serve structural purposes

7 Macromolecule Table ElementsMonomerPolymerFunctionExamples Carbohydrates C, H, OMonosaccharidePolysaccharideEnergy & Structure Glucose, Lactose, Starch Lipids Triglycerides Phospholipids Steroid Proteins Nucleic Acids disaccharide

8 Monosaccharides  Aldehydes or ketones that contain several hydroxyl substituents.

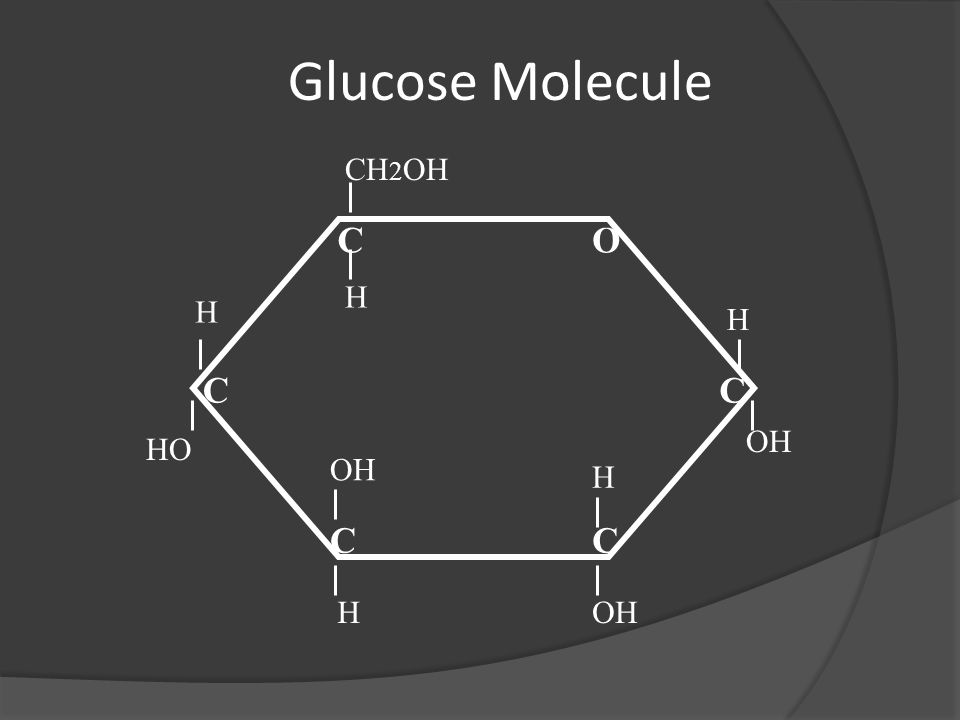

9 OH CH 2 OH C CC C O OH H H H H H C HO Glucose Molecule

10 Lipids  Contains C, H and O.  3 types Triglycerides Phospholipids Steroids  Examples: Saturated fats, unsaturated fats, wax, cholesterol and steroids  Not soluble in water HO-C-C-C-C-C-C-C-C-C-C-C-C-C-C-C-C-C-C-C-H O H H H H H H H H H H H H H H H H H H H H H H H H H H H Fatty Acid

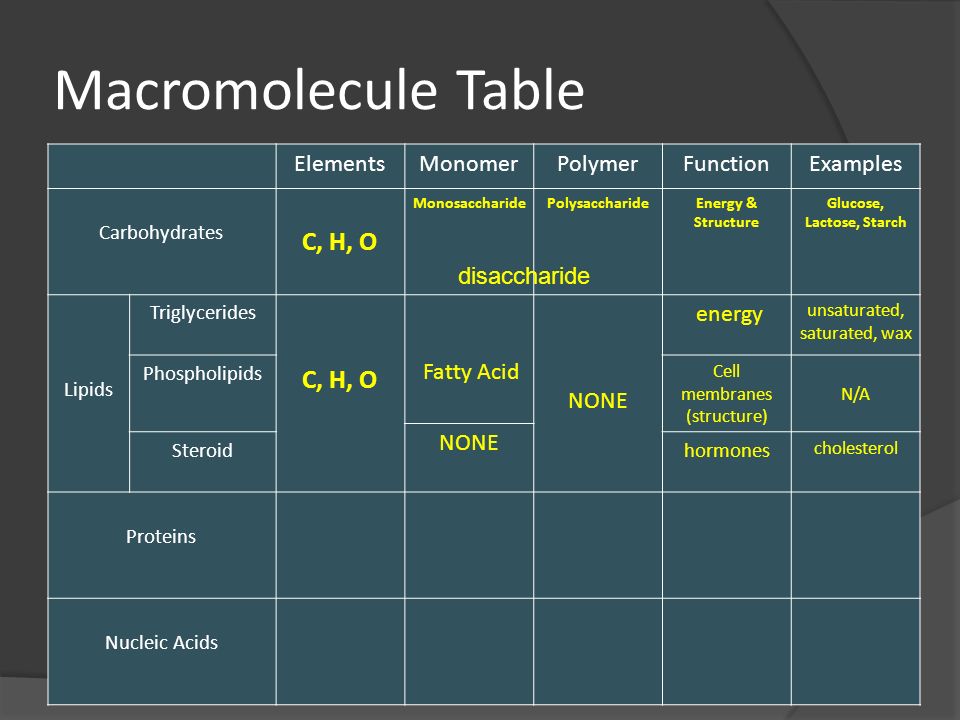

11 Macromolecule Table ElementsMonomerPolymerFunctionExamples Carbohydrates C, H, O MonosaccharidePolysaccharideEnergy & Structure Glucose, Lactose, Starch Lipids Triglycerides C, H, O Fatty Acid NONE energy unsaturated, saturated, wax Phospholipids Cell membranes (structure) N/A NONE Steroidhormones cholesterol Proteins Nucleic Acids disaccharide

12 Triglycerides  Two forms Saturated – all single C bonds Unsaturated – has double or triple C bonds.

13

14 Phosphate H H-C-O H C O C O H-C-O H C O C O C O Phospholipid Fat (glycerol +fatty acids) Long Chain Lipids

15 Phospholipids  Important structural component of cell membranes

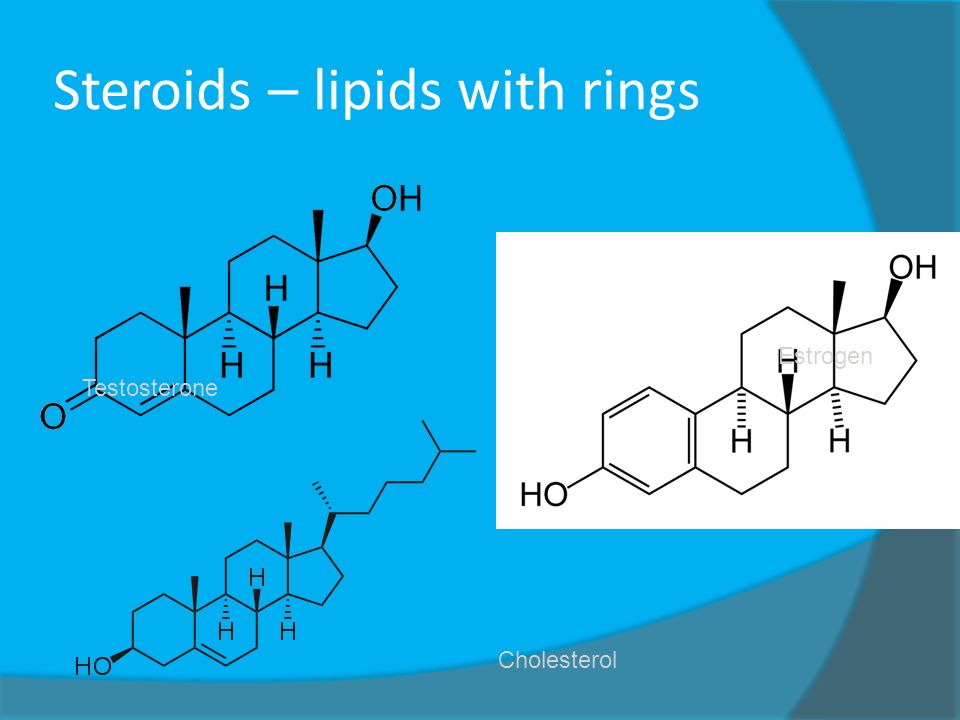

16 Testosterone Estrogen Cholesterol Steroids – lipids with rings

17 Macromolecule Table ElementsMonomerPolymerFunctionExamples Carbohydrates C, H, O MonosaccharidePolysaccharideEnergy & Structure Glucose, Lactose, Starch Lipids Triglycerides C, H, O Fatty Acid NONE energy unsaturated, saturated, wax Phospholipids Cell membranes (structure) N/A NONE Steroidhormones cholesterol Proteins Nucleic Acids disaccharide

18 Proteins  Contain C, H, O and Nitrogen (N).  Polymers made up of amino acid monomers Held together by peptide bonds.  There are 20 different types of amino acids  Two amino acids = dipeptide  Many amino acids = polypeptide  Most enzymes are proteins  Proteins help build and repair cell components

19 N C C H H R O O-O- Amino Acid H

20

21 Macromolecule Table ElementsMonomerPolymerFunctionExamples Carbohydrates C, H, O MonosaccharidePolysaccharideEnergy & Structure Glucose, Lactose, Starch Lipids Triglycerides C, H, O Fatty Acid NONE energy unsaturated, saturated, wax Phospholipids Cell membranes (structure) N/A NONE Steroidhormones cholesterol Proteins C, H, O, N amino acid PolypeptideBuild/repair cells Insulin, hemoglobin, enzymes Nucleic Acids disaccharide dipeptide

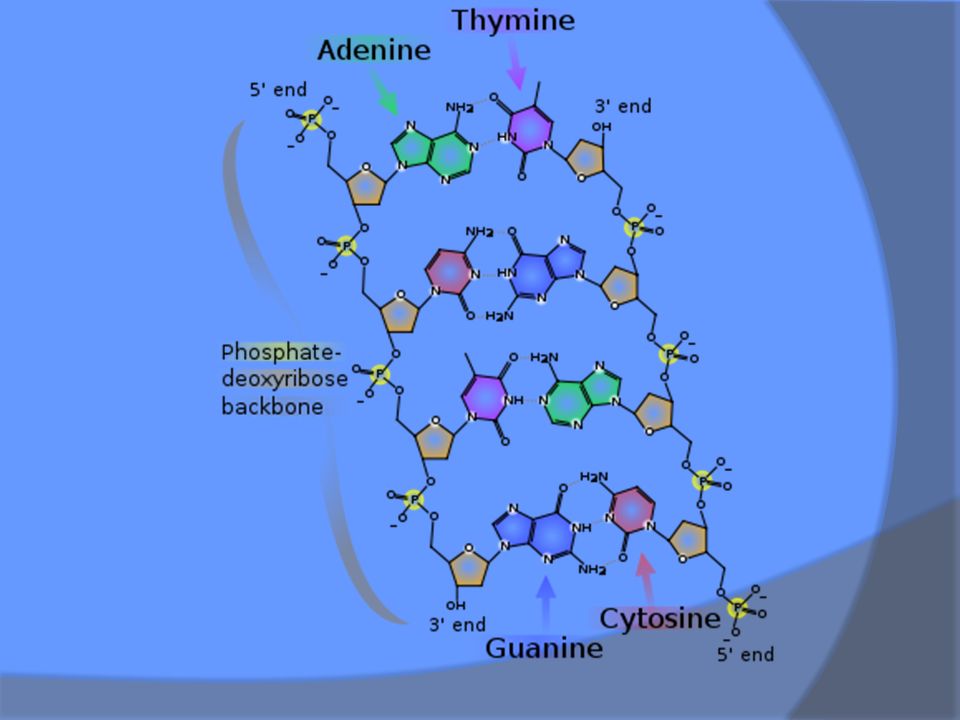

22 Nucleic acids  Large complex polymers that store cell information  DNA and RNA Made up of monomers called nucleotides  A nucleotide is composed of a sugar, a phosphate group and a base Sugar Phosphate Base

23

24 Macromolecule Table ElementsMonomerPolymerFunctionExamples Carbohydrates C, H, O MonosaccharidePolysaccharideEnergy & Structure Glucose, Lactose, Starch Lipids Triglycerides C, H, O Fatty Acid NONE energy unsaturated, saturated, wax Phospholipids Cell membranes (structure) N/A NONE Steroidhormones cholesterol Proteins C, H, O, N amino acid polypeptidebuild/repair cells Insulin, hemoglobin, enzymes Nucleic Acids C, H, O, P, N nucleotideN/A contain genetic info DNA & RNA disaccharide dipeptide

25 Macromolecules in Review MonomerPolymer ProteinAmino AcidPolypeptide CarbohydrateMonosaccharidePolysaccharide LipidFatty AcidEx: Phospholipids Nucleic AcidNucleotideEx: DNA
