1

2 Review of Quiz n Weight & Balance n Stall Spin

3 HOMEWORK n FAR 91.155 AIM SECTION 2 & 3 n JEPPESEN CHAPTER 4 SECTION B & D n PHAK CHAPTER 13 & 14 n REVIEW HANDOUT n ASA Chapter 4-29 to 4-33, 5 to 5-16, 9-37 to 9-46, 11-13 to 11-15 n AOPA Interactive Courses Due Next Class n Know Before You Go: Navigating Today’s Airspace n Mission: Possible—Navigating Today's Special-Use Airspace n Solo packet should have been turned into your flight instructor by now n PIF should have been read n http://www.aopa.org/asf/online_courses/flashcards /fcards_files/frame.htm http://www.aopa.org/asf/online_courses/flashcards /fcards_files/frame.htm

4 PRE-SOLO PACKET n Should have been turned in by now. n Pre-Solo written should have been completed and graded n Runway Safety test should have been completed

5 Private Pilot Ground School n AIRPORTS, AIRSPACE, AND RADIO COMMUNICATIONS

6 CONTENT n Class A, B, C, D, E, G n Special Use Airspace n TFR’s n Federal airways & transition areas n LAHSO n Runway incursions n Aeronautical lighting & Airport visual aids n Airport Markings and signs n Collision avoidance n Communication terminology

7 WEBSITES OF INTEREST n http://www.asa2fly.com/files/updates/CUG7_u pdate_for_web.pdf http://www.asa2fly.com/files/updates/CUG7_u pdate_for_web.pdf http://www.uscg.mil/auxiliary/missions/auxa ir/vfr_symbols.pdf http://www.uscg.mil/auxiliary/missions/auxa ir/vfr_symbols.pdf n www.duat.com www.duat.com n http://www.naco.faa.gov/pdfs/nw_143_25SEP2 008.pdf http://www.naco.faa.gov/pdfs/nw_143_25SEP2 008.pdf n http://tfr.faa.gov/tfr_map_ims/html/index.html http://tfr.faa.gov/tfr_map_ims/html/index.html n http://skyvector.com/ http://skyvector.com/

8 AIRSPACE (if you have a sectional take it out please) n vertical dimensions n horizontal dimensions n pilot requirements n equipment requirements n visibility requirements n how depicted on the sectional n special requirements

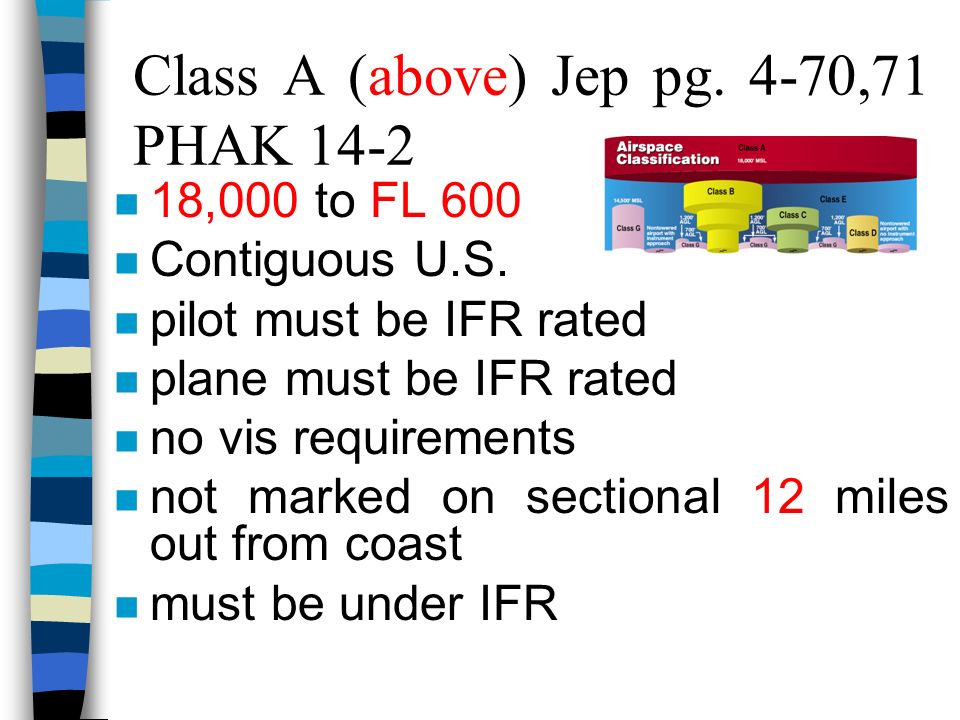

9 Class A (above) Jep pg. 4-70,71 PHAK 14-2 n 18,000 to FL 600 n Contiguous U.S. n pilot must be IFR rated n plane must be IFR rated n no vis requirements n not marked on sectional 12 miles out from coast n must be under IFR

10

11

12 Class A Mneomonic n Above (above 18,000 ft) – FL600 n Altitude (mode C) n Altimeter (29.92) n Approval (ATC clearance) IFR

13 Class B

14 Class B (BIG BUSIEST AIRPORTS) n Surface to 10,000 msl n Denoted by solid blue line n Pilot can be student in some private minimum in others n Mode c and two way radio n 3 miles visibility clear of clouds n Student 90 day endorsement

15 Class B n Boundary – ATC clearance needed to enter n solid blue line n Only found around heavy traffic areas n 30NM mode c veil surrounds class B surface to 10,000msl n VFR transition routes n VFR corridors n Flyways

16

17

18 VFR Flyway Planning Chart SEA n http://skyvector.com/?ll=54.08485 120297269,- 4.629272467174299&chart=301& zoom=3 http://skyvector.com/?ll=54.08485 120297269,- 4.629272467174299&chart=301& zoom=3

19 Class B

20 Class C

21 Class C (Communicate) n An outer area with a 20 nm radius is not depicted on charts, and is not really part of the Class C airspace. However, ATC will provide Class C services to participating VFR traffic in that area. Contact with ATC in the outer area is encourage, but not required.

22 Class C (Communicate) n Surface to 4000agl n Inner circle 5nm, outer circle from 5 to 10nm from 1200agl to 4000agl n Pilot can be lowest form n Mode c and two way radio n 3 mile vis 500 below 1000 above 2000 horizontal

23

24 Class C n Solid magenta line n Must establish two way radio comm. prior to entering n 2 way radio comm. is established when they say call sign back n Found around high traffic areas but less than class B airports.

25 Class C

26 Class D

27 Class D (Dialogue – with Tower) n Surface to 2500agl n Average 4.4 nm based on rwy length (old AIM reference). n Pilot can be lowest form n Two way radio n 3 mile vis 500 below 1000 above 2000 horizontal n Below 1000 feet or 3 miles airspace IFR n Dashed blue line

28

29 Class D n Must establish two way radio comm. prior to entering n Some class D airports have surface based E extensions controlled by the tower. n If no weather reporting when tower closes, then it reverts to G n If there is wx reporting then it reverts to E

30 Class D

31

32 Surface based Class E (everywhere else) n Surface, Magenta dash line n 700agl, Magenta shading n 1200agl Blue shading n 14,500msl not marked n Ends at: to but not including 18,000 n Above FL600 class E

33 Surface based Class E n Pilot can be lowest form n No radio requirements when VFR n Less than 10,000msl; 3 miles 500 below, 1000 above, 2000 horizontal n Over 10,000msl; 5 miles 1000 below, 1000 above, 1 mile horizontal

34 Surface based Class E n If desired ops in surface E with weather less than 3 miles and 1000' ceiling need special VFR otherwise none n configured to include instrument approaches n Surface based; dashed magenta line

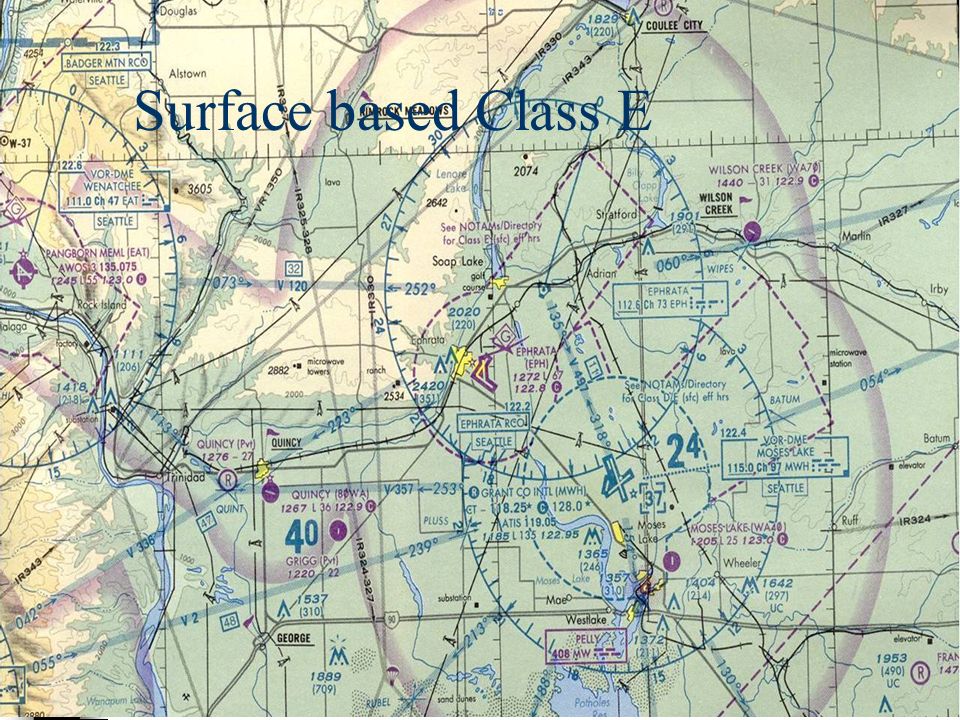

35 Surface based Class E

36 Class E Transition Area n 700agl magenta shading towards the area designated n 1200agl blue shading towards the area designated n Blue zippers designate special altitudes of floors on sectional chart n 14,500msl denoted by sharp edged blue shading forming a box

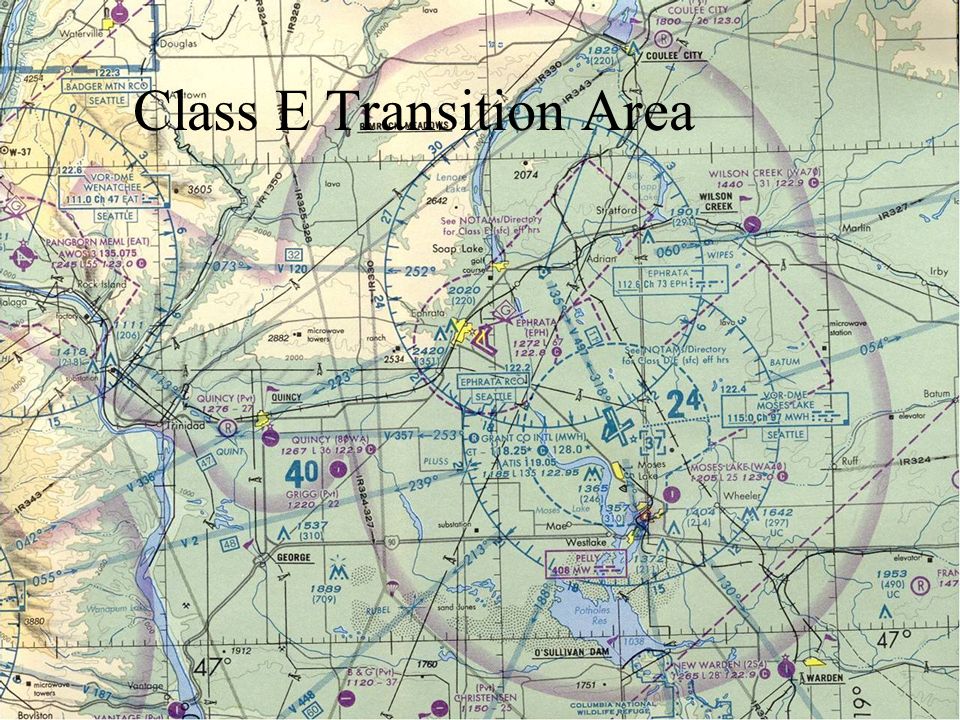

37 Class E Transition Area

38 Class G Uncontrolled (Government Free) n Surface to 700agl n Or surface to 1200agl n Or surface to 14,500msl n Denoted by shading n Student pilot n No equipment requirements

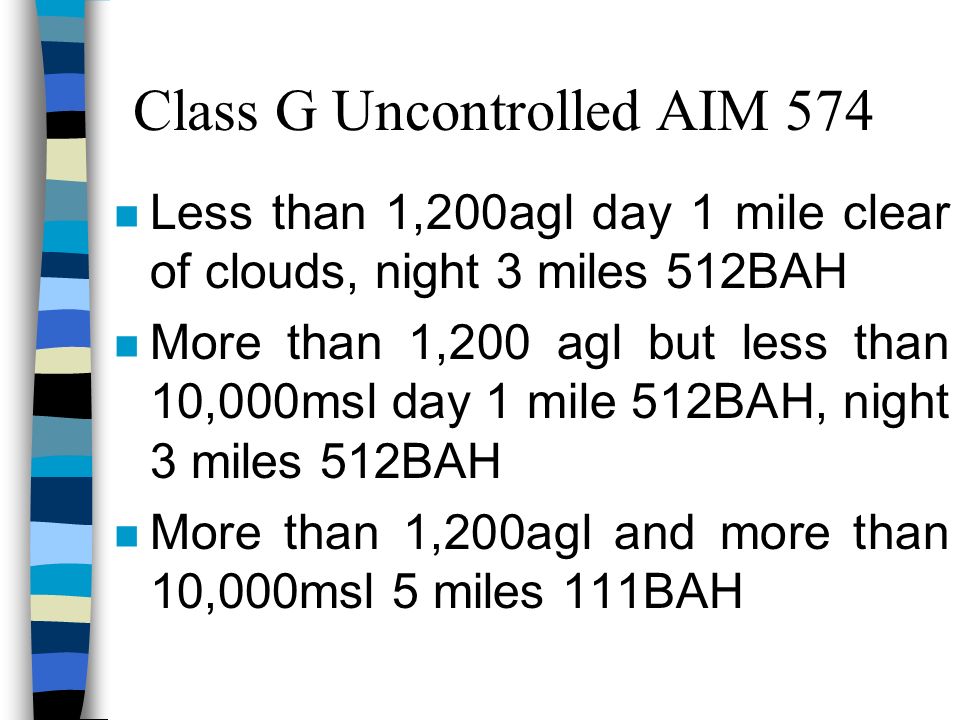

39 Class G Uncontrolled AIM 574 n Less than 1,200agl day 1 mile clear of clouds, night 3 miles 512BAH n More than 1,200 agl but less than 10,000msl day 1 mile 512BAH, night 3 miles 512BAH n More than 1,200agl and more than 10,000msl 5 miles 111BAH

40 Class G Uncontrolled n Look for the class E depictions n By process of elimination any airspace that is not A,B,C,D, or E then it must be G

41 Class G Uncontrolled

42 TRSA n Terminal Radar Service Areas n Usually in class E airspace except for the area around their primary airport, which is class D. n Provide similar radar services as Class C areas for VFR pilots. Participation is optional by can be very helpful. n Solid black line

43

44 TRANSPONDERS n Class A n Class B n Within 30 nm of Class B n Class C n Above Class C n Above 10,000 MSL (excluding airspace below 2,500 AGL)

45 Special use airspace n 1. Prohibited n 2. Restricted n 3. Warning areas; 3nm outward from US n 4. MOA

46 P51 by SEA, Restricted YKM

47 MOA, ALERT AREAS

48 Special use airspace n 5. Alert areas; high volume of training n 6. Controlled Firing Areas; ops suspended automatically n 7. National security areas; like Hanford

49 Special use airspace

50 Other airspace areas n 1. Airport Advisory Area; 10nm FSS n 2.MTR; 4 numbers below 1500agl, 3 numbers above 1500agl n 3. Temporary flight restrictions; by notam, toxic gas, volcano, nuclear accident, hijackings ect.

51 MTR’S

52 MEMORIZE REVIEW 91.155

53 Other airspace areas n 4. Flight limitations prohibitions; by notam pres or vice n 5. Parachute jump ops; contained in AFD n 6. Published VFR routes; through class B n 7. Terminal radar service area n SHOW TFR MAP

54 Write out the following frequencies n College n ATIS n Ground n West Tower n East Tower n Approach/Departure n FSS n EPH CTAF n EPH ASOS n MWH VOR n EPH VOR

55 Write out the following frequencies n College n ATIS n Ground n West Tower n East Tower n Approach/Departure n FSS n EPH CTAF n EPH ASOS n MWH VOR n EPH VOR n 123.5 n 119.05 n 121.9 n 128.0 n 118.25 n 126.4 & 134.35 n 122.4 n 122.8 n 135.775 n 115.0 n 112.6

56

57 SIGNS

58 Airport marking aids and signs AIM SECTION 2 & JEP 4 B n Grouped into four categories n 1. Runway markings: n 3 types visual, non precison instrument and precision instrument n Runway designator; mag number L, C, R

59

60

61 3. Holding Position signs n Runway hold lines; 4 lines, 2 solid 2 broken. n One may find hold lines preceding the runway, on the runway eg intersections, and on a taxiway that cuts to close to approach/departure end of a runway. n No part of the aircraft may cross the hold short lines unless cleared

62 3. Holding Position signs pg. 4-27 n ILS hold lines; 2 solid lines and lines 90 degrees to them n Taxiway hold lines; single dashed line pg. 560

63 4. Other pg. 4-28 & 4-29 n Runway signs; red with light numbers n Taxi signs; black background with yellow letter indicates taxiway aircraft is on, yellow background with black letter indicates direction of taxiway ahead

64 4. Other n Runway distance sign; usually has black background white#

65 SIGN FLASH CARDS n http://www.aopa.org/asf/online_c ourses/flashcards/fcards_files/fra me.htm http://www.aopa.org/asf/online_c ourses/flashcards/fcards_files/fra me.htm

66 VASI

67 Vertical Approach Slope Indicator (VASI) n 1. Visual Approach Slope Indicator (VASI) n Provides safe obstruction clearance +-10 degrees off centerline and 4NM from the threshold n Most are 2 bar and 3 degree slope

68 VASI

69 Vertical Approach Slope Indicator (VASI) n Some are 3 bar 3.25 degree slope for higher cockpit aircraft can be as high as 4.5 degree slope for obstacles n Red over white alright, white white out of site, red red your dead n Remember going below glide path indicators is illegal at tower airports unless safety dictates.

70 PAPI

71 2. Precision Approach Path Indicator (PAPI) n Single row of 2 or 4 lights. n All white more than 3.5 degrees, n right red 3.2 degrees n 2 right red on glide 3 degrees n 3 right red 2.8 degrees n 4 red less than 2.5

72 3. Tri-color system n Red below, Green on, Amber above

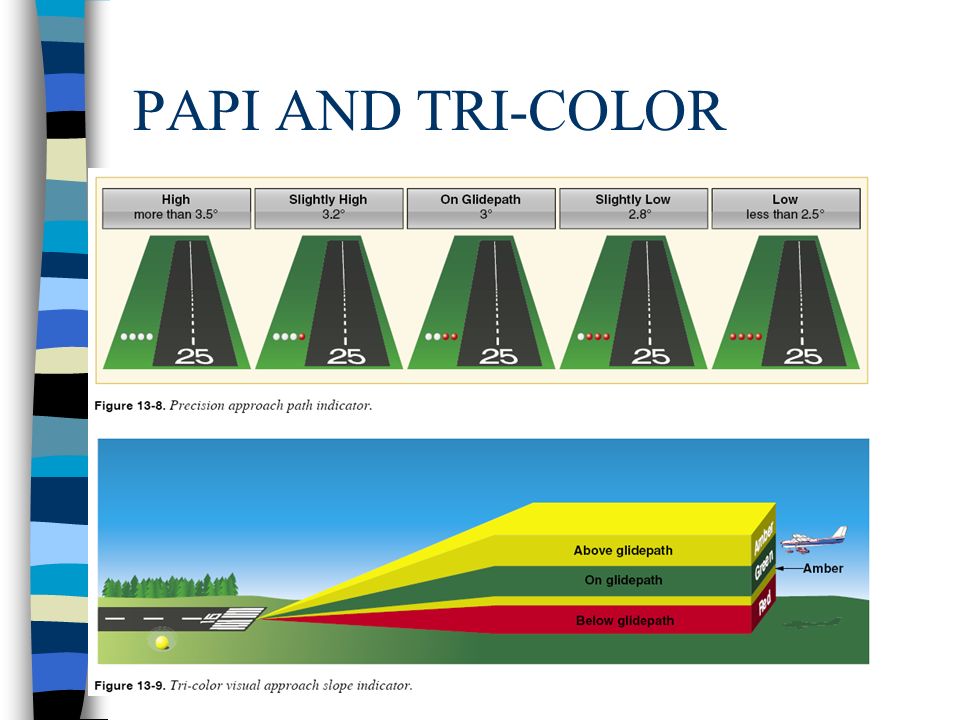

73 PAPI AND TRI-COLOR

74 4. Pulsating system n On glide steady white n Slightly below steady red n Pulsates faster the further you go above or below

75 Runway lights n Instrument runways the last 2000 are amber otherwise white n Pilot controlled lighting 3 clicks low, 5 med, 7 high within 5 seconds n Threshold lights are green, runway end lights are red taxiway lights are blue

76 WIND DIRECTION INDICATORS

77 TRAFFIC PATTERNS

78 LIGHT GUN SIGNALS

79 Beacons n White and green, civil lighted airport n White and yellow, lighted water airport n Green yellow white, lighted heliport n White white green, military airport n Operation of beacon during daylight indicates IFR conditions

80 RADAR BEACON PHRASEOLOGY

81

82 Special VFR
