1
Ultrafast 16-channel ADC for NICA-MPD Forward Detectors A.V. Shchipunov Join Institute for Nuclear Research Dubna, Russia http://afi.jinr.ru
2
Motivation Create a PCB Design for digitizing signals from NICA-MPD’s Forward Detectors
3
http://afi.jinr.ru
5
Time Projection Chamber Outer radius~ 110 cm Inner radius27 cm Drift length~ 150 cm Number of sectors (each side)12 Total number of readout chambers24 (12 - each side) Drift time~ 25-30 ms Multiplicity for charged particles~ 500 Total pad/channels number~ 80000 dE/dx resolution~ 6% Spatial resolution (s x, s y, s z )0.6 x 1.0 x 2.0 mm Maximal rate~ 6 kHz Two track resolution~ 1 cm http://afi.jinr.ru
6
Time Of Flight Radius from the beam line1.3 m Time resolution100 ps Max momentum of π/K system separated better than 2,5 σ1,3 GeV/c http://afi.jinr.ru
7
16 input channels high sampling rate — up to 5 GHz — for each channel VME compatible PCB design Self-calibration Contain 72-bit QDR SRAM Spartan-6 FPGA family http://afi.jinr.ru
8
Specifications and readout characteristics Specifications Number of channels16 Effective resolution11.5 bits Bandwidth -3dB950 MHz Full scale range±1V on 50 Ω Sampling speed1, 1.7, 2, 3.4, 4, 5 GS/s Sampling ring buffer1024 samples FPGA buffer size4Mb / 256k samples SRAM buffer size64Mb / 4M samples Readout characteristics Waveform size2561024 DRS readout time7,8 μs31 μs Event rate to RAM124 kHz31 kHz FPGA buffer1024 waveforms256 waveforms SRAM buffer16384 waveforms4096 waveforms http://afi.jinr.ru
9
Functional diagram 16 Input Channels Preamplifiers Trigger logic Sampling signals ADCs FPGA SRAM buffer VME itnerface Self-calibration Trigger http://afi.jinr.ru
10
DRS4 — Functional block diagram Sampling speed – 0,7 to 5 GSPS 8+1 channels with 1024 storage cells each Differential inputs with 950 MHz bandwidth Readout time: 30ns * number of samples Simultaneous reading and writing http://afi.jinr.ru
11
CY7C1515KV18 — 72-Mb QDR® II SRAM 4-Word Burst Architecture Separate independent read and write data ports 4-word burst for reducing address bus frequency DDR interfaces for on both read and write ports Full data coherency, providing most current data http://afi.jinr.ru
12
FPGA Spartan 6 — XC6SLX150T 147.443 logic cells configurable logic blocks: 23.038 slices, 184.304 flip-flops, 1,355 MAX distributed RAM 4.824 RAM Blocks 4 memory controller blocks 6 banks 540 user I/O pins http://afi.jinr.ru
13

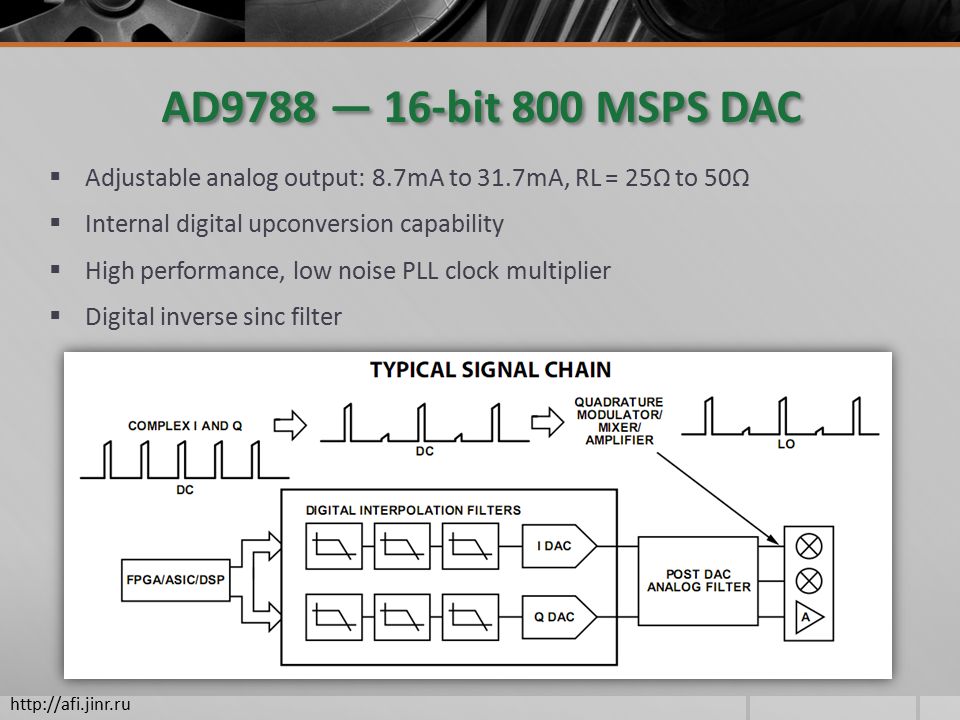

AD9788 — 16-bit 800 MSPS DAC Adjustable analog output: 8.7mA to 31.7mA, RL = 25Ω to 50Ω Internal digital upconversion capability High performance, low noise PLL clock multiplier Digital inverse sinc filter http://afi.jinr.ru
14
ADC16V-DRS 16 input channels SRAM buffer 2 x DRS4 & 2 x ADCs Preamplifiers & analog switches FPGA TxDAC VME interface TTC ConnectorOutput connectors http://afi.jinr.ru
15
ADC8BE-DRS FPGA EtherNET interface 8 input channels Preamplifiers & analog switches DRS4 & ADC TxDAC http://afi.jinr.ru
