1. Real-time asset management and Wire-free environmental monitoring. RF Code

2. Agenda Why use RF Code? ✓ 11 22 33 44 55 66 77

3. Solving IT Costly Problems Why use RF Code? Environmental & Power Monitoring  High cost of manual capture of asset information. Time. Staff.  High cost of inaccurate, out of date information. Cost of information latency. Non-compliance penalties. Lease mismanagement. Over provisioning.  Security vulnerability.  Job dissatisfaction.  Office disruption. IT Asset Tracking 1  The high cost of wired sensors. Difficult to deploy/redeploy. Expensive to deploy. Inflexible. Awkward for use in racks.  Lack of monitoring increases. The high cost of power as power and cooling costs exceed capital asset costs. Inability to optimize data center for energy efficiency, cooling and asset use.

4. Agenda Product and Technology Introduction ✓ 11 22 33 44 55 66 77

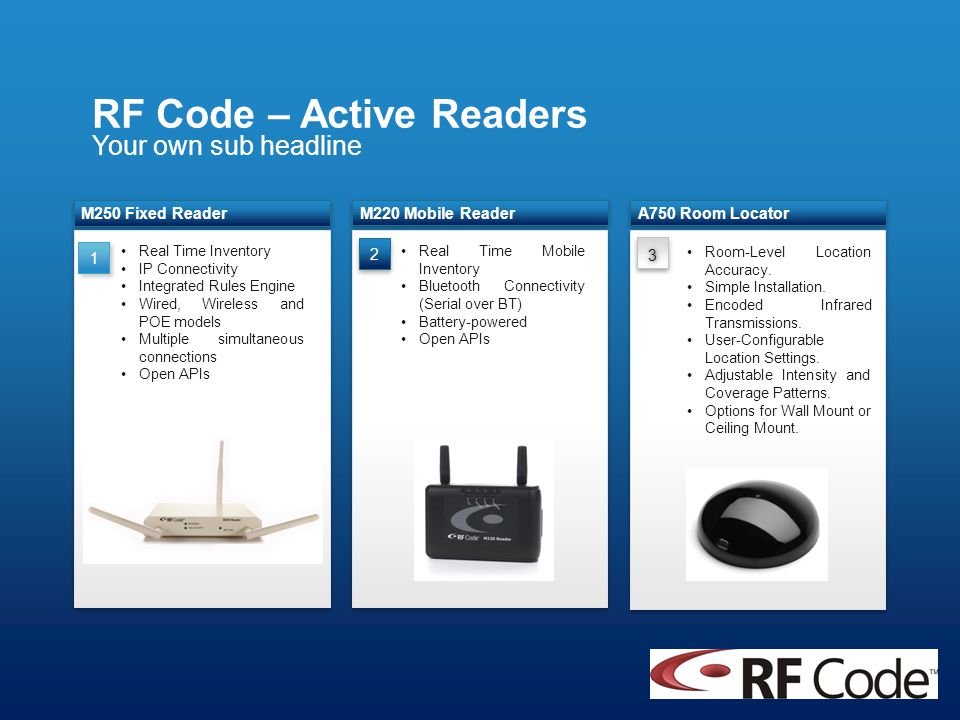

5. Your own sub headline RF Code – Active Readers Real Time Mobile Inventory Bluetooth Connectivity (Serial over BT) Battery-powered Open APIs M220 Mobile ReaderM250 Fixed ReaderA750 Room Locator Real Time Inventory IP Connectivity Integrated Rules Engine Wired, Wireless and POE models Multiple simultaneous connections Open APIs 33 2 1 Room-Level Location Accuracy. Simple Installation. Encoded Infrared Transmissions. User-Configurable Location Settings. Adjustable Intensity and Coverage Patterns. Options for Wall Mount or Ceiling Mount.

6. Multiple Tag Types and Enclosures Active Tags M170 Durable TagR100 Rack Asset TagM130 Asset Tag M140 Badge TagR120 Rack Door TagR155 Temp/Humidity Tag

7. Solution Photos M140 on ShirtR140 on Rack ServersR155 on Rack

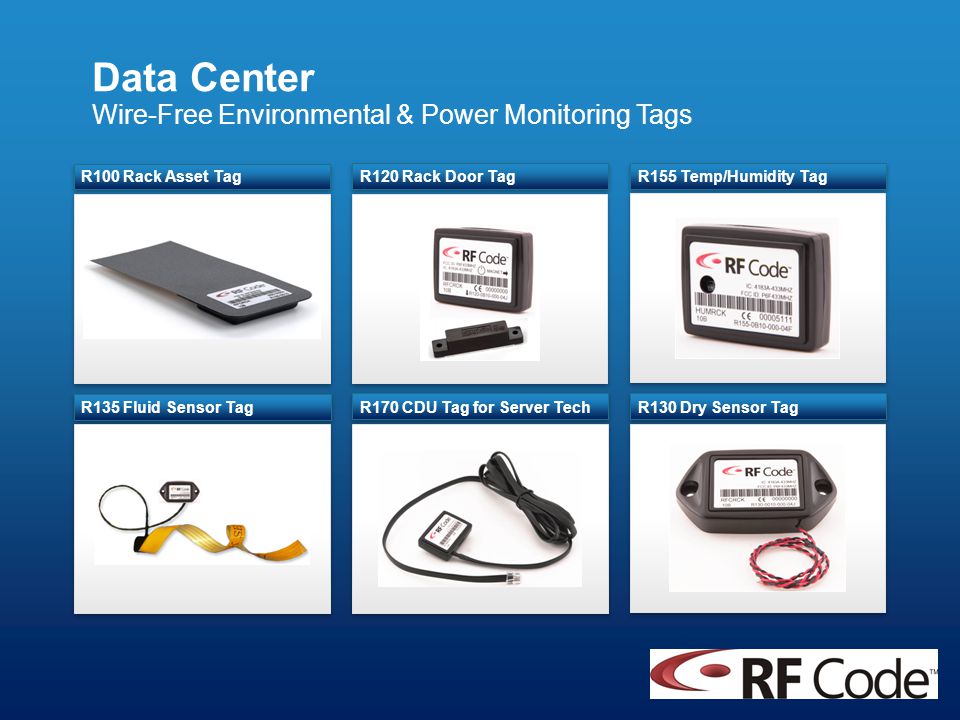

8. Wire-Free Environmental & Power Monitoring Tags Data Center R120 Rack Door TagR100 Rack Asset TagR155 Temp/Humidity Tag R170 CDU Tag for Server TechR135 Fluid Sensor TagR130 Dry Sensor Tag

9. Solution Photos R170 CDU Tag UsageA740 Rack Locator SystemR120 Rack Door Usage A740 Rack Locator System IR Light Strip

10. Zonal Distributed Asset Tracking Example Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Asset Manager Software

11. Asset Manager Staging Area Loading Dock Storage Area Racks # 1-8 Racks # 9-16 Racks # 17-24 Racks # 25-32 Racks # 33-40 Racks # 41-48 Connected to each reader in each zone Determines precise zone level location Example Output: Server 150 is located in Loading Dock, which is located in Building 1. Example Output: Server 150 is located in Storage Area, which is located in Building 1. Example Output: Server 150 is located in Staging Area, which is located in Building 1. Example Output: Server 150 is located in Rack 48, which is located in Building 1. Zonal Readers in action

12. Agenda Solution Architecture ✓ 11 22 33 44 55 66 77

13. Common Solution Architectures Asset Manager (Data Manager Component) SQL Database Server 3 rd Party Platforms Using Open APIs Stand-alone Solution HP Asset Center/Connect IT IBM Maximo BMC Remedy Other Asset Manager (Enterprise Console) Integrated Solution Asset Manager (Zone Manager Component) Zone Manager RF Code Readers RF Code Readers RF Code Readers RF Code Readers

14. Scalable Architecture RF Code Fixed Readers Remote Zone Manager Asset Manager or Sensor Manager SQL Database Server RF Code Fixed Readers Remote Zone Manager Location ALocation BLocation C Headquarters Data Center Remote Zone Manager RF Code Fixed Readers Asset Manager or Sensor Manager (Web Console)

15. Fully Automated and Open Solution RF Code Asset Management Solution Active RFID Tags Zone Manager Software Asset Manager & Sensor Manager Software Multiple form factors Asset Tracking Tags Sensor Tags Active RFID Readers POE option Wireless option Open API Location engine (middleware) Reader management Configurable rules Open API Full database Local or remote Tag to asset association Customizable schema Different user levels Alerting engine Open API Telnet Style API Available via Network or Serial Data Output: Text Based Web Based API Telnet Style API Data Output: XML, JSON, CSV Web Based API Data Output: XML, JSON, CSV Highest density Rules engine Fixed & mobile versions 5 year life Small size Low Price RF Code Solution Components Open API Interfaces Data Reduction Change Value Reporting Subscription Interface

16. Agenda Add-on Software & Third-Party Solution ✓ 11 22 33 44 55 66 77

17. Advanced Reporting Module. BACnet Integration Module. OPC Server JMX & Tivoli Monitoring Integration. Modbus Integration Module. (charged for) Available Add-on Software ** ** ** ** ** Business Intelligence Reporting Tool

18. RF Code Integration with 3 rd Party Solutions Zone Manager Asset Manager Sensor Manager WebSphere Sensor Event Maximo Tivoli Monitoring BizTalk-RFID NetBotz Appliances InfrastruXure Central AgileTrack Sunflower Assets AssetTrack OpenData 6SigmaDC Asset Trail Monitoring JMX SNMP Traps HTTP Post Email Smart & Switched CDU’s PX Family of PDU’s

19. THANK YOU!
