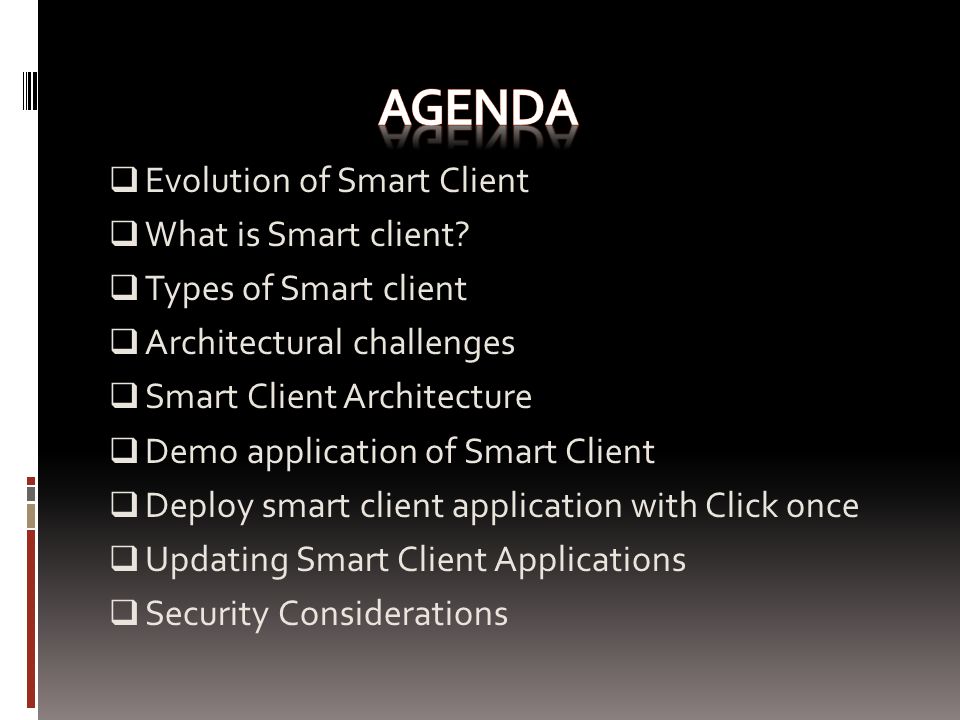

2.  Evolution of Smart Client  What is Smart client?  Types of Smart client  Architectural challenges  Smart Client Architecture  Demo application of Smart Client  Deploy smart client application with Click once  Updating Smart Client Applications  Security Considerations

3.  Era of client applications being developed for the Microsoft® Windows® platform. - In mid 1990  2 – Tier Distributed Applications  Internet Web Applications  Again need of Rich client Applications  New Generation Application - “Smart Client”

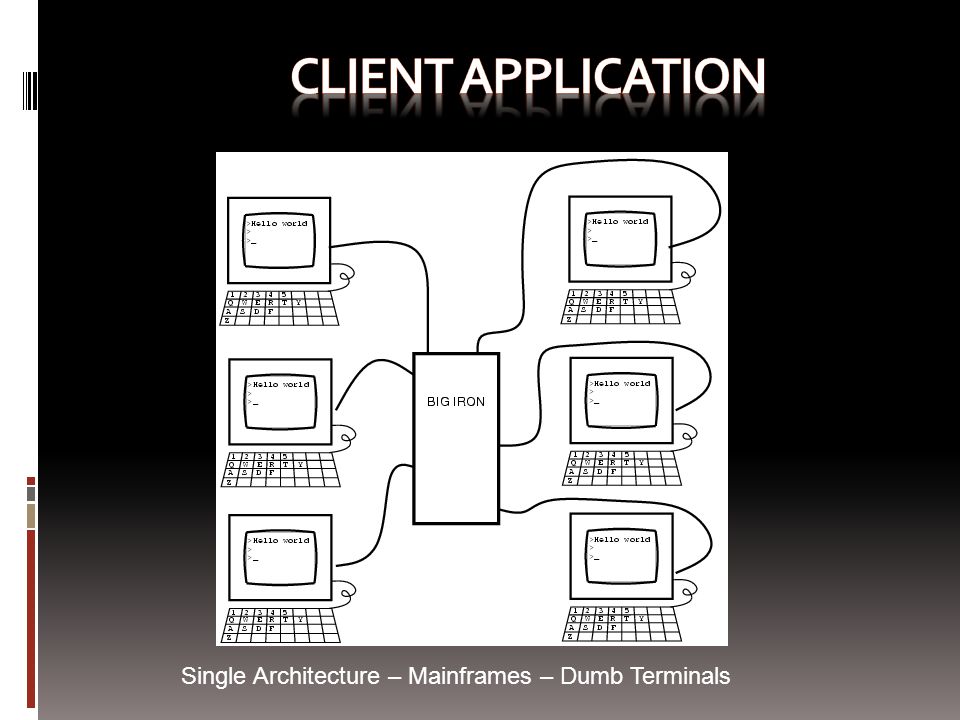

4. Single Architecture – Mainframes – Dumb Terminals

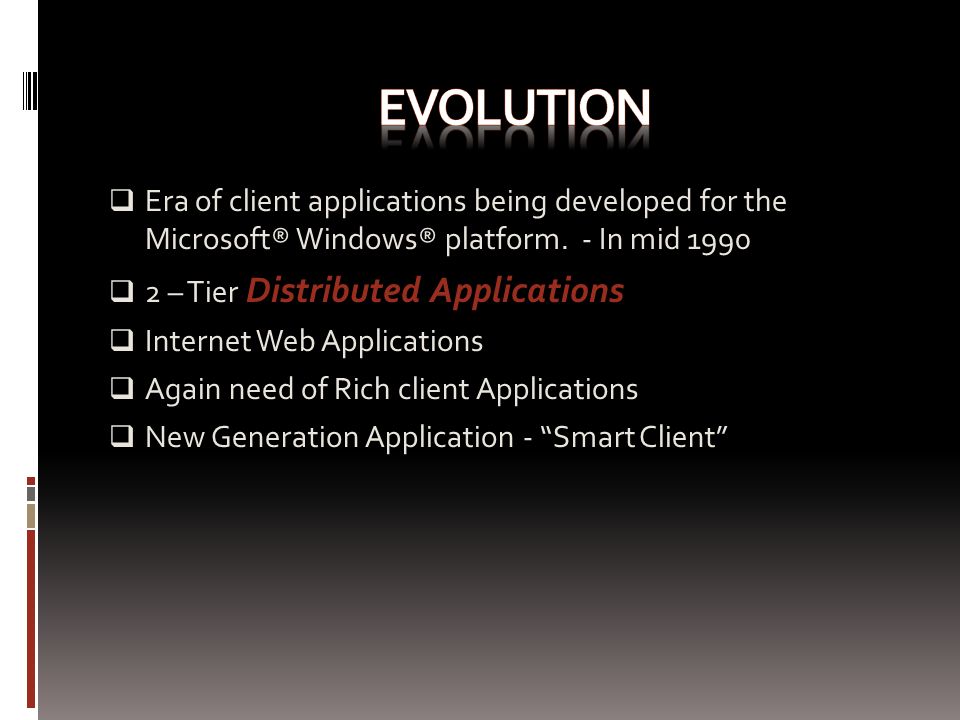

5.  Era of client applications being developed for the Microsoft® Windows® platform. - In mid 1990  2 – Tier Distributed Applications  Internet Web Applications  Again need of Rich client Applications  New Generation Application - “Smart Client”

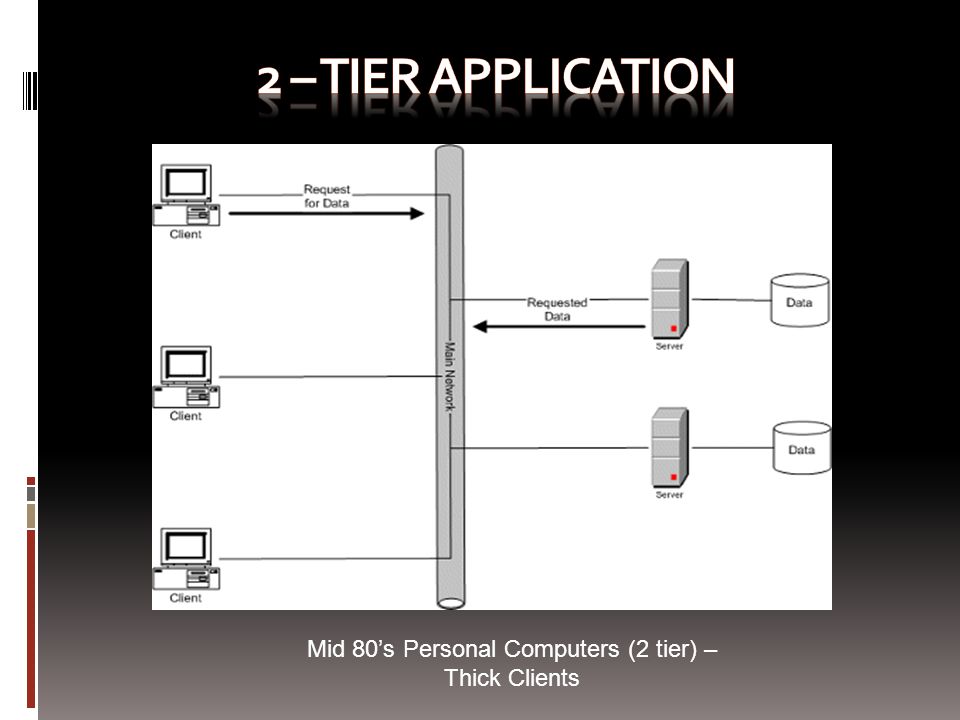

6. Mid 80’s Personal Computers (2 tier) – Thick Clients

7.  Era of client applications being developed for the Microsoft® Windows® platform. - In mid 1990  2 – Tier Distributed Applications  Internet Web Applications  Again need of Rich client Applications  New Generation Application - “Smart Client”

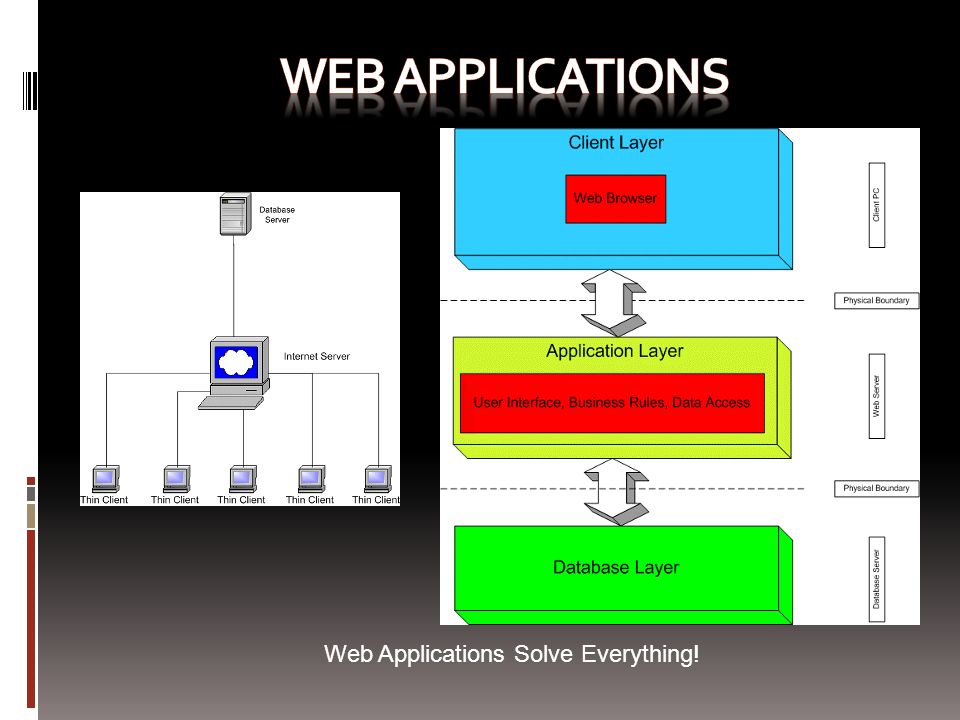

8. Web Applications Solve Everything!

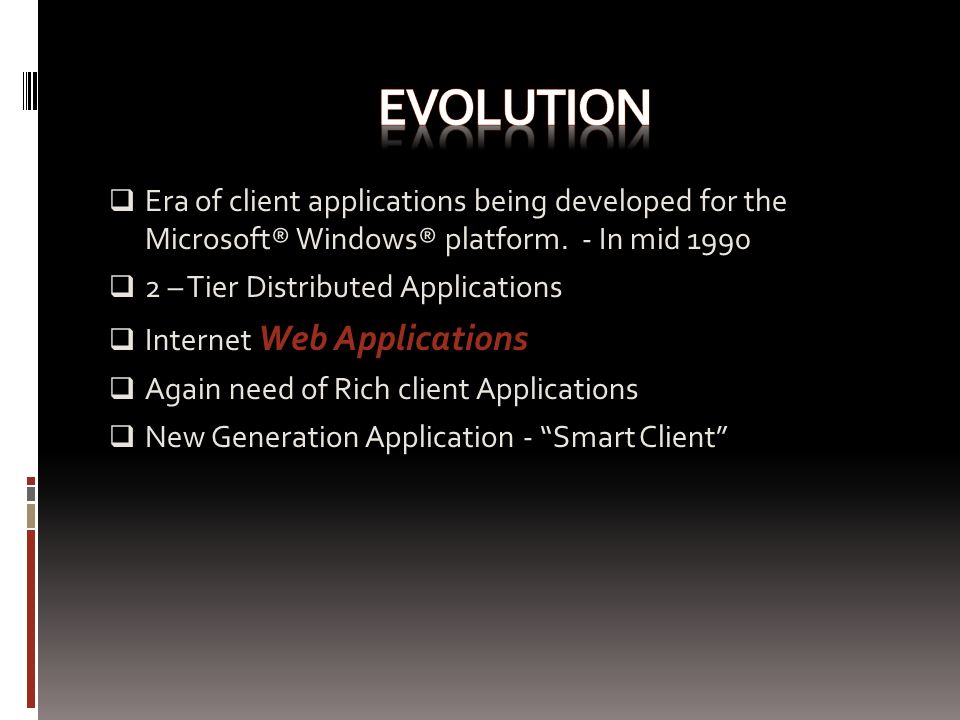

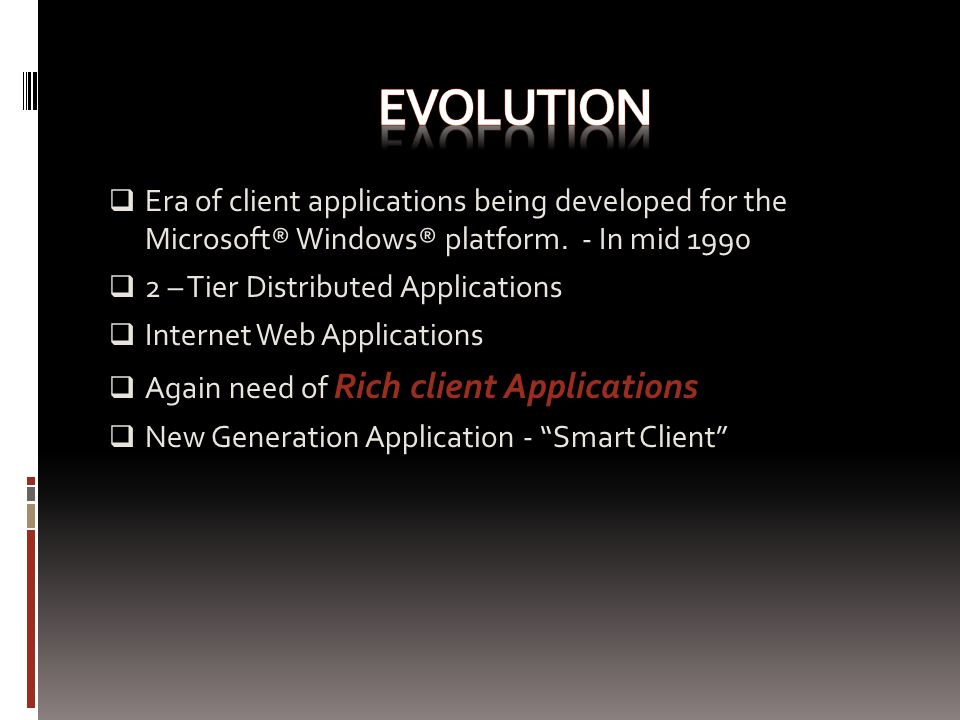

9.  Era of client applications being developed for the Microsoft® Windows® platform. - In mid 1990  2 – Tier Distributed Applications  Internet Web Applications  Again need of Rich client Applications  New Generation Application - “Smart Client”

11.  Era of client applications being developed for the Microsoft® Windows® platform. - In mid 1990  2 – Tier Distributed Applications  Internet Web Applications  Again need of Rich client Applications  New Generation Application - “ Smart Client ”

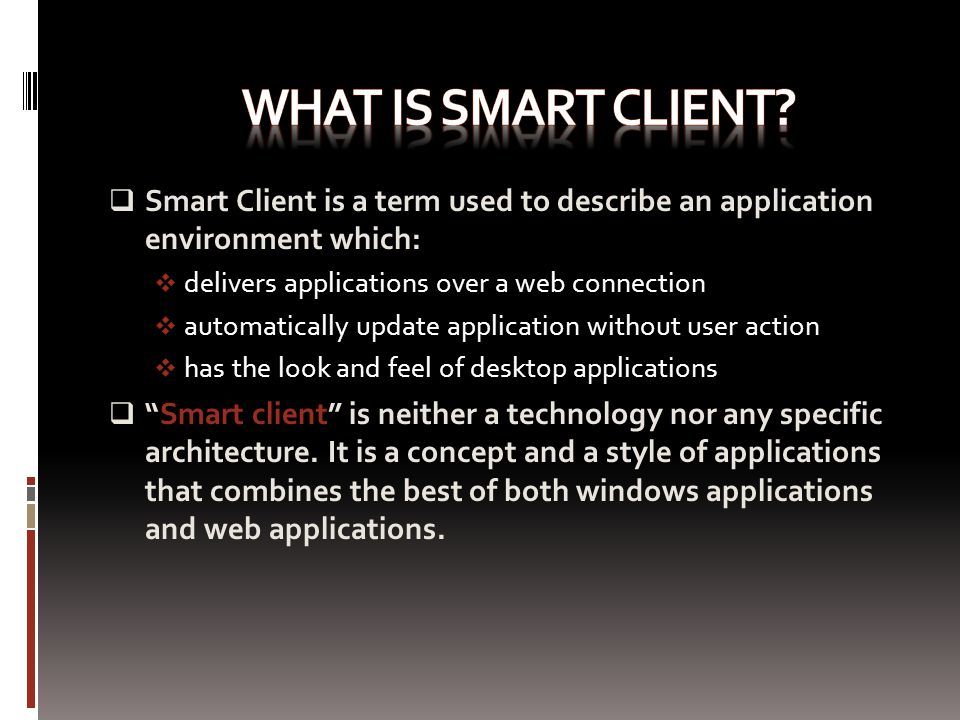

12.  Smart Client is a term used to describe an application environment which:  delivers applications over a web connection  automatically update application without user action  has the look and feel of desktop applications  “Smart client” is neither a technology nor any specific architecture. It is a concept and a style of applications that combines the best of both windows applications and web applications.

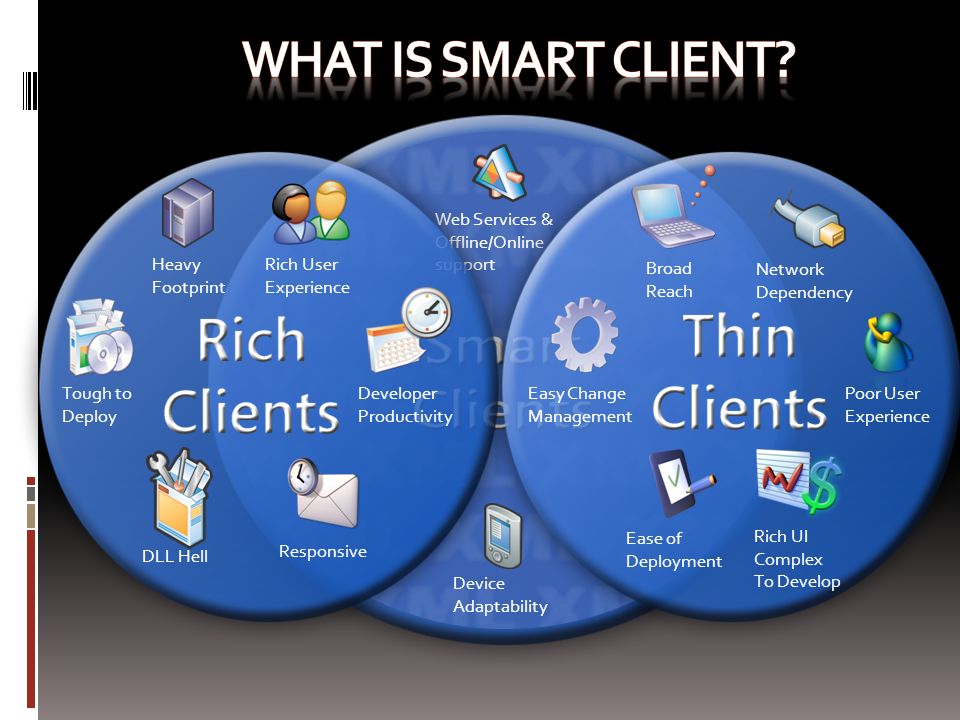

13. Web Services & Offline/Online support Device Adaptability Tough to Deploy Heavy Footprint DLL Hell Network Dependency Poor User Experience Rich UI Complex To Develop Rich User Experience Developer Productivity Responsive Broad Reach Easy Change Management Ease of Deployment

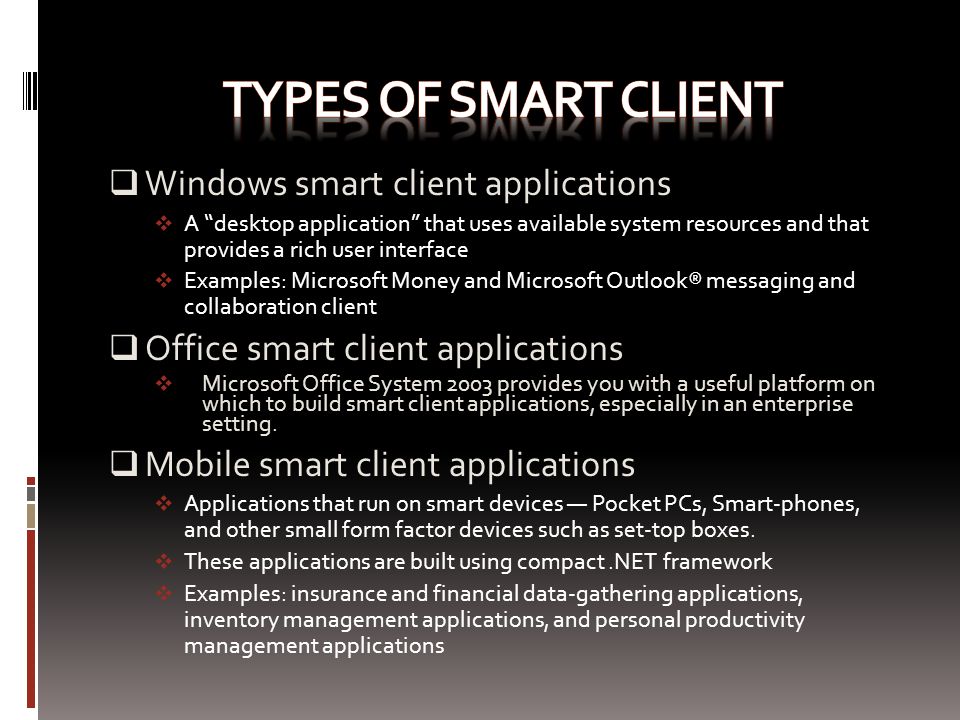

14.  Windows smart client applications  A “desktop application” that uses available system resources and that provides a rich user interface  Examples: Microsoft Money and Microsoft Outlook® messaging and collaboration client  Office smart client applications  Microsoft Office System 2003 provides you with a useful platform on which to build smart client applications, especially in an enterprise setting.  Mobile smart client applications  Applications that run on smart devices — Pocket PCs, Smart-phones, and other small form factor devices such as set-top boxes.  These applications are built using compact.NET framework  Examples: insurance and financial data-gathering applications, inventory management applications, and personal productivity management applications

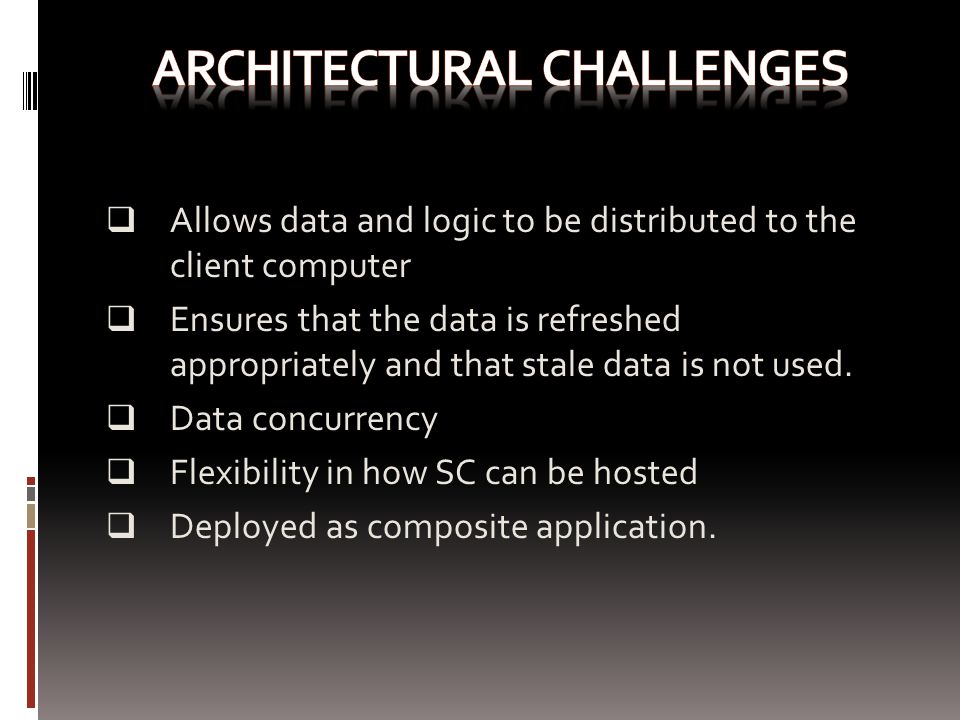

15.  Allows data and logic to be distributed to the client computer  Ensures that the data is refreshed appropriately and that stale data is not used.  Data concurrency  Flexibility in how SC can be hosted  Deployed as composite application.

16.  Makes use of local resources  Makes use of network resources  Supports the “occasionally-connected” model  Provides intelligent installation and updates  Provides client device flexibility

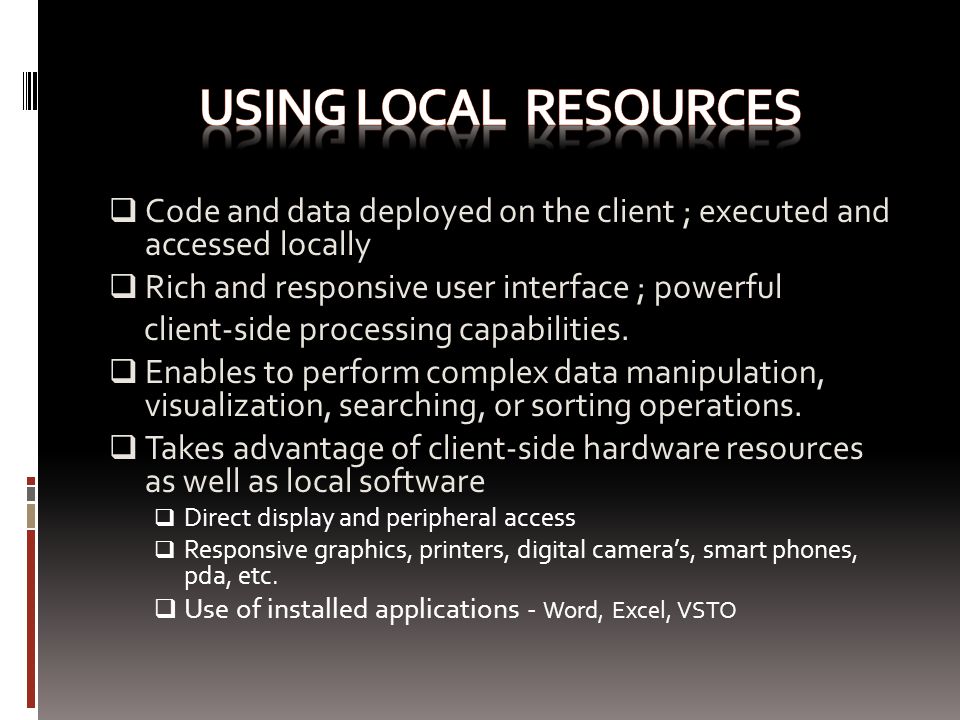

17.  Code and data deployed on the client ; executed and accessed locally  Rich and responsive user interface ; powerful client-side processing capabilities.  Enables to perform complex data manipulation, visualization, searching, or sorting operations.  Takes advantage of client-side hardware resources as well as local software  Direct display and peripheral access  Responsive graphics, printers, digital camera’s, smart phones, pda, etc.  Use of installed applications - Word, Excel, VSTO

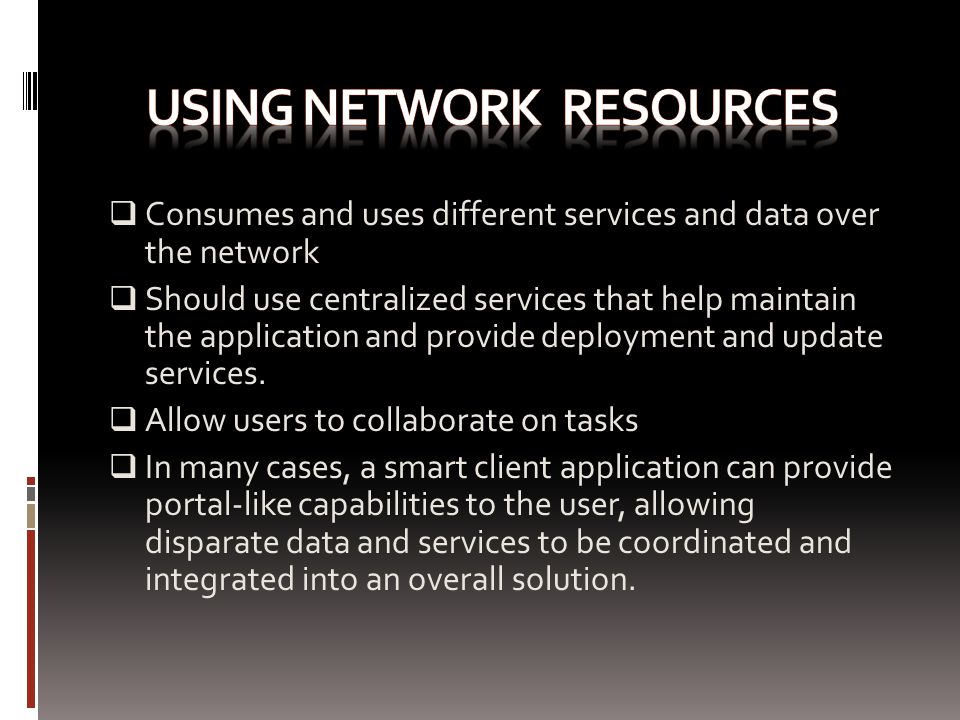

18.  Consumes and uses different services and data over the network  Should use centralized services that help maintain the application and provide deployment and update services.  Allow users to collaborate on tasks  In many cases, a smart client application can provide portal-like capabilities to the user, allowing disparate data and services to be coordinated and integrated into an overall solution.

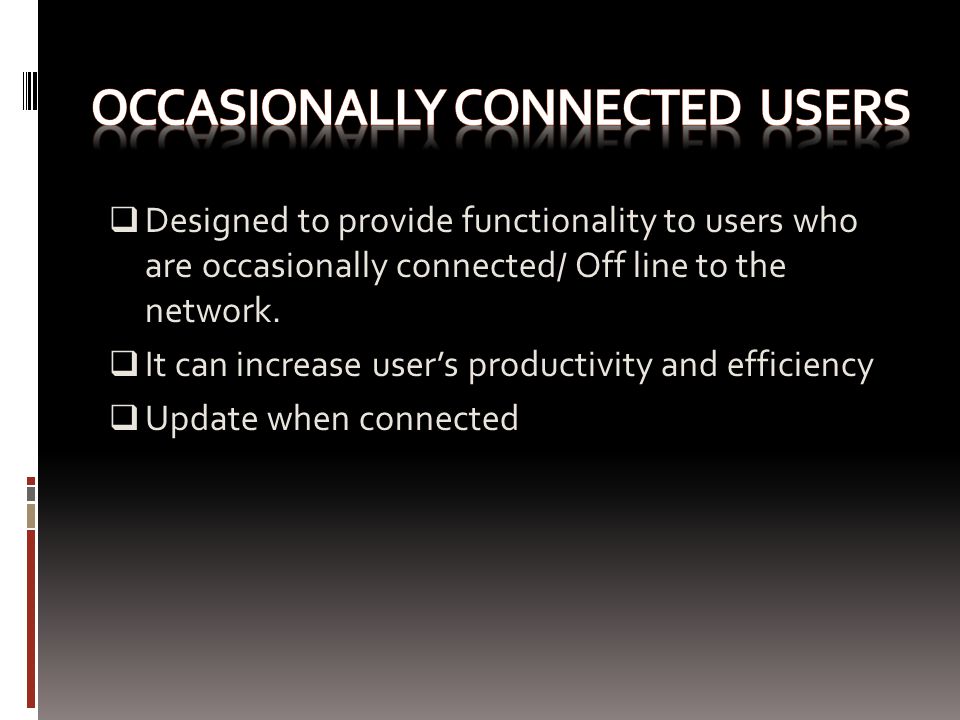

19.  Designed to provide functionality to users who are occasionally connected/ Off line to the network.  It can increase user’s productivity and efficiency  Update when connected

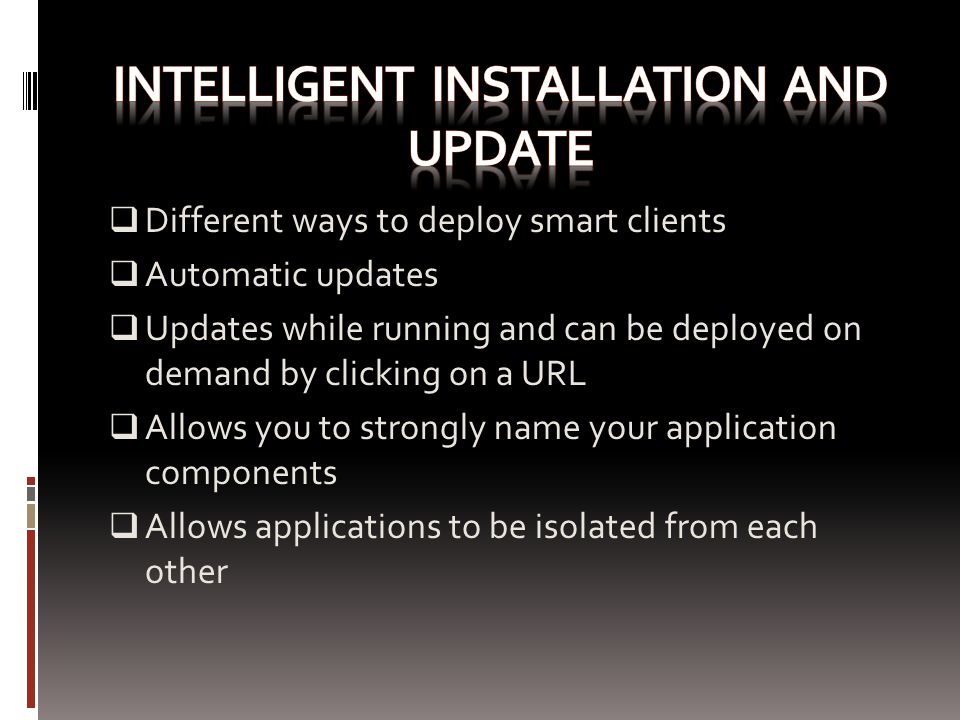

20.  Different ways to deploy smart clients  Automatic updates  Updates while running and can be deployed on demand by clicking on a URL  Allows you to strongly name your application components  Allows applications to be isolated from each other

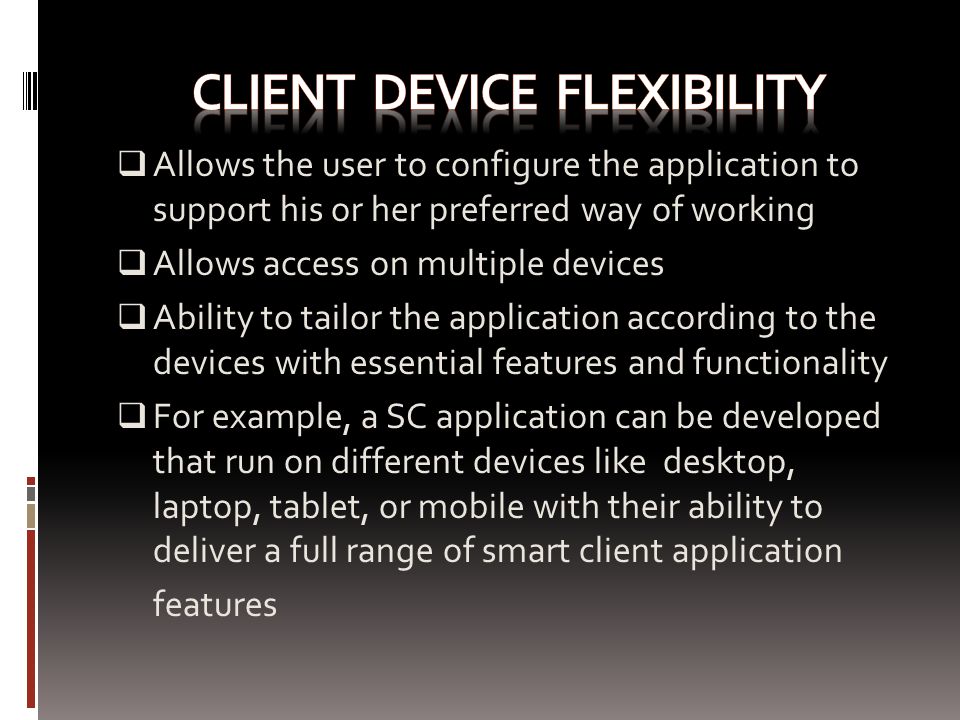

21.  Allows the user to configure the application to support his or her preferred way of working  Allows access on multiple devices  Ability to tailor the application according to the devices with essential features and functionality  For example, a SC application can be developed that run on different devices like desktop, laptop, tablet, or mobile with their ability to deliver a full range of smart client application features

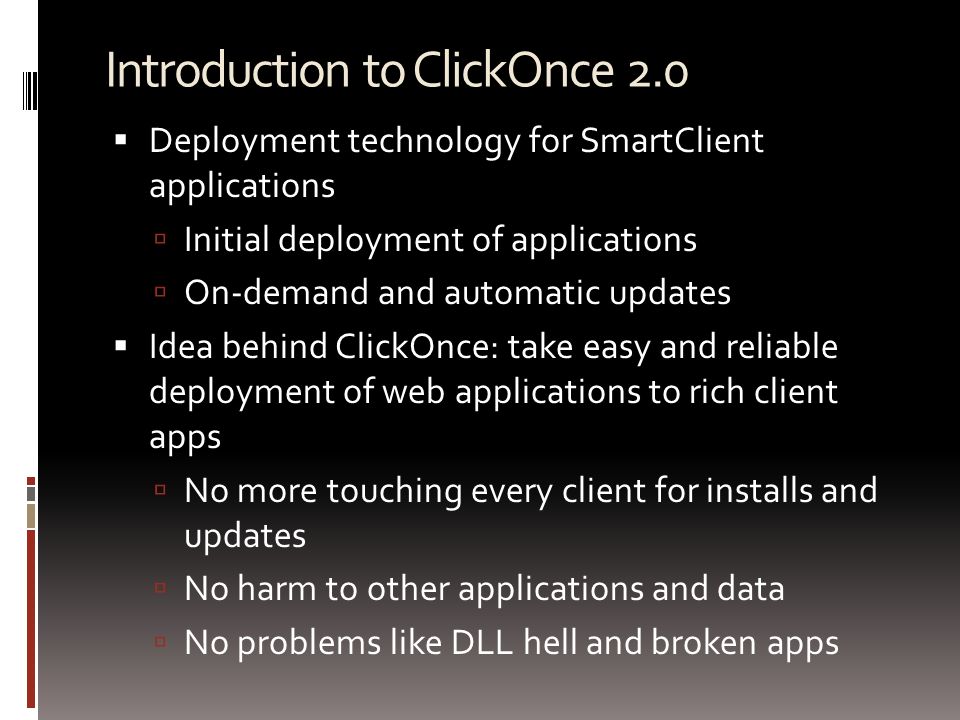

22. Introduction to ClickOnce 2.0  Deployment technology for SmartClient applications  Initial deployment of applications  On-demand and automatic updates  Idea behind ClickOnce: take easy and reliable deployment of web applications to rich client apps  No more touching every client for installs and updates  No harm to other applications and data  No problems like DLL hell and broken apps

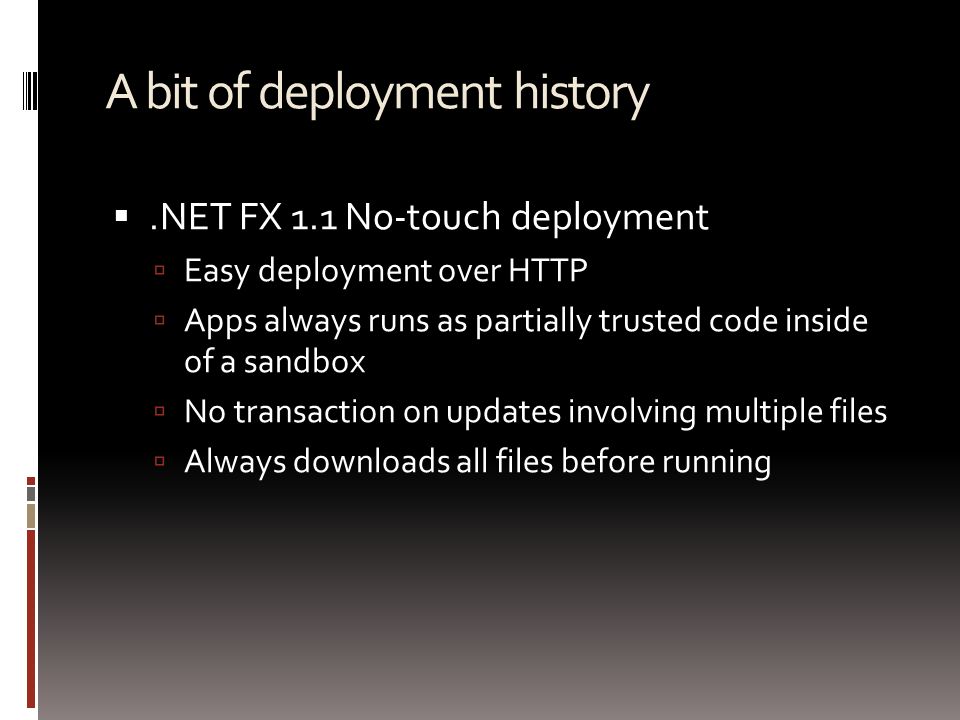

23. A bit of deployment history .NET FX 1.1 No-touch deployment  Easy deployment over HTTP  Apps always runs as partially trusted code inside of a sandbox  No transaction on updates involving multiple files  Always downloads all files before running

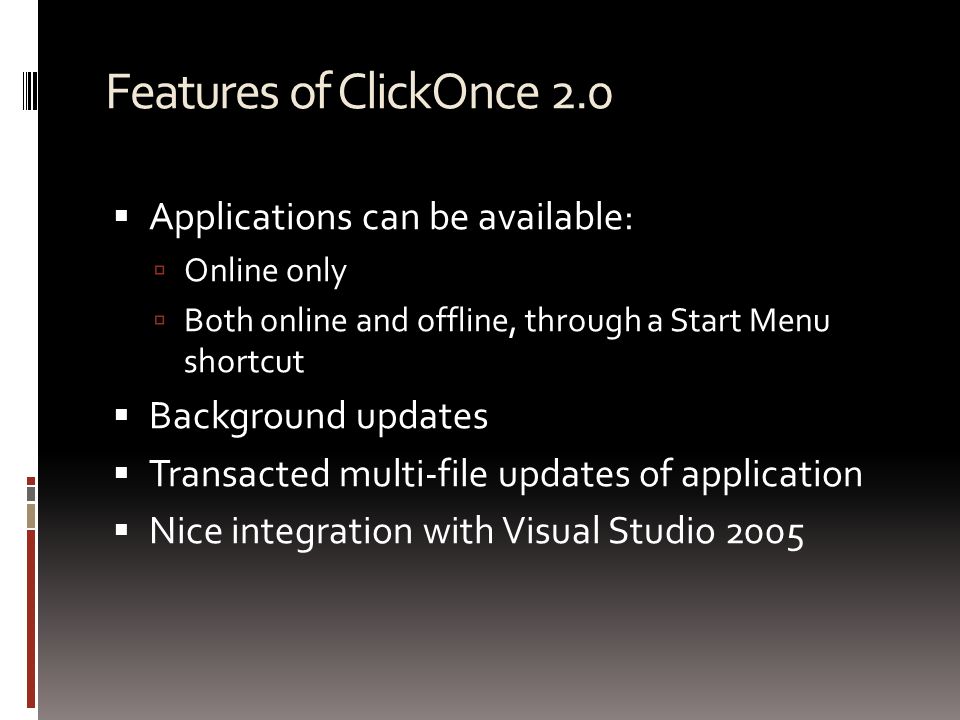

24. Features of ClickOnce 2.0  Applications can be available:  Online only  Both online and offline, through a Start Menu shortcut  Background updates  Transacted multi-file updates of application  Nice integration with Visual Studio 2005

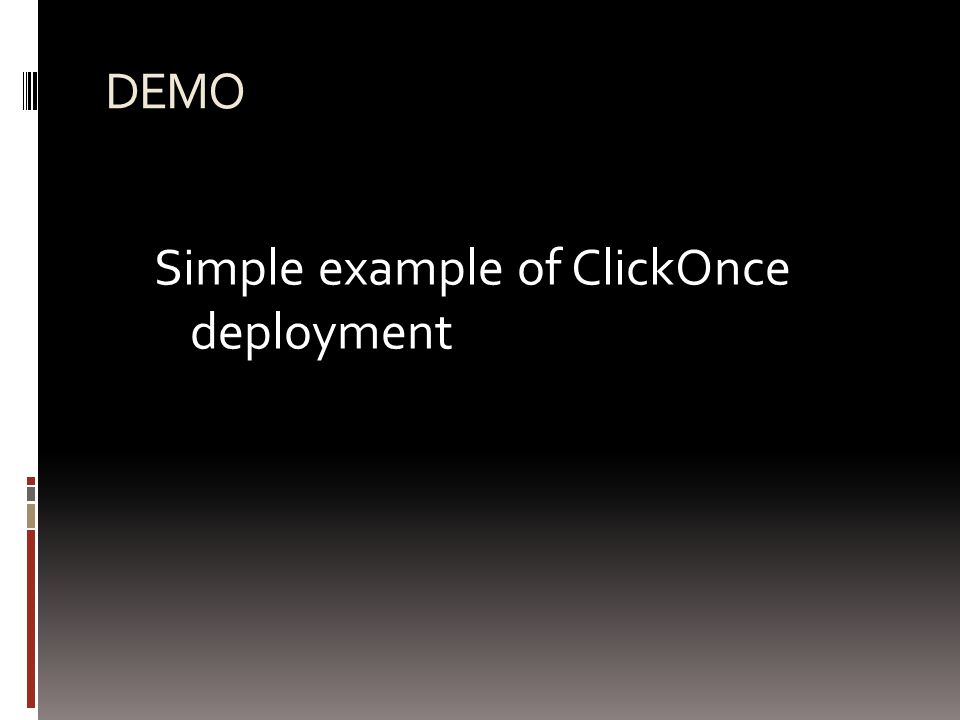

25. DEMO Simple example of ClickOnce deployment

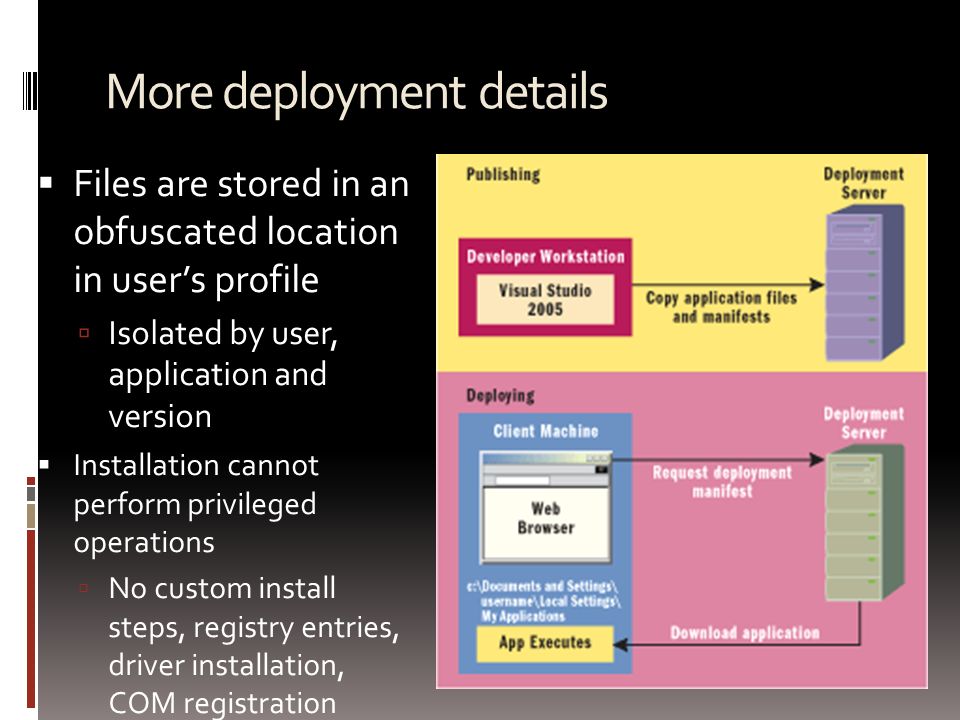

26. More deployment details  Files are stored in an obfuscated location in user’s profile  Isolated by user, application and version  Installation cannot perform privileged operations  No custom install steps, registry entries, driver installation, COM registration

27. ClickOnce runtime  ClickOnce runtime is responsible for management and deployment of apps and permissions  Runtime is triggered by two new XML file types:  Application deployment manifests (*.application)  Application references (*.appref-ms)  Running application’s exe directly does not start ClickOnce runtime

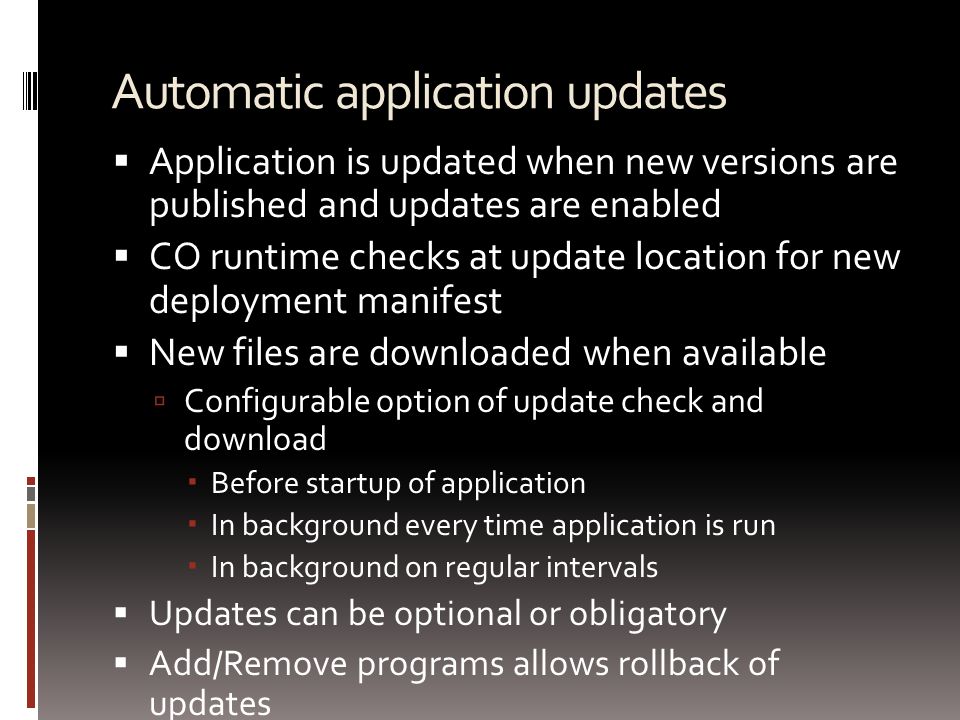

28. Automatic application updates Automatic application updates  Application is updated when new versions are published and updates are enabled  CO runtime checks at update location for new deployment manifest  New files are downloaded when available  Configurable option of update check and download  Before startup of application  In background every time application is run  In background on regular intervals  Updates can be optional or obligatory  Add/Remove programs allows rollback of updates

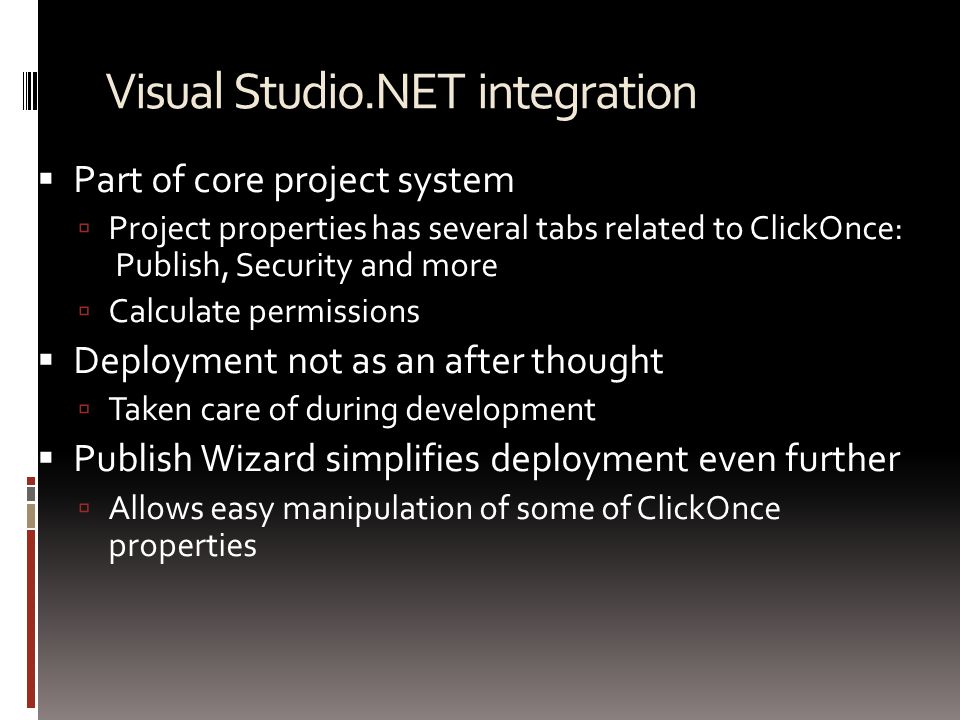

29. Visual Studio.NET integration  Part of core project system  Project properties has several tabs related to ClickOnce: Publish, Security and more  Calculate permissions  Deployment not as an after thought  Taken care of during development  Publish Wizard simplifies deployment even further  Allows easy manipulation of some of ClickOnce properties

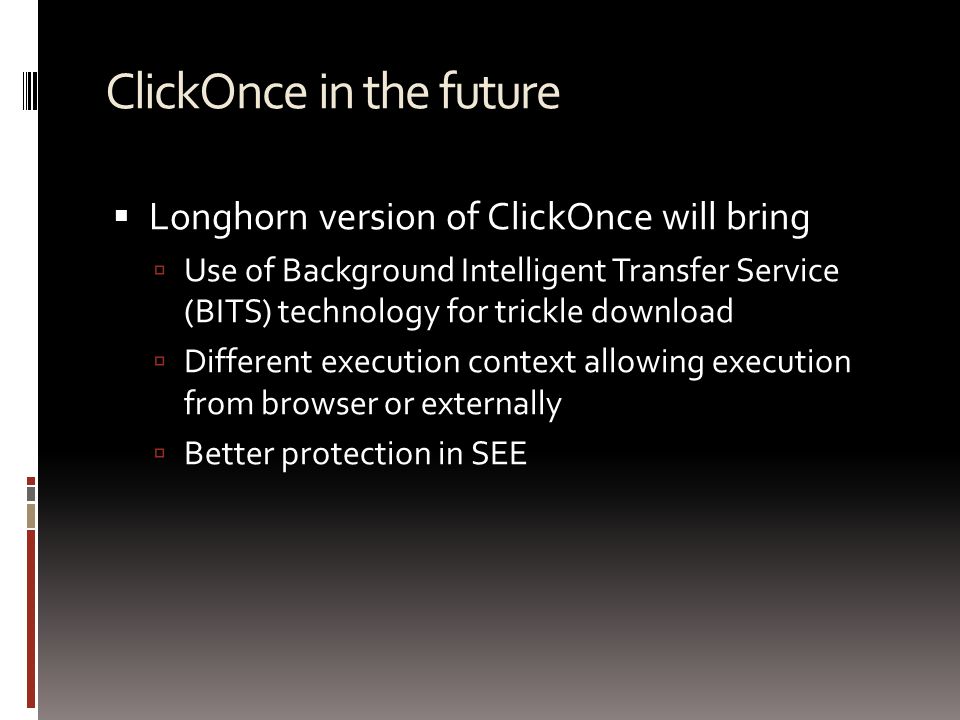

30. ClickOnce in the future  Longhorn version of ClickOnce will bring  Use of Background Intelligent Transfer Service (BITS) technology for trickle download  Different execution context allowing execution from browser or externally  Better protection in SEE

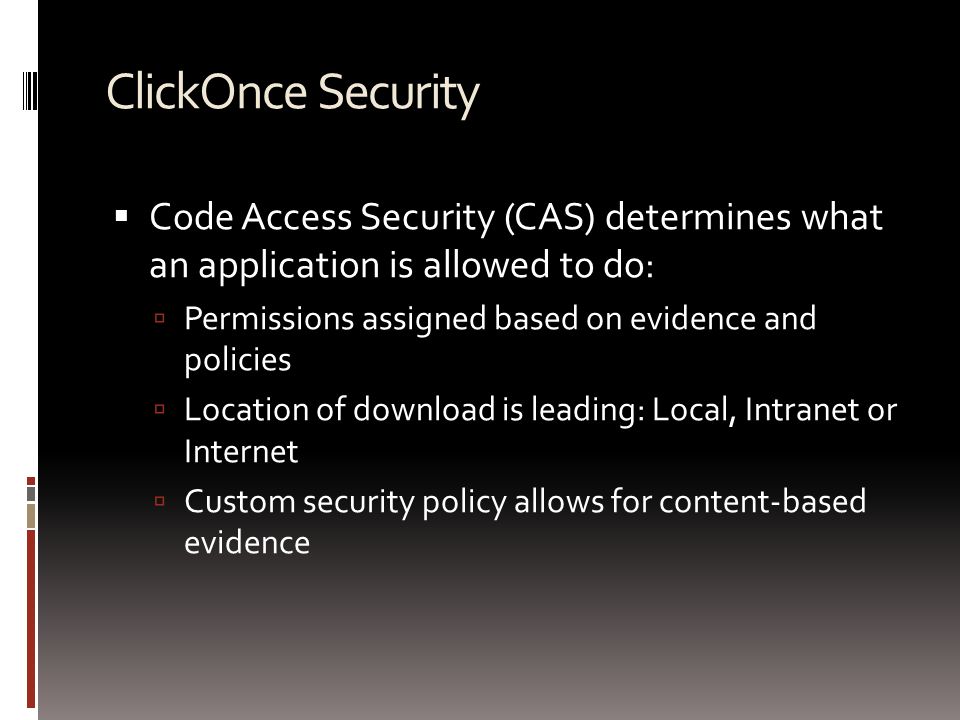

31. ClickOnce Security  Code Access Security (CAS) determines what an application is allowed to do:  Permissions assigned based on evidence and policies  Location of download is leading: Local, Intranet or Internet  Custom security policy allows for content-based evidence

32.  Application manifest states permissions needed to properly run application  Once installed and run, app gets only permissions in manifest  User is prompted when manifest requests more permissions than CAS gives

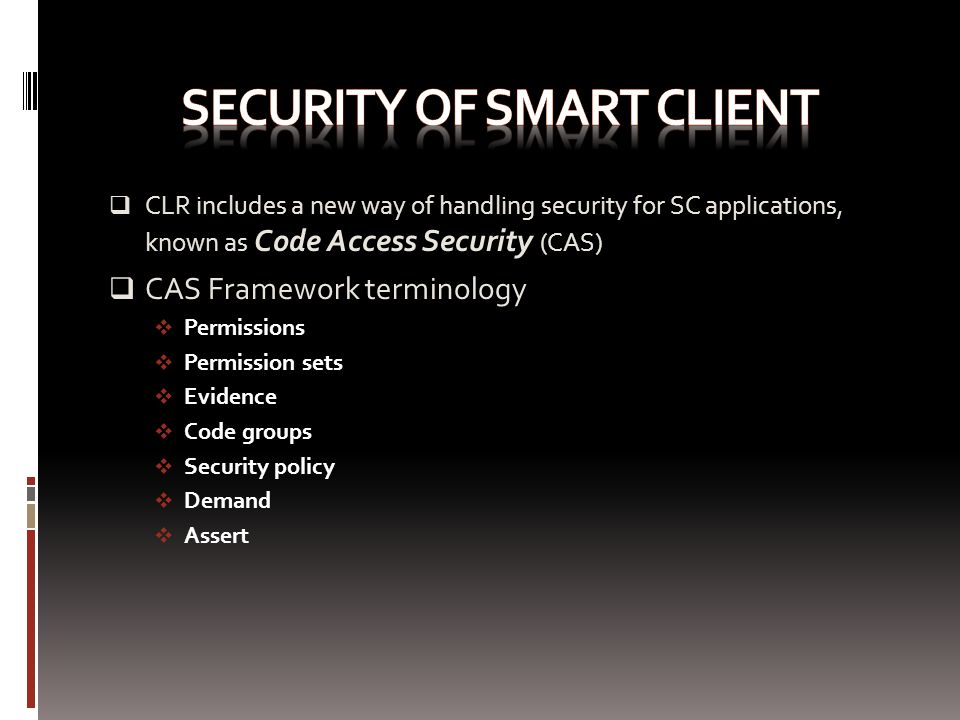

33.  CLR includes a new way of handling security for SC applications, known as Code Access Security (CAS)  CAS Framework terminology  Permissions  Permission sets  Evidence  Code groups  Security policy  Demand  Assert

35. Questions and Answers ? !
