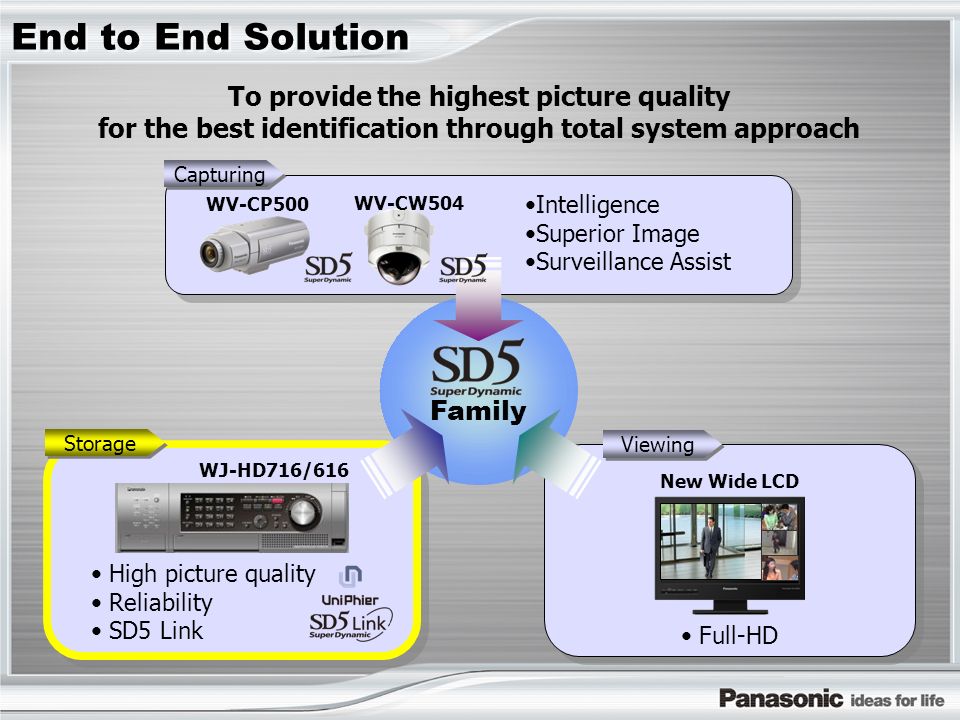

2. Intelligence Superior Image Surveillance Assist WV-CP500 WV-CW504 Capturing End to End Solution To provide the highest picture quality for the best identification through total system approach Full-HD Family New Wide LCD Viewing WJ-HD716/616 High picture quality Reliability SD5 Link Storage

3. Key Concept Panasonic Digital Disk Recorder WJ-HD716/616 Reliability SD5 Link High Image Quality High Image Quality

4. Key Features High Picture quality with “UniPhier ® ” - REC : H.264 High profile - Playback : Digital output HDMI with multi display capability - Real-time Recording Reliability - High Stability (vs. PC REC Solution) - Error-tolerant File system - HDD redundancy with RAID 5/6 SD5 Link - Disk Saving and Easy Search - Camera setup from DVR

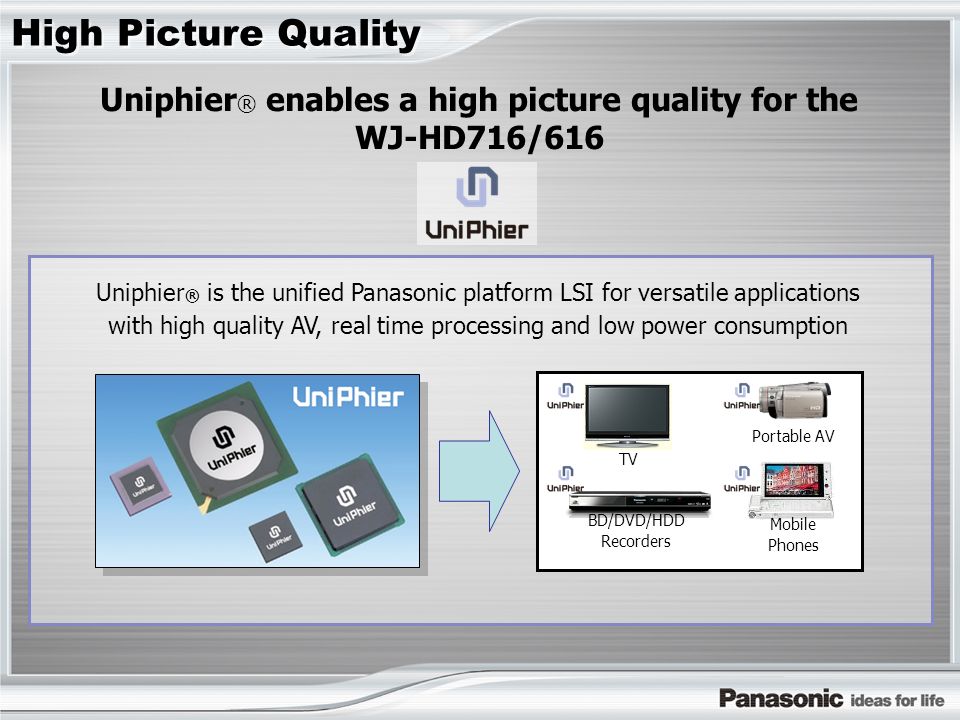

5. High Picture Quality Uniphier ® is the unified Panasonic platform LSI for versatile applications with high quality AV, real time processing and low power consumption TV BD/DVD/HDD Recorders Portable AV Mobile Phones Uniphier ® enables a high picture quality for the WJ-HD716/616

6. High Profile H.264 Encoding for Recording FeatureMPEG4 H.264 (profiles) BaselineMain High Picture Quality-LowMiddleHigh Very High T O O L S P frame Compression with Inter-frame prediction P frame is allowed to use only earlier frame Yes De-blocking Filter Reducing Block NoiseN/AYes B frame High Compression with Bi-directional Inter-frame prediction B frame is allowed to use both earlier and future frame N/A Yes 8x8 DCT High Compression for I frame with Intra prediction method N/A Yes Quantization Matrix High Compression technology without losing image quality N/A Yes CABAC High Compression Algorithm (need high processing power) N/A Yes High Profile H.264 provides High quality and High compression High Picture Quality

7. H.264 compression reduces bandwidth and storage size by up to 40% compared with MPEG-4 compression 0.5 1.0 JPEG2000 Wavelet JPEG Compression ratio at JPEG=1.0 H.264 MPEG-4 WJ-HD716/616 WJ-RT416 WJ-HD316A - 40% - 75% - 80% *Figures in this page are subject to change without notice

8. High Picture Quality High Definition 1080i (1920x1080) Display Output  2 x HDMI interface supporting dual 1080i (1920x1080) display output (Live/Playback & Live)  Real-time live images of up to 960ips (NTSC) / 800ips (PAL) at 16ch x 2 monitors Live Live/Playback HDMI

9. High Picture Quality High Definition 1080i (1920x1080) with Multi Display Capability-1 7 split screen 4 split screen 9 split screen 12 split screen [9] [16]

10. High Picture Quality 4 split screen 1 split screen 9 split screen 16 split screen 8 split screen High Definition 1080i (1920x1080) with Multi Display Capability-2 [9] [16]

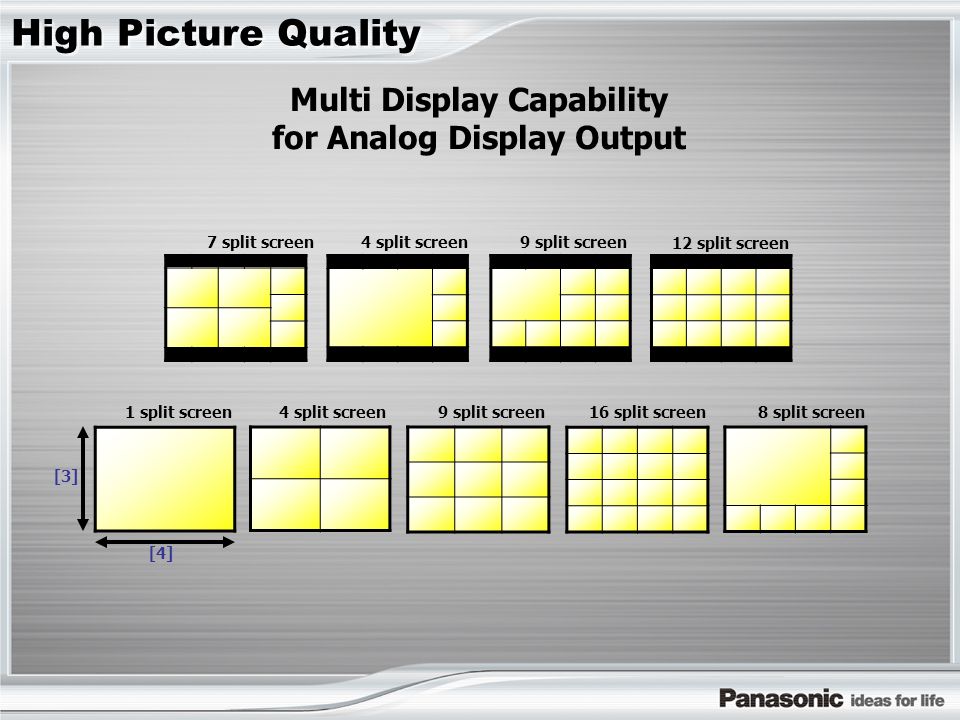

11. High Picture Quality Multi Display Capability for Analog Display Output [3] [4] 1 split screen 9 split screen 16 split screen 8 split screen 4 split screen 7 split screen 9 split screen 12 split screen 4 split screen

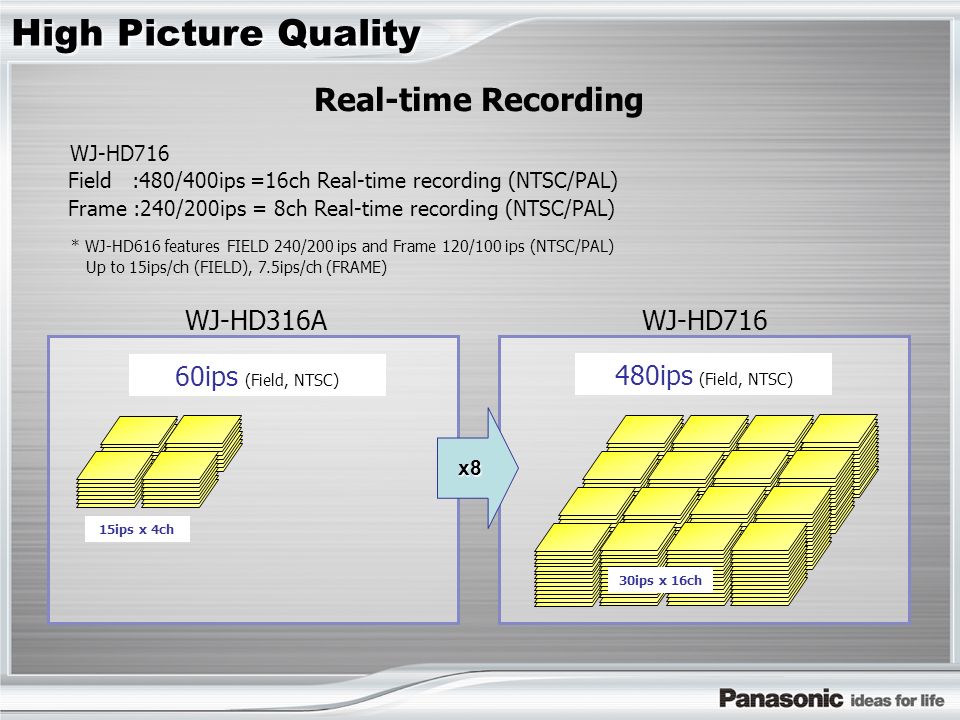

12. High Picture Quality Real-time Recording Field :480/400ips =16ch Real-time recording (NTSC/PAL) Frame :240/200ips = 8ch Real-time recording (NTSC/PAL) WJ-HD716 * WJ-HD616 features FIELD 240/200 ips and Frame 120/100 ips (NTSC/PAL) Up to 15ips/ch (FIELD), 7.5ips/ch (FRAME) WJ-HD316AWJ-HD716 x8 60ips (Field, NTSC) 480ips (Field, NTSC) 15ips x 4ch 30ips x 16ch

13. High Picture Quality 3D Scan function for “Frame” resolution produces less motion blur and no tearing even when the subject is moving 1/60sec t REC 60field/sec Playback Blurred Outline due to mixing two field pictures picture 1 picture 2picture 3 picture 4 Yellow object is slightly moving in the pictures from left-top to right-downward 3D Scan :ON Clear Outline 3D Scan :OFF Image

14. SD5 Link Disk Saving and Easy Search with i-VMD alarm of “ ” camera Disk saving By multiple alarm events - Object removal / abandonment - Intruder detection - Duration, Direction - Scene change i-VMD alarms are sent to recorder WJ-HD716/616 WV-CP500 WV-CW504 Benefit (1) Easy Search Benefit (2) Intruders are detected and indicated by red frames i-VMD alarm trigger recording Efficient recording contribute to TCO reduction

15. SD5 Link i-VMD = “intelligent” VMD  High resolution detection area[Conventional VMD] 8x6  [i-VMD] 320x240  Advanced motion analyze algorism  Abandoned object can be detected and indicated with the red frame to alert a malicious attempt  Removed object in the specified area can be detected and indicated with a red frame to alert a theft

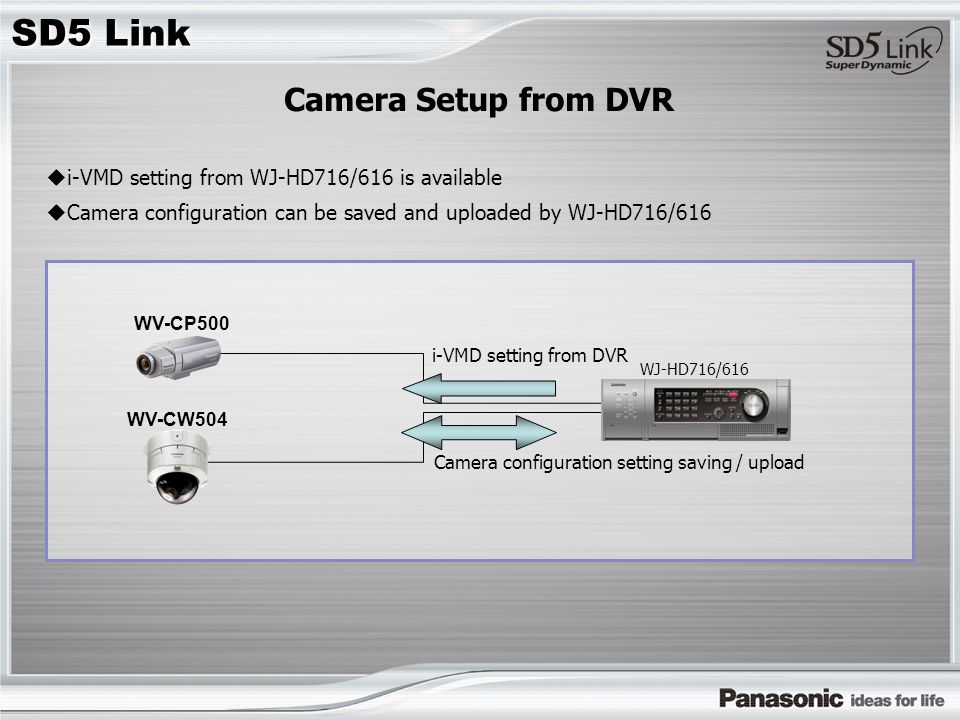

16. SD5 Link Camera Setup from DVR  i-VMD setting from WJ-HD716/616 is available  Camera configuration can be saved and uploaded by WJ-HD716/616 i-VMD setting from DVR Camera configuration setting saving / upload WJ-HD716/616 WV-CP500 WV-CW504

17. Reliability High Stability (vs. PC REC Solution) -Stable real-time OS – with PC based solution OS is on the HDD -No hacking, virus attack * *An Anti-Virus software may dramatically increase the CPU usage that may limit the live view refresh rate when recording at high frame rates -True pre and post alarm recordings. Some PC based IP recording solutions have limited pre/post options. -Some PC based IP recording solutions have to stop recording to archive to a NAS

18. Reliability HDD Redundancy with RAID 5/6 RAID5 RAID6 Restore WJ-HD716/616 X X X  With the Raid redundancy even if one (Raid5) or two (Raid6) HDDs are damaged, recording images can still be recovered  Available even without Extension unit on the WJ-HD716/616 main unit itself. * Optional RAID5/6 board WJ-HDB601 is necessary

19. Monitor  Internal 4 HDDs (accessible from front side)  High scalability with 5 main units  up to 80 camera inputs  High scalability with main unit x 4 HDDs + 3 extension units x 9 HDDs  up to 155 HDDs total  Up to 4 Controllers (WV-CU650, CU950) can be connected (PSData) Extension Monitor x4 x27 x4 x27 x4 x27 x4 x27 x4 x27 HDMI “Digital Cascade” High scalability with HDMI “Digital Cascade” HDMI

20.  Basic concept of WJ-HD316A maintained  User interface becomes easier than WJ-HD316A - “From Left to Right” easy-to-understand i-pro like design WJ-HD316AWJ-HD716/616 SAMPLE Easy GUI Easy GUI and menu system Sub menu Set up Main menu

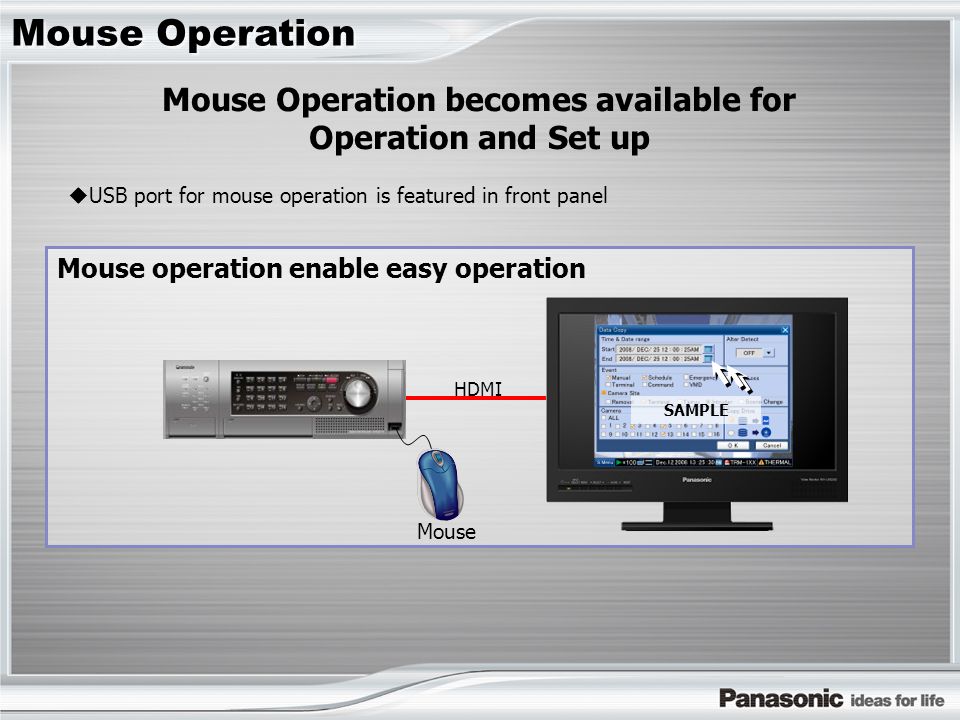

21.  USB port for mouse operation is featured in front panel Mouse Operation Mouse Operation becomes available for Operation and Set up Mouse operation enable easy operation SAMPLE HDMI Mouse

22. Network Performance “QVGA” and “Frame/Field” dual resolutions for network stream WV-ASM100 WJ-HD716/616 WV-ASM100 Live : QVGA for narrow bandwidth Independent from REC  Image transfer @QVGA resolution is optimized for narrow network bandwidth - independent from recording setting - only for live monitoring - up to 15ips(NTSC), 12.5ips(PAL)/ch  Image transfer @Frame/Field resolution is optimized for precise picture - dependent on recording setting - for both live & playback * WJ-HD616 features up to 7.5ips(NTSC),6.3ips(PAL) Live/Playback : Frame/Field resolution REC dependent

23. Network Capability With Internet Explorer SAMPLE - Monitor Live Images - Start/Stop REC manually - Search and Play Recording Event - Setup etc 10Base-T / 100Base-TX

24. Network Capability WV-ASM100 - Monitor Live Images - Start/Stop REC manually - Search and Play Recording Event - Save Recorded Images - Print etc 10Base-T / 100Base-TX

25. System Setup Migration with WJ-HD316A WV-ASM100 Conventional Analog Cameras Network WJ-HD716/616 WJ-HD316 New SD5 Analog Camera -WJ-HD316 can be easily replaced by WJ-HD716/616 -WJ-HD316 and WJ-HD716/616 can be used in the same multi-site system

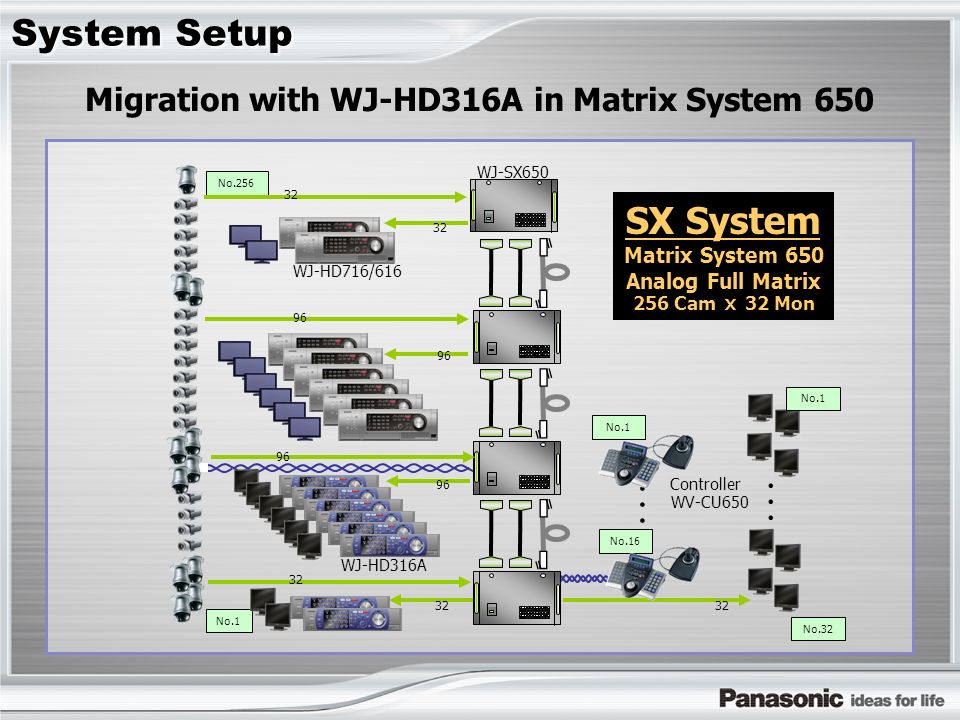

26. System Setup SX System Matrix System 650 Analog Full Matrix 256 Cam ｘ 32 Mon No.1 No.256 32 96 32 96 32 No.1 No.32 ･･･ No.1 No.16 Controller WV-CU650 WJ-SX650 32 WJ-HD316A WJ-HD716/616 Migration with WJ-HD316A in Matrix System 650

27. Browsing from WV-ASM100 - Both live image and playback image from HD716/616 can be browsed at ASM100 - i-pro camera can be added to the system and also can be browsed at ASM100 WV-ASM100 i-pro Using WJ-HD716/616 like an encoder - The image of Analog camera can be browsed from ASM100 - HD716/616 perform like an encoder with recording capability * Network capability of WJ-HD716/616 is not same as i-pro products. Network WV-ASM100 + Analog Camera Network i-pro products + WJ-HD716/616 Analog Camera System Setup System Setup with WJ-ASM100 & i-pro products

28. System Setup System Setup with PS-API* Example1: Browsing from Access Control System - Both live image and playback image from HD716/616 can be browsed at Operation PC of Access Control System - HD716/616 start recording triggered by the alarm sent from Card reader 3 rd party Access Control System Network WJ-HD716/616 Analog Camera Operating PC Example2: Browsing from 3 rd party Surveillance system - Both live image and playback image from HD716/616 can be browsed at Operation PC of 3 rd party Surveillance system - HD716/616 and NDR have the same interface WJ-HD716/616 3 rd party Surveillance system NDR * PS-API is the SDK (Software Development Kit) which is provided to help to develop the application to control Panasonic video monitoring security products (Network cameras, Network Disk Recorders, Digital Disk Recorders, Network Interface Units) by the unified method and to get video image. Network Card reader Alarm

29.  PelcoD protocol is available via RS-485 I/F PelcoD protocol support  Equipped with 4 HDD slots and maintenance Ethernet port accessible from front panel  Easy fan and main boards maintenance from rear panel Easy installation and maintenance  Configuration data can be saved and uploaded by SD card  Up to 8 users are accessible simultaneously from NW interface (up to 32 users registration is available) Other features Other Features

30. WJ-HDB611 Optional DVD Drive WJ-HDB601 Optional RAID 5/6 Board Accessories

31. WJ-HD716 ： Flagship ModelWJ-HD616 ： Standard Model Camera Input 16CH Monitor OUT Live/Playback monitor OUT (BNC, HDMI) Live monitor OUT (BNC, HDMI) Live/Playback monitor OUT (BNC, HDMI) Live monitor OUT (BNC, HDMI) Multiplex display 16:9 / 4, 7, 9, 12 split-screen 4:3 / 1, 4, 8, 9, 16 split-screen 16:9 / 4, 7, 9, 12 split-screen 4:3 / 1, 4, 8, 9, 16 split-screen Recording Rate (MAX) NTSC ： 480ips （ FIELD ） 240ips (FRAME) PAL ： 400ips （ FIELD ） 200ips (FRAME) NTSC ： 240ips (FIELD) 120ips (FRAME) PAL ： 200ips (FIELD) 100ips (FRAME) * Up to 15ips/ch (FIELD) 7.5ips/ch (FRAME) Codec H.264 (High-Profile) Pixel size NTSC FRAME:704x480 FIELD:704x240 FRAME:704x480 FIELD:704x240 PAL FRAME:704x576 FIELD:704x288 FRAME:704x576 FIELD:704x288 NW Live pixel size QVGA, or Field/Frame depend on Recording Setup QVGA, or Field/Frame depend on Recording Setup NW Live rate 15ips/CH (NTSC), 12.5ips/CH(PAL), or depend on Recording Setup 7.5ips/CH (NTSC), 6.3ips/CH(PAL), or depend on Recording Setup Audio Input 4CH Audio OUT 1CH Specifications 1/2

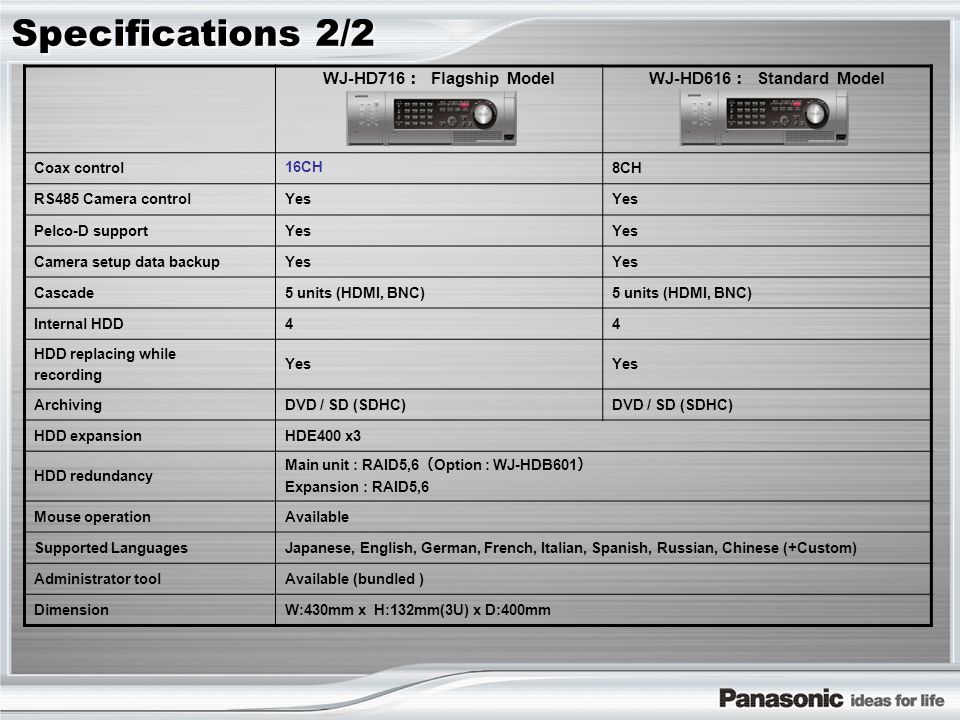

32. WJ-HD716 ： Flagship ModelWJ-HD616 ： Standard Model Coax control 16CH 8CH RS485 Camera controlYes Pelco-D supportYes Camera setup data backupYes Cascade5 units (HDMI, BNC) Internal HDD44 HDD replacing while recording Yes ArchivingDVD / SD (SDHC) HDD expansionHDE400 x3 HDD redundancy Main unit : RAID5,6 （ Option : WJ-HDB601 ） Expansion : RAID5,6 Mouse operationAvailable Supported LanguagesJapanese, English, German, French, Italian, Spanish, Russian, Chinese (+Custom) Administrator toolAvailable (bundled ) DimensionW:430mm x H:132mm(3U) x D:400mm Specifications 2/2

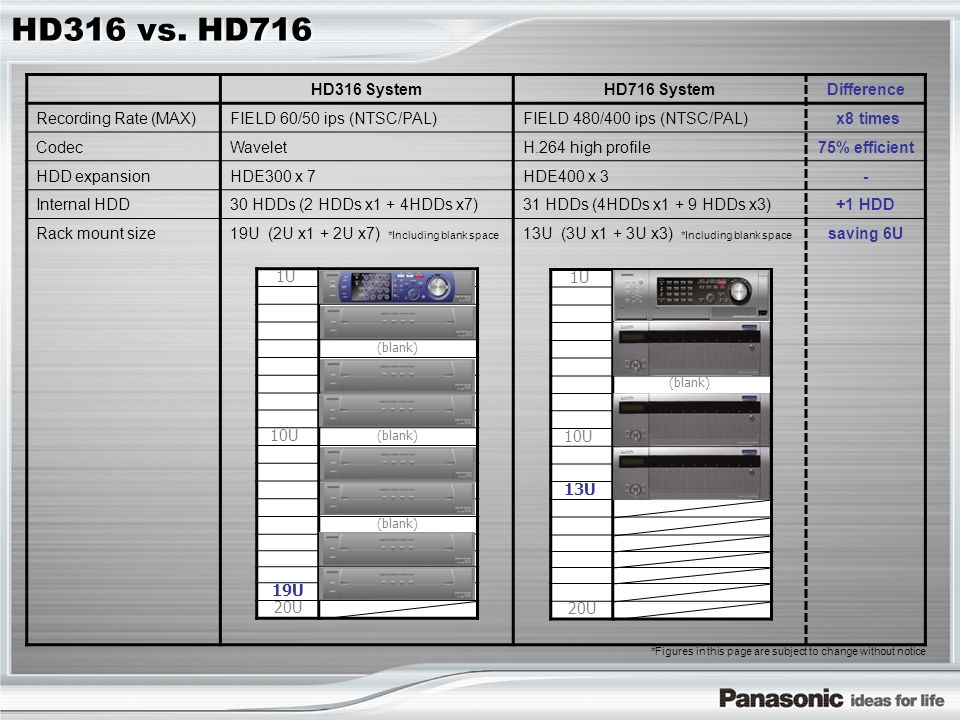

33. HD316 vs. HD716 HD316 SystemHD716 SystemDifference Recording Rate (MAX)FIELD 60/50 ips (NTSC/PAL)FIELD 480/400 ips (NTSC/PAL) x8 times CodecWaveletH.264 high profile75% efficient HDD expansionHDE300 x 7HDE400 x 3- Internal HDD30 HDDs (2 HDDs x1 + 4HDDs x7)31 HDDs (4HDDs x1 + 9 HDDs x3)+1 HDD Rack mount size19U (2U x1 + 2U x7) *Including blank space 13U (3U x1 + 3U x3) *Including blank space saving 6U 1U 10U 20U 19U (blank) 1U 10U 20U 13U (blank) *Figures in this page are subject to change without notice
