1 Use the Right arrow on your keyboard to advance to the next slide. Use the Left arrow to move to the previous slide. Press the “ ” in the upper right corner to exit the presentation.

2

3 Pelco Has Designed, Developed and Tested an Innovative DVR Bringing Flexibility and a Robust Feature Set to All Your Demanding Video Security Applications.

4 The Future is Here. The Time is Now.

5 Your Search Is Over… …for the Perfect DVR

6 Where Does the DX8000 Fit in the Family? DX Series Choices

7

8 How it Compares Resolution 320 x 240 Up to 720 x 480 Record Rate 120 FPS 480 FPS Int. Storage Up to 480 GB Up to 1 TB API / SDK NO YES Looping NO YES Audio NO YES Alarm Inputs 8 8, 16 Coaxitron NO YES Feature DX7100 DX8000

9 2 CIF Resolution 240 Frames / Second Video Loss Detection Advanced Recording Set-Up What You Really Need to Compete In the Mainstream DVR Marketplace CIF, 2 CIF & 4 CIF Up to 480 FPS Yes Yes DX8000

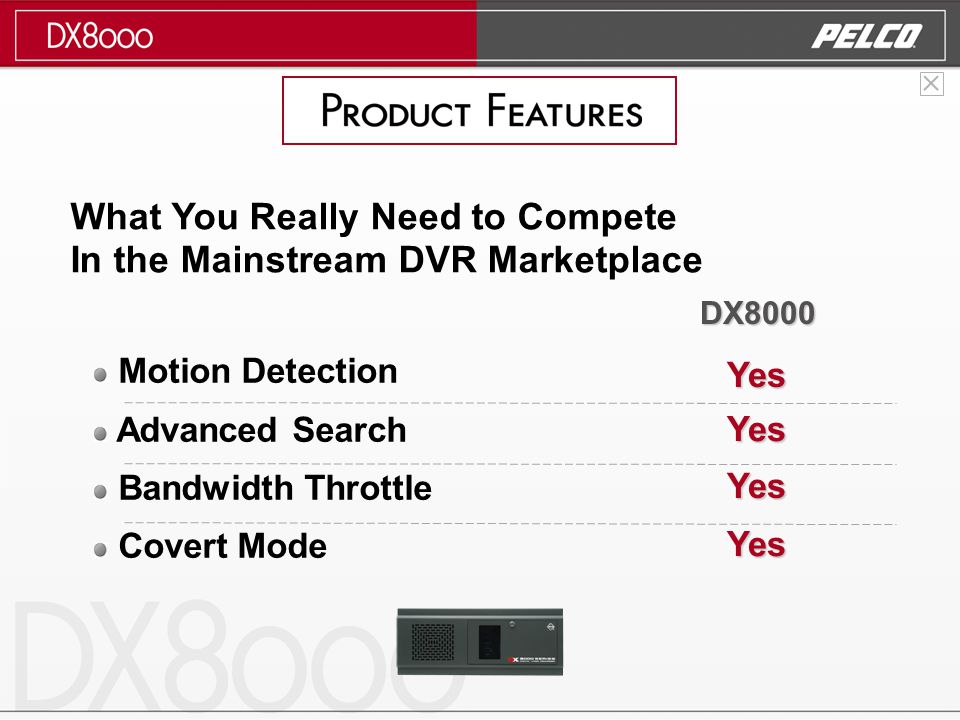

10 Motion Detection Advanced Search Bandwidth Throttle Covert Mode Yes Yes Yes Yes DX8000 What You Really Need to Compete In the Mainstream DVR Marketplace

11 Watermarking Digital Zoom on Playback PTZ control Pre-Set on PTZ Yes Yes Yes Yes DX8000 What You Really Need to Compete In the Mainstream DVR Marketplace

12 Advanced Event Logging Third Party Back-up Support Software Toolkit - SDK (API) Pre-Alarm Options Audio Yes Yes Yes Yes Yes DX8000 What You Really Need to Compete In the Mainstream DVR Marketplace

13 Multiple Client Options Analog Spot Monitor Option Export Native Video Activity Log Yes Yes Yes Yes DX8000 What You Really Need to Compete In the Mainstream DVR Marketplace

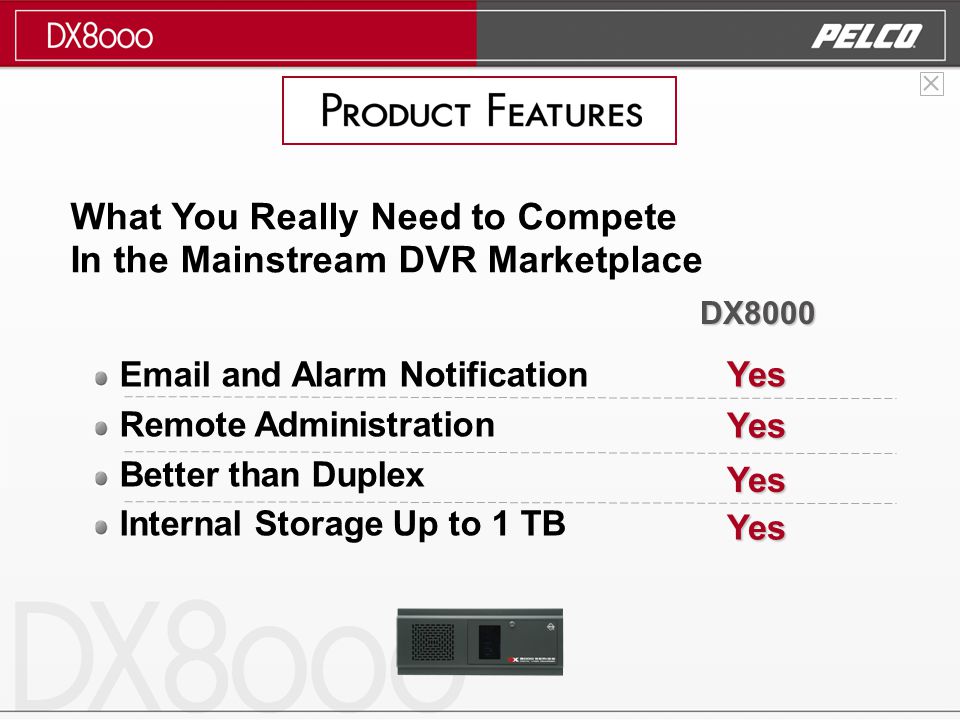

14 and Alarm Notification Remote Administration Better than Duplex Internal Storage Up to 1 TBYes Yes Yes Yes DX8000 What You Really Need to Compete In the Mainstream DVR Marketplace

15

16 Features Detailed

17 Image Quality & Record Rate Adjustable by Camera or Through Global Adjustments

18 Up to 480 Frames Per Second Record Rate (NTSC) Image Quality & Record Rate 16 Channel Unit (NTSC) 8 Channel Unit (NTSC)

19 Image Quality & Record Rate 16 Channel Unit (PAL) 8 Channel Unit (NTSC) Up to 400 Frames Per Second Record Rate (PAL)

20 Full Interface to Spectra and Esprit Preset 95 from DX8000 GUI Spectra & Esprit Programming

21 On-Screen Programming from DX8000 Server

22 Pelco “D” and Pelco “P” Protocols AND Coaxitron Dome Control from a Single Cable Spectra & Esprit Control

23 Server-to-Server Connectivity

24 Integrate Up to 5 Servers and Up to 80 Cameras

25 DX8000 Server to Server

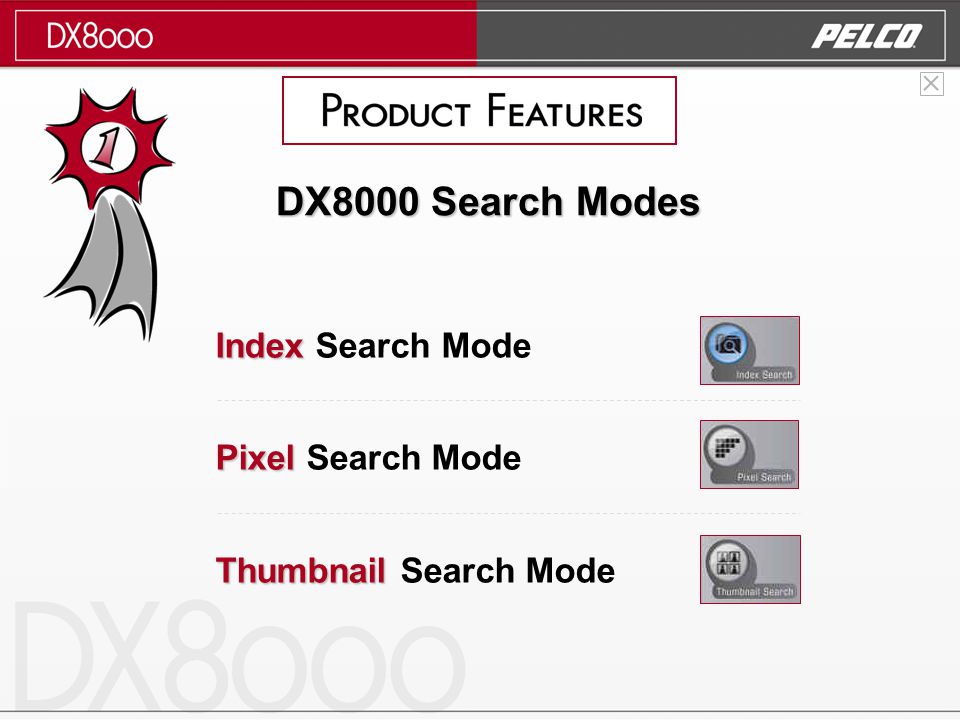

26 DX8000 Search Modes Index Index Search Mode Pixel Pixel Search Mode Thumbnail Thumbnail Search Mode

27 Index Index Search Search by Camera, Date & Time Specify multiple “Bookmarks” Digital Zoom on Playback DX8000 Search Modes

28 Search Mode Index Search Option

29 DX8000 Search Modes Pixel Pixel Search Define Area on Screen to Be Searched Search by Camera, Date & Time Specify Multiple “Bookmarks” Digital Zoom on Playback

30 Search Mode Pixel Search Option

31 DX8000 Search Modes Thumbnail Thumbnail Search Segment a Day Into 1 Hour Increments Segment Hour Into 10 Minute Increments Segment 10 Minutes Into 60 Second Increments

32 DX8000 Thumbnail Search

33 @ 1 Hour Intervals Search Mode Thumbnail Search Option

34 @ 10 Minute Intervals Search Mode Thumbnail Search Option

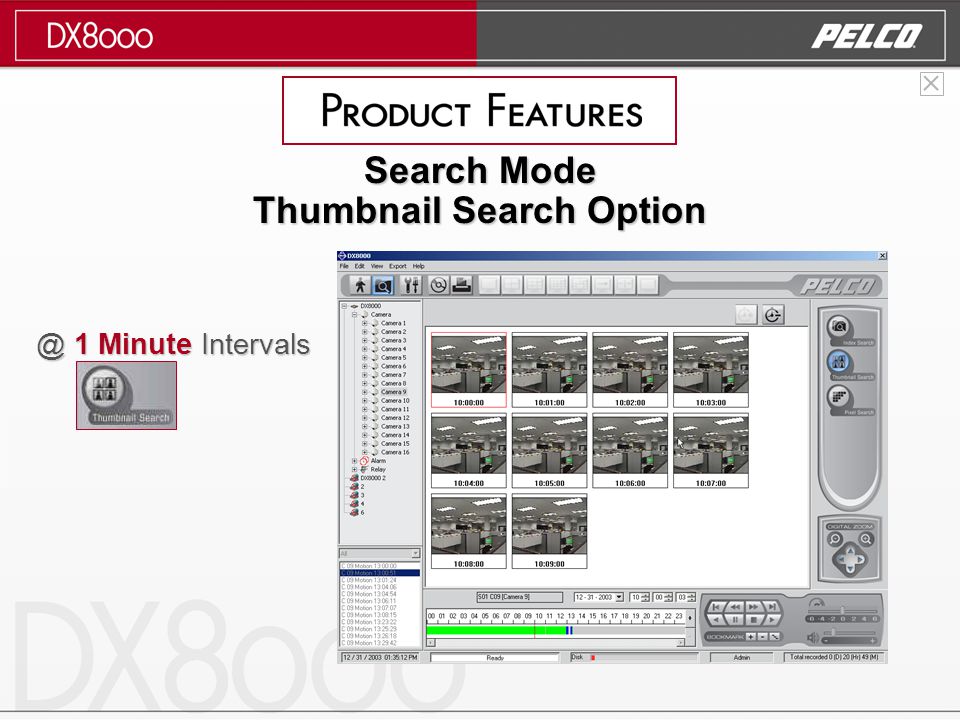

35 @ 1 Minute Intervals Search Mode Thumbnail Search Option

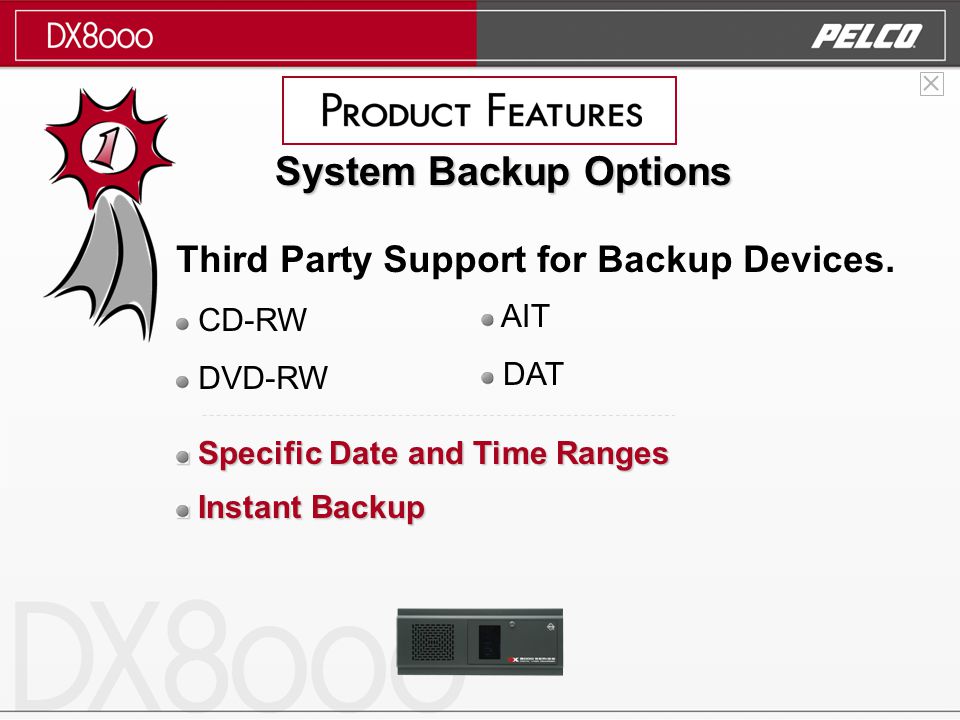

36 Third Party Support for Backup Devices. CD-RW DVD-RW AIT DAT System Backup Options Specific Date and Time Ranges Specific Date and Time Ranges Instant Backup Instant Backup

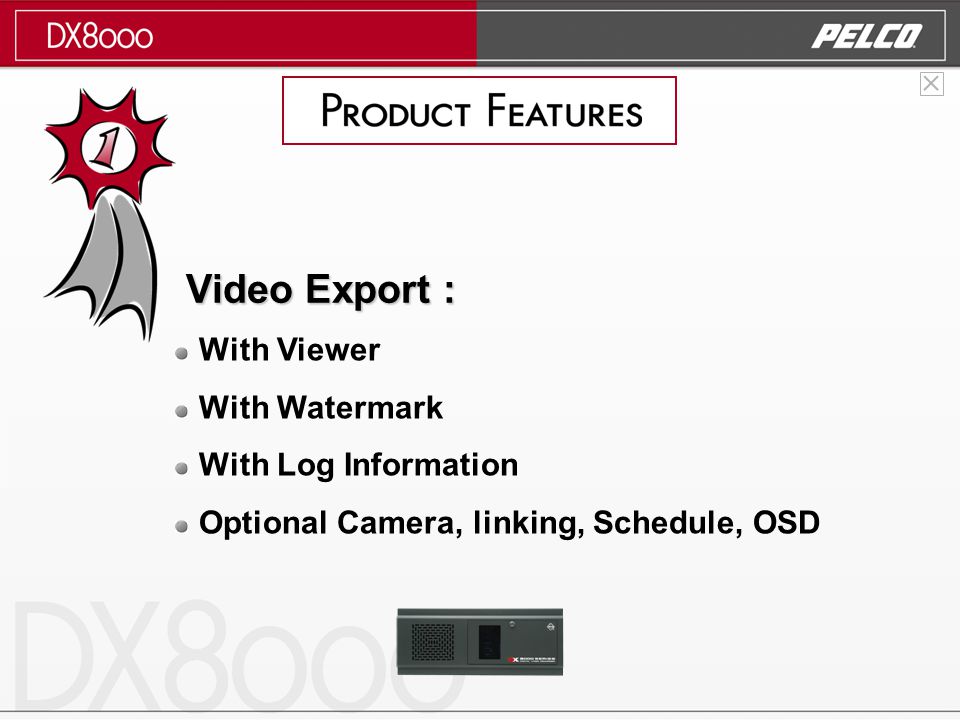

37 With Viewer With Watermark With Log Information Optional Camera, linking, Schedule, OSD Video Export :

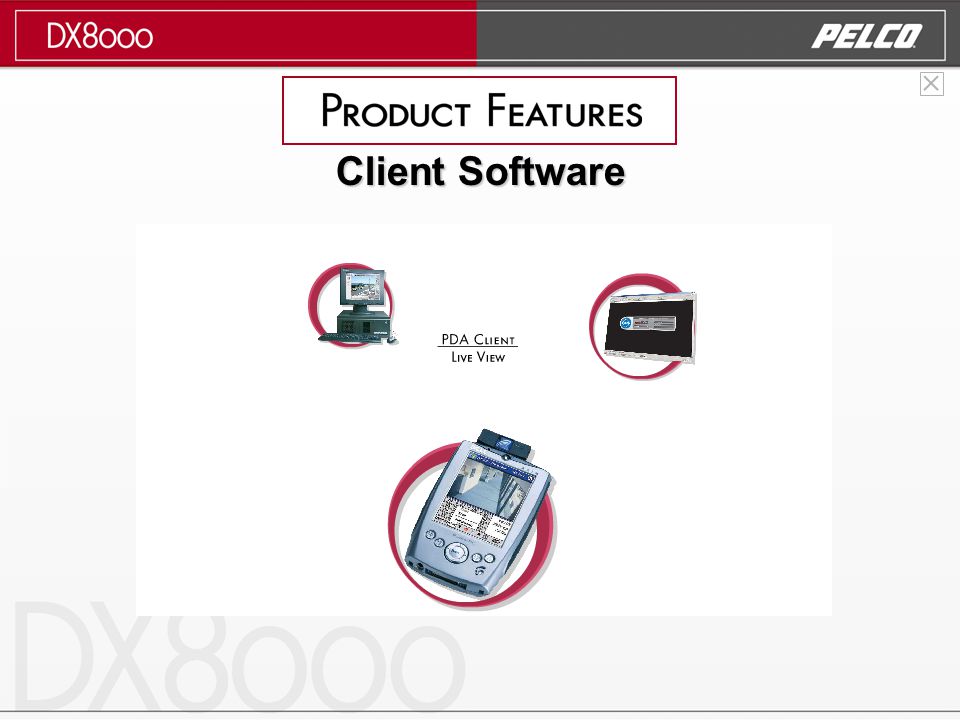

38 Client Software

39 Yes No Yes Yes (Unicast) No PC ClientWEB Client PDA Client Feature Client Software Matrix Live View PTZ control Search Full Admin

40 PC Client – Full Administrative Control – Full View, Search, and Set-Up Control – Remote Update Capability Client Software :

41 Web Client – Limited Functionality Control – Full View and PTZ Control – No Additional Software Installed on a PC Client Software :

42 PDA (Pocket PC) Client – Pocket PC Support Only – Wireless Connection, Client Software :

43 System Options System Options 8 Channel Audio Input 8 & 16 Channel MUX Analog Spot Monitor 256 Mb RAM Upgrade DVD-RW HDD Upgrade 250GB Internal Ultra SCSI card

44 Audio – 8 & 16 Channel Audio Input Options System Options System Options

45

46 Analog Spot Monitor OUT – Programmable Multiplex Video Output

47 System RAM Upgrade – Additional 256MB – Up to 15 Minutes Pre-Alarm System Options System Options

48 DVD-RW DVD-RW – 4.7 GB Storage Medium System Options System Options

49 HDD Upgrade 250GB – Drive Upgrades to 1TB – Field Installation Kits System Options System Options

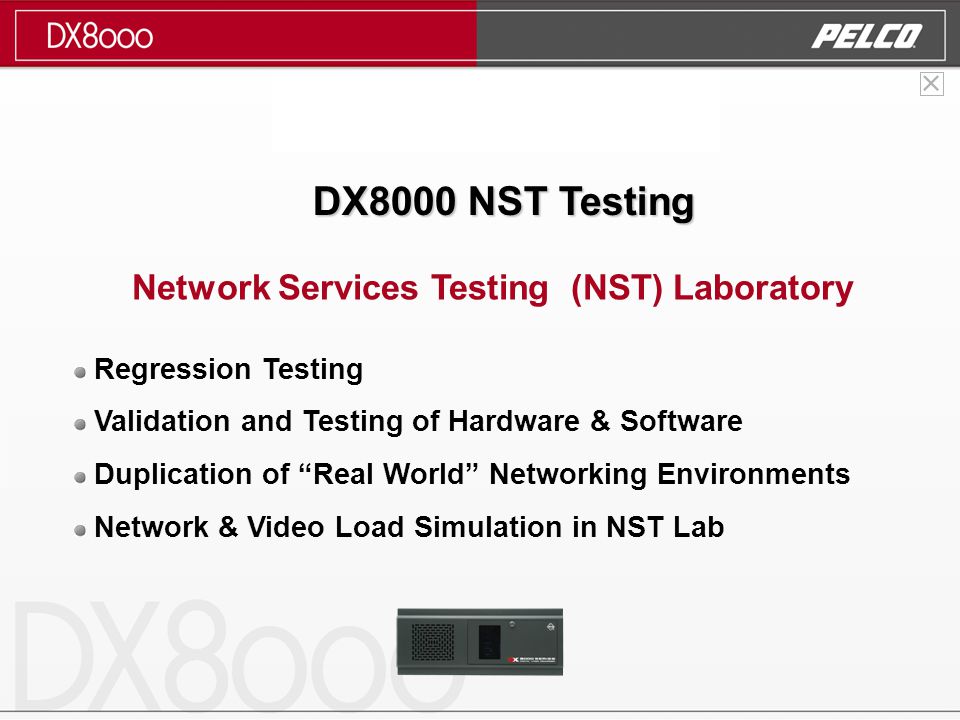

50 DX8000 NST Testing Network Services Testing (NST) Laboratory Regression Testing Validation and Testing of Hardware & Software Duplication of “Real World” Networking Environments Network & Video Load Simulation in NST Lab

51 Image Quality Record Rate Server-to-Server Connectivity Audio And Much More… Never Before Have So Many Features Come Together in One DVR.

52 24-Hour Tech Support Guaranteed Off-the-Shelf Product Availability Guaranteed Ship Dates Backed by the Same Company Whose Commitment to Fanatical Customer Service Is Unwavering.

53
