1. Xilinx Training Xilinx Analog Mixed Signal EDK Design Flow Note: Agile Mixed Signal is Now Analog Mixed Signal

2. Welcome This module introduces the EDK flow for Xilinx Agile Mixed Signal solutions This module will list some key features of the XADC core that are enabled by Xilinx Agile Mixed Signal solutions

3. To Learn More About Xilinx Agile Mixed Signal Related Videos –What is the Xilinx Agile Mixed Signal Solution? For beginners and enthusiasts –Xilinx AMS HDL Design Flow For digital designers who want to become familiar with HDL flow –Xilinx AMS XADC Evaluation For designers who want to know how the XADC interface can be evaluated for their mixed signal application

4. 1. Evaluate 2. Implement 3. Simulate Implementing XADC in your Design 1. Evaluate XADC evaluation card is bundled with all 7 series TDPs Choose XADC settings and begin measuring XADC evaluation card is bundled with all 7 series TDPs Choose XADC settings and begin measuring 2. Implement Set attributes based on evaluation and connect I/O MicroBlaze processor initializes XADC settings at run time Set attributes based on evaluation and connect I/O MicroBlaze processor initializes XADC settings at run time 3. Simulate Simulate HW (XADC & FPGA logic) using analog stimulus file Use HW in the loop with ISim to verify prototype Simulate HW (XADC & FPGA logic) using analog stimulus file Use HW in the loop with ISim to verify prototype Edit Settings

5. Evaluating the XADC KC705 USB 123.456 Optional External Instrument (e.g. signal generator) Resources (DACs) for basic testing and connectors for external instruments #1 Ribbon cable connection to “analog header” on KC705 National Instruments LabView GUI XADC settings ADC data collection and analysis XADC Evaluation Card

6. XADC-AXI IP Overview  Customizable  Fully tested, documented, and supported by Xilinx  Unlicensed and provided for free with Xilinx software AXI4-Lite Interface XADC Core Logic XADC Hard Macro

7. XADC-AXI IP for ZynQ-7000 EPP and the MicroBlaze Processor

8. Embedded Design Kit Suite Xilinx Platform Studio (XPS) –Design environment for processor subsystem –Microprocessor Hardware Specification (MHS) file –ChipScope™ Pro logic analyzer integration Software Development Kit (SDK) –Project workspace –Board Support Package (BSP) –Software application –Software debugging

9. Adding the XADC-AXI IP Customize the XADC core here

10. Adding the XADC-AXI IP (continued)

11. XADC-AXI IP Product Guide

12. XPS Design Flow Perform Design Rule Check (DRC) Generate hardware Export hardware platform information to SDK XADC block diagram and its connections as seen in EDK

13. SDK Integration Drivers included with BSP system.xml contains the hardware configuration

14. Application Development Driver Documentation Driver API documentation

15. Simulation in XPS The Simulation Model Generator (SimGen) tool generates and configures various simulation models for the specified hardware Launches SimGen (integrated in XPS) Enables coverfication of hardware and software when run in ISIM Launches ISim (integrated in XPS) Scripts for third- party simulators Enables co-verfication of hardware and software when run in ISim

16. Simulation and Verification Text file contains analog information (sensors, external voltages, etc.) that can be introduced into the simulation Simulate XADC (Analog) and Digital

17. Associating Analog Stimulus Associating analog stimulus file to the XADC model C_SIM_MONITOR _FILE parameter in the system.mhs file

18. Performing ELF Simulation Example XADC-AXI Model ELF Simulation Stimulus File Example Analog information read in directly by model

19. Summary 1. Evaluate the XADC for performance and settings –XADC Evaluation Card is bundled with all 7 series TDPs (e.g., KC705) –Pick required XADC settings (attributes) and evaluate performance 2. Implement the design using the XADC AXI core –Add the XADC AXI core to your embedded platform using Xilinx Platform Studio –Synthesize and implement the design using XPS and import the hardware settings to SDK –Using SDK, generate board support packages and develop applications that leverage the XADC block 3. Simulate the XADC in an HDL simulator –XPS enables co-verification of hardware and software for embedded designs –SimGen generates Verilog or VHDL models for XADC –Support for analog test vectors using an analog stimulus file

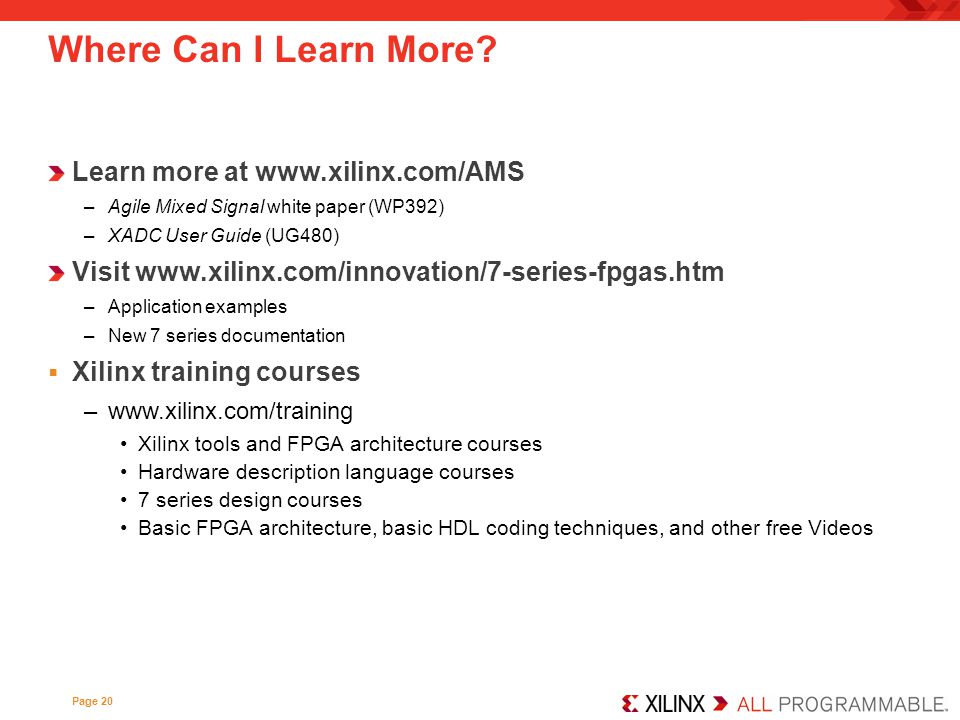

20. Where Can I Learn More? Learn more at www.xilinx.com/AMS –Agile Mixed Signal white paper (WP392) –XADC User Guide (UG480) Visit www.xilinx.com/innovation/7-series-fpgas.htm –Application examples –New 7 series documentation  Xilinx training courses –www.xilinx.com/training Xilinx tools and FPGA architecture courses Hardware description language courses 7 series design courses Basic FPGA architecture, basic HDL coding techniques, and other free Videos Page 20
