WELCOME Elmo and Video Projector Training Adapted from elmosprojectors/Elmo%20Training.ppt.

Similar presentations


Presentation on theme: "WELCOME Elmo and Video Projector Training Adapted from elmosprojectors/Elmo%20Training.ppt."— Presentation transcript:

1 WELCOME Elmo and Video Projector Training Adapted from elmosprojectors/Elmo%20Training.ppt elmosprojectors/Elmo%20Training.ppt

2 Your Elmo box includes...

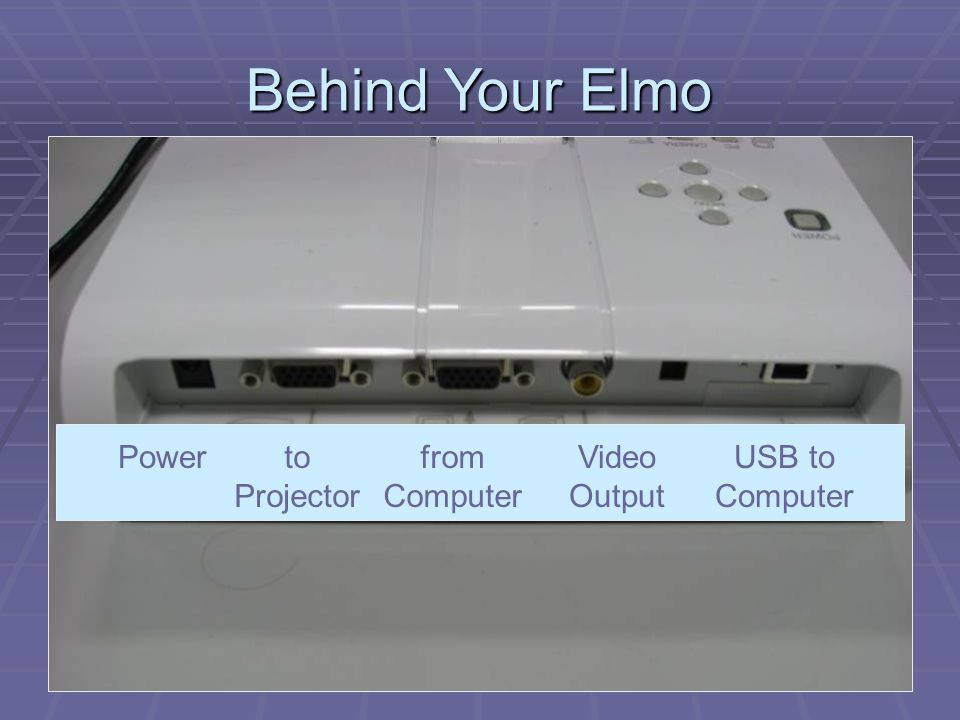

3 Powerto Projector from Computer Video Output USB to Computer Behind Your Elmo

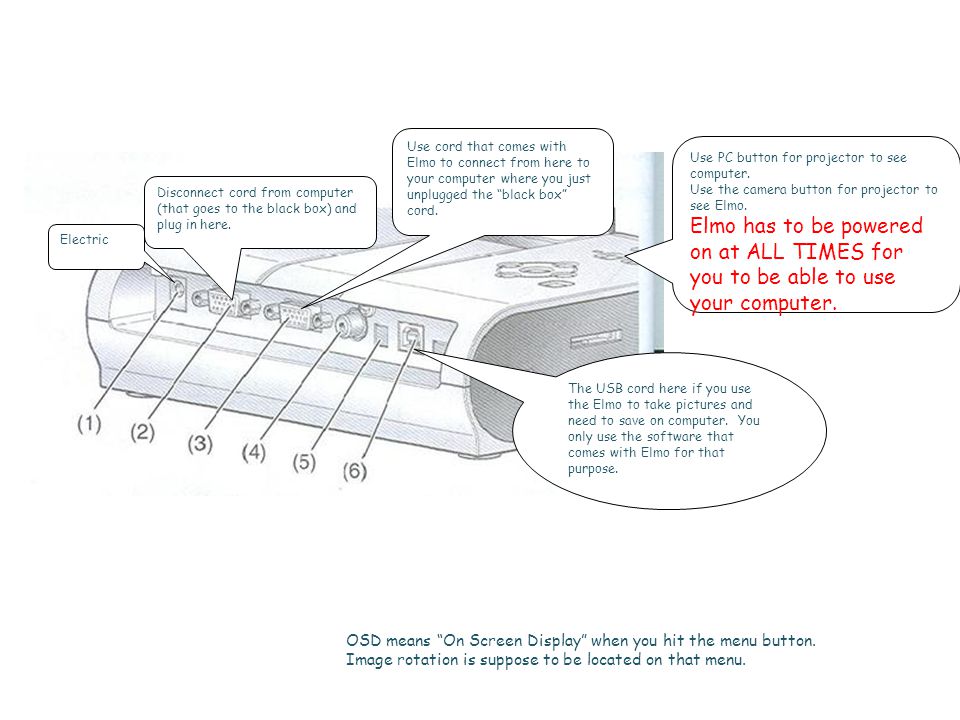

4 Disconnect cord from computer (that goes to the black box) and plug in here. Use cord that comes with Elmo to connect from here to your computer where you just unplugged the “black box” cord. The USB cord here if you use the Elmo to take pictures and need to save on computer. You only use the software that comes with Elmo for that purpose. Use PC button for projector to see computer. Use the camera button for projector to see Elmo. Elmo has to be powered on at ALL TIMES for you to be able to use your computer. Electric OSD means “On Screen Display” when you hit the menu button. Image rotation is suppose to be located on that menu.

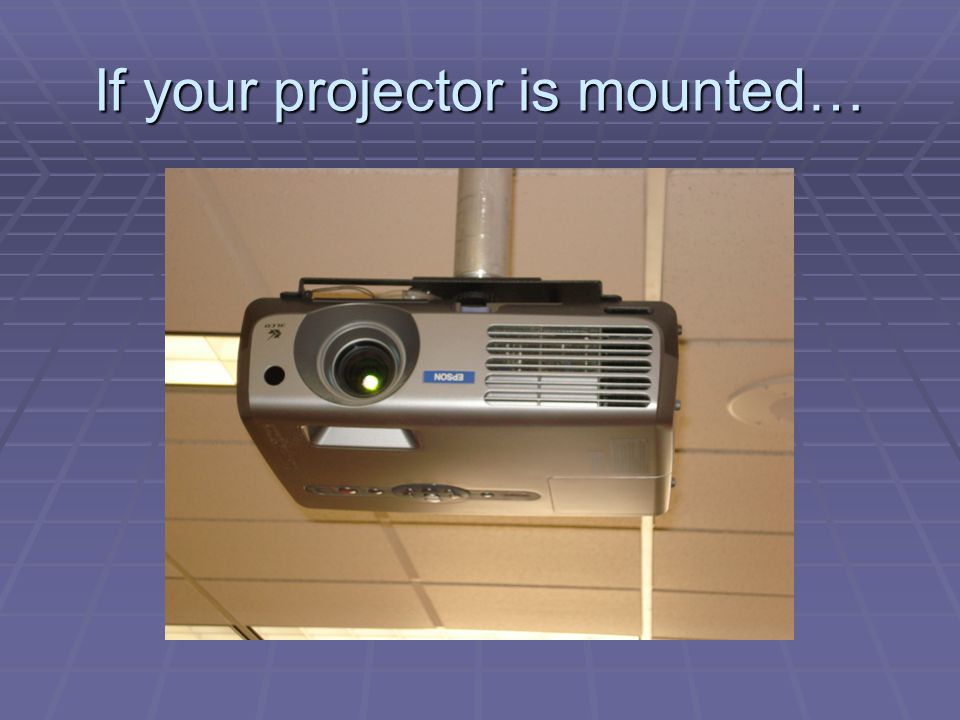

5 If your projector is mounted…

6 If your projector is on a cart…

7 Your projector from behind Power From Elmo

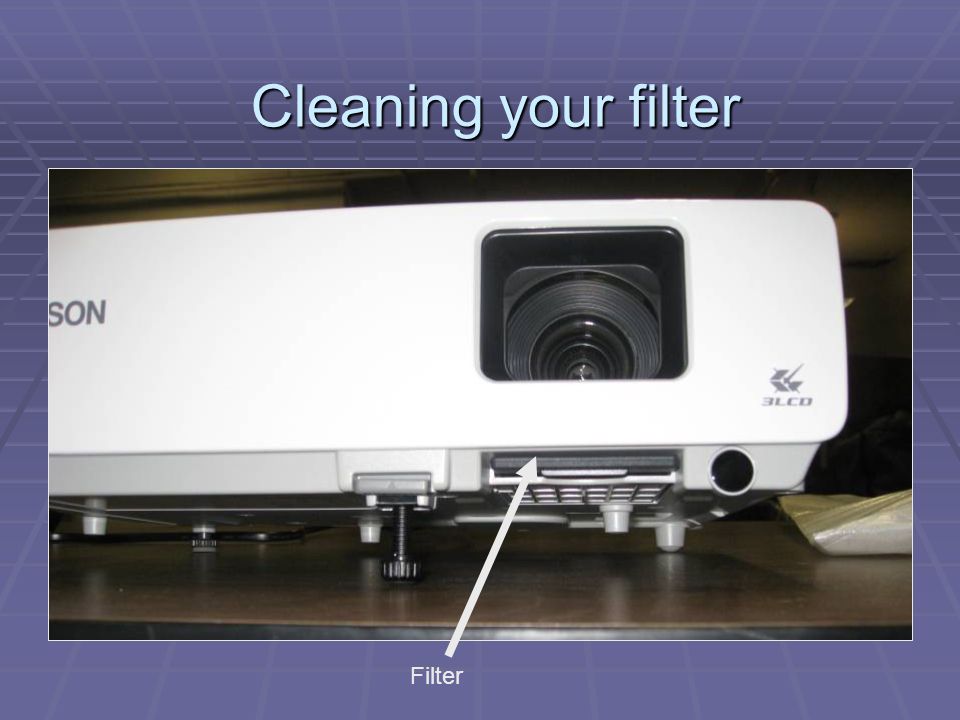

8 Cleaning your filter Filter

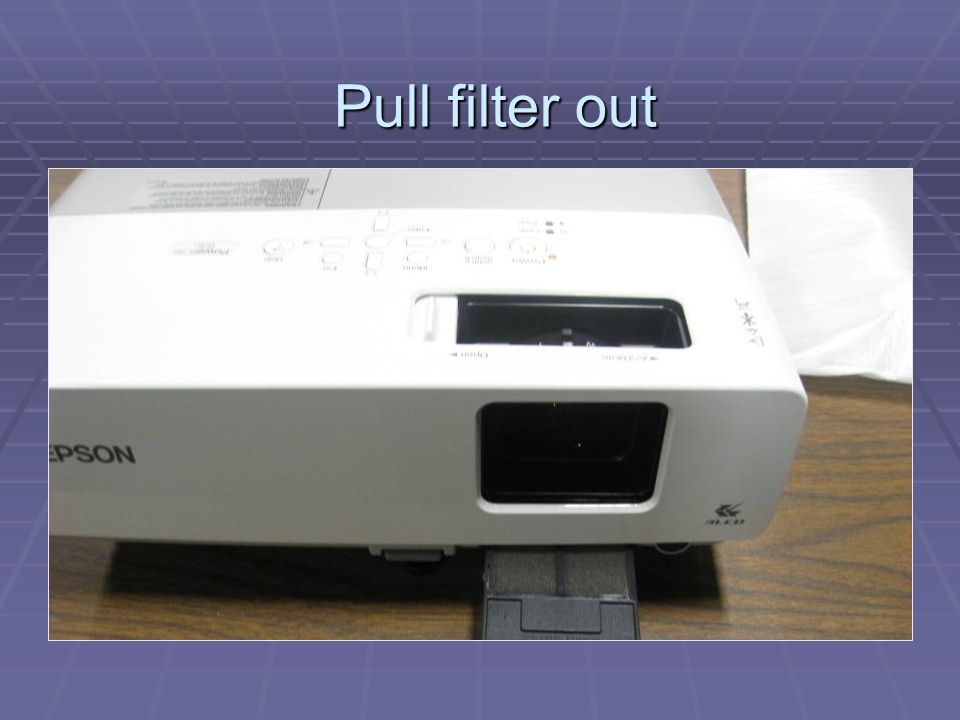

9 Pull filter out

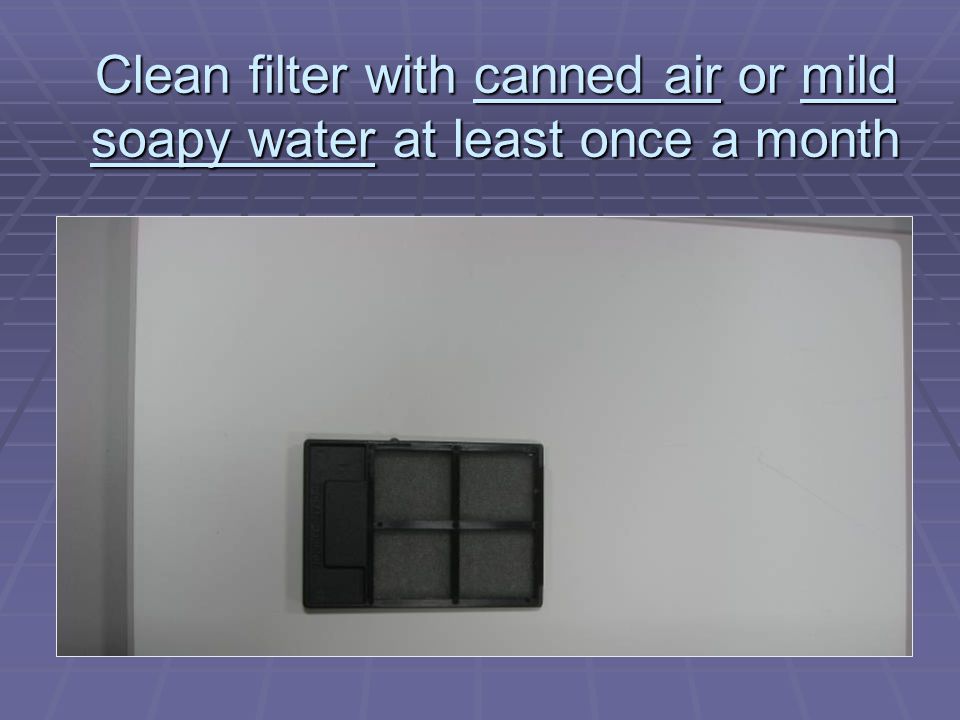

10 Clean filter with canned air or mild soapy water at least once a month

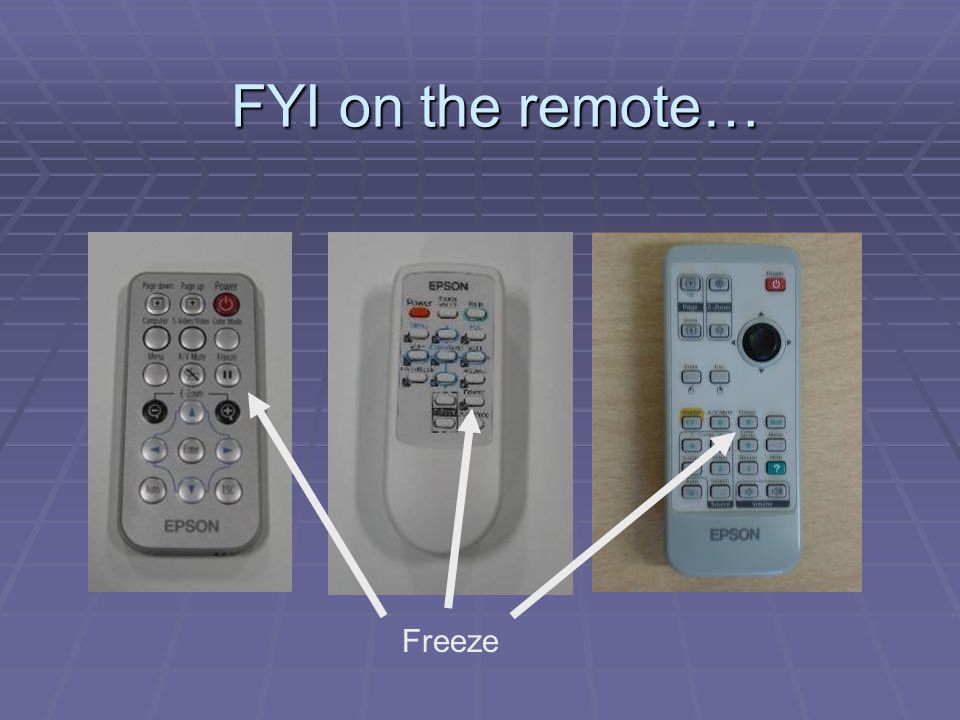

11 FYI on the remote… Freeze

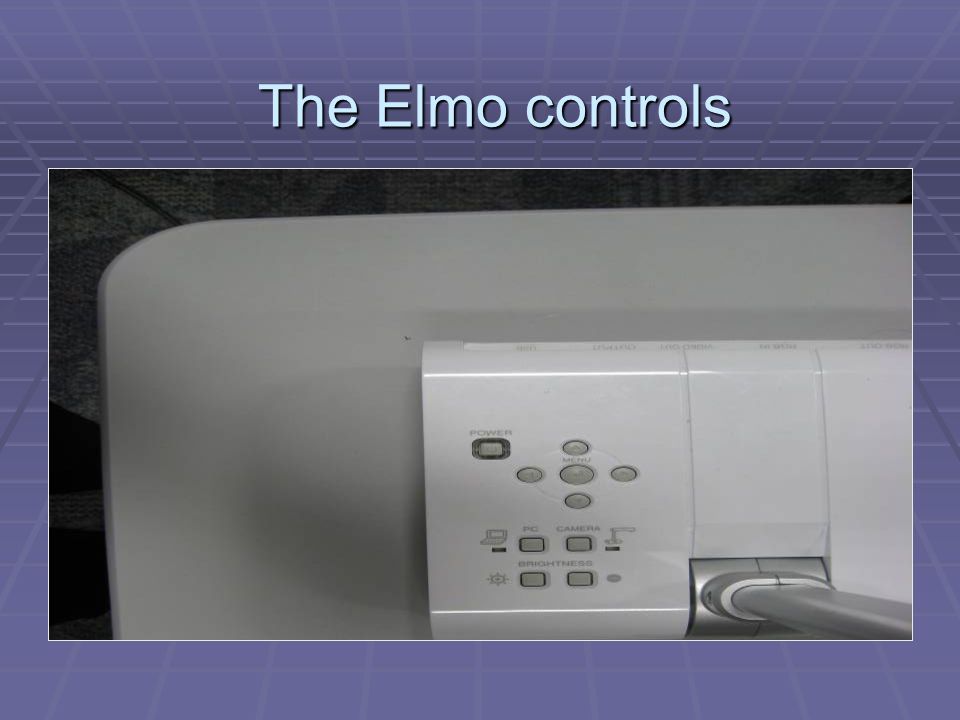

12 The Elmo controls

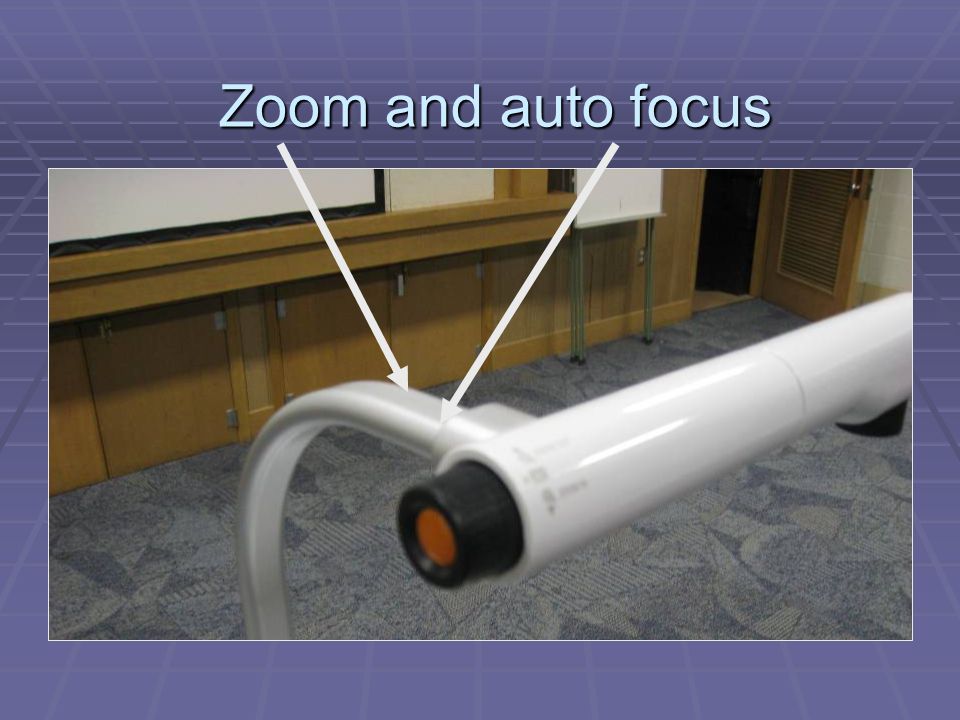

13 Focus Zoom Zoom and auto focus

14 Another wiring option (w/USB)

15 Installing the software (w/o USB)

16 Click Utility_Software

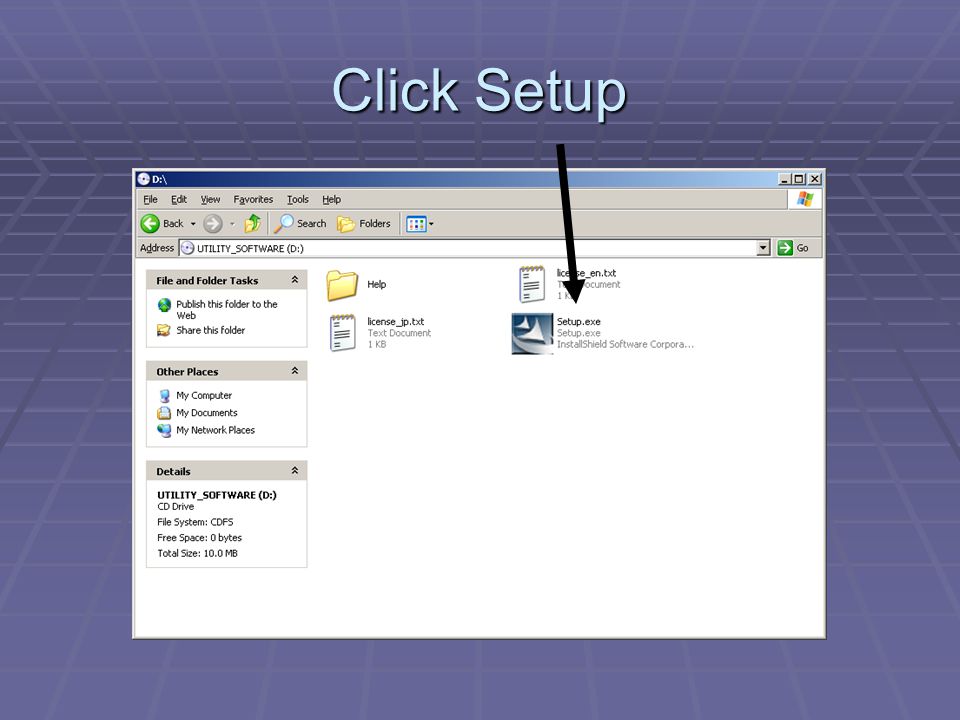

17 Click Setup

18 Click Next

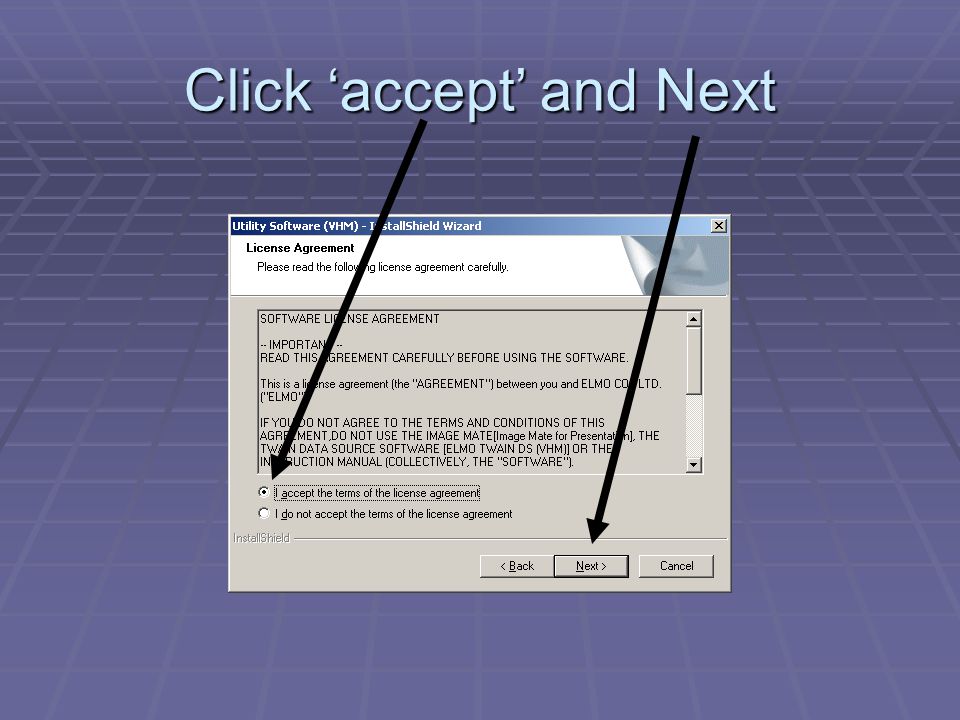

19 Click ‘accept’ and Next

20 Click Next

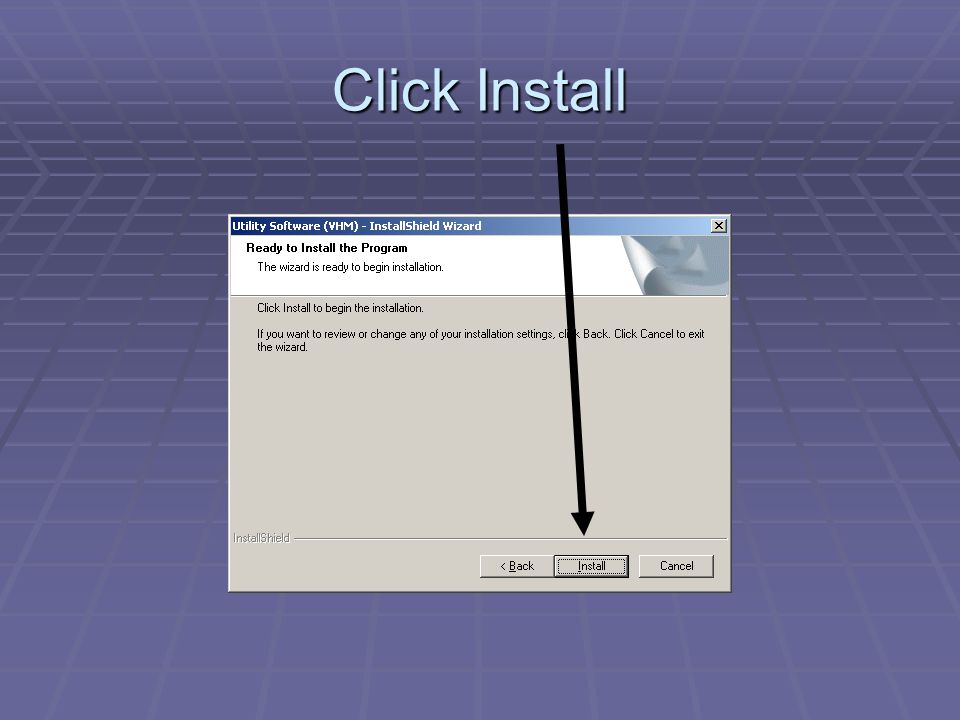

21 Click Install

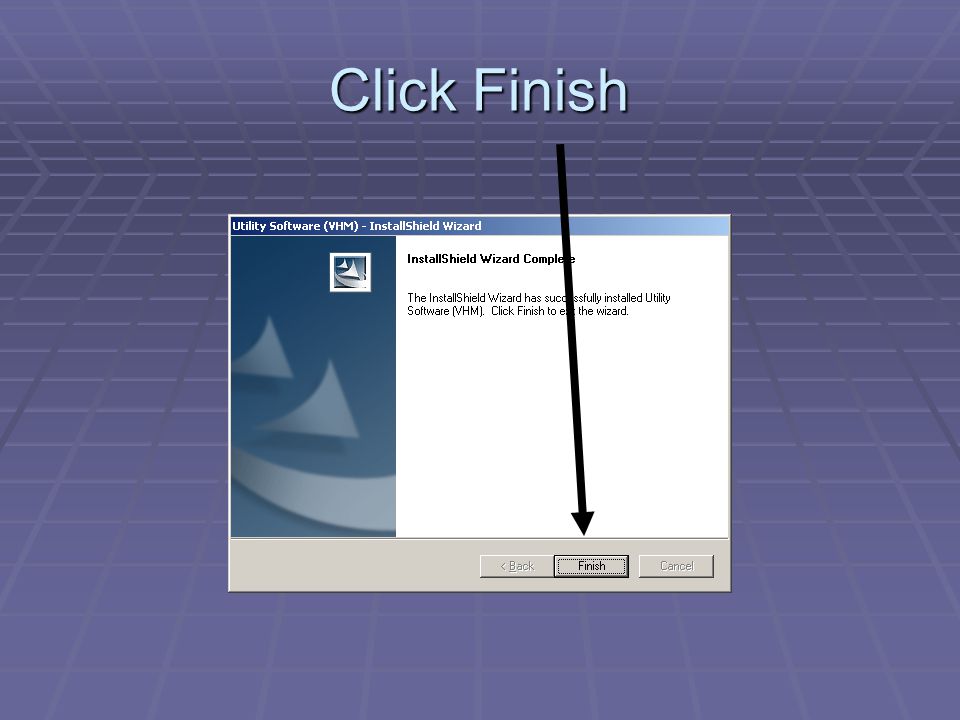

22 Click Finish

23 To open your software…

24 Drag and drop to…

25 Create a shortcut on the desktop

26 If you see this… connect the USB

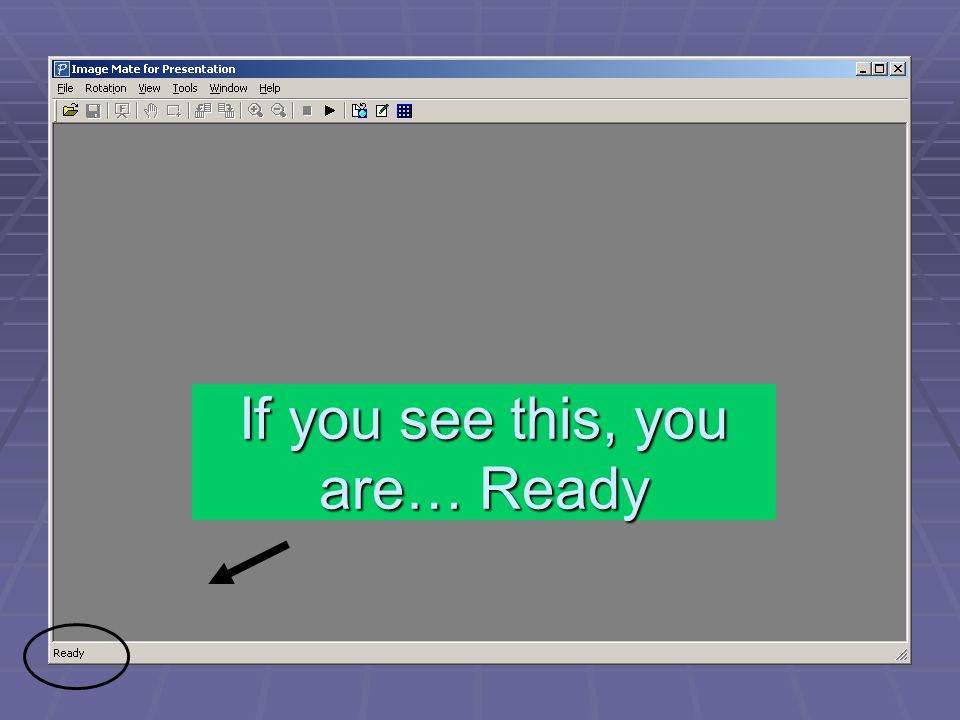

27 If you see this, you are… Ready

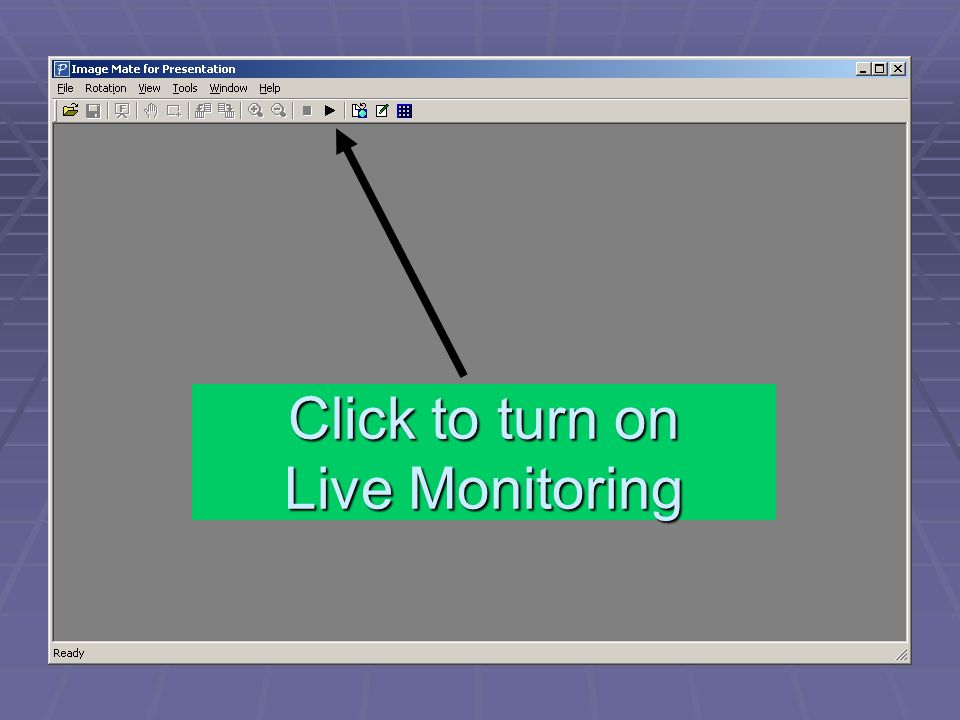

28 Click to turn on Live Monitoring

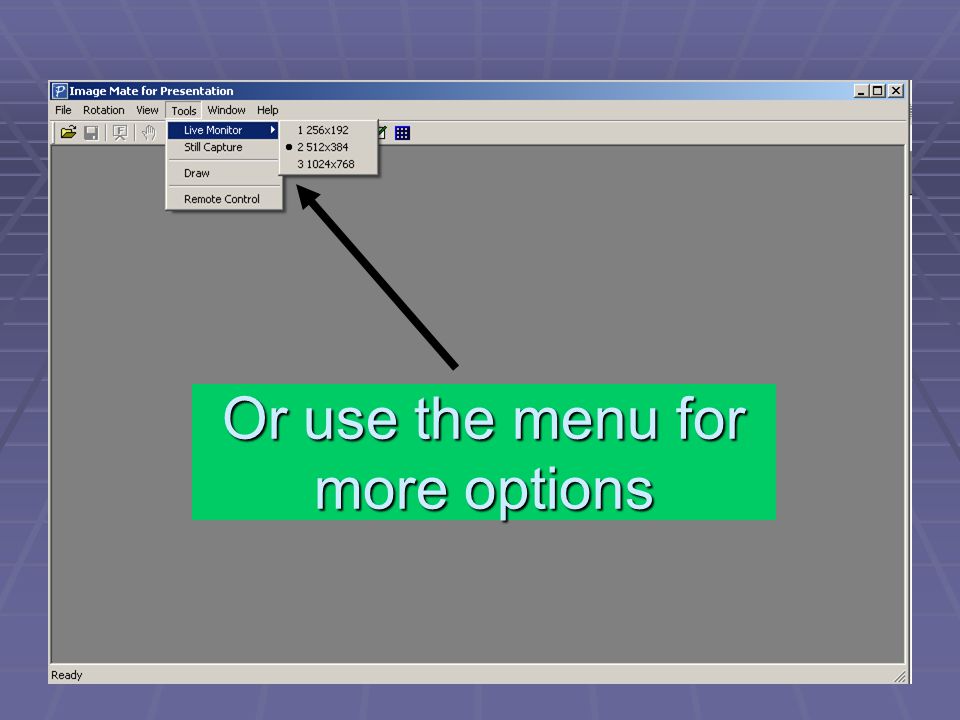

29 Or use the menu for more options

30 Live Monitoring is now running

31 Click to capture the current image

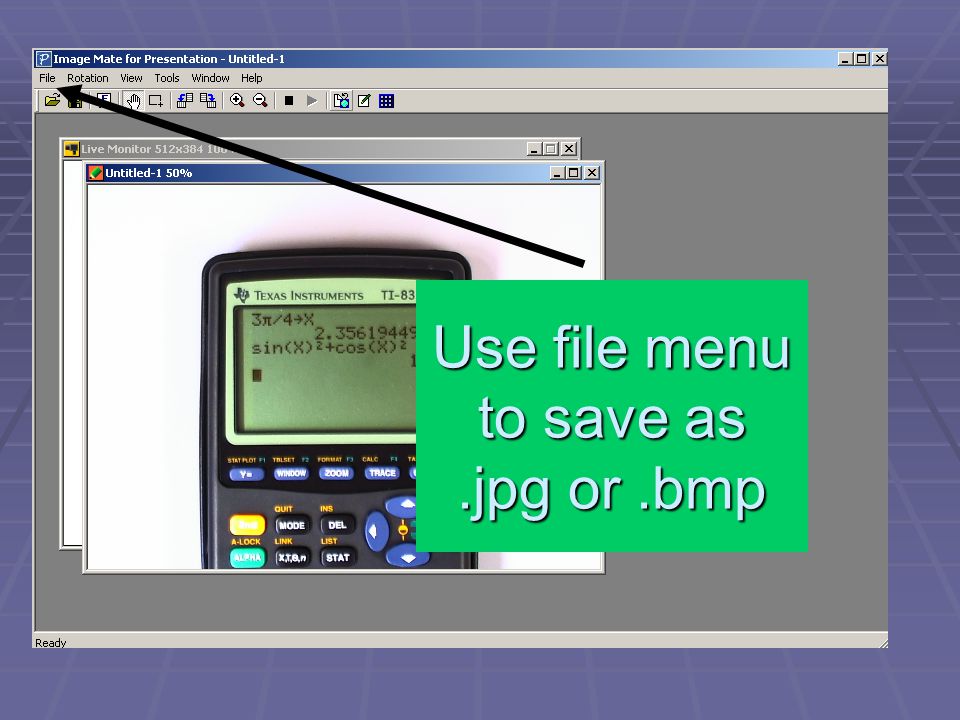

32 Use file menu to save as.jpg or.bmp
