THE PROJECT BRIEF… BUILD A CONTEMPORARY HOME ON A SMALL INNER CITY BLOCK WITH NO ROOM FOR ONSITE STORAGE OR SCAFFOLD

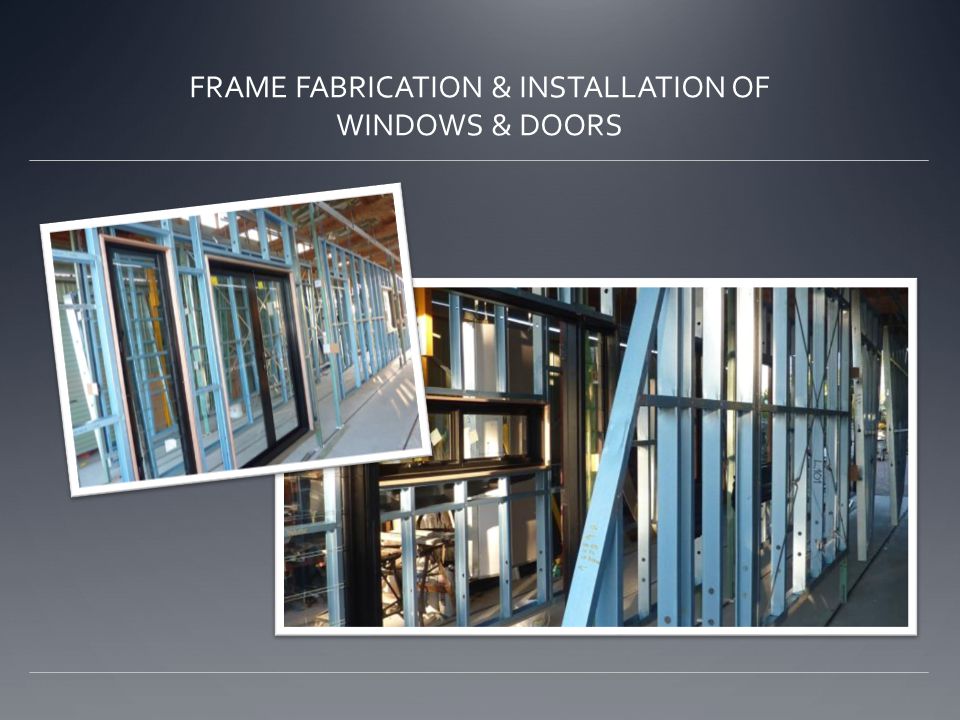

FRAME FABRICATION & INSTALLATION OF WINDOWS & DOORS
INSTALLATION OF EXTERNAL CLADDING. (EPS BOARD) INTERNAL LININGS ARE ALSO INSTALLED.

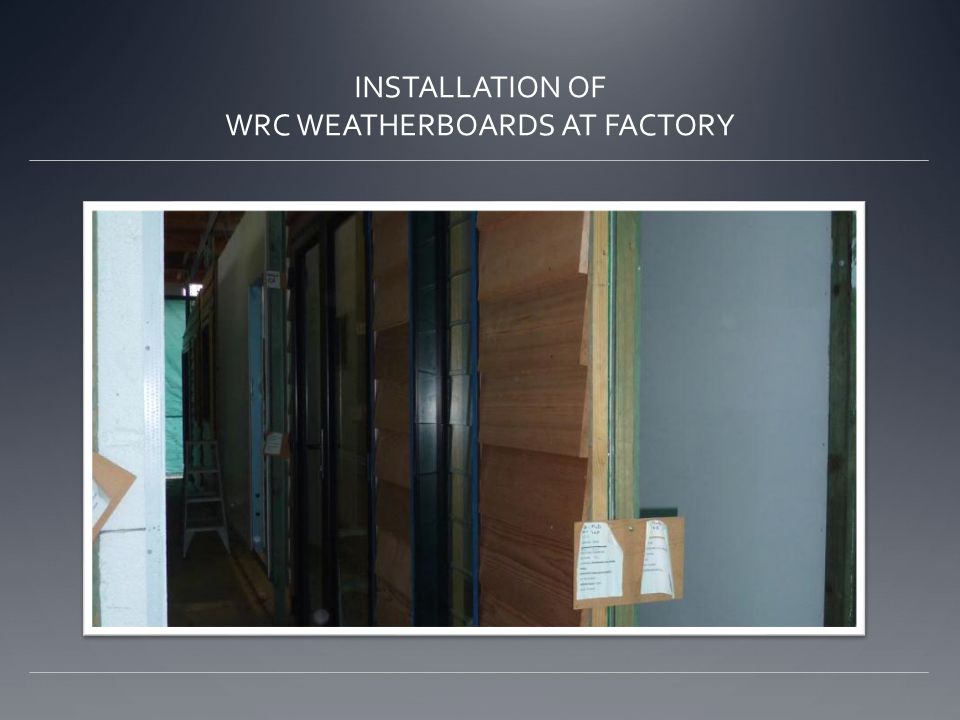

INSTALLATION OF WRC WEATHERBOARDS AT FACTORY
FIBROUS CEMENT SHEET & EPS BOARD, RENDERED AND PAINTED AT FACTORY

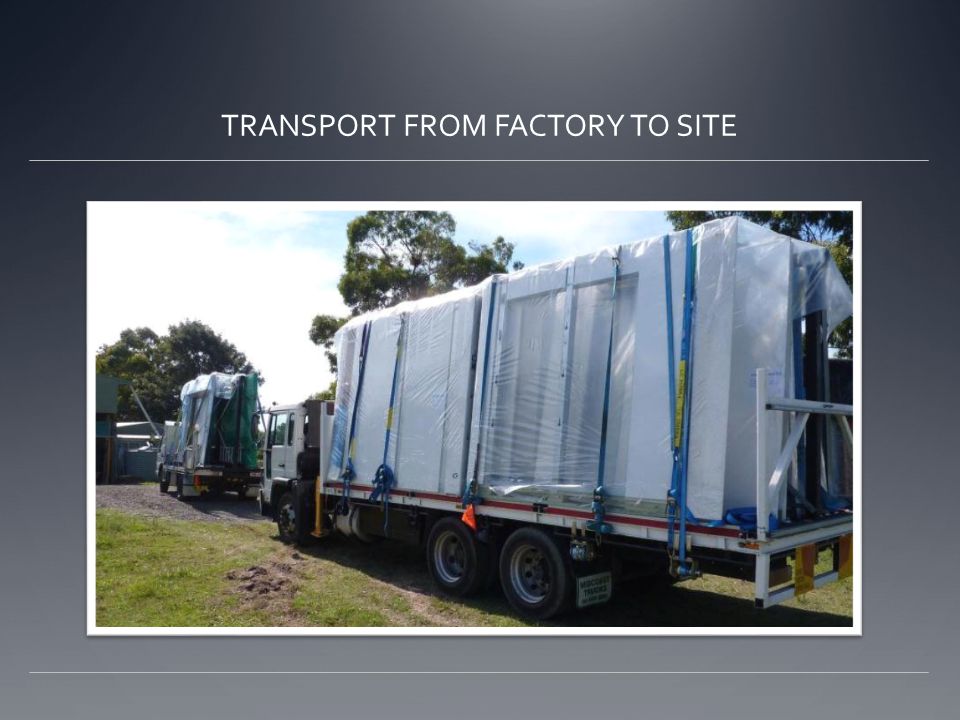

TRANSPORT FROM FACTORY TO SITE
POURING OF CONCRETE SLAB

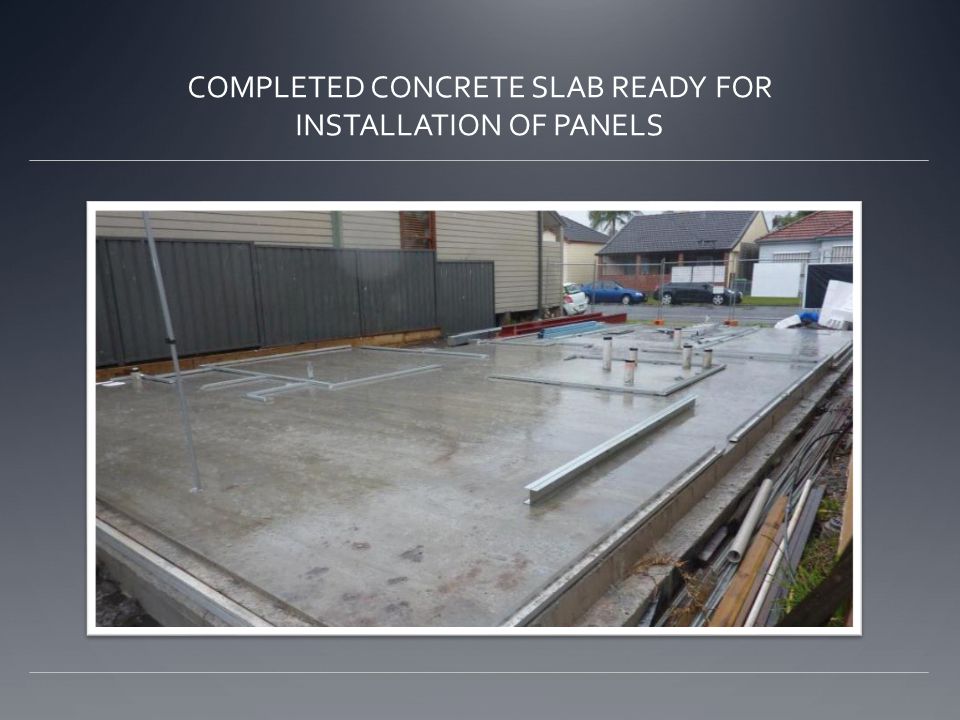

COMPLETED CONCRETE SLAB READY FOR INSTALLATION OF PANELS
INSTALLATION OF GARAGE DOOR PANELS
LIFTING SLIDING DOOR PANEL INTO PLACE

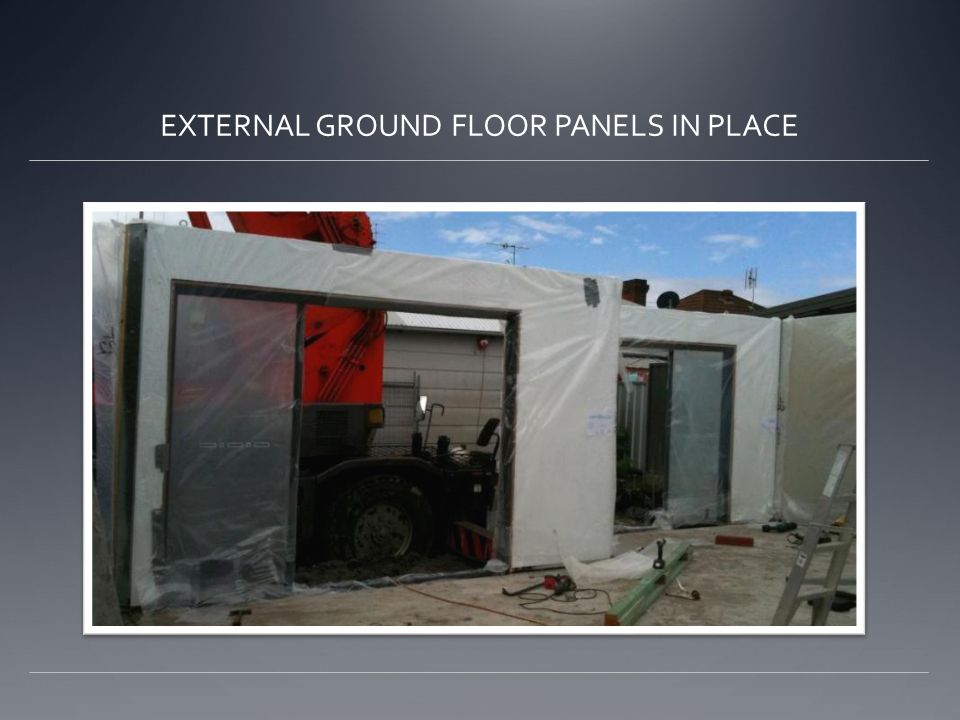

EXTERNAL GROUND FLOOR PANELS IN PLACE

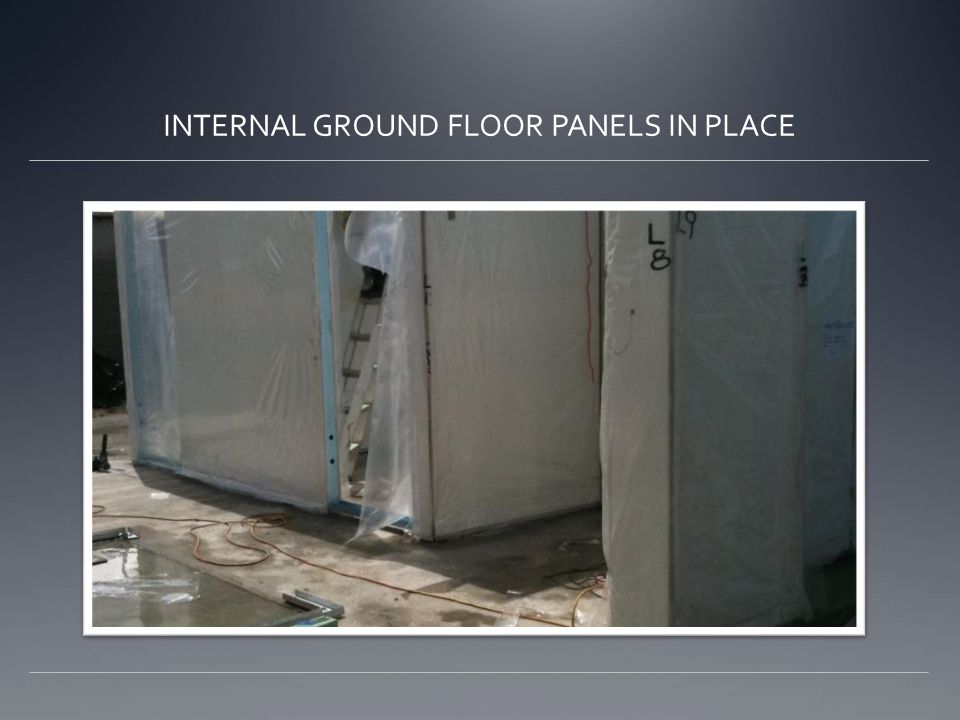

INTERNAL GROUND FLOOR PANELS IN PLACE

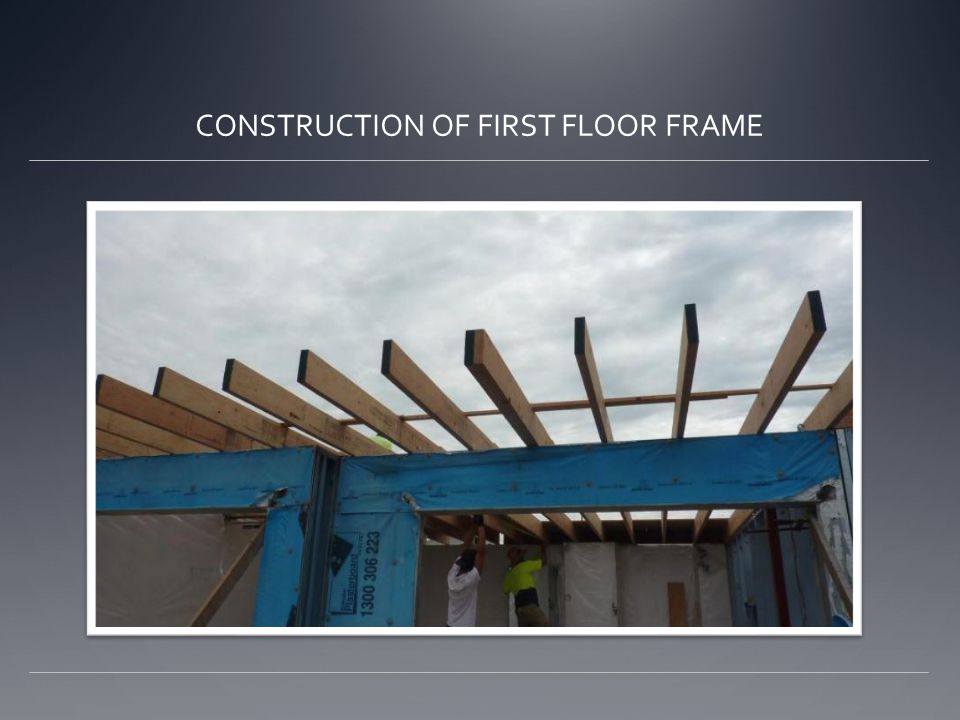

CONSTRUCTION OF FIRST FLOOR FRAME

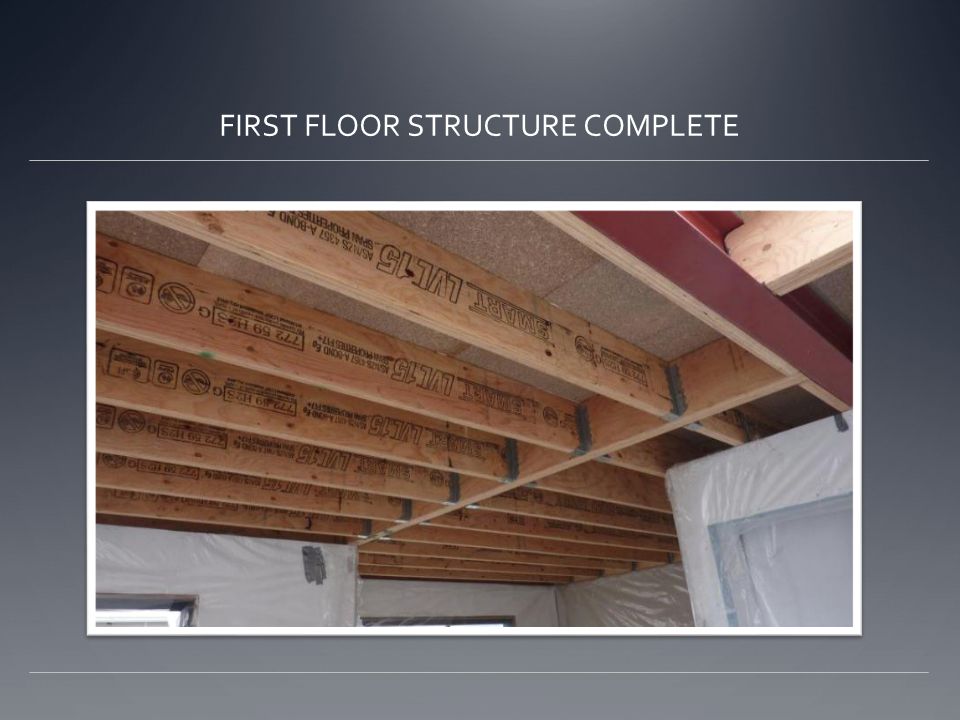

FIRST FLOOR STRUCTURE COMPLETE
INSTALLATION OF #1 FIRST FLOOR PANEL

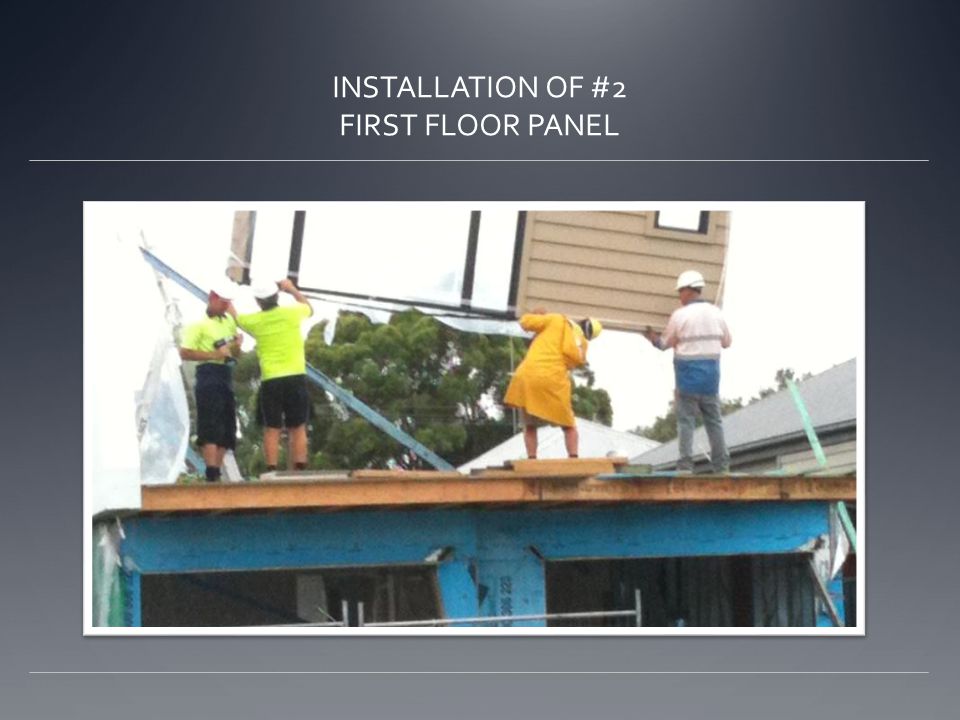

INSTALLATION OF #2 FIRST FLOOR PANEL
INSTALLATION OF #5 FIRST FLOOR PANEL

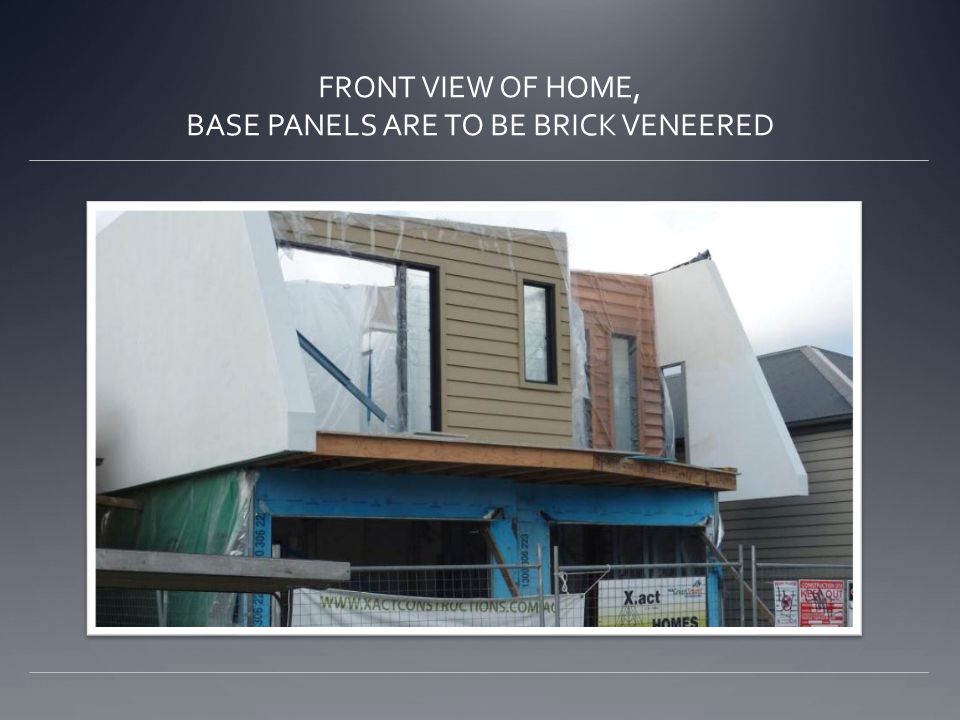

FRONT VIEW OF HOME, BASE PANELS ARE TO BE BRICK VENEERED

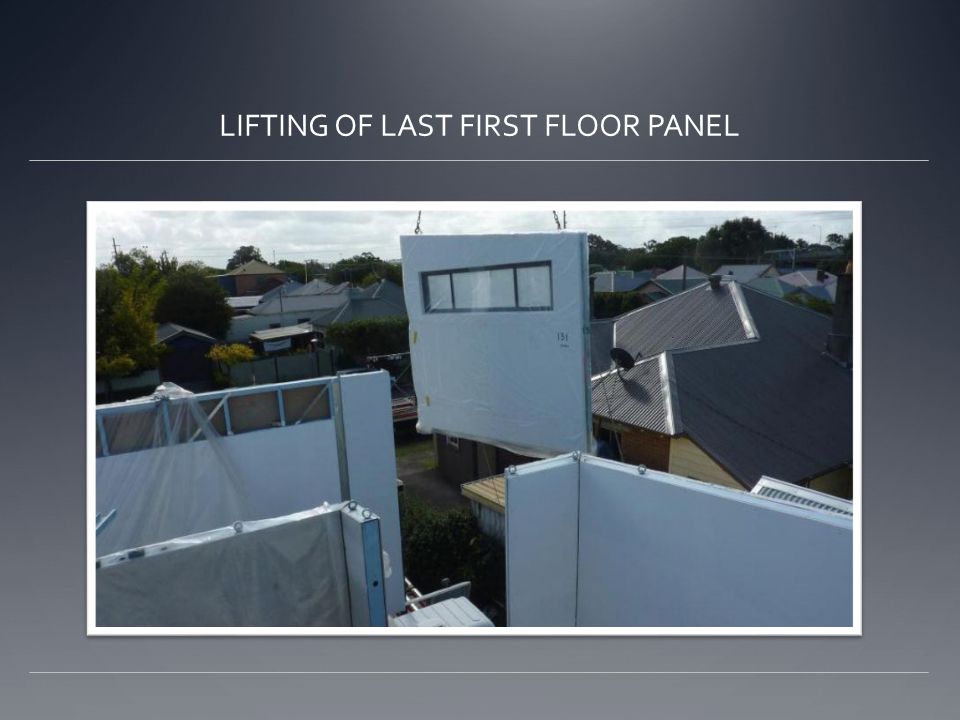

LIFTING OF LAST FIRST FLOOR PANEL
INSTALLATION OF LAST FIRST FLOOR PANEL

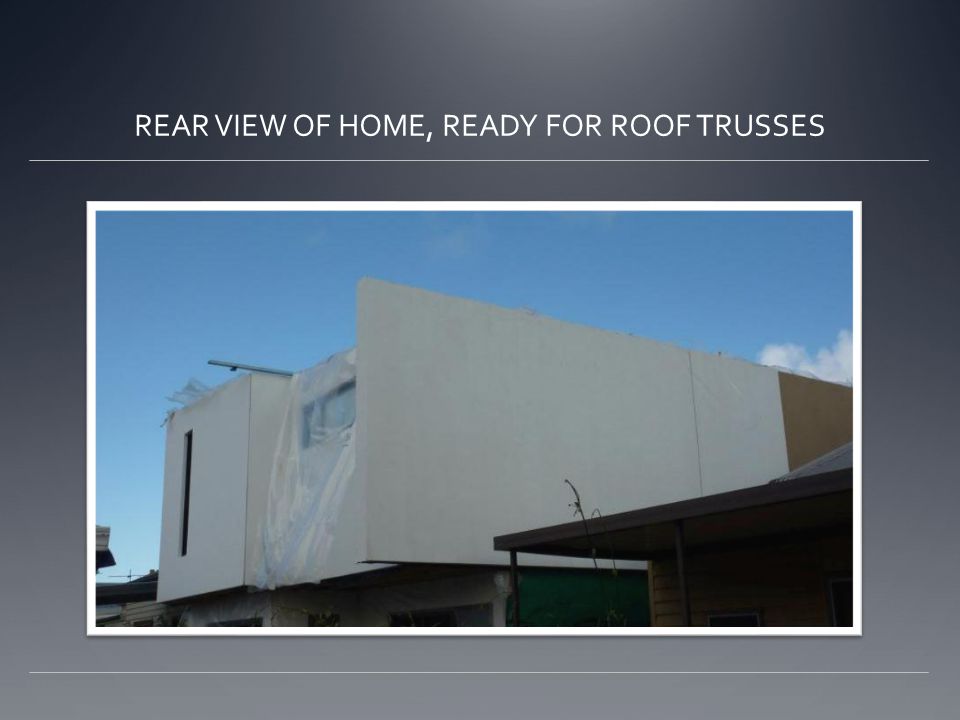

REAR VIEW OF HOME, READY FOR ROOF TRUSSES

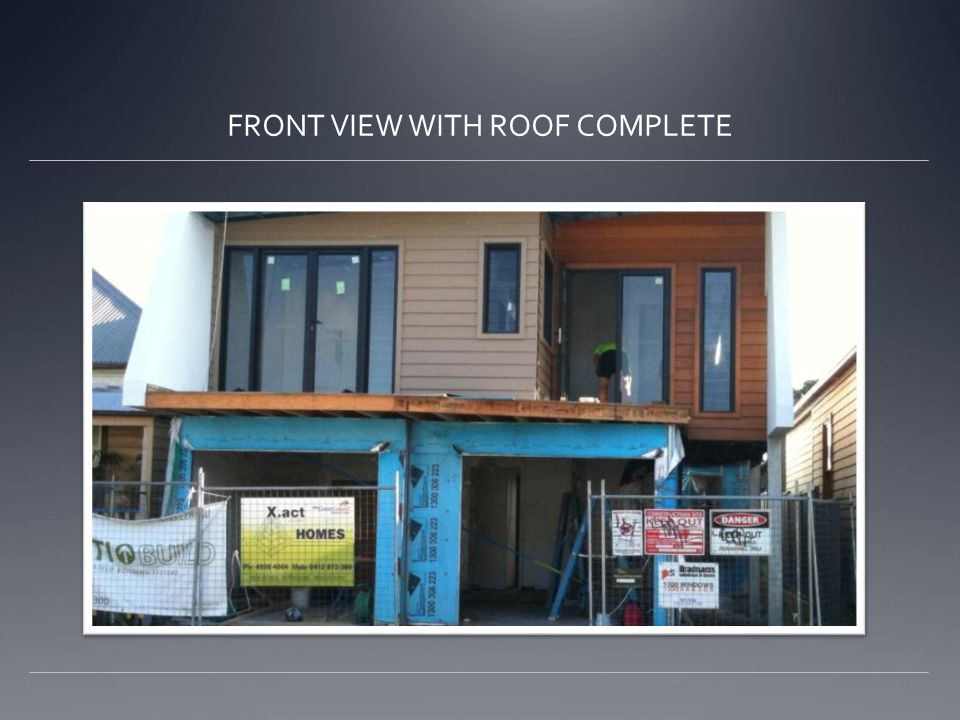

FRONT VIEW WITH ROOF COMPLETE

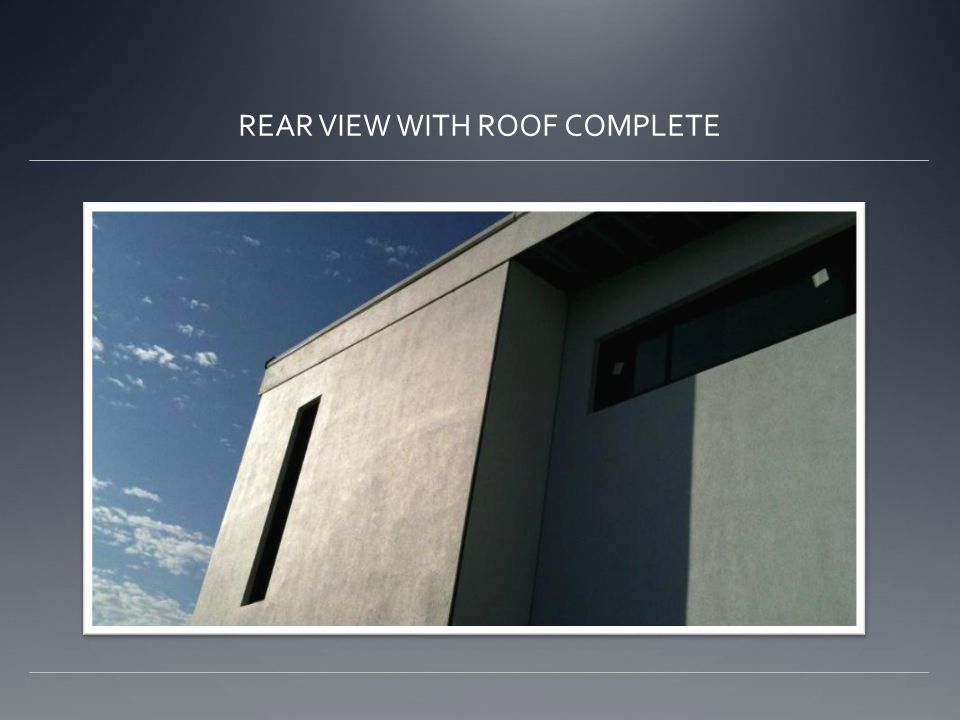

REAR VIEW WITH ROOF COMPLETE
FRONT VIEW COMPLETE

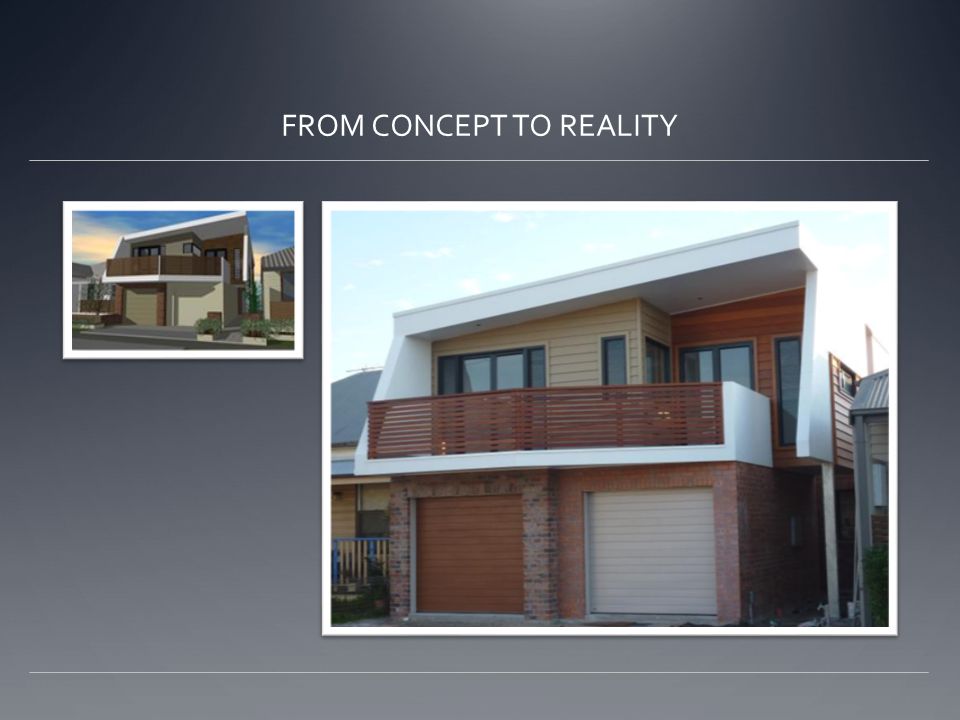

FROM CONCEPT TO REALITY
