1 Glenn Murcutt SRT 251 Construction and Structures Warehouse and Office complex scenario Stacy Ambelas

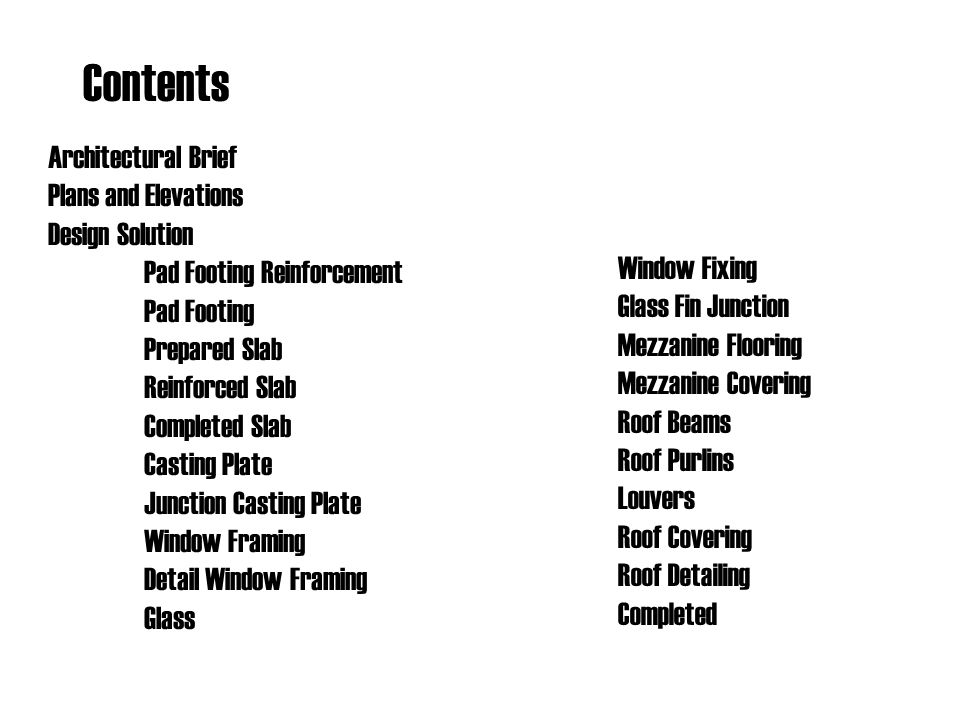

2 Contents Architectural Brief Plans and Elevations Design Solution Pad Footing Reinforcement Pad Footing Prepared Slab Reinforced Slab Completed Slab Casting Plate Junction Casting Plate Window Framing Detail Window Framing Glass Window Fixing Glass Fin Junction Mezzanine Flooring Mezzanine Covering Roof Beams Roof Purlins Louvers Roof Covering Roof Detailing Completed

3 Architectural Brief This Project requires development of construction technology for a selected area, That must be highly detailed and in a way that relates to an Architectural firm. (Glenn Murcutt).

4 Plans and Elevations (Warehouse and Office Design) Ground FloorFirst Floor

5 Design Solution Pad Footing excavated to Specifications. Reinforcing of the Pad Footing Fabric Mesh design to engineered Specifications

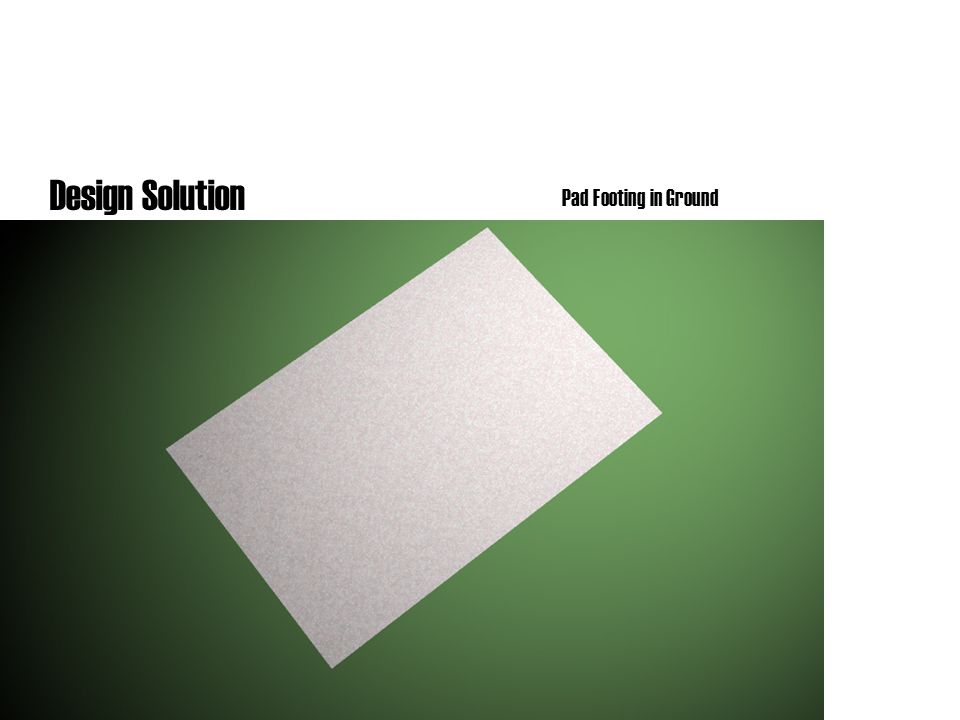

6 Design Solution Pad Footing in Ground

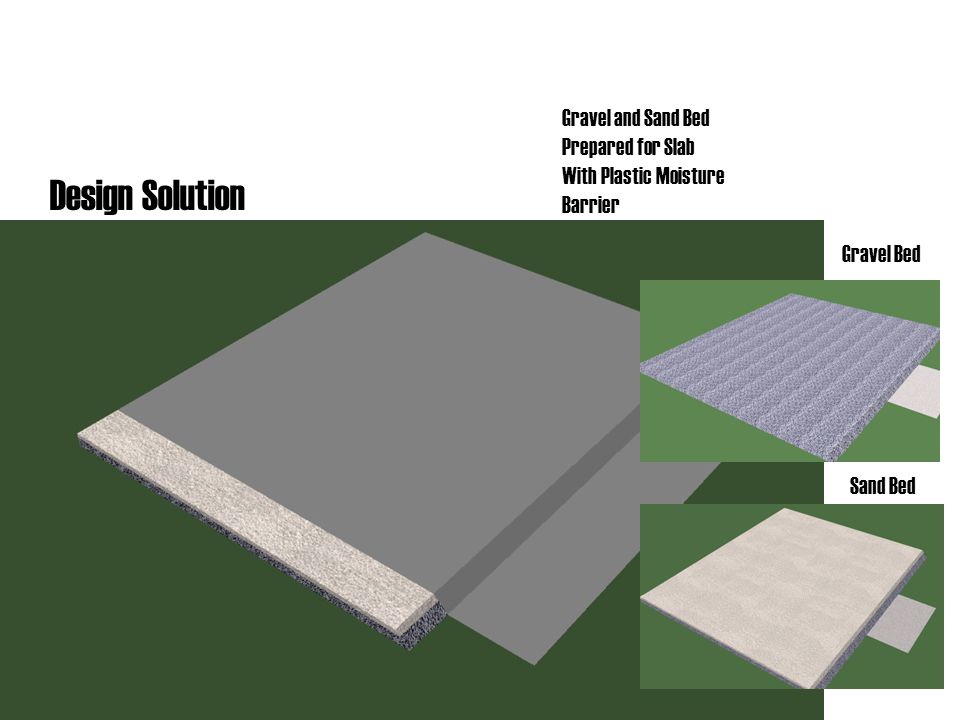

7 Design Solution Gravel and Sand Bed Prepared for Slab With Plastic Moisture Barrier Gravel Bed Sand Bed

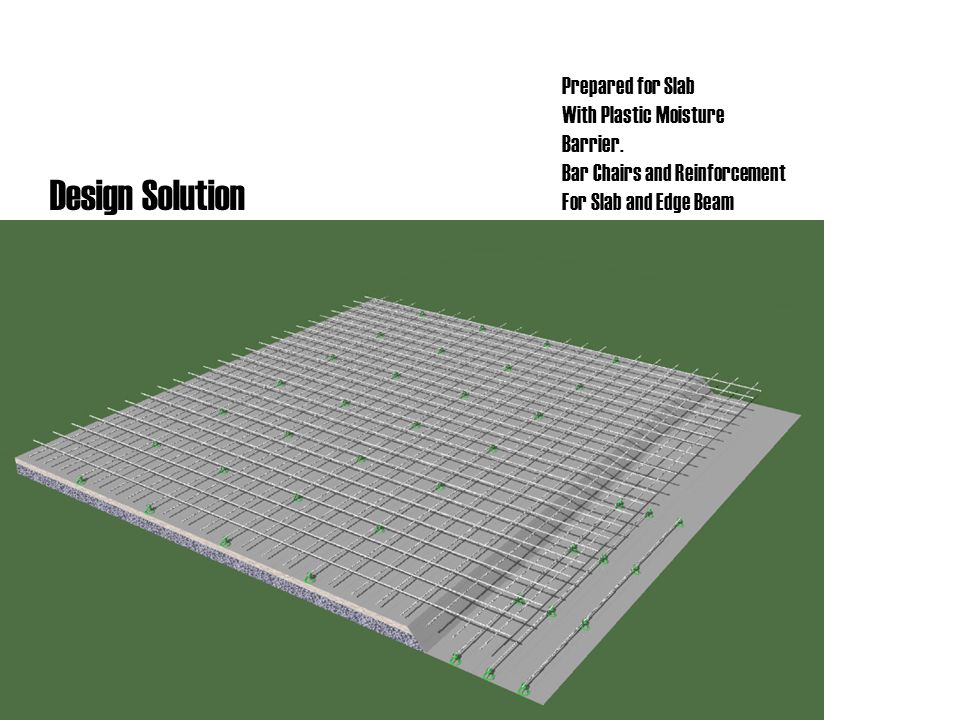

8 Design Solution Prepared for Slab With Plastic Moisture Barrier. Bar Chairs and Reinforcement For Slab and Edge Beam

9 Design Solution Finished Slab with Rebate For casting plates to join Tilt wall and slab, w/ edge beam For support of window and Upper floor. Slab w/exposed reinforcement For edge beam

10 Design Solution Casting Plate within slab For junction with wall. Joint will be welded and Embedded in concrete.

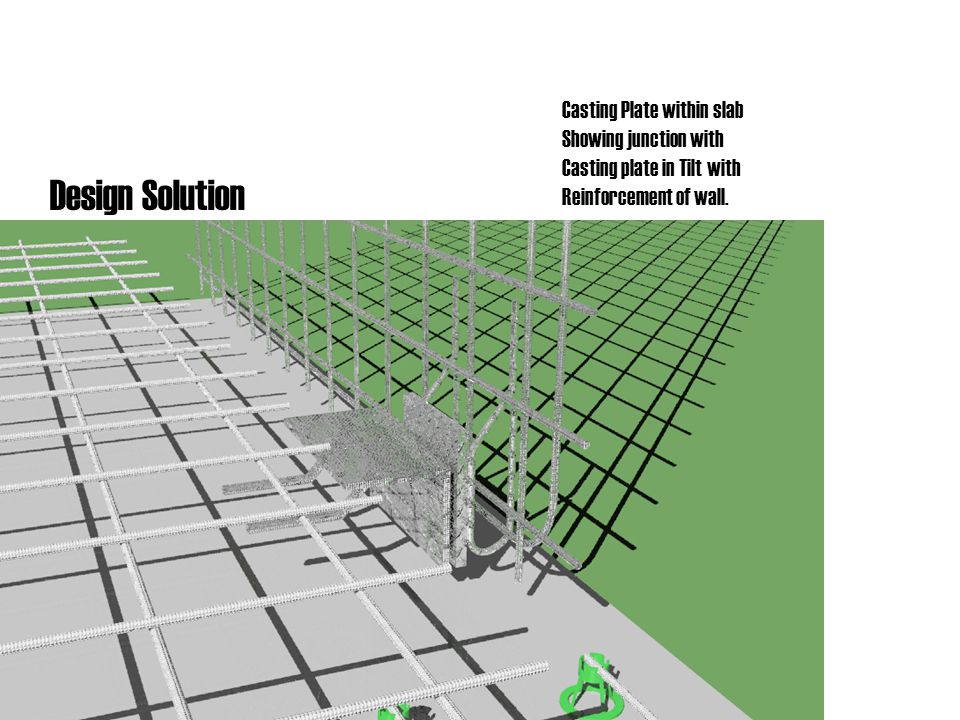

11 Design Solution Casting Plate within slab Showing junction with Casting plate in Tilt with Reinforcement of wall.

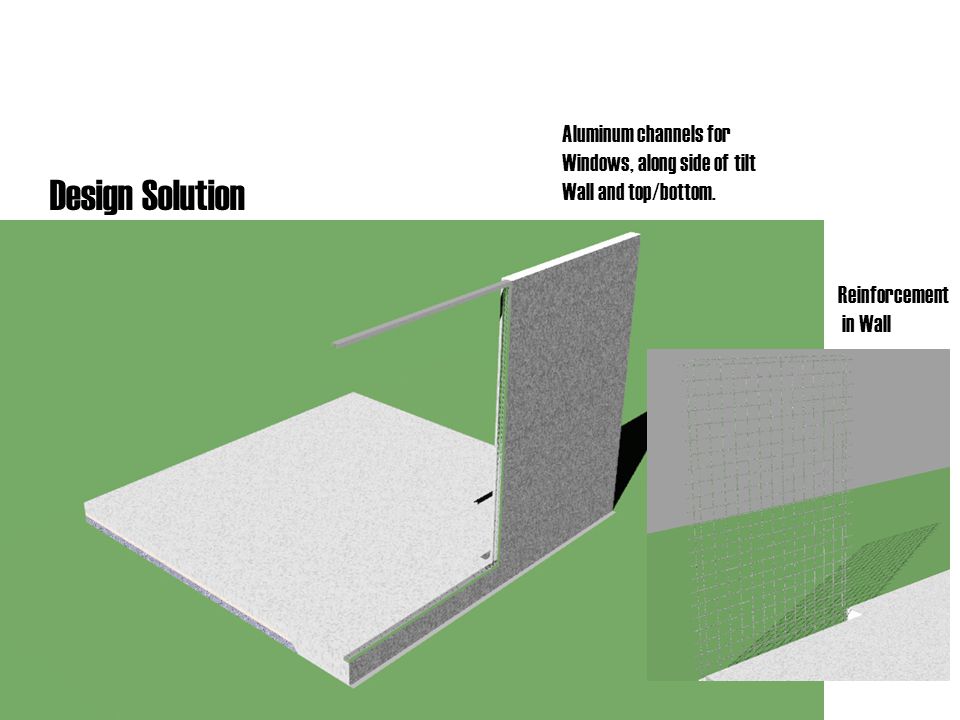

12 Design Solution Aluminum channels for Windows, along side of tilt Wall and top/bottom. Reinforcement in Wall

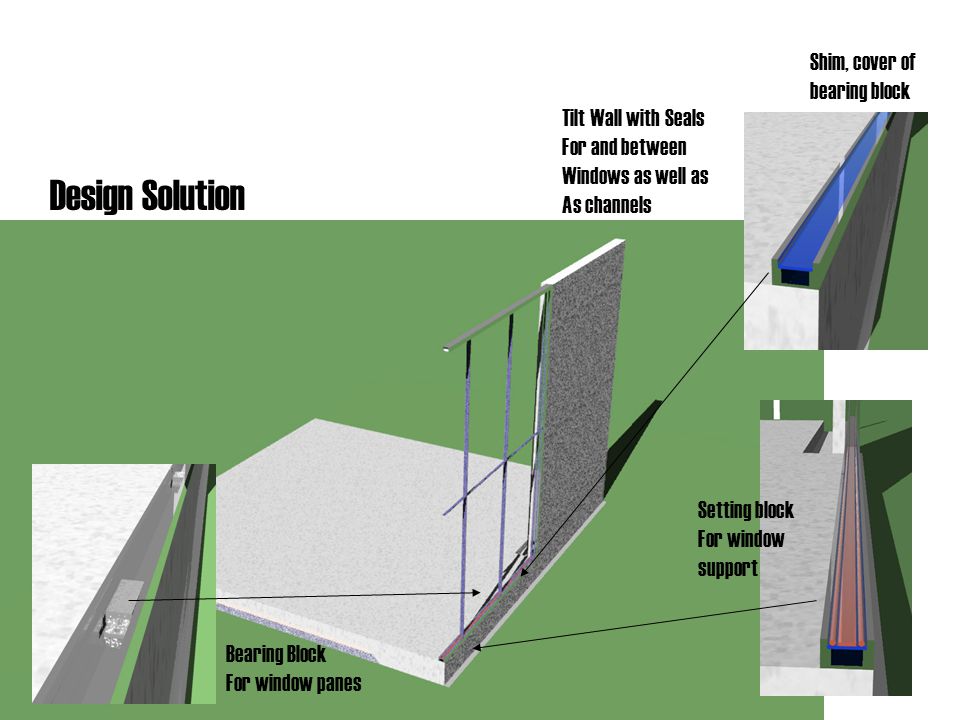

13 Design Solution Tilt Wall with Seals For and between Windows as well as As channels Bearing Block For window panes Shim, cover of bearing block Setting block For window support

14 Design Solution Glass Panels along With fins for support Fixed by fins at bottom And suction fittings at Edges.

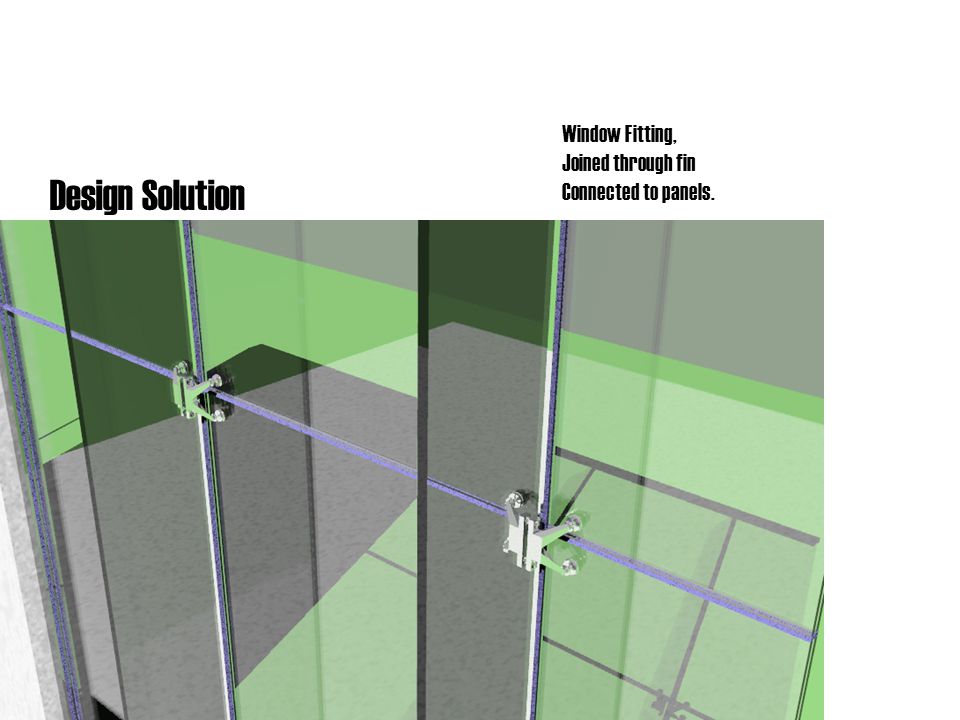

15 Design Solution Window Fitting, Joined through fin Connected to panels.

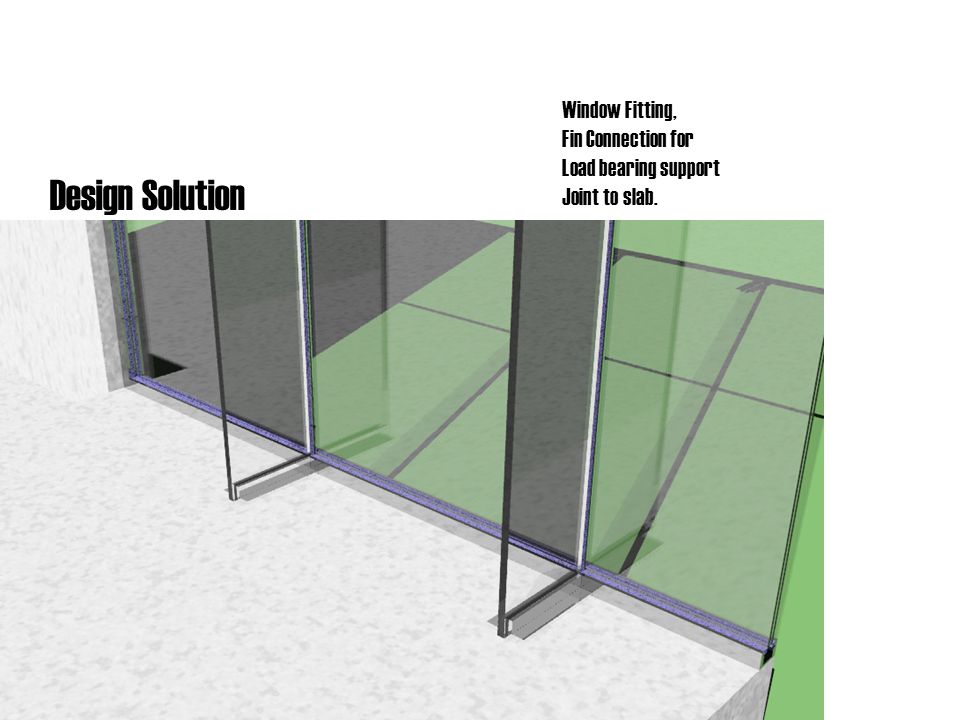

16 Design Solution Window Fitting, Fin Connection for Load bearing support Joint to slab.

17 Design Solution First Floor Mezzanine w/ purlins

18 Design Solution First Floor Mezzanine Covering with Yellow Tongue flooring Underlay and carpet Yellow Tongue Underlay Carpet

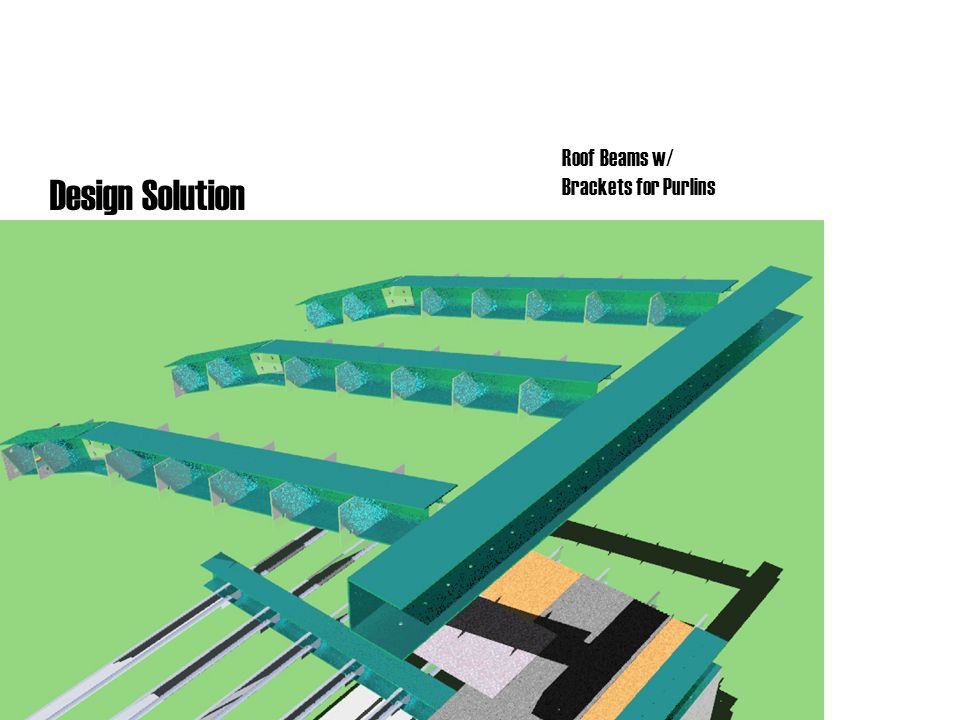

19 Design Solution Roof Beams w/ Brackets for Purlins

20 Design Solution Roof Beams w/ Purlins

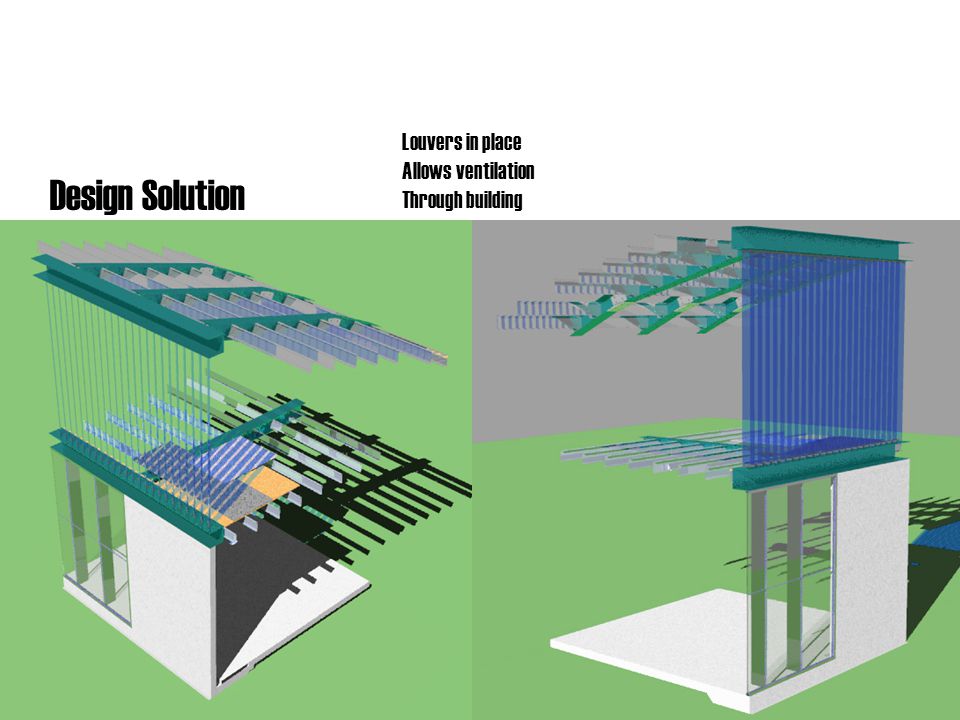

21 Design Solution Louvers in place Allows ventilation Through building

22 Design Solution Roof Covering Wire Mesh is laid For support of insulation with the cladding fixed to the purlins

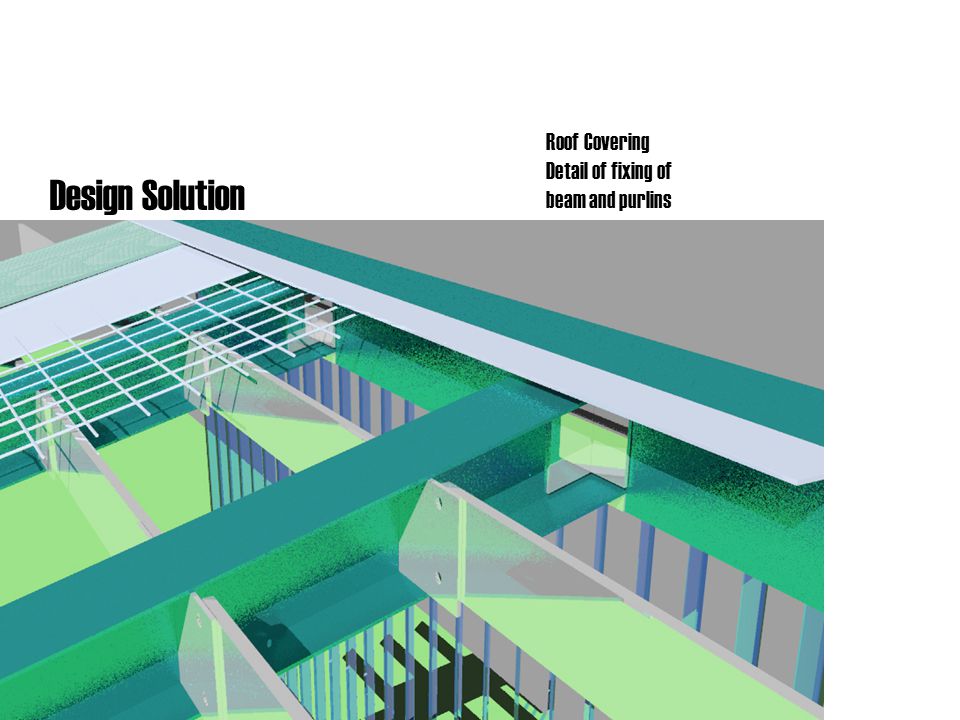

23 Design Solution Roof Covering Detail of fixing of beam and purlins

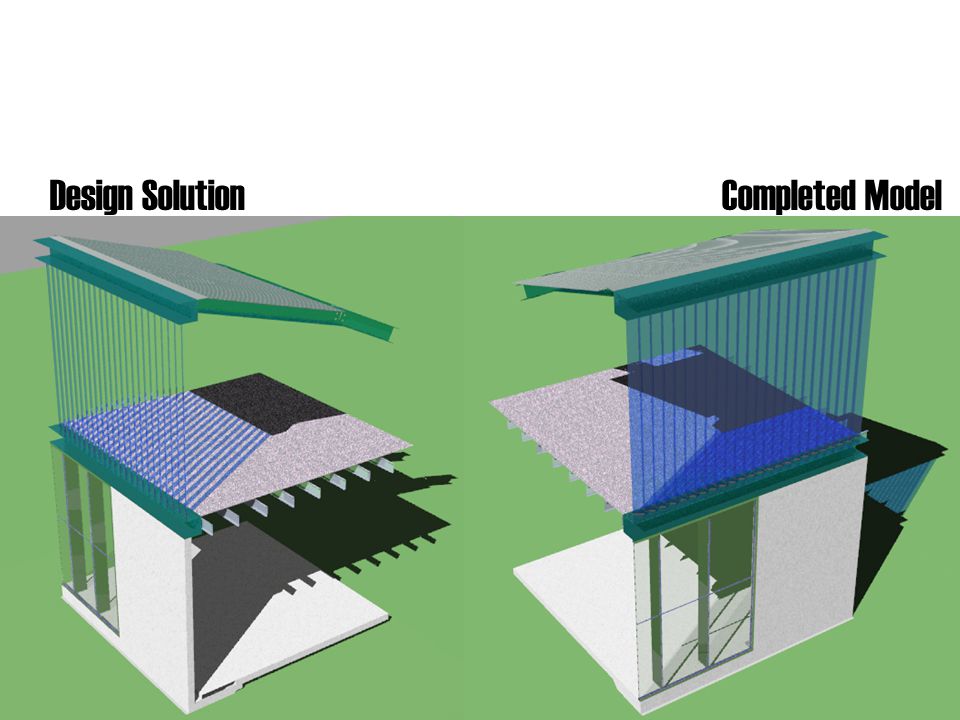

24 Design Solution Completed Model
