1 © VYKON 2011 Enterprise Security 2.2 New Features New Products How to Order December 12, 2011

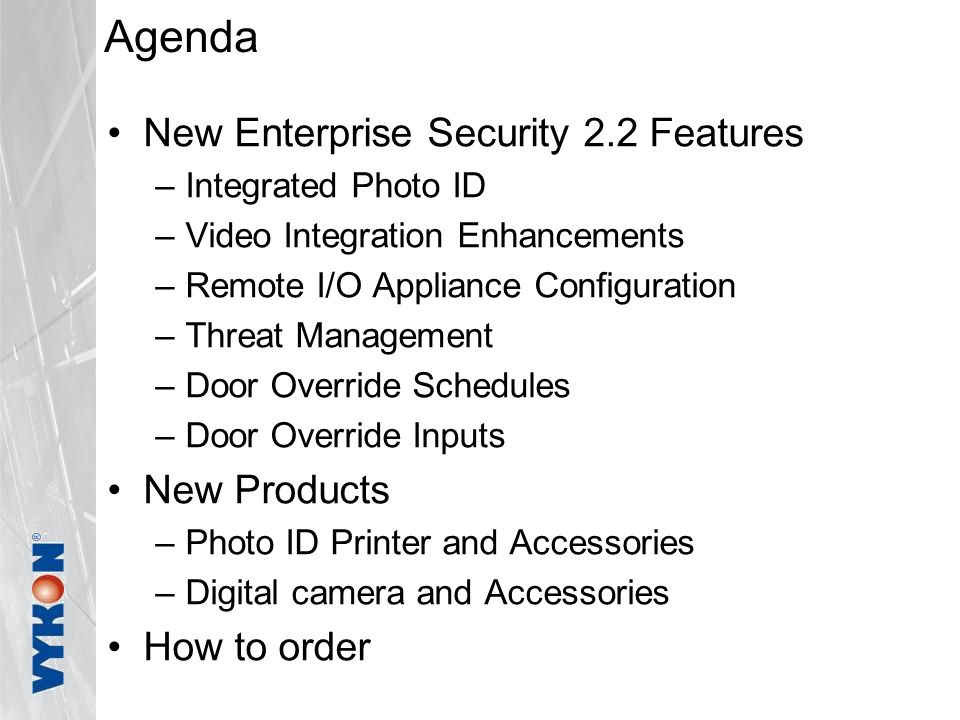

2 Agenda New Enterprise Security 2.2 Features –Integrated Photo ID –Video Integration Enhancements –Remote I/O Appliance Configuration –Threat Management –Door Override Schedules –Door Override Inputs New Products –Photo ID Printer and Accessories –Digital camera and Accessories How to order

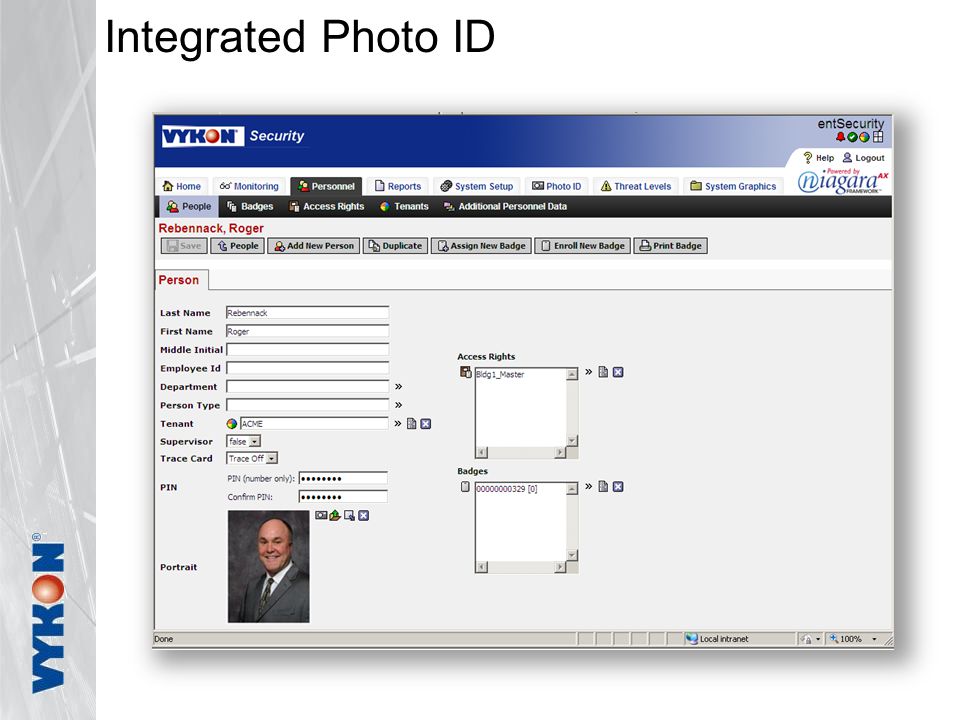

3 Integrated Photo ID

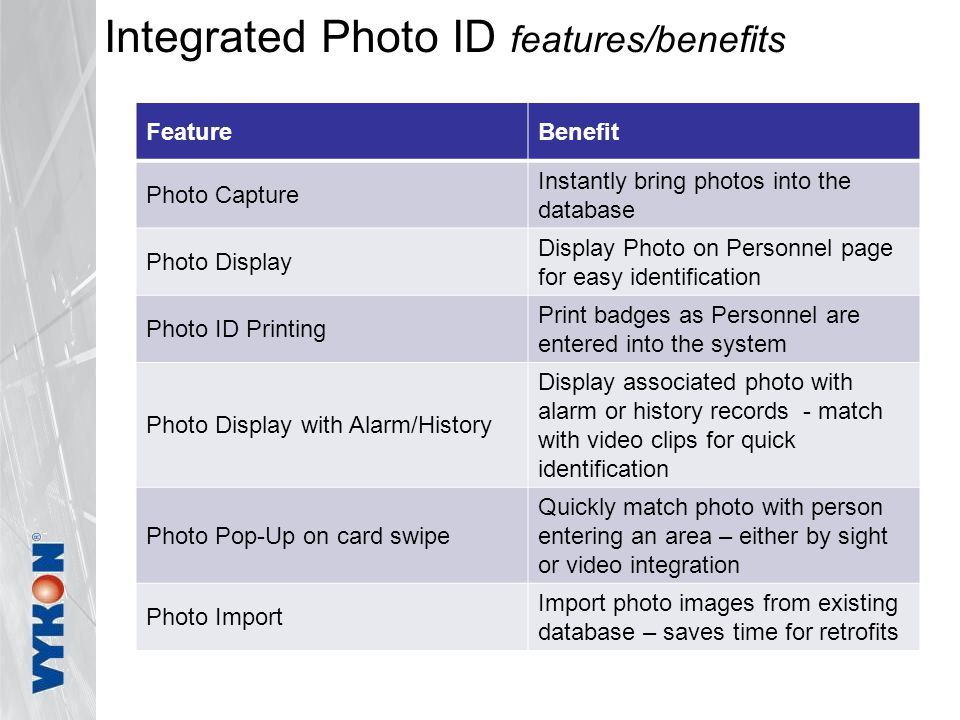

4 Integrated Photo ID features/benefits FeatureBenefit Photo Capture Instantly bring photos into the database Photo Display Display Photo on Personnel page for easy identification Photo ID Printing Print badges as Personnel are entered into the system Photo Display with Alarm/History Display associated photo with alarm or history records - match with video clips for quick identification Photo Pop-Up on card swipe Quickly match photo with person entering an area – either by sight or video integration Photo Import Import photo images from existing database – saves time for retrofits

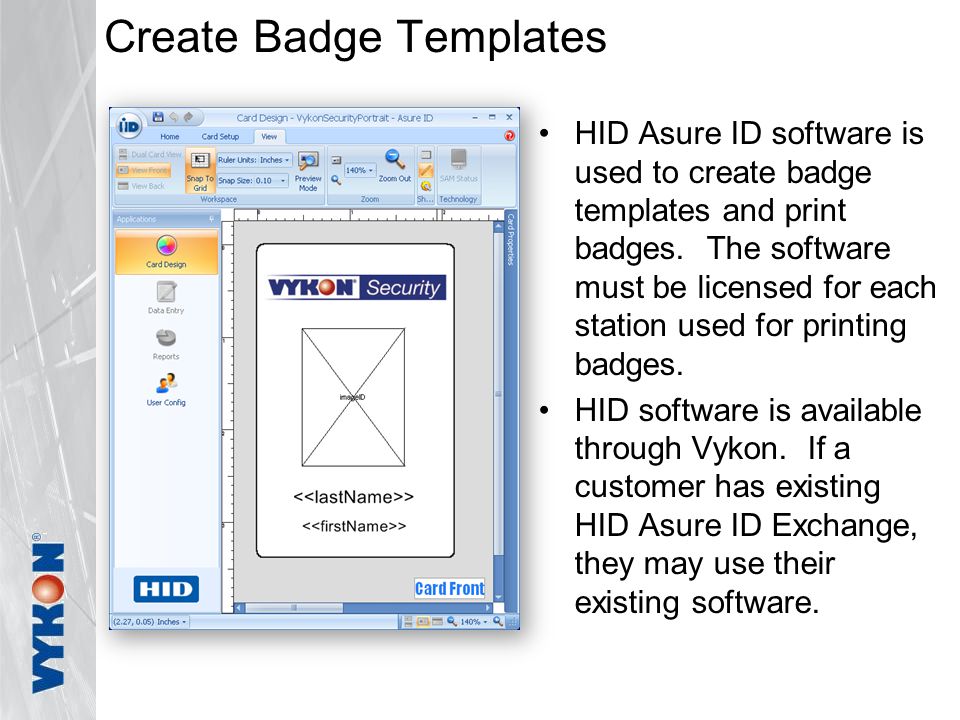

5 Create Badge Templates HID Asure ID software is used to create badge templates and print badges. The software must be licensed for each station used for printing badges. HID software is available through Vykon. If a customer has existing HID Asure ID Exchange, they may use their existing software.

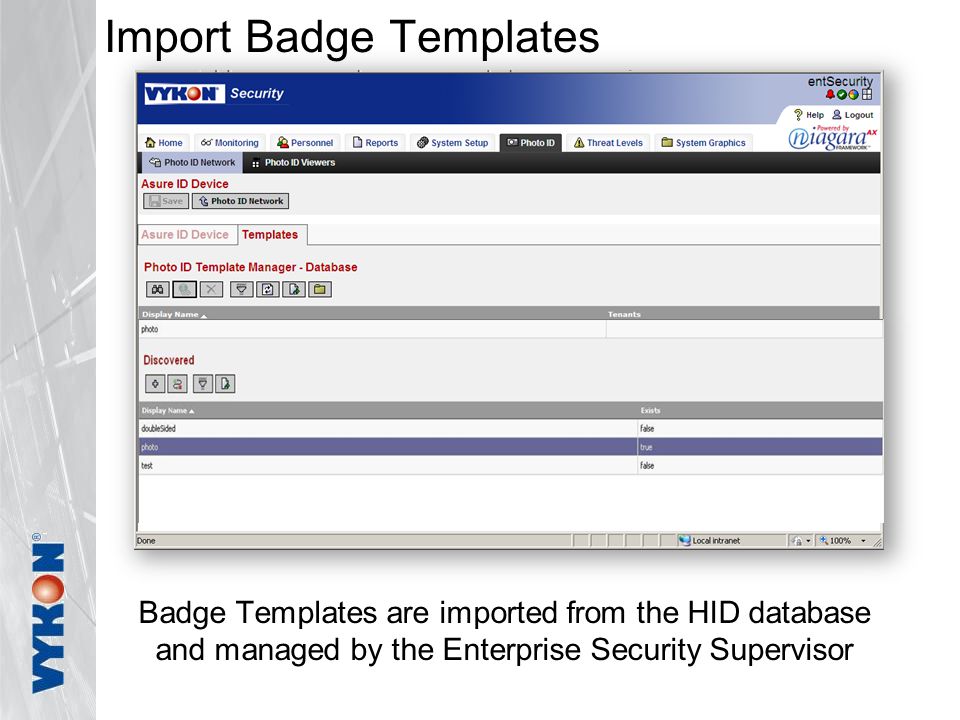

6 Import Badge Templates Badge Templates are imported from the HID database and managed by the Enterprise Security Supervisor

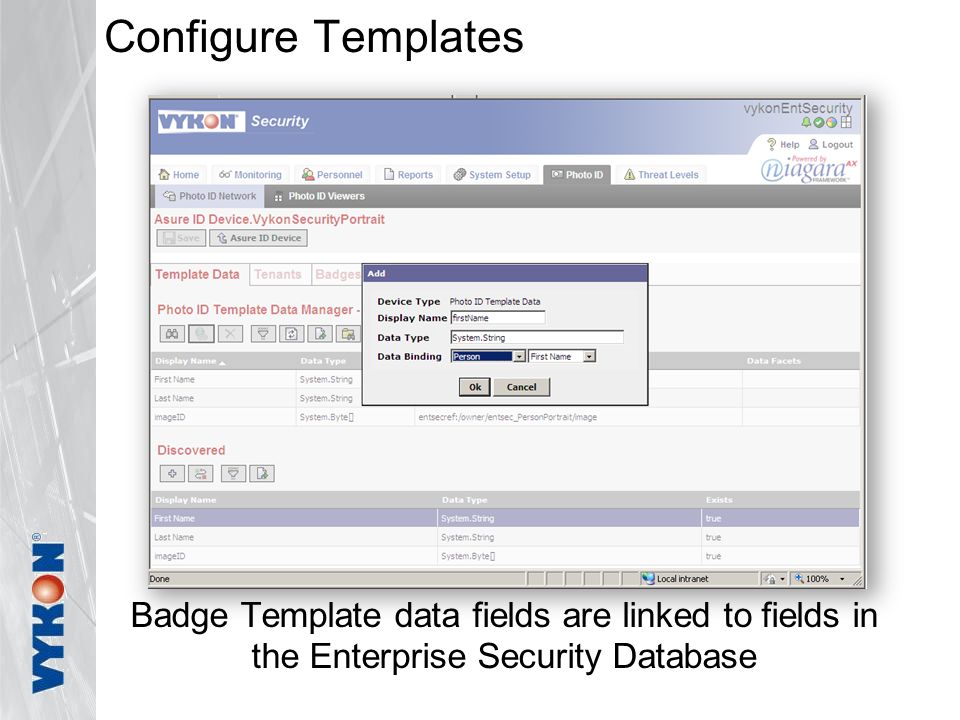

7 Configure Templates Badge Template data fields are linked to fields in the Enterprise Security Database

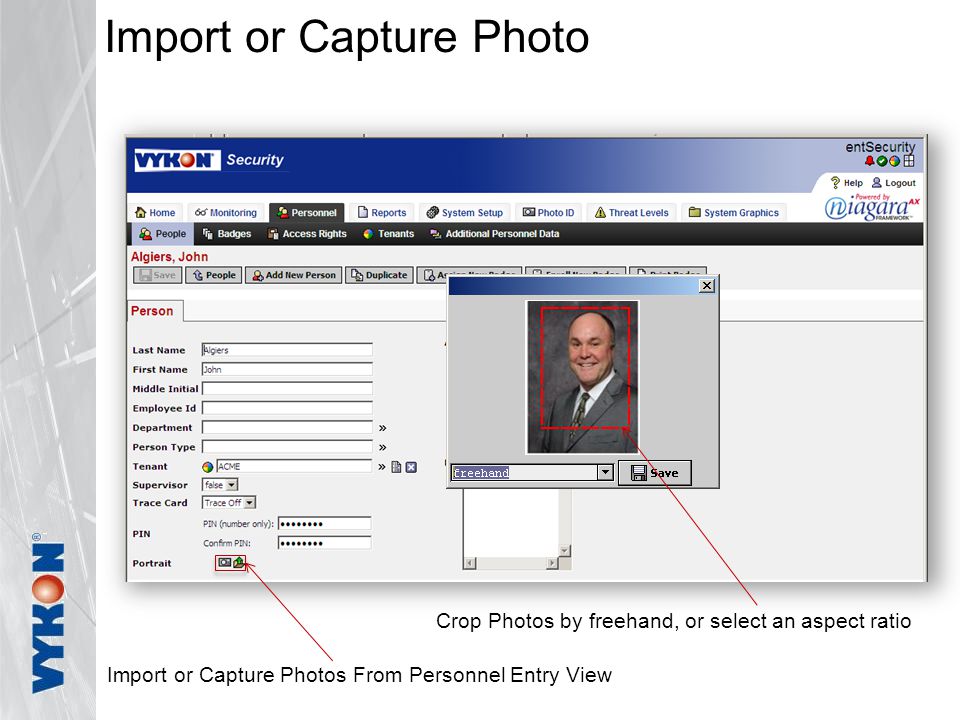

8 Import or Capture Photo Import or Capture Photos From Personnel Entry View Crop Photos by freehand, or select an aspect ratio

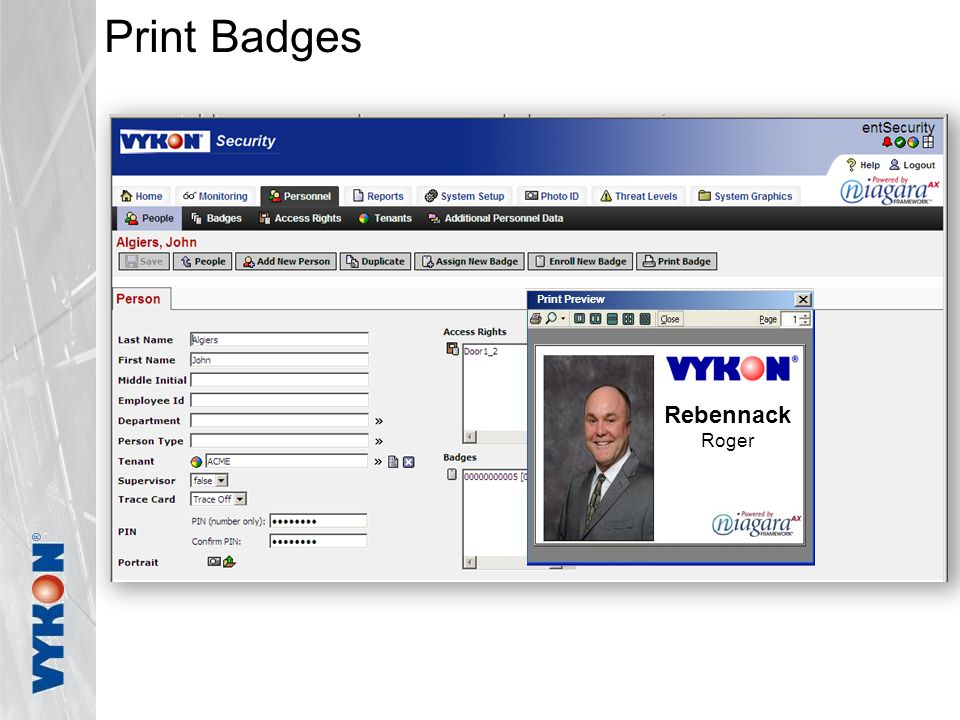

9 Print Badges Print Preview Rebennack Roger

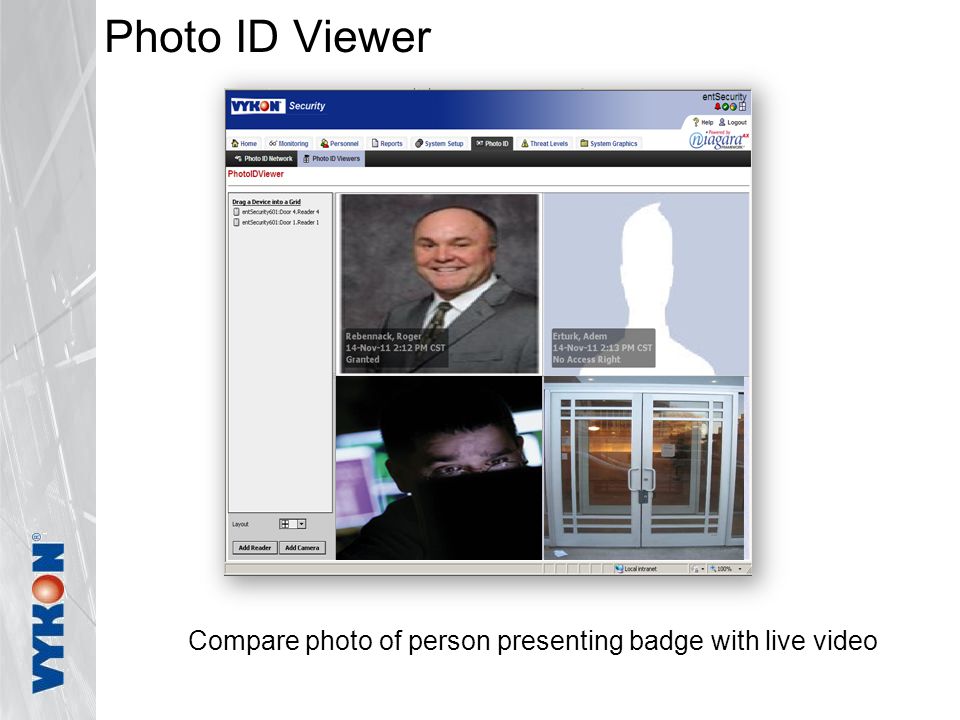

10 Photo ID Viewer Compare photo of person presenting badge with live video

11 Photo Display from Alarm Page Display Photo from Alarm Details

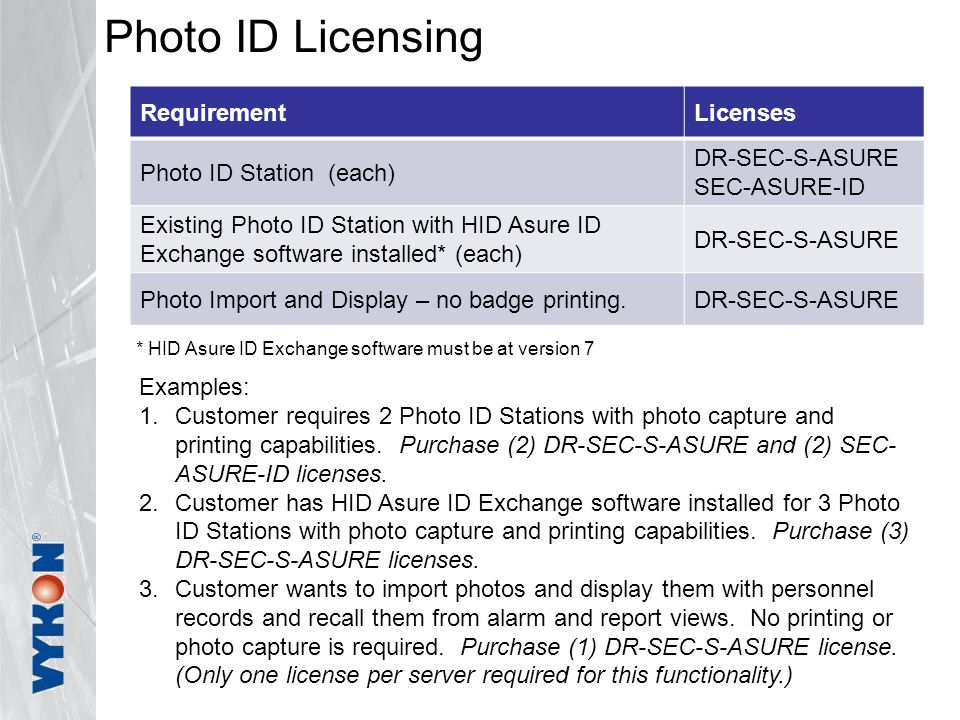

12 Photo ID Licensing RequirementLicenses Photo ID Station (each) DR-SEC-S-ASURE SEC-ASURE-ID Existing Photo ID Station with HID Asure ID Exchange software installed* (each) DR-SEC-S-ASURE Photo Import and Display – no badge printing.DR-SEC-S-ASURE Examples: 1.Customer requires 2 Photo ID Stations with photo capture and printing capabilities. Purchase (2) DR-SEC-S-ASURE and (2) SEC- ASURE-ID licenses. 2.Customer has HID Asure ID Exchange software installed for 3 Photo ID Stations with photo capture and printing capabilities. Purchase (3) DR-SEC-S-ASURE licenses. 3.Customer wants to import photos and display them with personnel records and recall them from alarm and report views. No printing or photo capture is required. Purchase (1) DR-SEC-S-ASURE license. (Only one license per server required for this functionality.) * HID Asure ID Exchange software must be at version 7

13 Video Integration Enhancements

14 Configure Video from the Appliance Workbench programming is no longer needed to set up video networks and cameras.

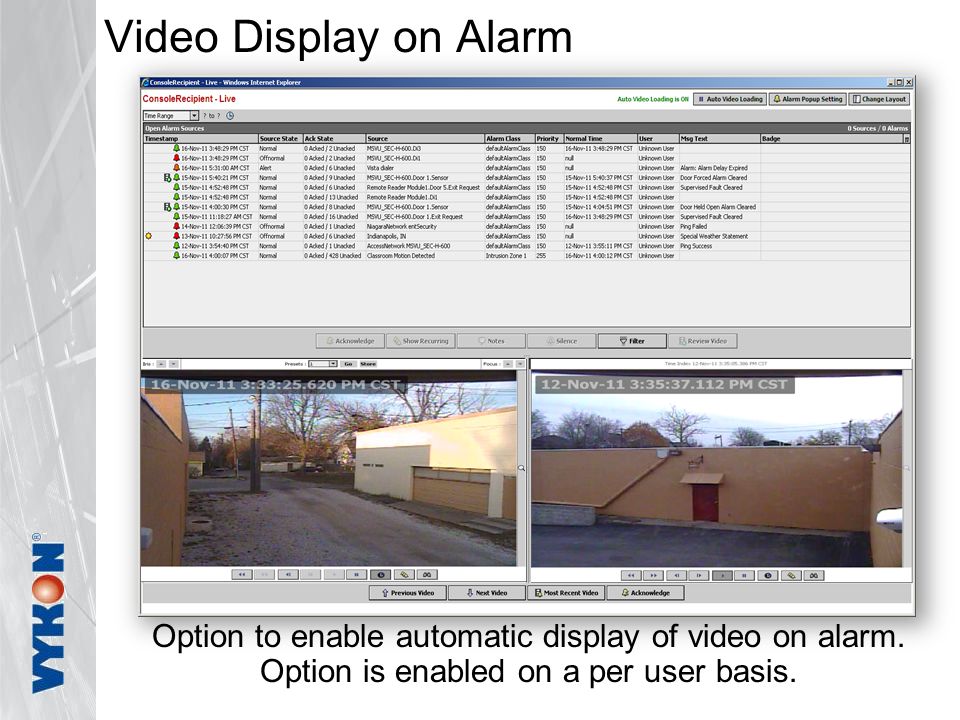

15 Video Display on Alarm Option to enable automatic display of video on alarm. Option is enabled on a per user basis.

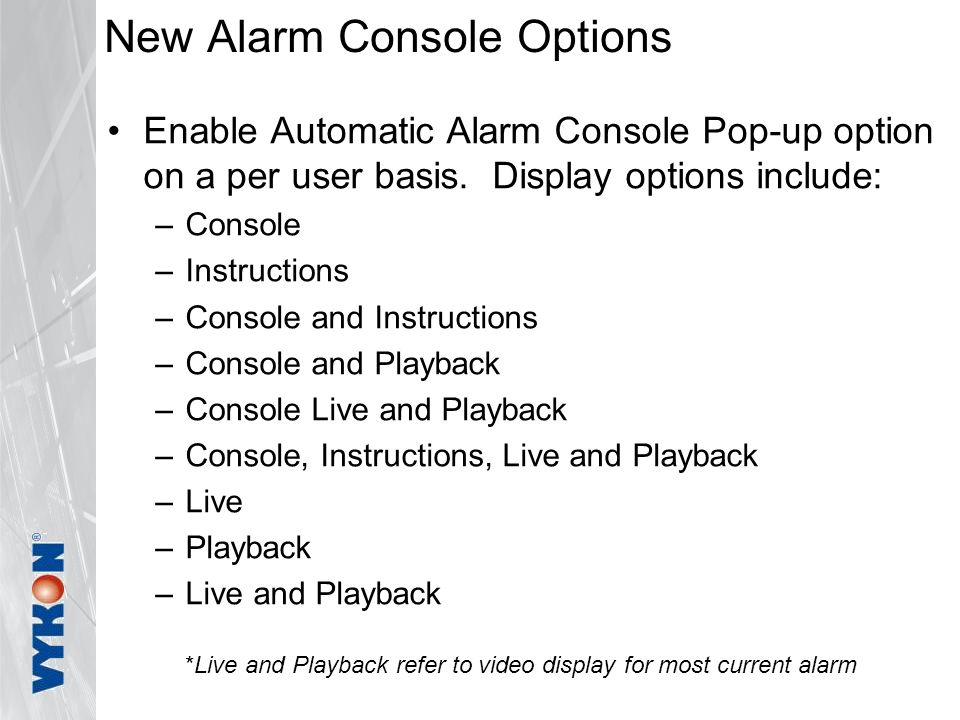

16 New Alarm Console Options Enable Automatic Alarm Console Pop-up option on a per user basis. Display options include: –Console –Instructions –Console and Instructions –Console and Playback –Console Live and Playback –Console, Instructions, Live and Playback –Live –Playback –Live and Playback *Live and Playback refer to video display for most current alarm

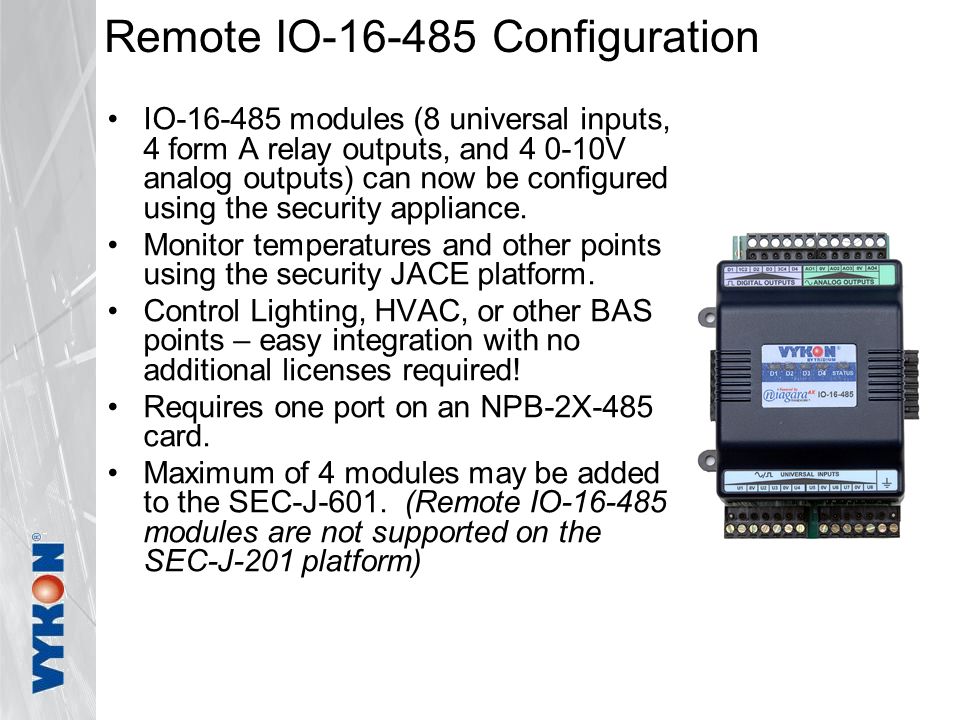

17 Remote IO Configuration IO modules (8 universal inputs, 4 form A relay outputs, and V analog outputs) can now be configured using the security appliance. Monitor temperatures and other points using the security JACE platform. Control Lighting, HVAC, or other BAS points – easy integration with no additional licenses required! Requires one port on an NPB-2X-485 card. Maximum of 4 modules may be added to the SEC-J-601. (Remote IO modules are not supported on the SEC-J-201 platform)

18 Remote IO Configuration Configure Network –*COM3 is default for SmartKey Network –COM4 is the 2 nd port on the NPB-2X-485 card. Use trunk 2 for the NRIO (trunk 1 is the access network) Configure Points –Select Point Type, Alarm Limits –Link to and From other Points –Set Alarm classes –Set Video actions

19 Threat Level Management The growing threat of terrorism and school violence have created a demand for security systems that can respond quickly to emergencies and help protect building occupants.

20 Threat Level Management Threat Level management provides a way to quickly initiate broad scale changes to building access based on one or more predefined “Threat Levels” and facility “Threat Level Groups”. Authorized persons can use the application interface, an activation badge, or emergency station to change the active level in response to a situation that requires a change to the scheduled access requirements for one or more specific facility areas.

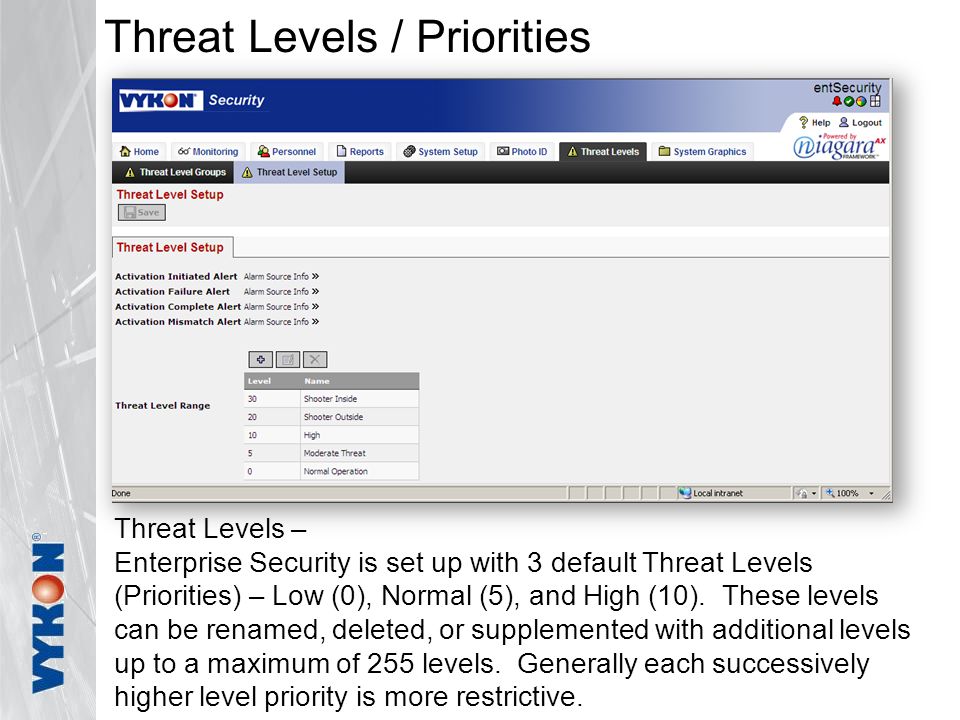

21 Threat Levels / Priorities Threat Levels – Enterprise Security is set up with 3 default Threat Levels (Priorities) – Low (0), Normal (5), and High (10). These levels can be renamed, deleted, or supplemented with additional levels up to a maximum of 255 levels. Generally each successively higher level priority is more restrictive.

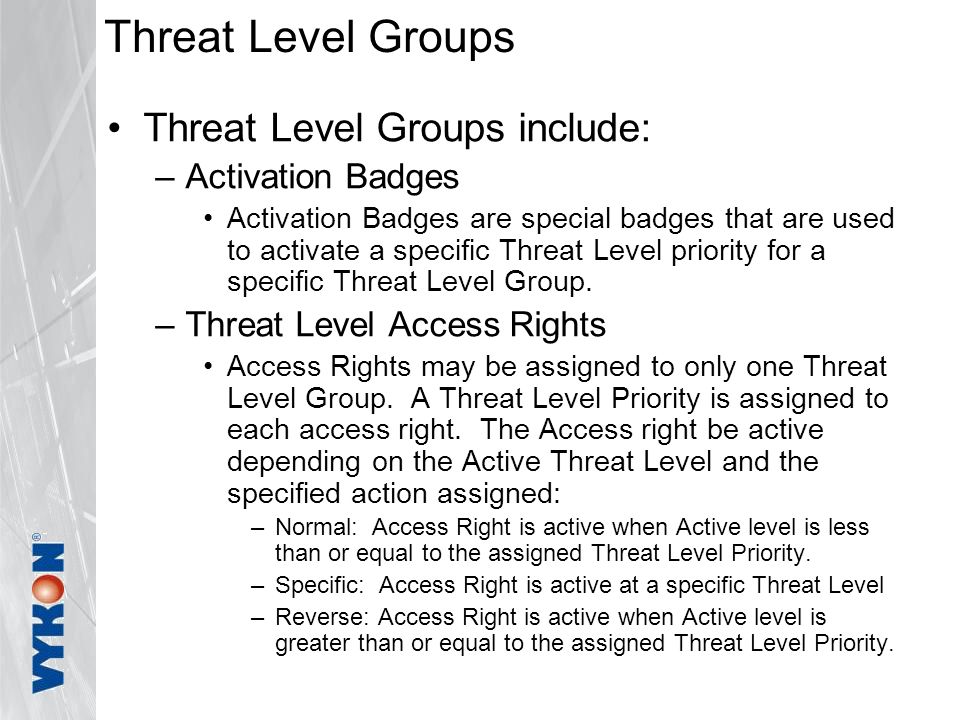

22 Threat Level Groups Threat Level Groups include: –Activation Badges Activation Badges are special badges that are used to activate a specific Threat Level priority for a specific Threat Level Group. –Threat Level Access Rights Access Rights may be assigned to only one Threat Level Group. A Threat Level Priority is assigned to each access right. The Access right be active depending on the Active Threat Level and the specified action assigned: –Normal: Access Right is active when Active level is less than or equal to the assigned Threat Level Priority. –Specific: Access Right is active at a specific Threat Level –Reverse: Access Right is active when Active level is greater than or equal to the assigned Threat Level Priority.

23 Threat Level Groups (cont.) –Activation Inputs (digital inputs) Activation inputs are physical inputs assigned to a Threat Level Group. When activated, the input sets the Threat Level Group to a specific Threat Level. Activation inputs are programmed at the JACE. –Activation Outputs (digital outputs) Activation outputs are relay outputs assigned to a Threat Level Group. The output is set to activate at a certain Threat Level. When the Threat Level is equal to or greater than the assigned Threat Level, the output is activated. Activation outputs are programmed at the JACE.

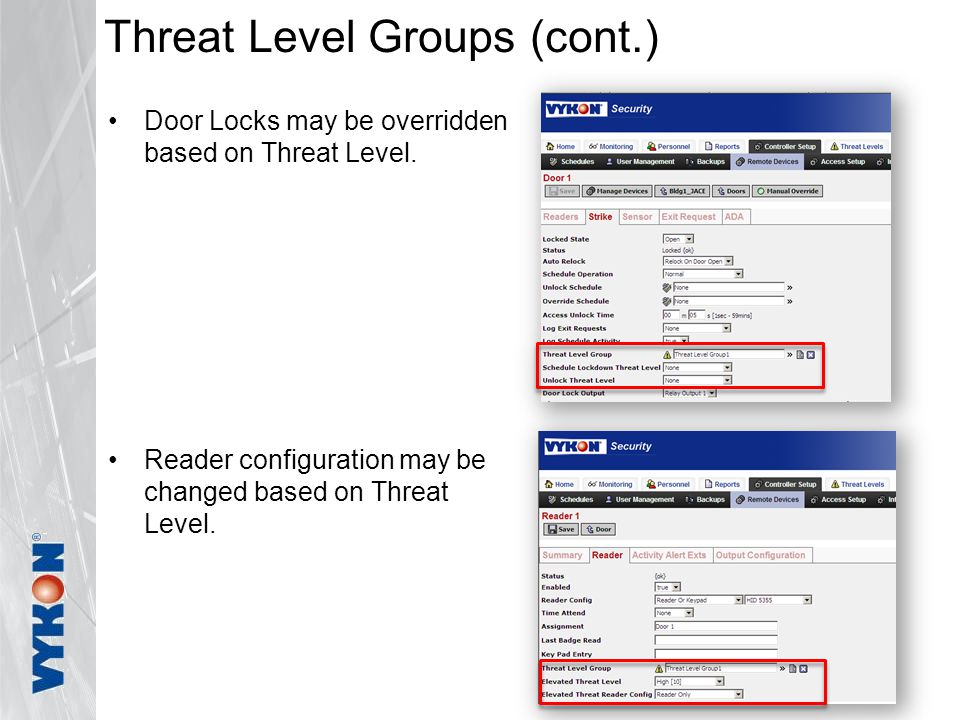

24 Threat Level Groups (cont.) Door Locks may be overridden based on Threat Level. Reader configuration may be changed based on Threat Level.

25 Threat Level Groups (cont.) Hierarchical Design A Threat Level may be set up as subordinate or Child to another Threat Level (Parent). This allows a single activation at the Parent to activate several Child groups. All changes at the Parent are pushed to the Child groups. Changes may be made at the Child group, but these changes are not pushed up to the Parent.

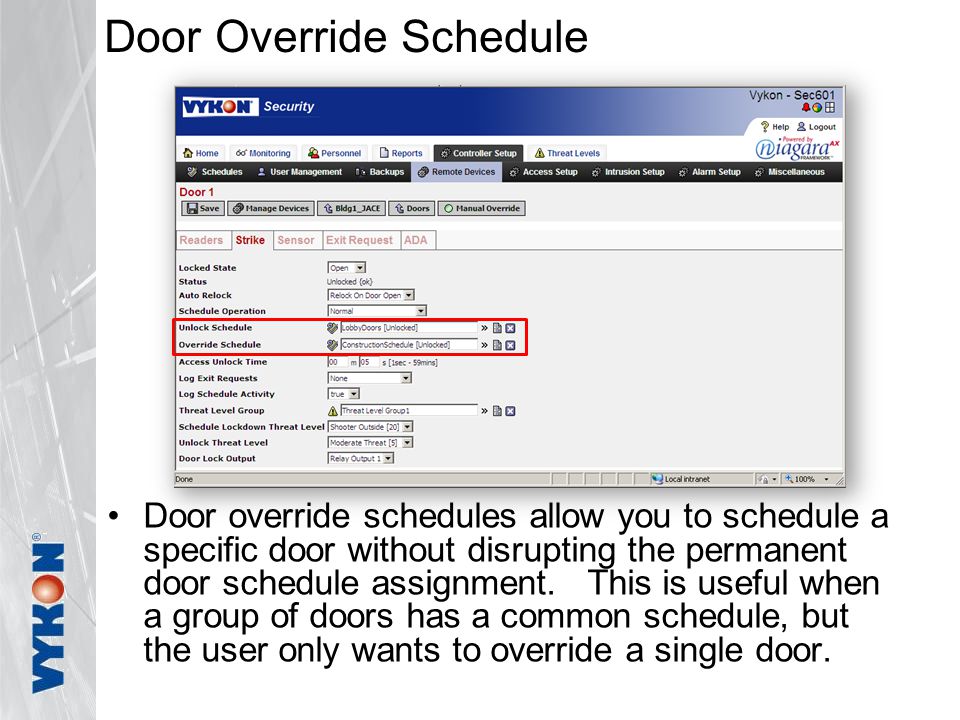

26 Door Override Schedule Door override schedules allow you to schedule a specific door without disrupting the permanent door schedule assignment. This is useful when a group of doors has a common schedule, but the user only wants to override a single door.

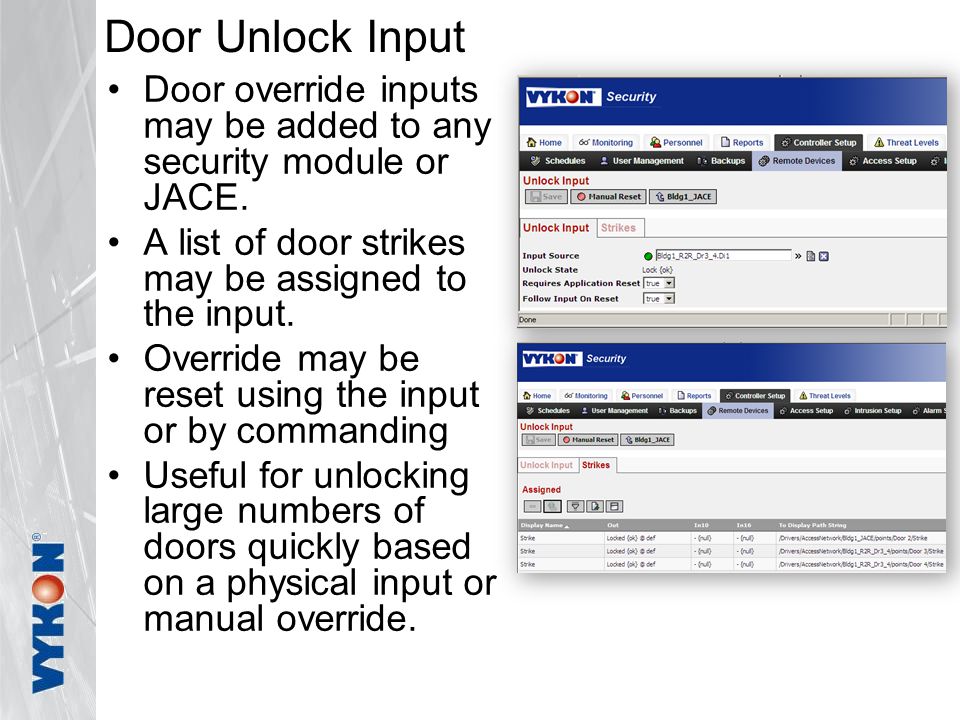

27 Door Unlock Input Door override inputs may be added to any security module or JACE. A list of door strikes may be assigned to the input. Override may be reset using the input or by commanding Useful for unlocking large numbers of doors quickly based on a physical input or manual override.

28 New Products

29 New Products - FARGO ® DTC4500

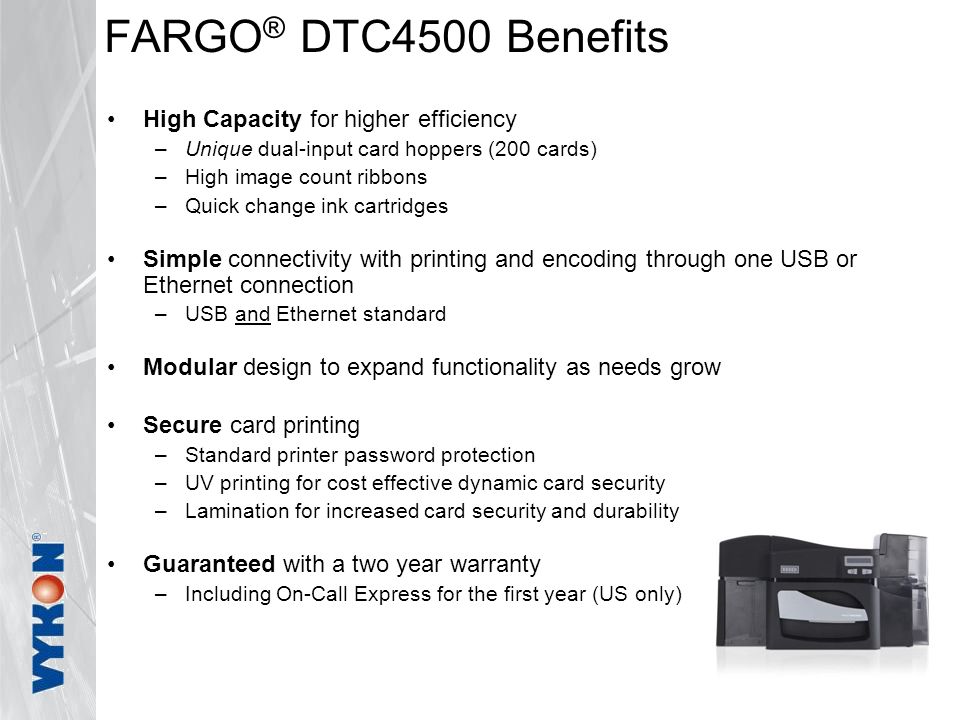

30 FARGO ® DTC4500 Benefits High Capacity for higher efficiency –Unique dual-input card hoppers (200 cards) –High image count ribbons –Quick change ink cartridges Simple connectivity with printing and encoding through one USB or Ethernet connection –USB and Ethernet standard Modular design to expand functionality as needs grow Secure card printing –Standard printer password protection –UV printing for cost effective dynamic card security –Lamination for increased card security and durability Guaranteed with a two year warranty –Including On-Call Express for the first year (US only)

31 FARGO ® DTC4500 Versatility Single-Sided Dual-Sided Dual-Sided with LaminationTechnology Card Upgrades

32 New Products – Digital Camera and Background Screen Digital camera – 720p, 5 MP camera for quick photo capture and download. Camera Tripod Background Screen and stand for professional looking photos. Everything you need for professional results

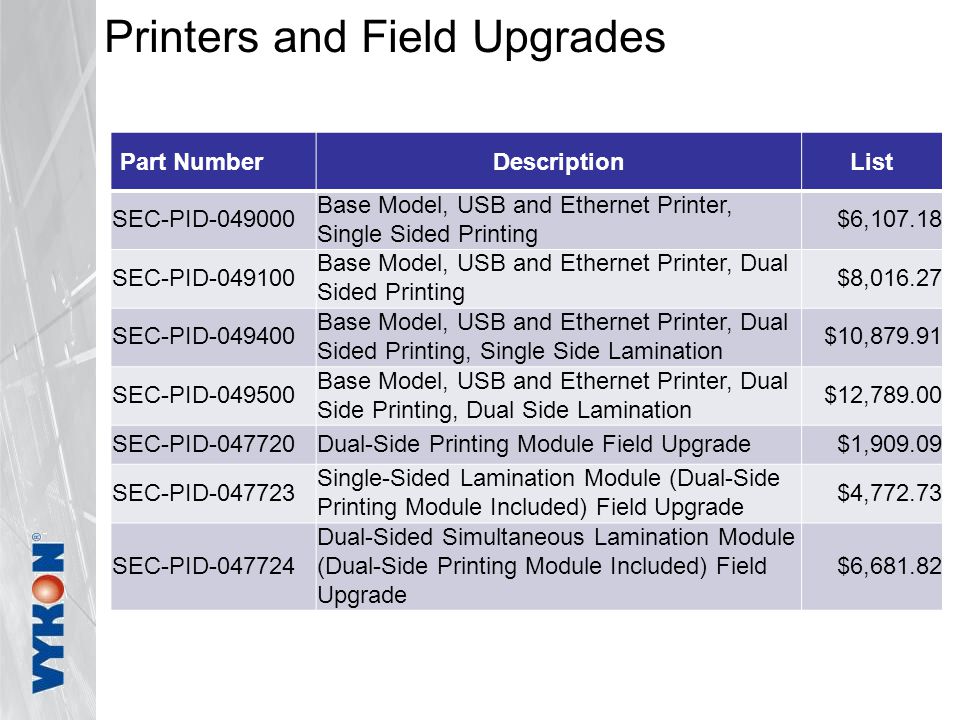

33 Printers and Field Upgrades Part NumberDescriptionList SEC-PID Base Model, USB and Ethernet Printer, Single Sided Printing $6, SEC-PID Base Model, USB and Ethernet Printer, Dual Sided Printing $8, SEC-PID Base Model, USB and Ethernet Printer, Dual Sided Printing, Single Side Lamination $10, SEC-PID Base Model, USB and Ethernet Printer, Dual Side Printing, Dual Side Lamination $12, SEC-PID Dual-Side Printing Module Field Upgrade$1, SEC-PID Single-Sided Lamination Module (Dual-Side Printing Module Included) Field Upgrade $4, SEC-PID Dual-Sided Simultaneous Lamination Module (Dual-Side Printing Module Included) Field Upgrade $6,681.82

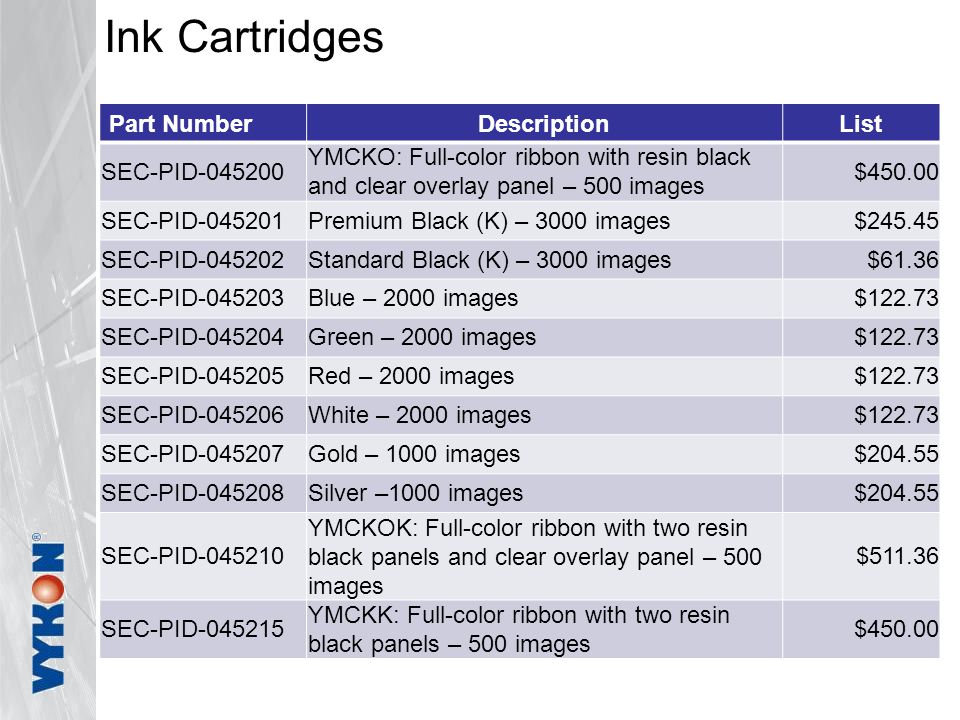

34 Ink Cartridges Part NumberDescriptionList SEC-PID YMCKO: Full-color ribbon with resin black and clear overlay panel – 500 images $ SEC-PID Premium Black (K) – 3000 images$ SEC-PID Standard Black (K) – 3000 images$61.36 SEC-PID Blue – 2000 images$ SEC-PID Green – 2000 images$ SEC-PID Red – 2000 images$ SEC-PID White – 2000 images$ SEC-PID Gold – 1000 images$ SEC-PID Silver –1000 images$ SEC-PID YMCKOK: Full-color ribbon with two resin black panels and clear overlay panel – 500 images $ SEC-PID YMCKK: Full-color ribbon with two resin black panels – 500 images $450.00

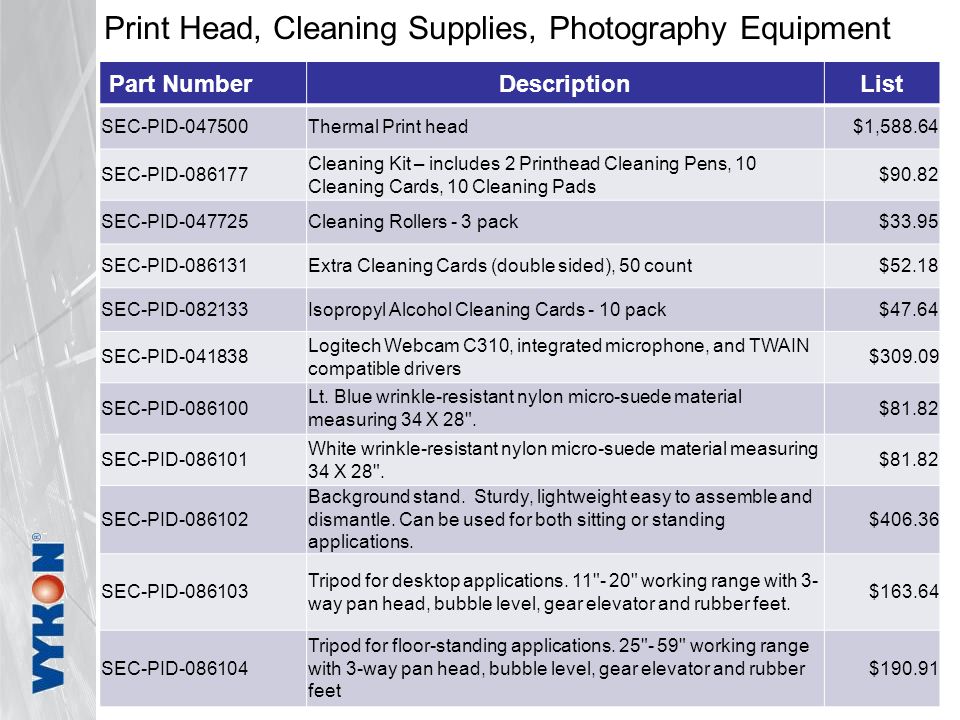

35 Print Head, Cleaning Supplies, Photography Equipment Part NumberDescriptionList SEC-PID Thermal Print head$1, SEC-PID Cleaning Kit – includes 2 Printhead Cleaning Pens, 10 Cleaning Cards, 10 Cleaning Pads $90.82 SEC-PID Cleaning Rollers - 3 pack$33.95 SEC-PID Extra Cleaning Cards (double sided), 50 count$52.18 SEC-PID Isopropyl Alcohol Cleaning Cards - 10 pack$47.64 SEC-PID Logitech Webcam C310, integrated microphone, and TWAIN compatible drivers $ SEC-PID Lt. Blue wrinkle-resistant nylon micro-suede material measuring 34 X 28". $81.82 SEC-PID White wrinkle-resistant nylon micro-suede material measuring 34 X 28". $81.82 SEC-PID Background stand. Sturdy, lightweight easy to assemble and dismantle. Can be used for both sitting or standing applications. $ SEC-PID Tripod for desktop applications. 11"- 20" working range with 3- way pan head, bubble level, gear elevator and rubber feet. $ SEC-PID Tripod for floor-standing applications. 25"- 59" working range with 3-way pan head, bubble level, gear elevator and rubber feet $190.91

36 Enterprise Security – Base Server Software No Change in Part Numbers/Pricing Part NumberDescriptionList SEC-ENT Enterprise Security application with 32 reader license, and both MySQL and MS SQL Server database drivers. Optional license for BAS JACEs connections. Platform for systems up to 100 security JACEs. Includes OBIX client/server driver for connecting to Niagara based controllers only. $9,487 SEC-ENT-64 Large system Enterprise Security application with 32 reader license, and both MySQL and MS SQL Server database drivers. Optional license for BAS JACEs connections. Platform for systems up to 250security JACEs. Includes OBIX client/server driver for connecting to Niagara based controllers only. $13,481 SEC-ENT-SBS Small Enterprise Security application with 32 reader license, security AX Supervisor, and both MySQL and MS SQL Server database drivers. Optional license for BAS JACEs connections. SBS limited to max of 6 security JACE connections and 64 readers. Includes OBIX client/server driver for connecting to Niagara based controllers only. $4,797

37 Enterprise Security – Reader Packs No Change in Part Numbers/Pricing Part NumberDescriptionList SEC-R-16Expands enterprise security license by 16 readers.$1,040 SEC-R-64Expands enterprise security license by 64 readers.$3,772 SEC-R-256Expands enterprise security license by 256 readers.$14,173 SEC-R-1024Expands enterprise security license by 1024 readers. $54,526

38 Enterprise Security – Upgrade Parts No Change in Part Numbers/Pricing Part NumberDescriptionList SEC-SBS-U Upgrade SEC-ENT-SBS to SEC-ENT. Removes 64 reader and 6 JACE connection limits. $6,304 SEC-64-U Upgrade SEC-ENT to a SEC-ENT-64 Large system Security AX Supervisor. $6,613 SEC-BAS-U Upgrade security supervisor to allow BAS driver and connection functionality. Allows the addition of non- security controllers to be integrated into the same enterprise security supervisor. $4,728 SEC-ENT-U Base enterprise security software license to upgrade an existing AX Supervisor. Includes license for 32 readers, Enterprise Security application, and both MySQL and MS SQL Server database drivers. Requires AX Supervisor software or small building AX Supervisor software. $4,097

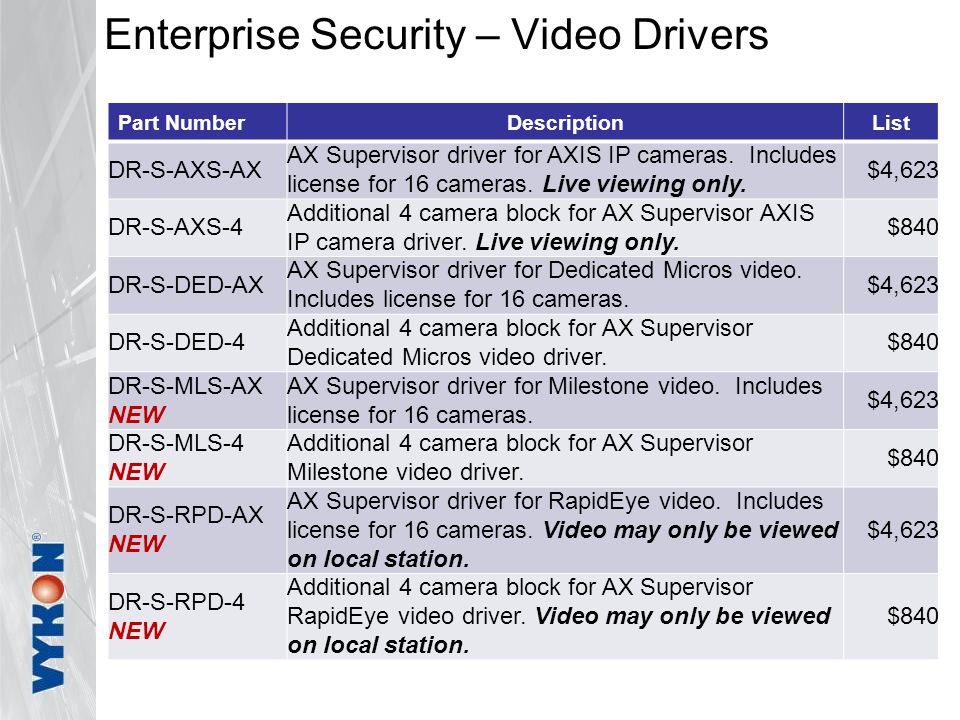

39 Enterprise Security – Video Drivers Part NumberDescriptionList DR-S-AXS-AX AX Supervisor driver for AXIS IP cameras. Includes license for 16 cameras. Live viewing only. $4,623 DR-S-AXS-4 Additional 4 camera block for AX Supervisor AXIS IP camera driver. Live viewing only. $840 DR-S-DED-AX AX Supervisor driver for Dedicated Micros video. Includes license for 16 cameras. $4,623 DR-S-DED-4 Additional 4 camera block for AX Supervisor Dedicated Micros video driver. $840 DR-S-MLS-AX NEW AX Supervisor driver for Milestone video. Includes license for 16 cameras. $4,623 DR-S-MLS-4 NEW Additional 4 camera block for AX Supervisor Milestone video driver. $840 DR-S-RPD-AX NEW AX Supervisor driver for RapidEye video. Includes license for 16 cameras. Video may only be viewed on local station. $4,623 DR-S-RPD-4 NEW Additional 4 camera block for AX Supervisor RapidEye video driver. Video may only be viewed on local station. $840

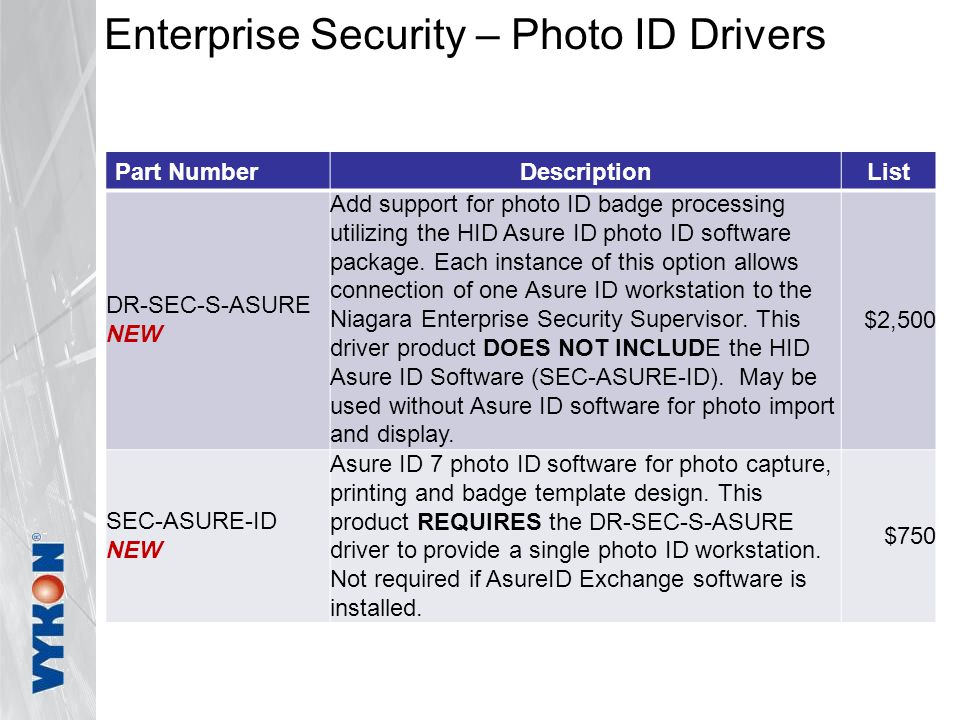

40 Enterprise Security – Photo ID Drivers Part NumberDescriptionList DR-SEC-S-ASURE NEW Add support for photo ID badge processing utilizing the HID Asure ID photo ID software package. Each instance of this option allows connection of one Asure ID workstation to the Niagara Enterprise Security Supervisor. This driver product DOES NOT INCLUDE the HID Asure ID Software (SEC-ASURE-ID). May be used without Asure ID software for photo import and display. $2,500 SEC-ASURE-ID NEW Asure ID 7 photo ID software for photo capture, printing and badge template design. This product REQUIRES the DR-SEC-S-ASURE driver to provide a single photo ID workstation. Not required if AsureID Exchange software is installed. $750

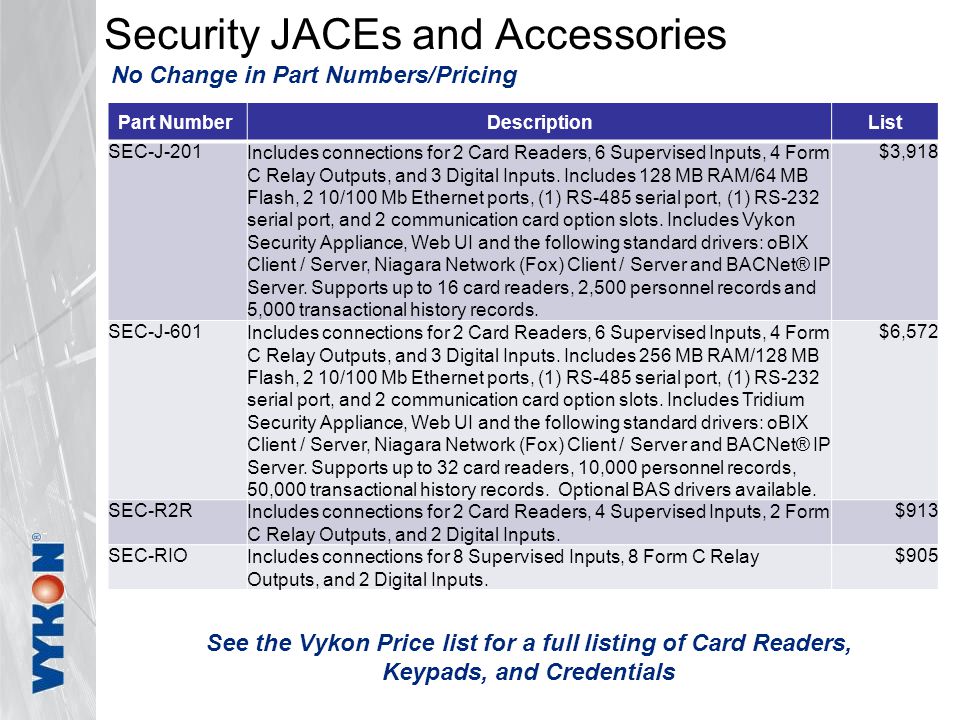

41 Security JACEs and Accessories No Change in Part Numbers/Pricing Part NumberDescriptionList SEC-J-201Includes connections for 2 Card Readers, 6 Supervised Inputs, 4 Form C Relay Outputs, and 3 Digital Inputs. Includes 128 MB RAM/64 MB Flash, 2 10/100 Mb Ethernet ports, (1) RS-485 serial port, (1) RS-232 serial port, and 2 communication card option slots. Includes Vykon Security Appliance, Web UI and the following standard drivers: oBIX Client / Server, Niagara Network (Fox) Client / Server and BACNet® IP Server. Supports up to 16 card readers, 2,500 personnel records and 5,000 transactional history records. $3,918 SEC-J-601Includes connections for 2 Card Readers, 6 Supervised Inputs, 4 Form C Relay Outputs, and 3 Digital Inputs. Includes 256 MB RAM/128 MB Flash, 2 10/100 Mb Ethernet ports, (1) RS-485 serial port, (1) RS-232 serial port, and 2 communication card option slots. Includes Tridium Security Appliance, Web UI and the following standard drivers: oBIX Client / Server, Niagara Network (Fox) Client / Server and BACNet® IP Server. Supports up to 32 card readers, 10,000 personnel records, 50,000 transactional history records. Optional BAS drivers available. $6,572 SEC-R2RIncludes connections for 2 Card Readers, 4 Supervised Inputs, 2 Form C Relay Outputs, and 2 Digital Inputs. $913 SEC-RIOIncludes connections for 8 Supervised Inputs, 8 Form C Relay Outputs, and 2 Digital Inputs. $905 See the Vykon Price list for a full listing of Card Readers, Keypads, and Credentials

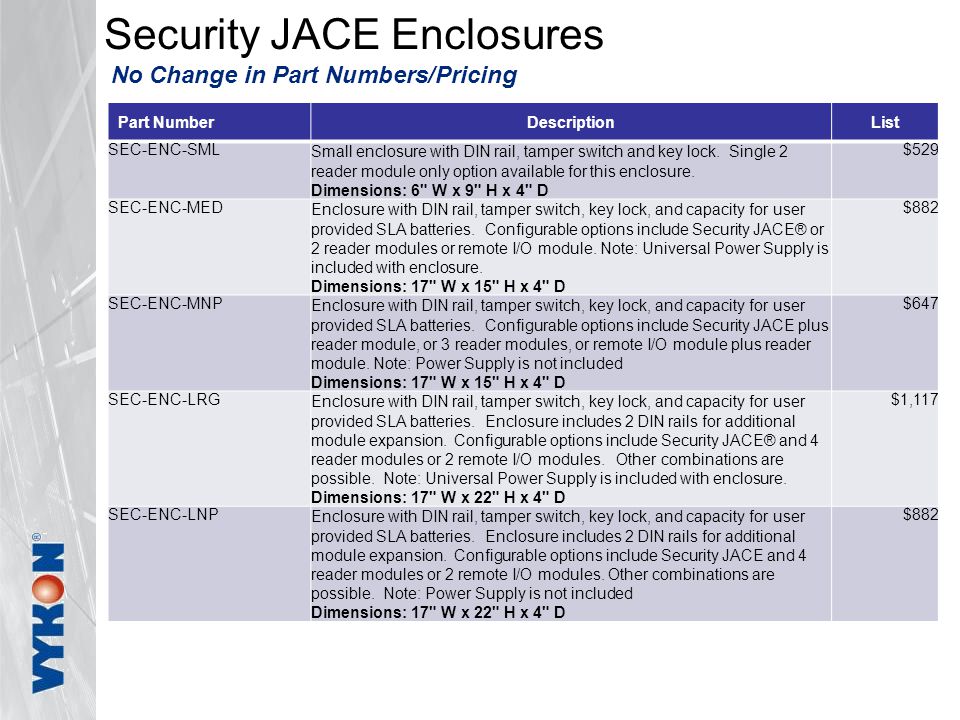

42 Security JACE Enclosures No Change in Part Numbers/Pricing Part NumberDescriptionList SEC-ENC-SMLSmall enclosure with DIN rail, tamper switch and key lock. Single 2 reader module only option available for this enclosure. Dimensions: 6" W x 9" H x 4" D $529 SEC-ENC-MEDEnclosure with DIN rail, tamper switch, key lock, and capacity for user provided SLA batteries. Configurable options include Security JACE® or 2 reader modules or remote I/O module. Note: Universal Power Supply is included with enclosure. Dimensions: 17" W x 15" H x 4" D $882 SEC-ENC-MNPEnclosure with DIN rail, tamper switch, key lock, and capacity for user provided SLA batteries. Configurable options include Security JACE plus reader module, or 3 reader modules, or remote I/O module plus reader module. Note: Power Supply is not included Dimensions: 17" W x 15" H x 4" D $647 SEC-ENC-LRGEnclosure with DIN rail, tamper switch, key lock, and capacity for user provided SLA batteries. Enclosure includes 2 DIN rails for additional module expansion. Configurable options include Security JACE® and 4 reader modules or 2 remote I/O modules. Other combinations are possible. Note: Universal Power Supply is included with enclosure. Dimensions: 17" W x 22" H x 4" D $1,117 SEC-ENC-LNPEnclosure with DIN rail, tamper switch, key lock, and capacity for user provided SLA batteries. Enclosure includes 2 DIN rails for additional module expansion. Configurable options include Security JACE and 4 reader modules or 2 remote I/O modules. Other combinations are possible. Note: Power Supply is not included Dimensions: 17" W x 22" H x 4" D $882

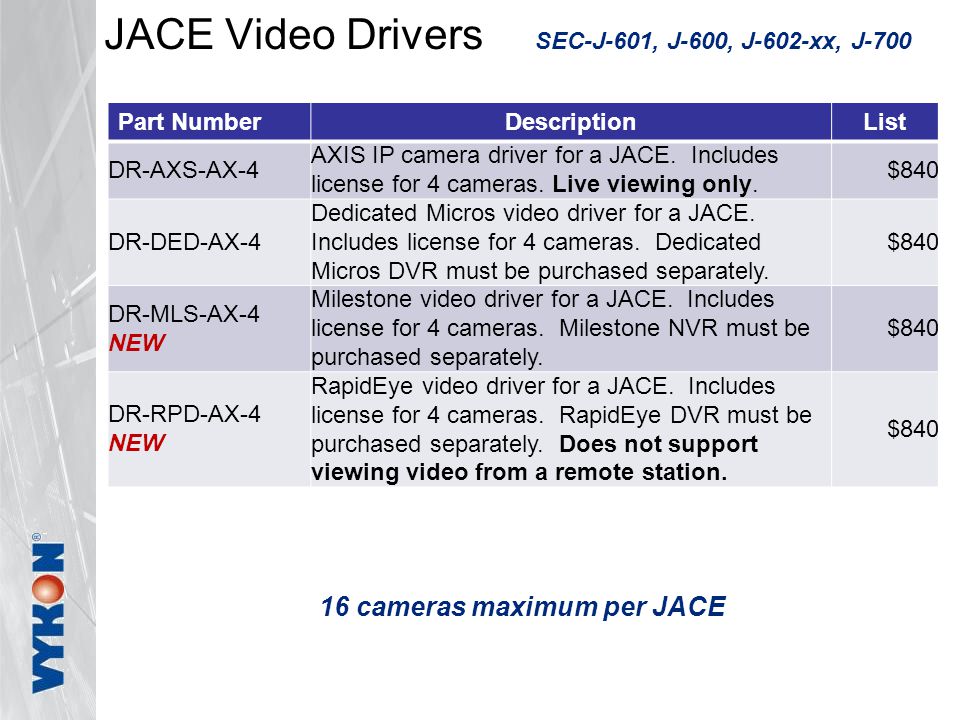

43 JACE Video Drivers SEC-J-601, J-600, J-602-xx, J-700 Part NumberDescriptionList DR-AXS-AX-4 AXIS IP camera driver for a JACE. Includes license for 4 cameras. Live viewing only. $840 DR-DED-AX-4 Dedicated Micros video driver for a JACE. Includes license for 4 cameras. Dedicated Micros DVR must be purchased separately. $840 DR-MLS-AX-4 NEW Milestone video driver for a JACE. Includes license for 4 cameras. Milestone NVR must be purchased separately. $840 DR-RPD-AX-4 NEW RapidEye video driver for a JACE. Includes license for 4 cameras. RapidEye DVR must be purchased separately. Does not support viewing video from a remote station. $ cameras maximum per JACE

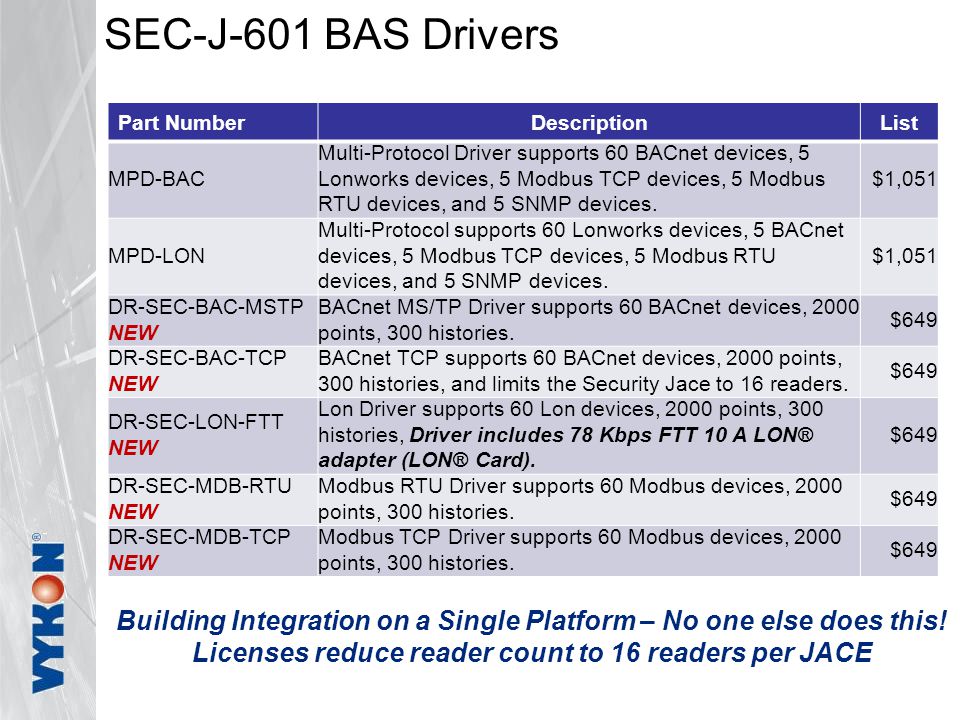

44 SEC-J-601 BAS Drivers Part NumberDescriptionList MPD-BAC Multi-Protocol Driver supports 60 BACnet devices, 5 Lonworks devices, 5 Modbus TCP devices, 5 Modbus RTU devices, and 5 SNMP devices. $1,051 MPD-LON Multi-Protocol supports 60 Lonworks devices, 5 BACnet devices, 5 Modbus TCP devices, 5 Modbus RTU devices, and 5 SNMP devices. $1,051 DR-SEC-BAC-MSTP NEW BACnet MS/TP Driver supports 60 BACnet devices, 2000 points, 300 histories. $649 DR-SEC-BAC-TCP NEW BACnet TCP supports 60 BACnet devices, 2000 points, 300 histories, and limits the Security Jace to 16 readers. $649 DR-SEC-LON-FTT NEW Lon Driver supports 60 Lon devices, 2000 points, 300 histories, Driver includes 78 Kbps FTT 10 A LON® adapter (LON® Card). $649 DR-SEC-MDB-RTU NEW Modbus RTU Driver supports 60 Modbus devices, 2000 points, 300 histories. $649 DR-SEC-MDB-TCP NEW Modbus TCP Driver supports 60 Modbus devices, 2000 points, 300 histories. $649 Building Integration on a Single Platform – No one else does this! Licenses reduce reader count to 16 readers per JACE

45 Security Revision Upgrades New Parts and Pricing Part NumberDescriptionList SEC-ENT-REVNew release software upgrade for Enterprise Security Supervisor. Price includes all applications and drivers licensed for the Supervisor. Upgrades the Supervisor to the current release. $2,270 SEC-ENT-MAAnnual software maintenance agreement when purchased with any Enterprise Security Supervisor. Includes new and interim releases for one year from date of purchase. $2,838 SEC-64-REVNew release software upgrade for Enterprise Security Large System Supervisor. Price includes all applications and drivers licensed for the Supervisor. Upgrades the Supervisor to the current release. $3,225 SEC-64-MAAnnual software maintenance agreement when purchased with any Large Scale Enterprise Security Supervisor. Includes new and interim releases for one year from date of purchase. $4,032 SEC-SBS-REVNew release software upgrade for Enterprise Security Small Building Supervisor. Price includes all applications and drivers licensed for the Supervisor. Upgrades the Supervisor to the current release. $1,148 SEC-SBS-MAAnnual software maintenance agreement when purchased with any Small Building Security Supervisor. Includes new and interim releases for one year from date of purchase. $1,435 SEC-J-REVNew release software upgrade for one JACE® security controller. Upgrades JACE® controller to the current release. Price includes all applications and drivers licensed for the JACE® security controller. $250 SEC-J-MAAnnual software maintenance agreement for one Security JACE® controller. Includes new and interim releases for one year from date of purchase. $350

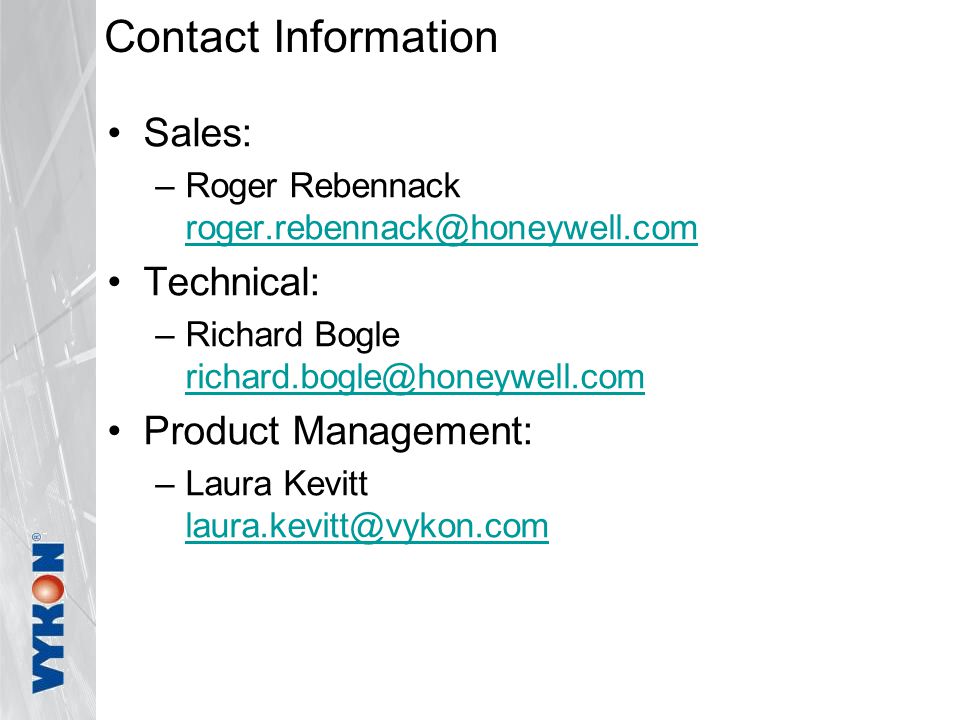

46 Contact Information Sales: –Roger Rebennack Technical: –Richard Bogle Product Management: –Laura Kevitt
