Commercial FPGAs: Altera Stratix Family Dr. Philip Brisk Department of Computer Science and Engineering University of California, Riverside CS 223

Notes on These Slides Altera has disclosed the details of their devices both in online documentation and academic papers The academic papers evaluate different design decisions and tradeoffs; the experiments are a bit too specialized for this course. – Please do not overly emphasize the experimentation in your studies

The Stratix TM Routing and Logic Architecture D.M. Lewis, et al., International Symposium on FPGAs, 2003 Online documentation

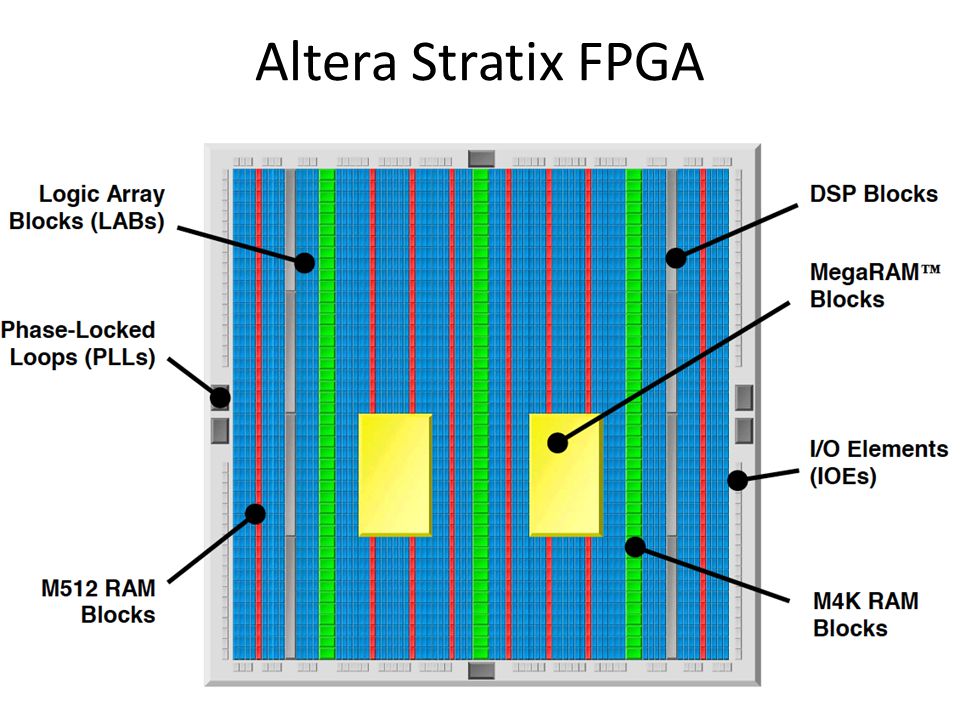

Altera Stratix FPGA

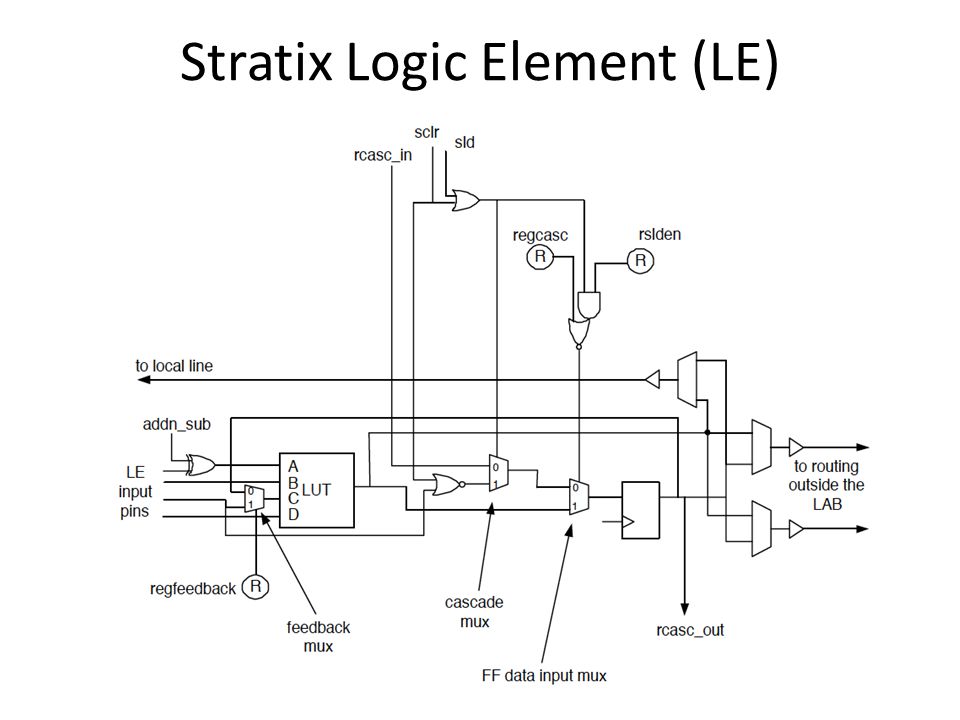

Stratix Logic Element (LE)

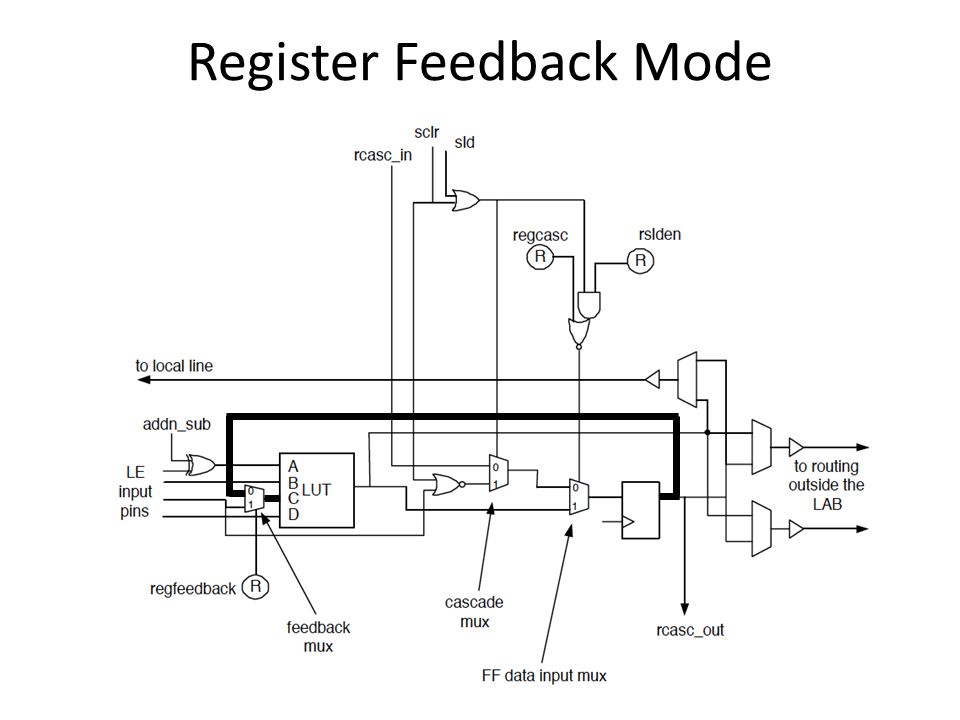

Register Feedback Mode

Logic Array Block (LAB)

Directionally Biased Routing Long vertical wires require power drivers – Fewer vertical wires More rows than columns – More demand for horizontal wires

The Stratix II Logic and Routing Architecture D.M. Lewis, et al., International Symposium on FPGAs, 2005 Online documentation

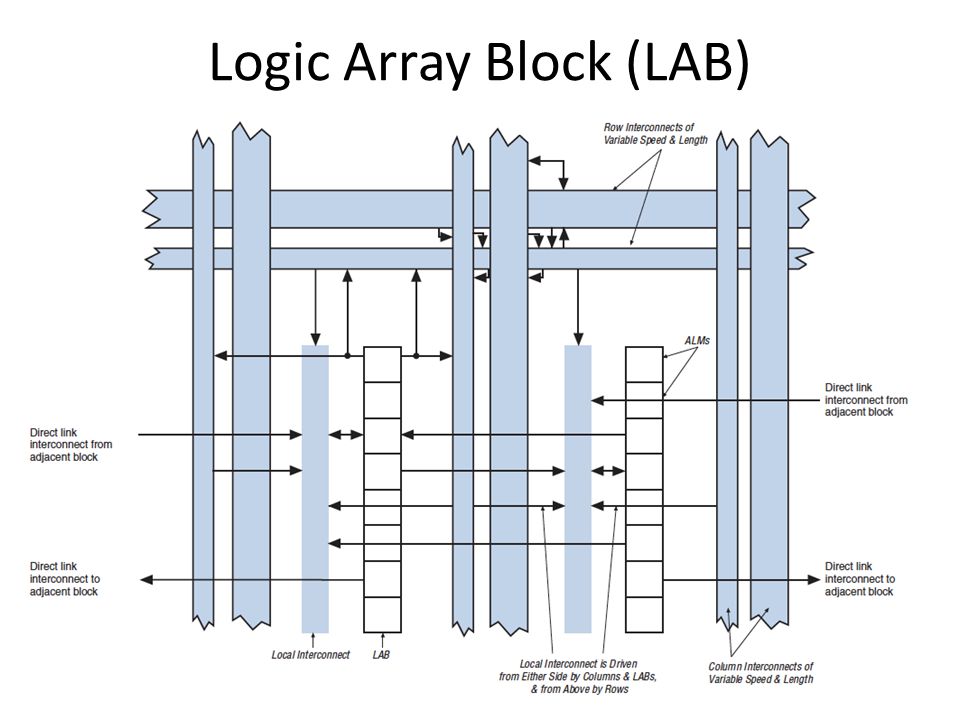

Logic Array Block (LAB)

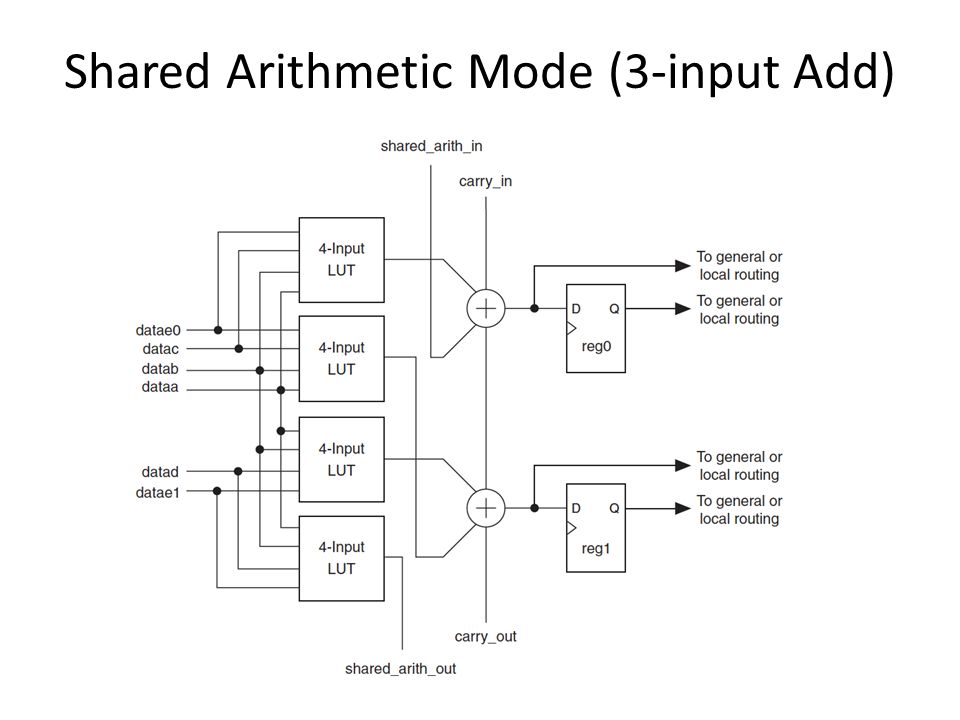

Four ALM Operating Modes Normal Mode Extended LUT Mode Arithmetic Mode Shared Arithmetic Mode

Normal Mode

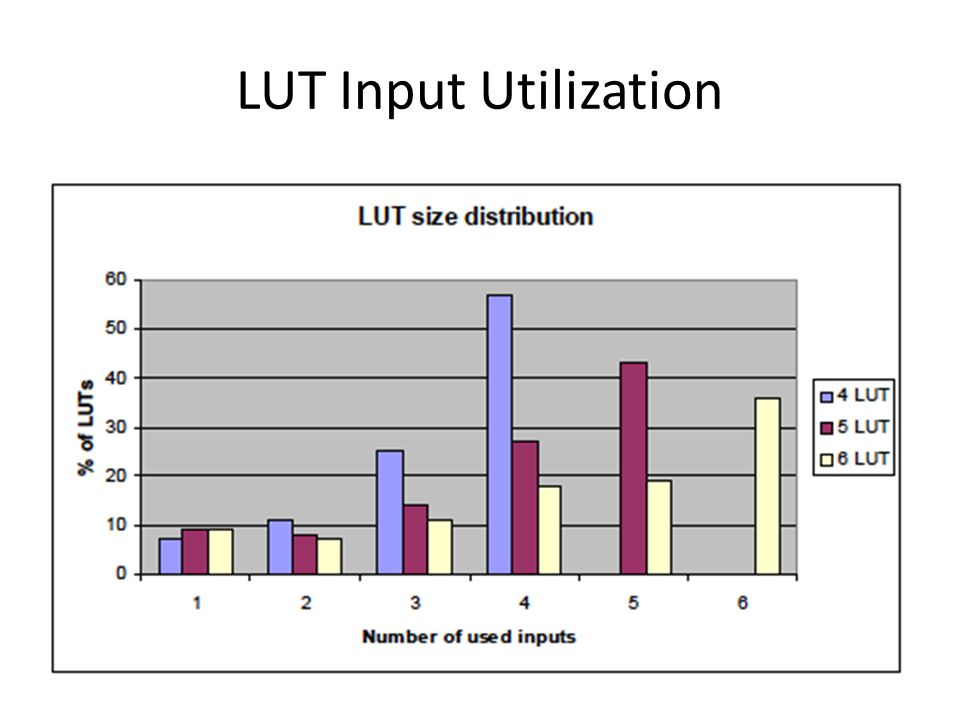

LUT Input Utilization

Extended LUT Mode Some 7-input logic functions

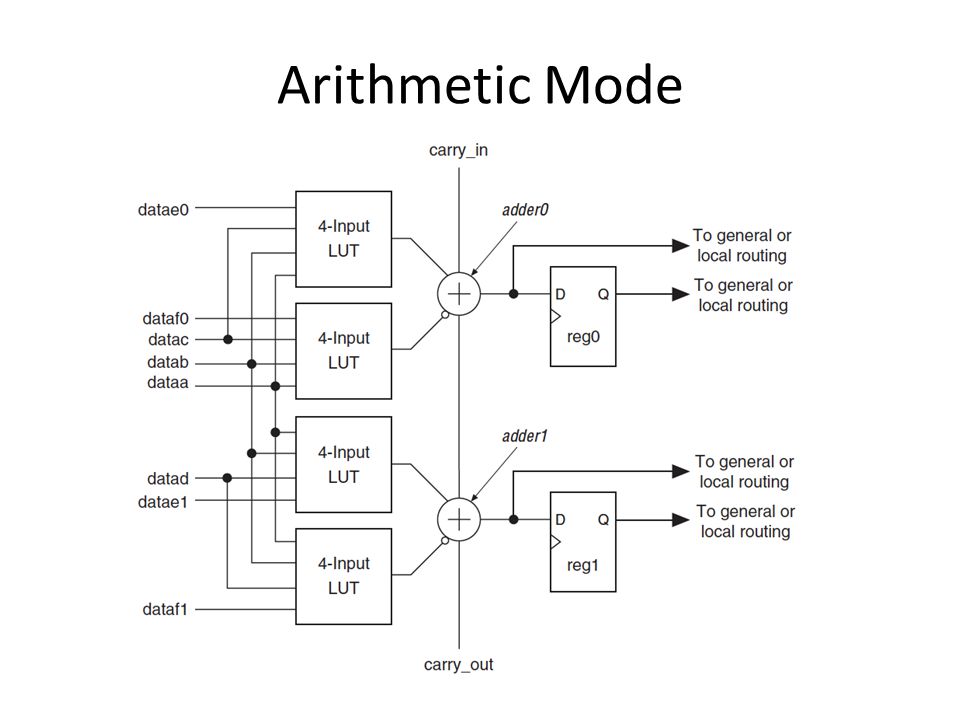

Arithmetic Mode

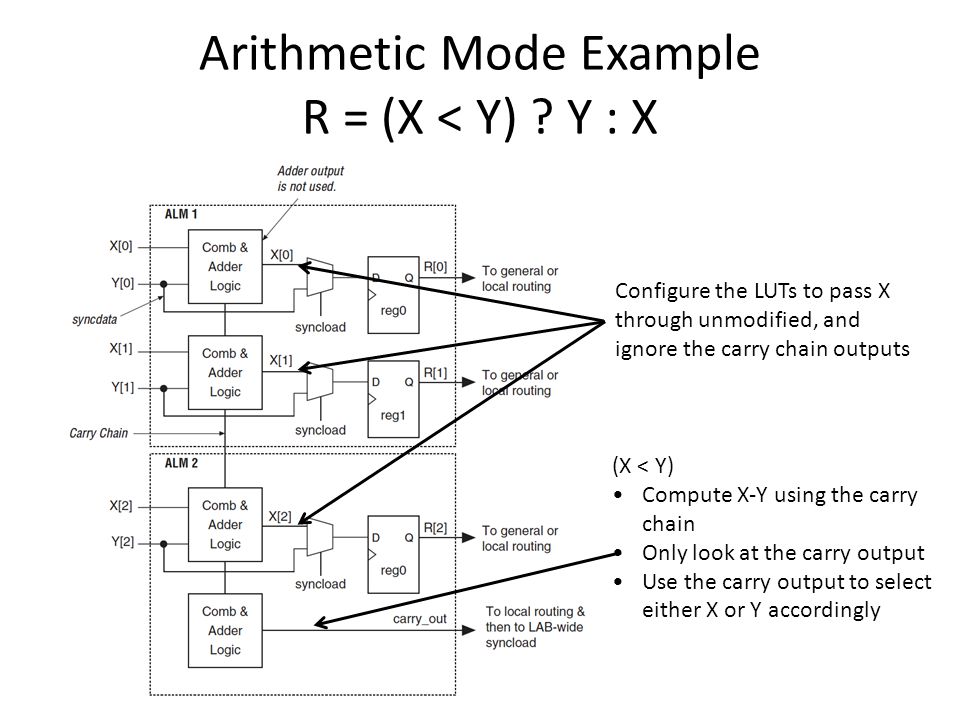

Arithmetic Mode Example R = (X < Y) ? Y : X (X < Y) Compute X-Y using the carry chain Only look at the carry output Use the carry output to select either X or Y accordingly Configure the LUTs to pass X through unmodified, and ignore the carry chain outputs

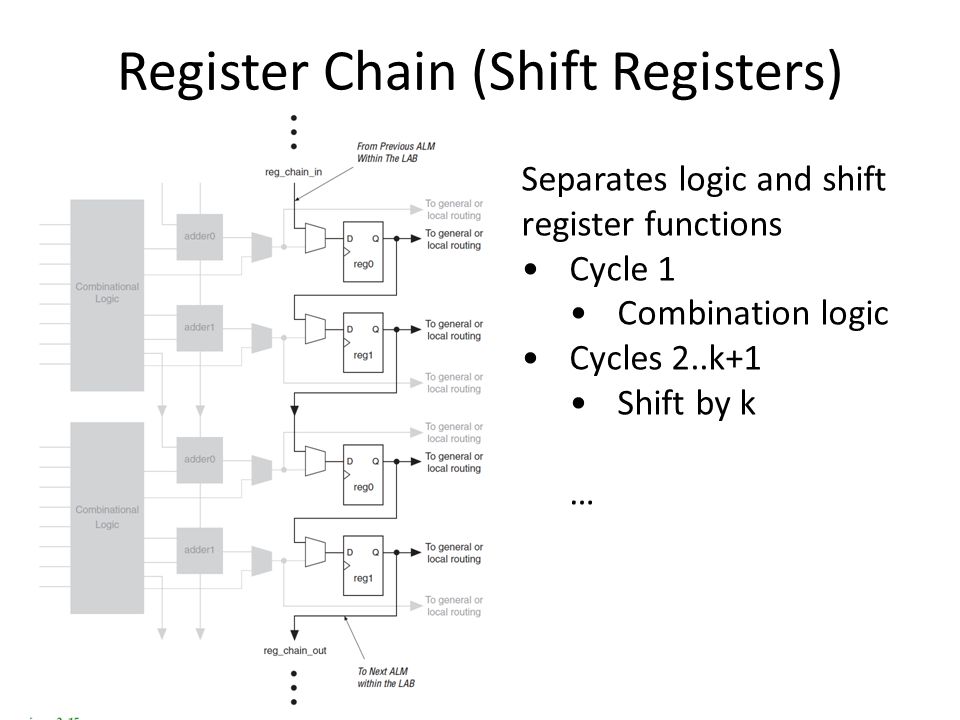

Register Chain (Shift Registers) Separates logic and shift register functions Cycle 1 Combination logic Cycles 2..k+1 Shift by k …

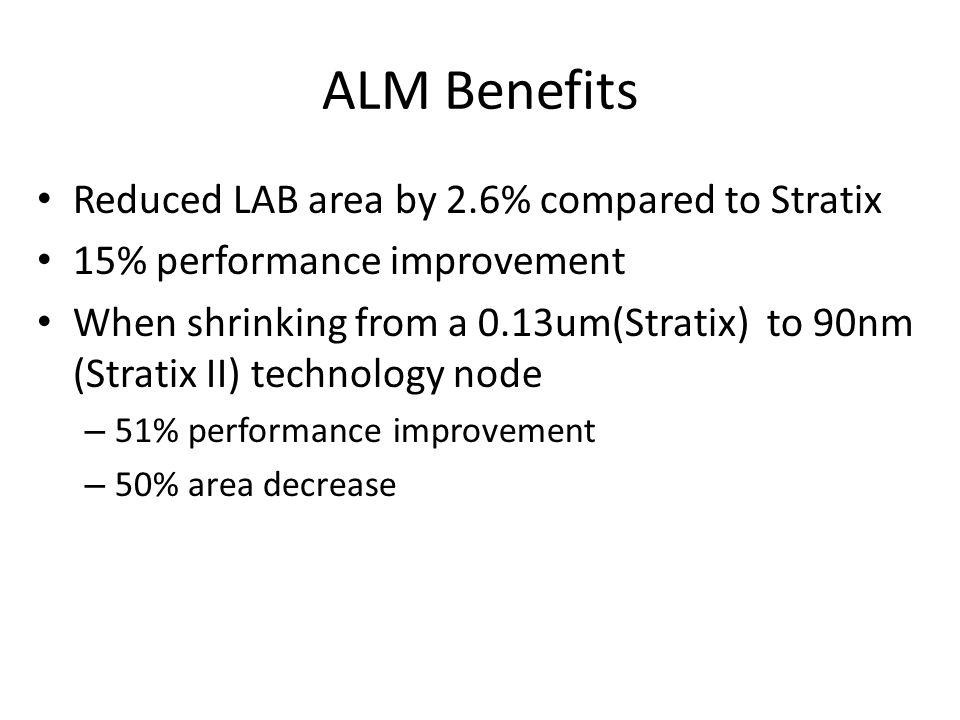

ALM Benefits Reduced LAB area by 2.6% compared to Stratix 15% performance improvement When shrinking from a 0.13um(Stratix) to 90nm (Stratix II) technology node – 51% performance improvement – 50% area decrease

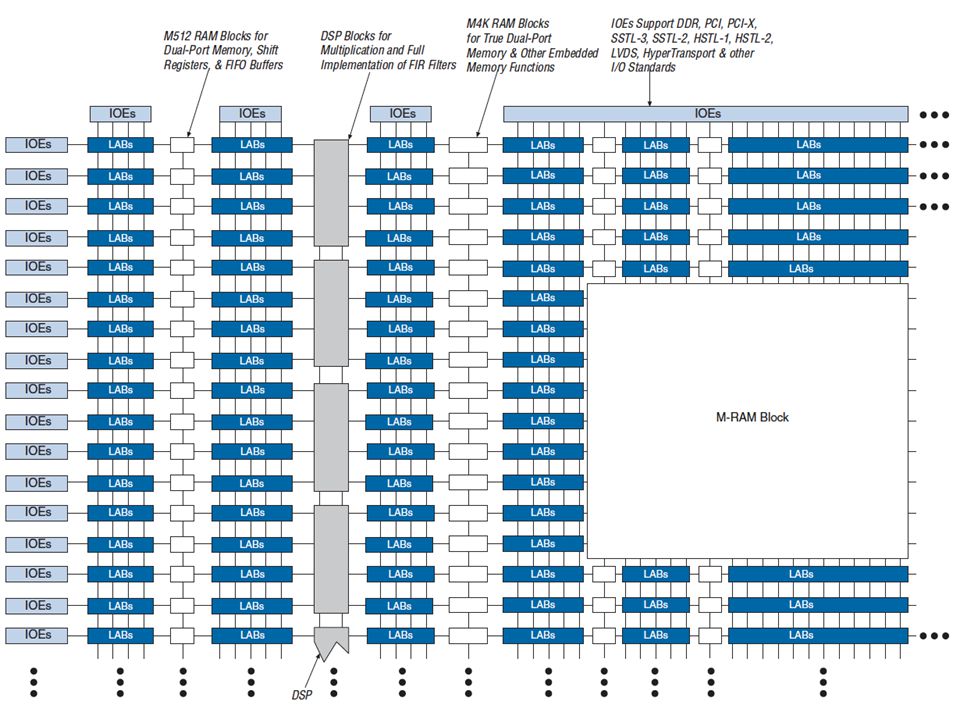

TriMatrix Embedded Memories

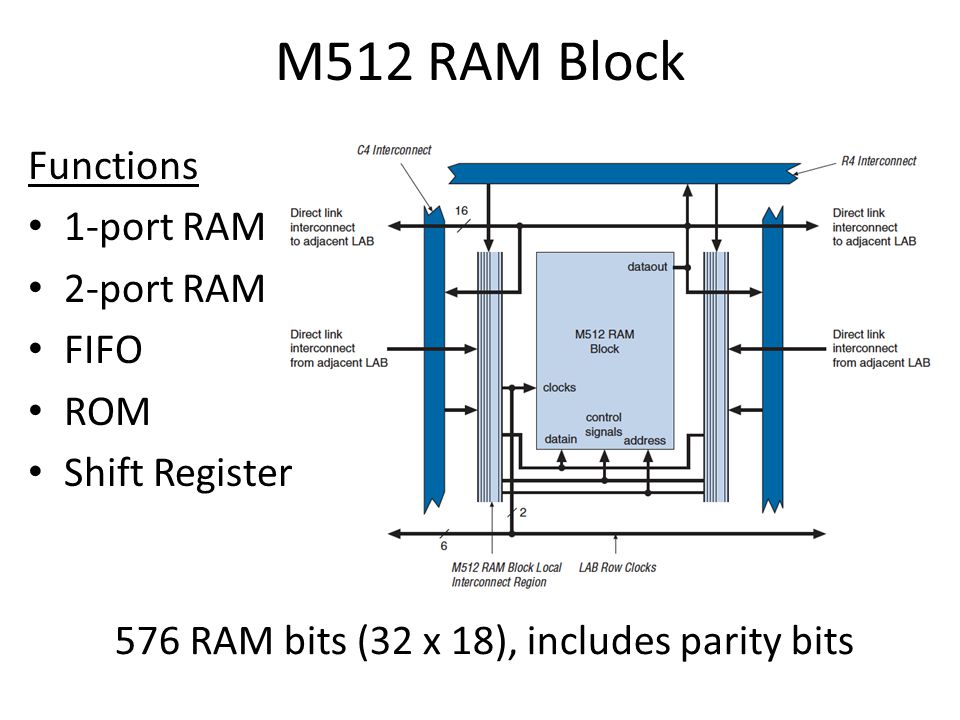

M512 RAM Block Functions 1-port RAM 2-port RAM FIFO ROM Shift Register 576 RAM bits (32 x 18), includes parity bits

M4K RAM Block 4,608 RAM bits (128 x 36), includes parity bits Functions 1-port RAM 2-port RAM True 2-port RAM FIFO ROM Shift Register

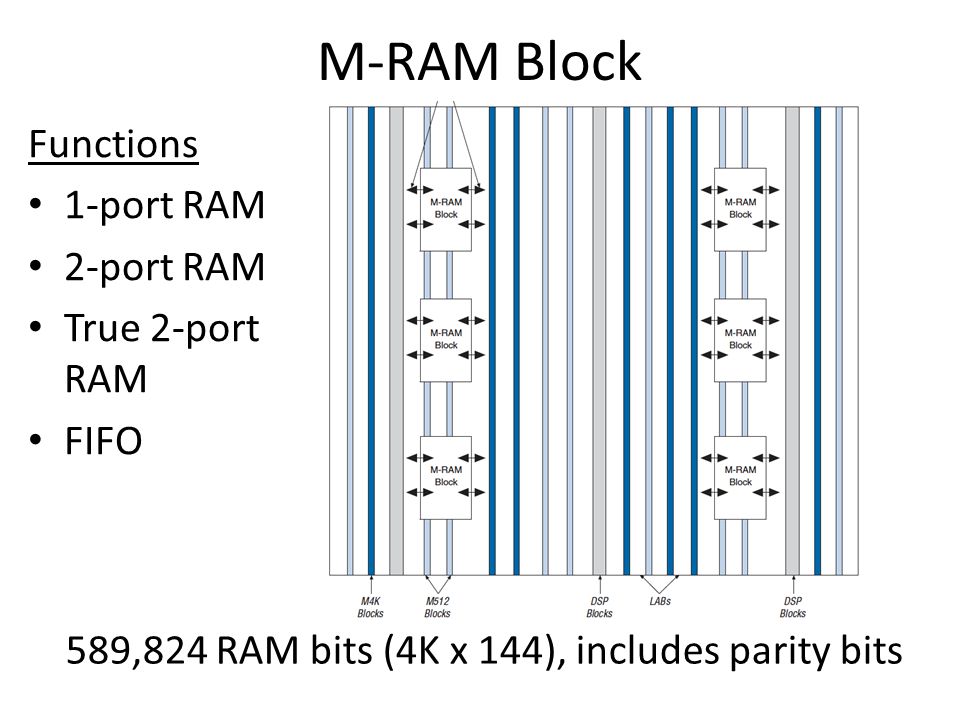

M-RAM Block 589,824 RAM bits (4K x 144), includes parity bits Functions 1-port RAM 2-port RAM True 2-port RAM FIFO

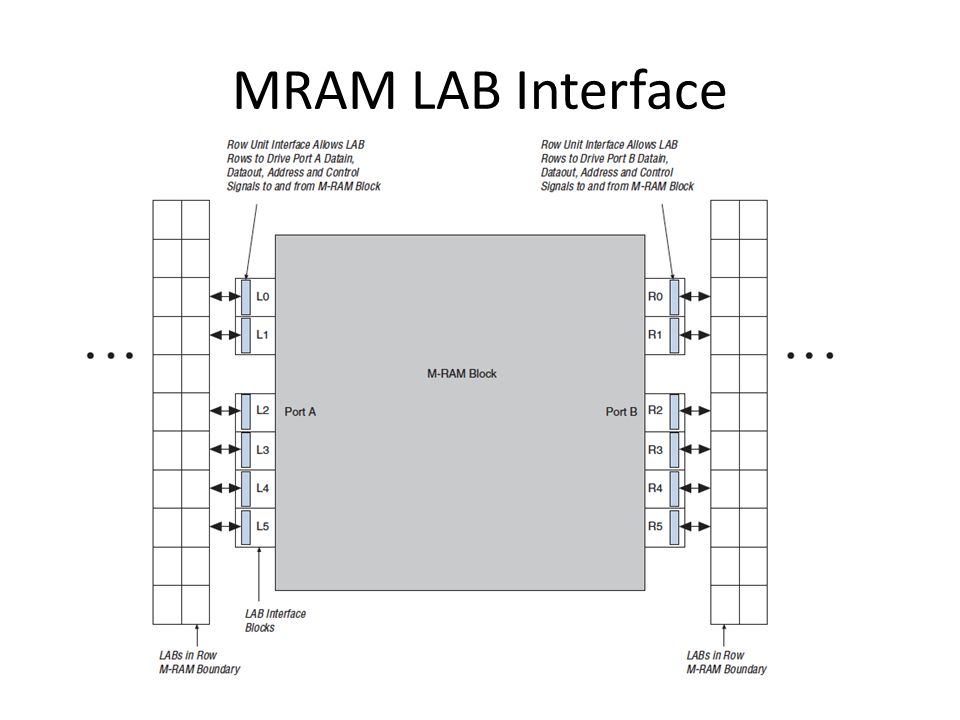

MRAM LAB Interface

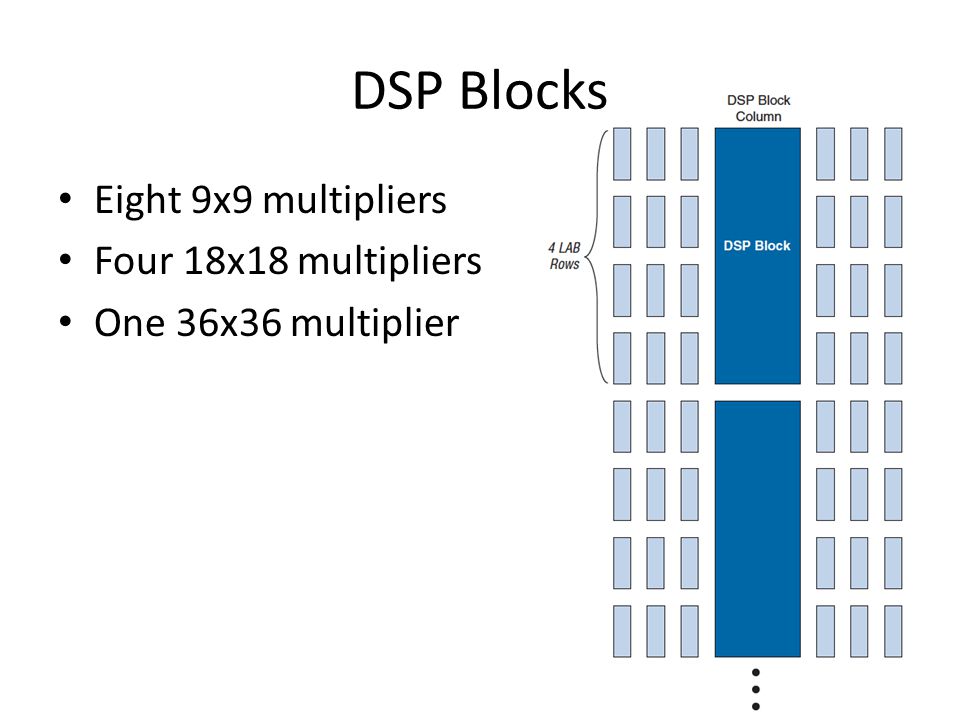

DSP Blocks Eight 9x9 multipliers Four 18x18 multipliers One 36x36 multiplier

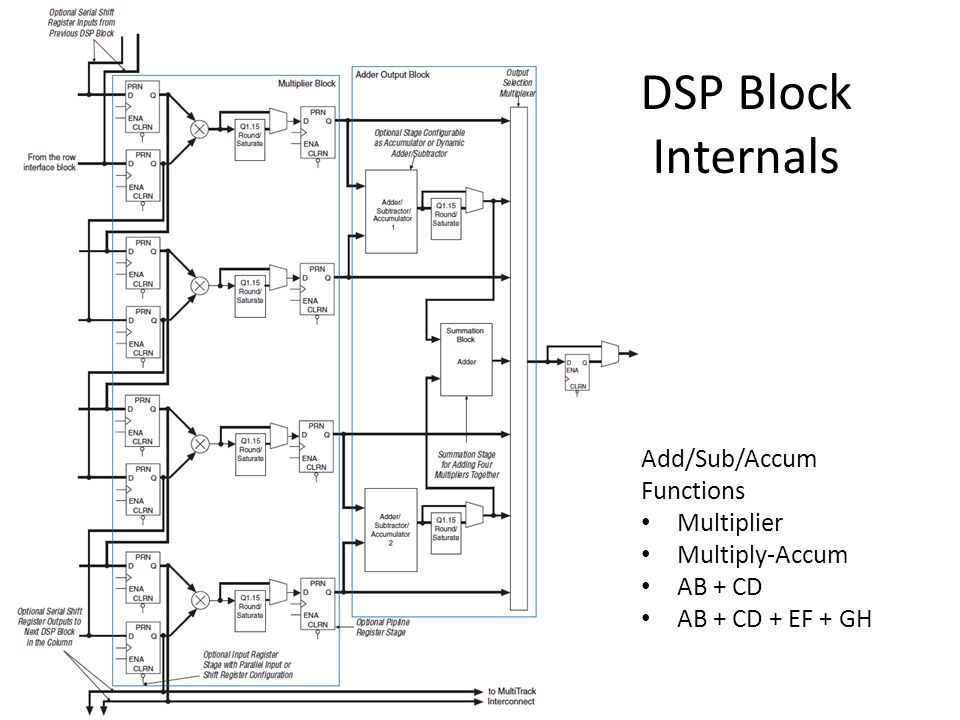

Add/Sub/Accum Functions Multiplier Multiply-Accum AB + CD AB + CD + EF + GH DSP Block Internals

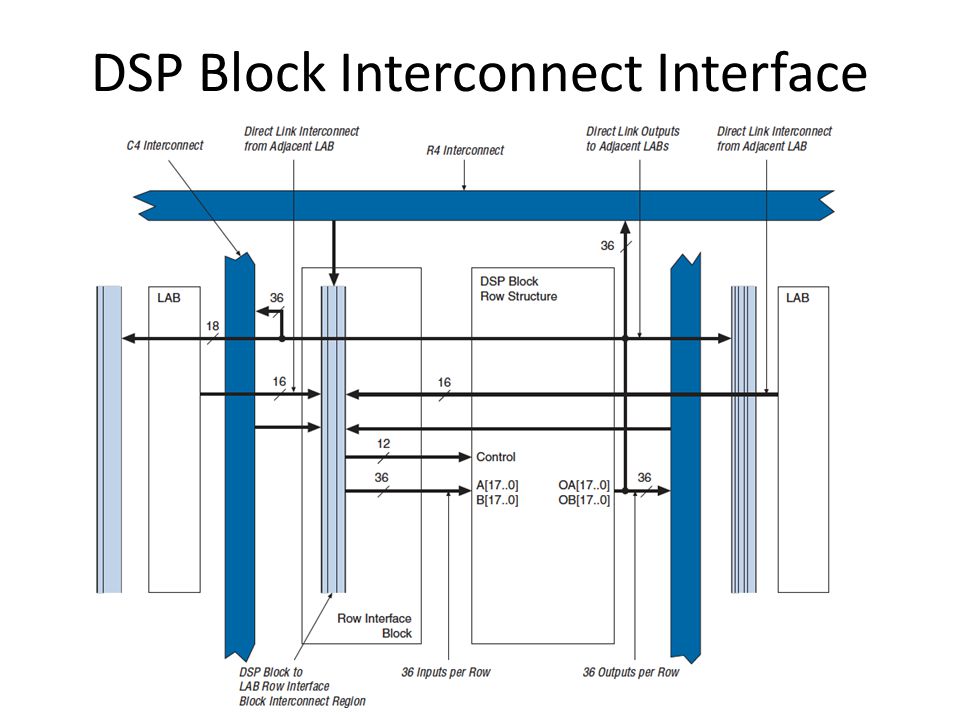

DSP Block Interconnect Interface

Architectural Enhancements in Stratix-III TM and Stratix-IV TM D.M. Lewis, et al., International Symposium on FPGAs, 2009 Online documentation (Stratix III) Online documentation (Stratix IV)

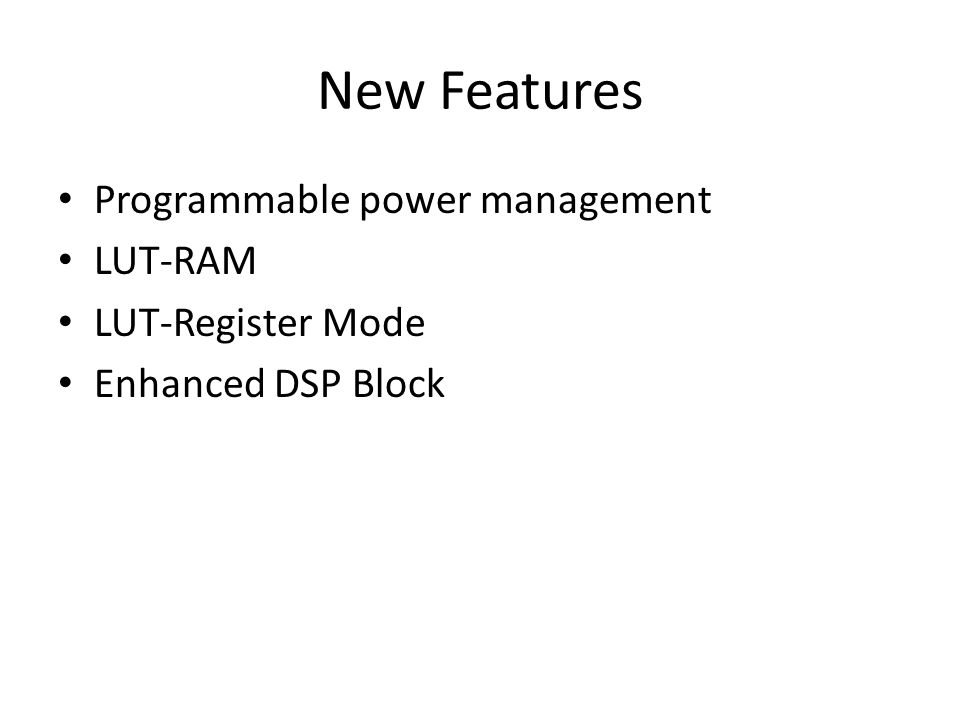

New Features Programmable power management LUT-RAM LUT-Register Mode Enhanced DSP Block

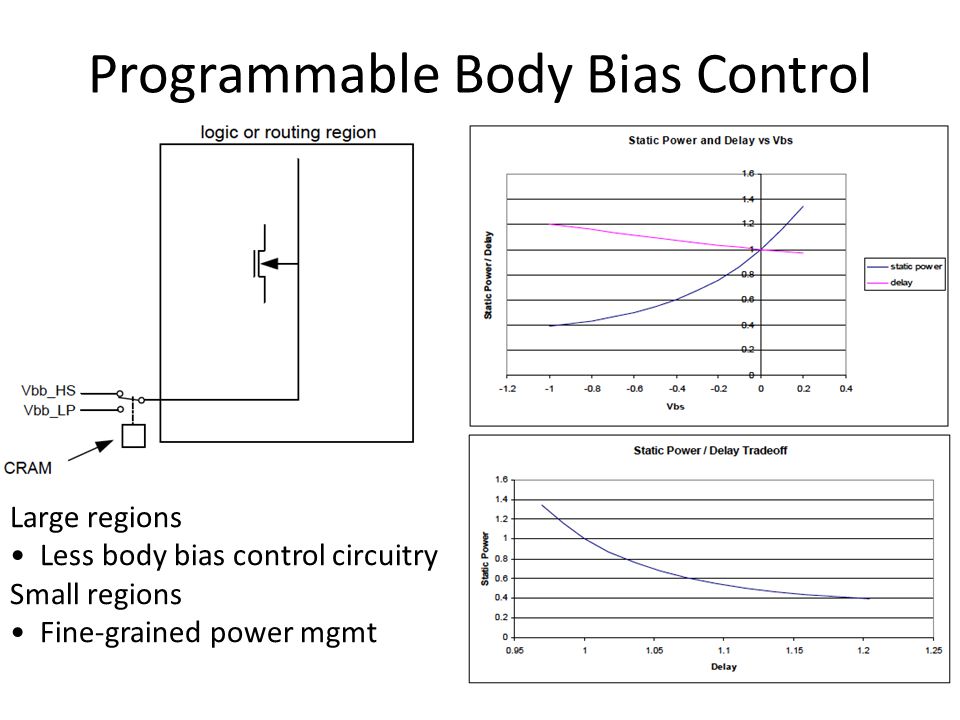

Programmable Body Bias Control Large regions Less body bias control circuitry Small regions Fine-grained power mgmt

Power Efficiency

LUT-RAM SRAM x y Idea Use the SRAM bits as memory Granularity is LAB-wide What is needed? Write capability Signals for address and data for the write path

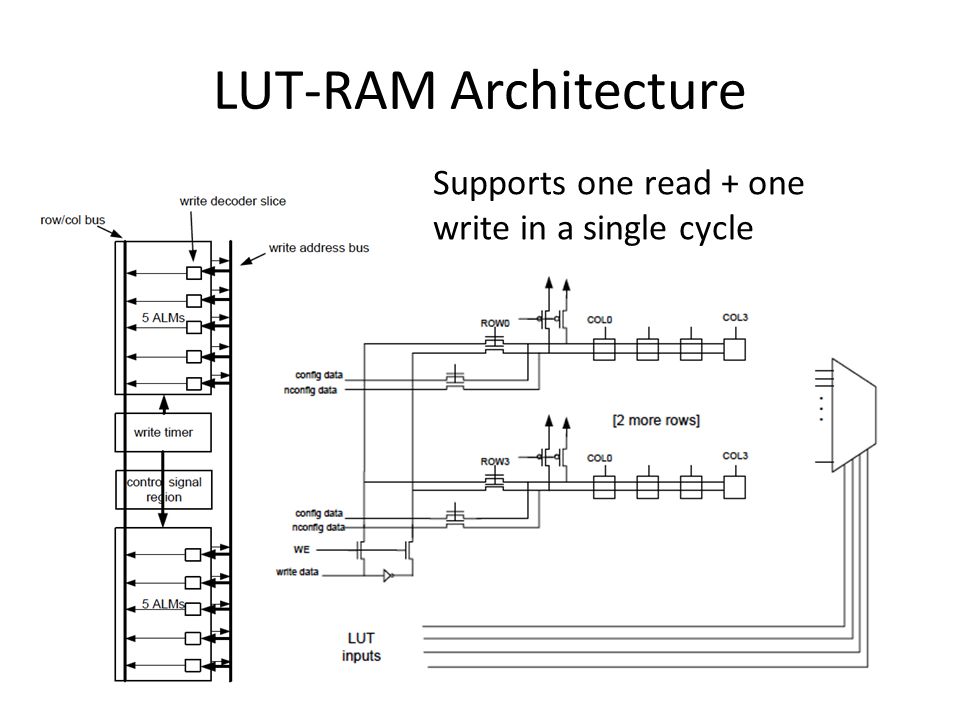

LUT-RAM Architecture Supports one read + one write in a single cycle

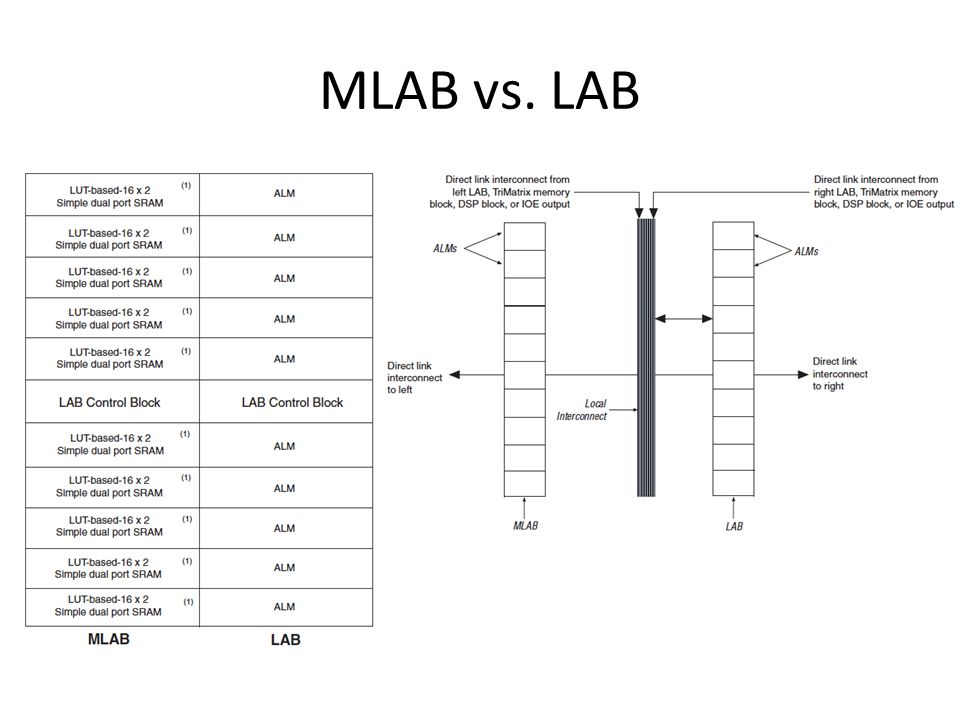

MLAB vs. LAB

ALM LUT-Register Mode

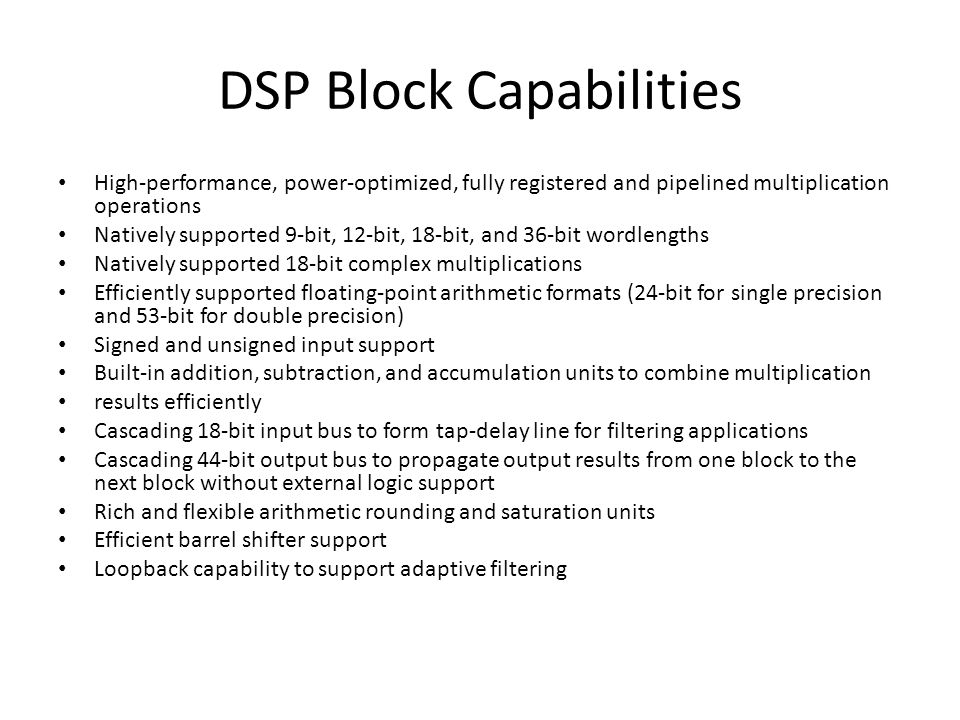

DSP Block Capabilities High-performance, power-optimized, fully registered and pipelined multiplication operations Natively supported 9-bit, 12-bit, 18-bit, and 36-bit wordlengths Natively supported 18-bit complex multiplications Efficiently supported floating-point arithmetic formats (24-bit for single precision and 53-bit for double precision) Signed and unsigned input support Built-in addition, subtraction, and accumulation units to combine multiplication results efficiently Cascading 18-bit input bus to form tap-delay line for filtering applications Cascading 44-bit output bus to propagate output results from one block to the next block without external logic support Rich and flexible arithmetic rounding and saturation units Efficient barrel shifter support Loopback capability to support adaptive filtering

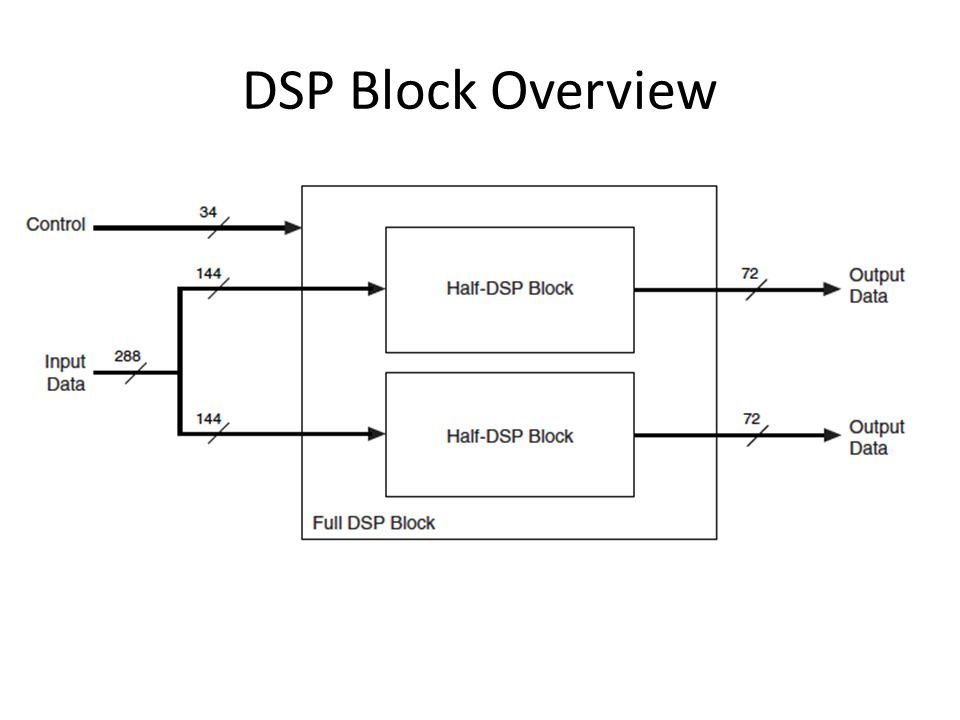

DSP Block Overview

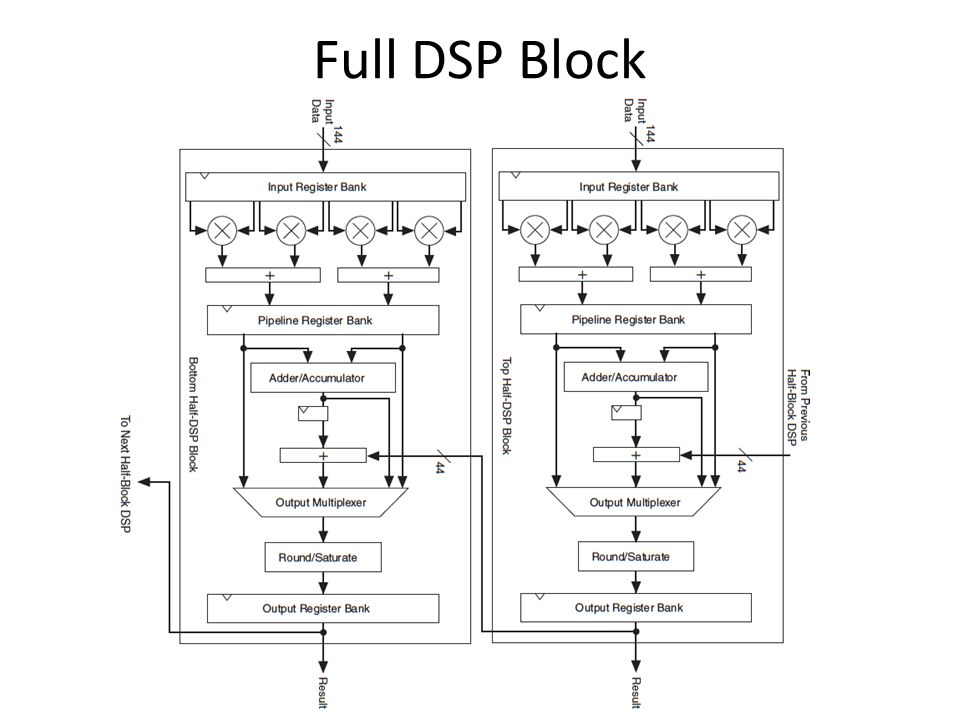

Full DSP Block

Half-DSP Block Architecture

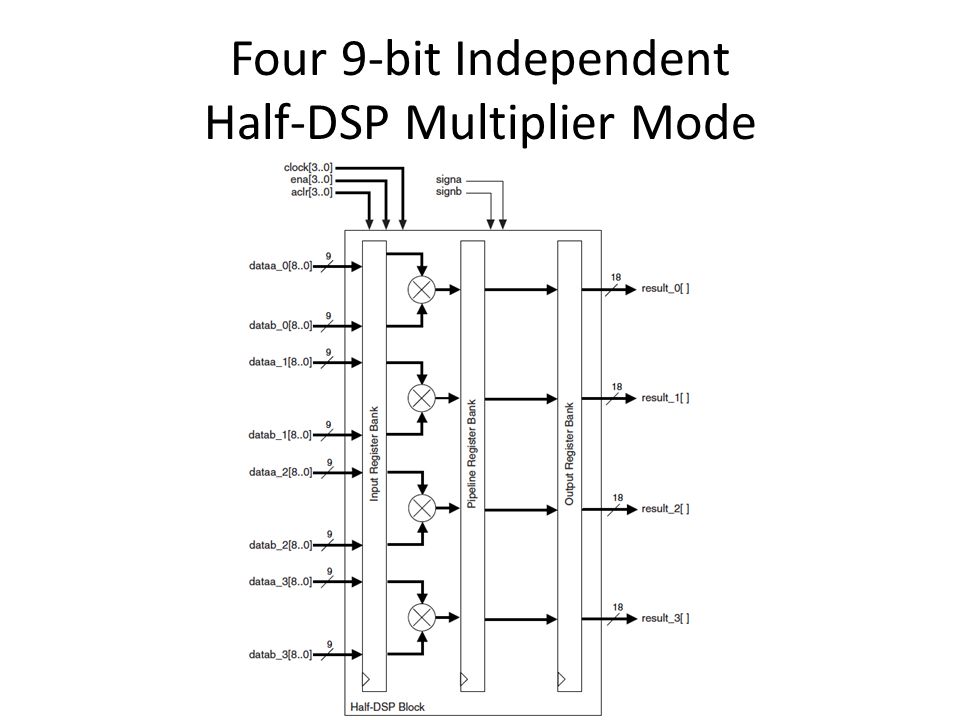

Four 9-bit Independent Half-DSP Multiplier Mode

Three 12-bit Independent Half-DSP Multiplier Mode

Two 18-bit Independent Half-DSP Multiplier Mode

36-bit Half-DSP Multiplier Mode

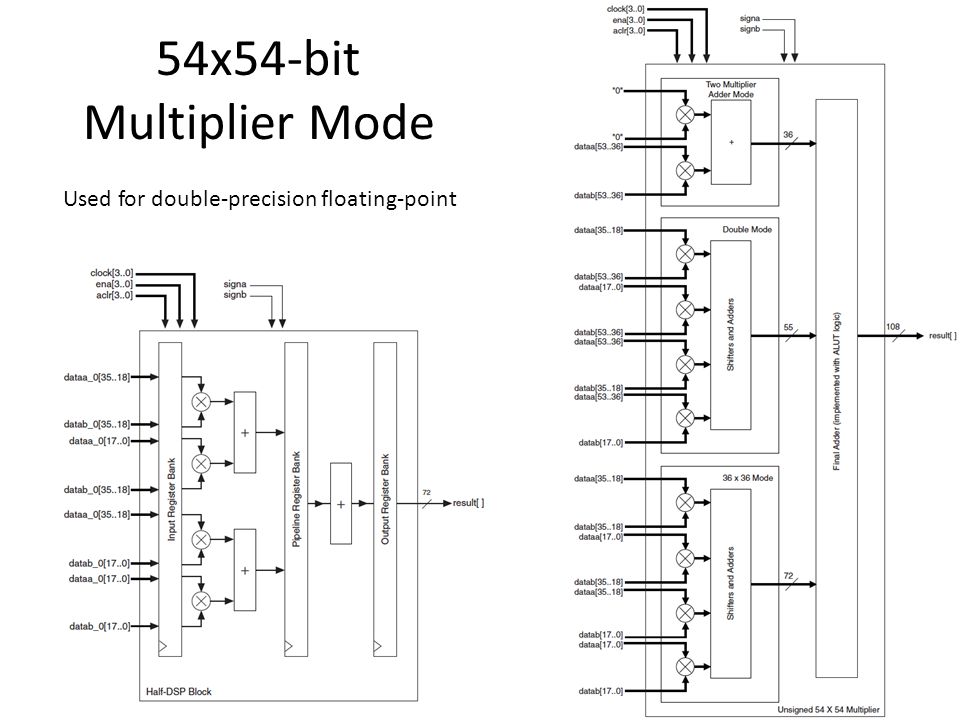

54x54-bit Multiplier Mode Used for double-precision floating-point

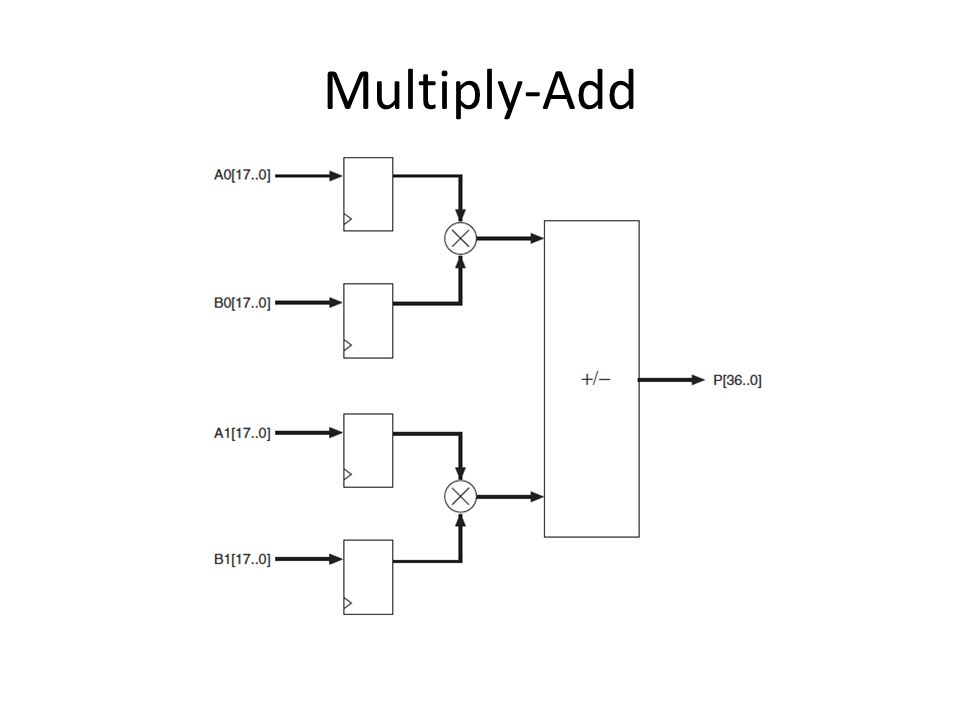

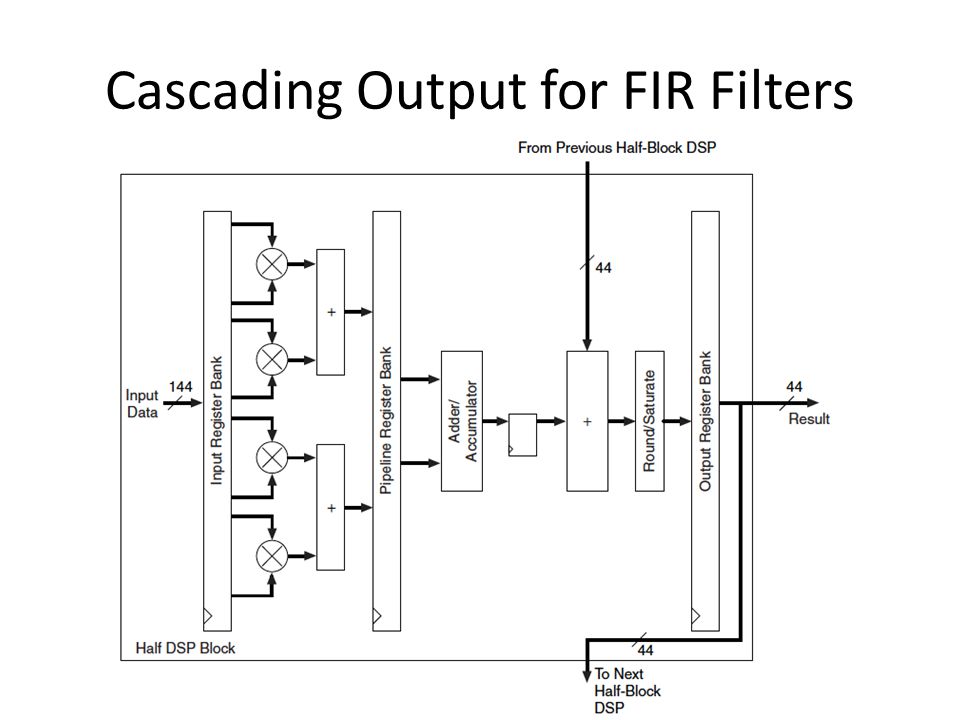

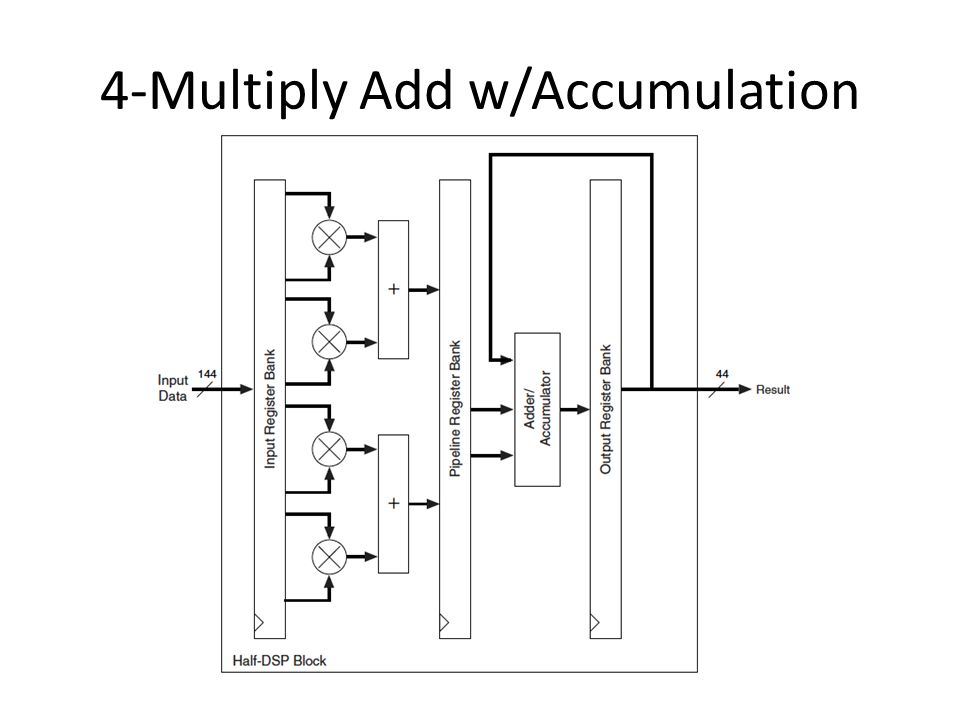

Architectural Enhancements in Stratix-V TM D.M. Lewis, et al., International Symposium on FPGAs, 2013 Online documentation

Larger MLAB/LUT-RAM

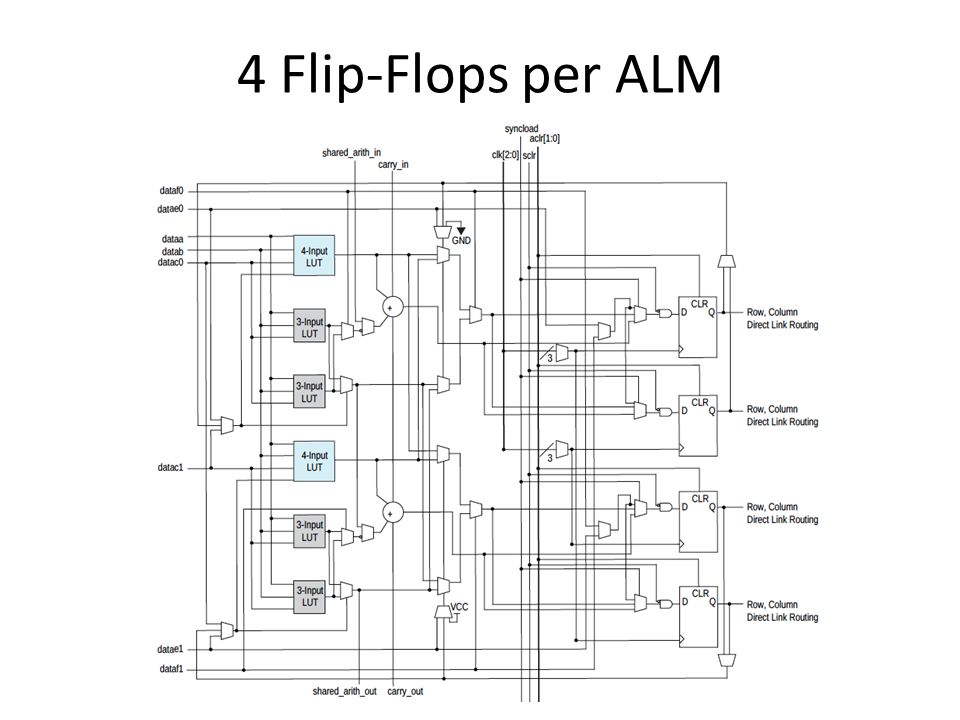

4 Flip-Flops per ALM

Embedded Memories with Error Correction Codes (ECC)
