1 Apparatus Assignments Presentation January 24, 2011

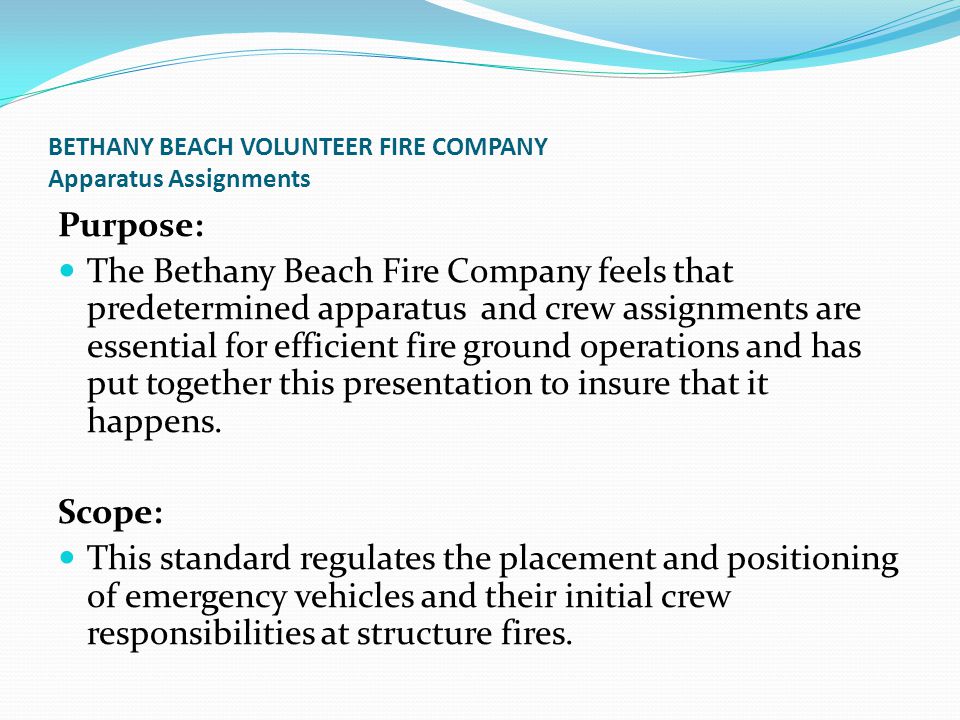

2 BETHANY BEACH VOLUNTEER FIRE COMPANY Apparatus Assignments Purpose: The Bethany Beach Fire Company feels that predetermined apparatus and crew assignments are essential for efficient fire ground operations and has put together this presentation to insure that it happens. Scope: This standard regulates the placement and positioning of emergency vehicles and their initial crew responsibilities at structure fires.

3 Expectations Staffing on all apparatus is at least three, including two SCBA- certified personnel Personnel will be able to complete standard firefighting tasks Apparatus arrival times may be dynamic, and arrival order may be unpredictable Primary and/or secondary hydrants may be unavailable, and alternate means for establishing water supplies may be required Mutual aid companies will be utilized on all confirmed building fires, and all mutual aid companies will be familiar with these standard operating guidelines If a responding company’s officer is unsure of their assignment, they shall request an assignment from the incident commander All personnel and companies will operate under The BBVFC incident command system. Resources for priority 1 structure fires: 4 engine companies, three special service companies, (at least two companies being an aerial ladder truck), one R.I.T. company at least one command officer, one advanced life support unit, and one basic life support unit, and one rehab unit. Additional alarms consist of the closest: Two engine companies, one special service, one R.I.T., and one basic life support ambulance.

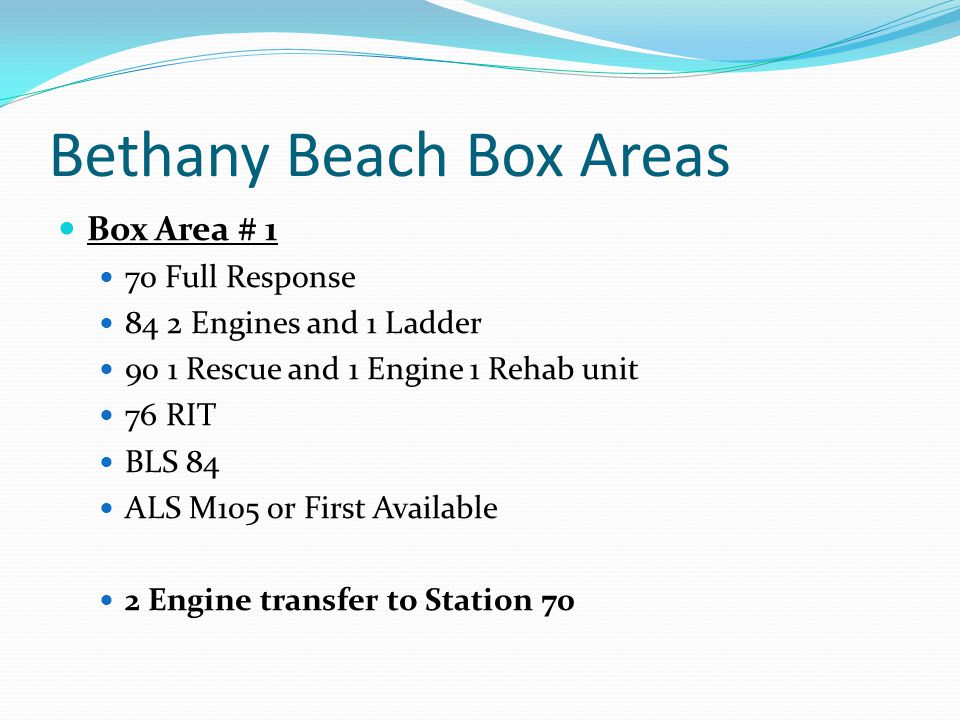

4 Bethany Beach Box Areas Box Area # 1 70 Full Response 84 2 Engines and 1 Ladder 90 1 Rescue and 1 Engine 1 Rehab unit 76 RIT BLS 84 ALS M105 or First Available 2 Engine transfer to Station 70

5 Bethany Beach Box Areas Box Area 2 70 Full Response Engine 90 1 Engine, 1 Truck, 1 Rehab 90, 84 RIT (1 Engine, 1 Rescue) BLS 90 ALS M105 or First Available 2 Engine transfer to Station 70

6 Single Family Detached Home First Due Engine Company Forward lay to scene, or split lay if no water supply is available from the taken direction of travel Position apparatus short of, or past, the front of the building, leaving adequate room for arriving truck companies Give scene size-up, (SEE SCENE SIZE UP SOG) Officer shall complete a 360 , or shall assign a member to complete a complete size-up of the structure. Stretch hose line of adequate length and size to location determined by the Engine officer(min 13/4). Line should be placed between the fire and the possible trapped occupants. Most cases fire extinguishment should be achieved through an offensive attack. At times size-up will indicate otherwise. Conservation of property without undue risk to firefighters should be a strategic goal throughout the entire incident. If company staffing is sufficient, the officer may establish command. If command is not established, it shall be established by the next due apparatus or incoming officer Call for additional resources if it appears they will be needed

7 Single Family Detached Cont. Second Due Engine Company Ensure a water supply has been established. If the first due Engine Company was unable to secure a water supply, the second due engine is responsible for securing the first due Engine Company’s water supply. Position in a location which will not hinder arriving special service companies, usually prior to the incident scene If command has not been established, the officer shall establish command Ensure the first hose line is in operation, and assist the first due engine company’s crew if needed Stretch an additional hose line of equal or greater size and length to reach any point in the structure to include the fire area.

8 Single Family Detached Cont. Third Due Engine Company Establish second water supply to the incident scene Position as close to the structure as possible, leaving room for responding truck companies Assume the Rapid Intervention Team (RIT) duties until assign R.I.T. Company arrives. Complete a second 360  check of the fire structure Establish RIT staging area Deploy a hose line of equal or greater size to the RIT staging. This line should reach all areas with- in the structure.

9 Single Family Detached Cont. Fourth Due Engine Company Ensure second water supply has been established for the scene Assist engine companies on-scene as required

10 Single Family Detached Cont. First Due Truck Company Position apparatus on side alpha of the fire building unless otherwise instructed Officer may establish command, if it has not been established prior to their arrival Chauffer shall position aerial to the structure’s roof, if possible Forcible entry into the fire building shall be completed Primary search shall be completed on the fire floor At least two ground ladders shall be thrown to the roof Incident Commander shall determine if vertical ventilation is required Horizontal ventilation shall be coordinated with interior crews, if applicable Assist with scene lighting Assist with salvage and overhaul operations

11 Single Family Detached Cont. Second Due Truck Company Position apparatus on side charlie, if possible. If access to side charlie is limited, apparatus shall be placed as close to the scene as possible Ensure ground ladders have been thrown to the roof Provide size-up on side charlie, If not already complete. Assist in primary search of the fire floor Assist in horizontal ventilation, coordinating with interior crews Secure utilities Force entry completed on alternate means of entry/egress sites from the fire building Secondary search, if not delegated to another company

12 Single Family Detached Cont. Rescue(3 rd special service) Position as close to the fire building as possible Provide Scene Lighting (Light Tower) Provide manpower to the staging area and R.I.T staging if needed Ensure egress zones (doors, windows) are adequately opened Ensure utilities are secured Ensure equipment is available to the RIT

13 Single Family Detached Cont. R.I.T. R.I.T. companies that are rescue only shall have a engine respond with them, companies that are on an engine can be one piece. Position as close to the structure leaving room for special service companies. Officer should make face to face contact with command and the third due engine company officer if they have already established R.I.T. Complete 360 of the building Establish R.I.T. staging if not already done so by 3 rd due engine company Deploy hose line of equal or greater size to the staging area. This line should reach all areas with-in the structure.

14 Single Family Detached Cont. Advanced Life Support Unit Stage in an area close to the fire building, but not inhibiting responding fire apparatus Ensure a rehabilitation area is established Provide medical support Establish Rehabilitation Group Maintain communication with Accountability Officer Basic Life Support Unit Stage in an area close to the fire building, but not inhibiting responding fire apparatus Ensure a rehabilitation area is established Provide medical support

15 Single Family Detached Cont. Rehab Unit Shall stage with or as close to the established rehab area Assist with rehab and give medical support Additional Responding Apparatus Shall be staged away from the incident scene until given further orders

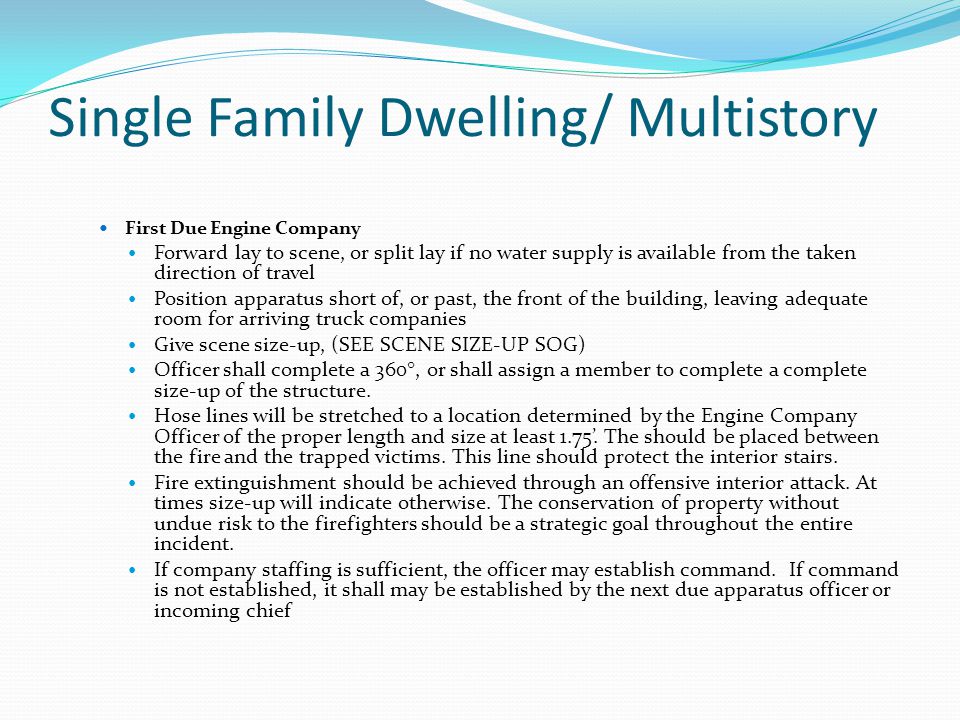

16 Single Family Dwelling/ Multistory First Due Engine Company Forward lay to scene, or split lay if no water supply is available from the taken direction of travel Position apparatus short of, or past, the front of the building, leaving adequate room for arriving truck companies Give scene size-up, (SEE SCENE SIZE-UP SOG) Officer shall complete a 360 , or shall assign a member to complete a complete size-up of the structure. Hose lines will be stretched to a location determined by the Engine Company Officer of the proper length and size at least 1.75’. The should be placed between the fire and the trapped victims. This line should protect the interior stairs. Fire extinguishment should be achieved through an offensive interior attack. At times size-up will indicate otherwise. The conservation of property without undue risk to the firefighters should be a strategic goal throughout the entire incident. If company staffing is sufficient, the officer may establish command. If command is not established, it shall may be established by the next due apparatus officer or incoming chief

17 Single Family Dwelling/Multistory Second Due Engine Company Ensure a water supply has been established. If the first due Engine Company was unable to secure a water supply, the second due engine is responsible for securing the first due Engine Company’s water supply. Position in a location which will not hinder arriving special service companies, usually prior to the incident scene If command has not been established, the officer may establish command Ensure the first hose line is in operation, and assist the first due engine company’s crew if needed Stretch an additional hose line of equal or greater size to reach any point in the structure including the fire area. Attention should be given to ensuring the interior stairwell is protected for occupant evacuation or removal

18 Single Family Dwelling/Multistory Third Due Engine Company Establish second water supply to the incident scene Position as close to the structure as possible, leaving room for responding truck companies Assume the Rapid Intervention Team (RIT) duties until assign R.I.T. Company arrives. Complete a second 360  check of the fire structure Establish RIT staging area Deploy a hose line of equal or greater size to the RIT staging area Fourth Due Engine Company Ensure second water supply has been established for the scene Deploy a hose line of equal or greater size to the fire floor, floor below, or to the attic as required

19 Single Family Dwelling/ Multistory First Due Truck Company Position apparatus on side alpha of the fire building unless otherwise instructed Driver shall position aerial to a window to affect a rescue, if applicable. If no rescue is required, aerial shall be utilized to assist in horizontal or vertical ventilation, as required Forcible entry into the fire building shall be completed Primary search shall be completed first on the fire floor, unless reports indicate victims may be located elsewhere, then the floor above, if applicable Ground ladders shall be thrown to the fire building’s alpha-side and bravo-side windows. Incident Commander shall determine if vertical ventilation is required Horizontal ventilation shall be coordinated with interior crews, if applicable Assist with scene lighting Assist with salvage and overhaul operations

20 Single Family Dwelling/Multistory Second Due Truck Company Position apparatus on side charlie, if possible. If access to side charlie is limited, apparatus shall be placed as close to the scene as possible Ground ladders shall be thrown to the charlie-side and delta-side windows Provide size-up of side charlie, if not completed prior to arrival Primary search shall be completed of the floor below or above, as needed unless directed otherwise Assist in horizontal ventilation, coordinating with interior crews Secure utilities Forcible entry completed on alternate entry/egress sites from the fire building Secondary search, if not delegated to another company

21 Single Family Dwelling/Multistory Rescue(Third Due Special Service) Position as close to the fire building as possible Assist with searches as needed Provide manpower to the RIT staging area Ensure egress zones (doors, windows) are adequately opened Ensure utilities are controlled Ensure equipment is available to the RIT

22 Single Family Dwelling/Multistory R.I.T. R.I.T. companies that are rescue only shall have a engine respond with them, companies that are on an engine can be one piece. Position as close to the structure leaving room for special service companies. Officer should make face to face contact with command and the third due engine company officer if they have already established R.I.T. Complete 360 of the building Establish R.I.T. staging if not already done so by 3 rd due engine company Deploy hose line of equal or greater size to the staging area. This line should reach all areas with-in the structure.

23 Single Family Dwelling/Multistory Advanced Life Support Unit Stage in an area close to the fire building, but not inhibiting responding fire apparatus Ensure a rehabilitation area is established Provide medical support Establish Rehabilitation Group Maintain communication with Accountability Officer Basic Life Support Unit Stage in an area close to the fire building, but not inhibiting responding fire apparatus Ensure a rehabilitation area is established Provide medical support

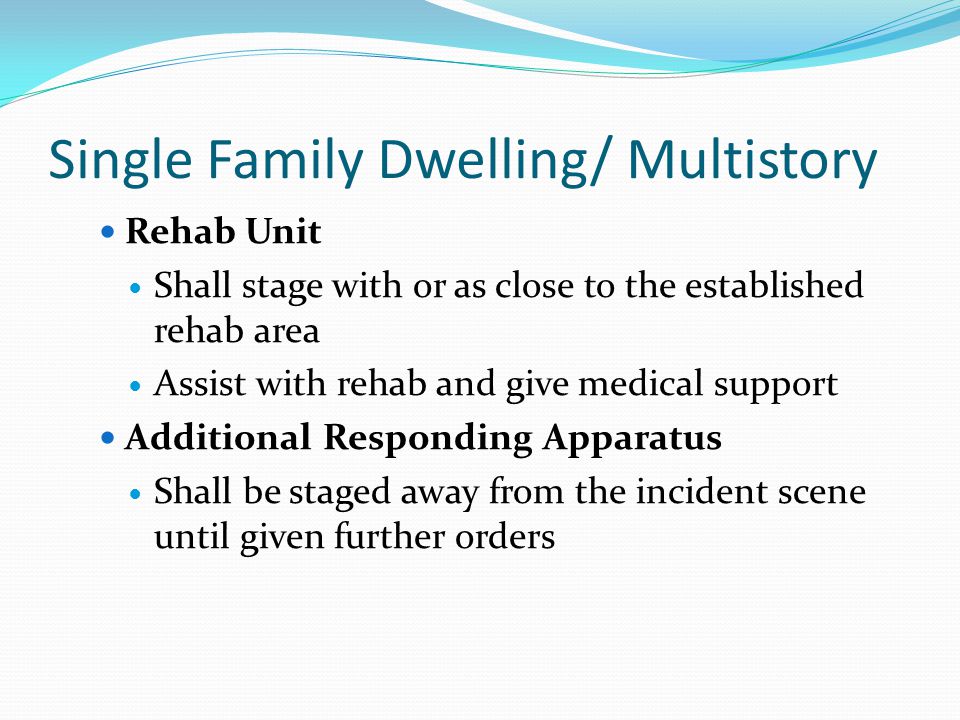

24 Single Family Dwelling/ Multistory Rehab Unit Shall stage with or as close to the established rehab area Assist with rehab and give medical support Additional Responding Apparatus Shall be staged away from the incident scene until given further orders

25 Multi-Family Dwellings Town Homes / High-Rises First Due Engine Company Forward lay to scene, or split lay if no water supply is available from the taken direction of travel Position apparatus short of, or past, the front of the building, leaving adequate room for arriving truck companies If standpipe or sprinkler connection is present, apparatus shall be located in a manner in which the connection can be supplied Give scene size-up, (SEE SIZE-UP SOG) Officer shall complete a 360 , or shall assign a member to complete a complete size-up of the structure Fire extinguishment should be achieved through an offensive interior attack. At times size-up will indicate otherwise; however, personnel should anticipate an interior attack The conservation of property without undue risk to firefighters should be a strategic goal throughout the entire incident Attention must be given to protecting the main stairways for occupant evacuation and removal If company staffing is sufficient, the officer may establish command. If command is not established, it shall be established by the next due apparatus officer or incoming chief

26 Multi-Family Dwellings Town Homes / High-Rises Second Due Engine Company Ensure a water supply has been established. If the first due Engine Company was unable to secure a water supply, the second due engine is responsible for securing the first due Engine Company’s water supply. Secure secondary water supply If assignment has been altered to supply first due engine company, it must be communicated to the incident commander Position apparatus on charlie-side of fire building, if possible If assignment has been altered to supply first due engine company, it must be communicated to the incident commander Supply standpipe and sprinkler connections if not completed Ensure the first hose line is in operation, and assist the first due engine company’s crew if needed Stretch an additional hose line of equal or greater size to the fire area, or the floor above as needed Attention should be given to ensuring the interior stairwell is protected for occupant evacuation or removal

27 Multi-Family Dwellings Town Homes / High-Rises Third Due Engine Company Secure first due engine company’s water supply, if required Position as close to the structure as possible, leaving room for responding truck companies Fire location will dictate apparatus location Assume the Rapid Intervention Team (RIT) duties until assign R.I.T. Company arrives. Complete a second 360  check of the fire structure Establish RIT staging area Deploy a hose line of equal or greater size to the RIT staging area

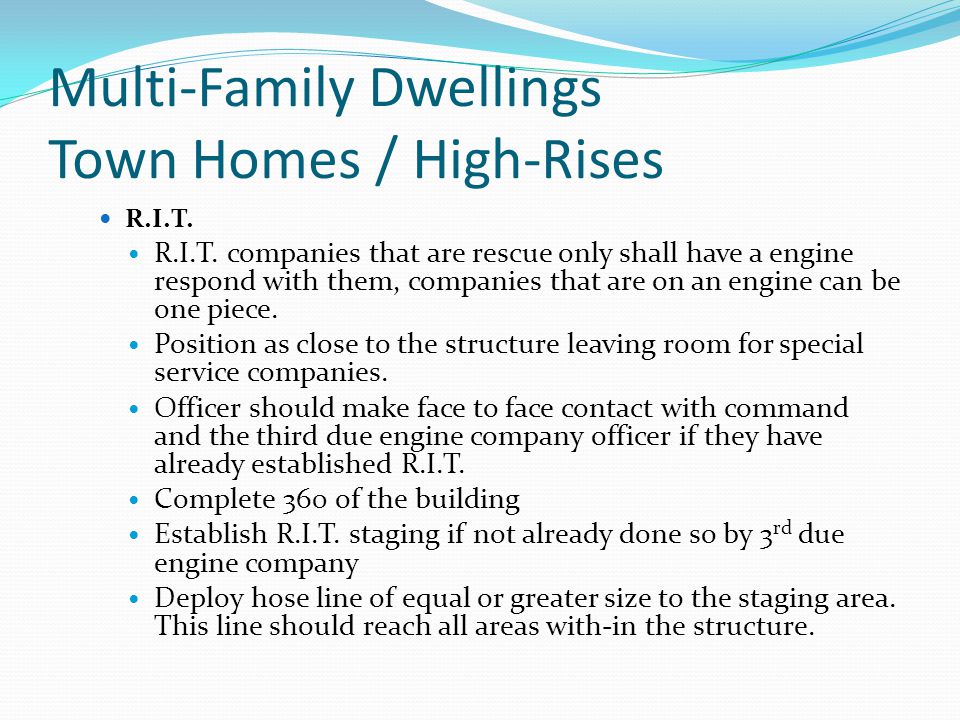

28 Multi-Family Dwellings Town Homes / High-Rises R.I.T. R.I.T. companies that are rescue only shall have a engine respond with them, companies that are on an engine can be one piece. Position as close to the structure leaving room for special service companies. Officer should make face to face contact with command and the third due engine company officer if they have already established R.I.T. Complete 360 of the building Establish R.I.T. staging if not already done so by 3 rd due engine company Deploy hose line of equal or greater size to the staging area. This line should reach all areas with-in the structure.

29 Multi-Family Dwellings Town Homes / High-Rises Fourth Due Engine Company Ensure second water supply has been established for the scene Secure second due engine company’s water supply Deploy a hose line of equal or greater size to the fire floor, floor below, the attic, or to exposure buildings, as required

30 Multi-Family Dwellings Town Homes / High-Rises First Due Truck Company Position apparatus on side alpha of the fire building unless otherwise instructed Driver shall position aerial to a window to affect a rescue, if applicable. If no rescue is required, aerial shall be utilized to assist in horizontal or vertical ventilation, as required Special focus should be given to ventilating interior stairwells, to ensure occupants may escape Forcible entry into the fire building shall be completed Primary search shall be completed first on the fire floor, unless reports indicate victims may be located elsewhere, then the floor above the fire Ground ladders shall be thrown to the alpha-side and closest side, or closest exposure buildings, if attached Incident Commander shall determine if vertical ventilation is required Horizontal ventilation shall be coordinated with interior crews, if applicable Assist with scene lighting Assist with salvage and overhaul operations

31 Multi-Family Dwellings Town Homes / High-Rises Second Due Truck Company Position apparatus on side charlie, if possible. If access to side charlie is limited, apparatus shall be placed as close to the scene as possible Ground ladders shall be thrown to the charlie-side and closest side, or closest exposure buildings, if attached. Provide size-up of side charlie, if not completed prior to arrival Primary search shall be completed of the floor above, unless directed otherwise Assist in horizontal ventilation, coordinating with interior crews Secure utilities Forcible entry completed on alternate entry/egress sites from the fire building Secondary search, if not delegated to another company

32 Multi-Family Dwellings Town Homes / High-Rises Rescue (Third Due Special Service) Position as close to the fire building as possible Assist with searches as needed Provide manpower to the RIT staging area Ensure egress zones (doors, windows) are adequately opened Ensure utilities are controlled Ensure equipment is available to the RIT

33 Multi-Family Dwellings Town Homes / High-Rises Advanced Life Support Unit Stage in an area close to the fire building, but not inhibiting responding fire apparatus Ensure a rehabilitation area is established Provide medical support Establish Rehabilitation Group Maintain communication with Accountability Officer Basic Life Support Unit Stage in an area close to the fire building, but not inhibiting responding fire apparatus Ensure a rehabilitation area is established Provide medical support

34 Multi-Family Dwellings Town Homes / High-Rises Rehab Unit Shall stage with or as close to the established rehab area Assist with rehab and give medical support

35 Commercial Structures Same procedures as high-rise with the exception that the first line pulled should be a 2.”

36 Conclusion Thank you for your participation!
