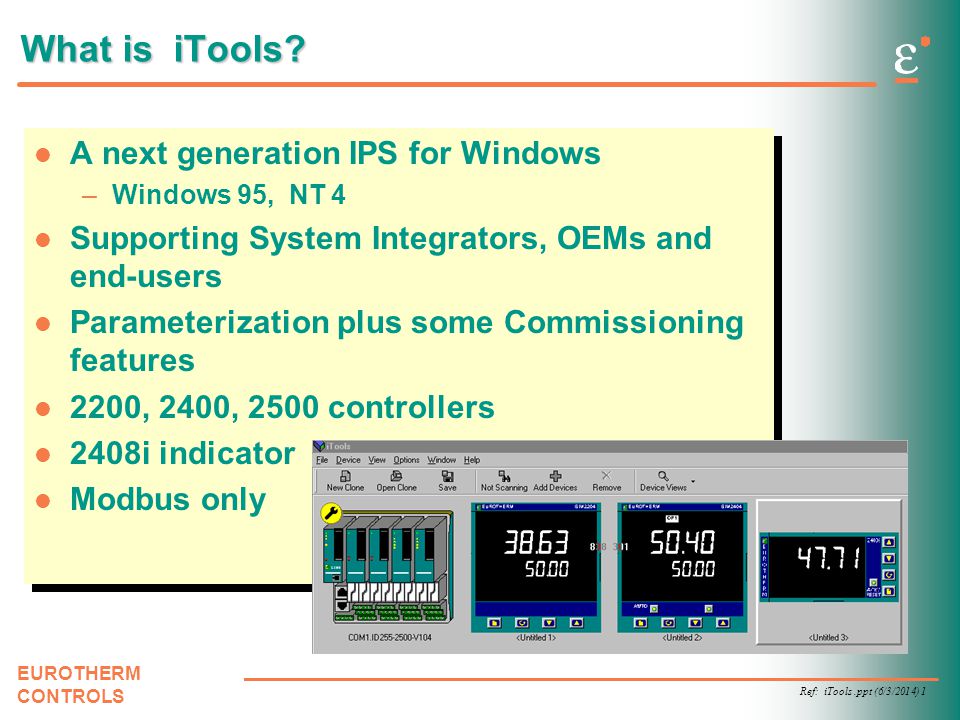

1 Ref: iTools.ppt (6/3/2014) 1 EUROTHERM CONTROLS What is iTools? A next generation IPS for Windows –Windows 95, NT 4 Supporting System Integrators, OEMs and end-users Parameterization plus some Commissioning features 2200, 2400, 2500 controllers 2408i indicator Modbus only A next generation IPS for Windows –Windows 95, NT 4 Supporting System Integrators, OEMs and end-users Parameterization plus some Commissioning features 2200, 2400, 2500 controllers 2408i indicator Modbus only

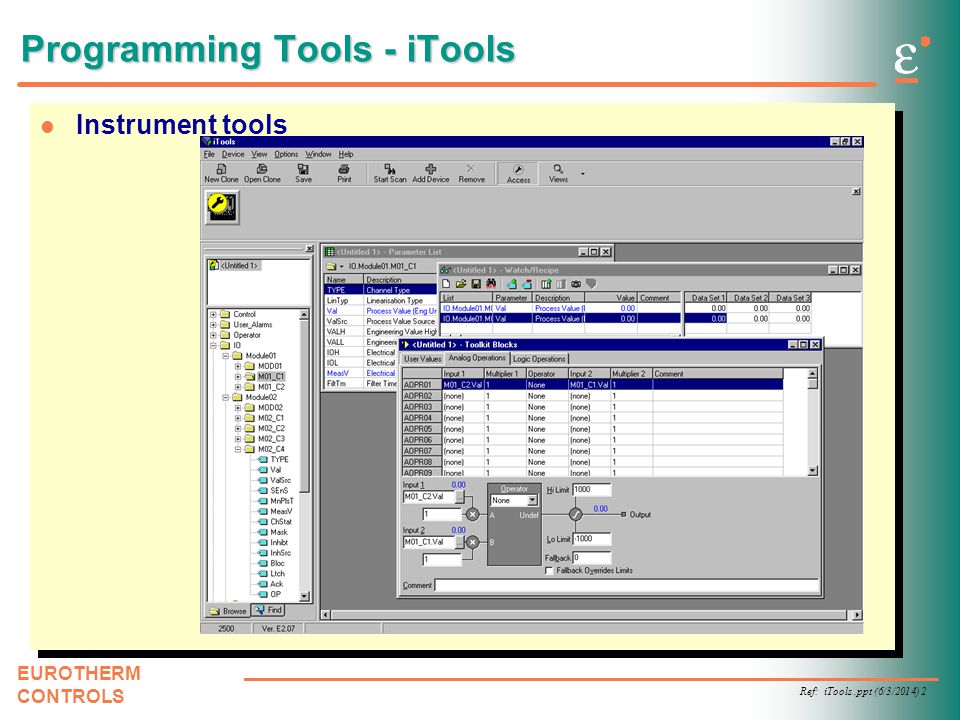

2 Ref: iTools.ppt (6/3/2014) 2 EUROTHERM CONTROLS l Instrument tools Programming Tools - iTools

3 Ref: iTools.ppt (6/3/2014) 3 EUROTHERM CONTROLS iTools Functionality Live panel mimics –2200, 2400 Full parameter lists –Option to show relevant parameters only Cloning User Wiring Editor –2500 only Simple Recipes Watch Window All functionality available for both on-line and off-line configuration Live panel mimics –2200, 2400 Full parameter lists –Option to show relevant parameters only Cloning User Wiring Editor –2500 only Simple Recipes Watch Window All functionality available for both on-line and off-line configuration

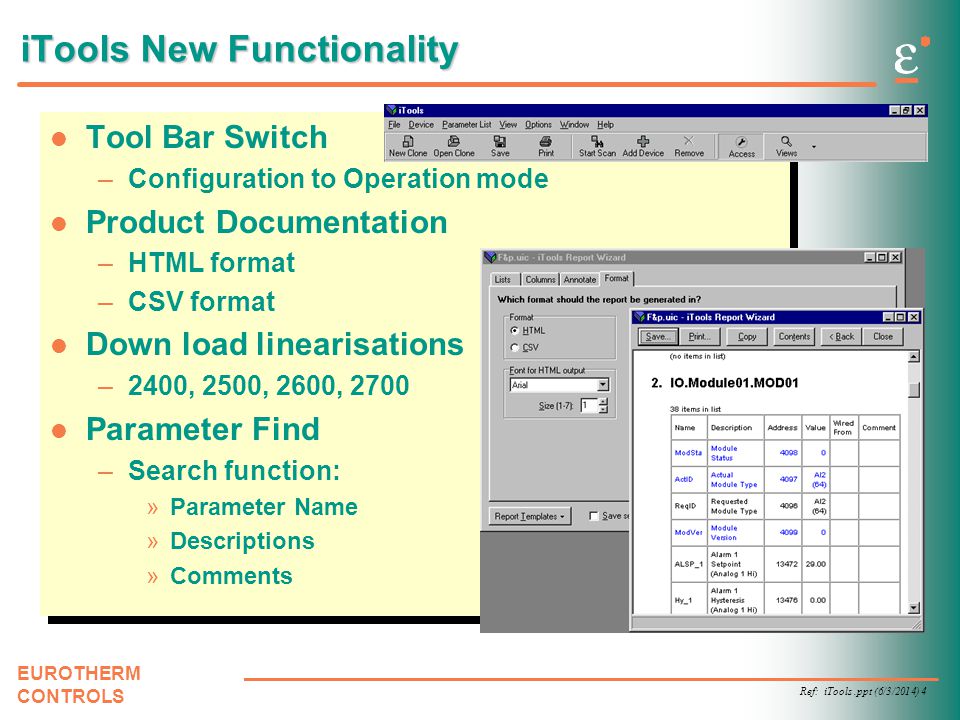

4 Ref: iTools.ppt (6/3/2014) 4 EUROTHERM CONTROLS iTools New Functionality Tool Bar Switch –Configuration to Operation mode Product Documentation –HTML format –CSV format Down load linearisations –2400, 2500, 2600, 2700 Parameter Find –Search function: »Parameter Name »Descriptions »Comments Tool Bar Switch –Configuration to Operation mode Product Documentation –HTML format –CSV format Down load linearisations –2400, 2500, 2600, 2700 Parameter Find –Search function: »Parameter Name »Descriptions »Comments

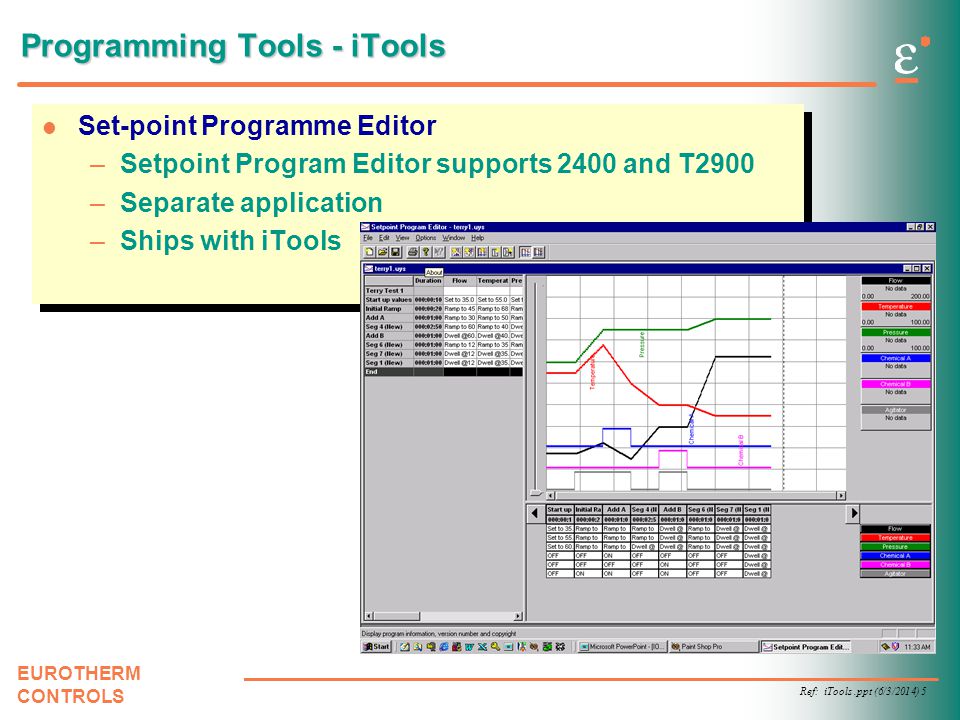

5 Ref: iTools.ppt (6/3/2014) 5 EUROTHERM CONTROLS Programming Tools - iTools l Set-point Programme Editor –Setpoint Program Editor supports 2400 and T2900 –Separate application –Ships with iTools l Set-point Programme Editor –Setpoint Program Editor supports 2400 and T2900 –Separate application –Ships with iTools

6 Ref: iTools.ppt (6/3/2014) 6 EUROTHERM CONTROLS iTools OPC Explorer Commissioning Utility –Trending –Data Logging –DDE Server Commissioning Utility –Trending –Data Logging –DDE Server

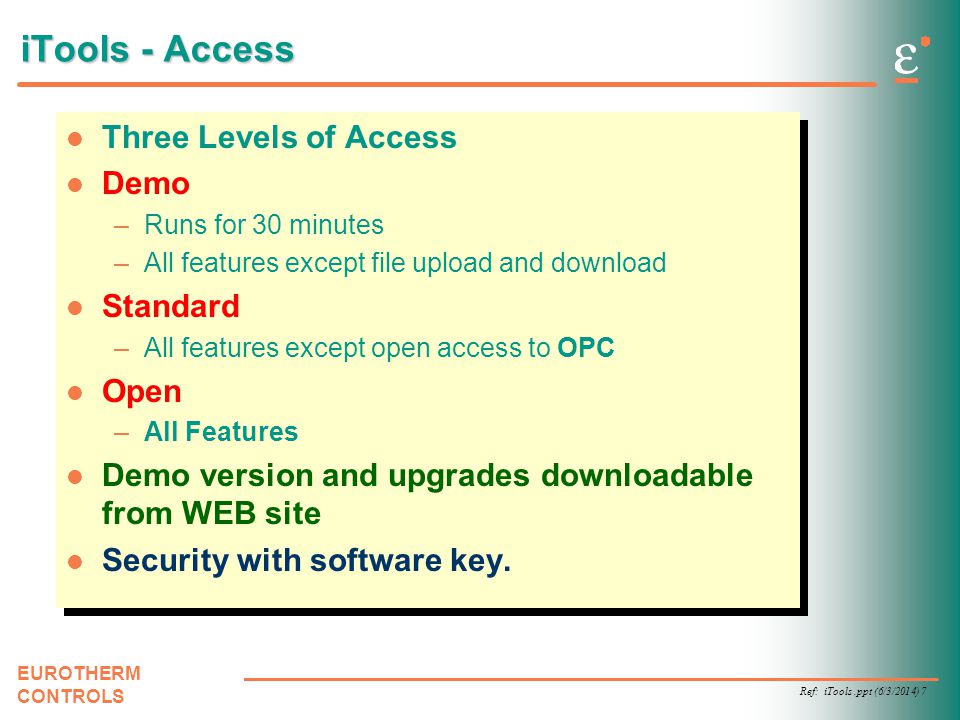

7 Ref: iTools.ppt (6/3/2014) 7 EUROTHERM CONTROLS iTools - Access Three Levels of Access Demo –Runs for 30 minutes –All features except file upload and download Standard –All features except open access to OPC Open –All Features Demo version and upgrades downloadable from WEB site Security with software key. Three Levels of Access Demo –Runs for 30 minutes –All features except file upload and download Standard –All features except open access to OPC Open –All Features Demo version and upgrades downloadable from WEB site Security with software key.

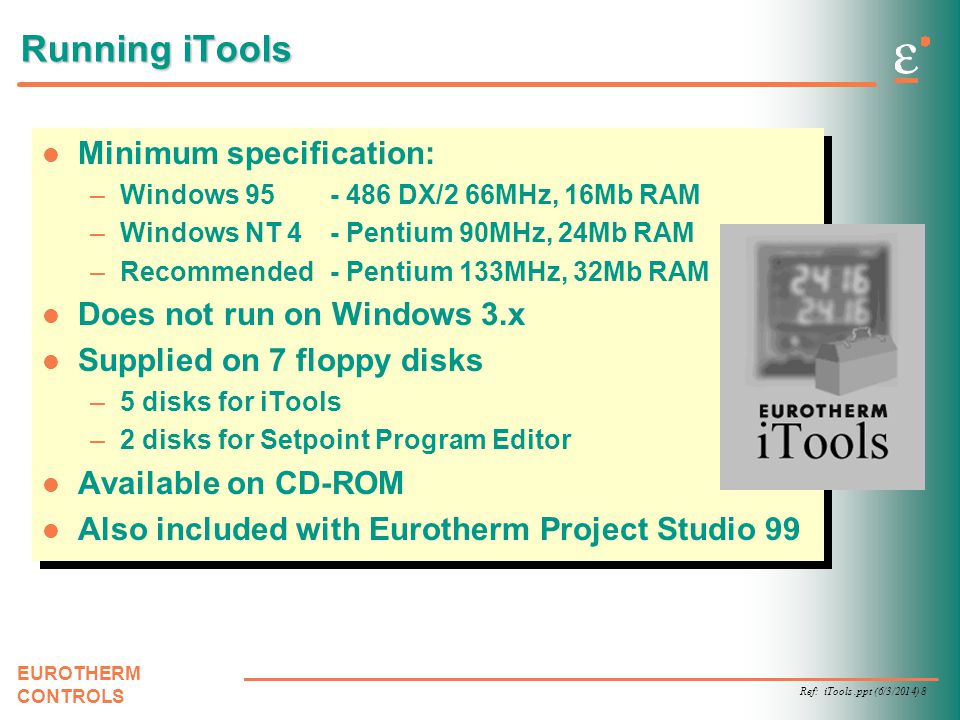

8 Ref: iTools.ppt (6/3/2014) 8 EUROTHERM CONTROLS Running iTools Minimum specification: –Windows DX/2 66MHz, 16Mb RAM –Windows NT 4 - Pentium 90MHz, 24Mb RAM –Recommended - Pentium 133MHz, 32Mb RAM Does not run on Windows 3.x Supplied on 7 floppy disks –5 disks for iTools –2 disks for Setpoint Program Editor Available on CD-ROM Also included with Eurotherm Project Studio 99 Minimum specification: –Windows DX/2 66MHz, 16Mb RAM –Windows NT 4 - Pentium 90MHz, 24Mb RAM –Recommended - Pentium 133MHz, 32Mb RAM Does not run on Windows 3.x Supplied on 7 floppy disks –5 disks for iTools –2 disks for Setpoint Program Editor Available on CD-ROM Also included with Eurotherm Project Studio 99

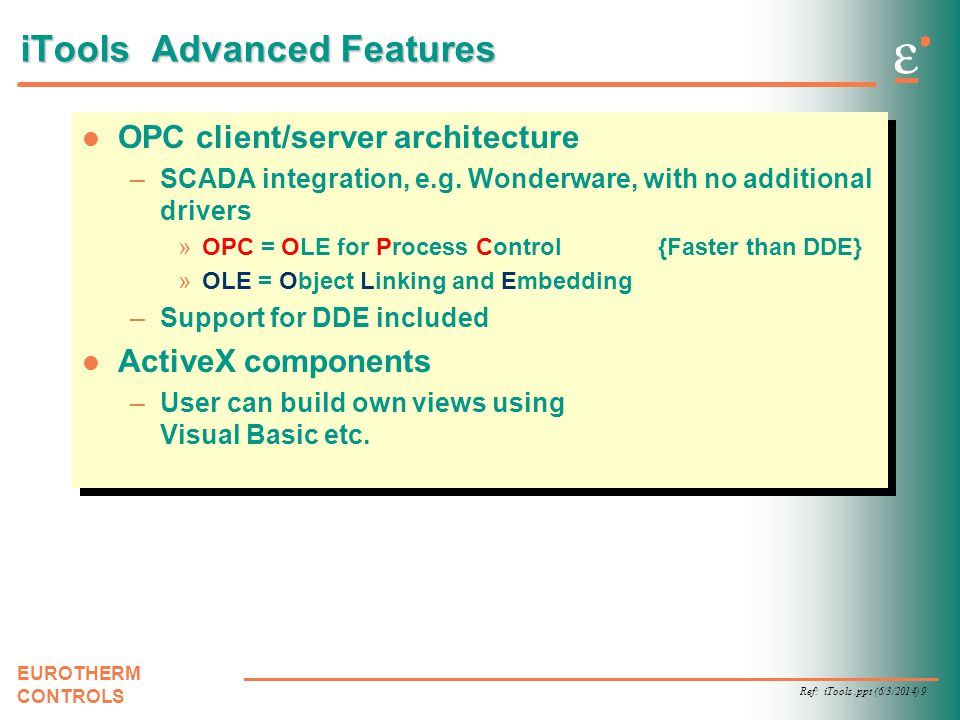

9 Ref: iTools.ppt (6/3/2014) 9 EUROTHERM CONTROLS iTools Advanced Features OPC client/server architecture –SCADA integration, e.g. Wonderware, with no additional drivers »OPC = OLE for Process Control{Faster than DDE} »OLE = Object Linking and Embedding –Support for DDE included ActiveX components –User can build own views using Visual Basic etc. OPC client/server architecture –SCADA integration, e.g. Wonderware, with no additional drivers »OPC = OLE for Process Control{Faster than DDE} »OLE = Object Linking and Embedding –Support for DDE included ActiveX components –User can build own views using Visual Basic etc.
