1. 80386DX

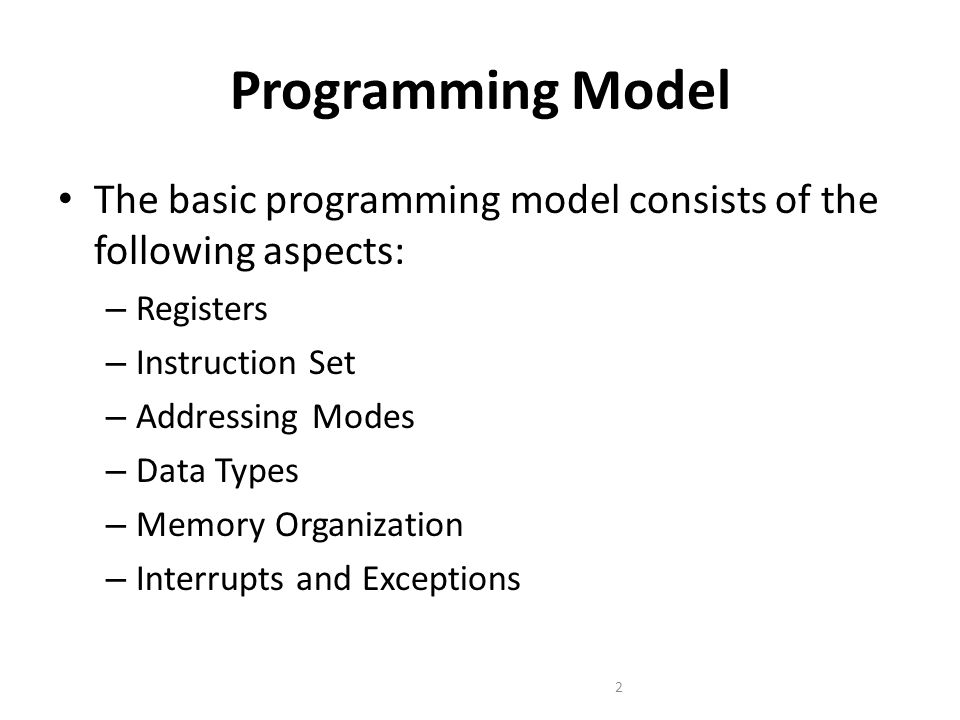

2. Programming Model The basic programming model consists of the following aspects: – Registers – Instruction Set – Addressing Modes – Data Types – Memory Organization – Interrupts and Exceptions 2

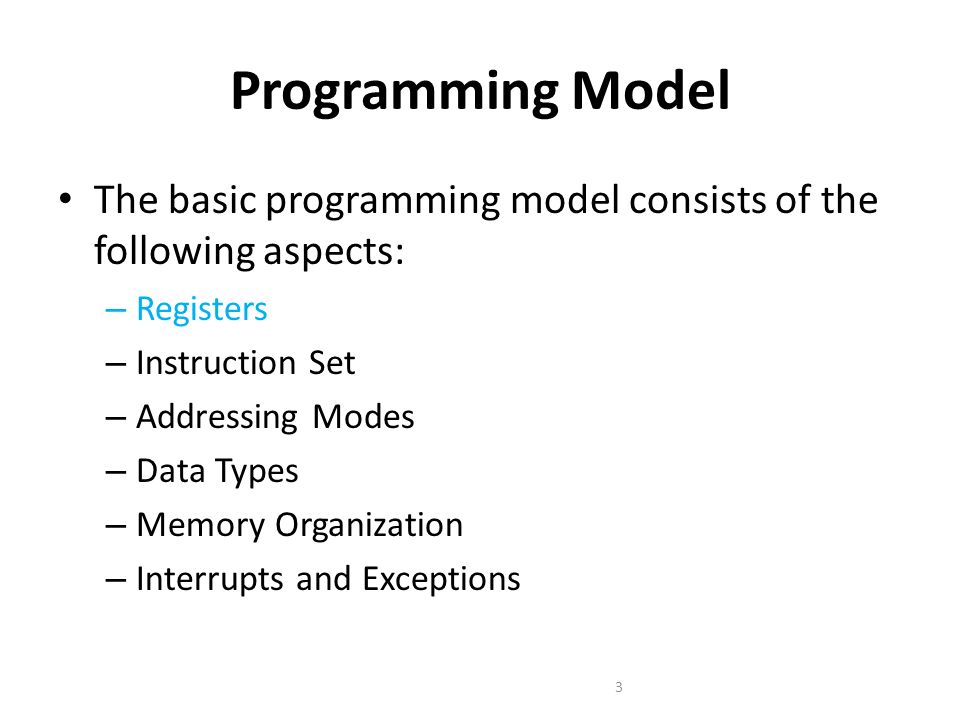

3. Programming Model The basic programming model consists of the following aspects: – Registers – Instruction Set – Addressing Modes – Data Types – Memory Organization – Interrupts and Exceptions 3

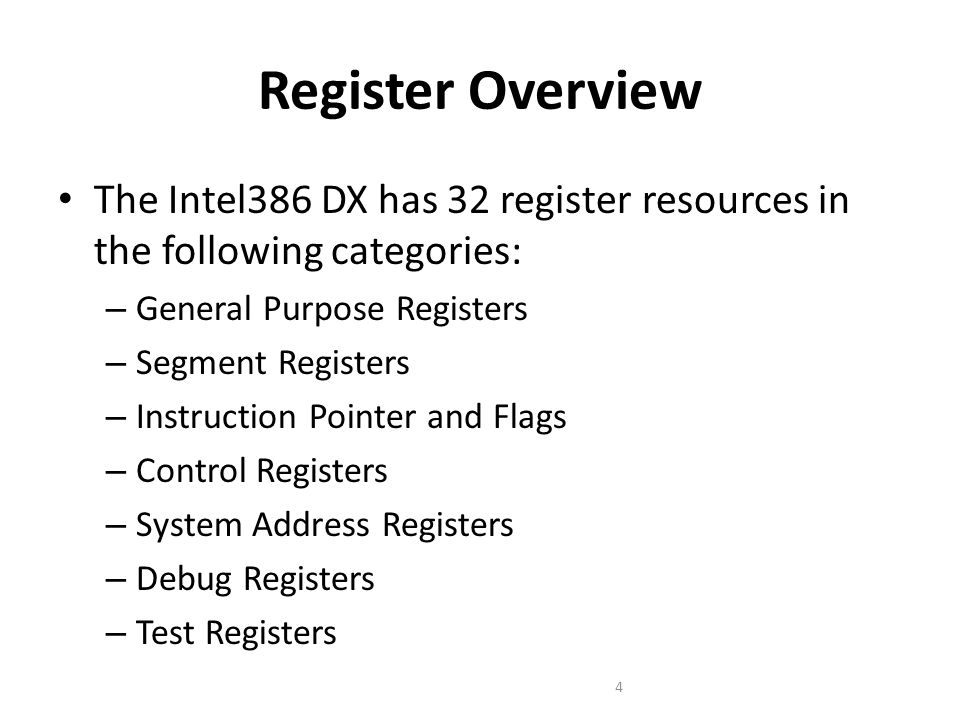

4. Register Overview The Intel386 DX has 32 register resources in the following categories: – General Purpose Registers – Segment Registers – Instruction Pointer and Flags – Control Registers – System Address Registers – Debug Registers – Test Registers 4

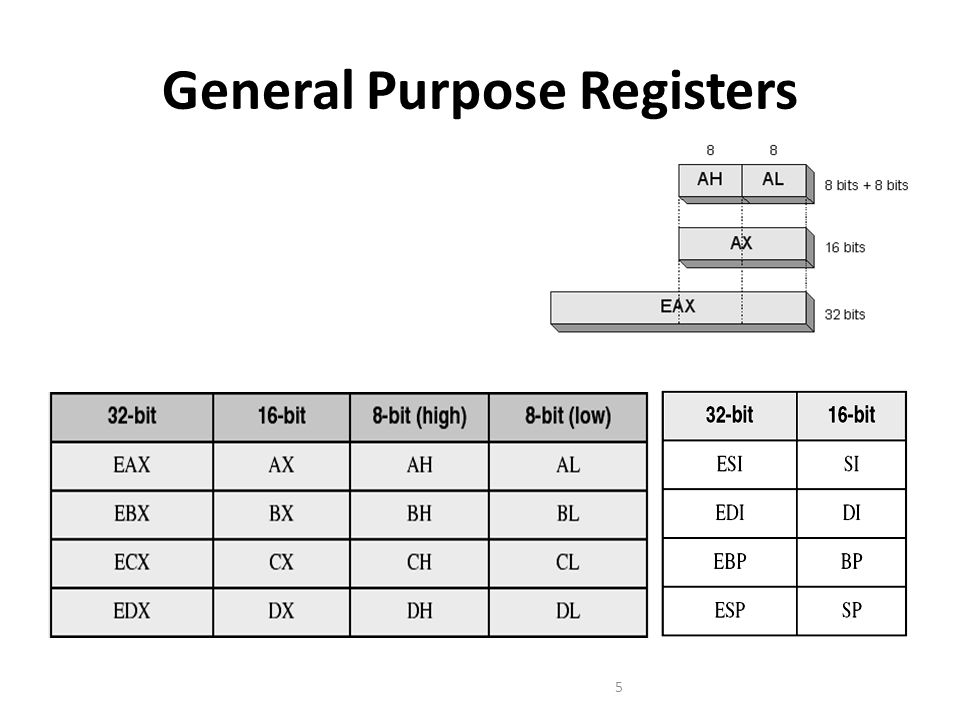

5. General Purpose Registers 5

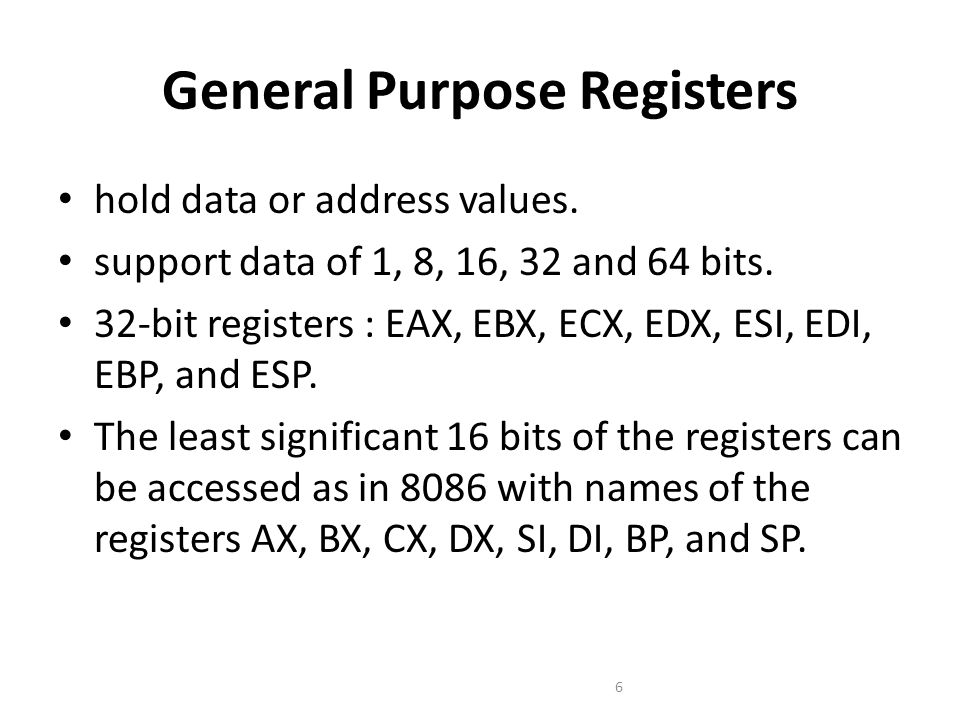

6. hold data or address values. support data of 1, 8, 16, 32 and 64 bits. 32-bit registers : EAX, EBX, ECX, EDX, ESI, EDI, EBP, and ESP. The least significant 16 bits of the registers can be accessed as in 8086 with names of the registers AX, BX, CX, DX, SI, DI, BP, and SP. 6

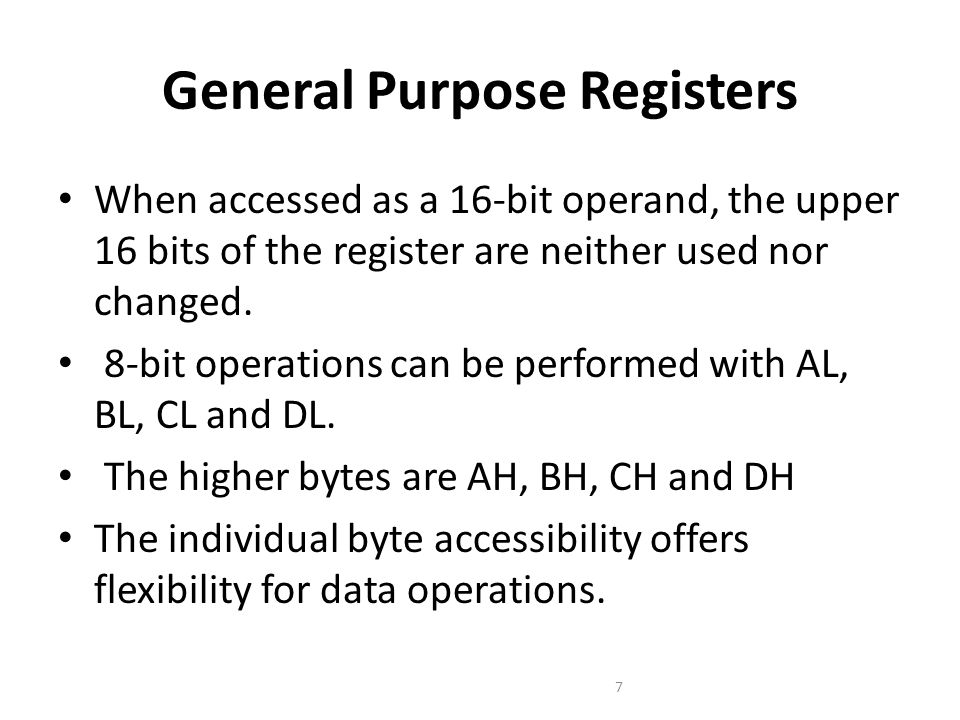

7. General Purpose Registers When accessed as a 16-bit operand, the upper 16 bits of the register are neither used nor changed. 8-bit operations can be performed with AL, BL, CL and DL. The higher bytes are AH, BH, CH and DH The individual byte accessibility offers flexibility for data operations. 7

8. Segment Registers 8

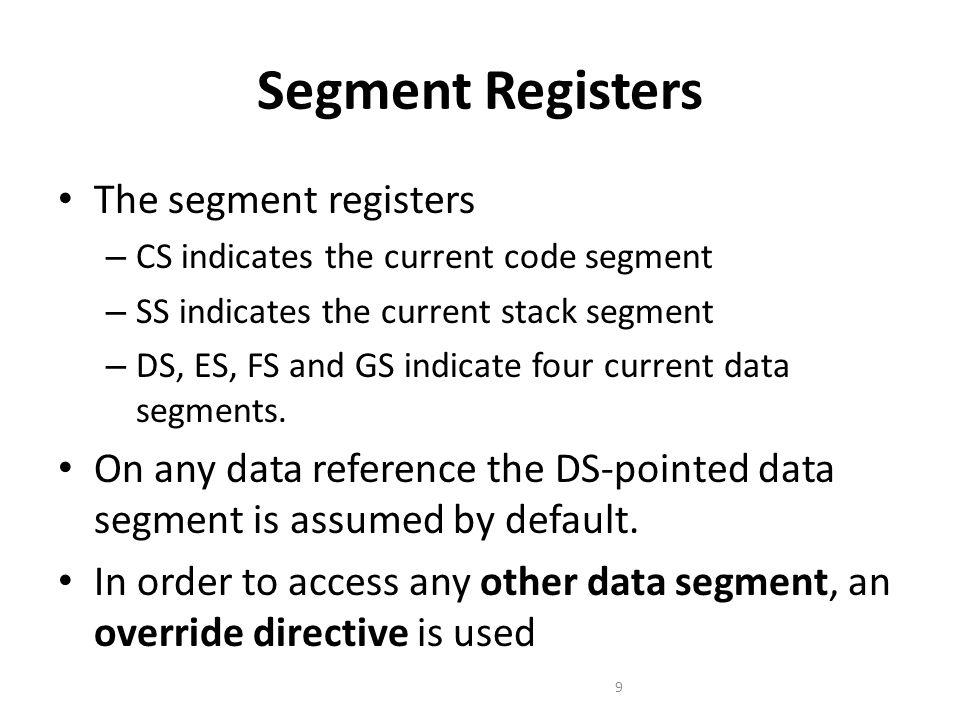

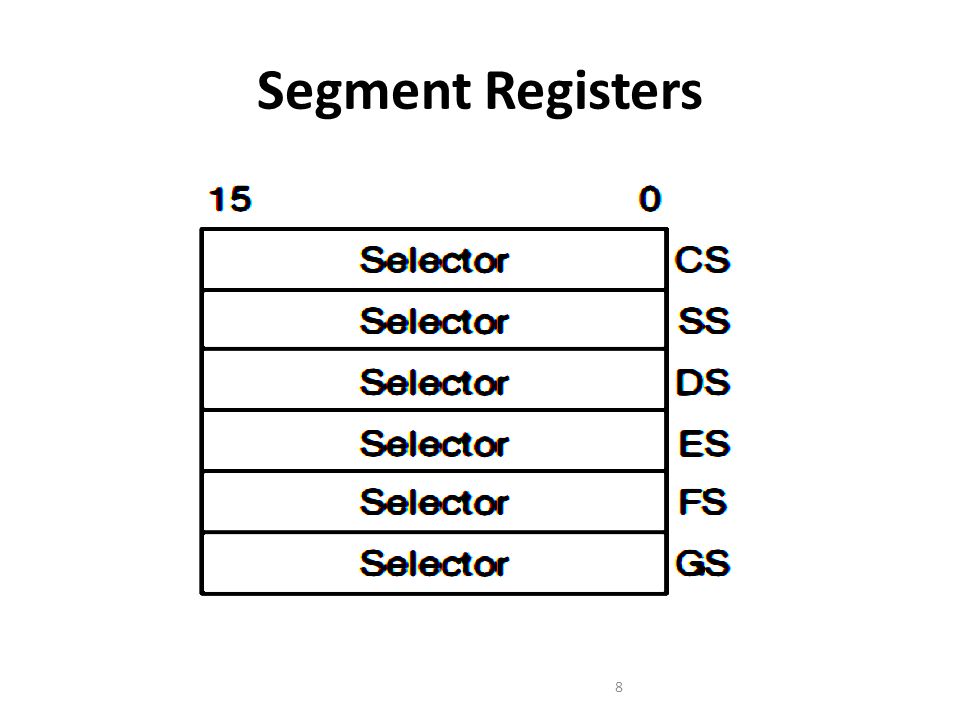

9. The segment registers – CS indicates the current code segment – SS indicates the current stack segment – DS, ES, FS and GS indicate four current data segments. On any data reference the DS-pointed data segment is assumed by default. In order to access any other data segment, an override directive is used 9

10. Instruction Pointer 10

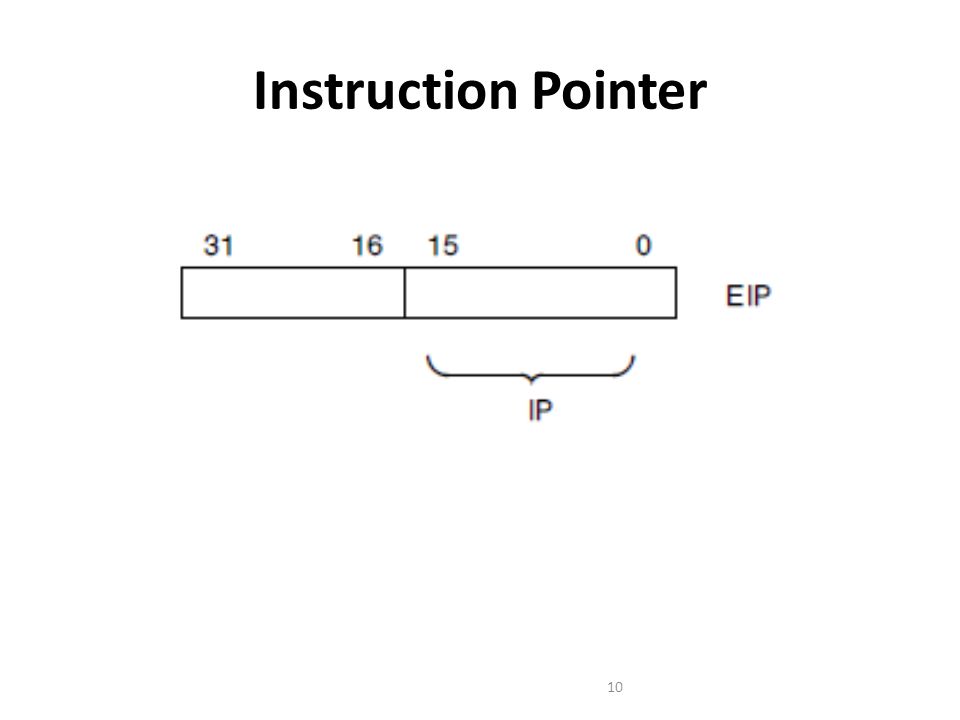

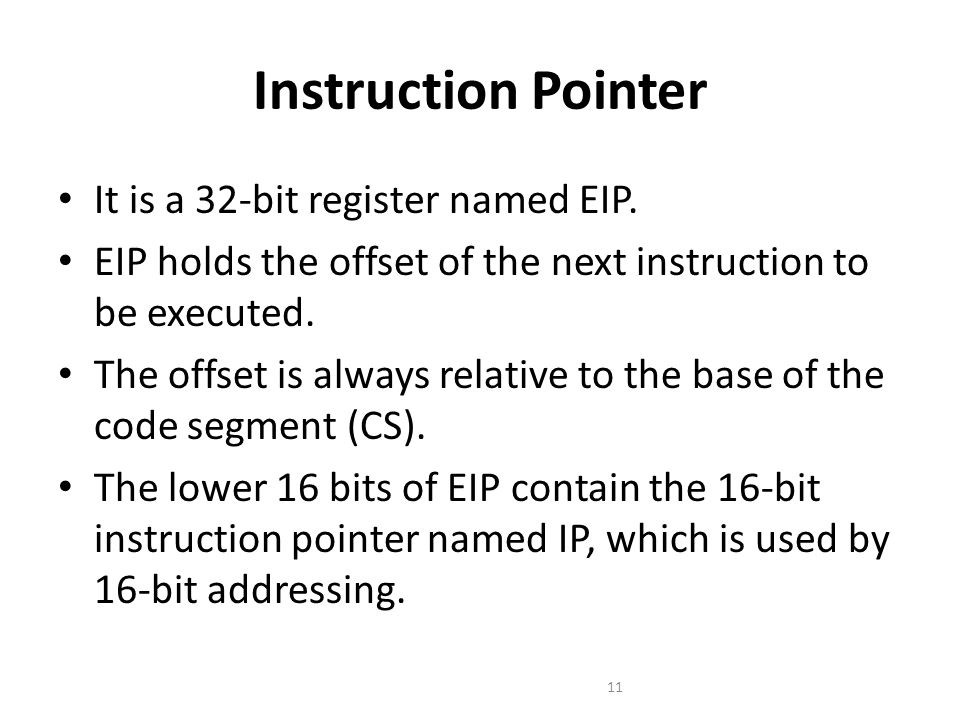

11. Instruction Pointer It is a 32-bit register named EIP. EIP holds the offset of the next instruction to be executed. The offset is always relative to the base of the code segment (CS). The lower 16 bits of EIP contain the 16-bit instruction pointer named IP, which is used by 16-bit addressing. 11

12. Flag Register 12

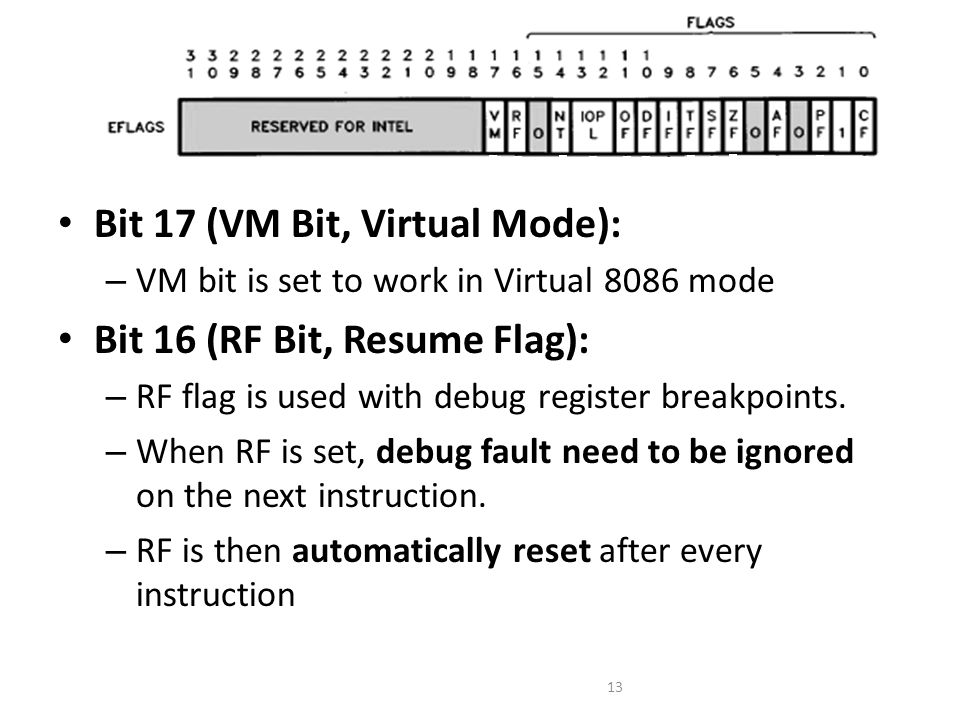

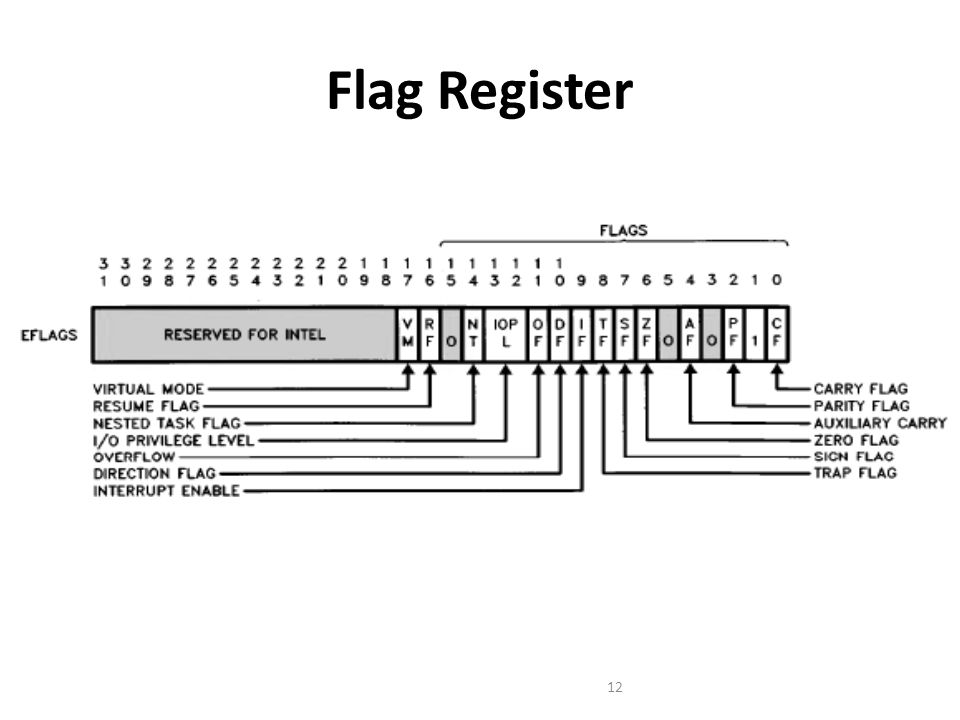

13. Bit 17 (VM Bit, Virtual Mode): – VM bit is set to work in Virtual 8086 mode Bit 16 (RF Bit, Resume Flag): – RF flag is used with debug register breakpoints. – When RF is set, debug fault need to be ignored on the next instruction. – RF is then automatically reset after every instruction 13

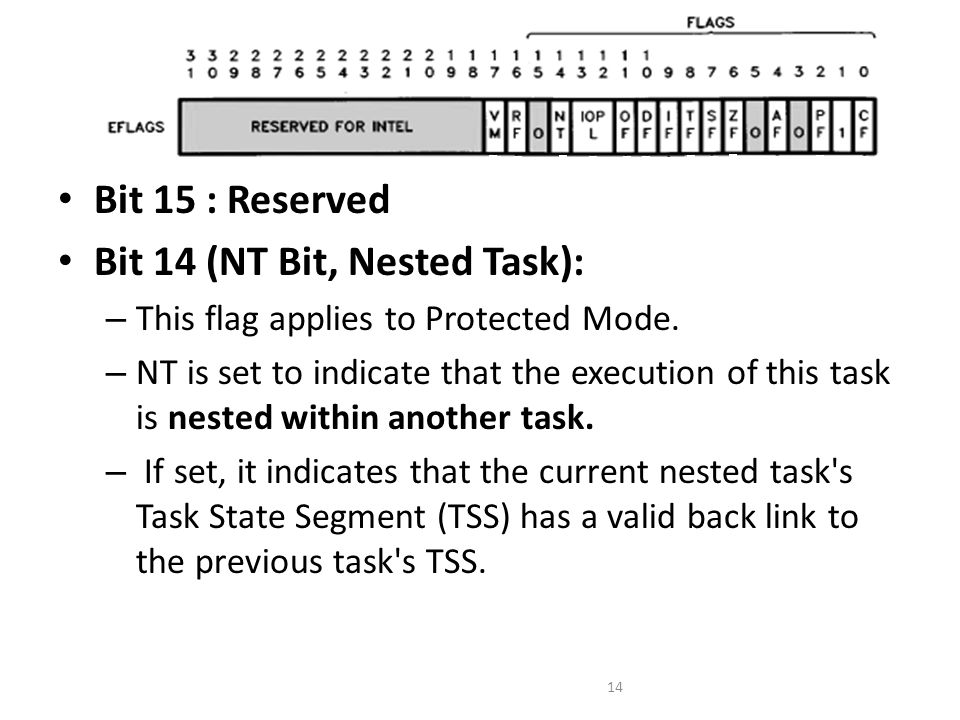

14. Flag Register Bit 15 : Reserved Bit 14 (NT Bit, Nested Task): – This flag applies to Protected Mode. – NT is set to indicate that the execution of this task is nested within another task. – If set, it indicates that the current nested task's Task State Segment (TSS) has a valid back link to the previous task's TSS. 14

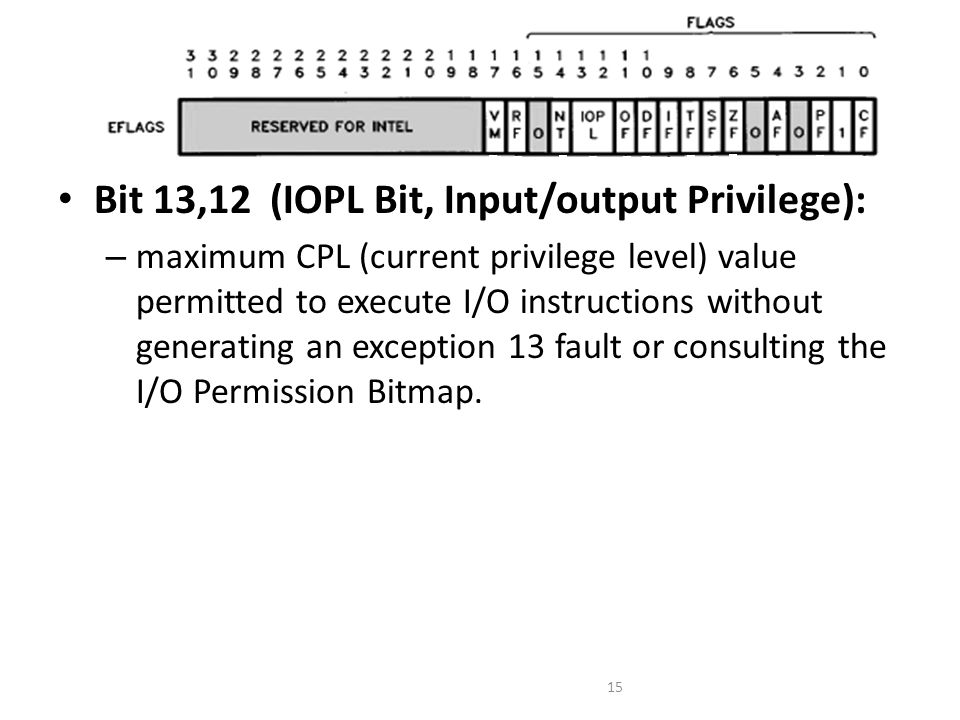

15. Bit 13,12 (IOPL Bit, Input/output Privilege): – maximum CPL (current privilege level) value permitted to execute I/O instructions without generating an exception 13 fault or consulting the I/O Permission Bitmap. 15

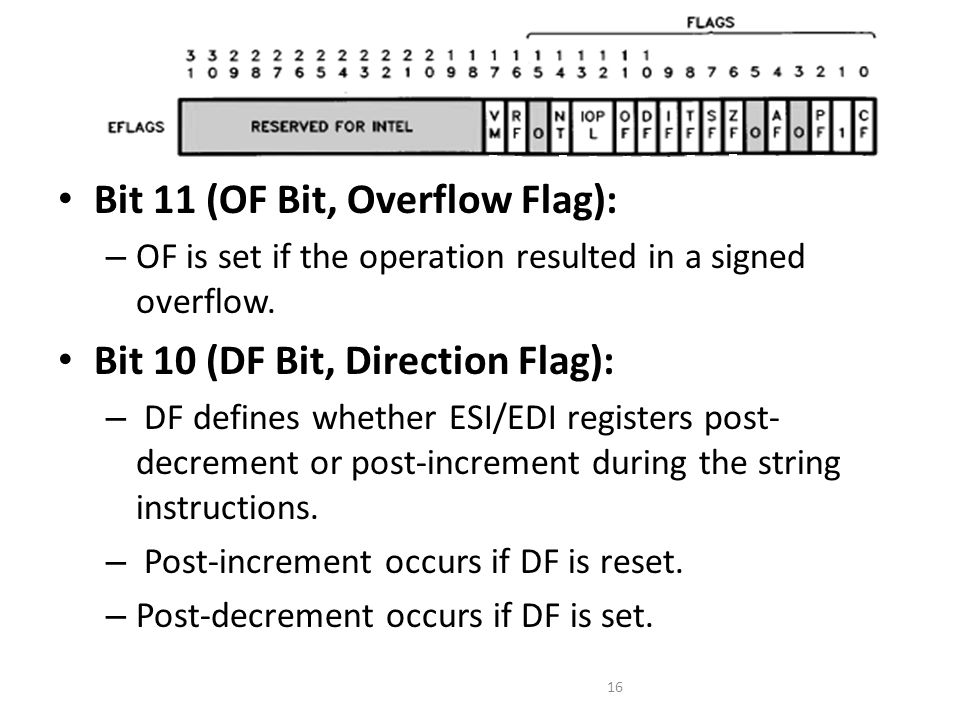

16. Bit 11 (OF Bit, Overflow Flag): – OF is set if the operation resulted in a signed overflow. Bit 10 (DF Bit, Direction Flag): – DF defines whether ESI/EDI registers post- decrement or post-increment during the string instructions. – Post-increment occurs if DF is reset. – Post-decrement occurs if DF is set. 16

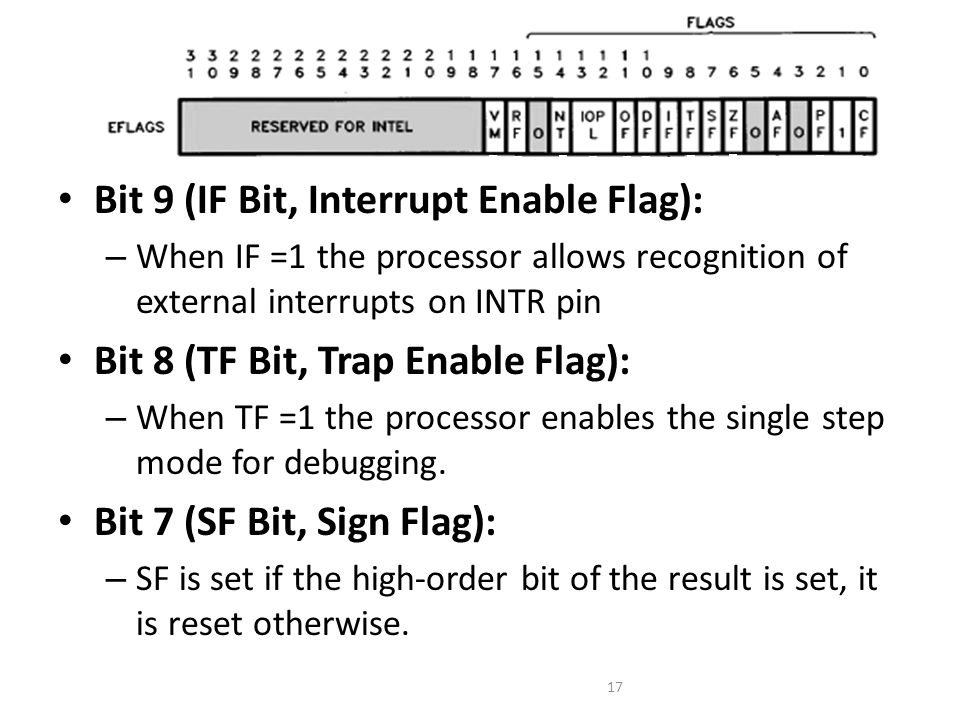

17. Flag Register Bit 9 (IF Bit, Interrupt Enable Flag): – When IF =1 the processor allows recognition of external interrupts on INTR pin Bit 8 (TF Bit, Trap Enable Flag): – When TF =1 the processor enables the single step mode for debugging. Bit 7 (SF Bit, Sign Flag): – SF is set if the high-order bit of the result is set, it is reset otherwise. 17

18. Flag Register Bit 6 (ZF bit, Zero Flag): – ZF is set if all bits of the result are 0. Bit 4 (AF Bit, Auxiliary Carry Flag): – The Auxiliary Flag is used to simplify the addition and subtraction of packed BCD numbers. – AF is set if the operation resulted in a carry out of bit 3 (addition) or a borrow into bit 3 (subtraction). Otherwise AF is reset. – AF is only for bit 3. 18

19. Flag Register Bit 2 (PF Bit, Parity Flag): – PF is set for even parity. Bit 0 (CF Bit, Carry Flag): – CF is set for 8-, 16- or 32-bit operations if it results in a carry out of (addition), or a borrow into (subtraction) the high-order bit. 19

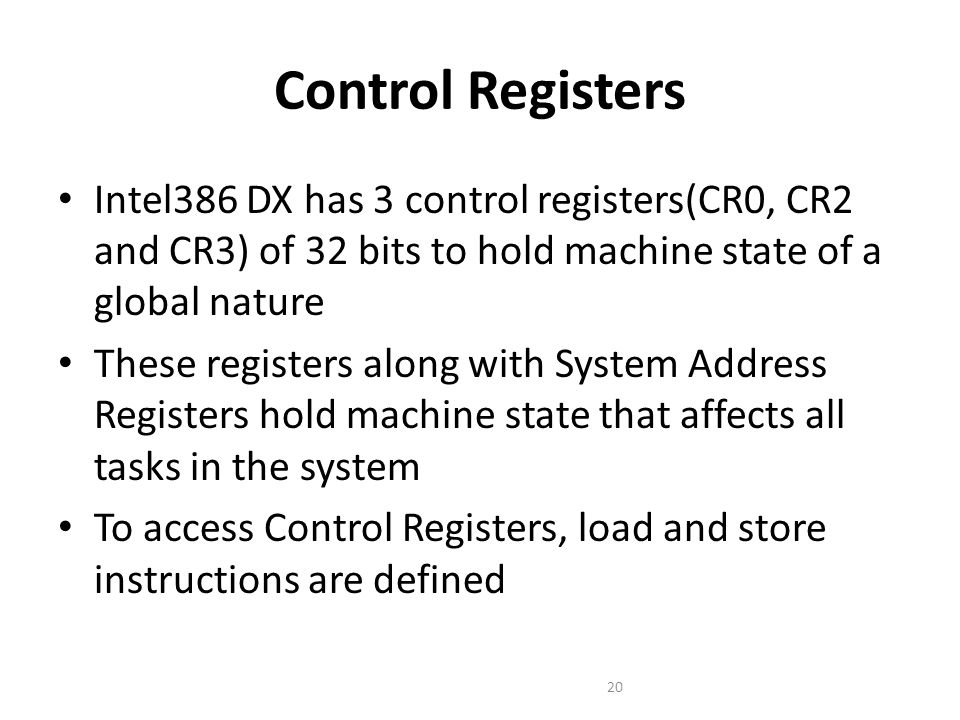

20. Control Registers Intel386 DX has 3 control registers(CR0, CR2 and CR3) of 32 bits to hold machine state of a global nature These registers along with System Address Registers hold machine state that affects all tasks in the system To access Control Registers, load and store instructions are defined 20

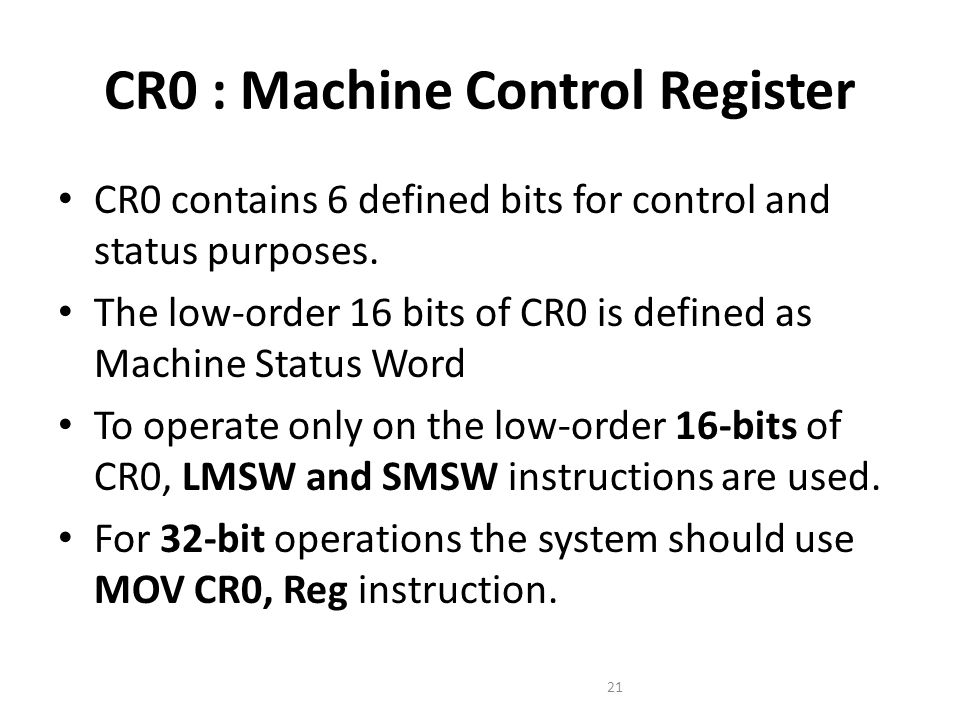

21. CR0 : Machine Control Register CR0 contains 6 defined bits for control and status purposes. The low-order 16 bits of CR0 is defined as Machine Status Word To operate only on the low-order 16-bits of CR0, LMSW and SMSW instructions are used. For 32-bit operations the system should use MOV CR0, Reg instruction. 21

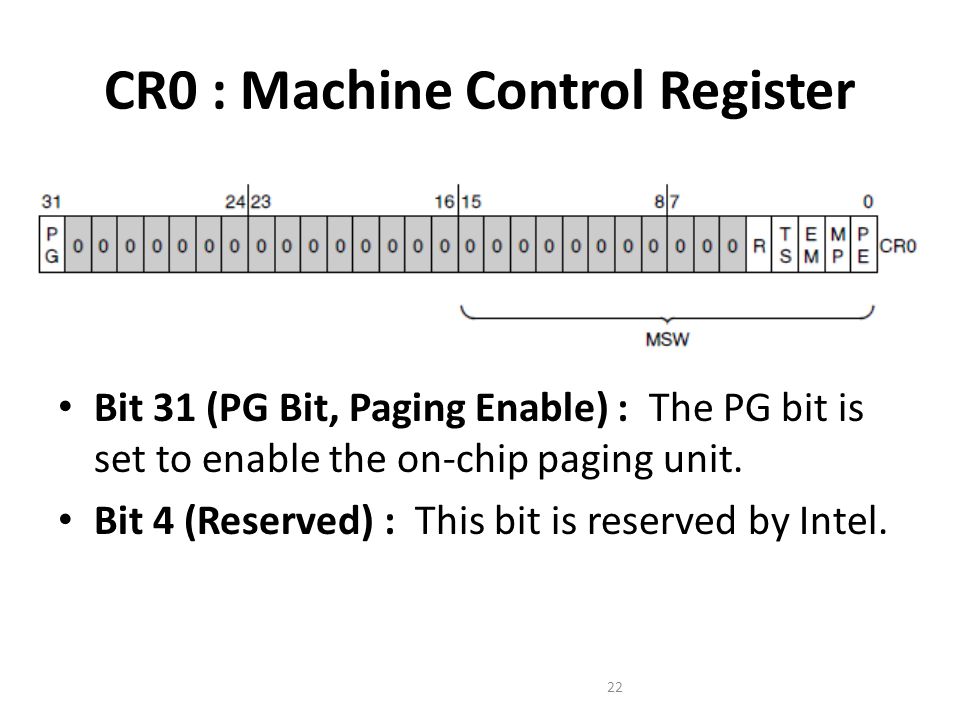

22. CR0 : Machine Control Register Bit 31 (PG Bit, Paging Enable) : The PG bit is set to enable the on-chip paging unit. Bit 4 (Reserved) : This bit is reserved by Intel. 22

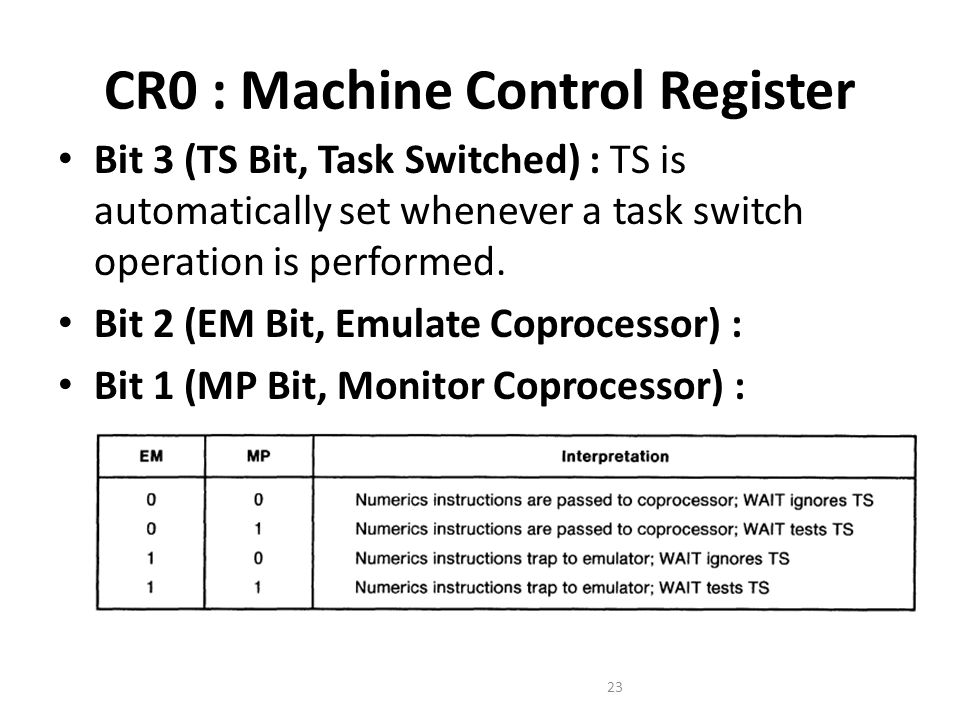

23. CR0 : Machine Control Register Bit 3 (TS Bit, Task Switched) : TS is automatically set whenever a task switch operation is performed. Bit 2 (EM Bit, Emulate Coprocessor) : Bit 1 (MP Bit, Monitor Coprocessor) : 23

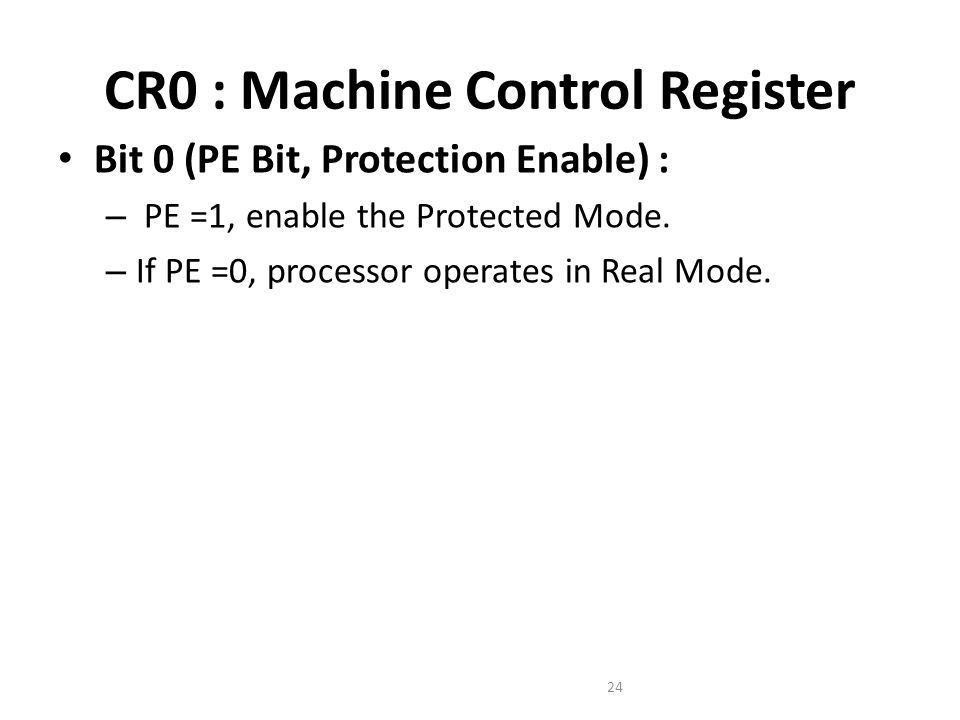

24. CR0 : Machine Control Register Bit 0 (PE Bit, Protection Enable) : – PE =1, enable the Protected Mode. – If PE =0, processor operates in Real Mode. 24

25. CR1 : Reserved CR1 is reserved for use in future Intel processors 25

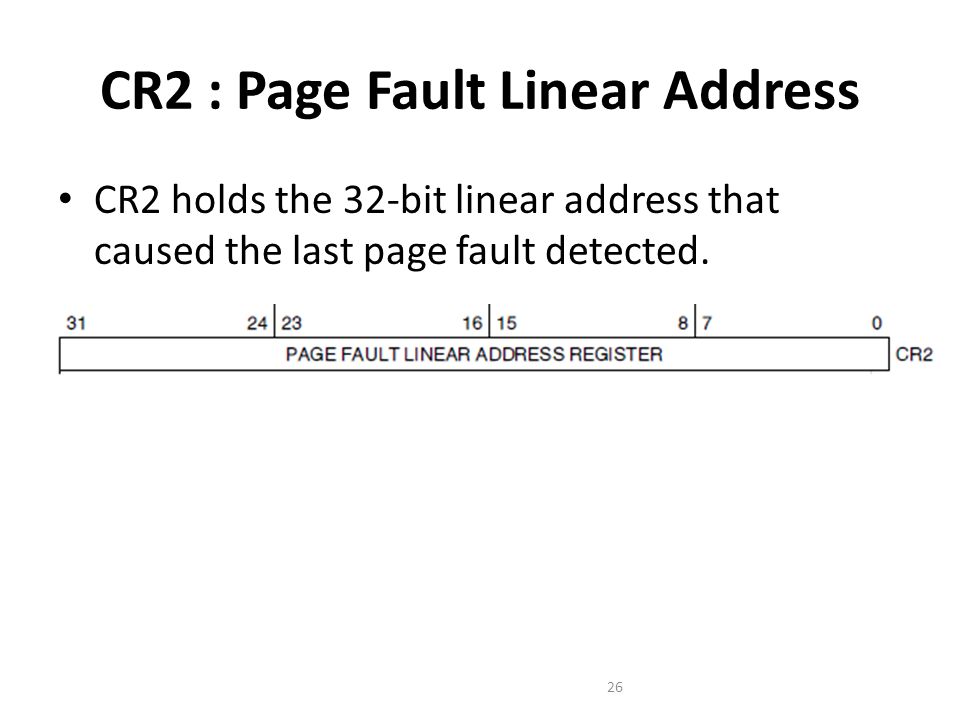

26. CR2 : Page Fault Linear Address CR2 holds the 32-bit linear address that caused the last page fault detected. 26

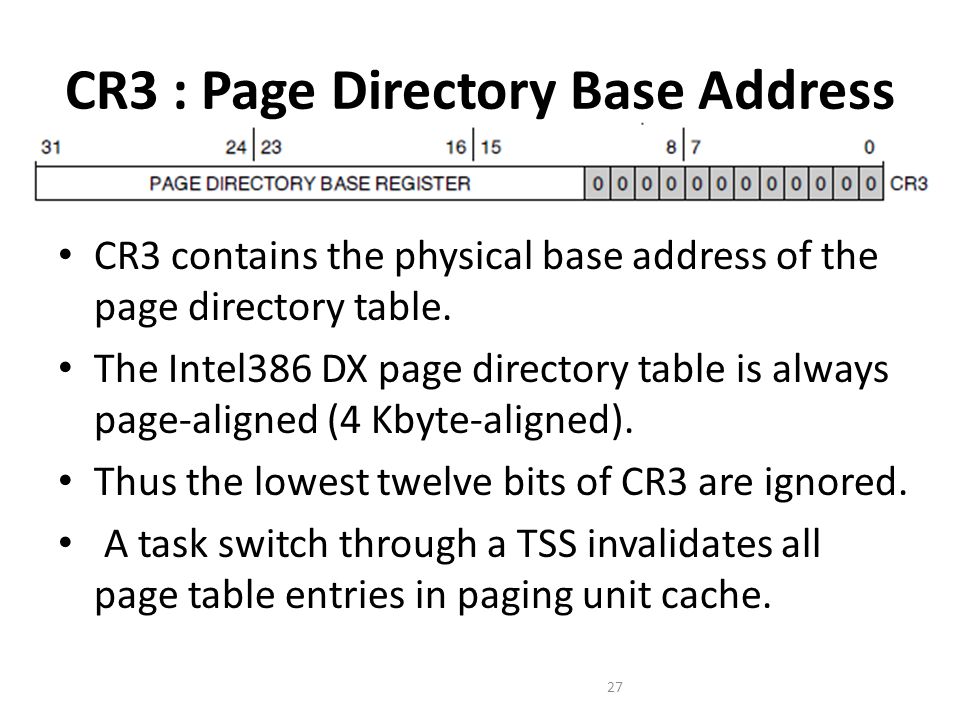

27. CR3 : Page Directory Base Address CR3 contains the physical base address of the page directory table. The Intel386 DX page directory table is always page-aligned (4 Kbyte-aligned). Thus the lowest twelve bits of CR3 are ignored. A task switch through a TSS invalidates all page table entries in paging unit cache. 27

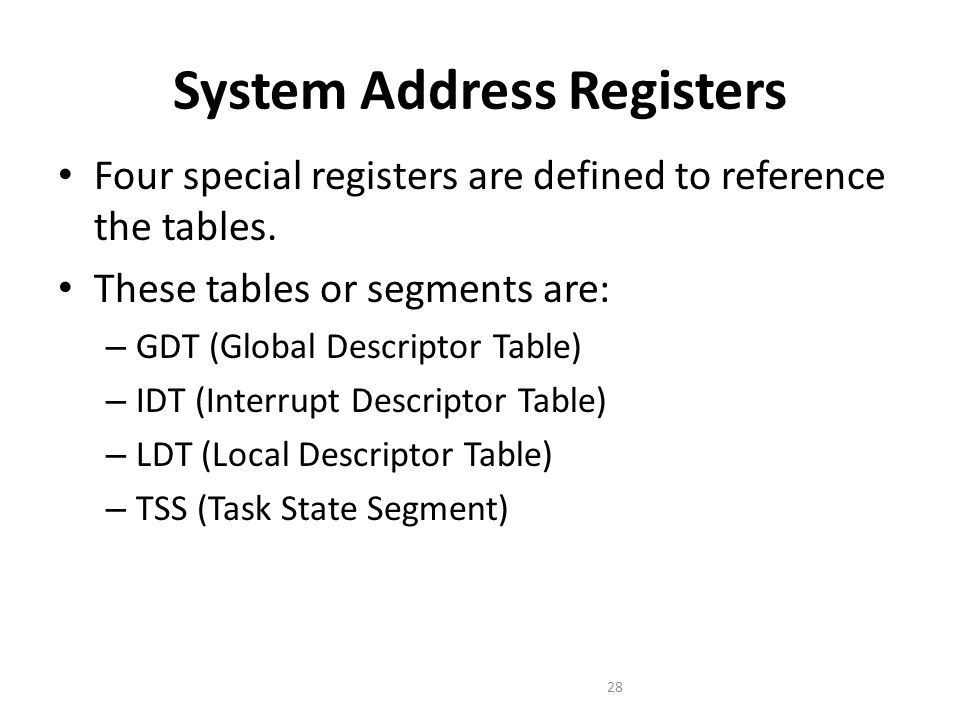

28. System Address Registers Four special registers are defined to reference the tables. These tables or segments are: – GDT (Global Descriptor Table) – IDT (Interrupt Descriptor Table) – LDT (Local Descriptor Table) – TSS (Task State Segment) 28

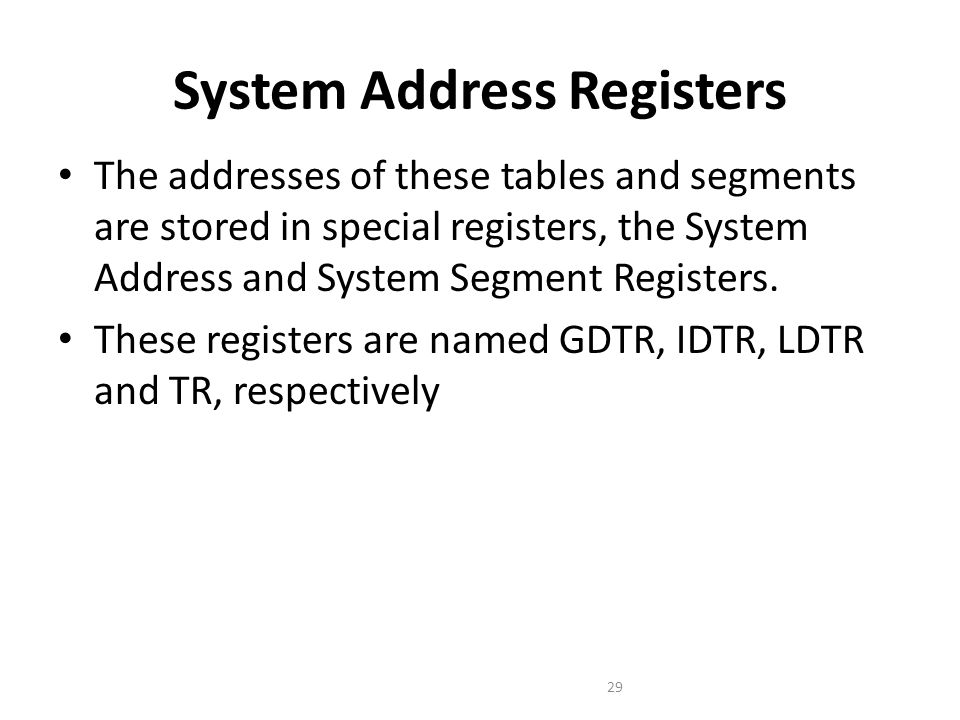

29. System Address Registers The addresses of these tables and segments are stored in special registers, the System Address and System Segment Registers. These registers are named GDTR, IDTR, LDTR and TR, respectively 29

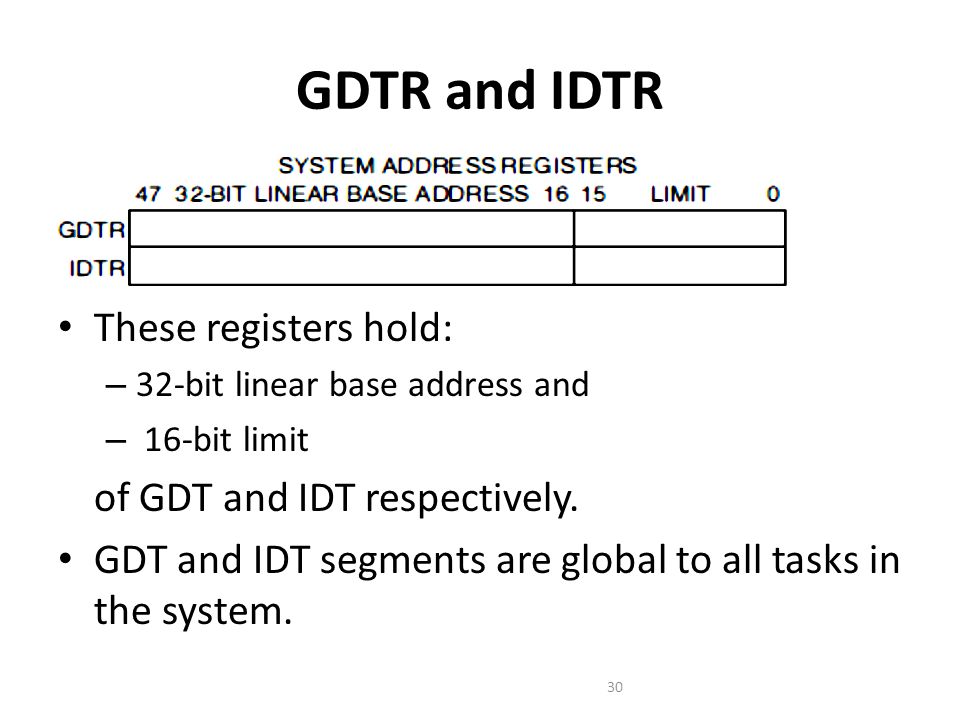

30. GDTR and IDTR These registers hold: – 32-bit linear base address and – 16-bit limit of GDT and IDT respectively. GDT and IDT segments are global to all tasks in the system. 30

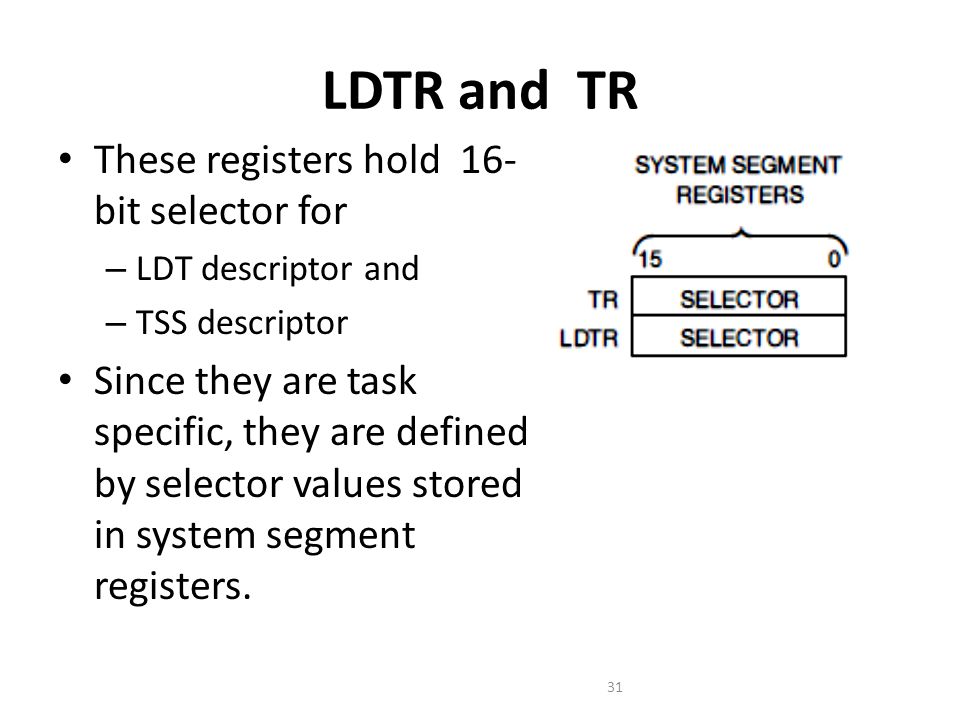

31. LDTR and TR These registers hold 16- bit selector for – LDT descriptor and – TSS descriptor Since they are task specific, they are defined by selector values stored in system segment registers. 31

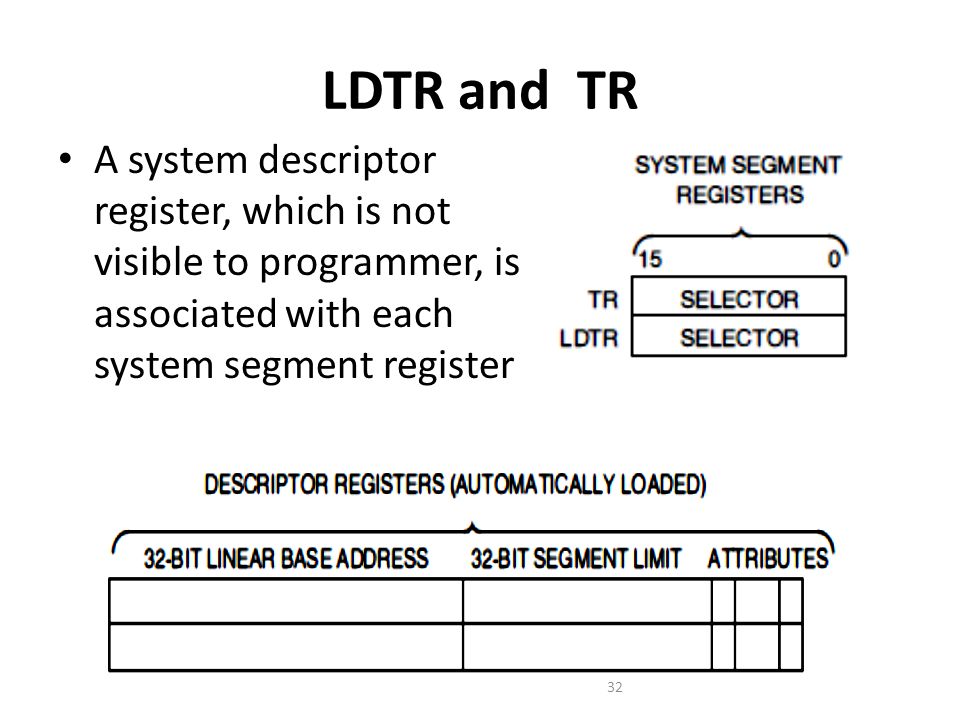

32. LDTR and TR A system descriptor register, which is not visible to programmer, is associated with each system segment register 32

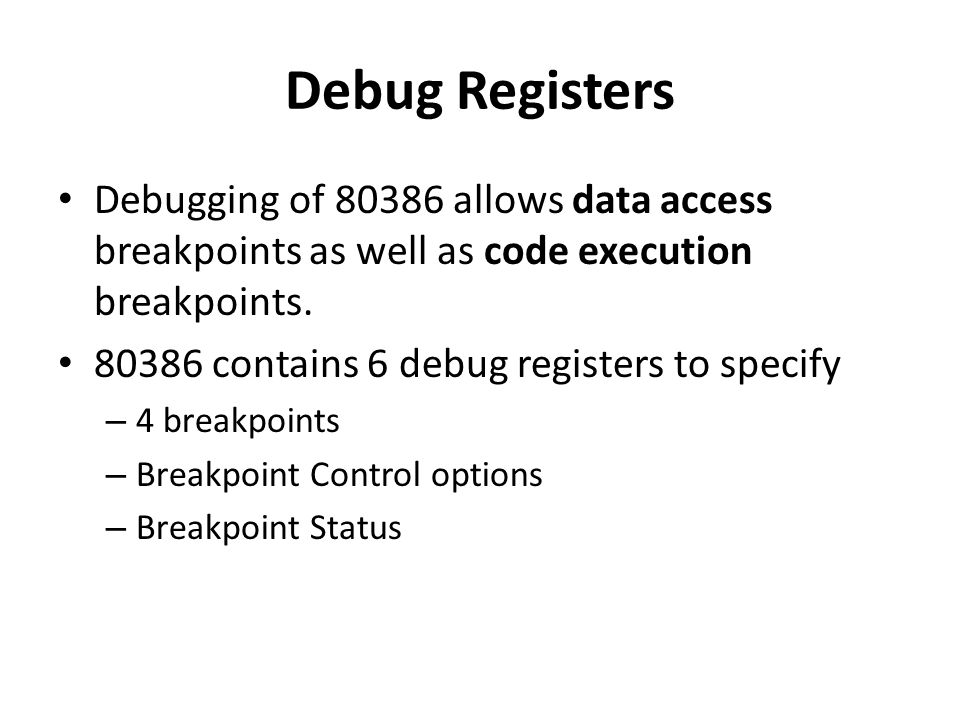

34. Debug Registers Debugging of 80386 allows data access breakpoints as well as code execution breakpoints. 80386 contains 6 debug registers to specify – 4 breakpoints – Breakpoint Control options – Breakpoint Status

35. Debug Registers 35

36. Linear Breakpoint Address Registers Breakpoint addresses are 32-bit linear addresses While debugging, Intel 386 h/w continuously compares the linear breakpoint addresses in DR0-DR3 with the linear addresses generated by executing software. 36

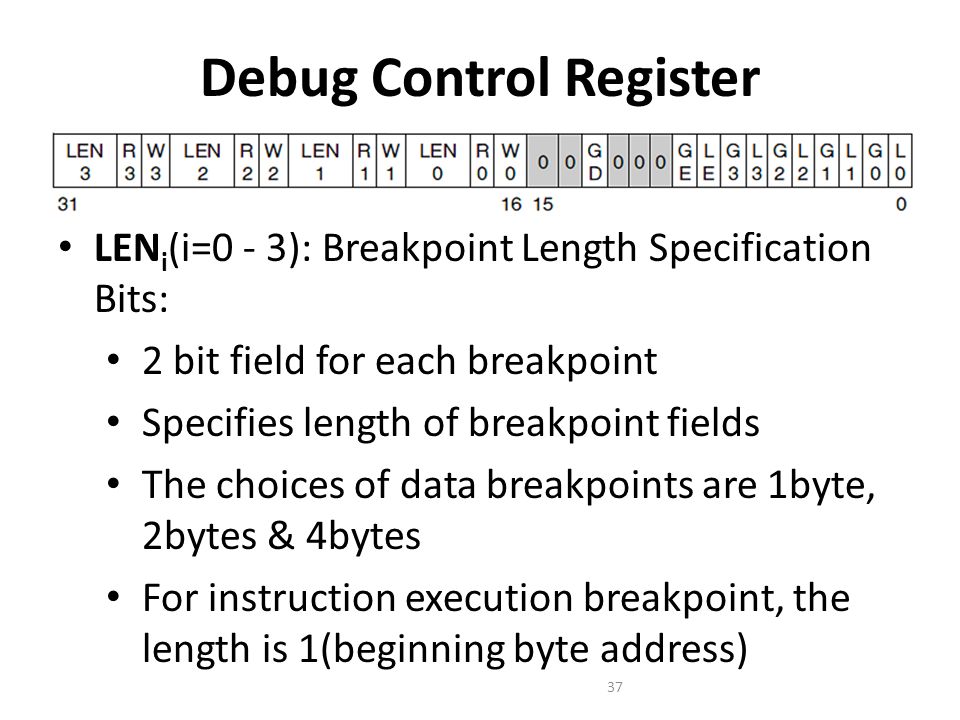

37. Debug Control Register LEN i (i=0 - 3): Breakpoint Length Specification Bits: 2 bit field for each breakpoint Specifies length of breakpoint fields The choices of data breakpoints are 1byte, 2bytes & 4bytes For instruction execution breakpoint, the length is 1(beginning byte address) 37

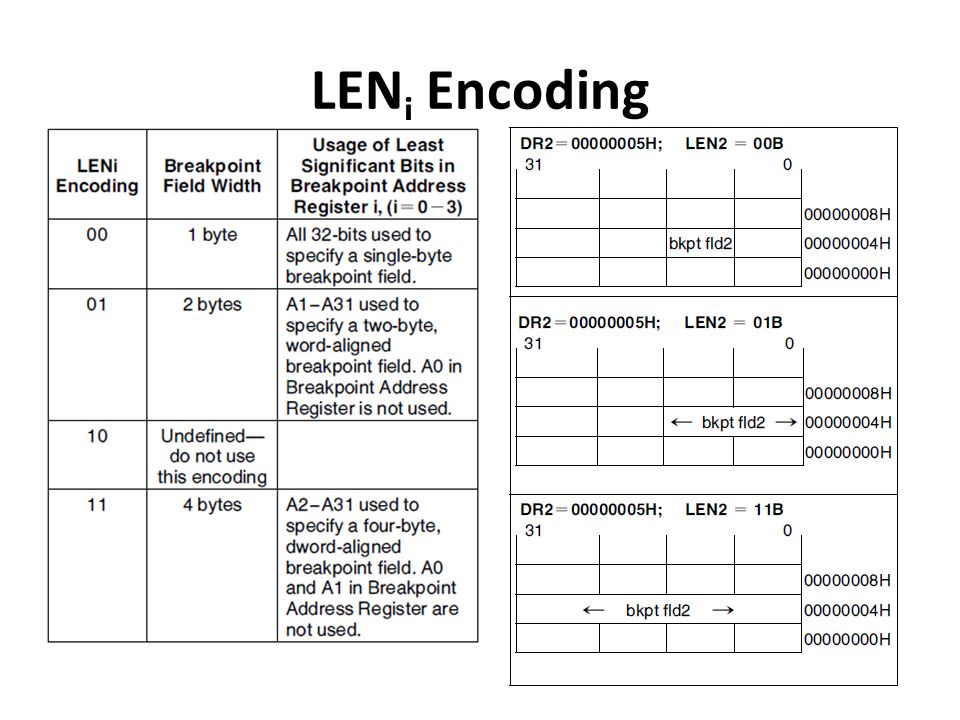

38. LEN i Encoding

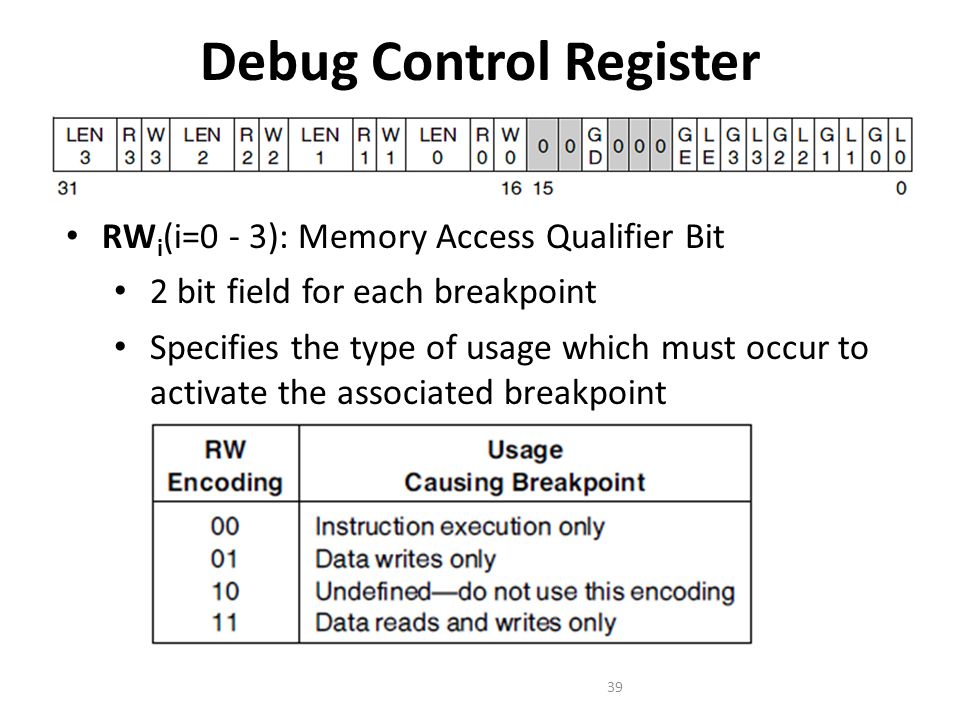

39. Debug Control Register RW i (i=0 - 3): Memory Access Qualifier Bit 2 bit field for each breakpoint Specifies the type of usage which must occur to activate the associated breakpoint 39

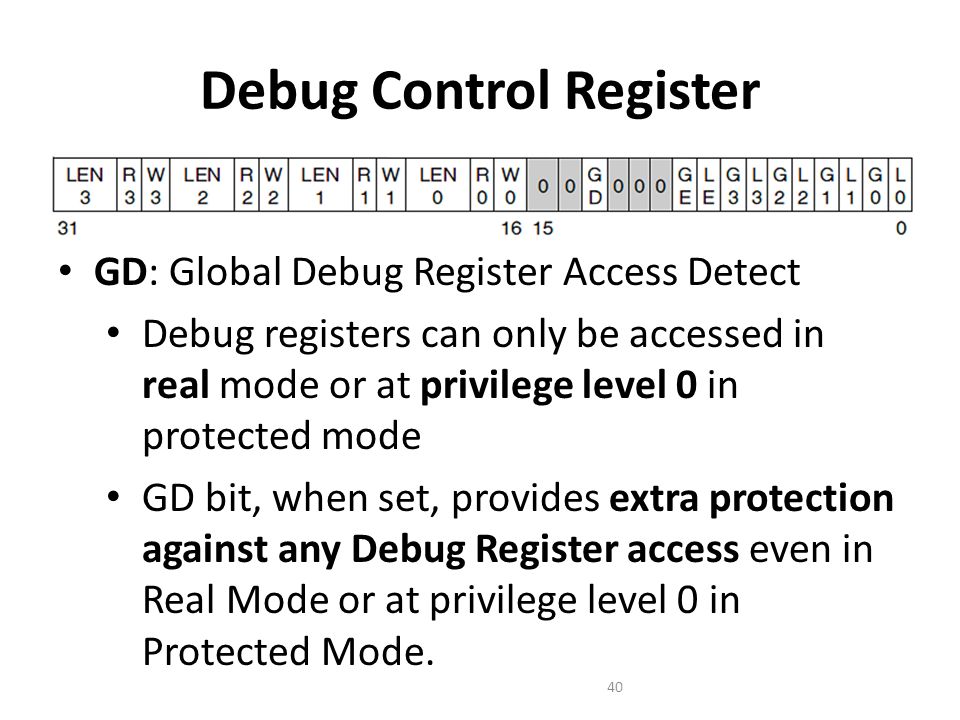

40. Debug Control Register GD: Global Debug Register Access Detect Debug registers can only be accessed in real mode or at privilege level 0 in protected mode GD bit, when set, provides extra protection against any Debug Register access even in Real Mode or at privilege level 0 in Protected Mode. 40

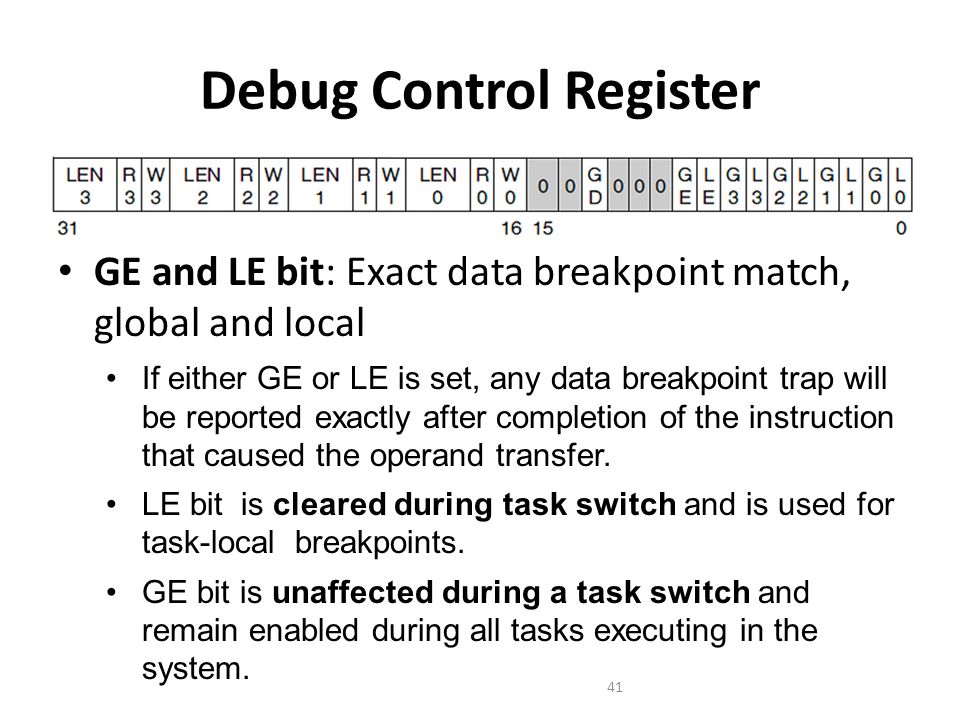

41. Debug Control Register GE and LE bit: Exact data breakpoint match, global and local If either GE or LE is set, any data breakpoint trap will be reported exactly after completion of the instruction that caused the operand transfer. LE bit is cleared during task switch and is used for task-local breakpoints. GE bit is unaffected during a task switch and remain enabled during all tasks executing in the system. 41

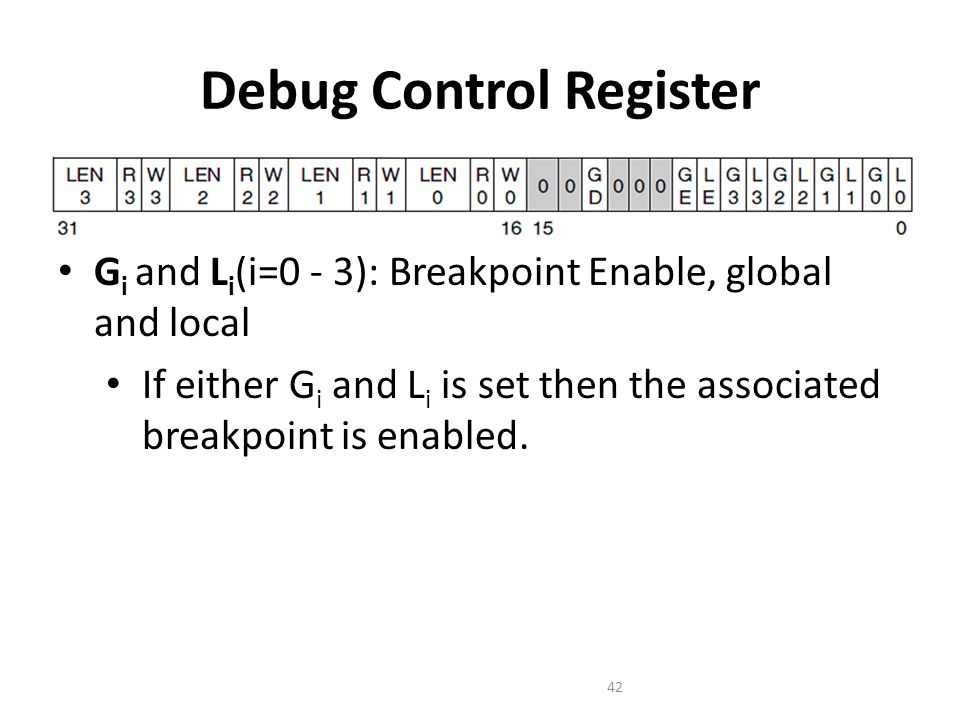

42. Debug Control Register G i and L i (i=0 - 3): Breakpoint Enable, global and local If either G i and L i is set then the associated breakpoint is enabled. 42

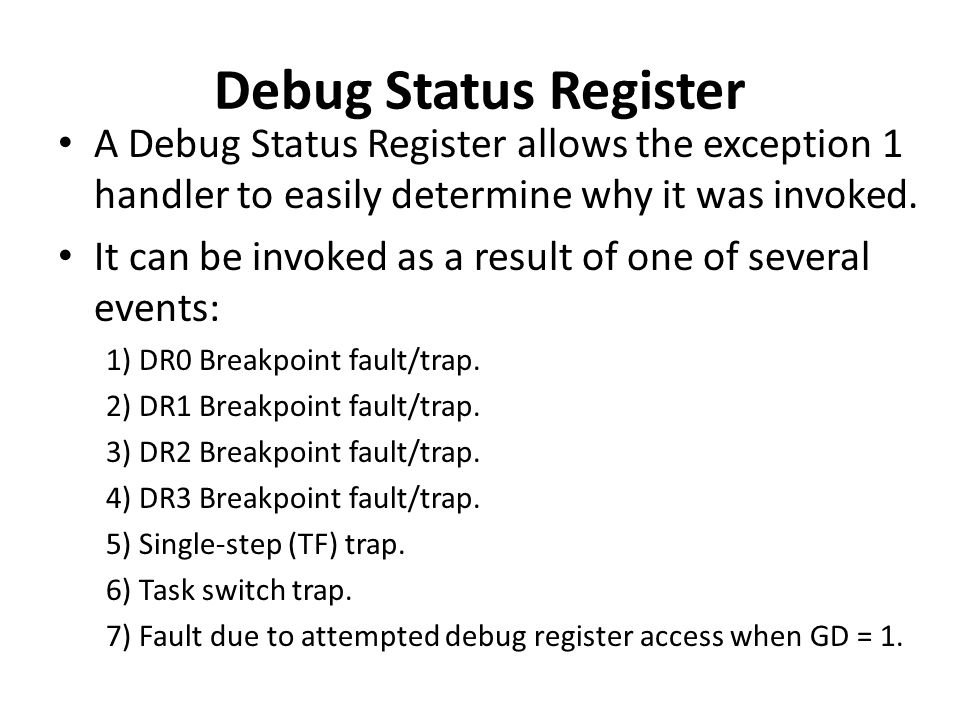

43. Debug Status Register A Debug Status Register allows the exception 1 handler to easily determine why it was invoked. It can be invoked as a result of one of several events: 1) DR0 Breakpoint fault/trap. 2) DR1 Breakpoint fault/trap. 3) DR2 Breakpoint fault/trap. 4) DR3 Breakpoint fault/trap. 5) Single-step (TF) trap. 6) Task switch trap. 7) Fault due to attempted debug register access when GD = 1.

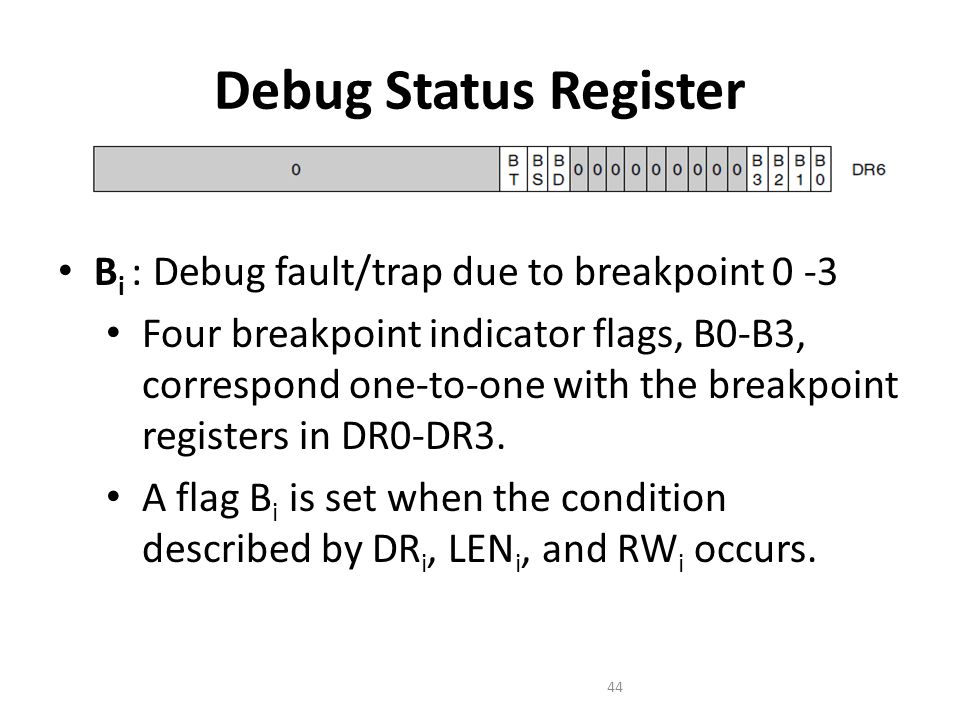

44. Debug Status Register B i : Debug fault/trap due to breakpoint 0 -3 Four breakpoint indicator flags, B0-B3, correspond one-to-one with the breakpoint registers in DR0-DR3. A flag B i is set when the condition described by DR i, LEN i, and RW i occurs. 44

45. Debug Status Register BD : Debug fault due to attempted register access when GD bit is set This bit is set if the exception 1 handler was invoked due to an instruction attempting to read or write to the debug registers when GD bit was set. 45

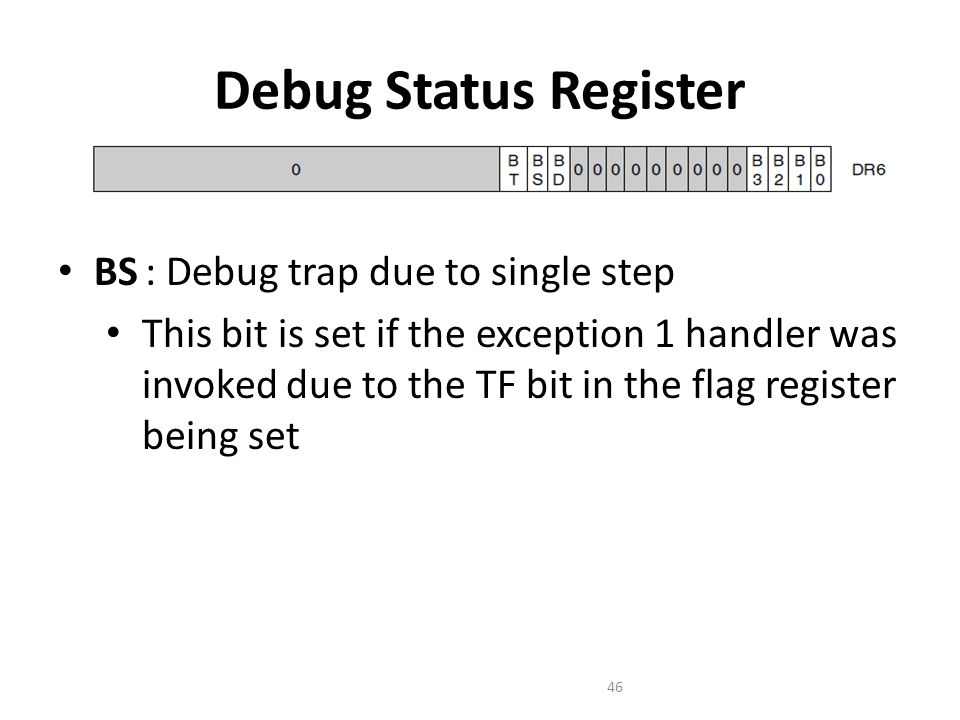

46. Debug Status Register BS : Debug trap due to single step This bit is set if the exception 1 handler was invoked due to the TF bit in the flag register being set 46

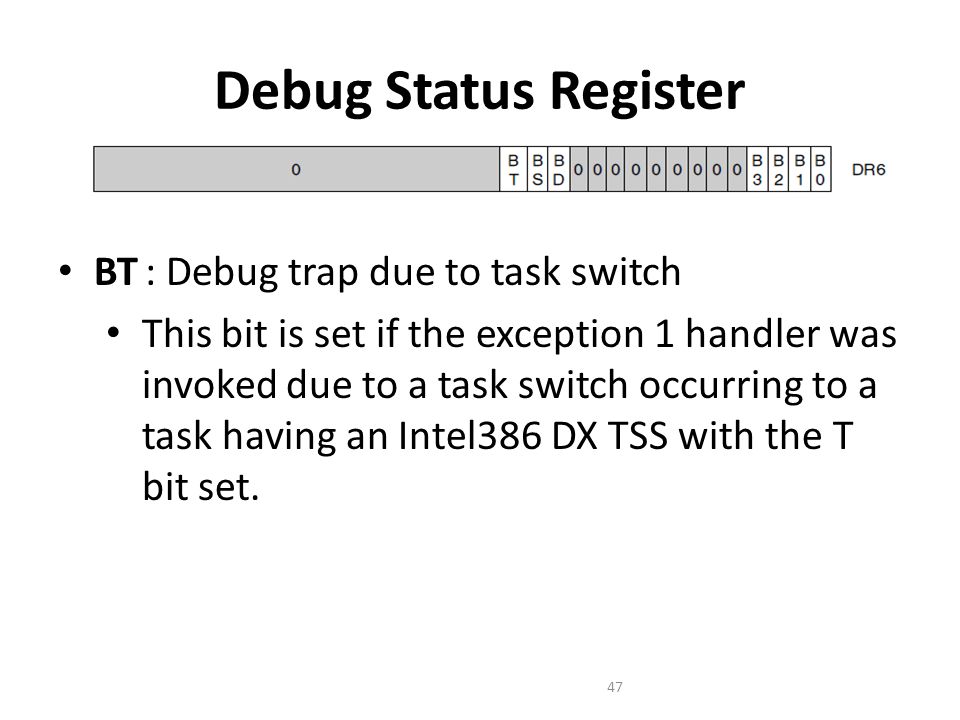

47. Debug Status Register BT : Debug trap due to task switch This bit is set if the exception 1 handler was invoked due to a task switch occurring to a task having an Intel386 DX TSS with the T bit set. 47

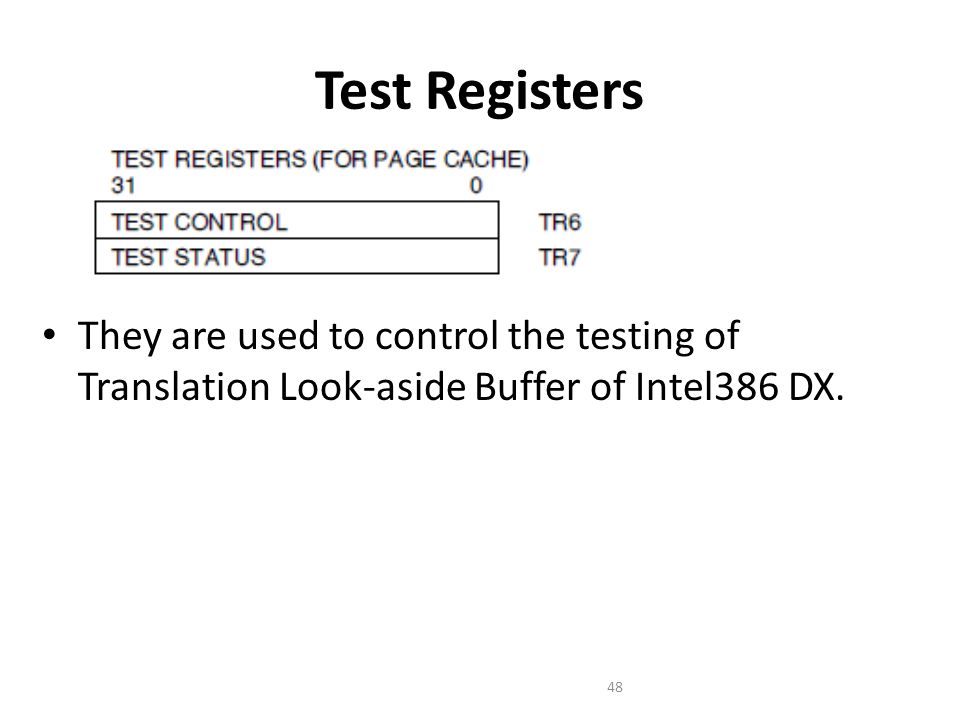

48. Test Registers They are used to control the testing of Translation Look-aside Buffer of Intel386 DX. 48

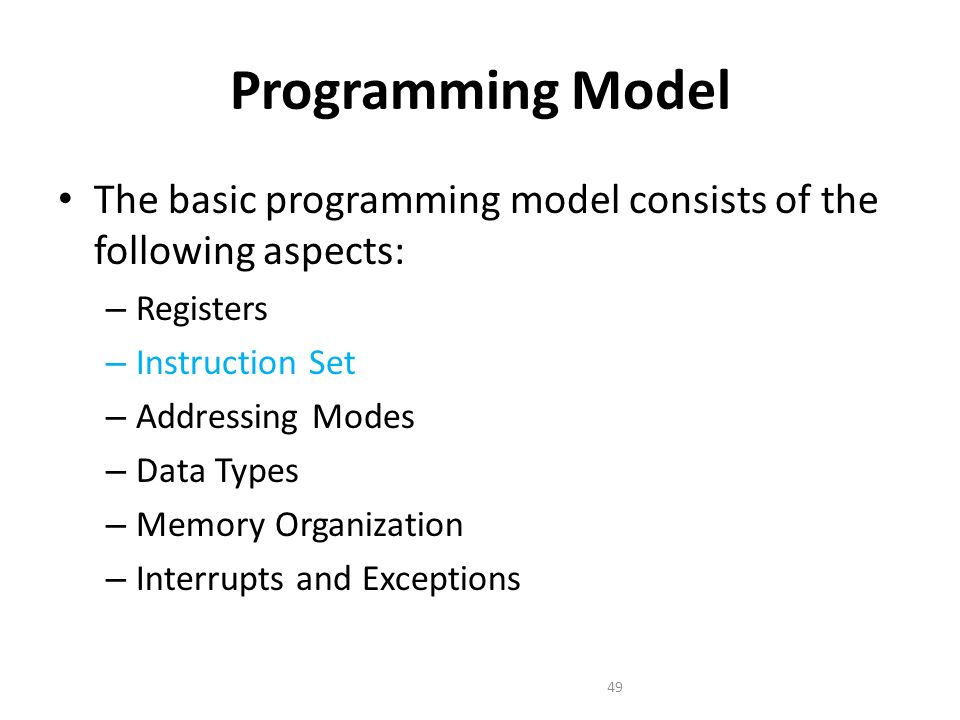

49. Programming Model The basic programming model consists of the following aspects: – Registers – Instruction Set – Addressing Modes – Data Types – Memory Organization – Interrupts and Exceptions 49

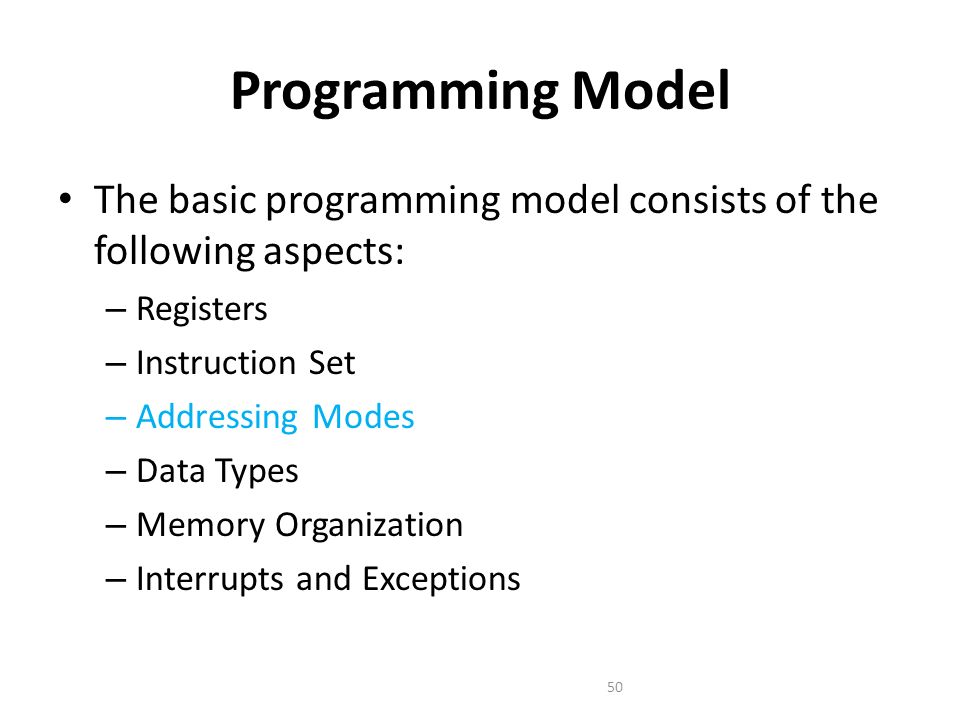

50. Programming Model The basic programming model consists of the following aspects: – Registers – Instruction Set – Addressing Modes – Data Types – Memory Organization – Interrupts and Exceptions 50

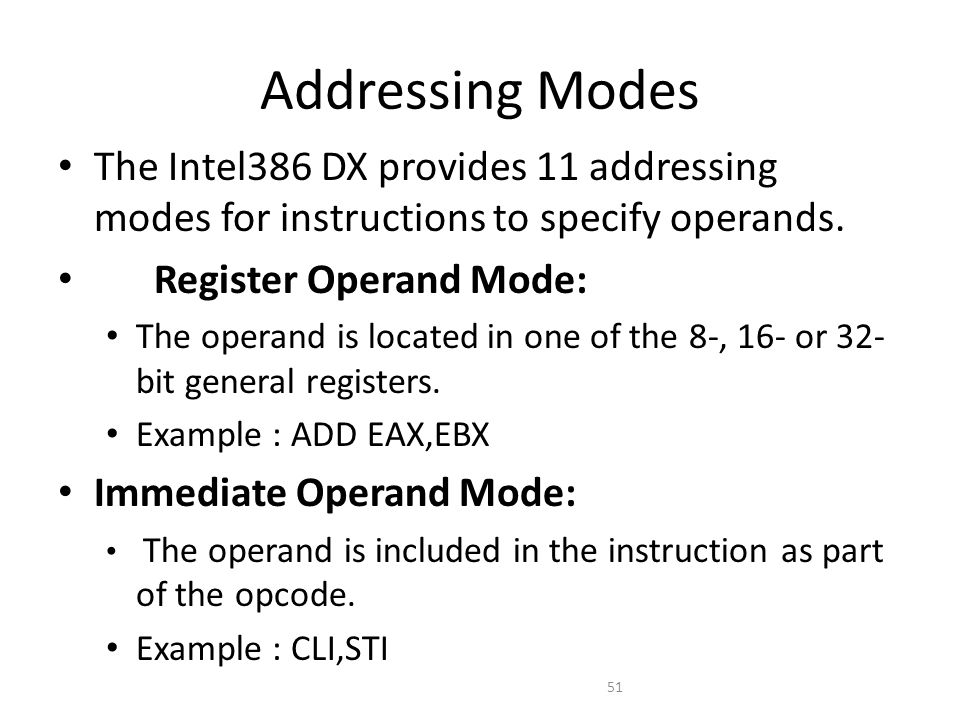

51. Addressing Modes The Intel386 DX provides 11 addressing modes for instructions to specify operands. Register Operand Mode: The operand is located in one of the 8-, 16- or 32- bit general registers. Example : ADD EAX,EBX Immediate Operand Mode: The operand is included in the instruction as part of the opcode. Example : CLI,STI 51

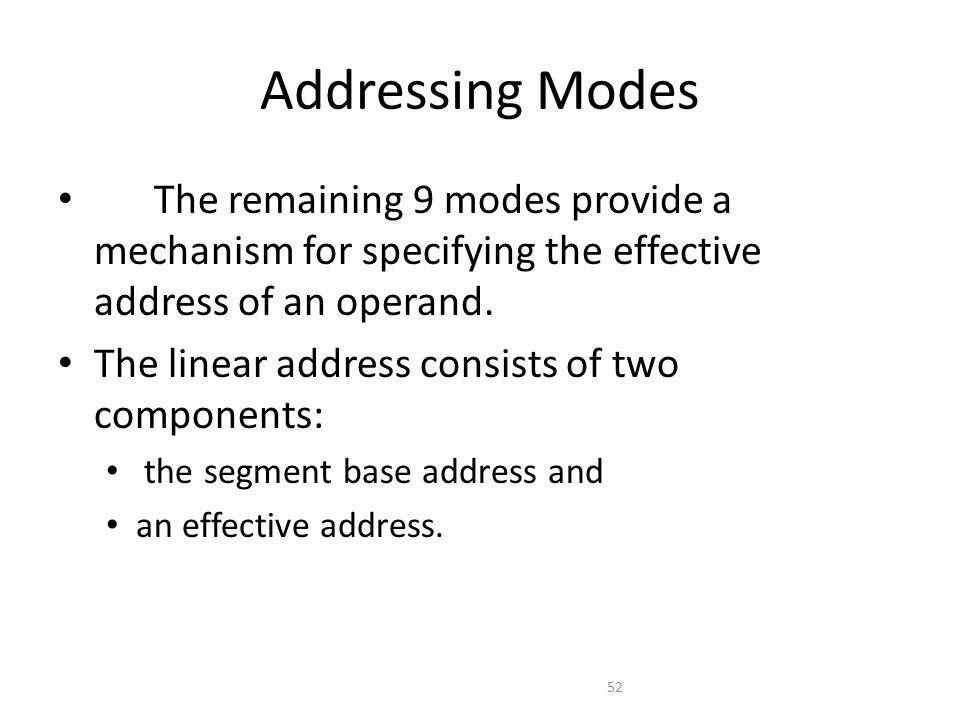

52. Addressing Modes The remaining 9 modes provide a mechanism for specifying the effective address of an operand. The linear address consists of two components: the segment base address and an effective address. 52

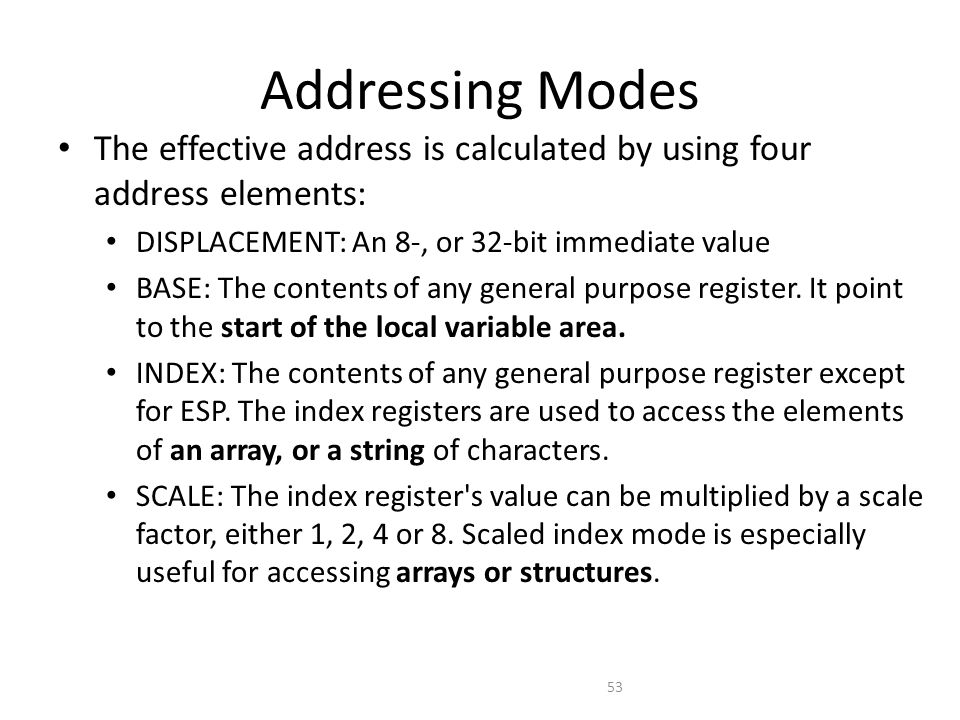

53. Addressing Modes The effective address is calculated by using four address elements: DISPLACEMENT: An 8-, or 32-bit immediate value BASE: The contents of any general purpose register. It point to the start of the local variable area. INDEX: The contents of any general purpose register except for ESP. The index registers are used to access the elements of an array, or a string of characters. SCALE: The index register's value can be multiplied by a scale factor, either 1, 2, 4 or 8. Scaled index mode is especially useful for accessing arrays or structures. 53

54. Addressing Modes Combinations of these 4 components make up the 9 additional addressing modes The effective address (EA) of an operand is calculated according to the following formula: EA = Base Register+ (Index Register * Scaling) + Displacement. This calculation can be shown as follows: 54

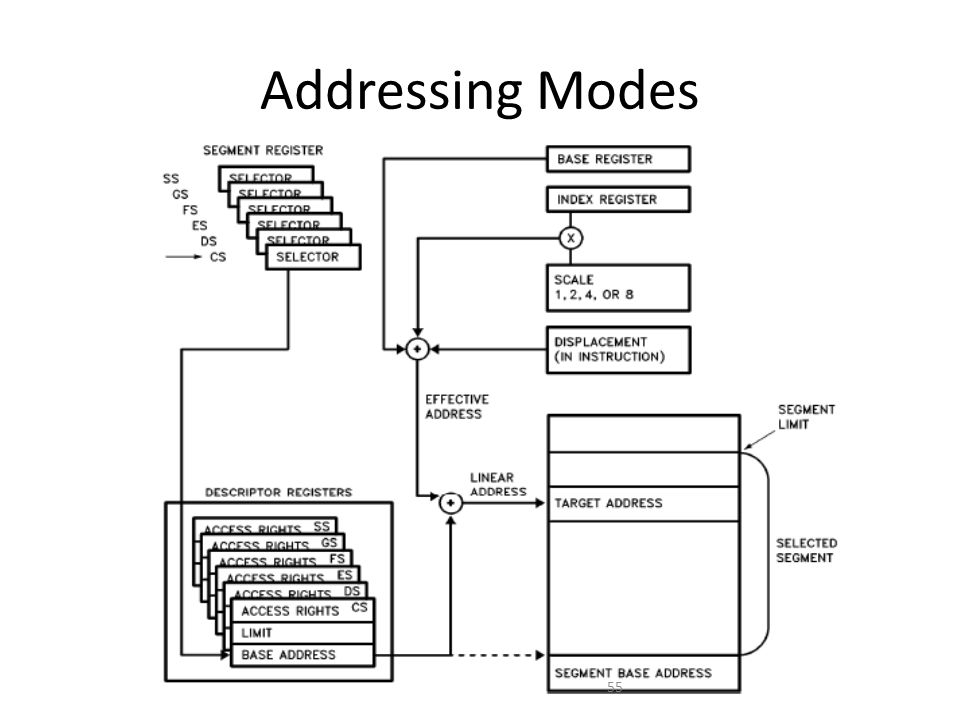

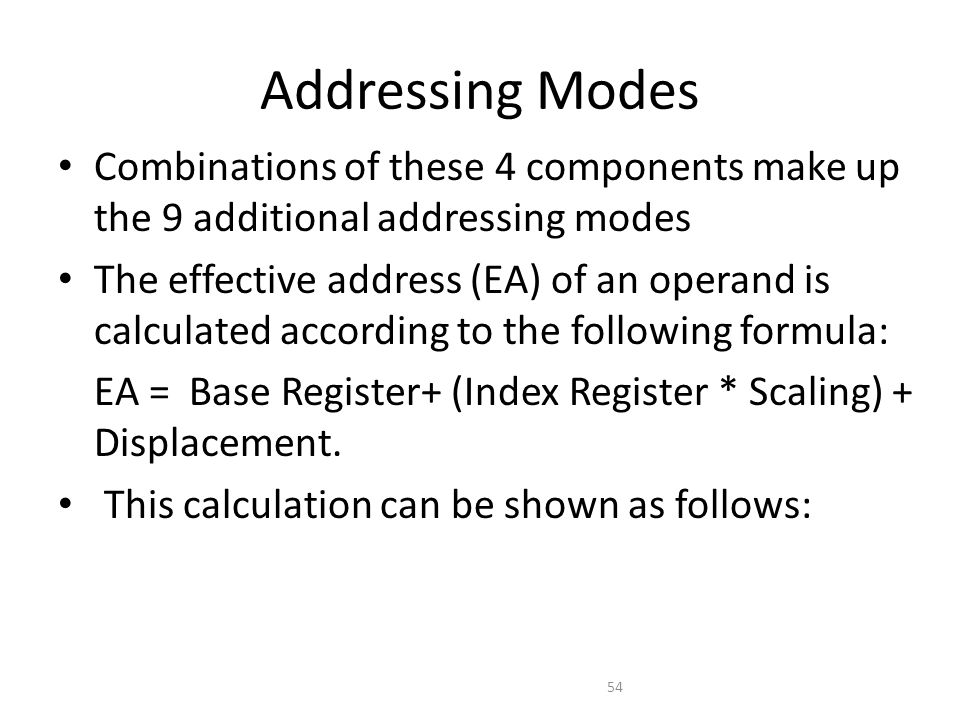

55. Addressing Modes 55

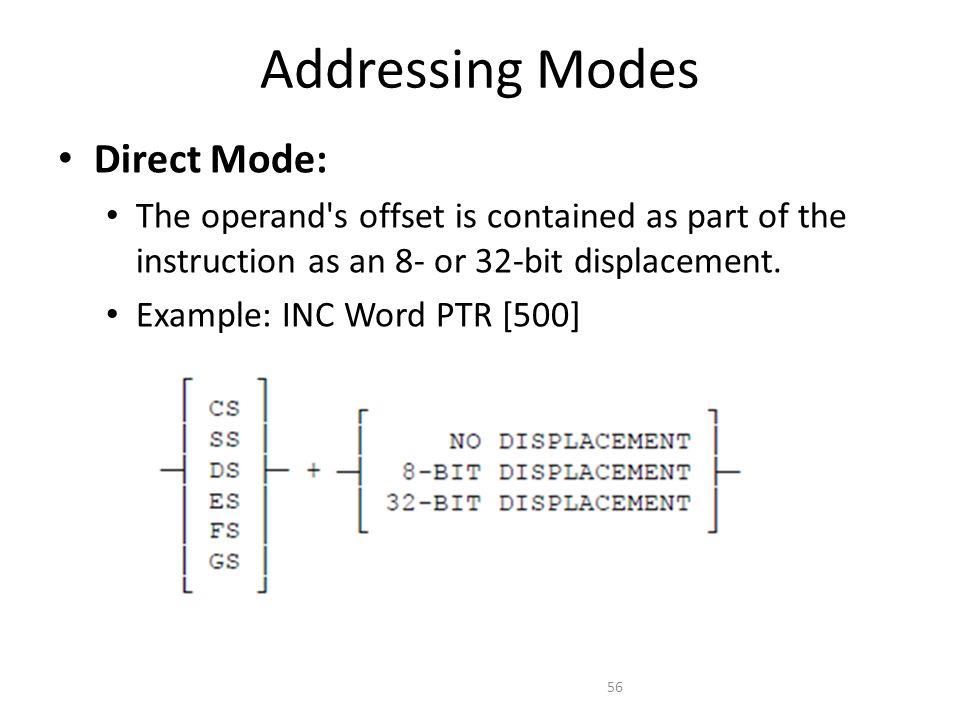

56. Addressing Modes Direct Mode: The operand's offset is contained as part of the instruction as an 8- or 32-bit displacement. Example: INC Word PTR [500] 56

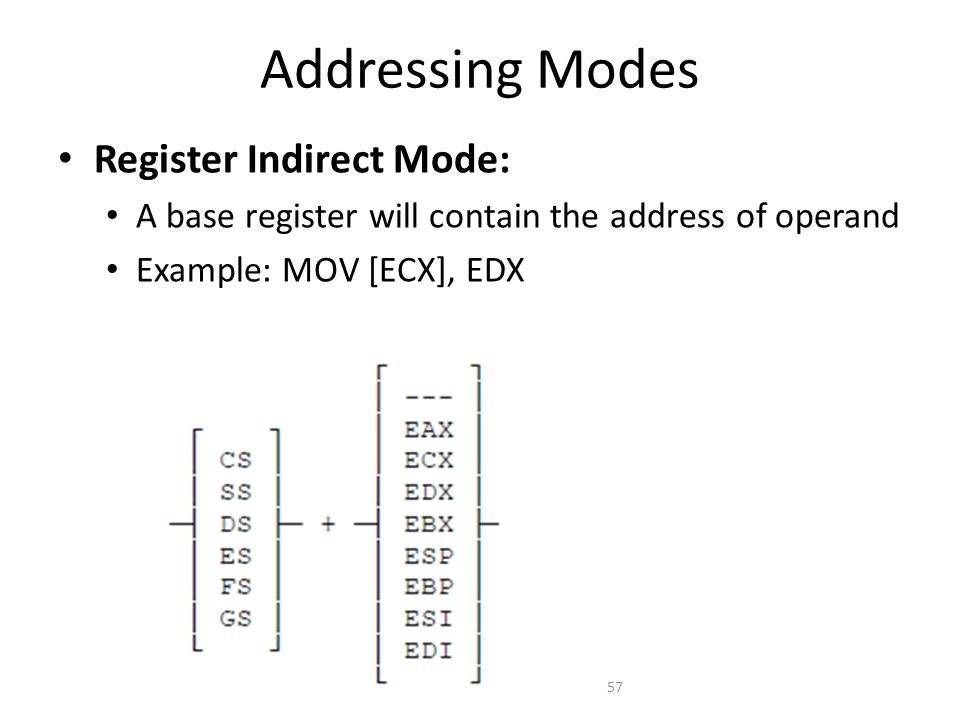

57. Addressing Modes Register Indirect Mode: A base register will contain the address of operand Example: MOV [ECX], EDX 57

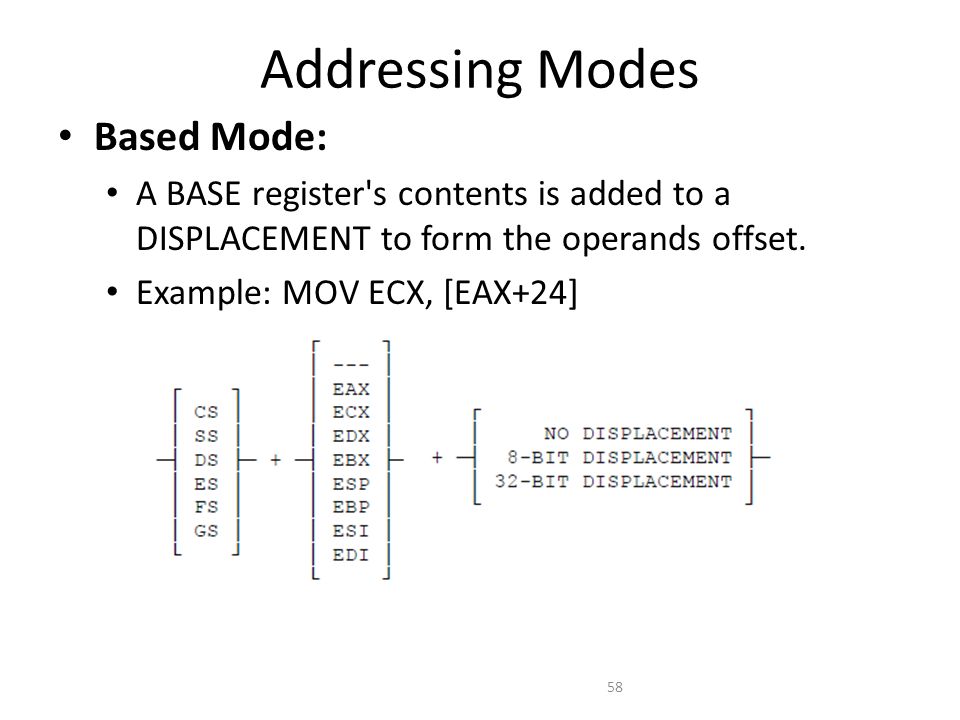

58. Addressing Modes Based Mode: A BASE register's contents is added to a DISPLACEMENT to form the operands offset. Example: MOV ECX, [EAX+24] 58

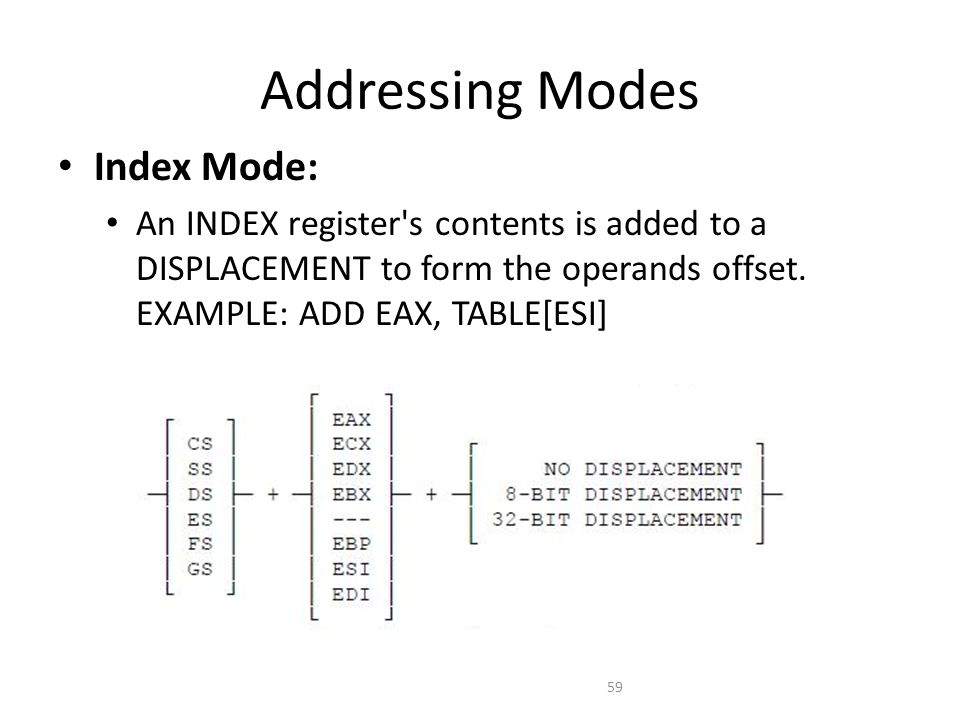

59. Addressing Modes Index Mode: An INDEX register's contents is added to a DISPLACEMENT to form the operands offset. EXAMPLE: ADD EAX, TABLE[ESI] 59

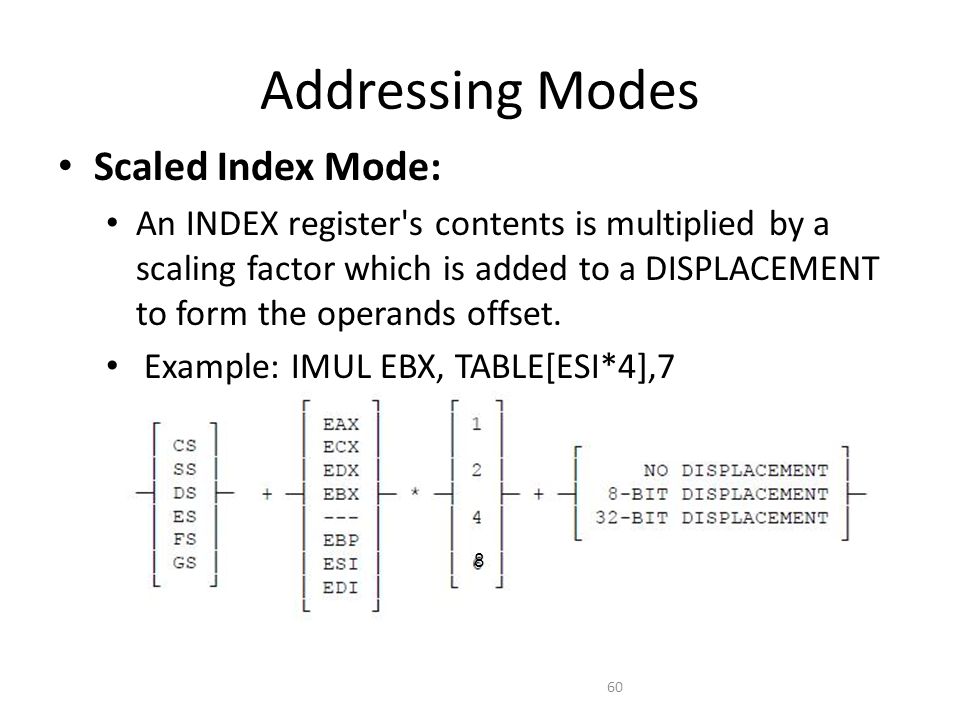

60. Addressing Modes Scaled Index Mode: An INDEX register's contents is multiplied by a scaling factor which is added to a DISPLACEMENT to form the operands offset. Example: IMUL EBX, TABLE[ESI*4],7 60 8

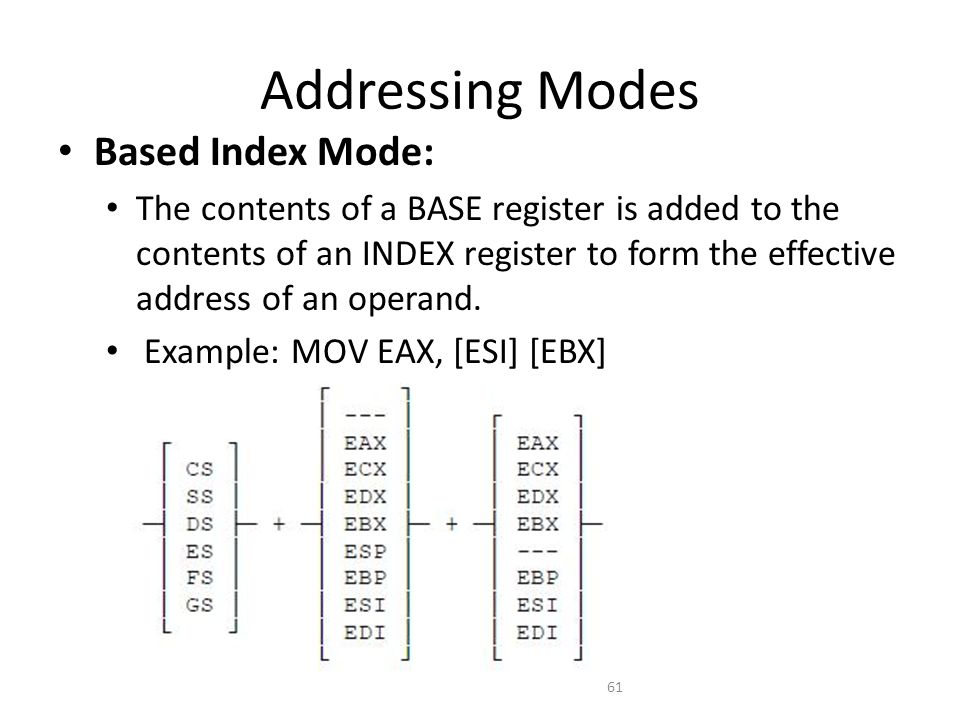

61. Addressing Modes Based Index Mode: The contents of a BASE register is added to the contents of an INDEX register to form the effective address of an operand. Example: MOV EAX, [ESI] [EBX] 61

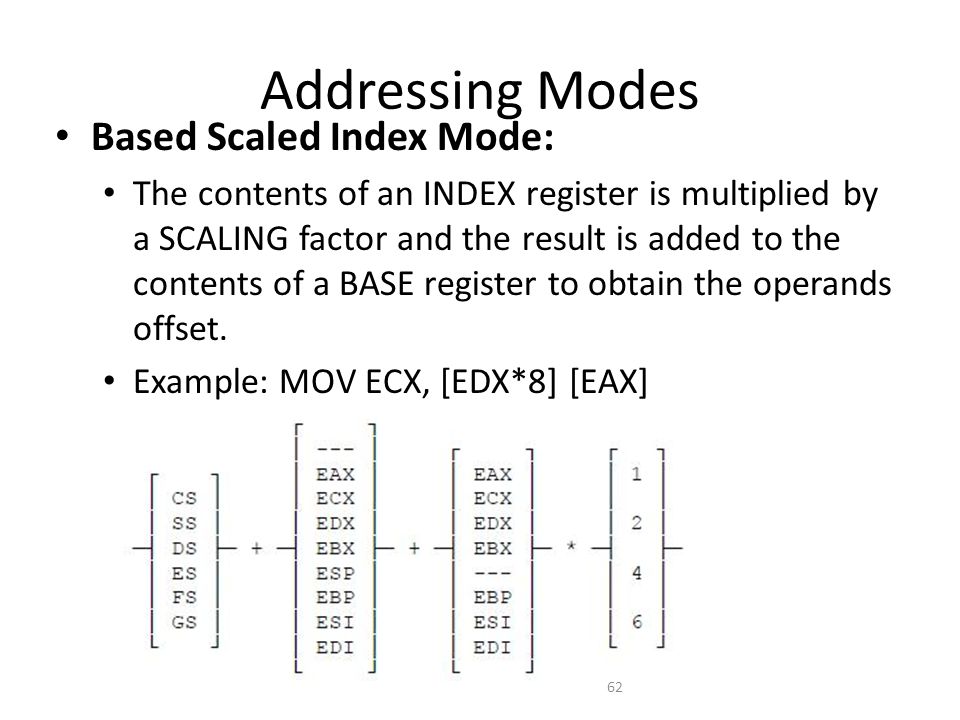

62. Addressing Modes Based Scaled Index Mode: The contents of an INDEX register is multiplied by a SCALING factor and the result is added to the contents of a BASE register to obtain the operands offset. Example: MOV ECX, [EDX*8] [EAX] 62

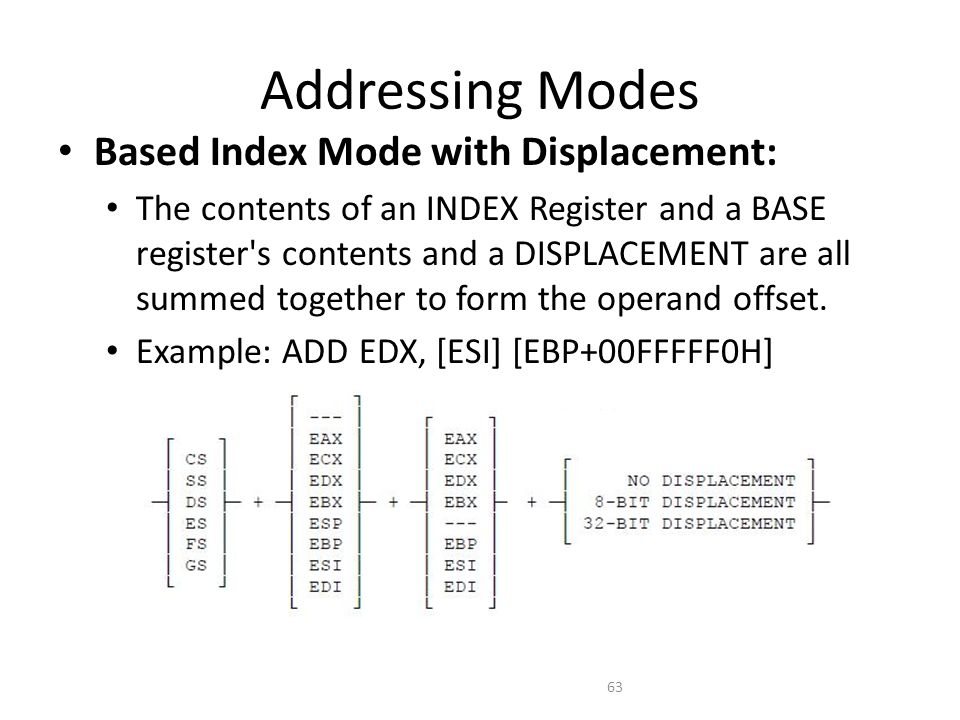

63. Addressing Modes Based Index Mode with Displacement: The contents of an INDEX Register and a BASE register's contents and a DISPLACEMENT are all summed together to form the operand offset. Example: ADD EDX, [ESI] [EBP+00FFFFF0H] 63

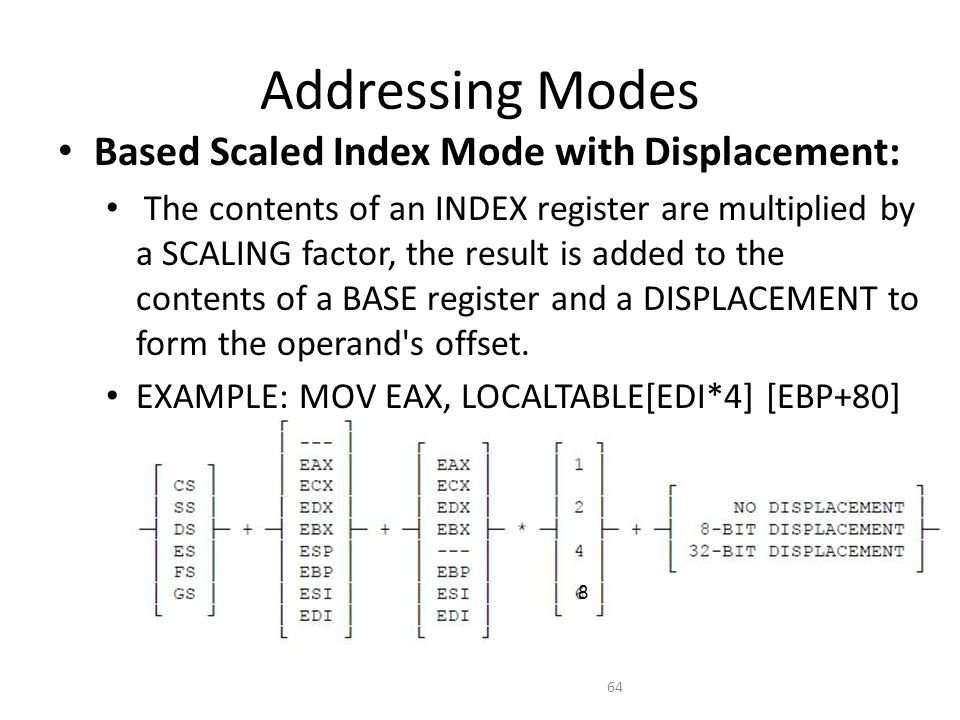

64. Addressing Modes Based Scaled Index Mode with Displacement: The contents of an INDEX register are multiplied by a SCALING factor, the result is added to the contents of a BASE register and a DISPLACEMENT to form the operand's offset. EXAMPLE: MOV EAX, LOCALTABLE[EDI*4] [EBP+80] 64 8

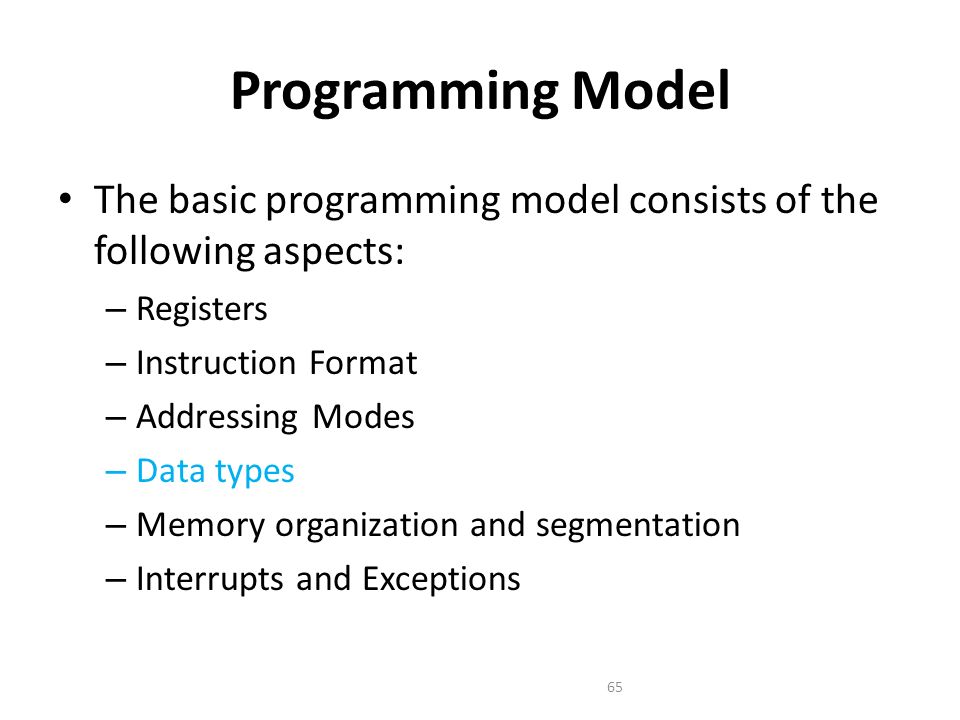

65. Programming Model The basic programming model consists of the following aspects: – Registers – Instruction Format – Addressing Modes – Data types – Memory organization and segmentation – Interrupts and Exceptions 65

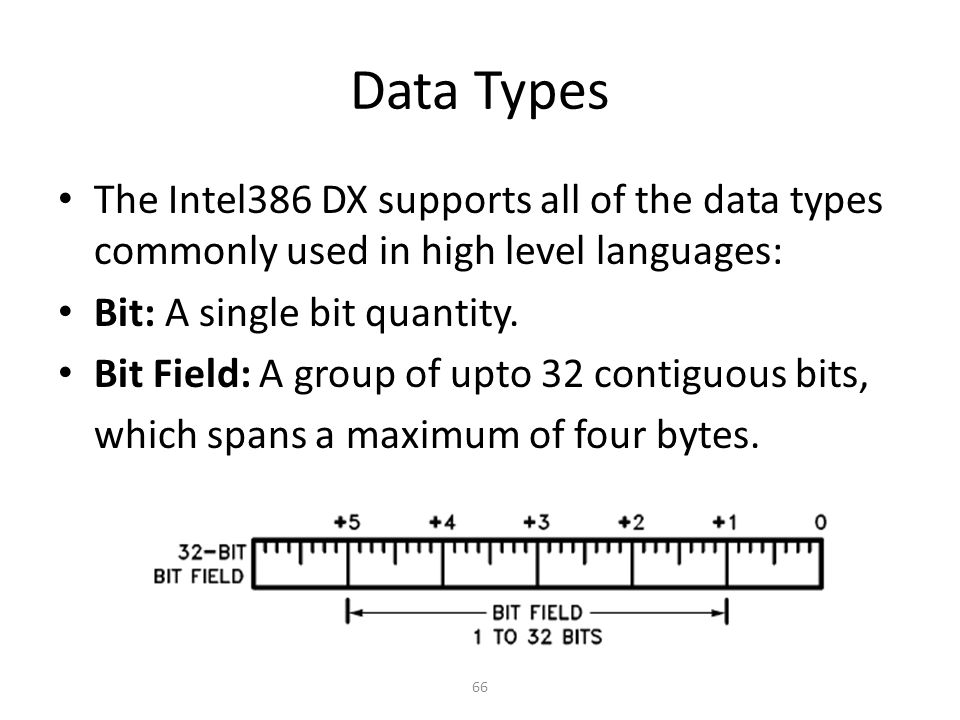

66. Data Types The Intel386 DX supports all of the data types commonly used in high level languages: Bit: A single bit quantity. Bit Field: A group of upto 32 contiguous bits, which spans a maximum of four bytes. 66

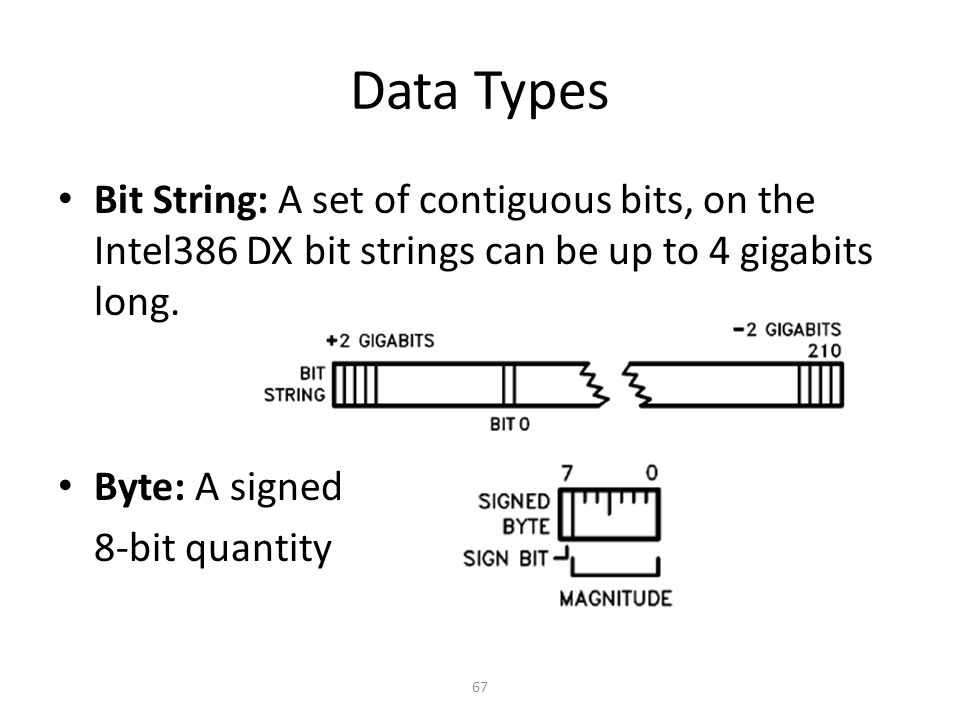

67. Data Types Bit String: A set of contiguous bits, on the Intel386 DX bit strings can be up to 4 gigabits long. Byte: A signed 8-bit quantity 67

68. Data Types Unsigned Byte: An unsigned 8-bit quantity. Integer (Word): A signed 16-bit quantity. Long Integer (Double Word): – A signed 32-bit quantity. – All operations assume a 2's complement representation. 68

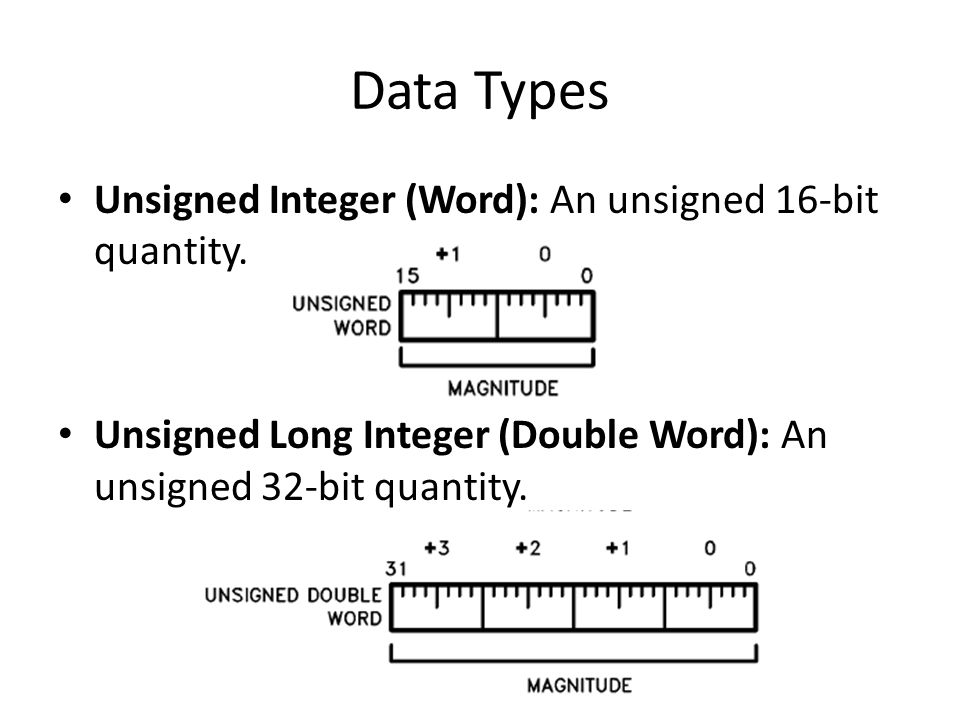

69. Data Types Unsigned Integer (Word): An unsigned 16-bit quantity. Unsigned Long Integer (Double Word): An unsigned 32-bit quantity. 69

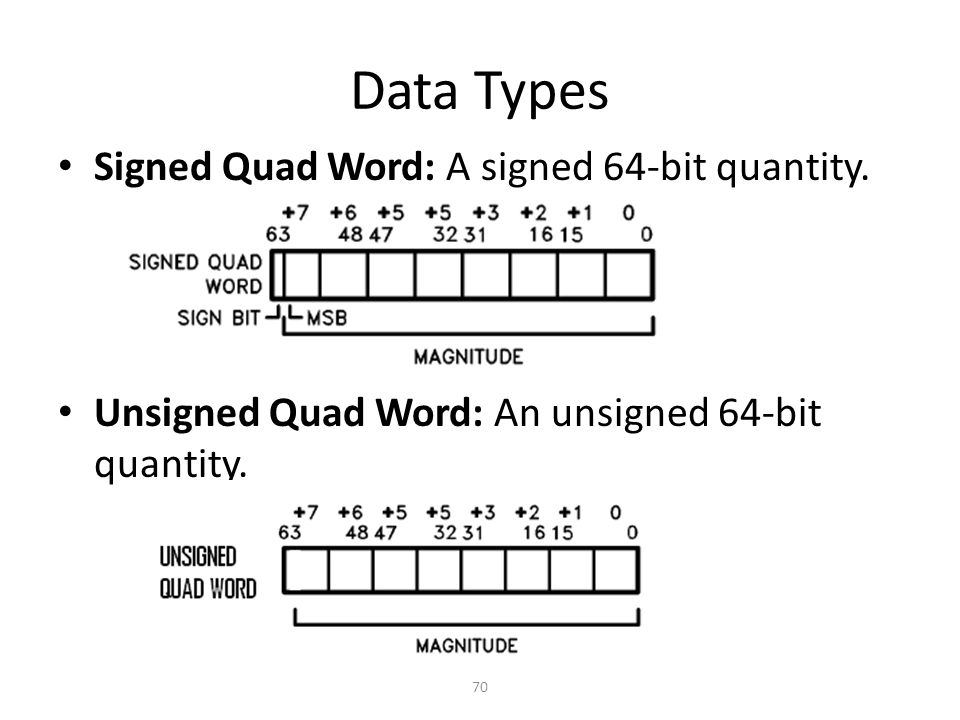

70. Data Types Signed Quad Word: A signed 64-bit quantity. Unsigned Quad Word: An unsigned 64-bit quantity. 70

71. Data Types Offset: A 16- or 32-bit offset only quantity which indirectly references another memory location. 71

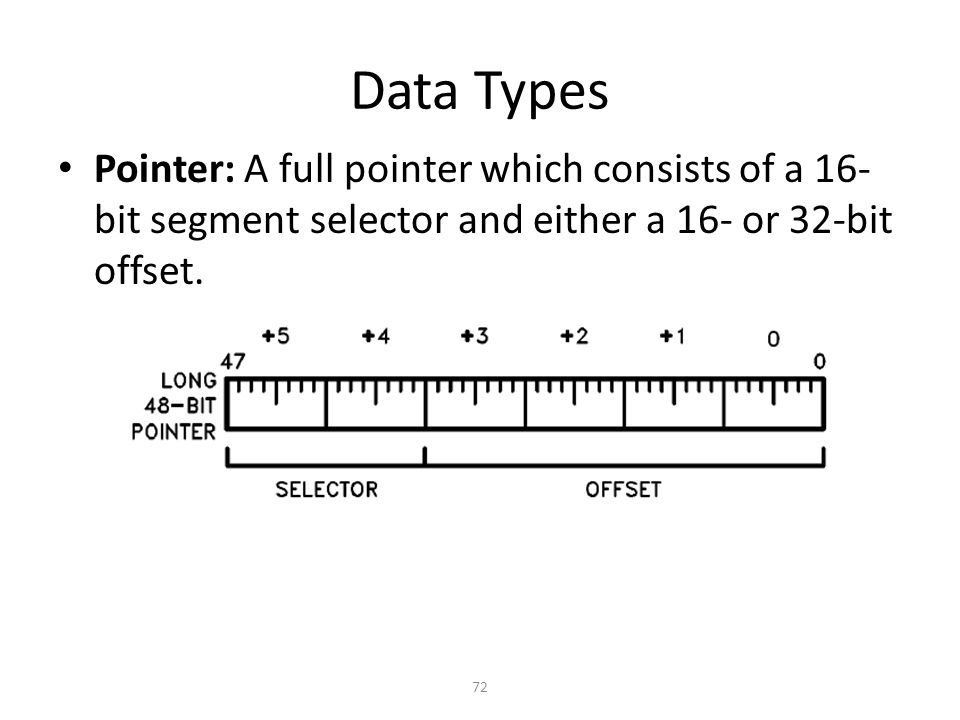

72. Data Types Pointer: A full pointer which consists of a 16- bit segment selector and either a 16- or 32-bit offset. 72

73. Data Types Char: A byte representation of an ASCII Alphanumeric or control character. String: A contiguous sequence of bytes, words or dwords. A string may contain between 1 byte and 4 GB. 73

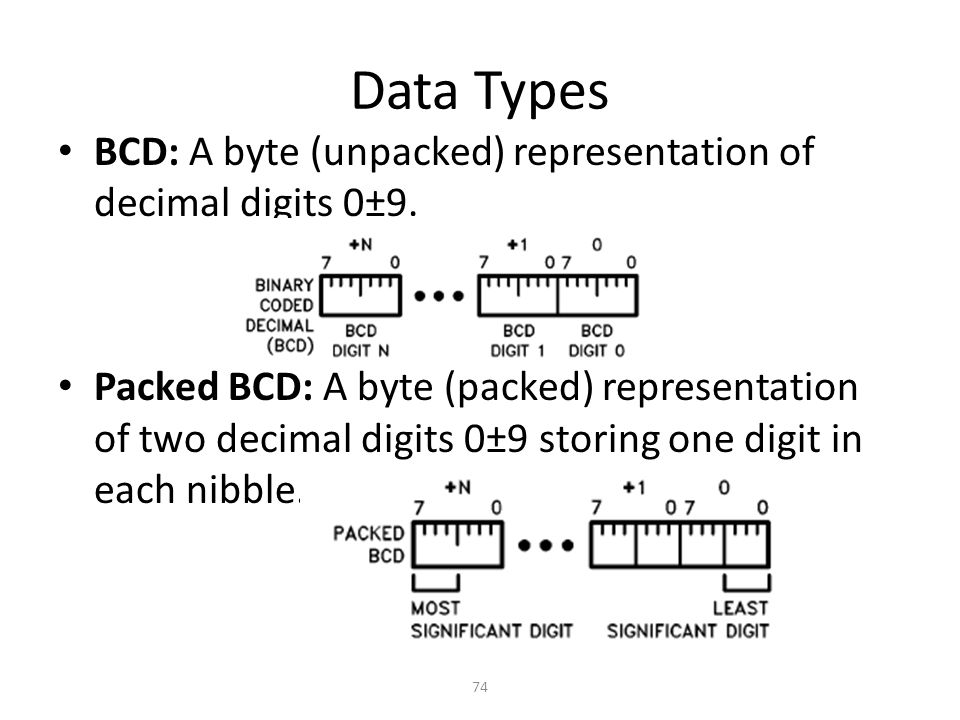

74. Data Types BCD: A byte (unpacked) representation of decimal digits 0±9. Packed BCD: A byte (packed) representation of two decimal digits 0±9 storing one digit in each nibble. 74

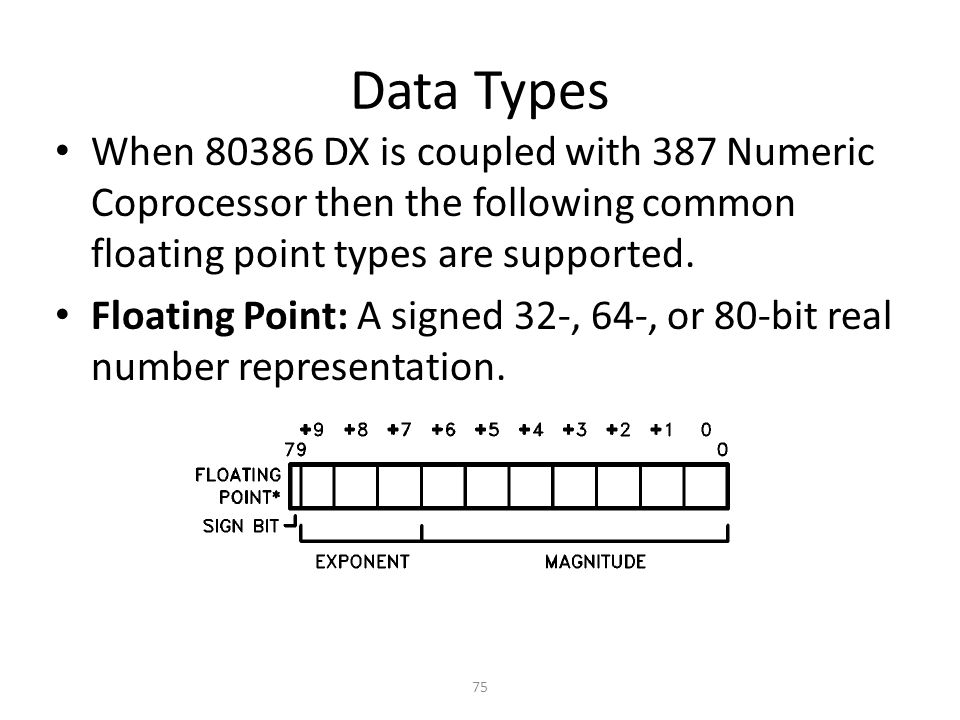

75. Data Types When 80386 DX is coupled with 387 Numeric Coprocessor then the following common floating point types are supported. Floating Point: A signed 32-, 64-, or 80-bit real number representation. 75

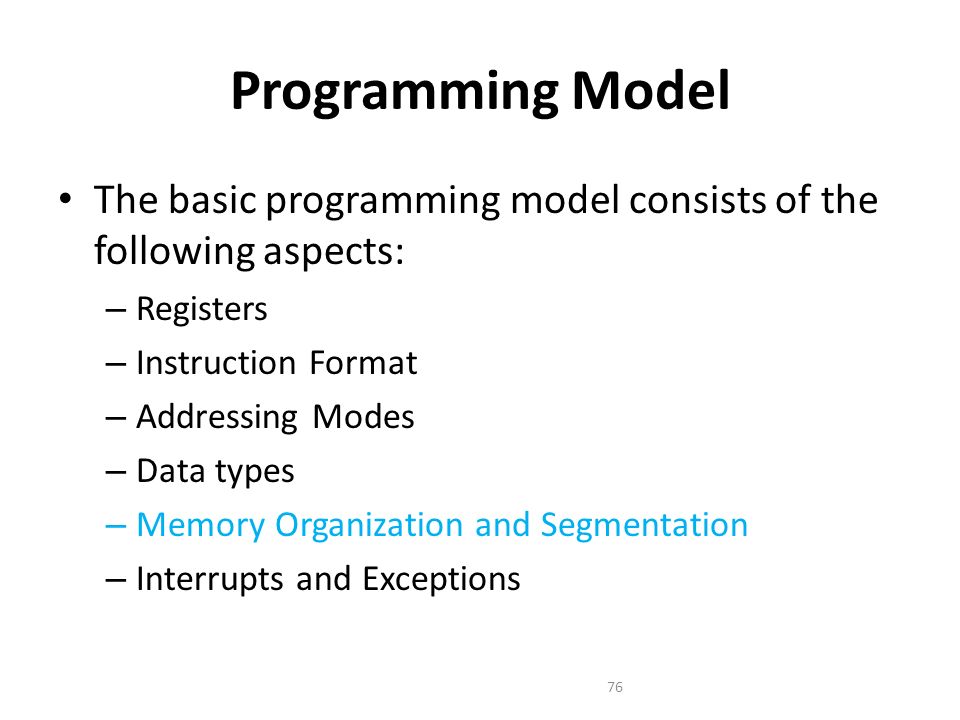

76. Programming Model The basic programming model consists of the following aspects: – Registers – Instruction Format – Addressing Modes – Data types – Memory Organization and Segmentation – Interrupts and Exceptions 76
