1. IRWA Educational Mini Conference IRWA Educational Mini Conference Chapter 26 Presenter: Richard Diaz, Jr. P.E. September 16-17, 2010  Reading Right-of-Way and Construction Plans

2. Today’s Presentation  Some helpful tips on reading plans  How Right-of-Way Maps and Constructions Plans are connected  Identifying necessary plans for analysis  Example Plans Today’s Presentation  Some helpful tips on reading plans  How Right-of-Way Maps and Constructions Plans are connected  Identifying necessary plans for analysis  Example Plans

3. Right-of-Way Maps 1. Cover Sheet Information A. Financial Project ID (FPID #) B. County (Road Number, Name) C. Jurisdiction D. Completion Status (Preliminary, Final, Revisions) 2. Vicinity Map A. How to get there? 3. General Notes 4. Legend 5. Index 6. Parcel Identification Number Key

4. A1 A3 A2 B F E A4 C D B

5. Right-of-Way Maps A. Key Sheet Information 1. Overall view of the project 2. Baseline survey geometry and stationing 3. Begin and end project limits 4. Jurisdiction (City, County, State) 5. Geographic features 1. Street names 2. Recorded plats 3. Land lines (Section-Township-Range) 4. Parent tract information

6. 1 2 3 4 5.1 5.2 5.3 5.4

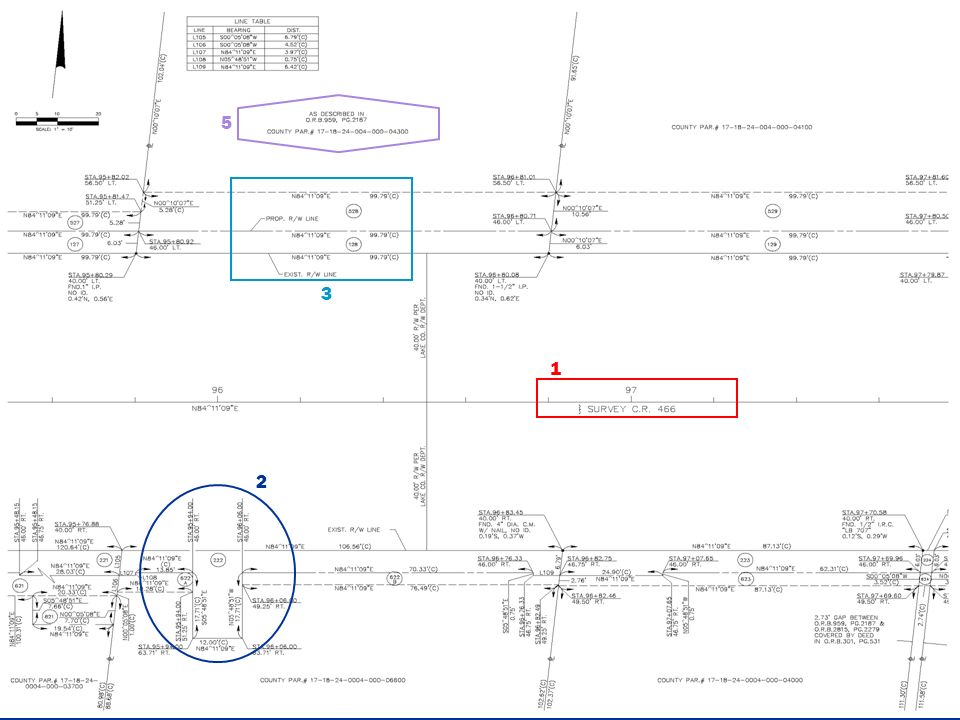

7. Right-of-Way Maps A. Typical right-of-way plan sheet 1. Centerline or baseline of survey with station 2. Acquisition parcel identification 3. Existing R/W line and new R/W line 4. Existing L.A. R/W and new L.A. R/W 5. Parent tract information 6. Easements and entitlements

8. 1 2 3 5

9. Right-of-Way Maps A. Table of Ownerships 1. Parcel number 2. Sheet number (where to find parcel in R/W map) 3. Owner’s name 4. Area taken 5. Remainder (left or right) 6. Comments 7. Recording data 8. Legend

10. 12345 6 7 8 re

11. Construction Plans A. Cover Sheet Information 1. Financial Project ID (FPID #) or Other 2. County (Road Number, Name) 3. Jurisdiction 4. Completion Status or Plan set status (50%, 90%, Final, Bid) B. Vicinity Map 1. How to get there? C. Index 1. Other contract plans D. Who prepared the plans?

12. A1 A3 A2 B E A4 C

13. Construction Plans Plan sheets needed for engineering analysis Plan sheets needed for engineering analysis

14. Construction Plans Additional plan sheets needed for engineering analysis Additional plan sheets needed for engineering analysis Signing and pavement marking plans Signing and pavement marking plans Signalization plans Signalization plans Lighting plans Lighting plans Structures plans Structures plans Landscape plans Landscape plans

15. Construction Plans A. Connecting Right-of-Way Maps to Construction Plans 1. Locating the Project Layout Sheets 2. Locating the Survey Centerline and Construction Centerline 3. Comparing the Stations of the Various Centerlines

16. 2 1 3

17. 2 3

18. Construction Plans A. How Plans Are Drawn: The Three View Concept 1. Plan View A. Birds Eye View or Overhead View 2. Profile View A. Side View 3. Section View A. Front View  Types of Section Views Include:  Construction Cross Sections  Typical Roadway Sections

19. Construction Plans A. Key Elements of the Plan View 1. Right-of-Way lines (often inconspicuous) 2. Center Lines 3. Edge of Pavement 4. Locations of Existing and Proposed Features  Existing Features are typically dashed and grayed out  Proposed Features, such as New pavement, drainage structures, traffic separators, medians, sidewalk, Etc., are delineated by heavier line types and identified using various callouts such as:  “Const. New…”  “Begin New…”

20. 1 2 4 3 PLAN VIEW

21. Construction Plans A. Key Elements of the Profile View 1. Delineating the Existing Profile Grade 2. Delineating the Proposed Profile Grade 3. Determining the Difference between the Existing and Proposed Profile Grade 4. Identifying the Existing and Proposed Underground Features

22. 2 1 3 4 PROFILE VIEW

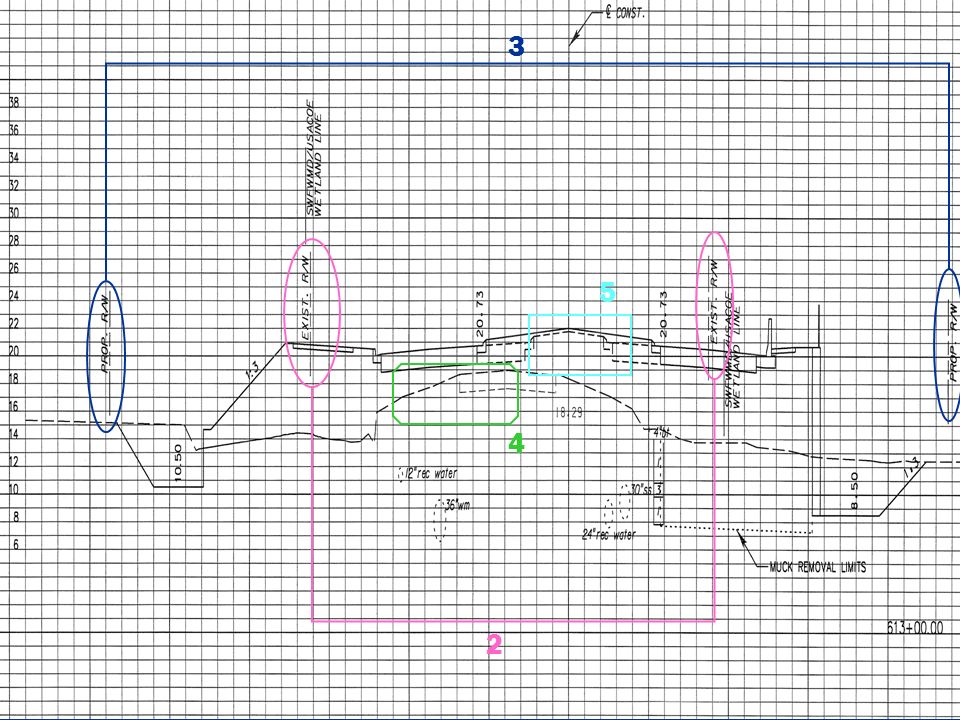

23. Construction Plans A. Key Elements of the Construction Cross Section View 1. Slice of Bread 2. Delineating the Existing Right-of-Way Line or Grade 3. Delineating the Proposed Right-of-Way line 4. Delineating the Existing Roadway or Grade 5. Delineating the Proposed Roadway

24. 3 2 4 5

25. 3 4 5

26. Construction Plans A. Key Elements of the Typical Roadway Section 1. Distance of Roadway Typical Section Applies to 2. Design Speed of Proposed Roadway 3. New Right-of-Way Width, Easement Width, and Limits of Construction 4. Average Number and Width of Lanes, Sidewalks, Ditches, Medians, Etc. 5. Typical Pavement, Ditch, and Recovery Slopes

27. 2 3 1 4 5

28. Thank You Questions? Need Help? 813-258-0444 richard@diazpearson.com
