1. Wireless Sensor Networks Applications Amy Wang VP of Technology Mela Networks, Inc. www.melanetworks.com awang@melanetworks.com 408-426-4425 WSN Workshop March 8, 2006

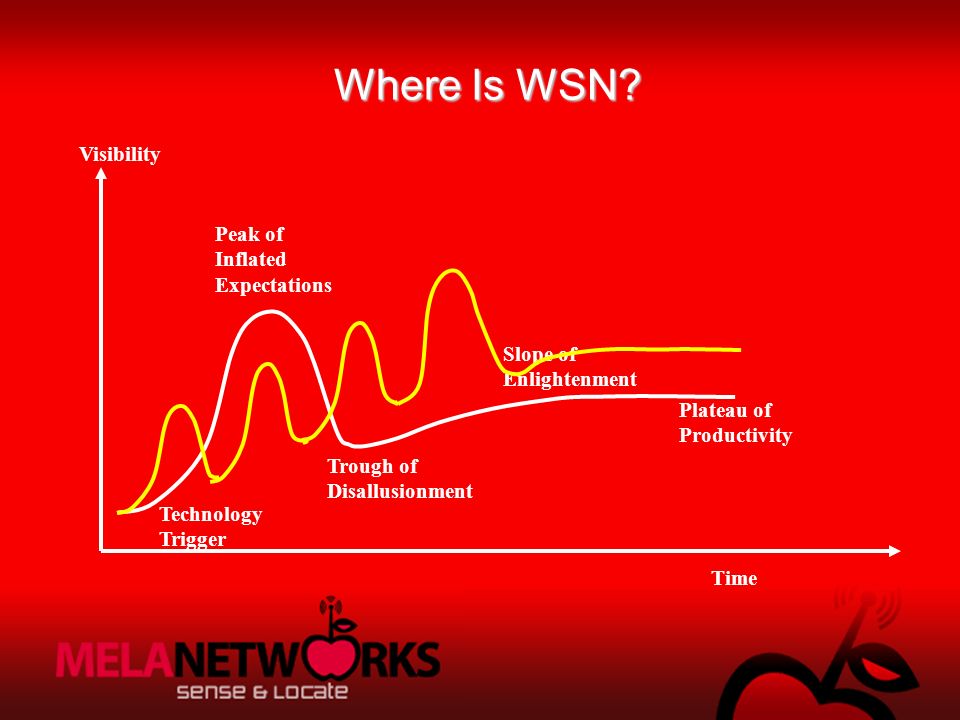

2. Where Is WSN? Technology Trigger Peak of Inflated Expectations Trough of Disallusionment Slope of Enlightenment Plateau of Productivity Visibility Time

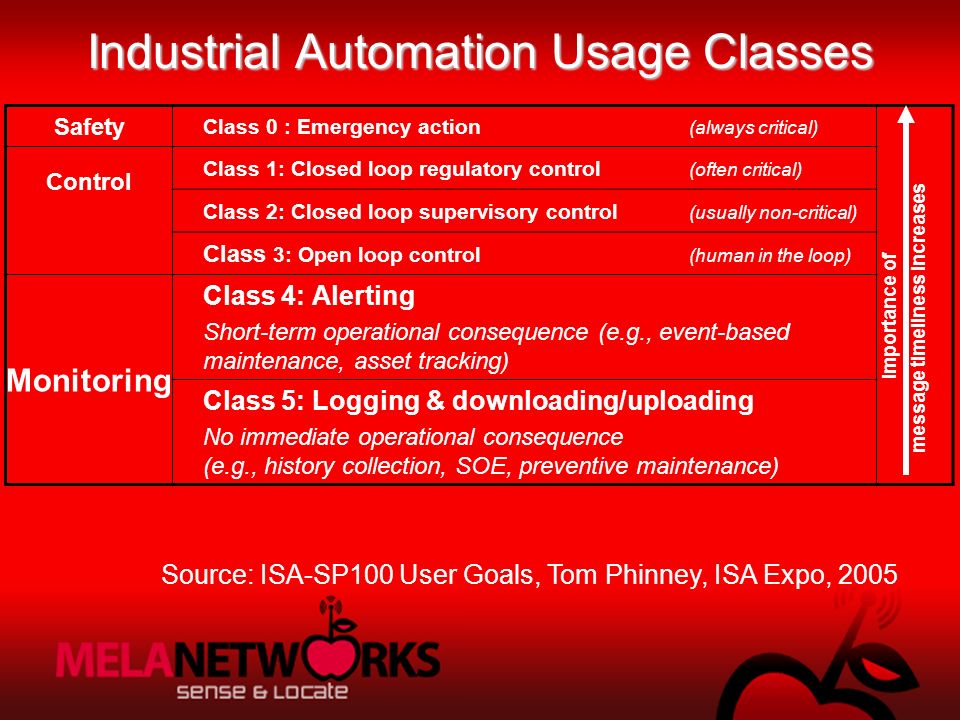

3. Industrial Automation Usage Classes Safety Class 0 : Emergency action (always critical) Control Class 1: Closed loop regulatory control (often critical) Class 2: Closed loop supervisory control (usually non-critical) Class 3: Open loop control (human in the loop) Monitoring Class 4: Alerting Short-term operational consequence (e.g., event-based maintenance, asset tracking) Class 5: Logging & downloading/uploading No immediate operational consequence (e.g., history collection, SOE, preventive maintenance) Importance of message timeliness increases Source: ISA-SP100 User Goals, Tom Phinney, ISA Expo, 2005

4. Requirements Cost –Capital expense –Operational expense –Easy installation and maintenance –Power management Compatibility & Scalability –Interoperability/Shared infrastructure –Worldwide usability –Capacity and scalability Performance –Reliable communication –Adequate reporting rates Quality of Service (QoS) –Timeliness (latency) and successful throughput –Delivery ordering –Recovery action Security System Management Standard Compliance Source: ISA-SP100 User Goals, Tom Phinney, ISA Expo, 2005

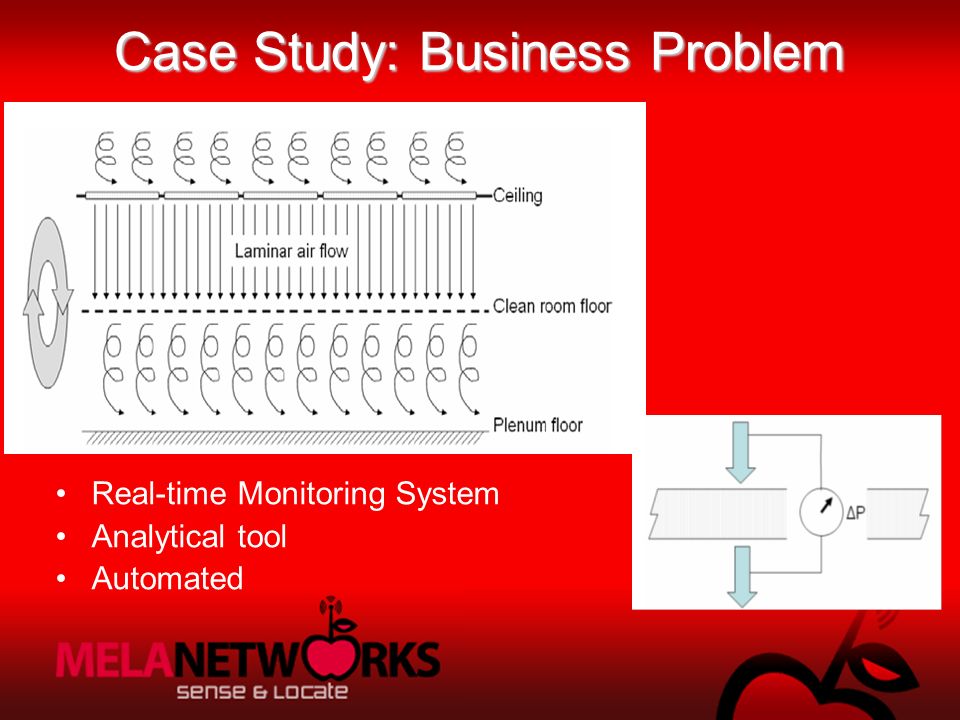

5. Case Study: Business Problem Real-time Monitoring System Analytical tool Automated

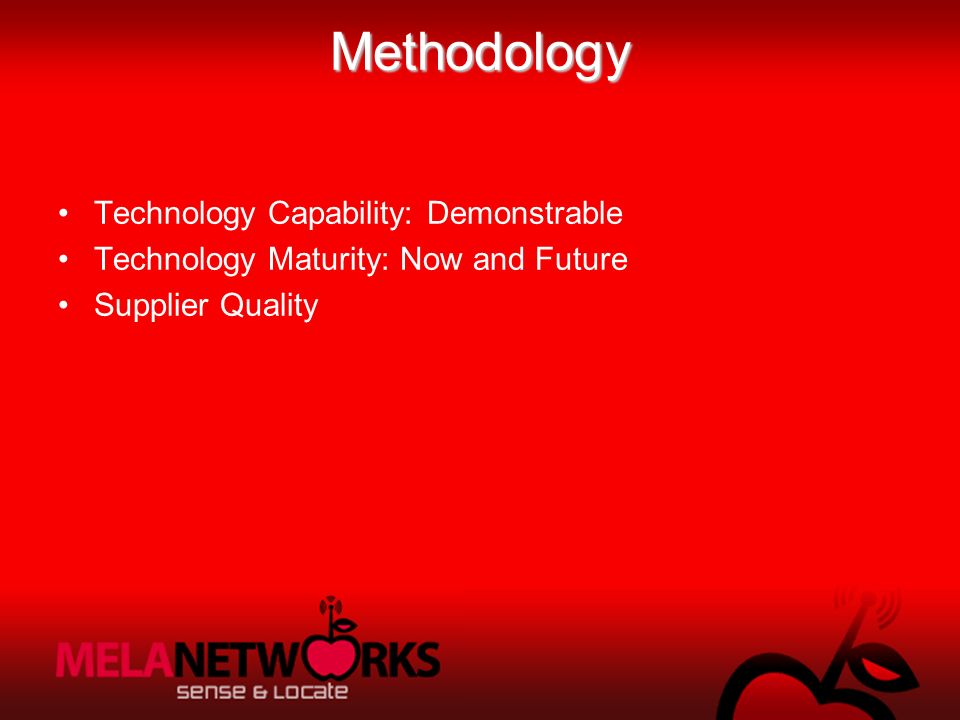

6. Methodology Technology Capability: Demonstrable Technology Maturity: Now and Future Supplier Quality

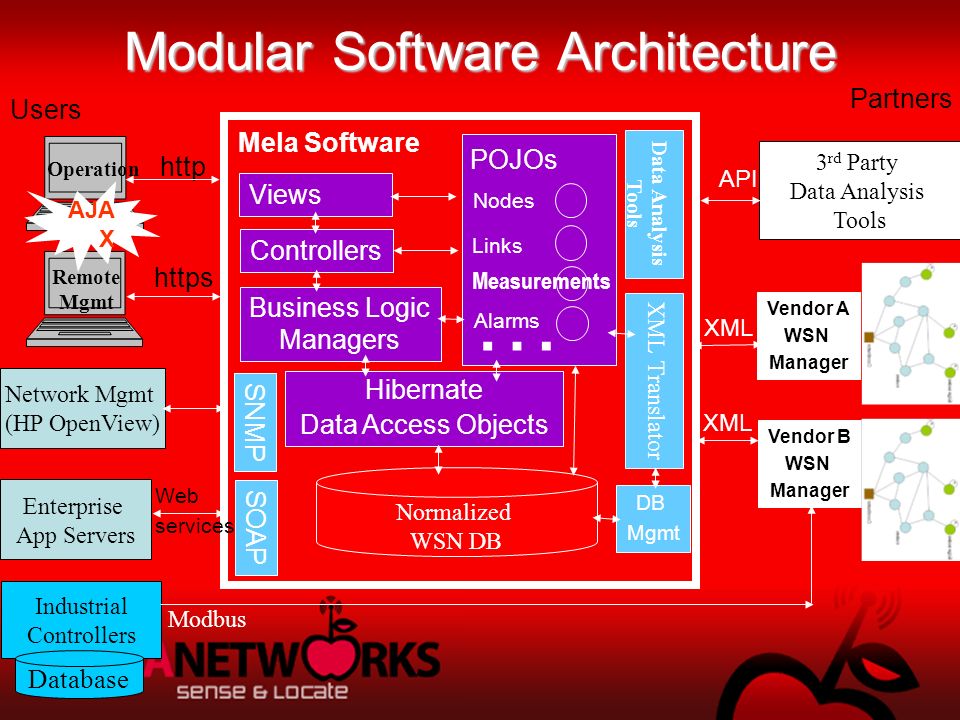

7. Modular Software Architecture Users Normalized WSN DB XML Translator Mela Software Data Analysis Tools SOAP Enterprise App Servers Web services Partners 3 rd Party Data Analysis Tools API SNMP Network Mgmt (HP OpenView) DB Mgmt Vendor B WSN Manager Vendor A WSN Manager XML Modbus Industrial Controllers Database https http Remote Mgmt Operation AJA X Hibernate Data Access Objects POJOs Nodes Links Measurements Alarms … Controllers Views Business Logic Managers

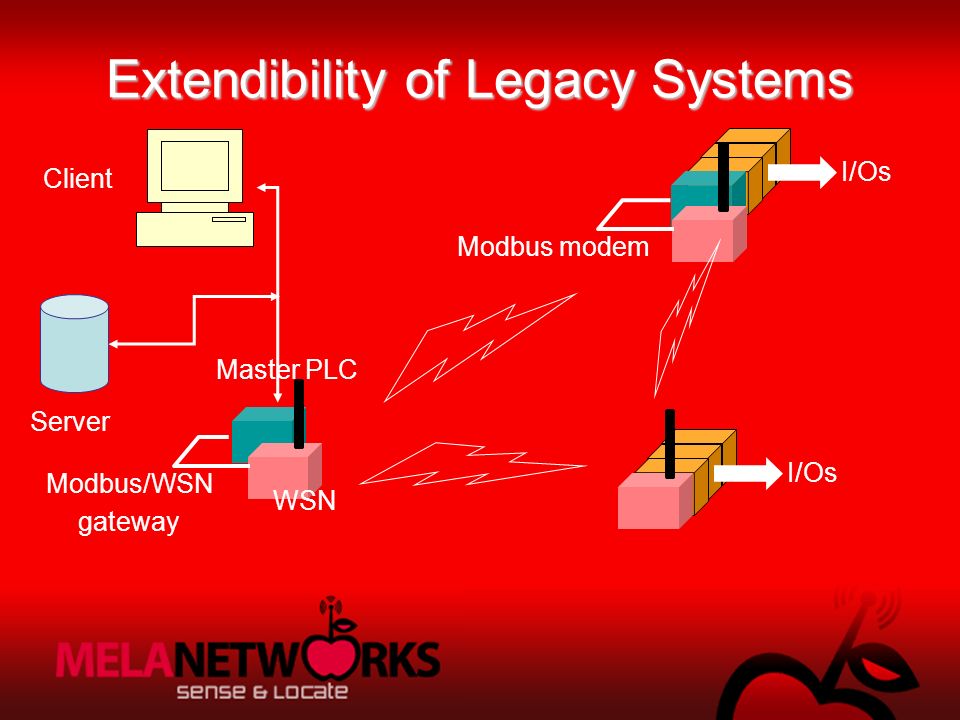

8. I/Os Extendibility of Legacy Systems Master PLC WSN Server Client Modbus/WSN gateway Modbus modem

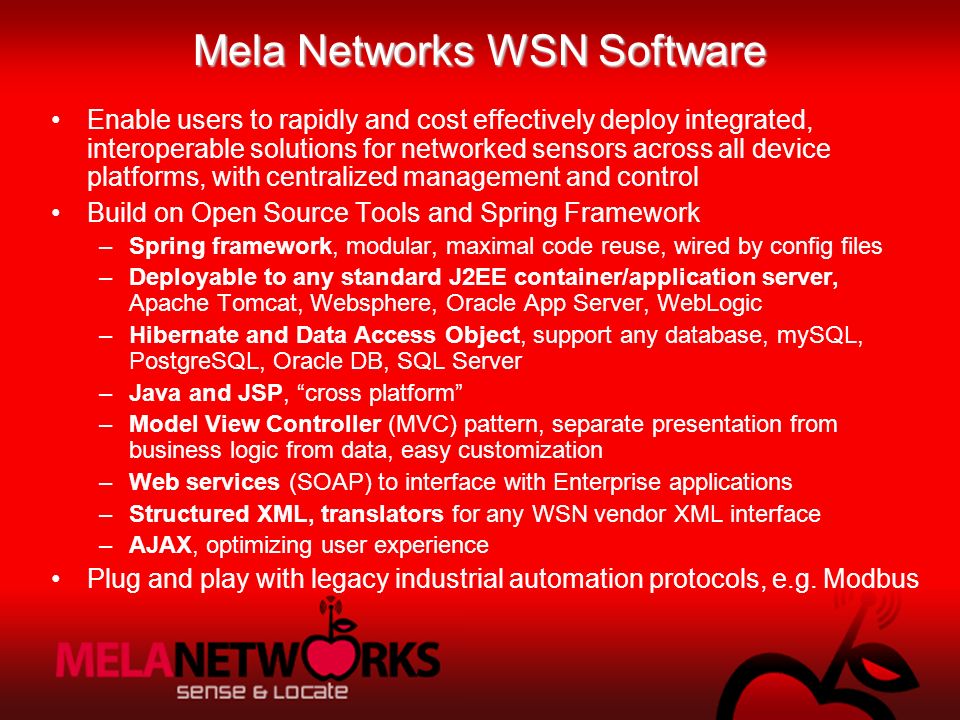

9. Mela Networks WSN Software Enable users to rapidly and cost effectively deploy integrated, interoperable solutions for networked sensors across all device platforms, with centralized management and control Build on Open Source Tools and Spring Framework –Spring framework, modular, maximal code reuse, wired by config files –Deployable to any standard J2EE container/application server, Apache Tomcat, Websphere, Oracle App Server, WebLogic –Hibernate and Data Access Object, support any database, mySQL, PostgreSQL, Oracle DB, SQL Server –Java and JSP, “cross platform” –Model View Controller (MVC) pattern, separate presentation from business logic from data, easy customization –Web services (SOAP) to interface with Enterprise applications –Structured XML, translators for any WSN vendor XML interface –AJAX, optimizing user experience Plug and play with legacy industrial automation protocols, e.g. Modbus

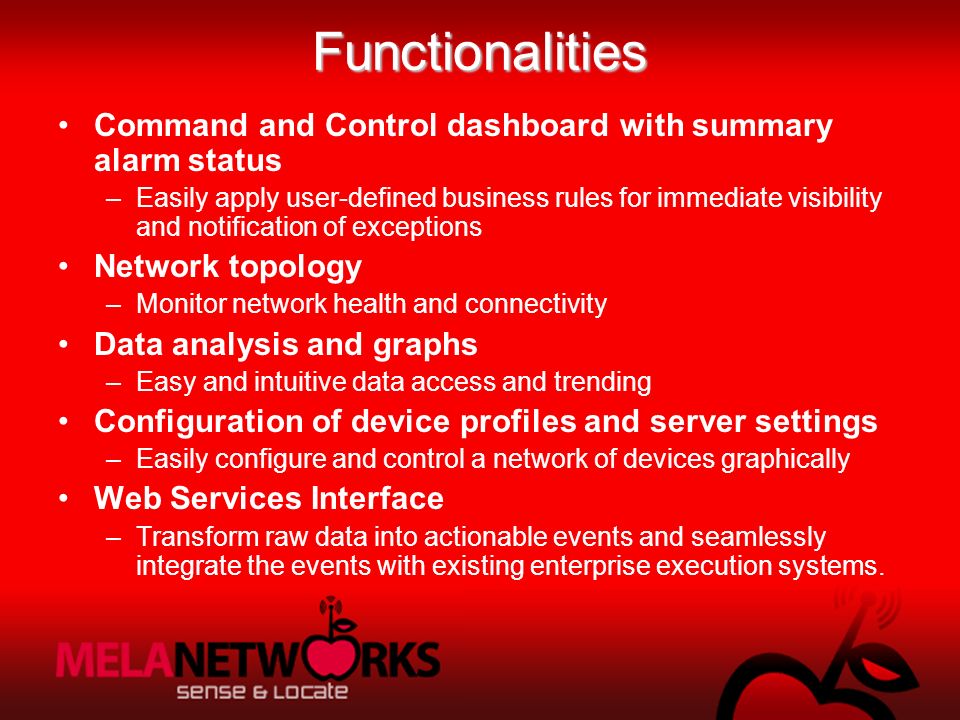

10. Functionalities Command and Control dashboard with summary alarm status –Easily apply user-defined business rules for immediate visibility and notification of exceptions Network topology –Monitor network health and connectivity Data analysis and graphs –Easy and intuitive data access and trending Configuration of device profiles and server settings –Easily configure and control a network of devices graphically Web Services Interface –Transform raw data into actionable events and seamlessly integrate the events with existing enterprise execution systems.

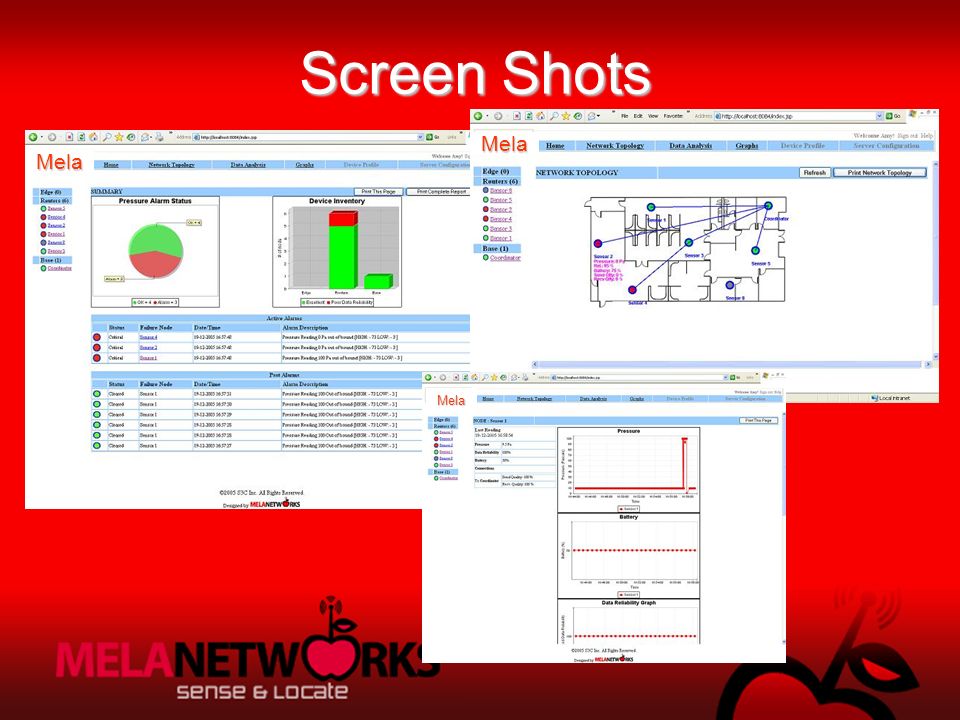

11. Screen Shots Mela Mela Mela

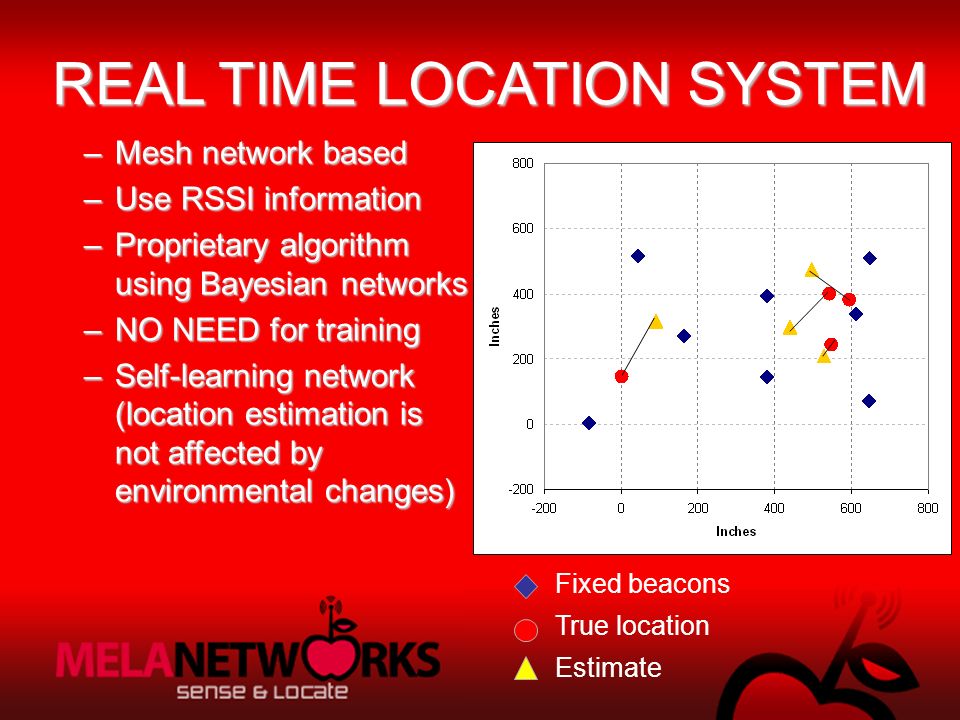

12. REAL TIME LOCATION SYSTEM –Mesh network based –Use RSSI information –Proprietary algorithm using Bayesian networks –NO NEED for training –Self-learning network (location estimation is not affected by environmental changes) Fixed beacons True location Estimate

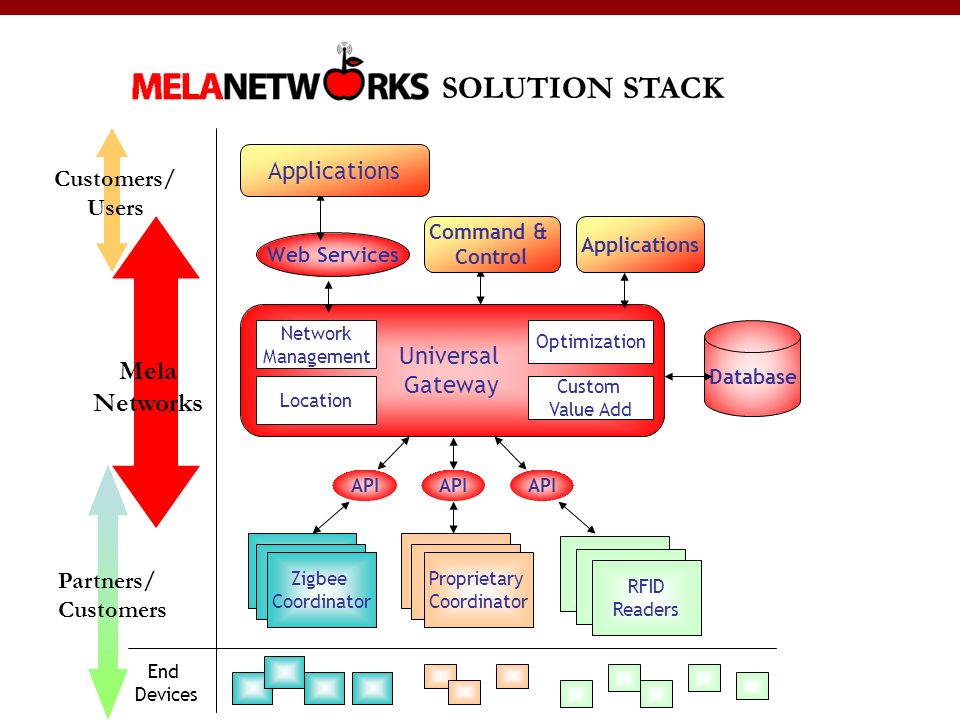

13. Sensor Gateway (Xmesh) API Web Services Zigbee Sensor Gateway API Universal Gateway Applications Database Zigbee Sensor Gateway Sensor Gateway (Xmesh) Proprietary Coordinator Command & Control Zigbee Coordinator Location Network Management Applications RFID Readers End Devices RFID Readers RFID Readers Optimization Custom Value Add SOLUTION STACK Mela Networks Partners/ Customers Customers/ Users

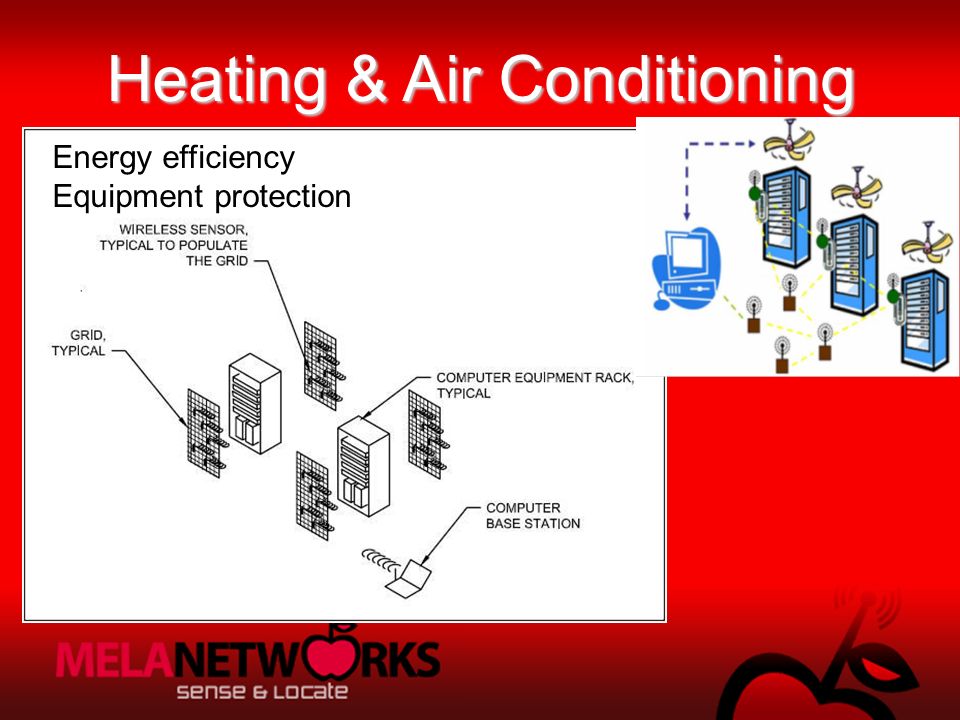

14. Heating & Air Conditioning Energy efficiency Equipment protection

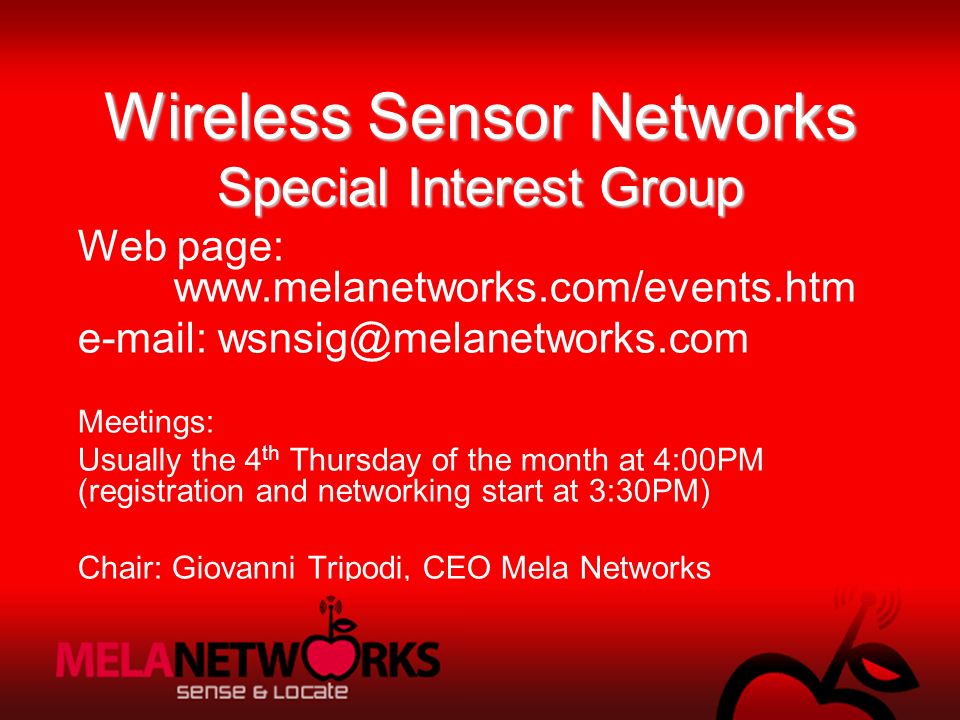

15. Wireless Sensor Networks Special Interest Group Web page: www.melanetworks.com/events.htm e-mail: wsnsig@melanetworks.com Meetings: Usually the 4 th Thursday of the month at 4:00PM (registration and networking start at 3:30PM) Chair: Giovanni Tripodi, CEO Mela Networks

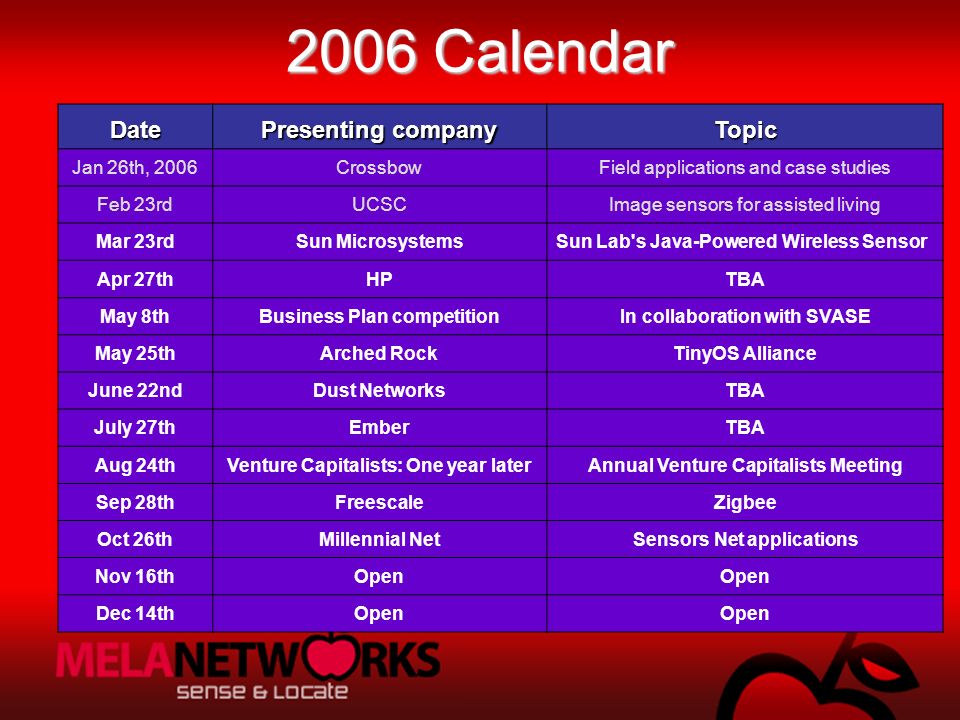

16. 2006 Calendar Date Presenting company Topic Jan 26th, 2006CrossbowField applications and case studies Feb 23rdUCSCImage sensors for assisted living Mar 23rdSun MicrosystemsSun Lab's Java-Powered Wireless Sensor Apr 27thHPTBA May 8thBusiness Plan competitionIn collaboration with SVASE May 25thArched RockTinyOS Alliance June 22ndDust NetworksTBA July 27thEmberTBA Aug 24thVenture Capitalists: One year laterAnnual Venture Capitalists Meeting Sep 28thFreescaleZigbee Oct 26thMillennial NetSensors Net applications Nov 16thOpen Dec 14thOpen

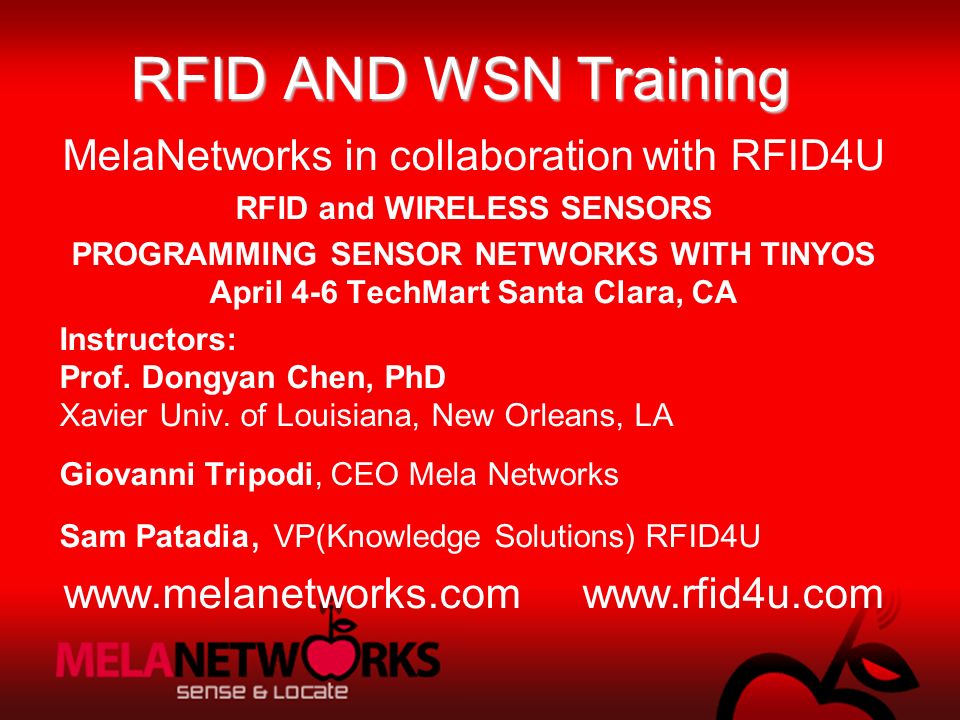

17. RFID AND WSN Training MelaNetworks in collaboration with RFID4U RFID and WIRELESS SENSORS PROGRAMMING SENSOR NETWORKS WITH TINYOS April 4-6 TechMart Santa Clara, CA Instructors: Prof. Dongyan Chen, PhD Xavier Univ. of Louisiana, New Orleans, LA Giovanni Tripodi, CEO Mela Networks Sam Patadia, VP(Knowledge Solutions) RFID4U www.melanetworks.com www.rfid4u.com

18. Business Plan Competition Start-ups actively looking for funds -Must have revenues -Must be pre-Series A -Must be a legal entity in USA -NO FEE to enter (usually $125) -More info at: www.svase.org www.melanetworks.com Wilson & Sonsini – Palo Alto, CA May 8 th 5:30PM *** DEADLINE TO ENTER MARCH 31st ****

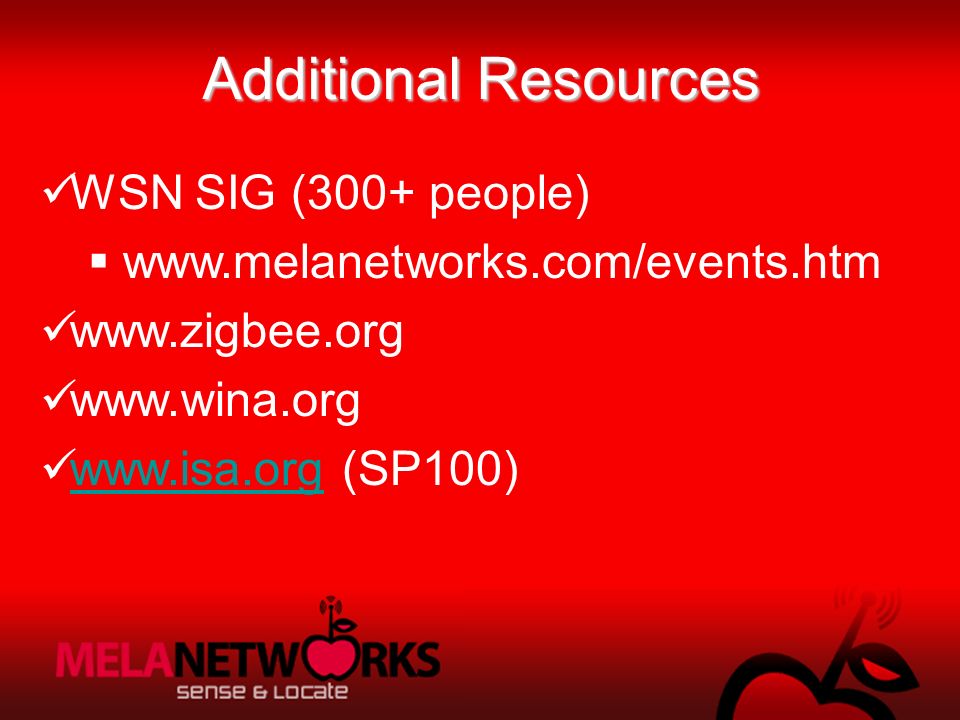

19. Additional Resources WSN SIG (300+ people)  www.melanetworks.com/events.htm www.zigbee.org www.wina.org www.isa.org (SP100) www.isa.org

20. Thank You! Mela Networks www.melanetworks.com info@melanetworks.com Tel: 408-426-4425

21. Backup

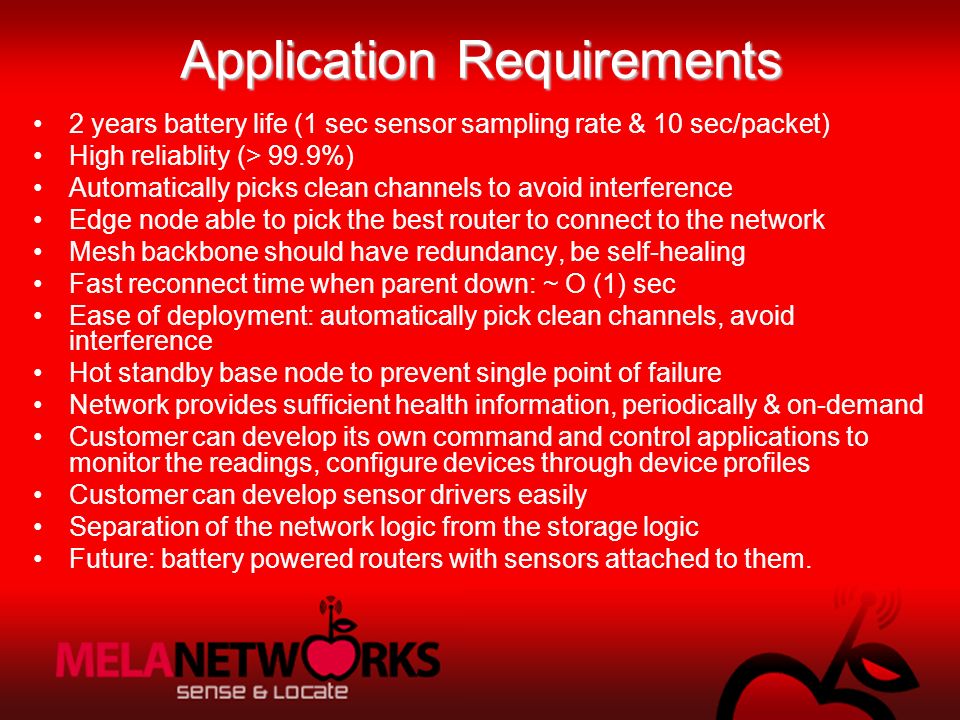

22. Application Requirements 2 years battery life (1 sec sensor sampling rate & 10 sec/packet) High reliablity (> 99.9%) Automatically picks clean channels to avoid interference Edge node able to pick the best router to connect to the network Mesh backbone should have redundancy, be self-healing Fast reconnect time when parent down: ~ O (1) sec Ease of deployment: automatically pick clean channels, avoid interference Hot standby base node to prevent single point of failure Network provides sufficient health information, periodically & on-demand Customer can develop its own command and control applications to monitor the readings, configure devices through device profiles Customer can develop sensor drivers easily Separation of the network logic from the storage logic Future: battery powered routers with sensors attached to them.
