13.6 Wind and 13.9 Ocean Currents Science 10. A Little Background … Atmospheric Pressure is the force of the air pressing down on the earth’s surface.

Similar presentations


Presentation on theme: "13.6 Wind and 13.9 Ocean Currents Science 10. A Little Background … Atmospheric Pressure is the force of the air pressing down on the earth’s surface."— Presentation transcript:

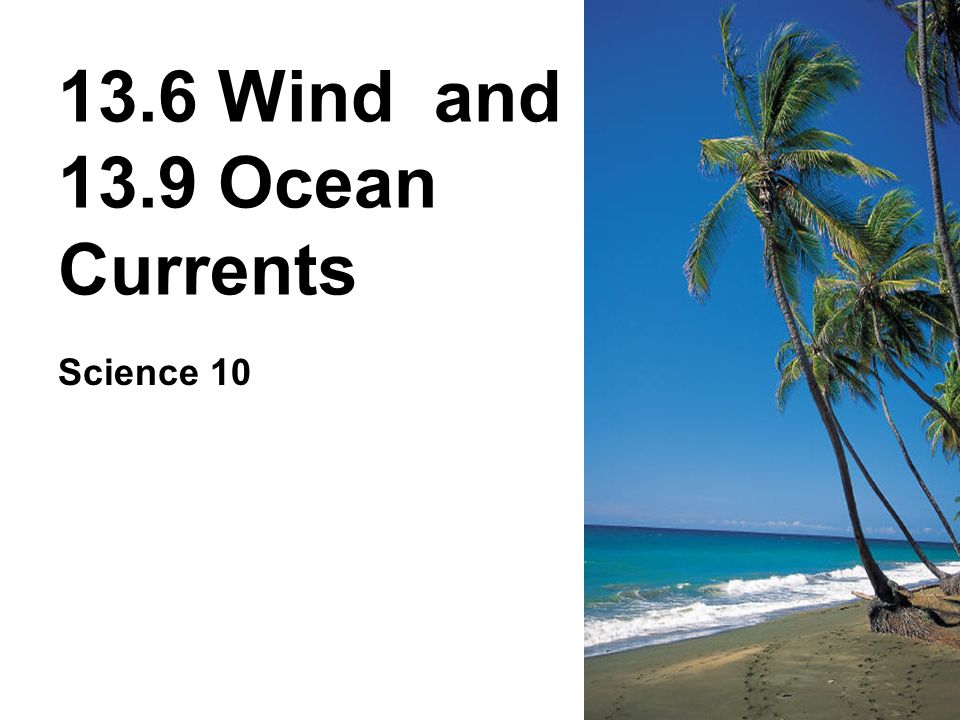

1 13.6 Wind and 13.9 Ocean Currents Science 10

2 A Little Background … Atmospheric Pressure is the force of the air pressing down on the earth’s surface –Atmospheric pressure is measured using a barometer. –Since air molecules are so spread out (lots of empty space), we don’t feel the pressure that they exert Differences in air pressure help cause winds and affect air masses. They are also factors in the formation of storms such as thunderstorms, tornadoes and hurricanes.

3 What is Wind? Wind is a movement of air in the atmosphere How Wind Develops Caused by a difference in air pressure due to unequal heating of the atmosphere. Question: Where on the planet does the surface get heated more than other areas?... At the Earth’s surface, wind always blows from areas of high pressure to areas of low pressure

4 How are Winds Created? Winds are created by…. 1. Heating the air, decreases pressure (warm air rises creating a low pressure) ↓ 2. Cool air rushes in to replace the warm air(cooler dense air, produces high pressure) ↓ 3. As air goes from high to low pressure, winds will form

5 Classifying Winds I. Localized affect only small areas Types of Local Winds Sea Breezes- from sea to land Land Breezes- from land to sea II. Prevailing winds affect large areas, types to follow.. Which one do you think affects us more?...

6 The Coriolis Effect The apparent change in direction of a moving object in a rotating system is called the CORIOLIS EFFECT. Demo Video

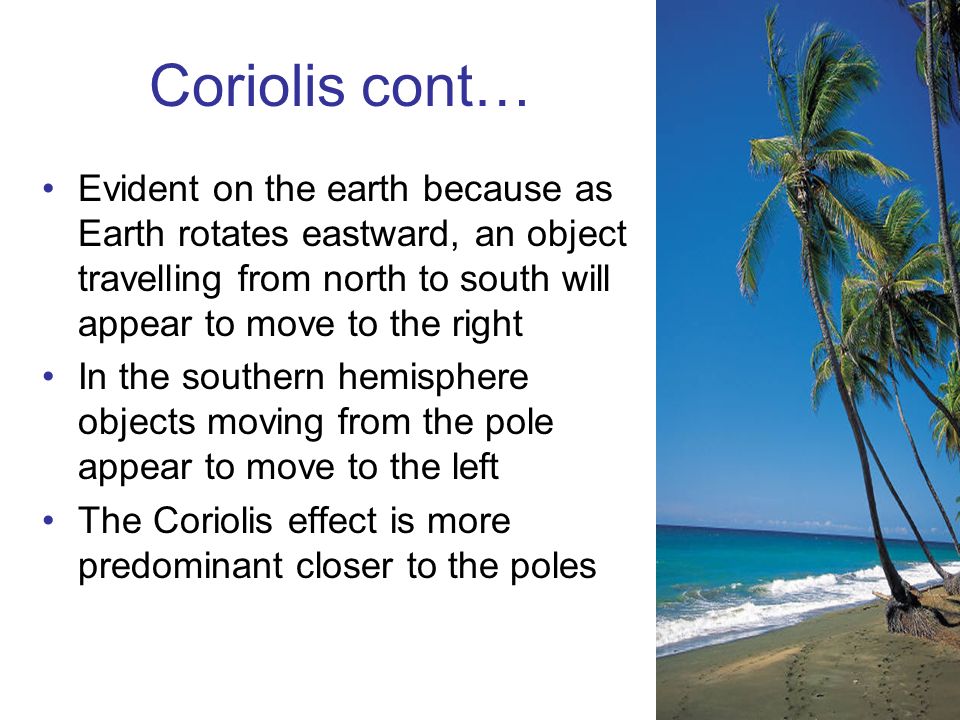

7 Coriolis cont… Evident on the earth because as Earth rotates eastward, an object travelling from north to south will appear to move to the right In the southern hemisphere objects moving from the pole appear to move to the left The Coriolis effect is more predominant closer to the poles

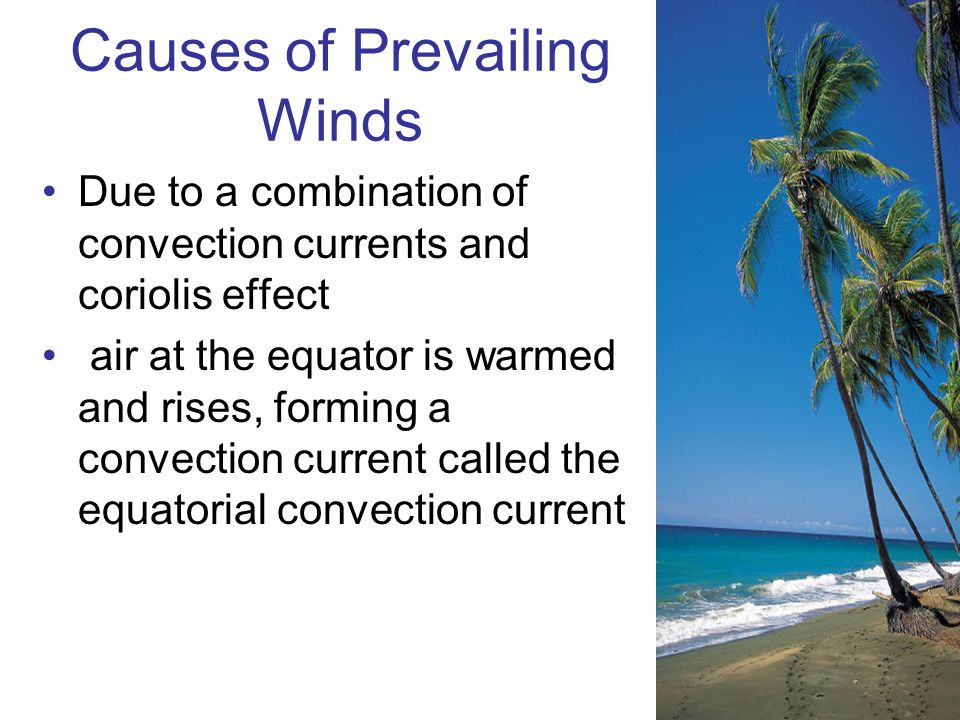

8 Causes of Prevailing Winds Due to a combination of convection currents and coriolis effect air at the equator is warmed and rises, forming a convection current called the equatorial convection current

9

10 Effects of Prevailing Winds Help distribute large amounts of solar energy from the equator to the colder parts of the world. Also carry moisture, causing a variety of precipitation (snow, rain, etc…)

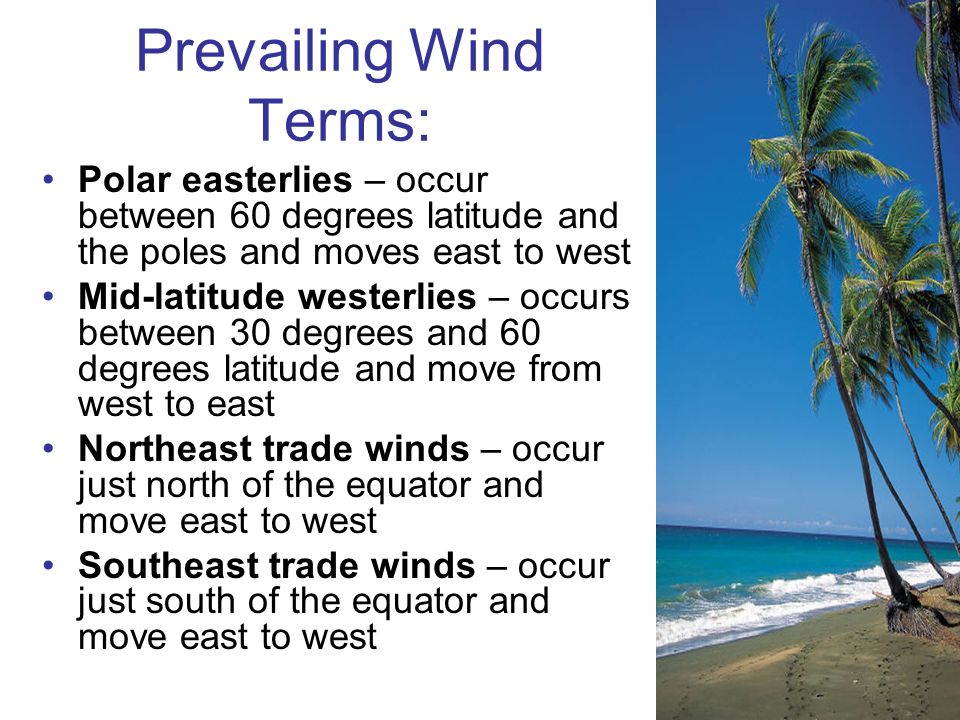

11 Prevailing Wind Terms: Polar easterlies – occur between 60 degrees latitude and the poles and moves east to west Mid-latitude westerlies – occurs between 30 degrees and 60 degrees latitude and move from west to east Northeast trade winds – occur just north of the equator and move east to west Southeast trade winds – occur just south of the equator and move east to west

12 Wind terms cont… Gusts – occur because of a rapid air pressure change and move in no fixed direction Squalls – gusts accompanied by rain anemometerWind speed indicator – anemometer/weather vane

13 Sooooooo… Do you think the Coriolis Effect and Wind effect how water moves in the ocean? -Take 1 min to discuss with someone near you, I will get feedback from some of you!

14 Ocean Currents

15 Mass movement or flow of ocean water River within the ocean Two types –SurfaceDeep –Surface and Deep

16 Surface Current Horizontal, stream-like movements of water that occur at or near the surface of the ocean Can reach depths of several hundred meters Surface Current Animation

17 Surface Currents Controlled by three factors –Prevailing winds = Cause surface currents to flow in the direction the wind is blowing –Coriolis Effect –Continental Deflections = shape of the land it flows up against

18 Deep Currents Stream like movement of ocean water far below the surface. THIS IS WAY DOWN THERE! Caused by changes in density –Change in temperature –Change in salinity (Salt in the water)

19 Causes, broken down… Change in temperature –Decreasing the temperature of water increases density (cold water sinks) Change in salinity –Increasing the salinity of water increases density (again, making water sink) Both of the above is replaced by warmer less dense water from the equator (water will always want to be level and that is why the water that leaves gets replaced) The Pic on the next page does a good job explaining this phenomena…

20

21 Good Work!!
