3. 1. The blind spot of the human eye results from a) rods attached to the retina. b) cones attached to the fovea. c) a detached retina. d) the optic nerve attached to the retina. e) color blindness.

4. 2. Some minerals absorb ultraviolet light and then release lower energy visible light. This process is called a) fluorescence. b) atomic resonance. c) incandescence. d) phosphorescence.

5. Fluorescent Lamps Primary excitation - electron collisions with low pressure mercury vapor, and ultraviolet light is given off Secondary excitation - ultraviolet light is absorbed by phosphors and these emit visible light

6. Phosphorescence Phosphorescence - a type of light emission that is the same as fluorescence except for a delay between excitation and de-excitation. Electrons get "stuck" in an excited state and de-excite gradually. Demos - glow-in-the-dark objects

7. Lasers Laser –Light amplification by stimulated emission of radiation Lasers produce coherent light. Coherent light means that all the light waves have the frequency, phase and direction. Demo - Laser and chalk dust Demo - Laser and prism or diffraction grating

8. Matching Questions 1. Incandescencea. mercury vapor light tubes 2. Fluorescenceb. glow-in-the-dark paints and plastics 3. Phosphorescencec. light bulbs with filaments

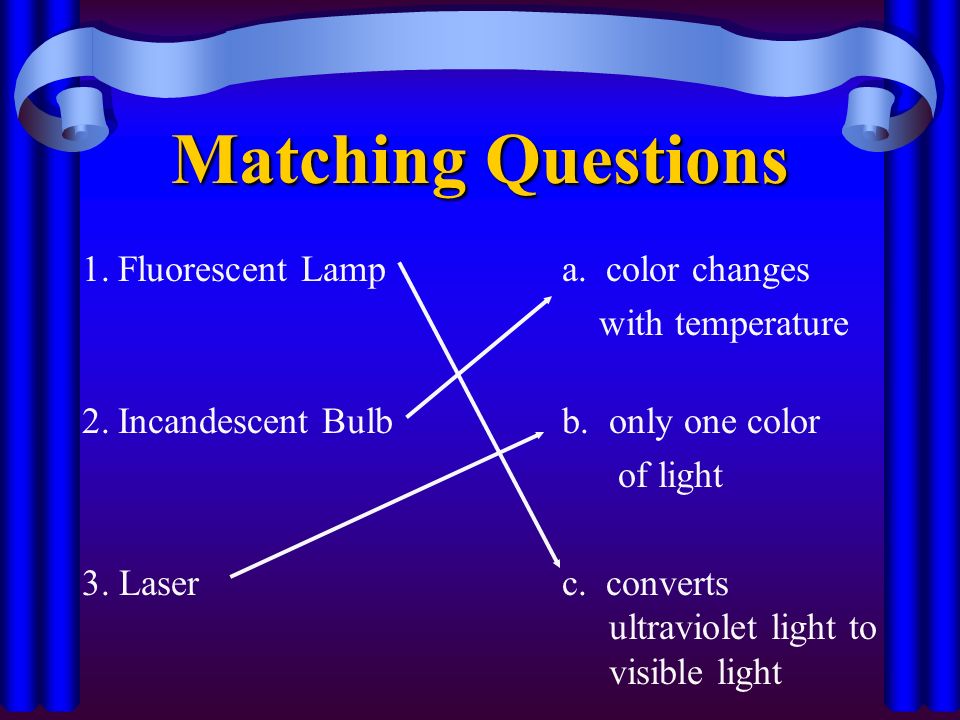

9. Matching Questions 1.Fluorescent Lampa. color changes with temperature 2.Incandescent Bulbb. only one color of light 3. Laserc. converts ultraviolet light to visible light

12. Chapter 13 Color

13. Color Different wavelengths of light are perceived as different colors. Pure Colors: ROY G. BIV White light contains equal amounts of these colors. (ROY G. BIV)

14. Selective Reflection and Transmission At an interface, light can be... absorbed reflected transmitted

15. Fill in the Blanks Black objects _______ all of the pure colors. White objects _______ all of the pure colors. Transparent objects _______ all of the pure colors. absorb reflect transmit

16. Color Filters Red filters transmit red light and absorb the other colors, etc. Red objects reflect red light and absorb the rest, etc. In red light, what color do the red petals and green leaves of rose appear? –Answer: Petal appear _____, leaves appear to be _____.

21. Mixing Colored Light Color Addition Additive Primary Colors: Red Green Blue One can produce any color by varying amplitude and mixture or red, green and blue light.

22. Color Addition Example: –Tiny dots called pixels on Color TV's and Computer Monitors are colored only red, green, or blue.

23. Mixing Colored Pigments - Color Subtraction Subtractive Primary Colors: Yellow Magenta Cyan One can produce any color by varying the amount of yellow, magenta and cyan pigments.

24. Color Subtraction Example: –Newspapers and the new zip-lock sandwich bags use color subtraction.

26. White Red Green Blue Yellow Cyan Magenta Primary Colors

27. Green Pure Green Color Addition Primary Green

28. Why is the sky blue? Nitrogen and Oxygen in our atmosphere scatter high frequencies of light.

29. Why are sunsets red? Red light is scattered the least by our atmosphere. The greatest path of sunlight through the atmosphere is at sunset or sunrise.

30. Why are clouds white? The color of light scattered by clusters of water molecules vary with the size of the clusters. The size of clusters of water molecules (droplets) vary in clouds.

32. Why is the ocean greenish blue? Red light is absorbed by the molecules in the water.

33. Color Vision Colorblindness - about 10% of population Red-green is predominant Yellow-blue - a few Total - some

34. Can you read this number????

40. Complementary Colors - any two colors that add together to produce white e.g. magenta + green = white

41. Optical Illusions Animation Animation

77. After Images and “Conal Fatigue” The human eye will see complimentary colors after staring at a color picture. Demos: Colored Shapes Texas Flag American Flag Rose Lincoln

78. In-Class Exercise 1.Make a list of the seven forms of light in order of decreasing wavelength. 2.Draw a Color Addition Diagram using overlapping colored spotlights. Label all 7 colors. 3.Draw a Color Subtraction Diagram using overlapping paints. Label all 7 colors.

79. Question 1. If you look at the yellow Sun just before sunset for a few seconds and then look at a white cloud you see _______ afterimages of the Sun. a) red b) green c) blue d) cyan

80. Question 2. A mixture of cyan and yellow paints gives __________ paint. a) green b) red c) black d) white e) blue

81. Question 3. Adding red and green light gives us what color? a) yellow b) cyan c) blue d) magenta

82. Suppose that two flashlight beams are shone on a white screen, one through a pane of blue glass and the other through a pane of green glass. What color appears on the screen where the two beams overlap? a) yellow b) green c) cyan d) magenta e) red

83. If a car headlight emitted only yellow light, the normally green grass appears to be a) green. b) red. c) black. d) white. e) yellow.

84. To see an after image of a red, white and blue Texas flag one would first stare at a flag with the complimentary colors a) yellow, violet, and green. b) cyan, yellow, and magenta. c) cyan, black, and yellow. d) yellow, cyan and green.

85. The worst thing that you can do for the health of a green-leafed plant is to illuminate it with only a) red light. b) green light. c) blue light. d) all are equally bad. e) none of these.

86. Most of the light that we see has undergone (a) selective interference (b) selective transmission (c) selective reflection (d) selective refraction

87. A mixture of magenta and green lights give white light. These two colors are (a) additive primaries (b) secondary colors (c) complementary colors (d) fluorescent colors (e) interference colors

88. Mixing yellow paint and magenta paint gives what color? (a) red (b) green (c) blue (d) cyan

89. What color would red cloth appear if it were illuminated by cyan light? (a) cyan (b) red (c) yellow (d) green (e) black

90. Glow in the beads Black Light Laser & Diffraction Grating Color Filters and Color Papers
