1. MIS software for labelprinters Web 4 Labels Business Automation

2. founded in 1984 based in Belgium, near Bruges >150 customers 19 countries 2 continents 28 employees History management software for narrow web labelprinters

3. Business management software for narrow web labelprinters Cerm is located in Belgium and operates in several countries worldwide. Our software helps you to optimise the efficiency of your organisation. Our consultants perform technical and business consultancy to the nichemarket of narrow web label printers.

4. Business Automation for label W 4L 2 Big Goals 1. Automate Input W 4L 2. Control Output W 4L Business Automation

5. Complete workflow for label printers management software for narrow web labelprinters W 4L

6. Complete workflow for narrow web label printers Base Web 4 Labels Estimating Jobs & products Delivery and invoicing Works schedule Stock and purchase Costing and SFDC management software for narrow web labelprinters W 4L

7. 2009 CIPPI Award Winning Workflow Winner of the 2009 CIP4 International Print Production Innovation (CIPPI) Award for “Small Business Process Automation Implementation of the Year” management software for narrow web labelprinters

8. True JDF-link with EskoArtwork BackStage Fully Automatic No Re-Typing Live status info No Searching management software for narrow web labelprinters

9. Web 4 Labels : End-to-End solution W 4L

10. management software for narrow web labelprinters End-to-End solution demo scenario W 4L Brand owner MISPrepress & Production create new asset order assets order price approval follow-up status salesorder job ticket scheduling costing proof of 1 new asset step & repeat job print queue press sensor (?) report time

11. management software for narrow web labelprinters Web 4 Labels : Web2Print and more ! W 4L

12. management software for narrow web labelprinters online quoting manage your assets online create your new assets online online approval online ordering tracking assets and orderinformation Web 4 Labels : Web2Print and more ! W 4L

13. management software for narrow web labelprinters calculate cross-over points between digital and conventional search for tooling, foils and stock automatic generated offer letters intuitive and easy-to-use user interface online quoting through W 4 L Estimating ESESESES

14. management software for narrow web labelprinters manage new jobs and reruns single or multiple products jobs detailed jobtickets and productinformation visualized image of the products manage the approval-cycle of the products Jobs and Products JPJPJPJP

15. management software for narrow web labelprinters create your packinglabels (carton, core, shipping) tracking of finished goods warehouse of finished goods generate deliverynotes automated invoicing of delivered goods Delivery and invoicing DIDIDIDI

16. management software for narrow web labelprinters based on technical requirements realtime information on the shopfloor full visibility in capacity Works schedule WSWSWSWS

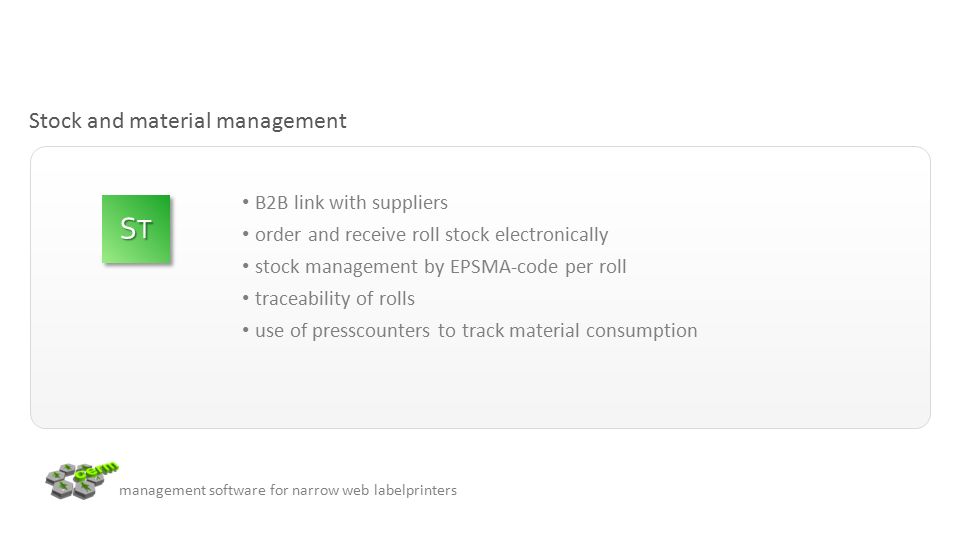

17. management software for narrow web labelprinters B2B link with suppliers order and receive roll stock electronically stock management by EPSMA-code per roll traceability of rolls use of presscounters to track material consumption Stock and material management STSTSTST

18. management software for narrow web labelprinters Costing and Shop Floor Data Collection SFSFSFSF realtime information on the Shop Floor based on the schedulingboard material consumption via the EPSMA-code use of presscounters production statistics

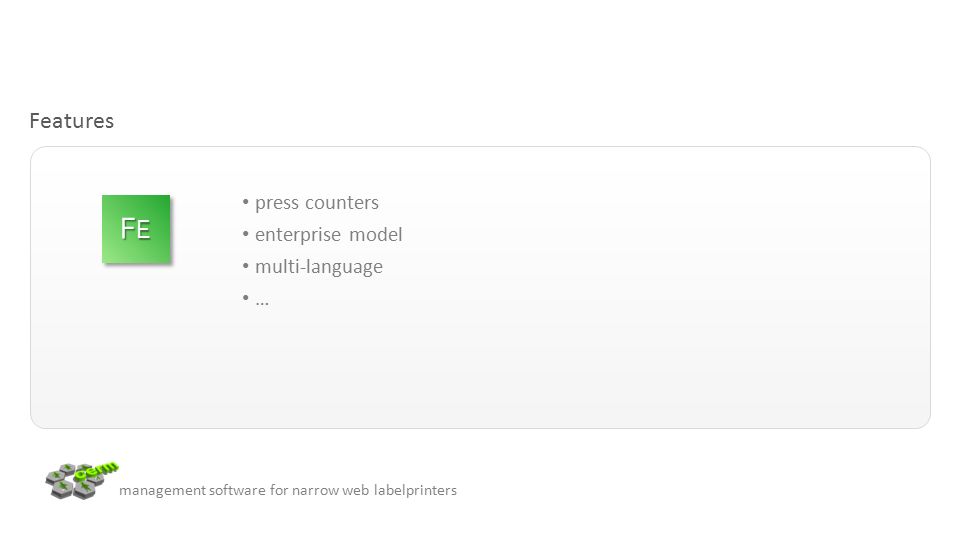

19. management software for narrow web labelprinters Features press counters enterprise model multi-language … FEFEFEFE

20. management software for narrow web labelprinters Machine Front End – actual setup A Cerm ‘MFE’ is installed for every machine for Shop Floor Data Collection (SFDC) Cerm installs press independent machine- counters and plc’s From some manufacturers Cerm gets already some realtime data out of the press For camera-inspection Cerm has an interface to launch start/stop inspection PLCPLC Cerm MFE

21. management software for narrow web labelprinters Machine Front End – possibilities 1. Available information from MIS to production 2. Feedback from production to MIS 3. MFE task list 4. Technical proposals in order to avoid 2 MFE’s for the operator

22. management software for narrow web labelprinters 1. Available information from MIS to production JOB administration (customerinfo, delivery info) substrate(s) (width, thickness) quantities (copies, meters,..) to produce setup waste allowed press cilinders revolution inline finishing + tools to set up step&repeat (sizes, gaps, …) previous job number or reference to a standard URL to the S&R PDF file position (180° turn yes/no) PRODUCT administration (reference, name, …) colours and order of colours URL to the 1-up PDF SCHEDULE order of jobs for this machine statuses of the job paper availability tools availability previous workstep ok product status next step for this job expected duration expected start

23. management software for narrow web labelprinters 2. Feedback from production to MIS SUBSTRATE Identify all substrate roll-ID’s on press meter count for roll consumption (Semi finished) PRODUCT good copies produced semi-finished roll identification OUT semi-finished roll IN SCHEDULE status ‘busy’ and ‘finished’ PRODUCTION start/end time per operation other info : n° of clicks, operator

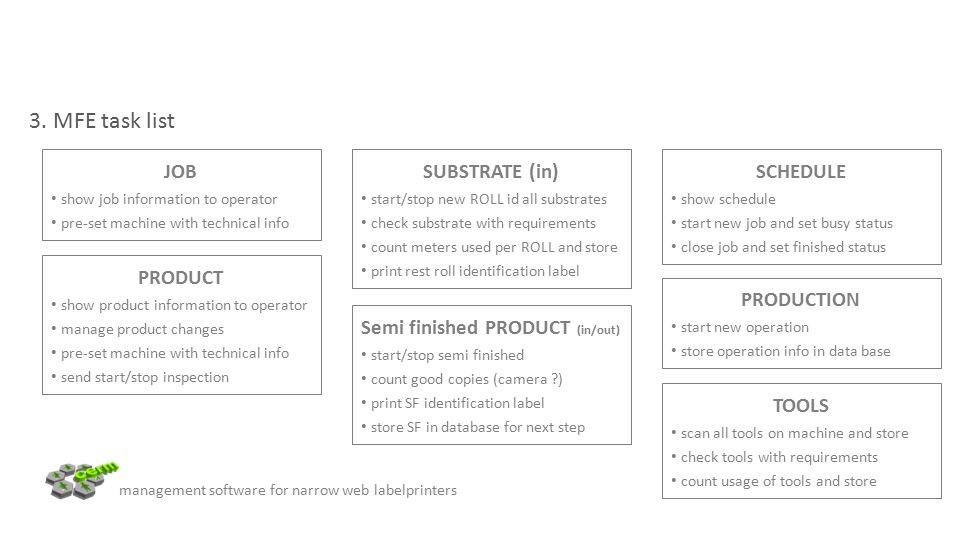

24. management software for narrow web labelprinters 3. MFE task list JOB show job information to operator pre-set machine with technical info SUBSTRATE (in) start/stop new ROLL id all substrates check substrate with requirements count meters used per ROLL and store print rest roll identification label PRODUCT show product information to operator manage product changes pre-set machine with technical info send start/stop inspection Semi finished PRODUCT (in/out) start/stop semi finished count good copies (camera ?) print SF identification label store SF in database for next step SCHEDULE show schedule start new job and set busy status close job and set finished status PRODUCTION start new operation store operation info in data base TOOLS scan all tools on machine and store check tools with requirements count usage of tools and store

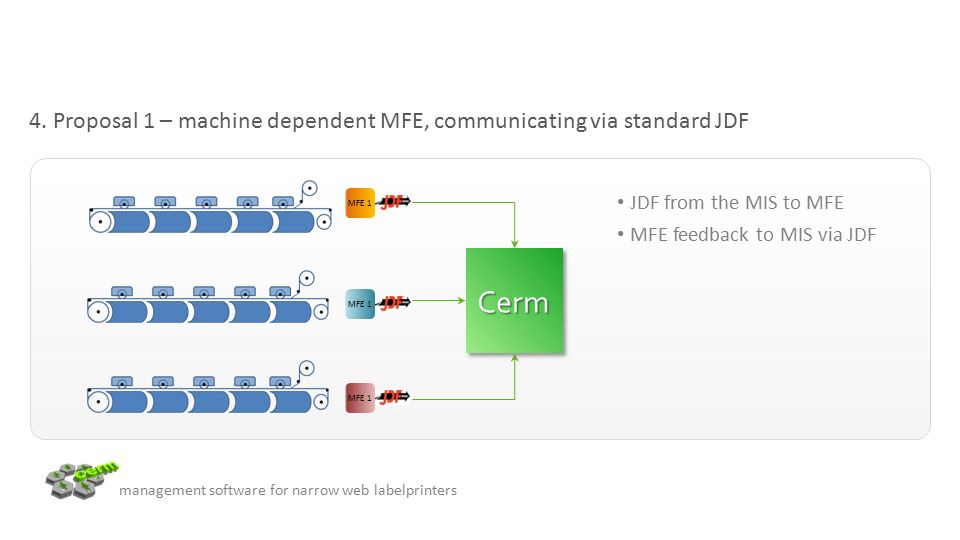

25. management software for narrow web labelprinters 4. Proposal 1 – machine dependent MFE, communicating via standard JDF JDF from the MIS to MFE MFE feedback to MIS via JDF Cerm MFE 1

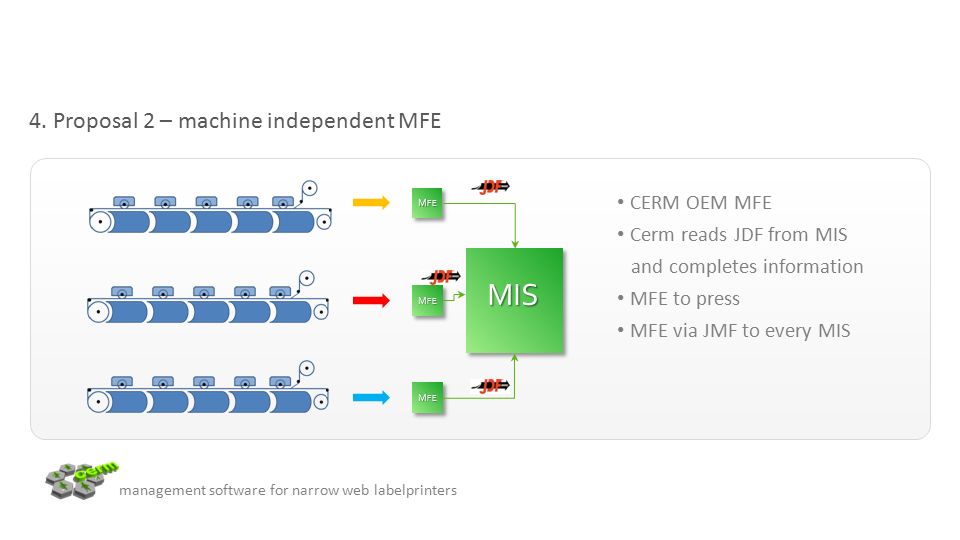

26. management software for narrow web labelprinters 4. Proposal 2 – machine independent MFE M FE CERM OEM MFE Cerm reads JDF from MIS and completes information MFE to press MFE via JMF to every MIS MIS
