1. S.Veneziano – INFN Roma July 2003 TDAQ week CMA LVL1 Barrel status ATLAS TDAQ week July 2003

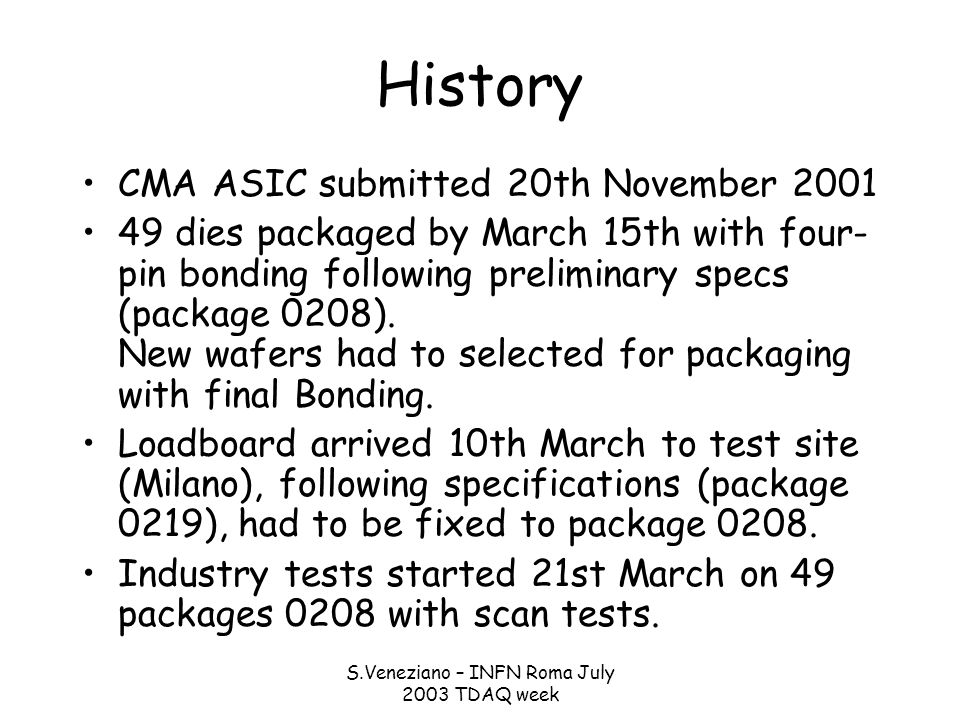

2. S.Veneziano – INFN Roma July 2003 TDAQ week History CMA ASIC submitted 20th November 2001 49 dies packaged by March 15th with four- pin bonding following preliminary specs (package 0208). New wafers had to selected for packaging with final Bonding. Loadboard arrived 10th March to test site (Milano), following specifications (package 0219), had to be fixed to package 0208. Industry tests started 21st March on 49 packages 0208 with scan tests.

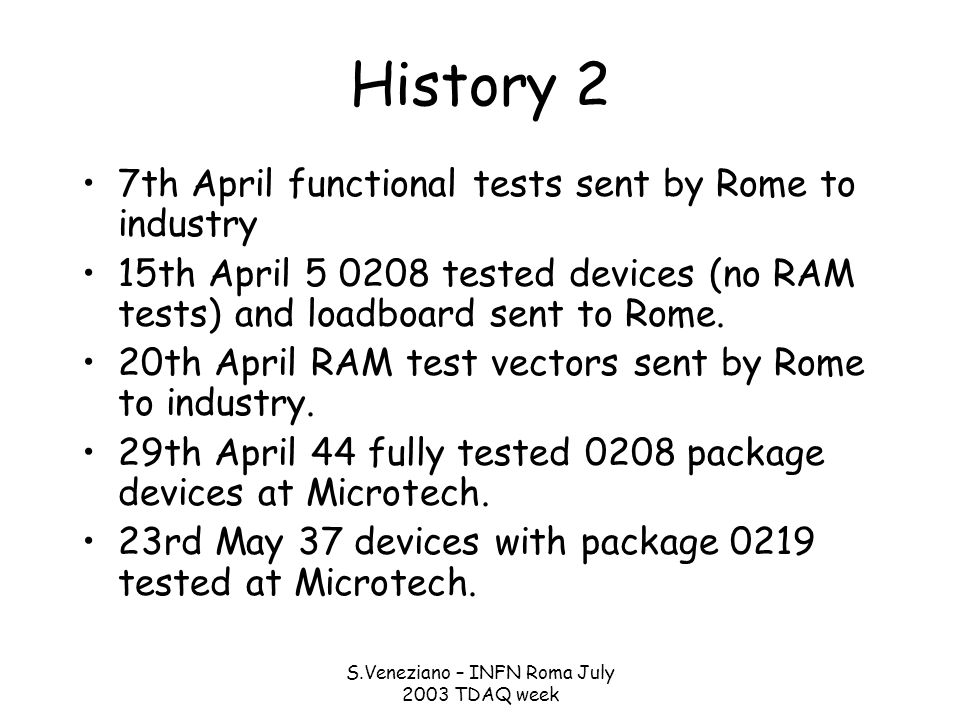

3. S.Veneziano – INFN Roma July 2003 TDAQ week History 2 7th April functional tests sent by Rome to industry 15th April 5 0208 tested devices (no RAM tests) and loadboard sent to Rome. 20th April RAM test vectors sent by Rome to industry. 29th April 44 fully tested 0208 package devices at Microtech. 23rd May 37 devices with package 0219 tested at Microtech.

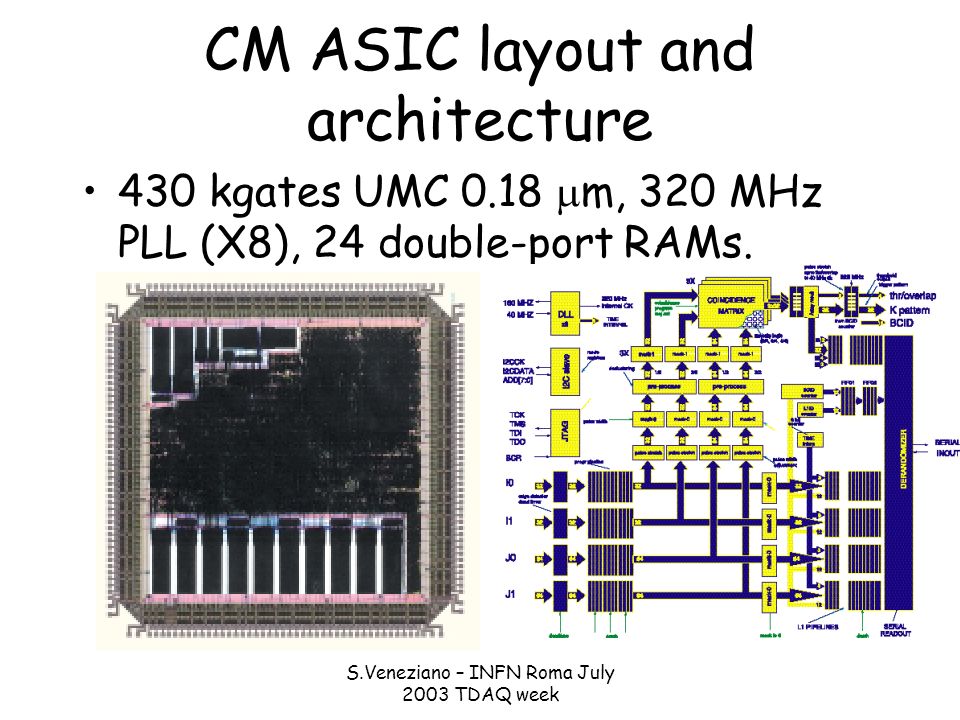

4. S.Veneziano – INFN Roma July 2003 TDAQ week CM ASIC layout and architecture 430 kgates UMC 0.18  m, 320 MHz PLL (X8), 24 double-port RAMs.

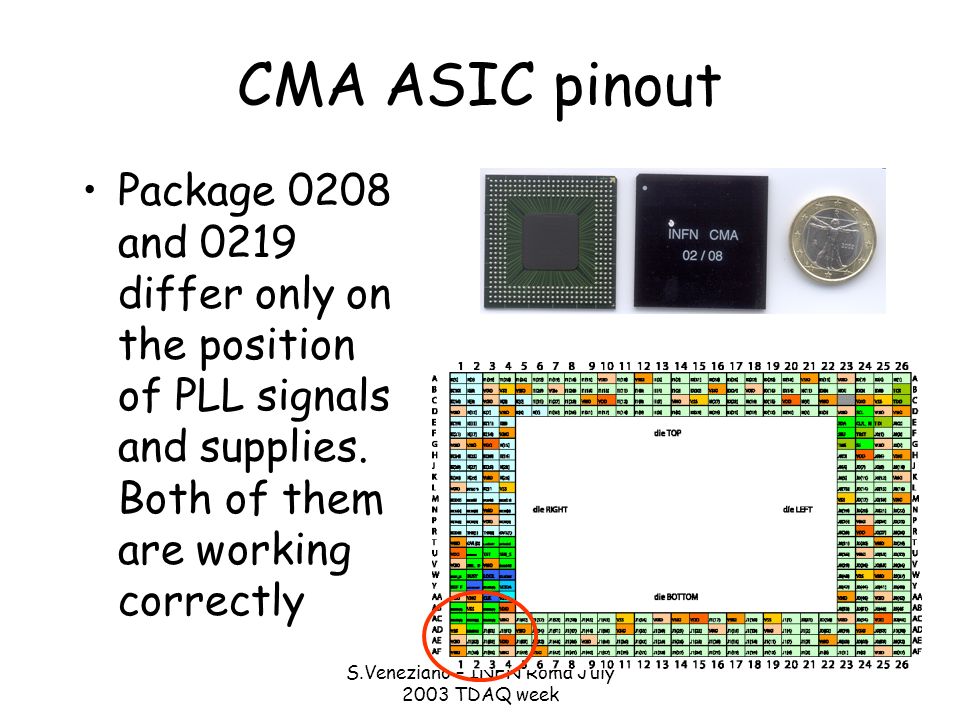

5. S.Veneziano – INFN Roma July 2003 TDAQ week CMA ASIC pinout Package 0208 and 0219 differ only on the position of PLL signals and supplies. Both of them are working correctly

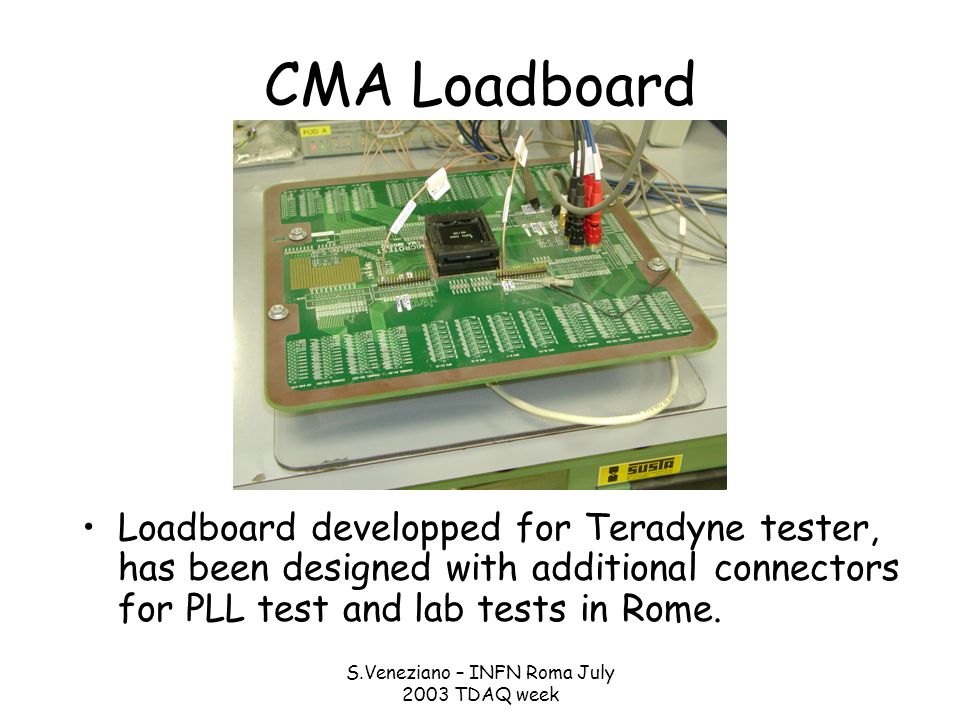

6. S.Veneziano – INFN Roma July 2003 TDAQ week CMA Loadboard Loadboard developped for Teradyne tester, has been designed with additional connectors for PLL test and lab tests in Rome.

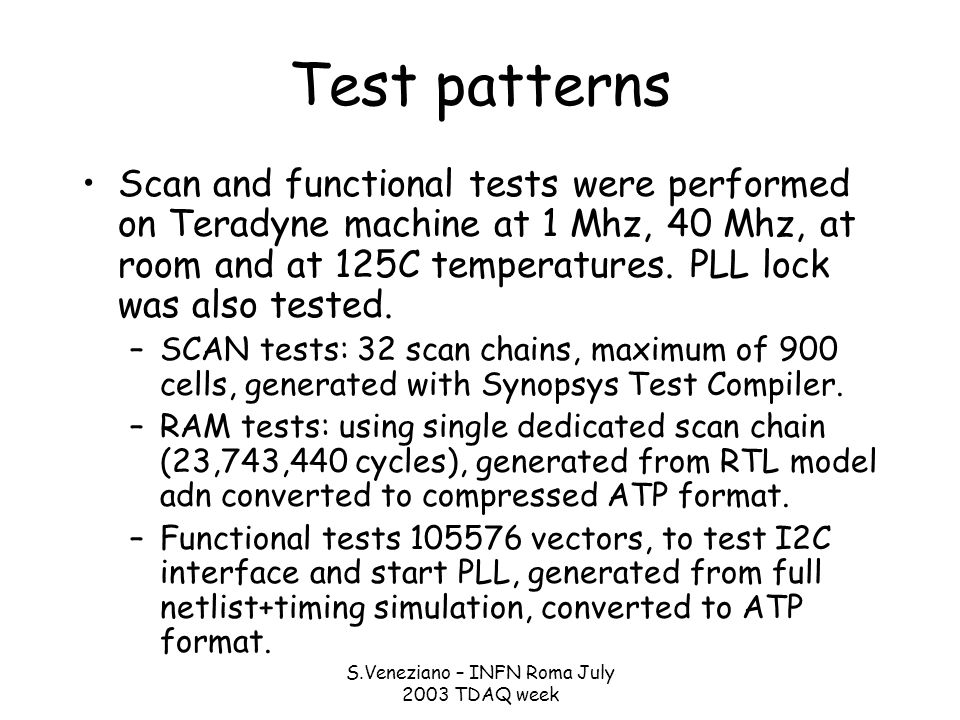

7. S.Veneziano – INFN Roma July 2003 TDAQ week Test patterns Scan and functional tests were performed on Teradyne machine at 1 Mhz, 40 Mhz, at room and at 125C temperatures. PLL lock was also tested. –SCAN tests: 32 scan chains, maximum of 900 cells, generated with Synopsys Test Compiler. –RAM tests: using single dedicated scan chain (23,743,440 cycles), generated from RTL model adn converted to compressed ATP format. –Functional tests 105576 vectors, to test I2C interface and start PLL, generated from full netlist+timing simulation, converted to ATP format.

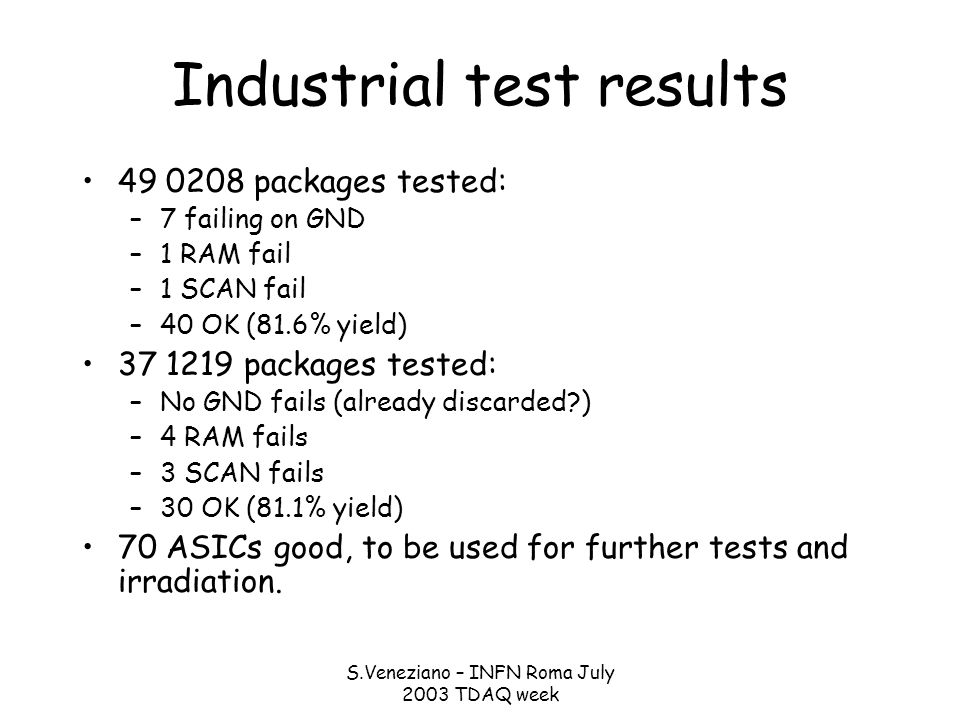

8. S.Veneziano – INFN Roma July 2003 TDAQ week Industrial test results 49 0208 packages tested: –7 failing on GND –1 RAM fail –1 SCAN fail –40 OK (81.6% yield) 37 1219 packages tested: –No GND fails (already discarded?) –4 RAM fails –3 SCAN fails –30 OK (81.1% yield) 70 ASICs good, to be used for further tests and irradiation.

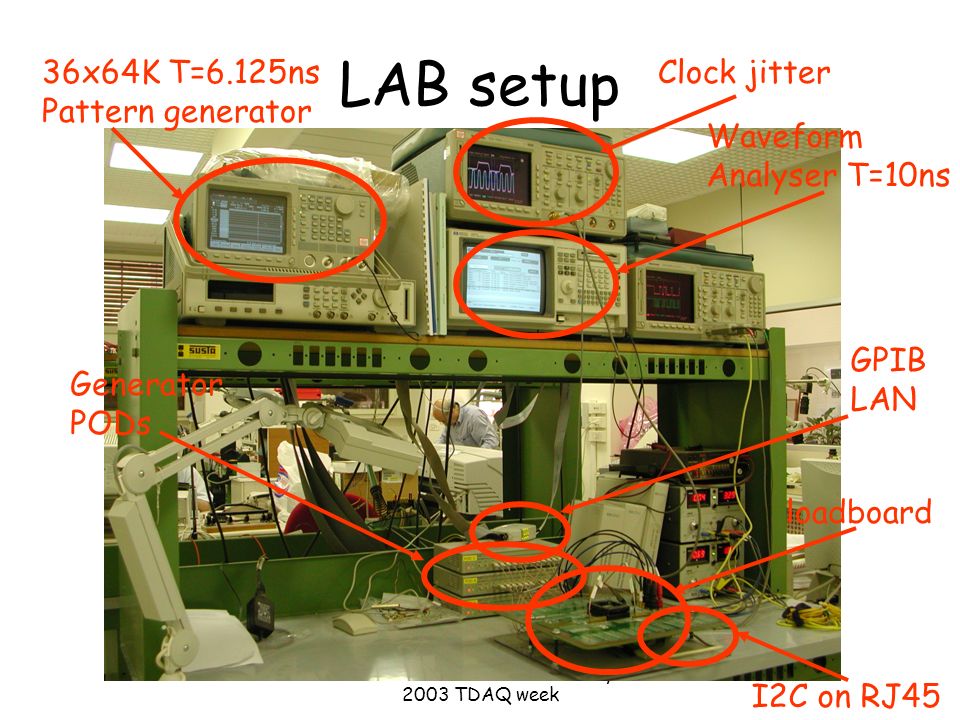

9. S.Veneziano – INFN Roma July 2003 TDAQ week LAB setup 36x64K T=6.125ns Pattern generator Clock jitter Waveform Analyser T=10ns Generator PODs GPIB LAN loadboard I2C on RJ45

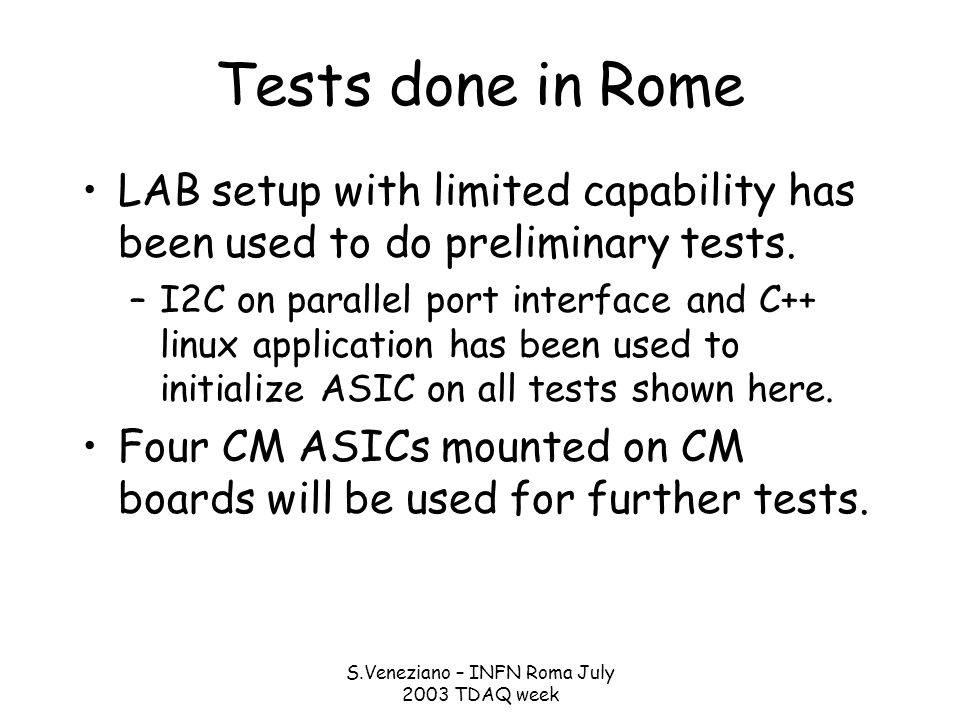

10. S.Veneziano – INFN Roma July 2003 TDAQ week Tests done in Rome LAB setup with limited capability has been used to do preliminary tests. –I2C on parallel port interface and C++ linux application has been used to initialize ASIC on all tests shown here. Four CM ASICs mounted on CM boards will be used for further tests.

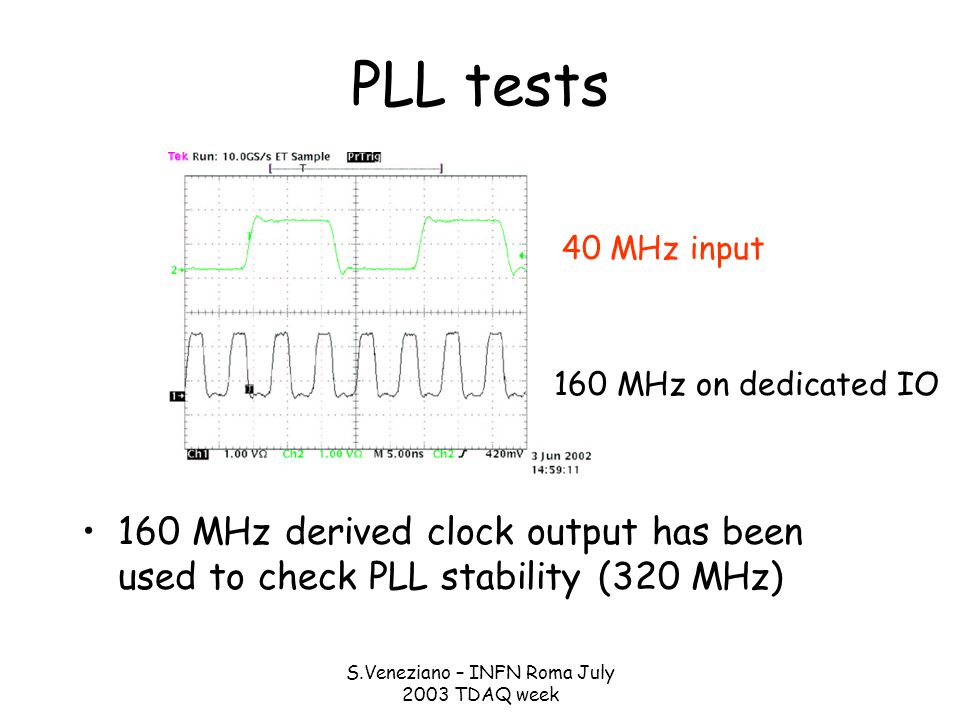

11. S.Veneziano – INFN Roma July 2003 TDAQ week PLL tests 160 MHz derived clock output has been used to check PLL stability (320 MHz) 40 MHz input 160 MHz on dedicated IO

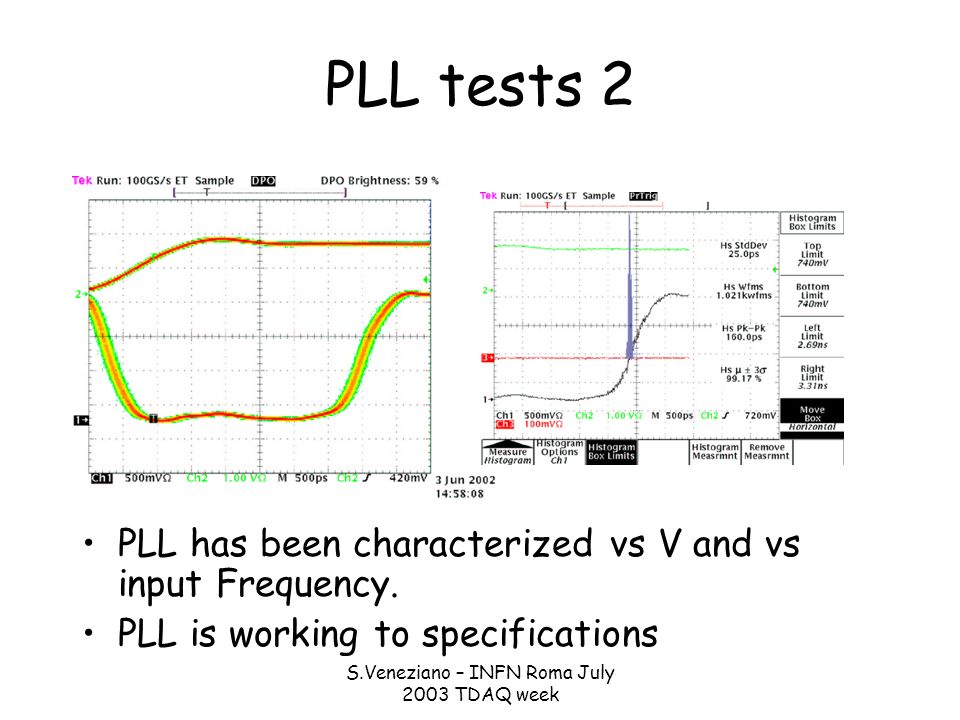

12. S.Veneziano – INFN Roma July 2003 TDAQ week PLL tests 2 PLL has been characterized vs V and vs input Frequency. PLL is working to specifications

13. S.Veneziano – INFN Roma July 2003 TDAQ week PLL vs Voltage

14. S.Veneziano – INFN Roma July 2003 TDAQ week PLL vs frequency

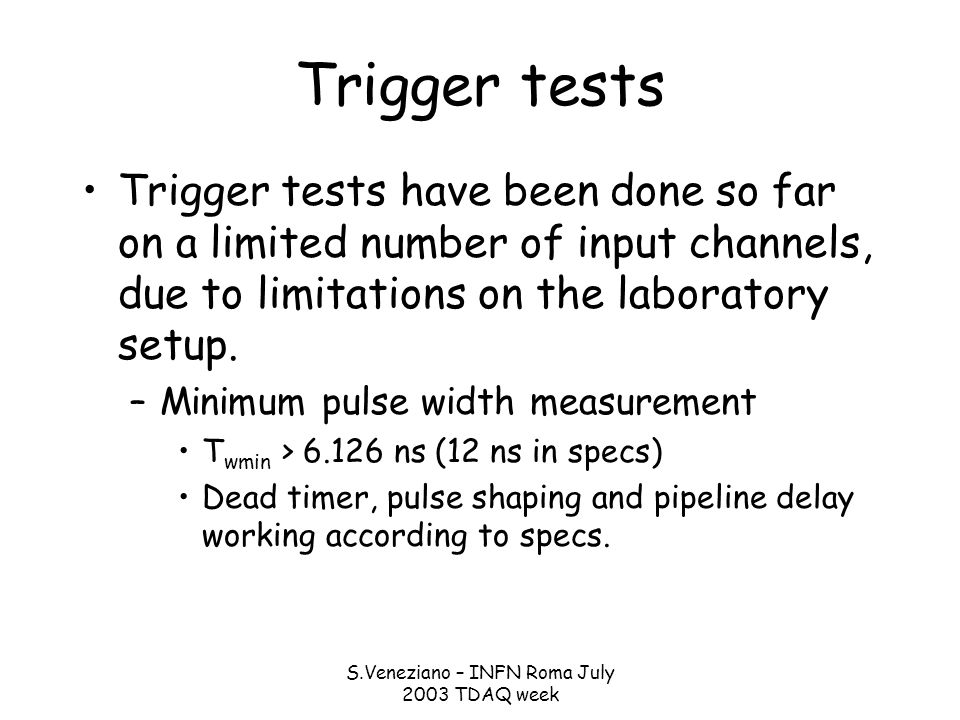

15. S.Veneziano – INFN Roma July 2003 TDAQ week Trigger tests Trigger tests have been done so far on a limited number of input channels, due to limitations on the laboratory setup. –Minimum pulse width measurement T wmin > 6.126 ns (12 ns in specs) Dead timer, pulse shaping and pipeline delay working according to specs.

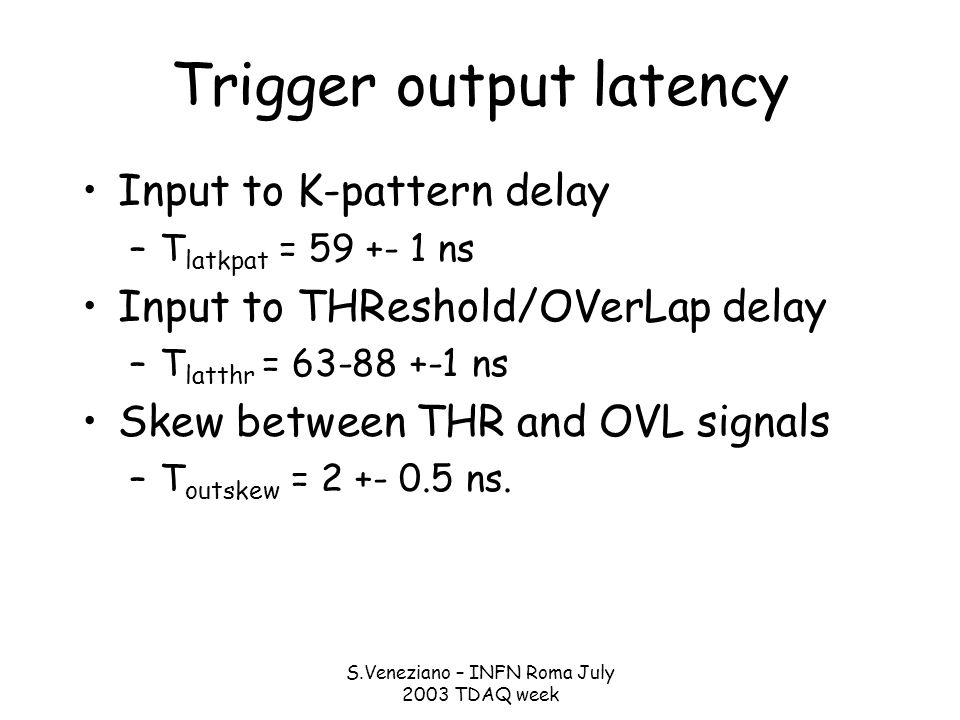

16. S.Veneziano – INFN Roma July 2003 TDAQ week Trigger output latency Input to K-pattern delay –T latkpat = 59 +- 1 ns Input to THReshold/OVerLap delay –T latthr = 63-88 +-1 ns Skew between THR and OVL signals –T outskew = 2 +- 0.5 ns.

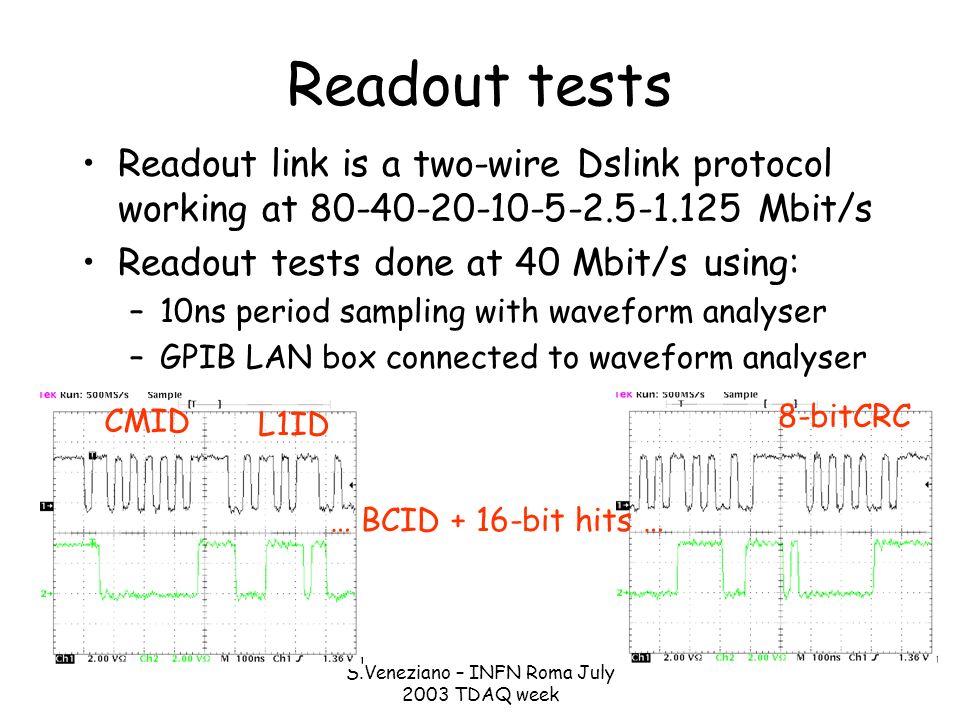

17. S.Veneziano – INFN Roma July 2003 TDAQ week Readout tests Readout link is a two-wire Dslink protocol working at 80-40-20-10-5-2.5-1.125 Mbit/s Readout tests done at 40 Mbit/s using: –10ns period sampling with waveform analyser –GPIB LAN box connected to waveform analyser CMID L1ID … BCID + 16-bit hits … 8-bitCRC

18. S.Veneziano – INFN Roma July 2003 TDAQ week Readout tests 2 VISA-GPIB library (linux) in deserializer program has been used to convert waveform vectors to readout data fragments. c151 -- CMID 0 FEL1ID 337 87d8 -- FEBCID 2008 0700 -- BC 0 TIME 7 IJK 0 STRIP 0 0745 -- BC 0 TIME 7 IJK 2 STRIP 5 0685 -- BC 0 TIME 6 IJK 4 STRIP 5 07c0 -- BC 0 TIME 7 IJK 6 STRIP 0 07e3 -- BC 0 TIME 7 OVL 0 THR 3 4075 -- CRC 75

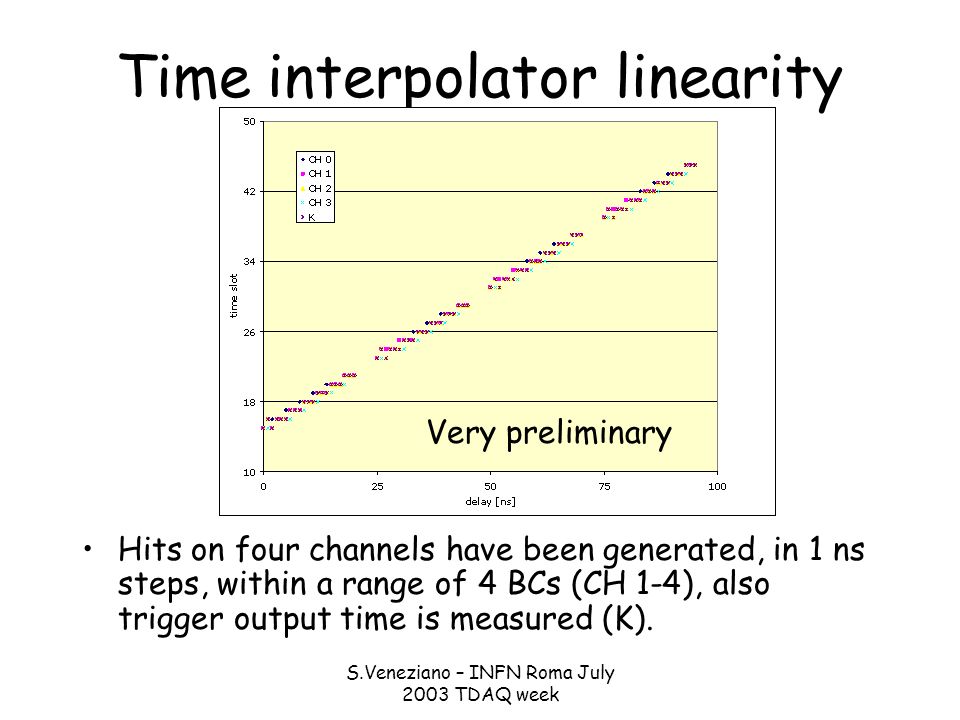

19. S.Veneziano – INFN Roma July 2003 TDAQ week Time interpolator linearity Hits on four channels have been generated, in 1 ns steps, within a range of 4 BCs (CH 1-4), also trigger output time is measured (K). Very preliminary

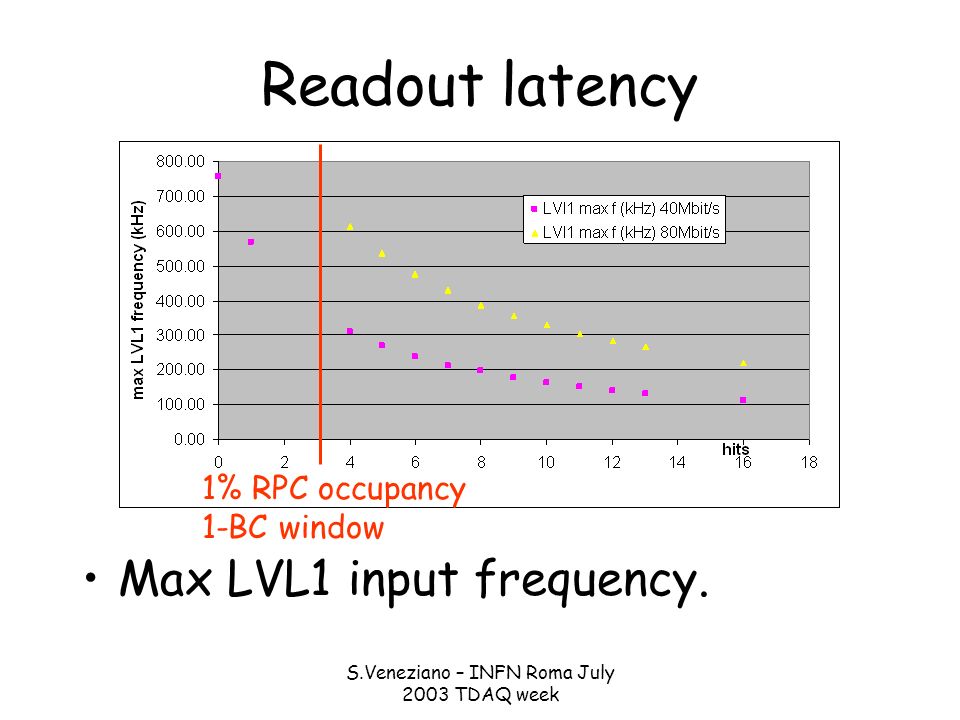

20. S.Veneziano – INFN Roma July 2003 TDAQ week Readout latency Max LVL1 input frequency. 1% RPC occupancy 1-BC window

21. S.Veneziano – INFN Roma July 2003 TDAQ week Power vs voltage

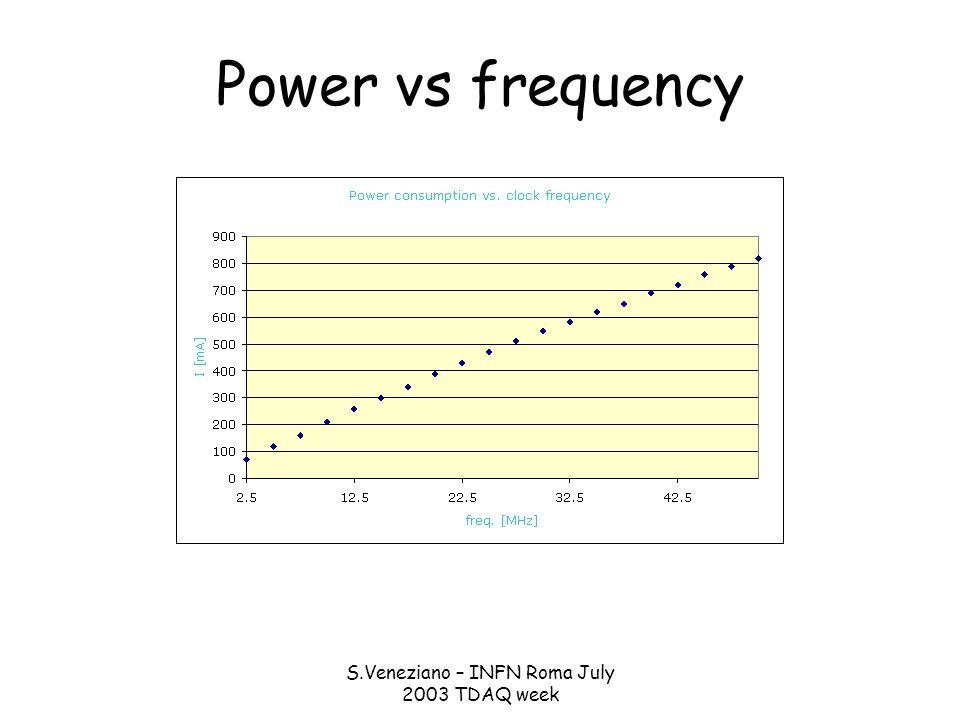

22. S.Veneziano – INFN Roma July 2003 TDAQ week Power vs frequency

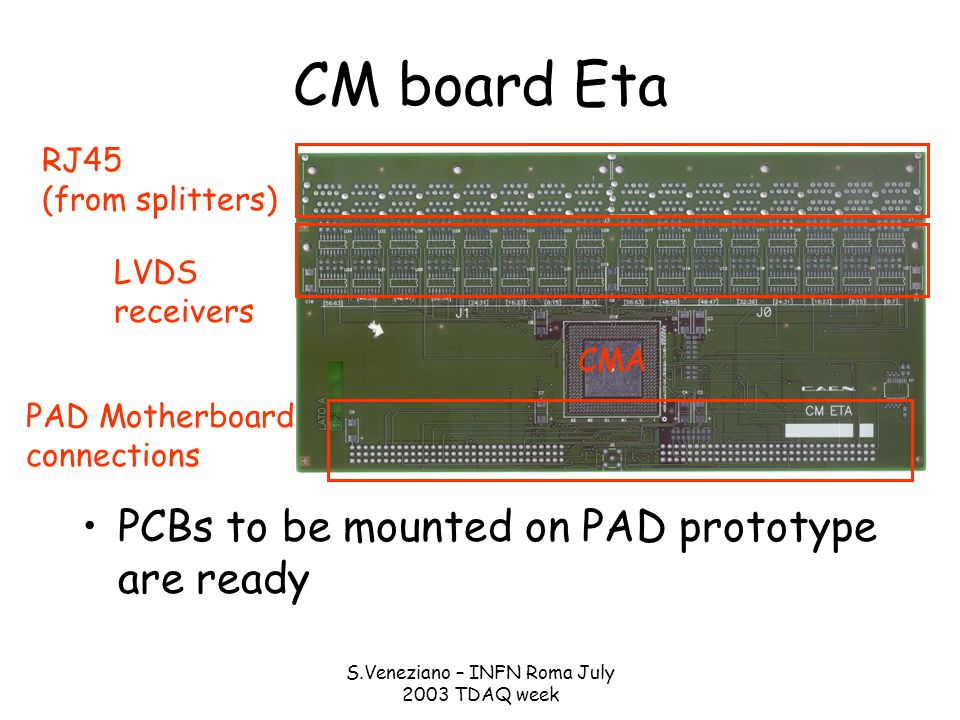

23. S.Veneziano – INFN Roma July 2003 TDAQ week CM board Eta PCBs to be mounted on PAD prototype are ready RJ45 (from splitters) PAD Motherboard connections LVDS receivers CMA

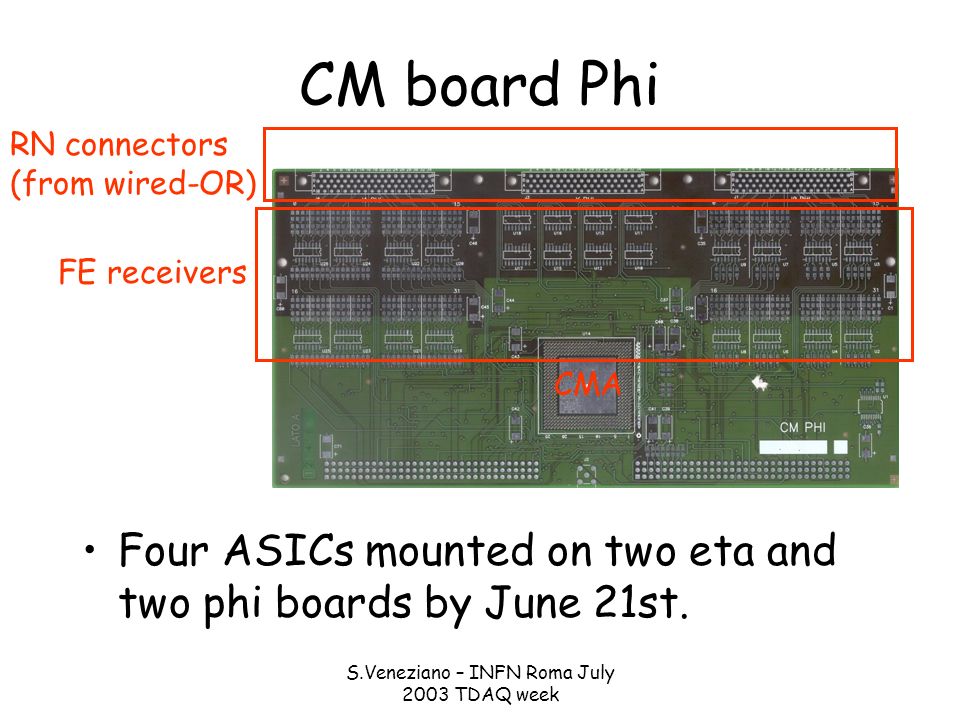

24. S.Veneziano – INFN Roma July 2003 TDAQ week CM board Phi Four ASICs mounted on two eta and two phi boards by June 21st. FE receivers RN connectors (from wired-OR) CMA
