3.  Computer Graphics and GIS Lab is established 1991 at the University of Niš – Faculty of Electronic Engineering.  We specialize in providing state-of-the-art solutions in GIS oriented services based on the latest technology, but we heavily relay on R&D in the software engineering in general. We digitize the world, bring the knowledge and maps together to our customer satisfaction.  CG&GIS Lab offers services for extensive Volume GIS/CAD Data Conversion, Customized Application Development for various industries, GIS Development, various mapping, Remote Sensing Applications worldwide.

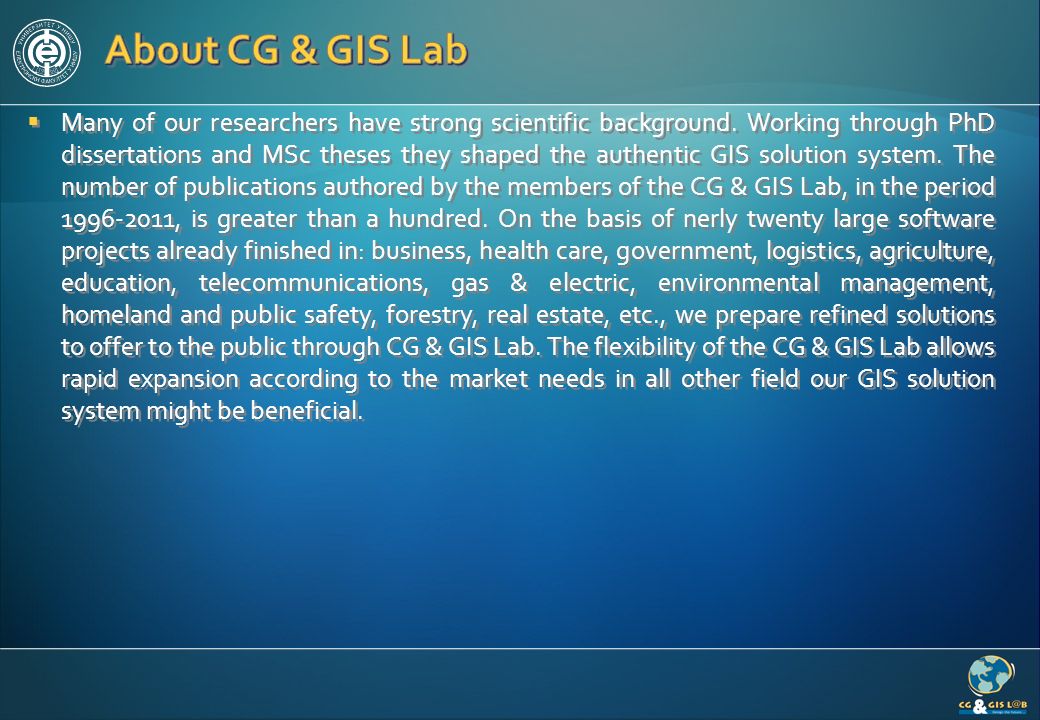

4.  Many of our researchers have strong scientific background. Working through PhD dissertations and MSc theses they shaped the authentic GIS solution system. The number of publications authored by the members of the CG & GIS Lab, in the period 1996-2011, is greater than a hundred. On the basis of nerly twenty large software projects already finished in: business, health care, government, logistics, agriculture, education, telecommunications, gas & electric, environmental management, homeland and public safety, forestry, real estate, etc., we prepare refined solutions to offer to the public through CG & GIS Lab. The flexibility of the CG & GIS Lab allows rapid expansion according to the market needs in all other field our GIS solution system might be beneficial.

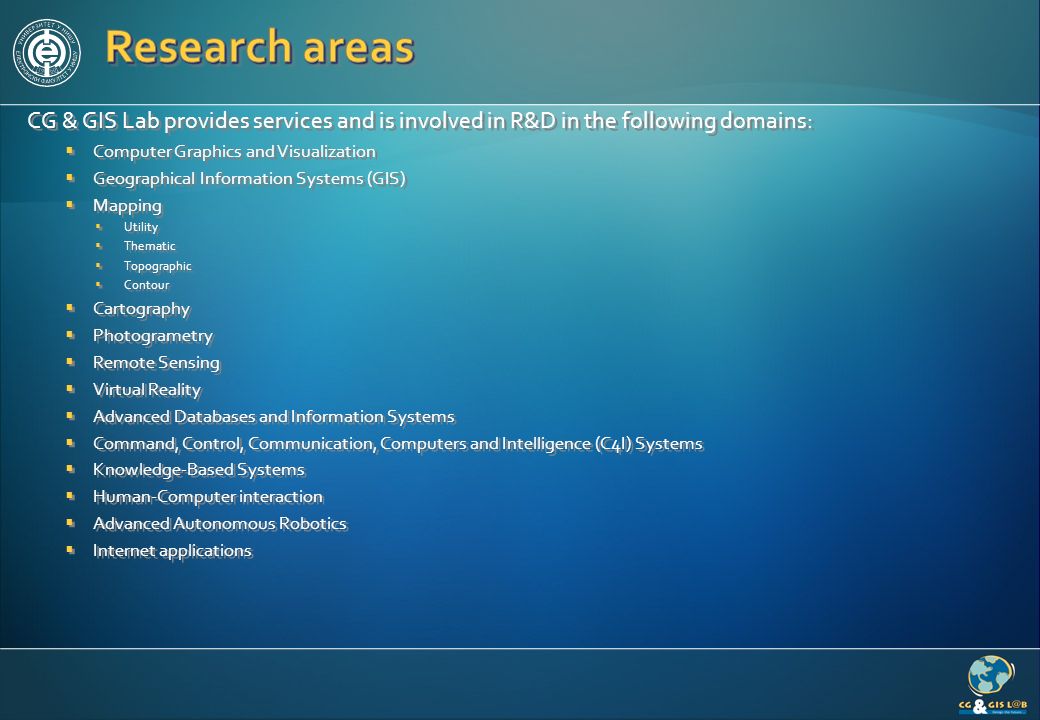

5. CG & GIS Lab provides services and is involved in R&D in the following domains:  Computer Graphics and Visualization  Geographical Information Systems (GIS)  Mapping  Utility  Thematic  Topographic  Contour  Cartography  Photogrametry  Remote Sensing  Virtual Reality  Advanced Databases and Information Systems  Command, Control, Communication, Computers and Intelligence (C4I) Systems  Knowledge-Based Systems  Human-Computer interaction  Advanced Autonomous Robotics  Internet applications

6.  Serbian Defense Forces  Ministry of Internal Affair of Serbia  Telekom Serbia  State Institute of Hydro-Meteorology, Republic of Serbia  Power Supply companies  City of Niš Authorities  Other Local communities

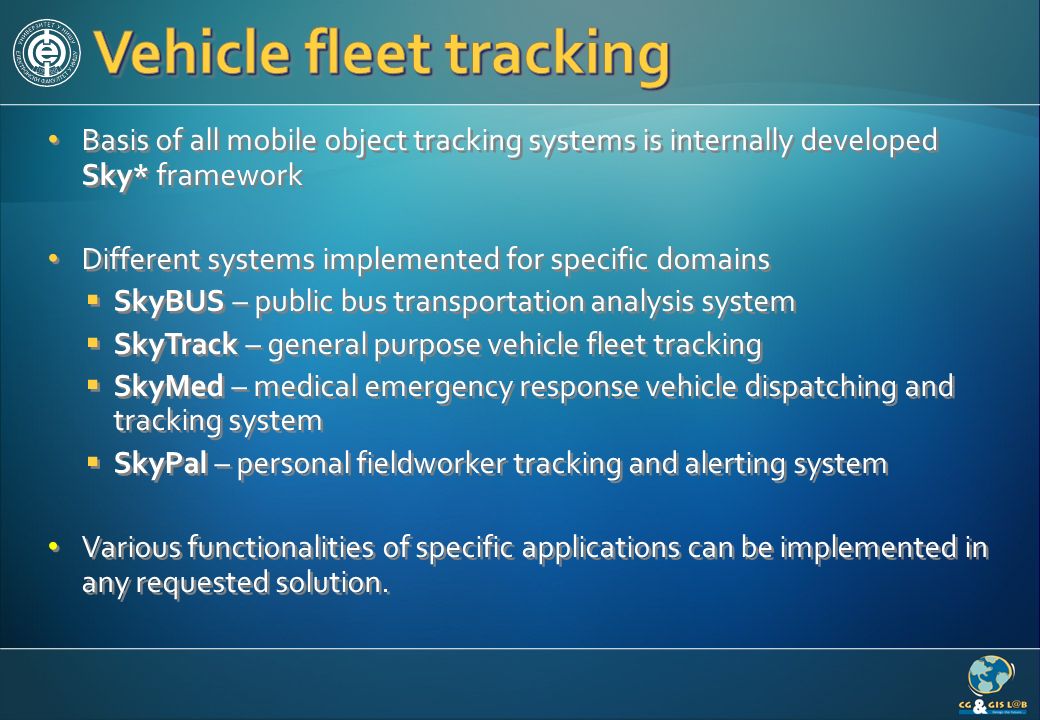

7. Basis of all mobile object tracking systems is internally developed Sky* framework Different systems implemented for specific domains  SkyBUS – public bus transportation analysis system  SkyTrack – general purpose vehicle fleet tracking  SkyMed – medical emergency response vehicle dispatching and tracking system  SkyPal – personal fieldworker tracking and alerting system Various functionalities of specific applications can be implemented in any requested solution.

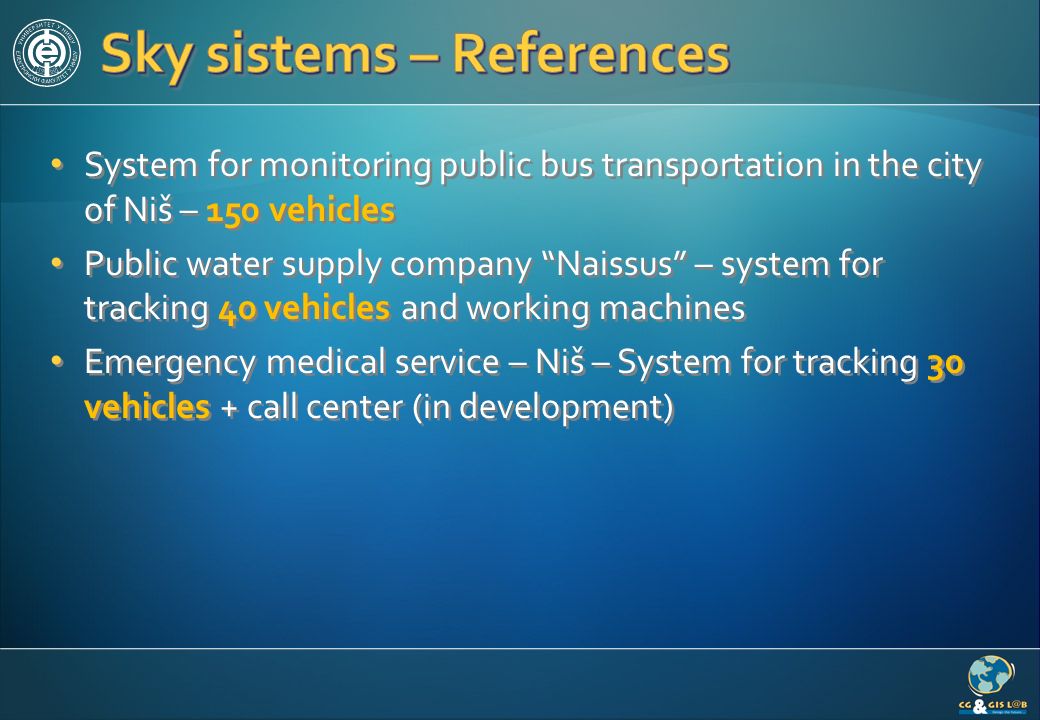

8. System for monitoring public bus transportation in the city of Niš – 150 vehicles Public water supply company “Naissus” – system for tracking 40 vehicles and working machines Emergency medical service – Niš – System for tracking 30 vehicles + call center (in development)

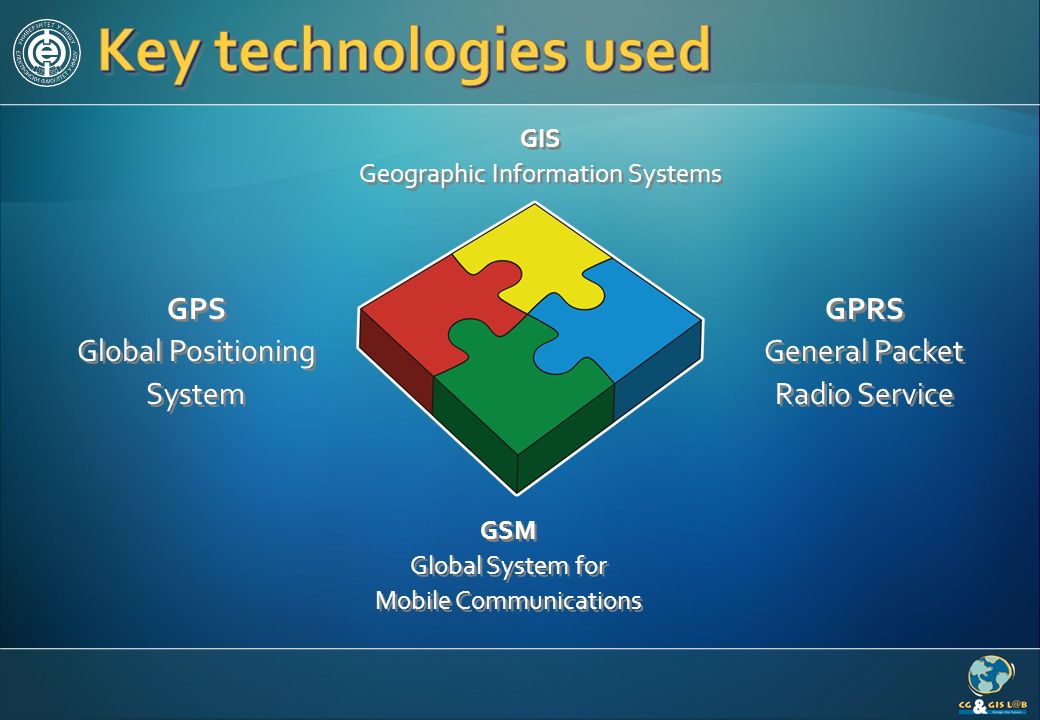

9. GPS Global Positioning System GPRS General Packet Radio Service GPRS General Packet Radio Service GSM Global System for Mobile Communications GSM Global System for Mobile Communications GIS Geographic Information Systems GIS Geographic Information Systems

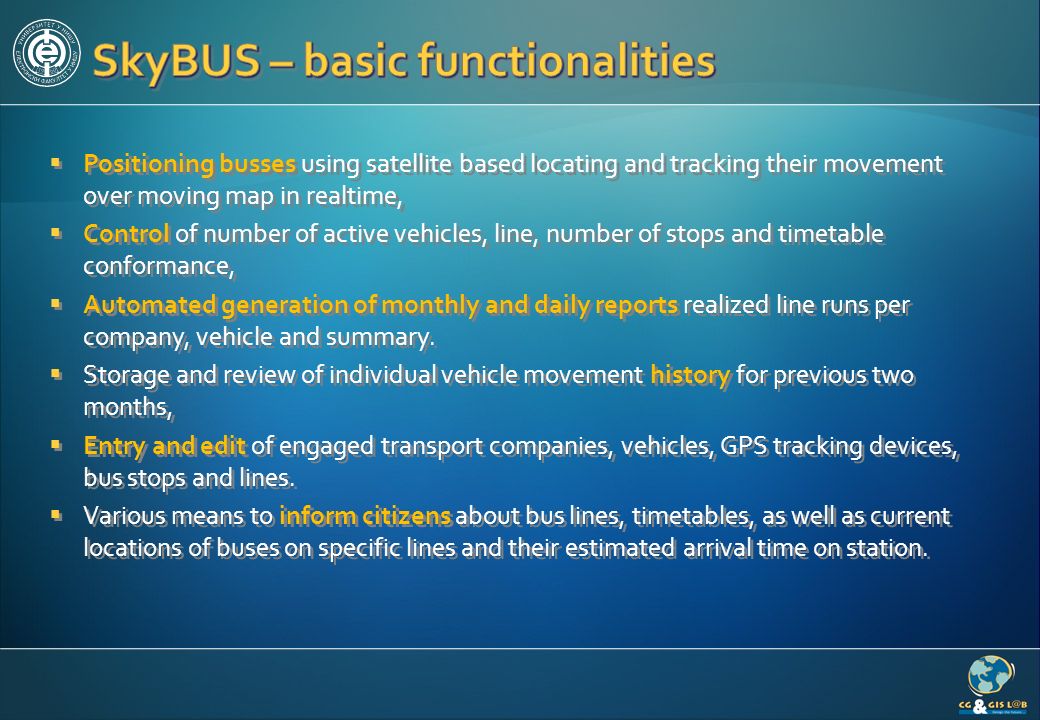

10.  Positioning busses using satellite based locating and tracking their movement over moving map in realtime,  Control of number of active vehicles, line, number of stops and timetable conformance,  Automated generation of monthly and daily reports realized line runs per company, vehicle and summary.  Storage and review of individual vehicle movement history for previous two months,  Entry and edit of engaged transport companies, vehicles, GPS tracking devices, bus stops and lines.  Various means to inform citizens about bus lines, timetables, as well as current locations of buses on specific lines and their estimated arrival time on station.

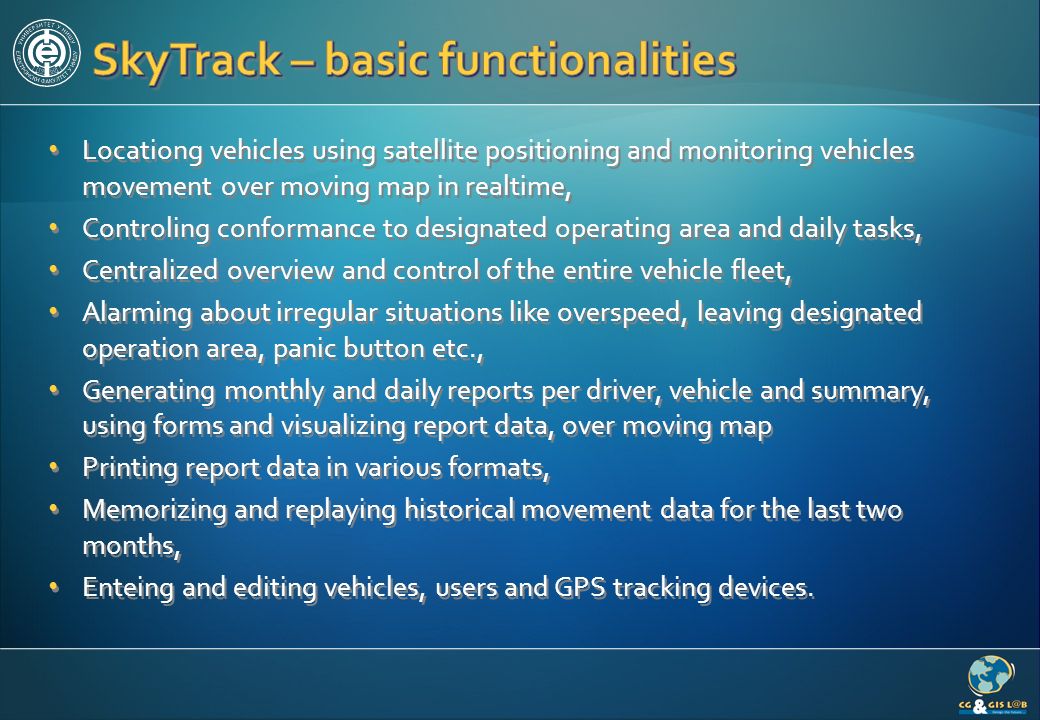

11. Locationg vehicles using satellite positioning and monitoring vehicles movement over moving map in realtime, Controling conformance to designated operating area and daily tasks, Centralized overview and control of the entire vehicle fleet, Alarming about irregular situations like overspeed, leaving designated operation area, panic button etc., Generating monthly and daily reports per driver, vehicle and summary, using forms and visualizing report data, over moving map Printing report data in various formats, Memorizing and replaying historical movement data for the last two months, Enteing and editing vehicles, users and GPS tracking devices.

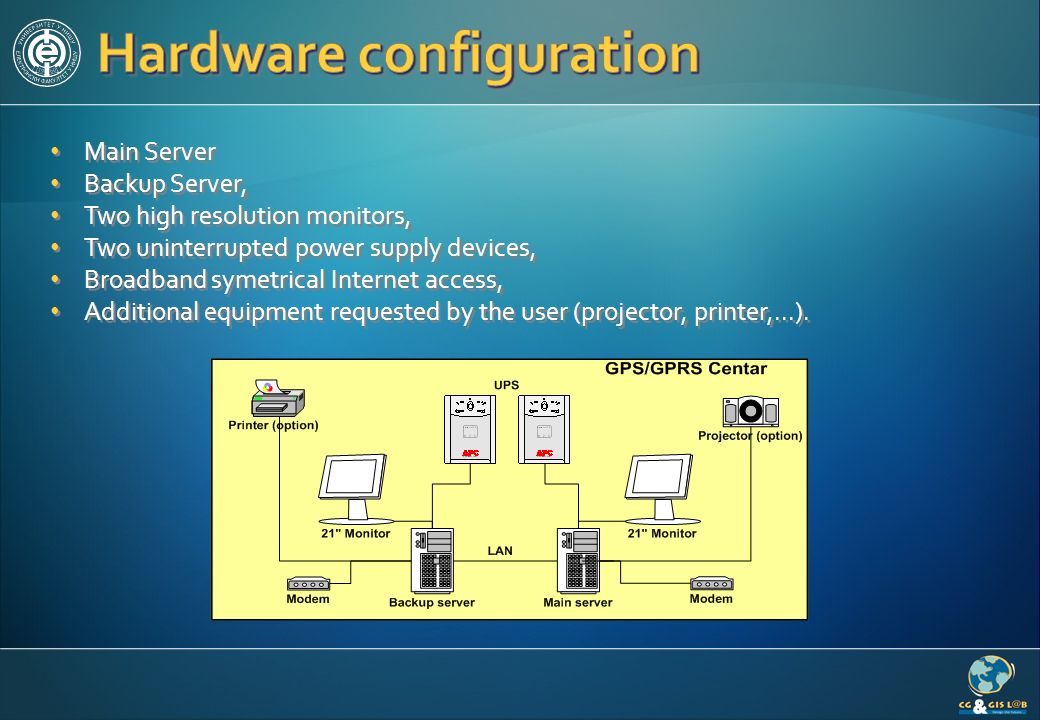

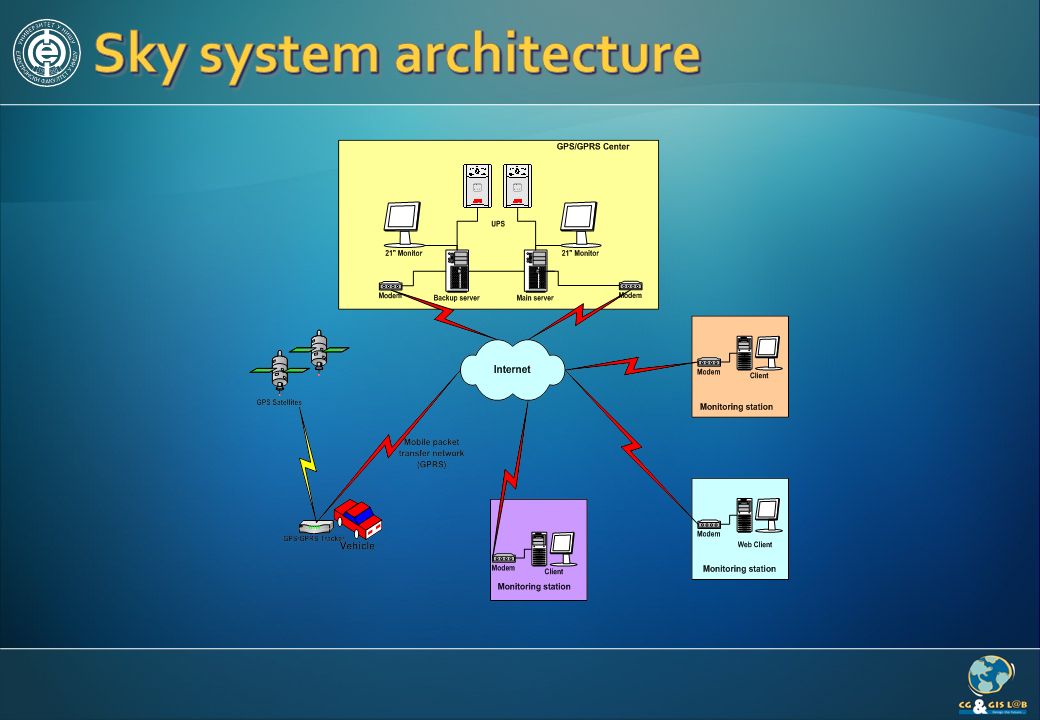

13. Main Server Backup Server, Two high resolution monitors, Two uninterrupted power supply devices, Broadband symetrical Internet access, Additional equipment requested by the user (projector, printer,...).

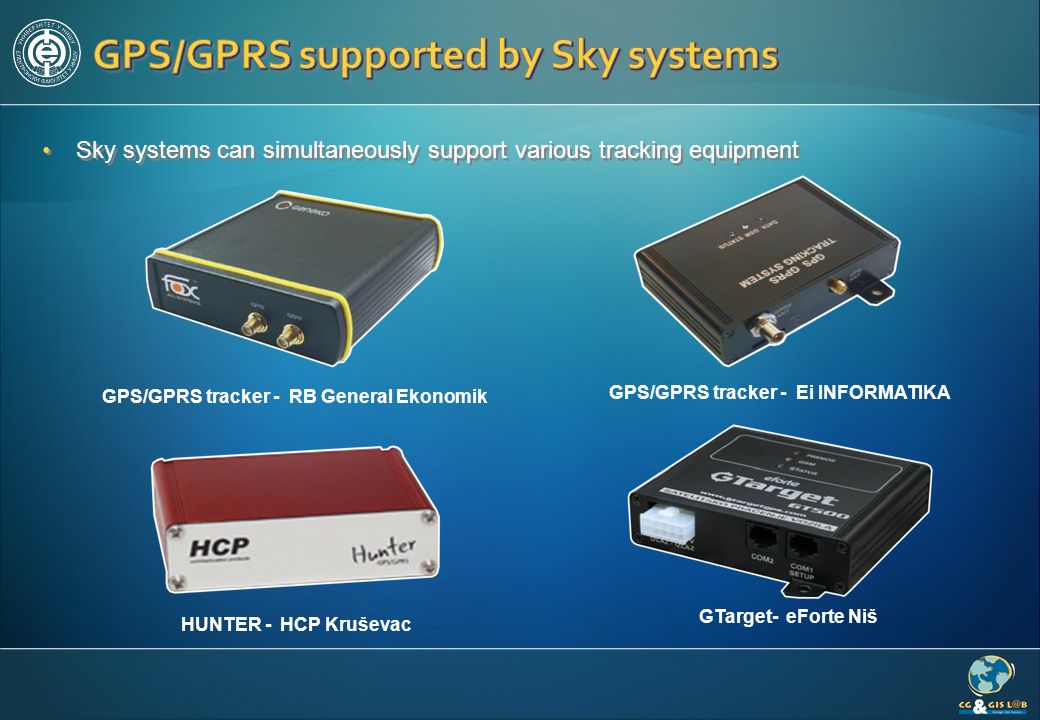

14. GPS/GPRS tracker - RB General Ekonomik GPS/GPRS tracker - Ei INFORMATIKA HUNTER - HCP Kruševac GTarget- eForte Niš Sky systems can simultaneously support various tracking equipment

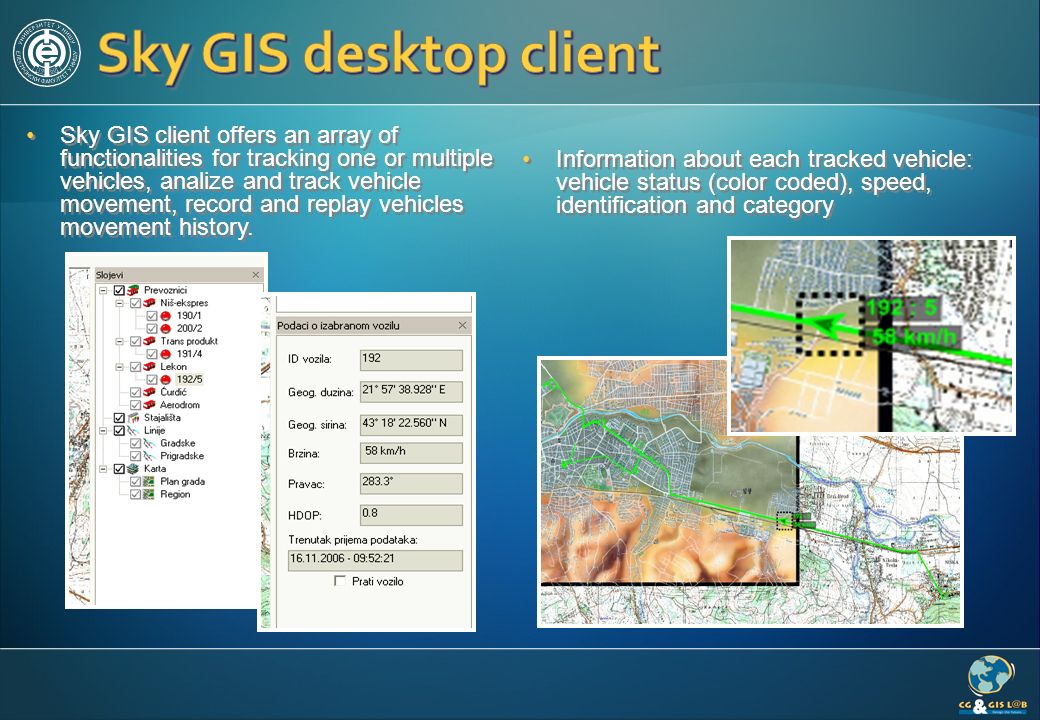

15. Sky GIS client offers an array of functionalities for tracking one or multiple vehicles, analize and track vehicle movement, record and replay vehicles movement history. Information about each tracked vehicle: vehicle status (color coded), speed, identification and category

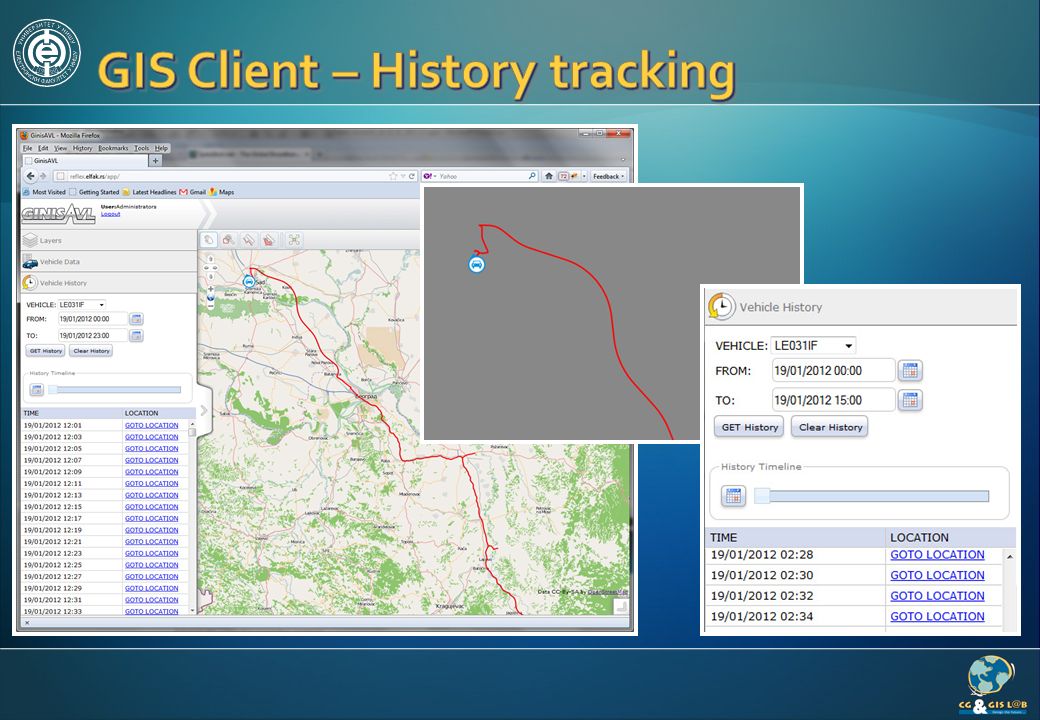

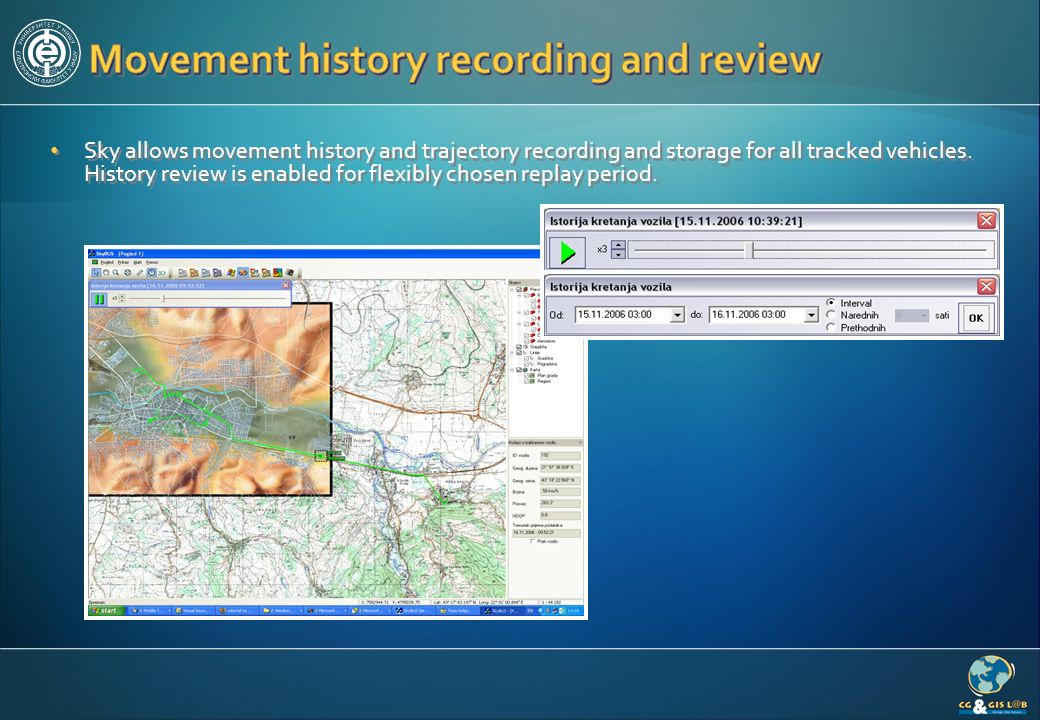

16. Sky allows movement history and trajectory recording and storage for all tracked vehicles. History review is enabled for flexibly chosen replay period.

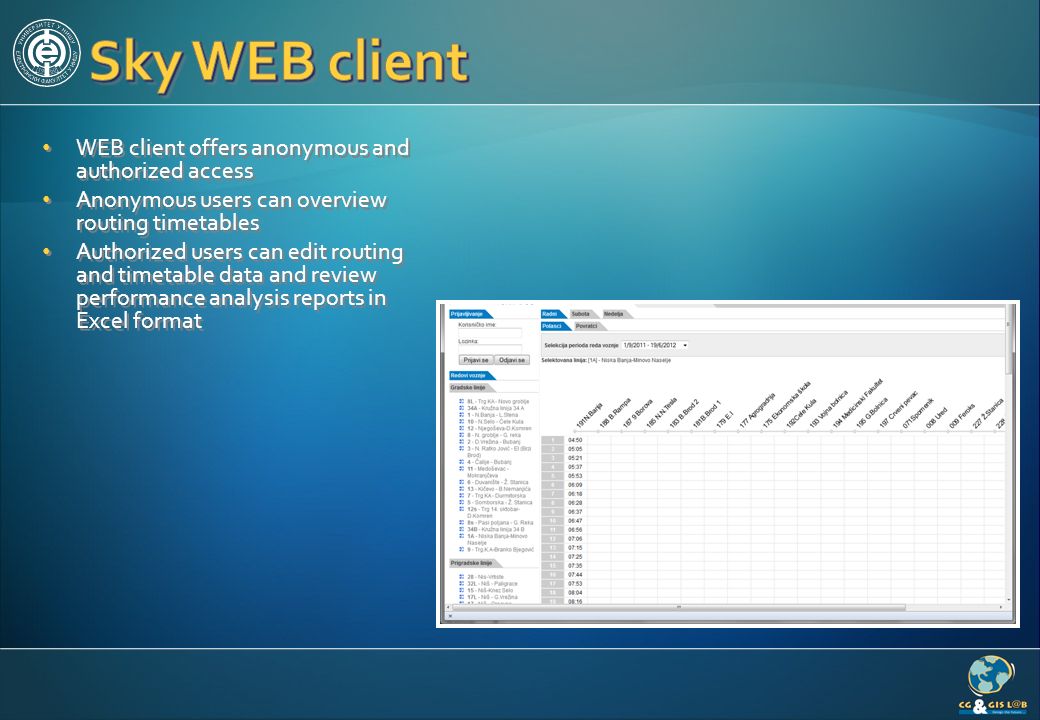

17. WEB client offers anonymous and authorized access Anonymous users can overview routing timetables Authorized users can edit routing and timetable data and review performance analysis reports in Excel format

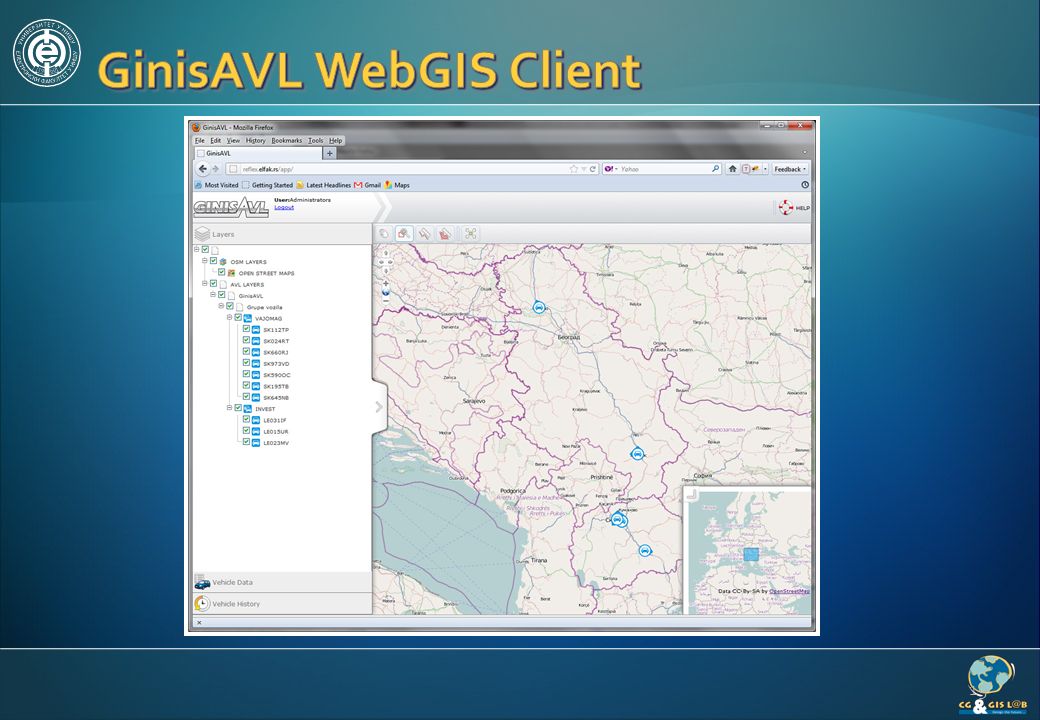

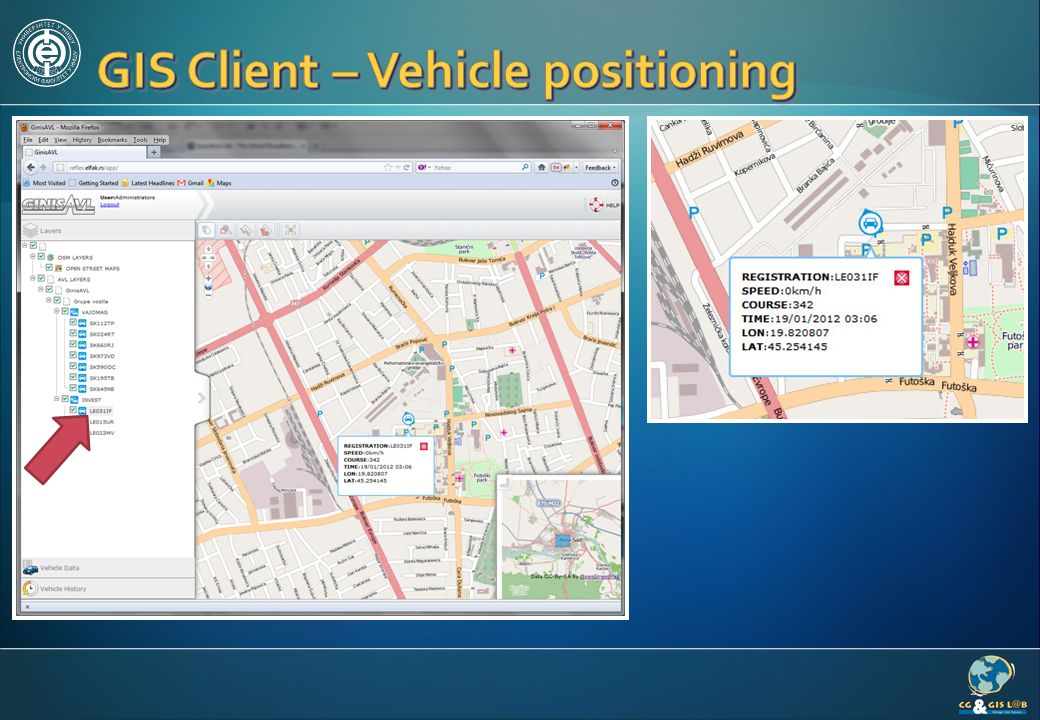

18. WEB GIS client offers anonymous and authorized access to vehicle positions visualized over moving map

19. 19

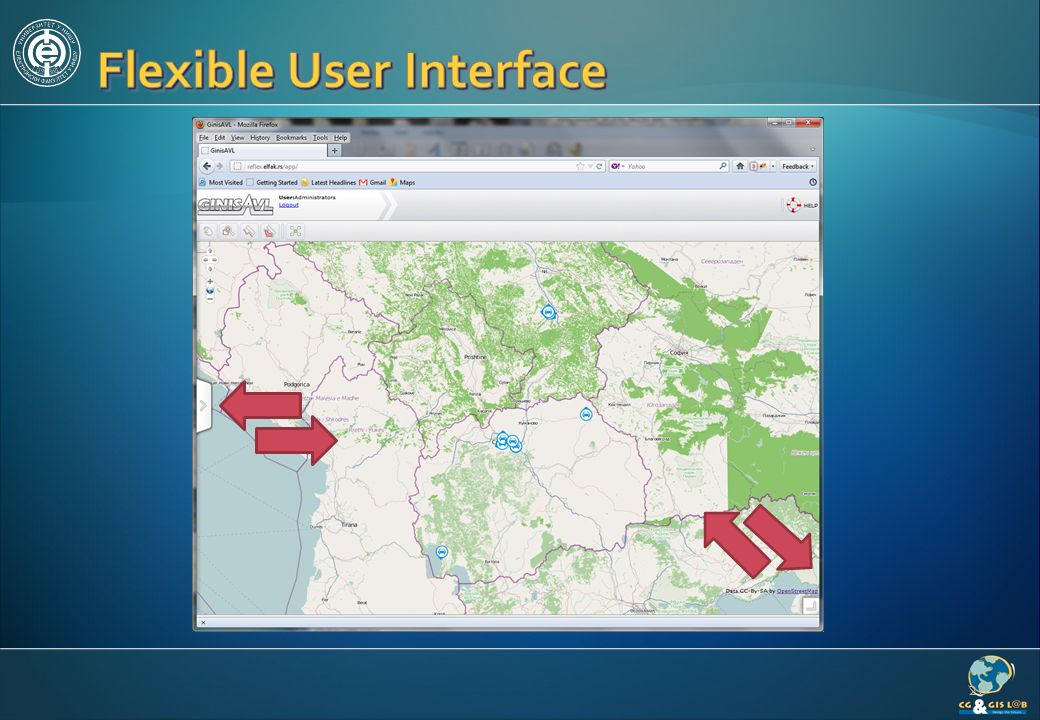

20. 20

21. 21

22. 22

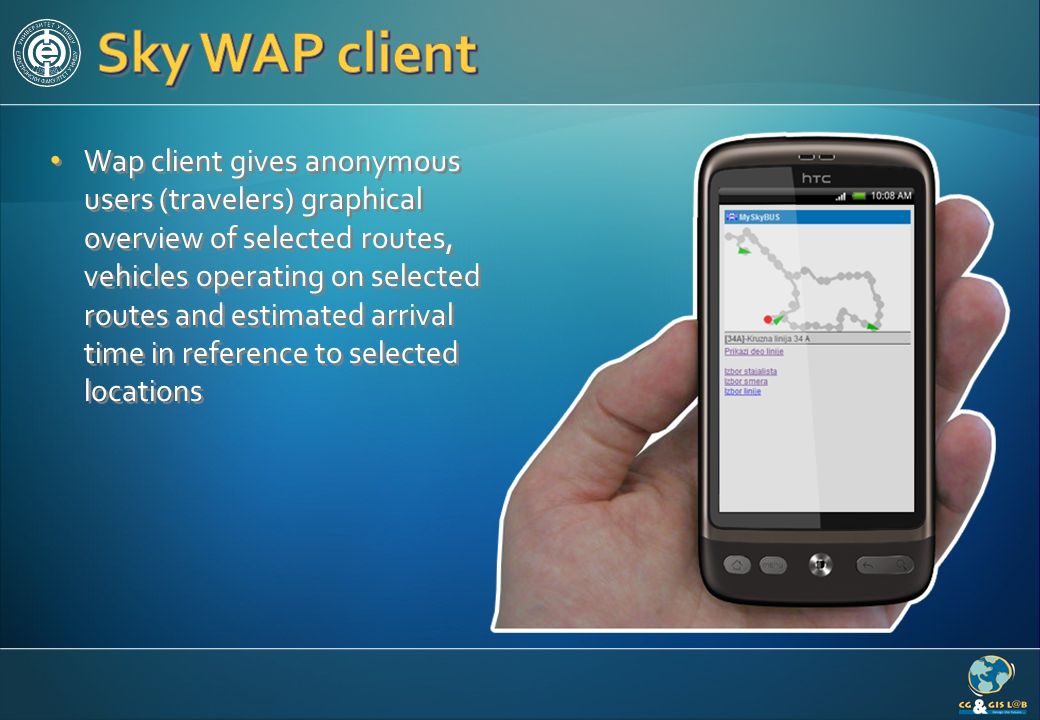

23. Wap client gives anonymous users (travelers) graphical overview of selected routes, vehicles operating on selected routes and estimated arrival time in reference to selected locations

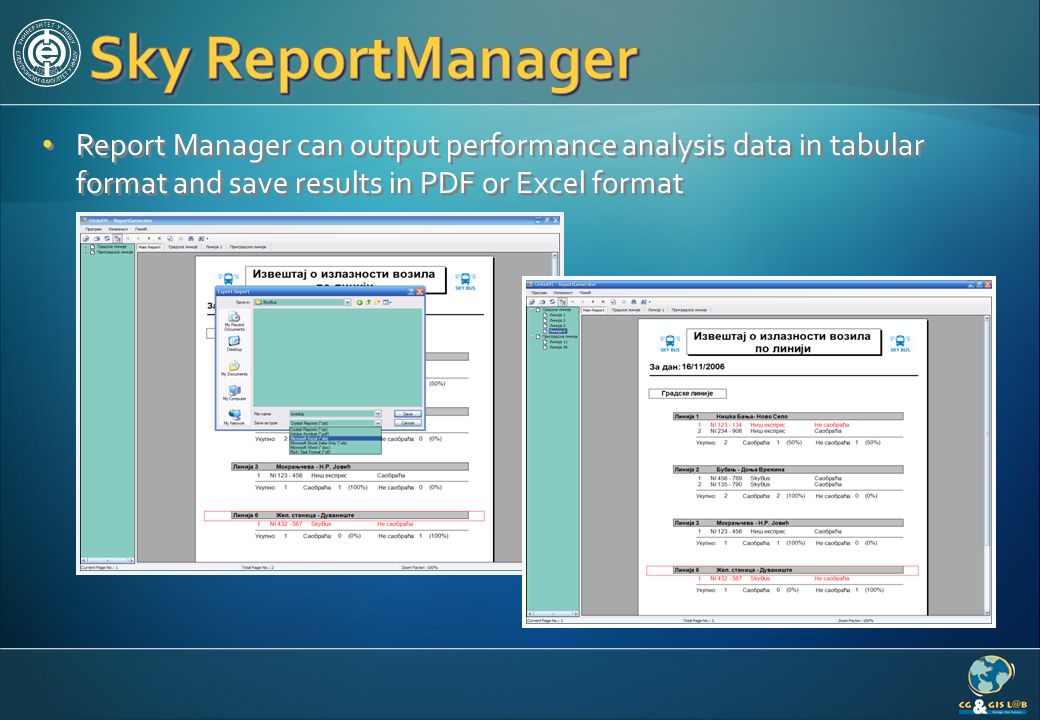

24. Report Manager can output performance analysis data in tabular format and save results in PDF or Excel format

25. Public info panels are mounted in clearly visible spots near destination locations and display estimated arrival time for the next vehicle

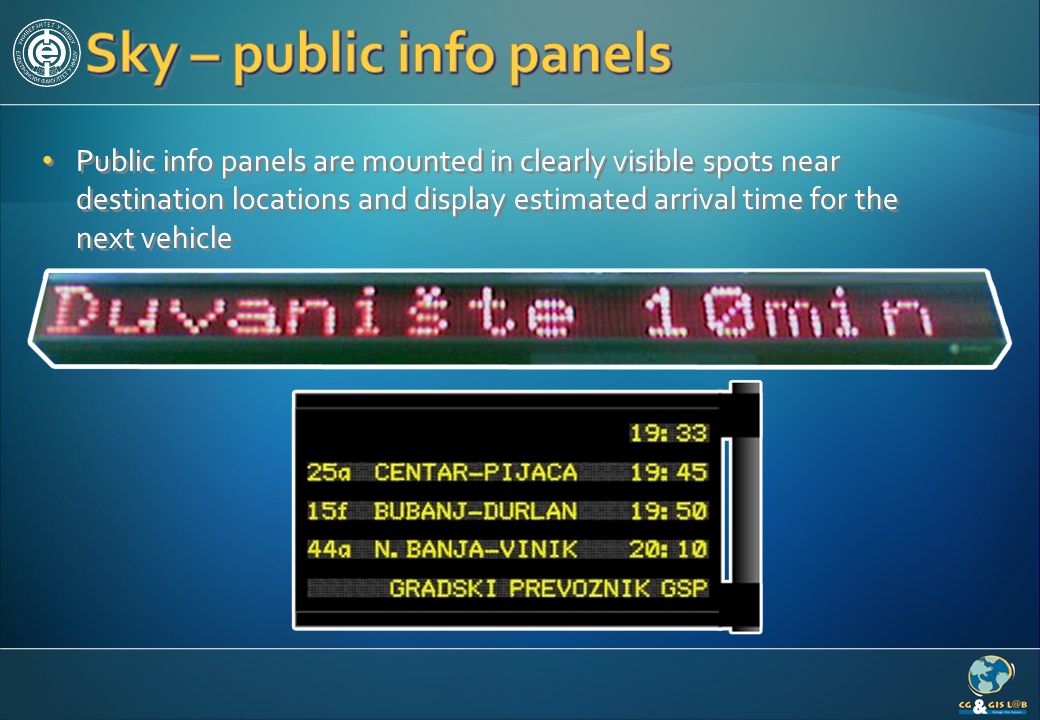

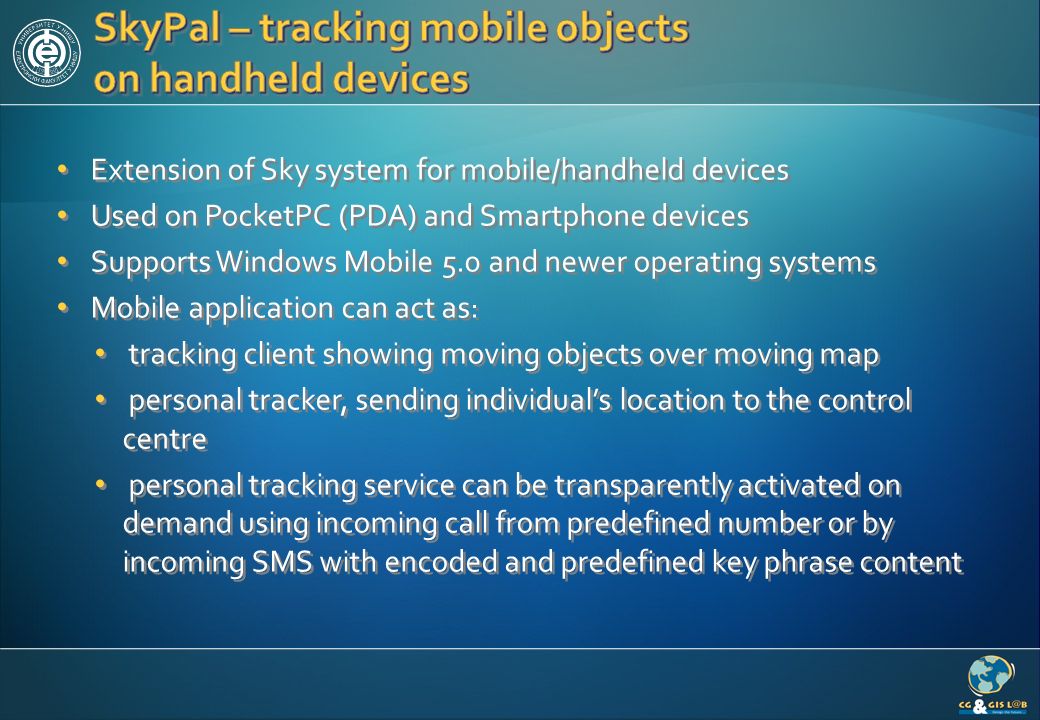

26. Extension of Sky system for mobile/handheld devices Used on PocketPC (PDA) and Smartphone devices Supports Windows Mobile 5.0 and newer operating systems Mobile application can act as: tracking client showing moving objects over moving map personal tracker, sending individual’s location to the control centre personal tracking service can be transparently activated on demand using incoming call from predefined number or by incoming SMS with encoded and predefined key phrase content

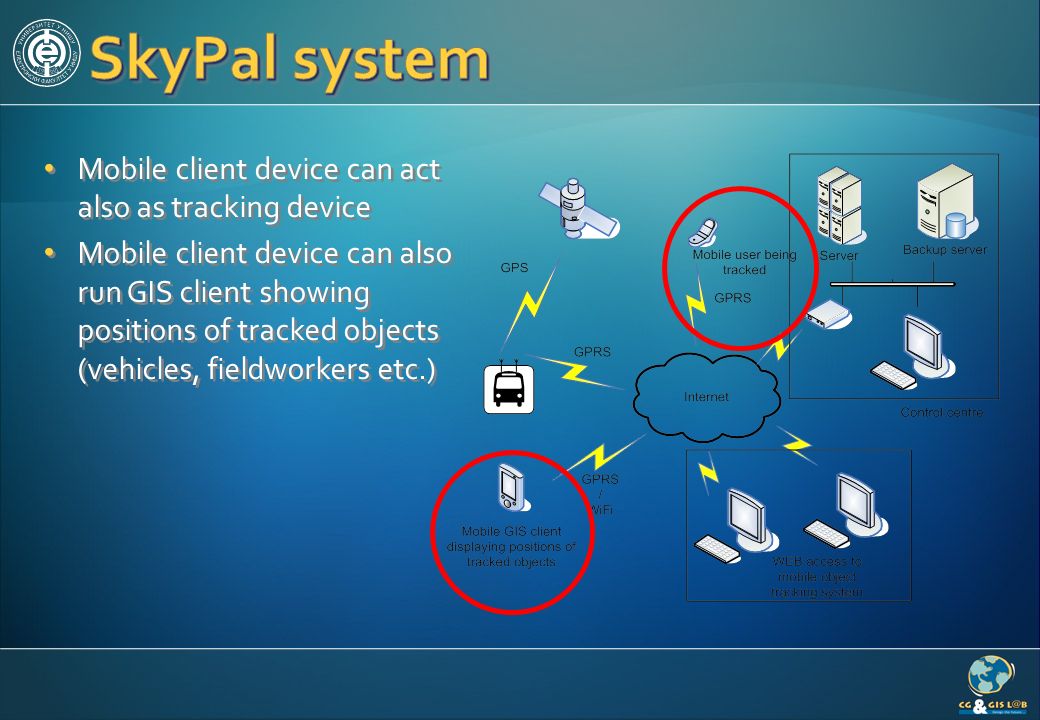

27. Mobile client device can act also as tracking device Mobile client device can also run GIS client showing positions of tracked objects (vehicles, fieldworkers etc.)

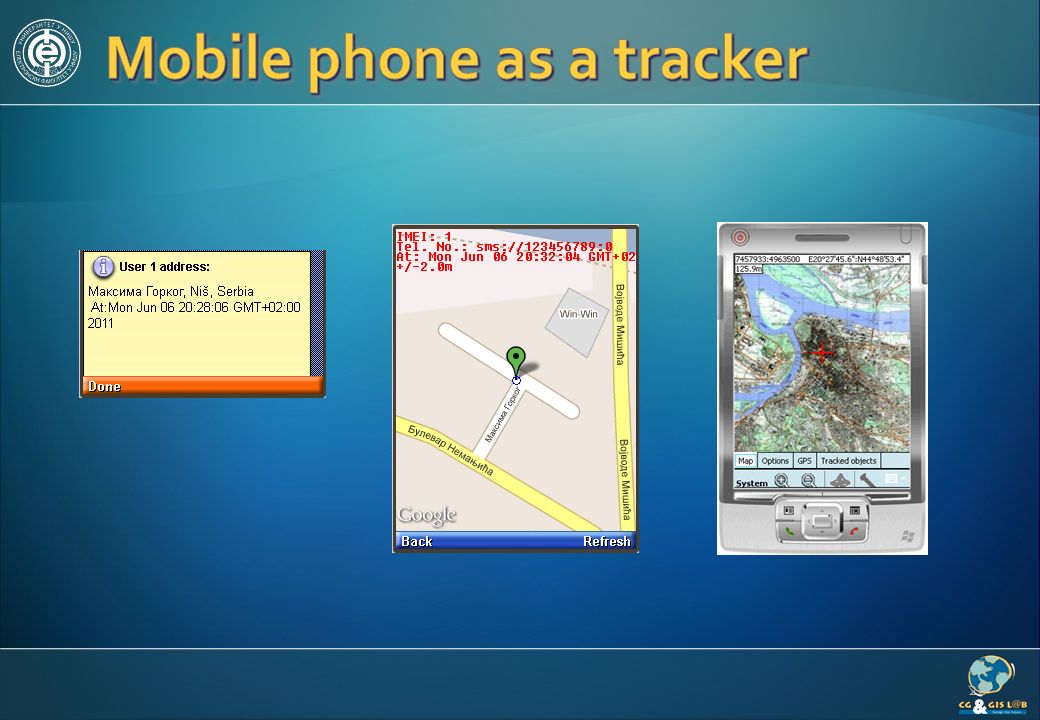

28. 28

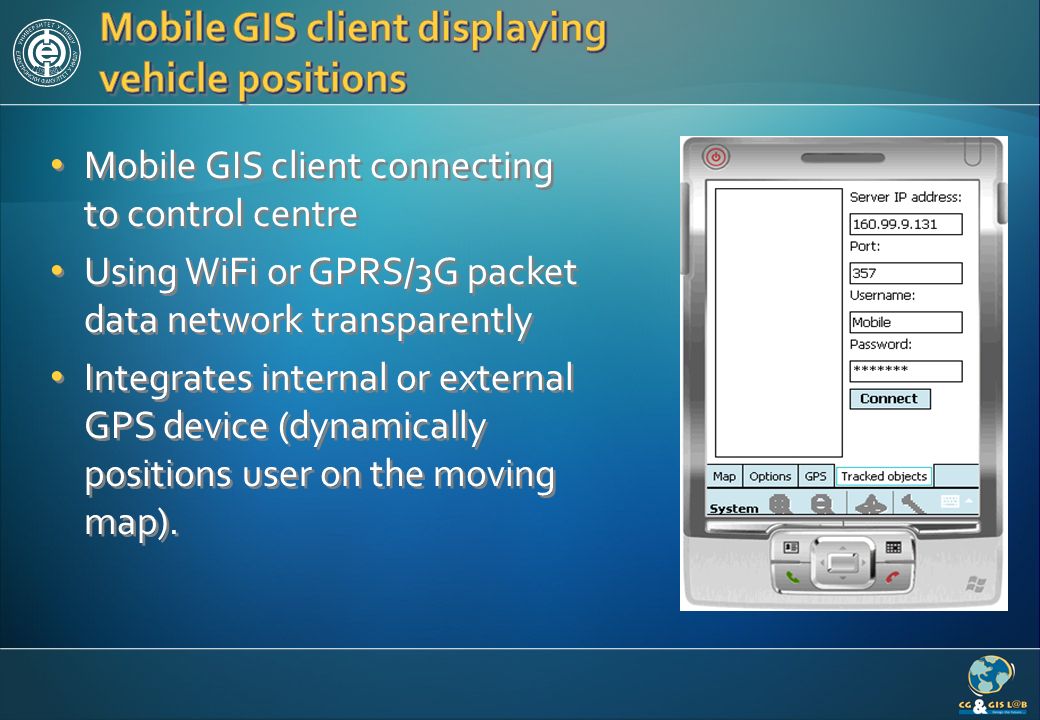

29. Mobile GIS client connecting to control centre Using WiFi or GPRS/3G packet data network transparently Integrates internal or external GPS device (dynamically positions user on the moving map).

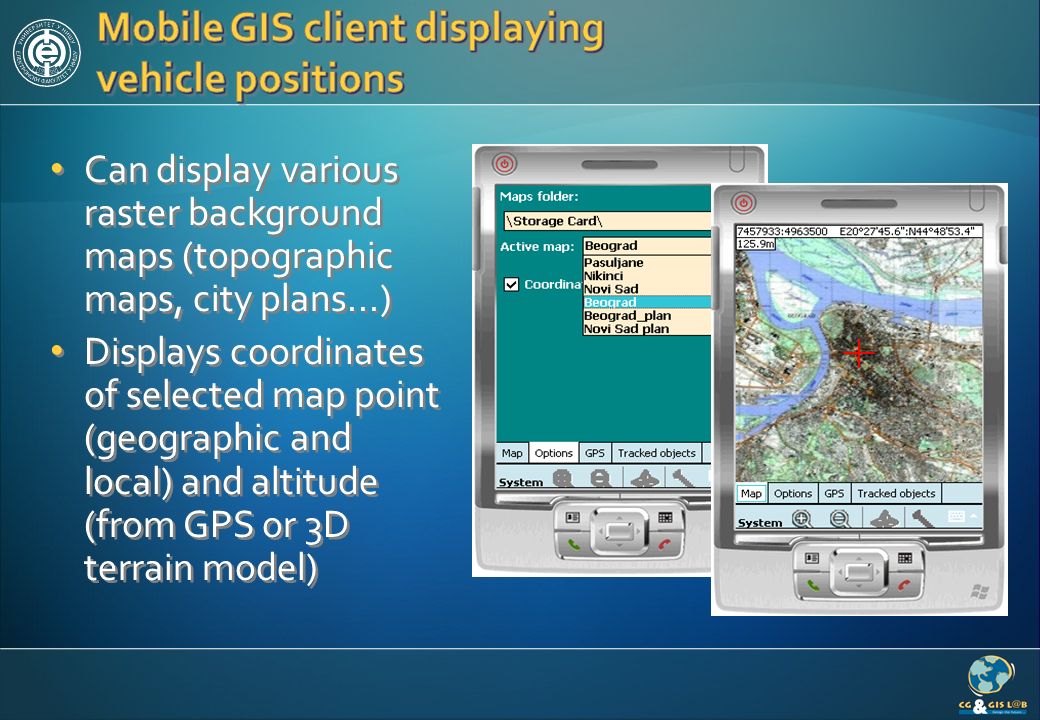

30. Can display various raster background maps (topographic maps, city plans...) Displays coordinates of selected map point (geographic and local) and altitude (from GPS or 3D terrain model)

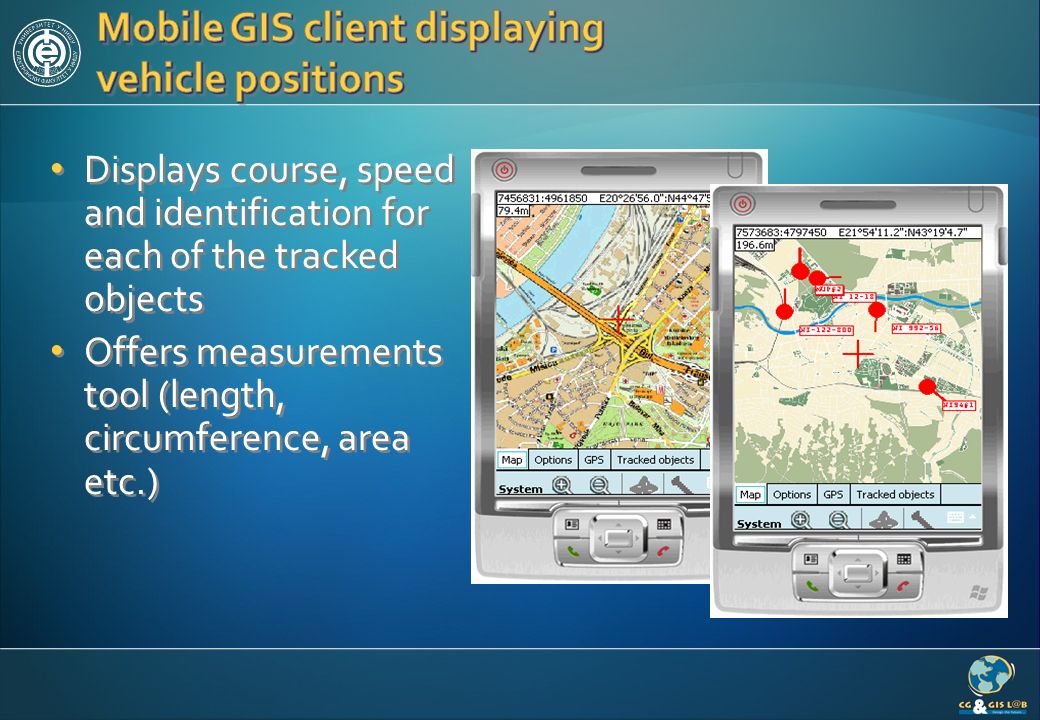

31. Displays course, speed and identification for each of the tracked objects Offers measurements tool (length, circumference, area etc.)

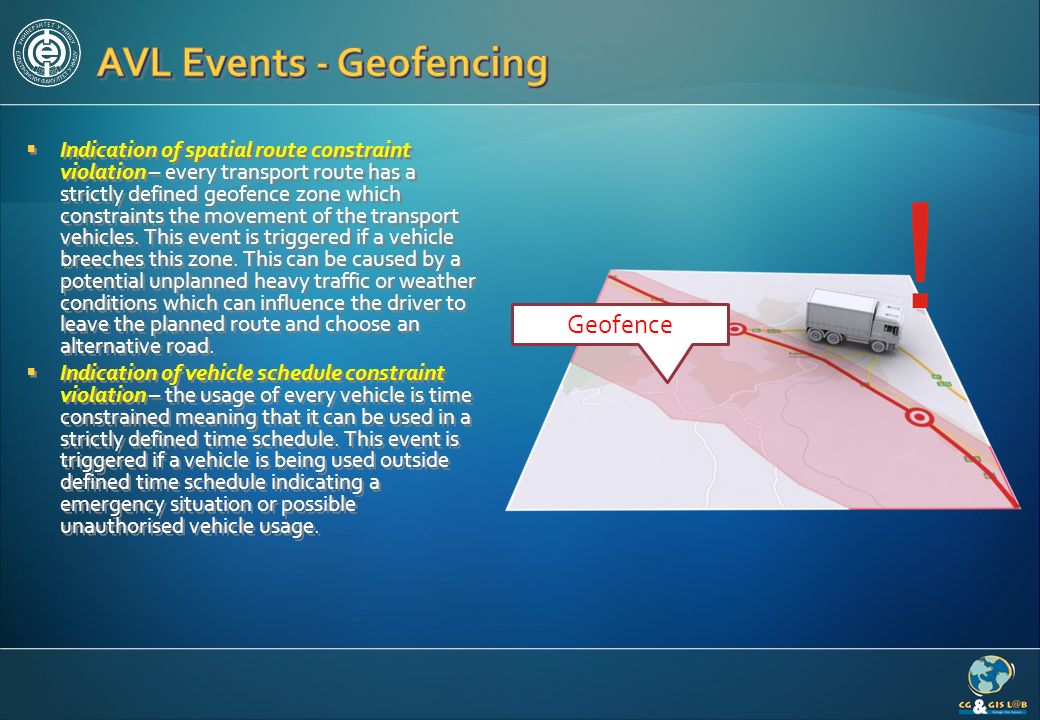

32.  Indication of spatial route constraint violation – every transport route has a strictly defined geofence zone which constraints the movement of the transport vehicles. This event is triggered if a vehicle breeches this zone. This can be caused by a potential unplanned heavy traffic or weather conditions which can influence the driver to leave the planned route and choose an alternative road.  Indication of vehicle schedule constraint violation – the usage of every vehicle is time constrained meaning that it can be used in a strictly defined time schedule. This event is triggered if a vehicle is being used outside defined time schedule indicating a emergency situation or possible unauthorised vehicle usage. Geofence

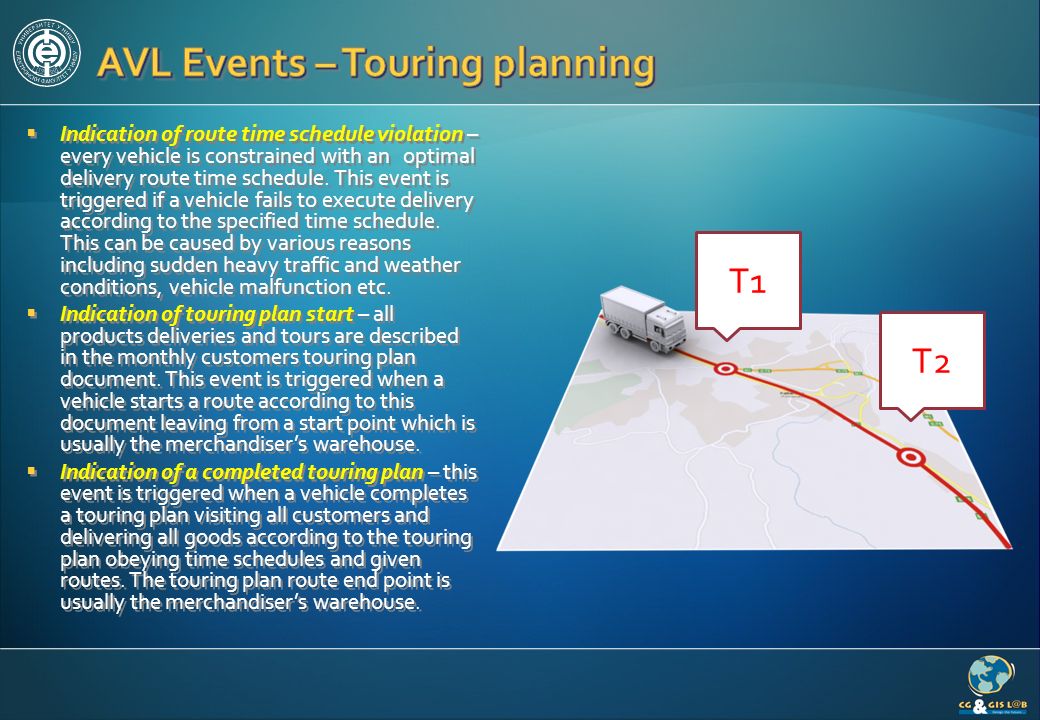

33.  Indication of route time schedule violation – every vehicle is constrained with an optimal delivery route time schedule. This event is triggered if a vehicle fails to execute delivery according to the specified time schedule. This can be caused by various reasons including sudden heavy traffic and weather conditions, vehicle malfunction etc.  Indication of touring plan start – all products deliveries and tours are described in the monthly customers touring plan document. This event is triggered when a vehicle starts a route according to this document leaving from a start point which is usually the merchandiser’s warehouse.  Indication of a completed touring plan – this event is triggered when a vehicle completes a touring plan visiting all customers and delivering all goods according to the touring plan obeying time schedules and given routes. The touring plan route end point is usually the merchandiser’s warehouse. T1 T2

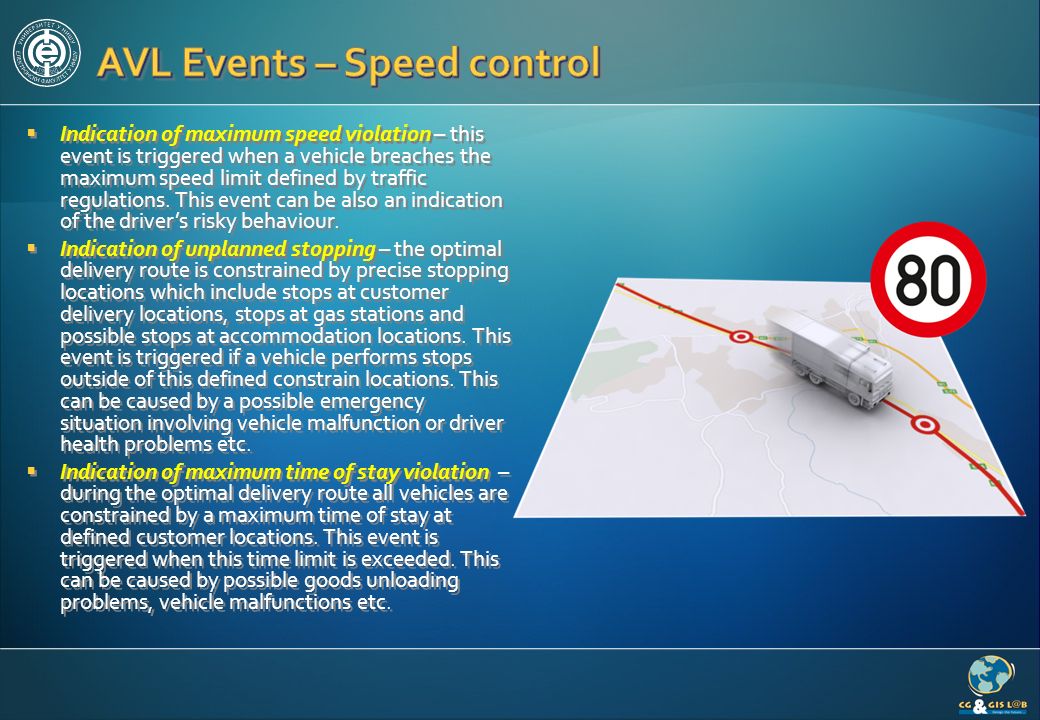

34.  Indication of maximum speed violation – this event is triggered when a vehicle breaches the maximum speed limit defined by traffic regulations. This event can be also an indication of the driver’s risky behaviour.  Indication of unplanned stopping – the optimal delivery route is constrained by precise stopping locations which include stops at customer delivery locations, stops at gas stations and possible stops at accommodation locations. This event is triggered if a vehicle performs stops outside of this defined constrain locations. This can be caused by a possible emergency situation involving vehicle malfunction or driver health problems etc.  Indication of maximum time of stay violation – during the optimal delivery route all vehicles are constrained by a maximum time of stay at defined customer locations. This event is triggered when this time limit is exceeded. This can be caused by possible goods unloading problems, vehicle malfunctions etc.

35.  Indication of fuel consumption violation – all machines and vehicles are considered to generate an average fuel consumption estimated by considering daily working time schedules. This event is triggered if a machine or a vehicle wastes more fuel than previously estimated. This can be caused by possible machine or vehicle malfunctions.  Indication of machine time schedule violation – all machines and vehicles are constrained by strict time schedules. This event is triggered when a machine or a vehicle is engaged outside the defined time schedule. This can be caused by a emergency situation or a possible unauthorised machine/vehicle usage.

36. 36  Full control of complete GiNiS platform (developed from the scratch using C/C++).  Custom made GIS applications  Easy to use  Easy to integrate  Support for standard GIS formats  Desktop/Web/Mobile GIS

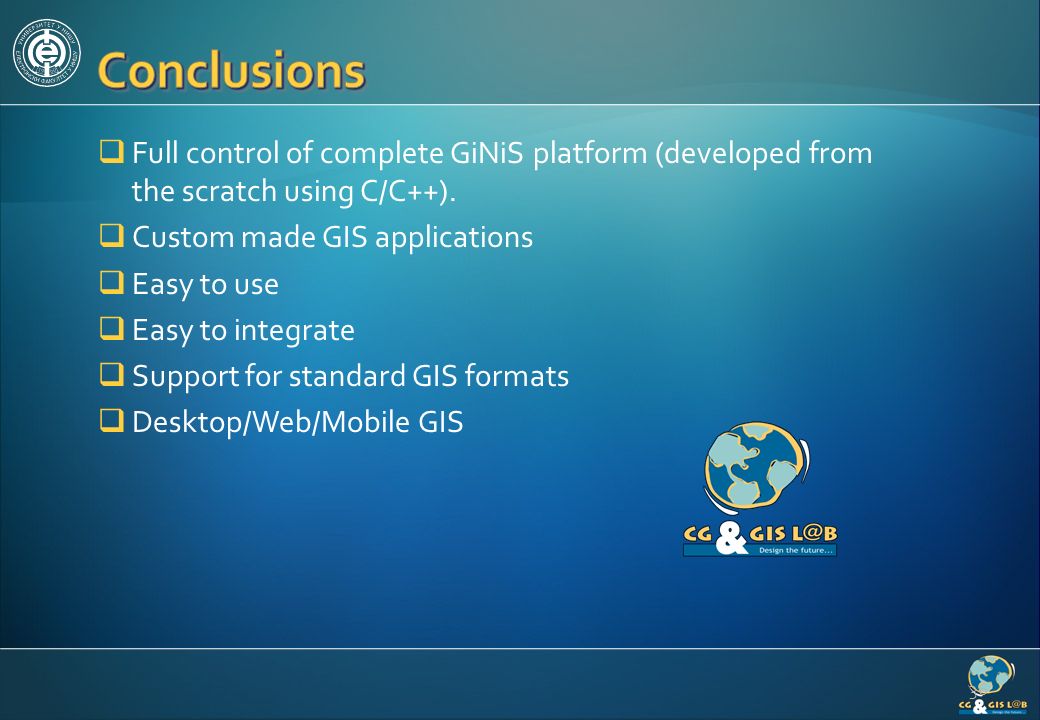

37. 37 University of Niš Faculty of Electronic Engineering Aleksandra Medvedeva 14, 18000 Niš Serbia CG&GIS Lab Computer Graphics and Geographic Information Systems Laboratory Tel.: (+381 18) 529-500 Fax:(+381 18) 588-399 e-mail: dejan.rancic@elfak.ni.ac.rsdejan.rancic@elfak.ni.ac.rs http://gislab.elfak.ni.ac.rs
