1. ELEN 468 Lecture 121 ELEN 468 Advanced Logic Design Lecture 12 Synthesis of Combinational Logic I

2. ELEN 468 Lecture 122 Synthesis Logic synthesis Boolean descriptions => circuits RTL synthesis RTL descriptions => Boolean descriptions Behavioral synthesis Behavioral descriptions => RTL descriptions

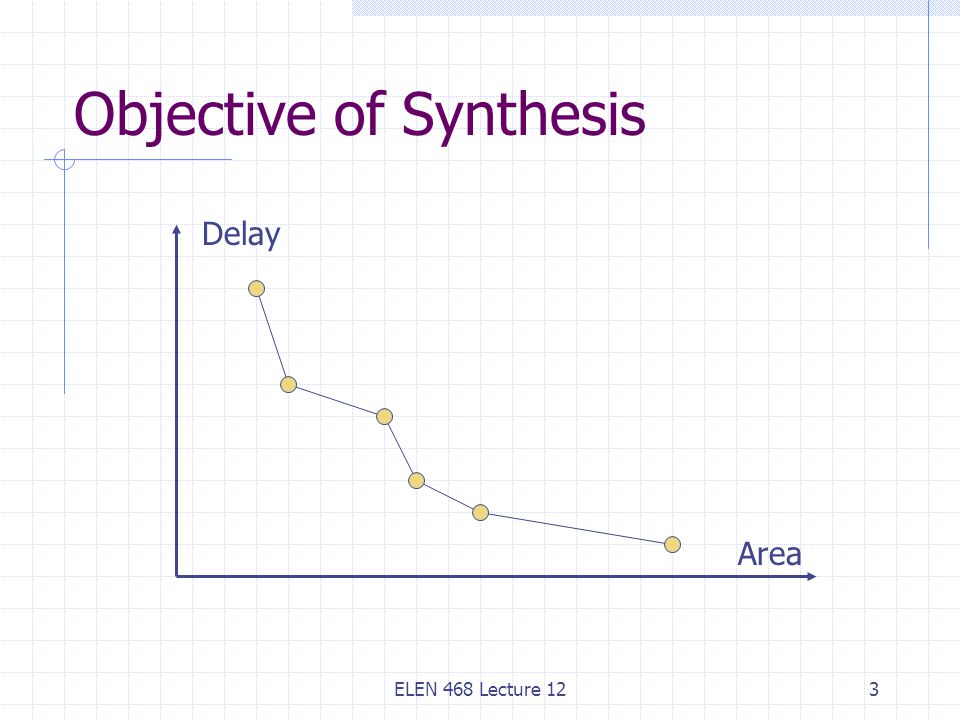

3. ELEN 468 Lecture 123 Objective of Synthesis Area Delay

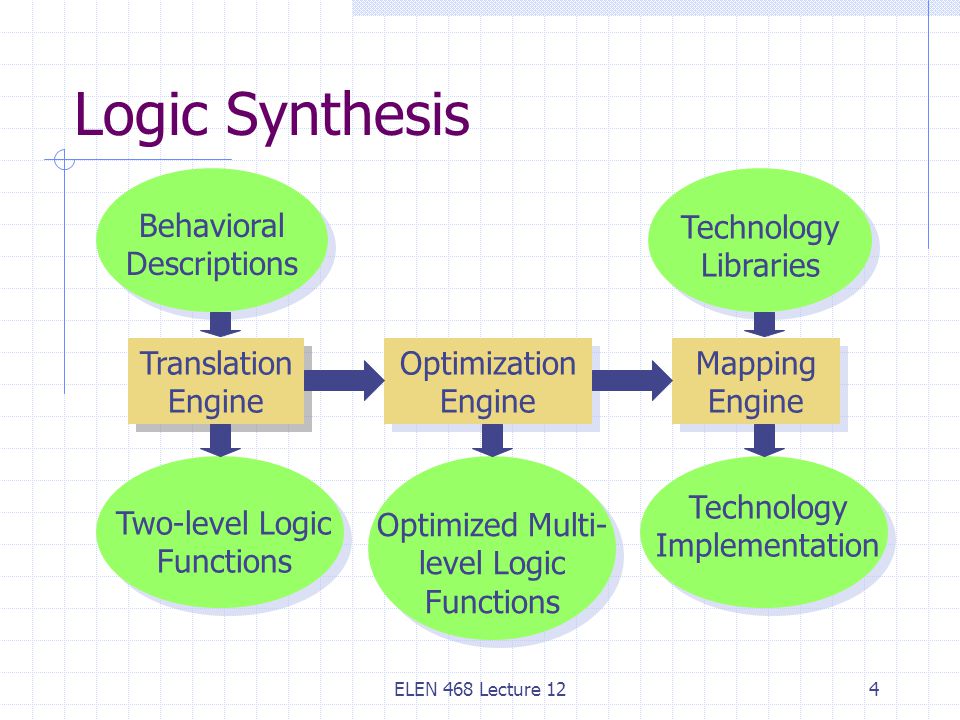

4. ELEN 468 Lecture 124 Logic Synthesis Translation Engine Optimization Engine Mapping Engine Behavioral Descriptions Technology Libraries Two-level Logic Functions Optimized Multi- level Logic Functions Technology Implementation

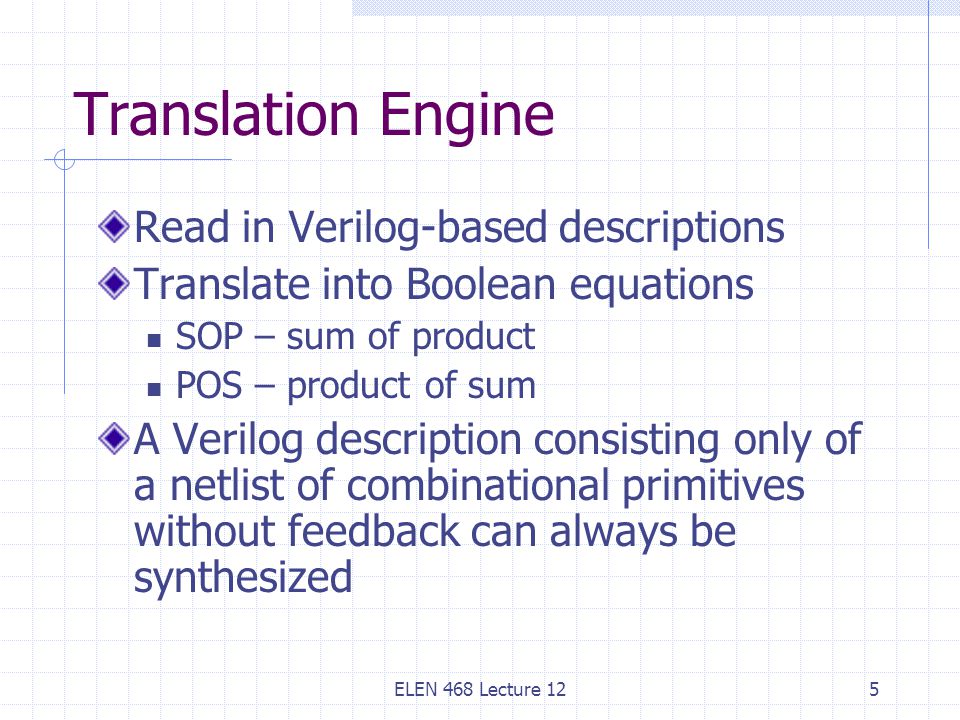

5. ELEN 468 Lecture 125 Translation Engine Read in Verilog-based descriptions Translate into Boolean equations SOP – sum of product POS – product of sum A Verilog description consisting only of a netlist of combinational primitives without feedback can always be synthesized

6. ELEN 468 Lecture 126 Logic Optimization Remove redundant logic, exploit logic sharing Substitution Factoring Decomposition Extraction Elimination/flattening

7. ELEN 468 Lecture 127 Substitution Express a Boolean function in terms of its inputs and another function G = a + b F = a + b + c G = a + b F = G + c

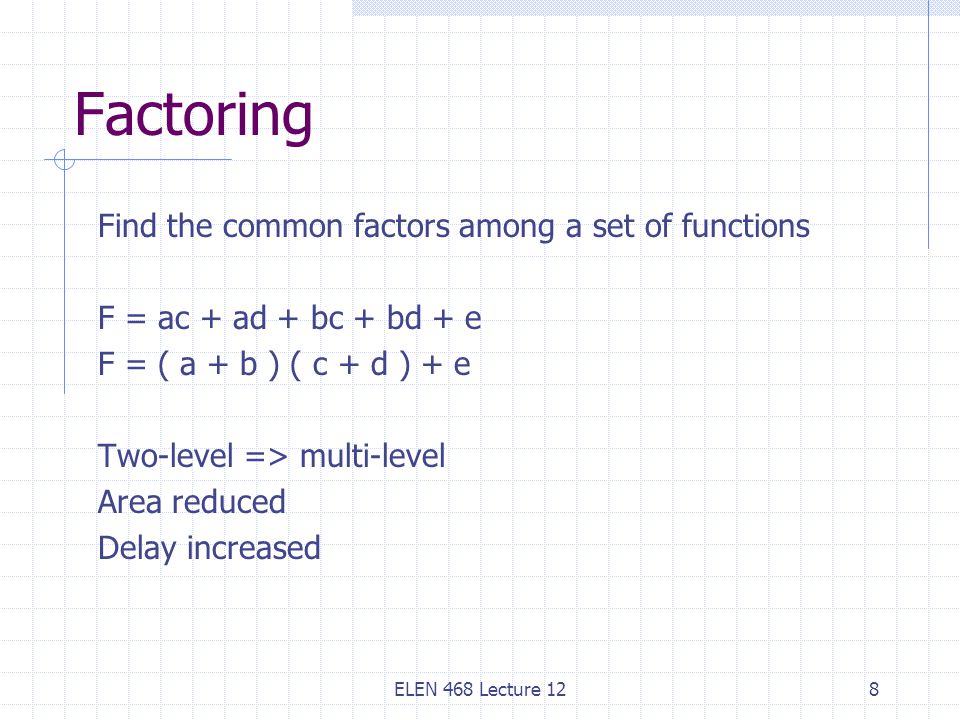

8. ELEN 468 Lecture 128 Factoring Find the common factors among a set of functions F = ac + ad + bc + bd + e F = ( a + b ) ( c + d ) + e Two-level => multi-level Area reduced Delay increased

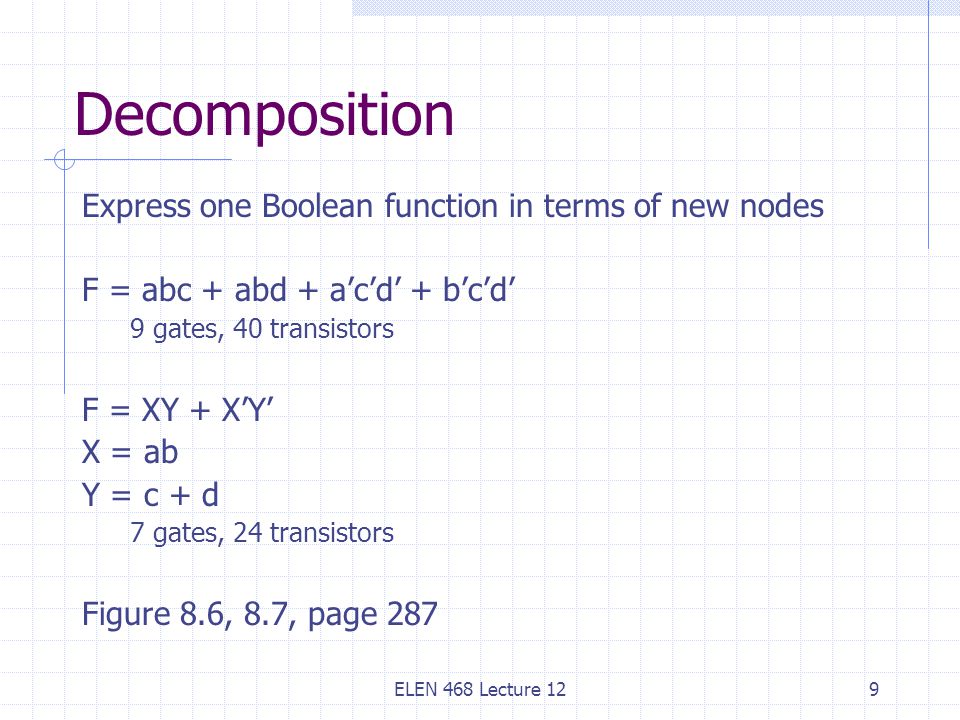

9. ELEN 468 Lecture 129 Decomposition Express one Boolean function in terms of new nodes F = abc + abd + a’c’d’ + b’c’d’ 9 gates, 40 transistors F = XY + X’Y’ X = ab Y = c + d 7 gates, 24 transistors Figure 8.6, 8.7, page 287

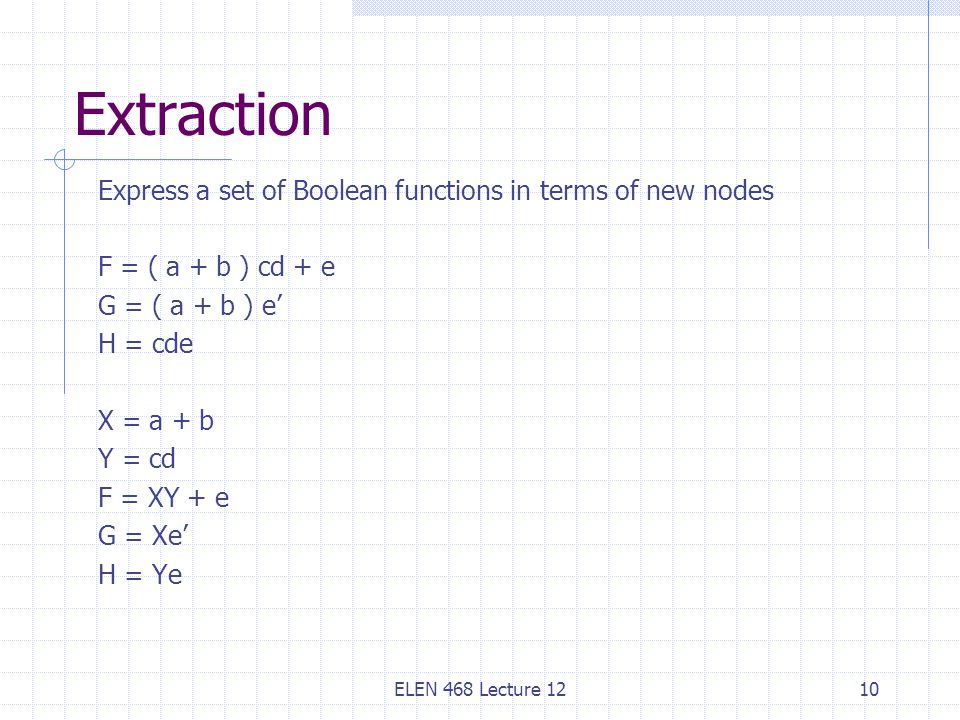

10. ELEN 468 Lecture 1210 Extraction Express a set of Boolean functions in terms of new nodes F = ( a + b ) cd + e G = ( a + b ) e’ H = cde X = a + b Y = cd F = XY + e G = Xe’ H = Ye

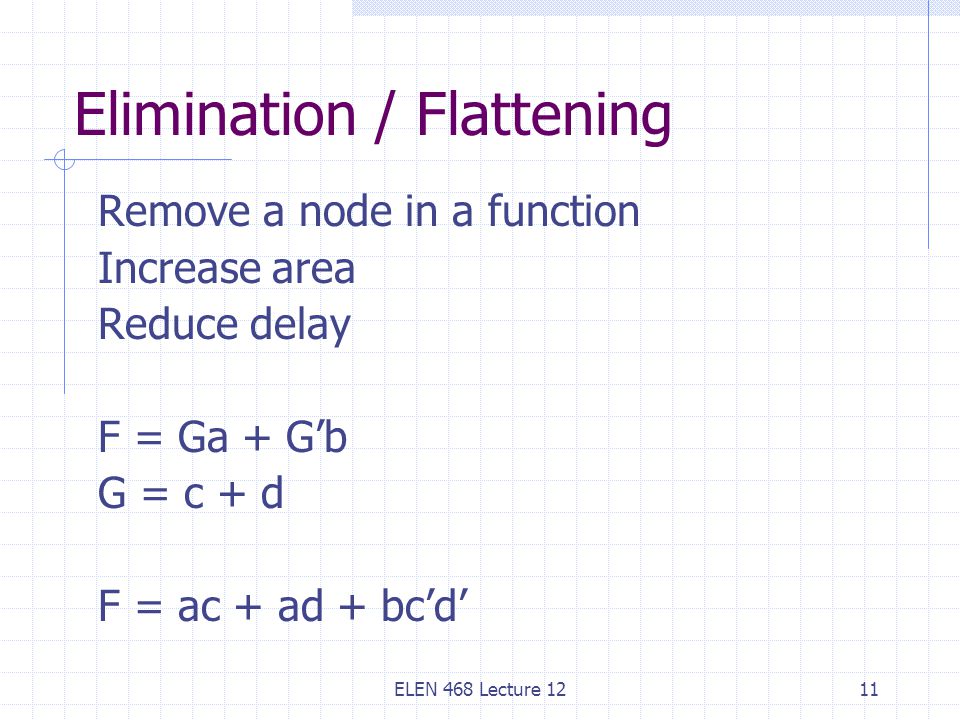

11. ELEN 468 Lecture 1211 Elimination / Flattening Remove a node in a function Increase area Reduce delay F = Ga + G’b G = c + d F = ac + ad + bc’d’

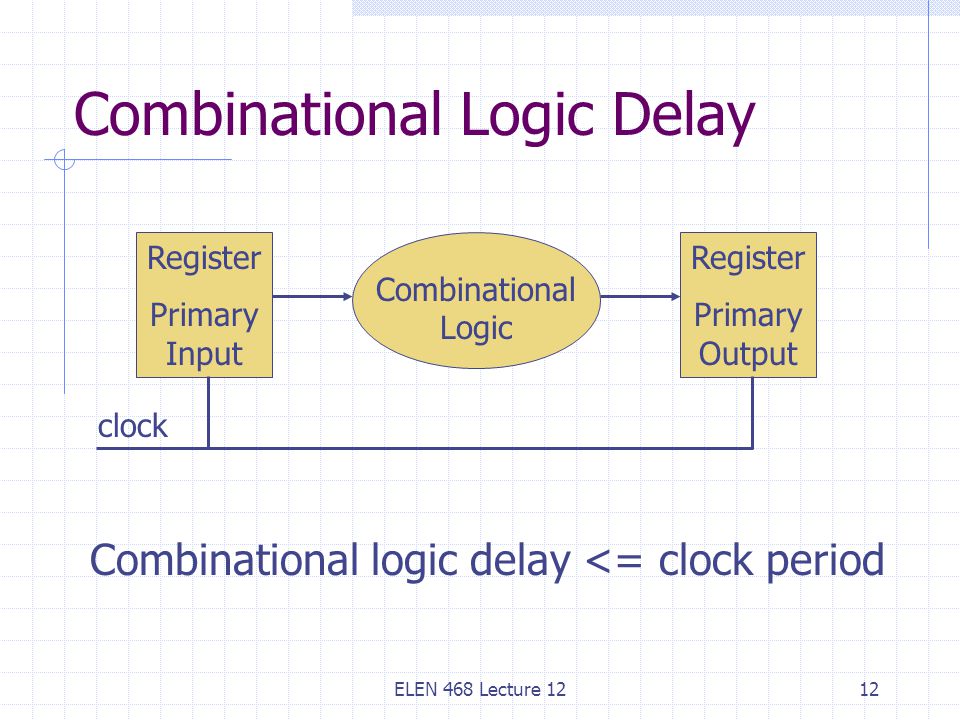

12. ELEN 468 Lecture 1212 Combinational Logic Delay Combinational logic delay <= clock period Combinational Logic Register Primary Input Register Primary Output clock

13. ELEN 468 Lecture 1213 Synthesis Support to Verilog Commonly supported Figure 8.17, page 297 Unsupported Figure 8.18, page 298

14. ELEN 468 Lecture 1214 Exercise 3

15. ELEN 468 Lecture 1215 Find Delay module M ( y, a, b, c ); output y; input a, b, c; and #(2, 4) (w1, a, b); not #3 (w2, c); nor #(5, 2 ) (y, w1, w2); endmodule module M ( y, a, b, c ); output y; input a, b, c; and #(2, 4) (w1, a, b); not #3 (w2, c); nor #(5, 2 ) (y, w1, w2); endmodule a -> y (9, 4) b -> y (9, 4) c -> y (8, 5)

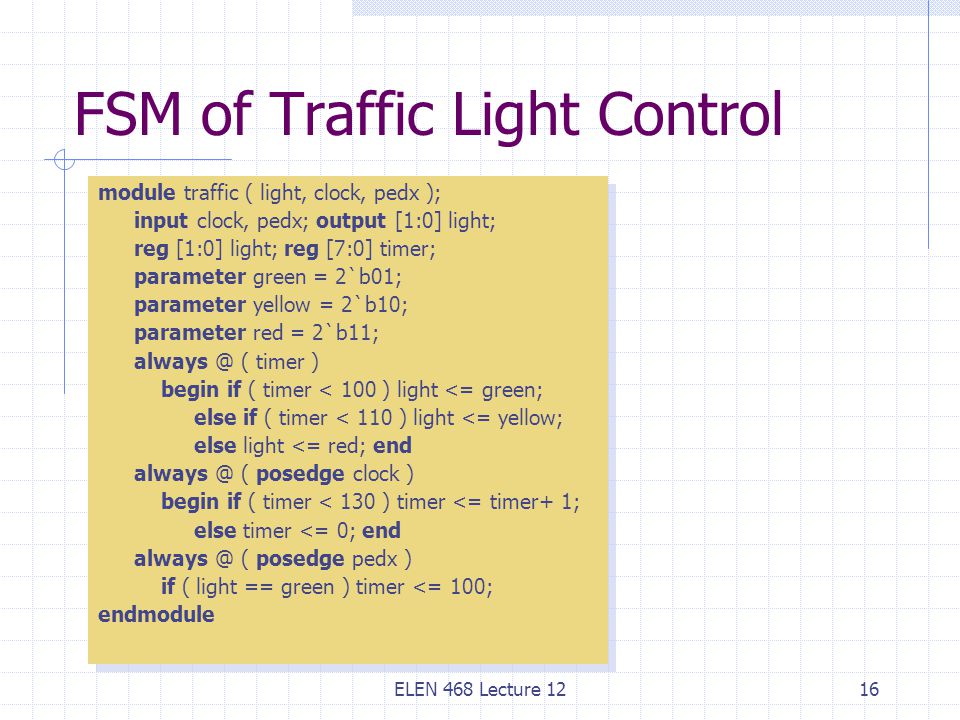

16. ELEN 468 Lecture 1216 FSM of Traffic Light Control module traffic ( light, clock, pedx ); input clock, pedx; output [1:0] light; reg [1:0] light; reg [7:0] timer; parameter green = 2`b01; parameter yellow = 2`b10; parameter red = 2`b11; always @ ( timer ) begin if ( timer < 100 ) light <= green; else if ( timer < 110 ) light <= yellow; else light <= red; end always @ ( posedge clock ) begin if ( timer < 130 ) timer <= timer+ 1; else timer <= 0; end always @ ( posedge pedx ) if ( light == green ) timer <= 100; endmodule module traffic ( light, clock, pedx ); input clock, pedx; output [1:0] light; reg [1:0] light; reg [7:0] timer; parameter green = 2`b01; parameter yellow = 2`b10; parameter red = 2`b11; always @ ( timer ) begin if ( timer < 100 ) light <= green; else if ( timer < 110 ) light <= yellow; else light <= red; end always @ ( posedge clock ) begin if ( timer < 130 ) timer <= timer+ 1; else timer <= 0; end always @ ( posedge pedx ) if ( light == green ) timer <= 100; endmodule
