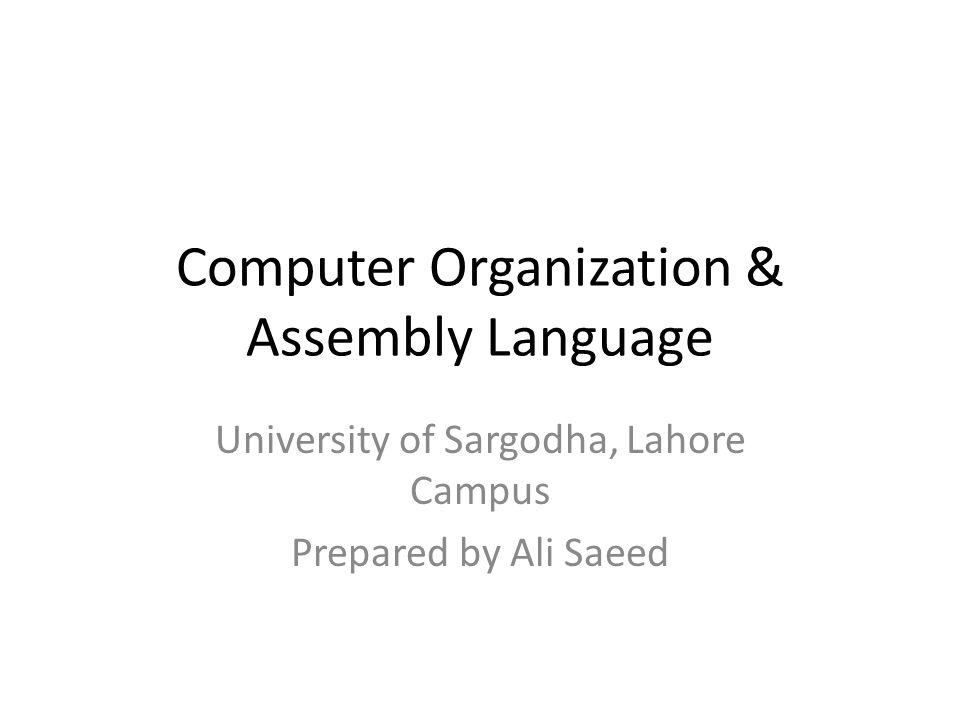

1 Computer Organization & Assembly Language University of Sargodha, Lahore Campus Prepared by Ali Saeed

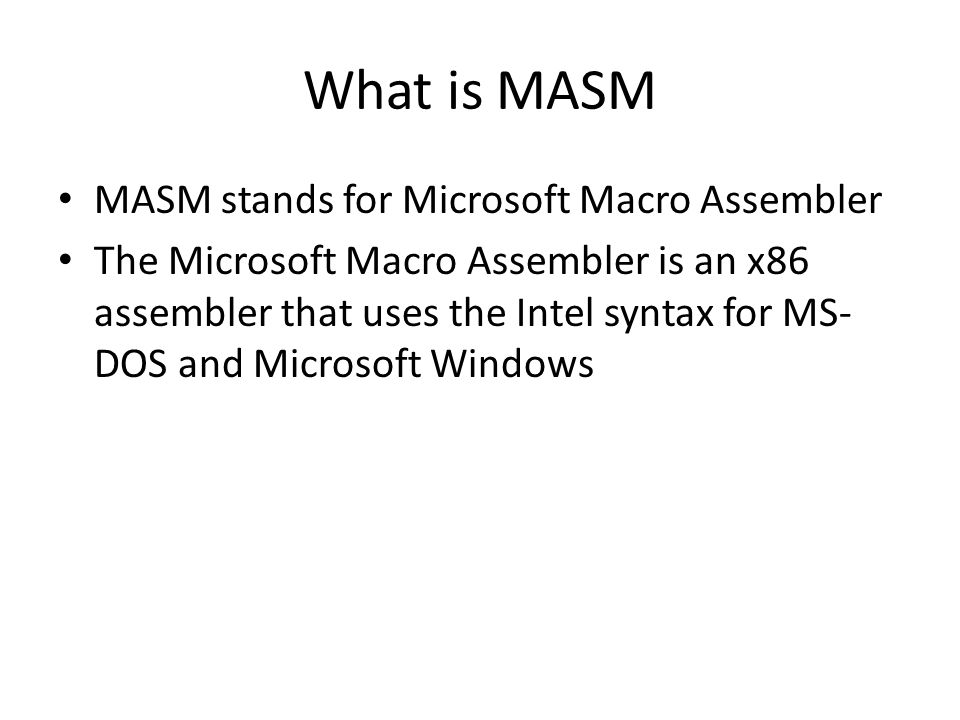

2 MASM stands for Microsoft Macro Assembler The Microsoft Macro Assembler is an x86 assembler that uses the Intel syntax for MS- DOS and Microsoft Windows What is MASM

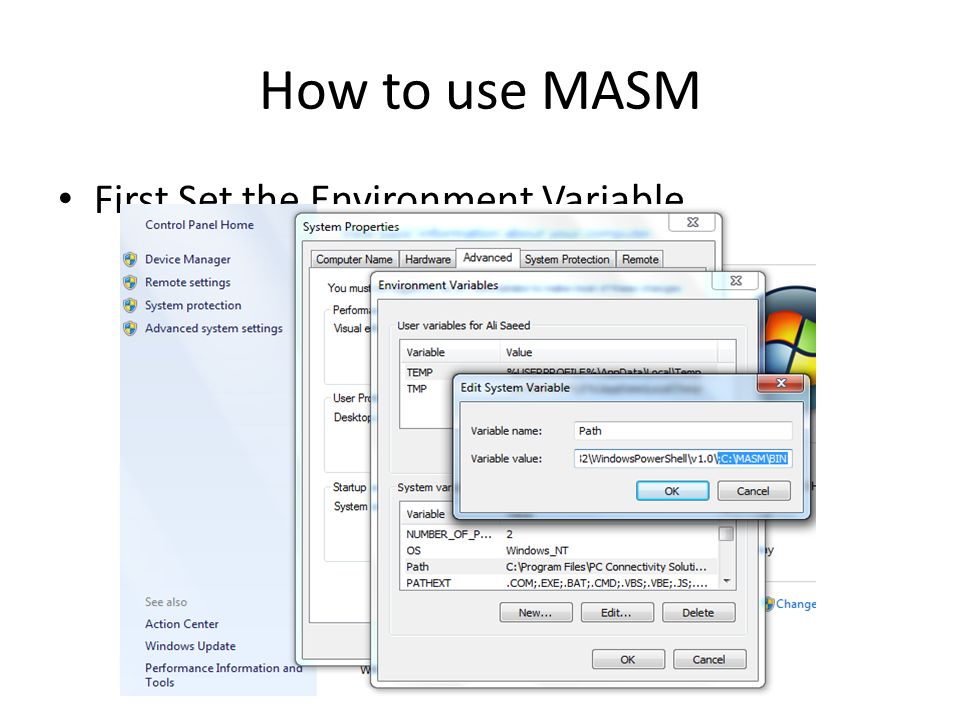

3 First Set the Environment Variable How to use MASM

4

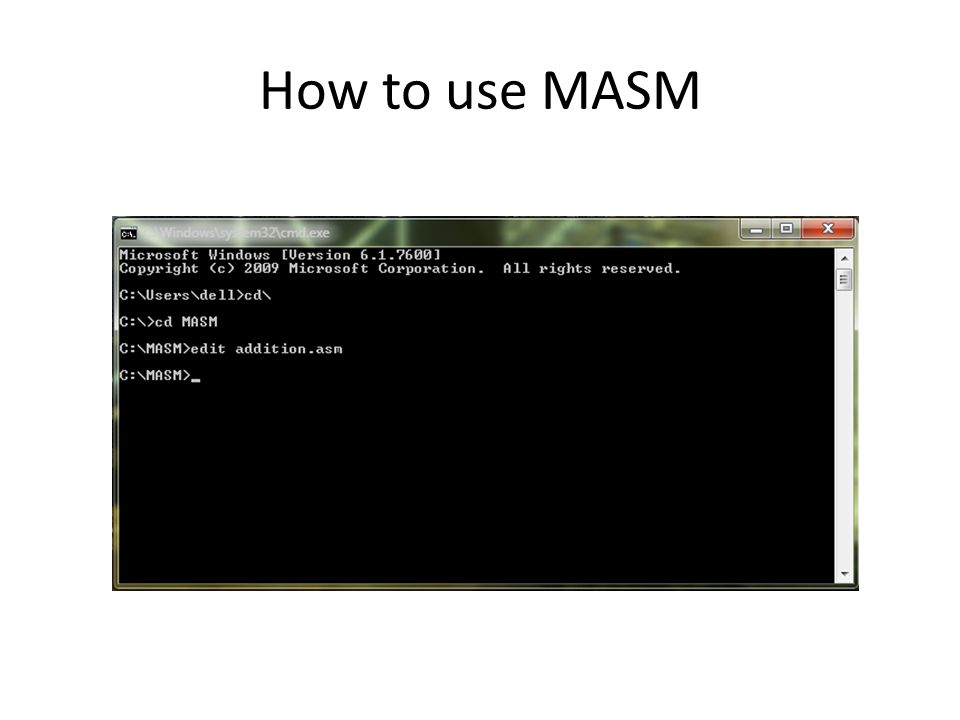

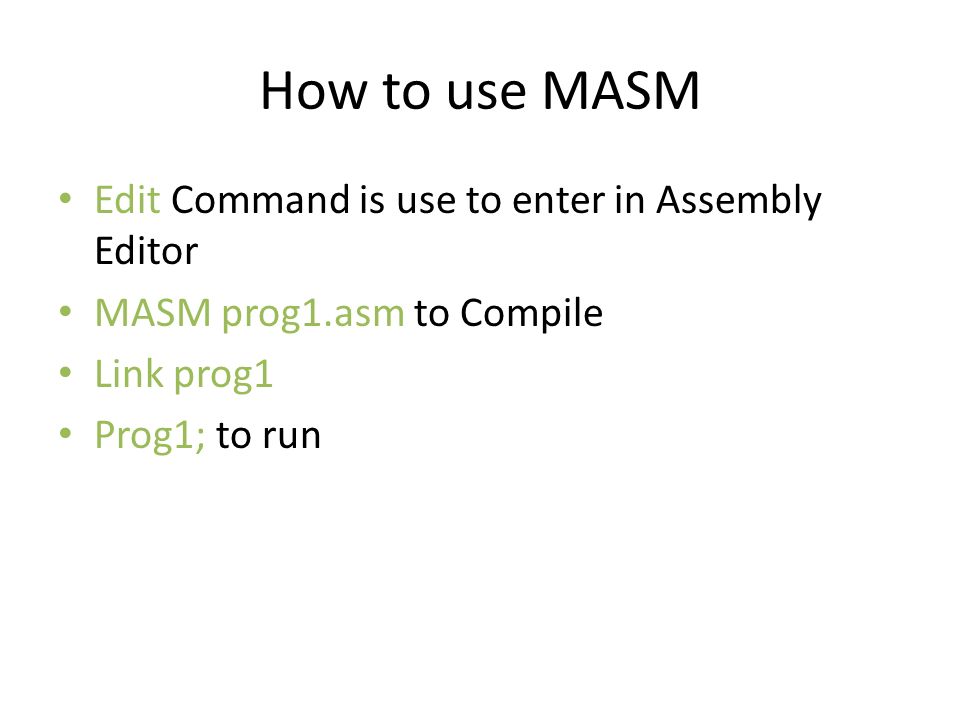

5 Edit Command is use to enter in Assembly Editor MASM prog1.asm to Compile Link prog1 Prog1; to run How to use MASM

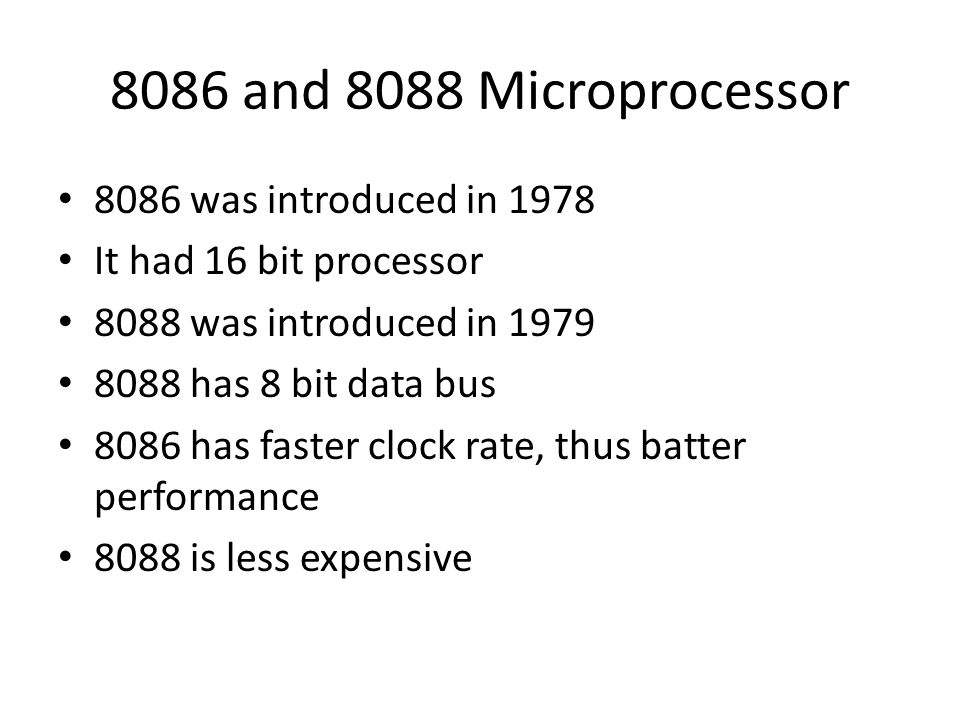

6 8086 was introduced in 1978 It had 16 bit processor 8088 was introduced in 1979 8088 has 8 bit data bus 8086 has faster clock rate, thus batter performance 8088 is less expensive 8086 and 8088 Microprocessor

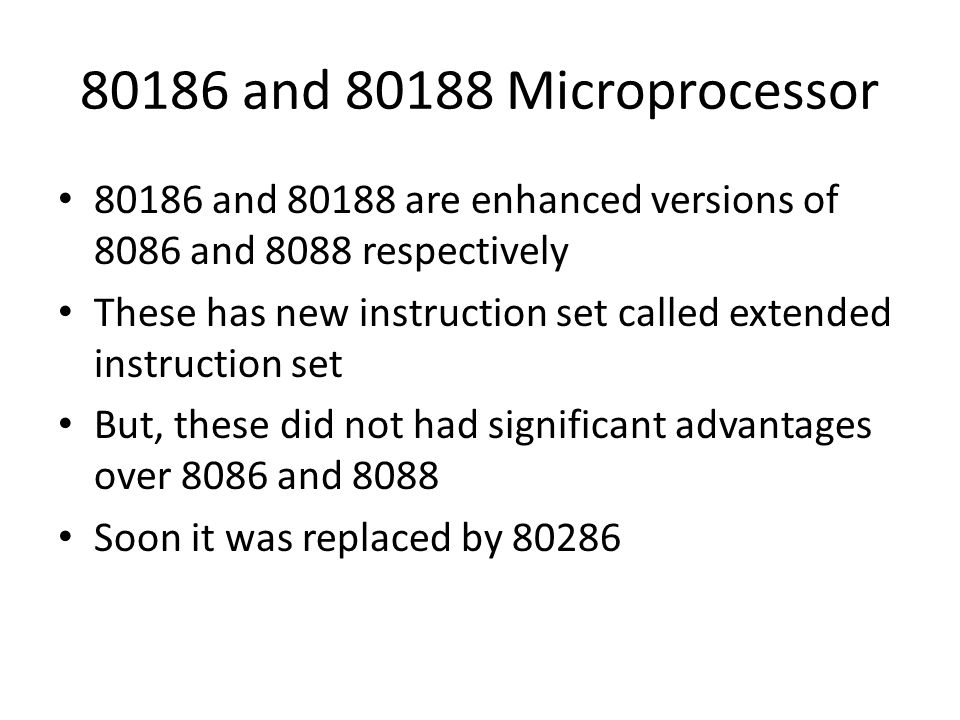

7 80186 and 80188 are enhanced versions of 8086 and 8088 respectively These has new instruction set called extended instruction set But, these did not had significant advantages over 8086 and 8088 Soon it was replaced by 80286 80186 and 80188 Microprocessor

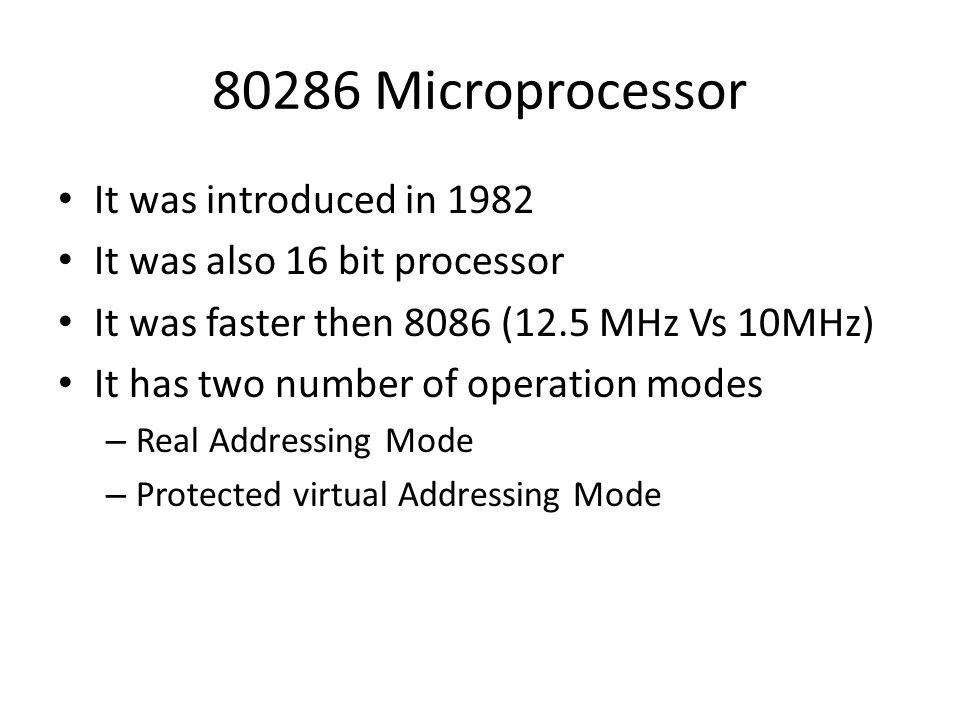

8 It was introduced in 1982 It was also 16 bit processor It was faster then 8086 (12.5 MHz Vs 10MHz) It has two number of operation modes – Real Addressing Mode – Protected virtual Addressing Mode 80286 Microprocessor

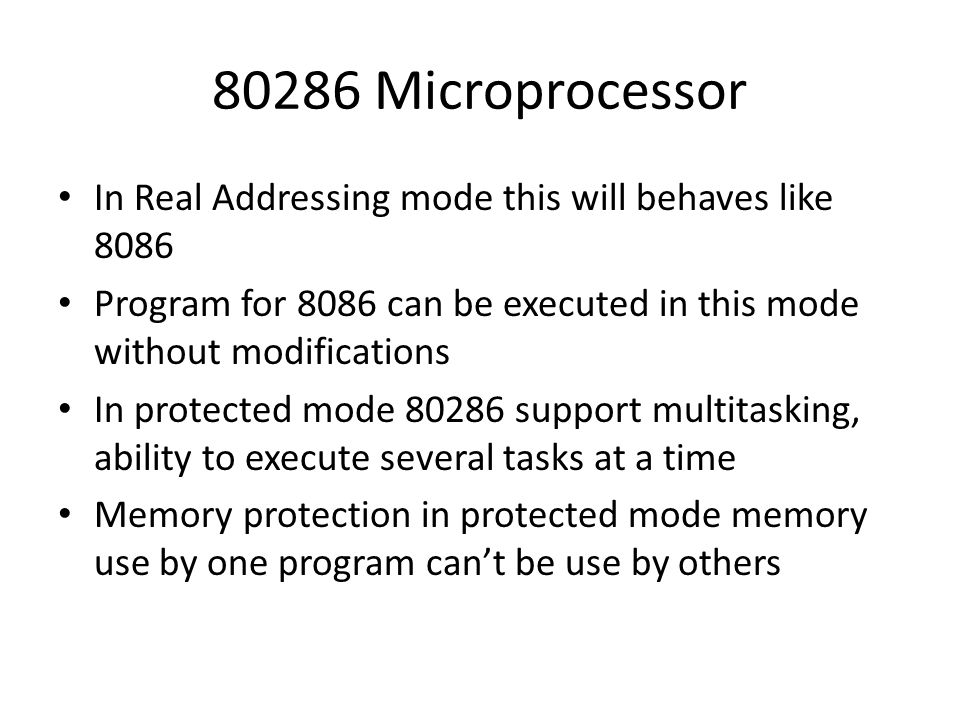

9 In Real Addressing mode this will behaves like 8086 Program for 8086 can be executed in this mode without modifications In protected mode 80286 support multitasking, ability to execute several tasks at a time Memory protection in protected mode memory use by one program can’t be use by others 80286 Microprocessor

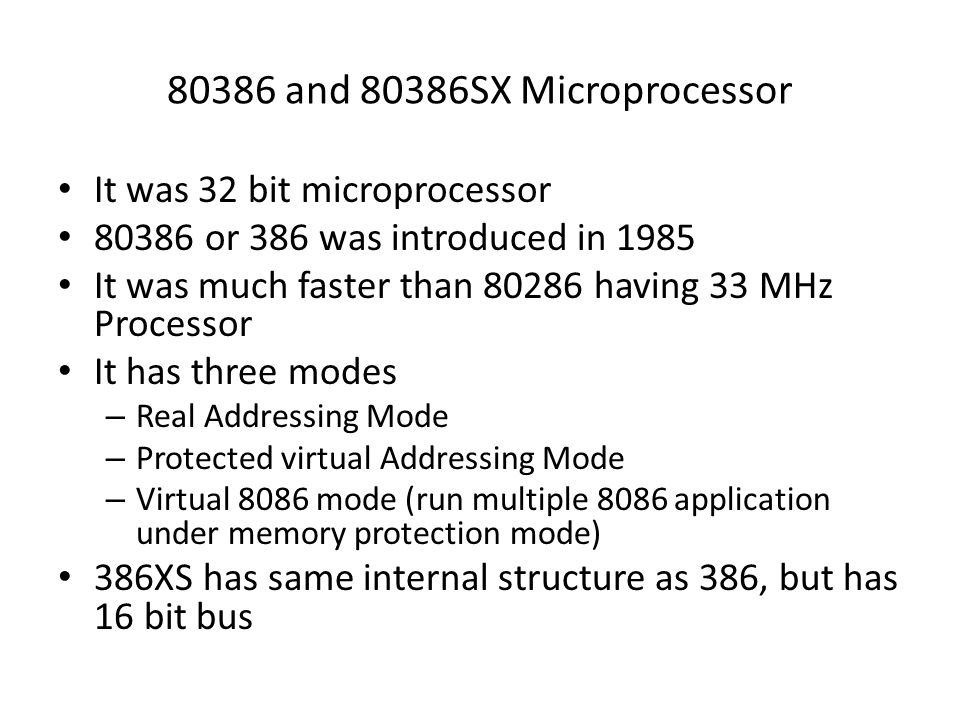

10 It was 32 bit microprocessor 80386 or 386 was introduced in 1985 It was much faster than 80286 having 33 MHz Processor It has three modes – Real Addressing Mode – Protected virtual Addressing Mode – Virtual 8086 mode (run multiple 8086 application under memory protection mode) 386XS has same internal structure as 386, but has 16 bit bus 80386 and 80386SX Microprocessor

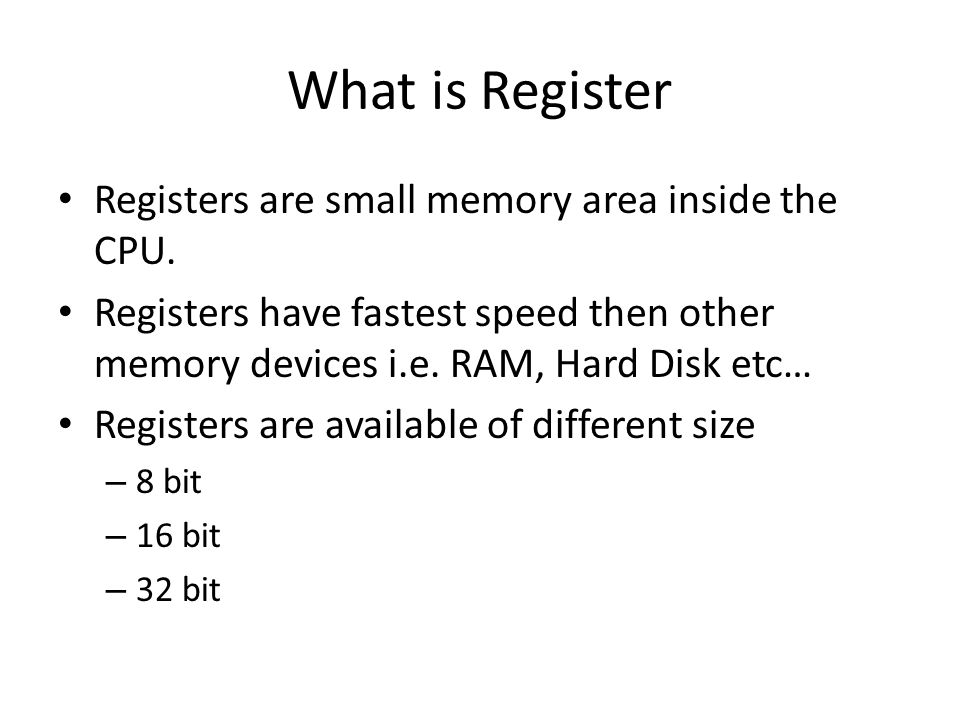

11 Registers are small memory area inside the CPU. Registers have fastest speed then other memory devices i.e. RAM, Hard Disk etc… Registers are available of different size – 8 bit – 16 bit – 32 bit What is Register

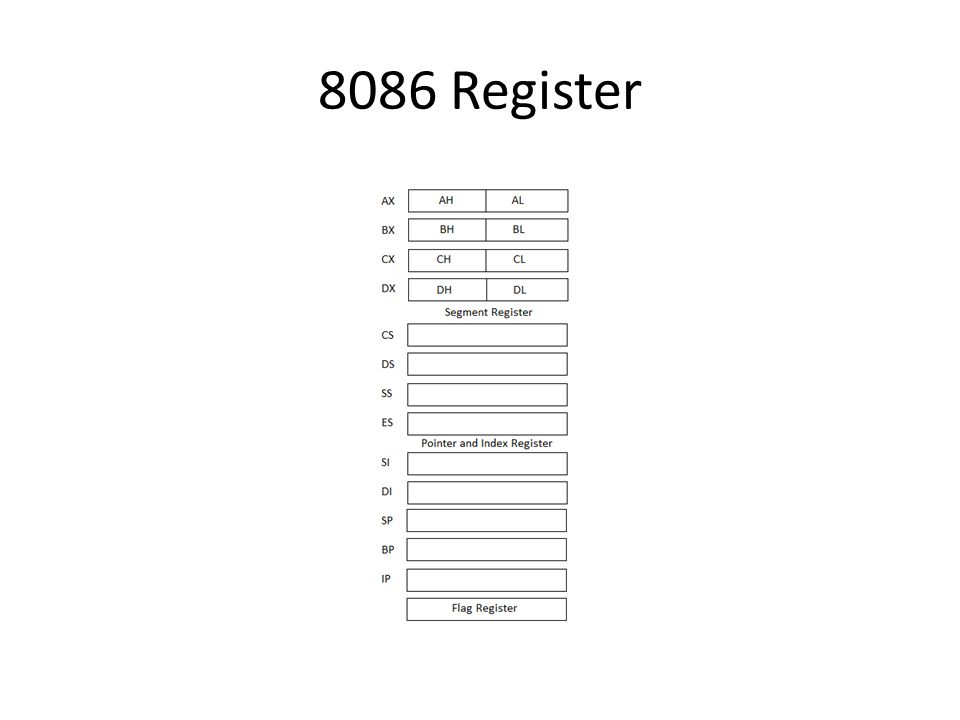

12 8086 Register

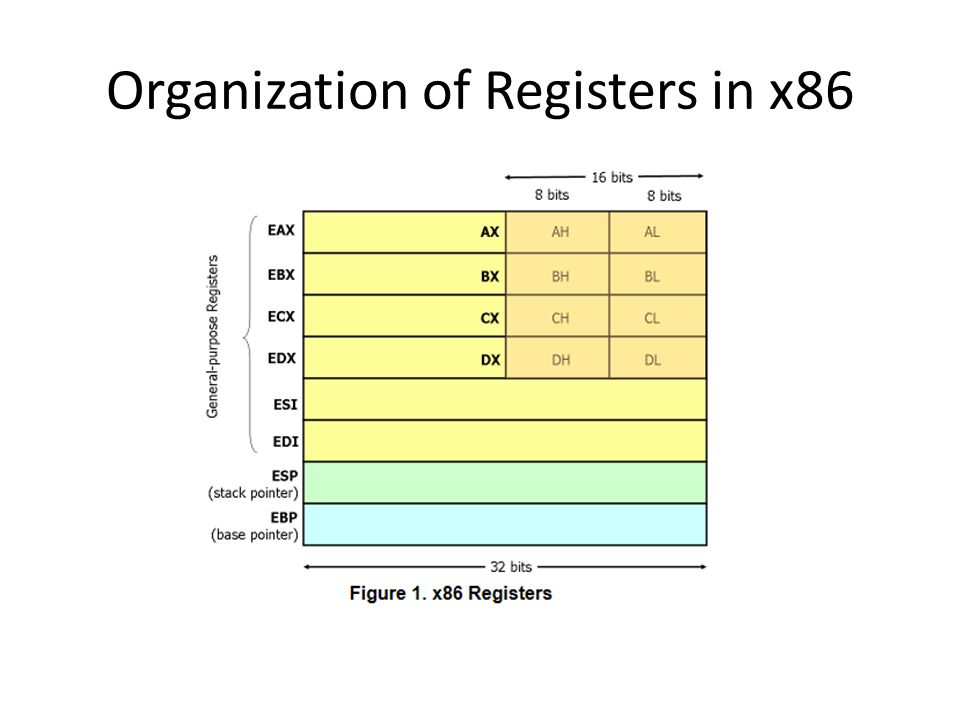

13 Organization of Registers in x86

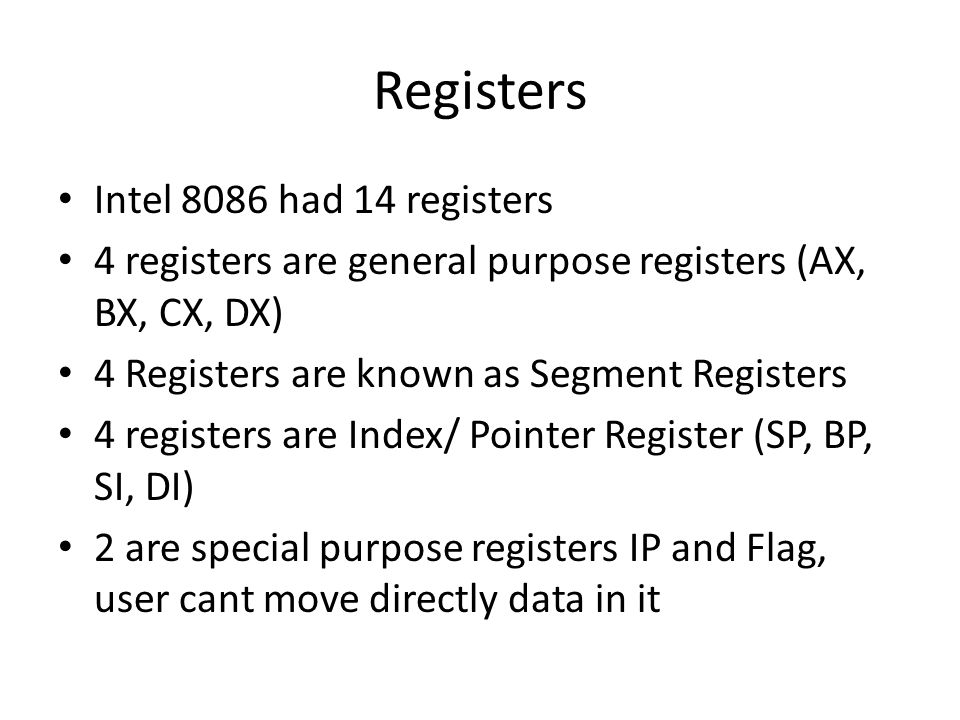

14 Intel 8086 had 14 registers 4 registers are general purpose registers (AX, BX, CX, DX) 4 Registers are known as Segment Registers 4 registers are Index/ Pointer Register (SP, BP, SI, DI) 2 are special purpose registers IP and Flag, user cant move directly data in it Registers

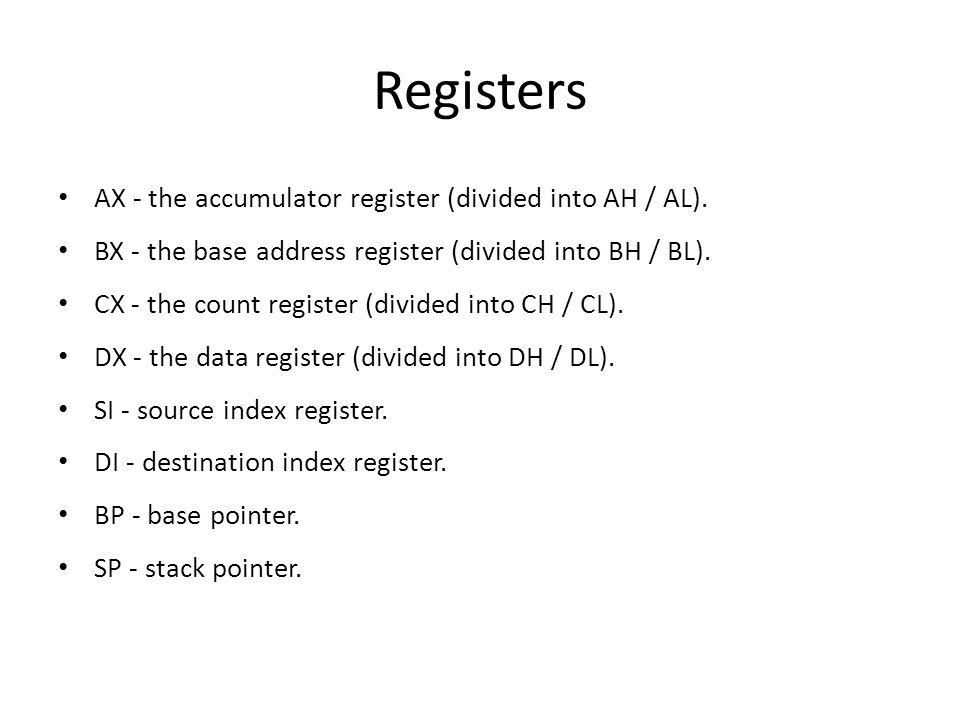

15 AX - the accumulator register (divided into AH / AL). BX - the base address register (divided into BH / BL). CX - the count register (divided into CH / CL). DX - the data register (divided into DH / DL). SI - source index register. DI - destination index register. BP - base pointer. SP - stack pointer. Registers

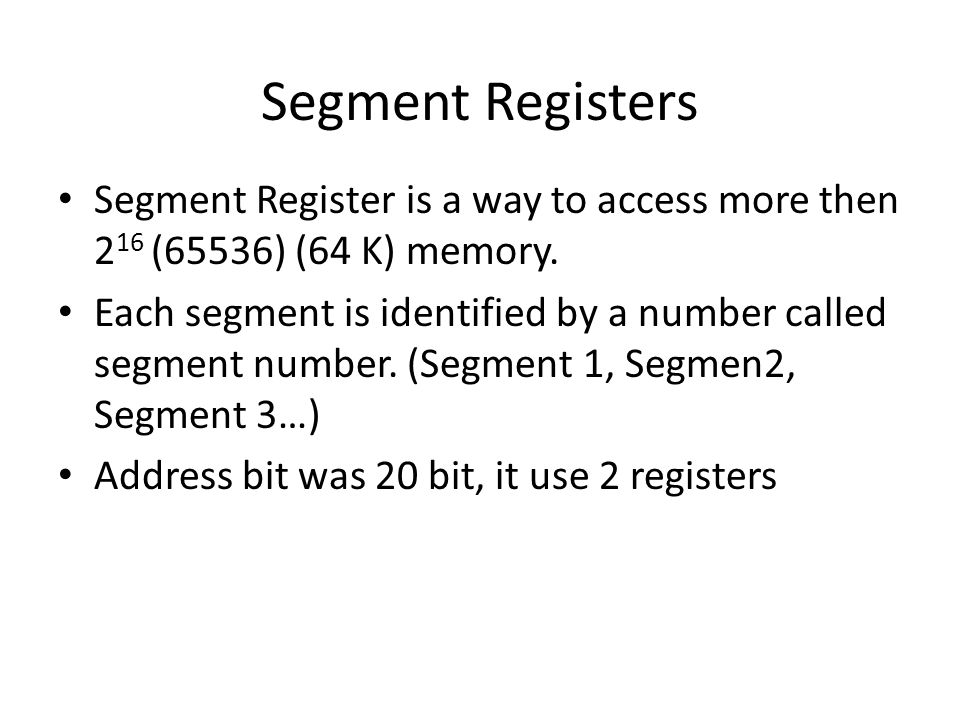

16 Segment Register is a way to access more then 2 16 (65536) (64 K) memory. Each segment is identified by a number called segment number. (Segment 1, Segmen2, Segment 3…) Address bit was 20 bit, it use 2 registers Segment Registers

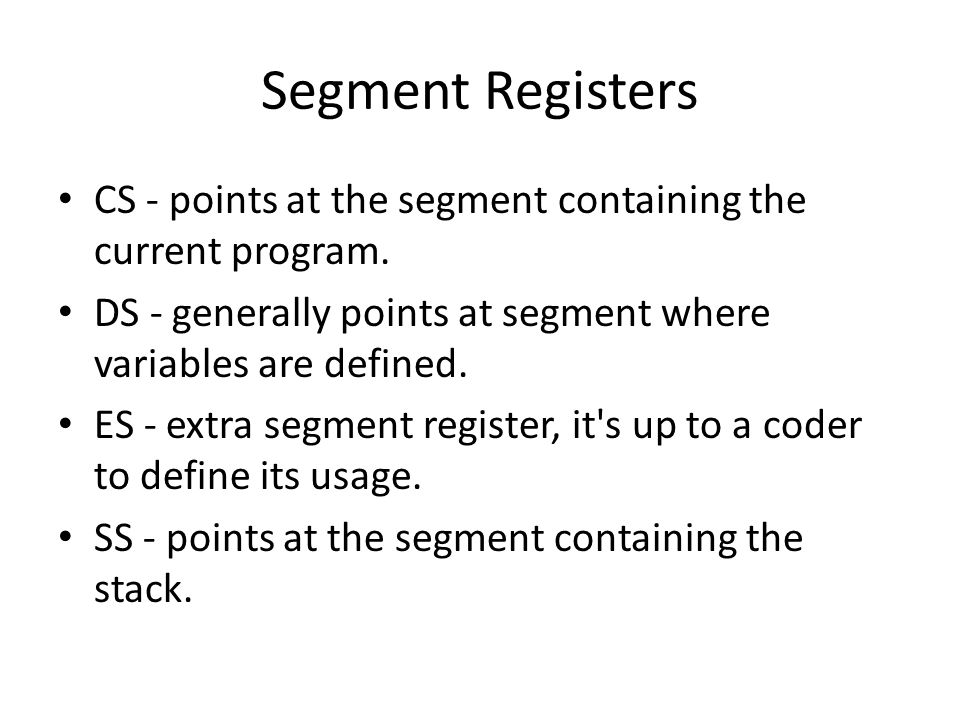

17 CS - points at the segment containing the current program. DS - generally points at segment where variables are defined. ES - extra segment register, it's up to a coder to define its usage. SS - points at the segment containing the stack. Segment Registers

18 Although it is possible to store any data in the segment registers This is never a good idea. The segment registers have a very special purpose - pointing at accessible blocks of memory. Segment registers work together with general purpose register to access any memory value. Segment Registers

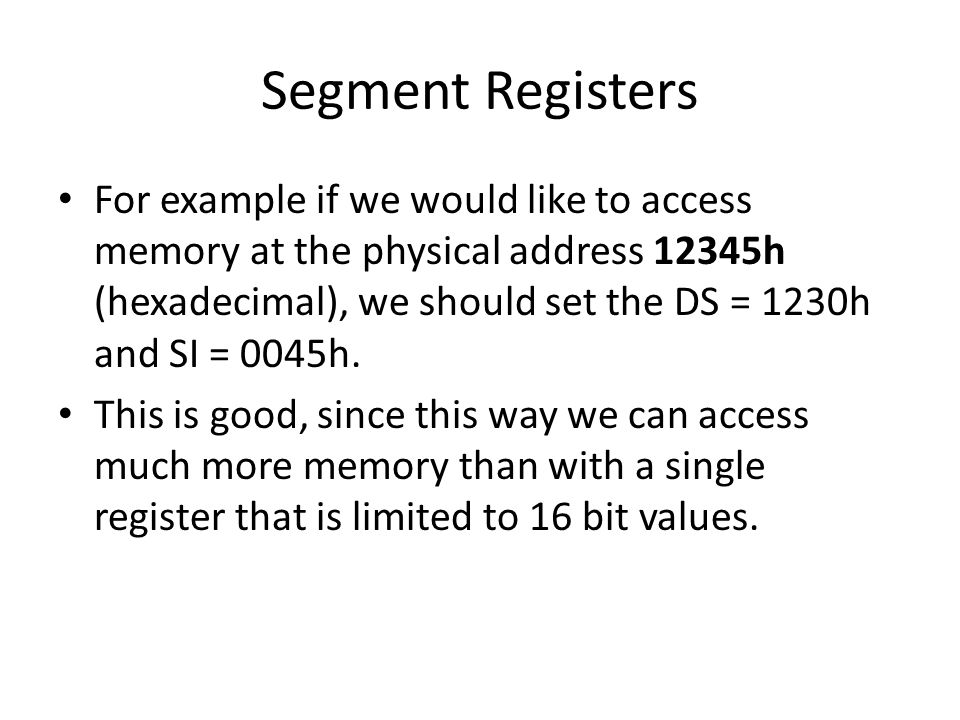

19 For example if we would like to access memory at the physical address 12345h (hexadecimal), we should set the DS = 1230h and SI = 0045h. This is good, since this way we can access much more memory than with a single register that is limited to 16 bit values. Segment Registers

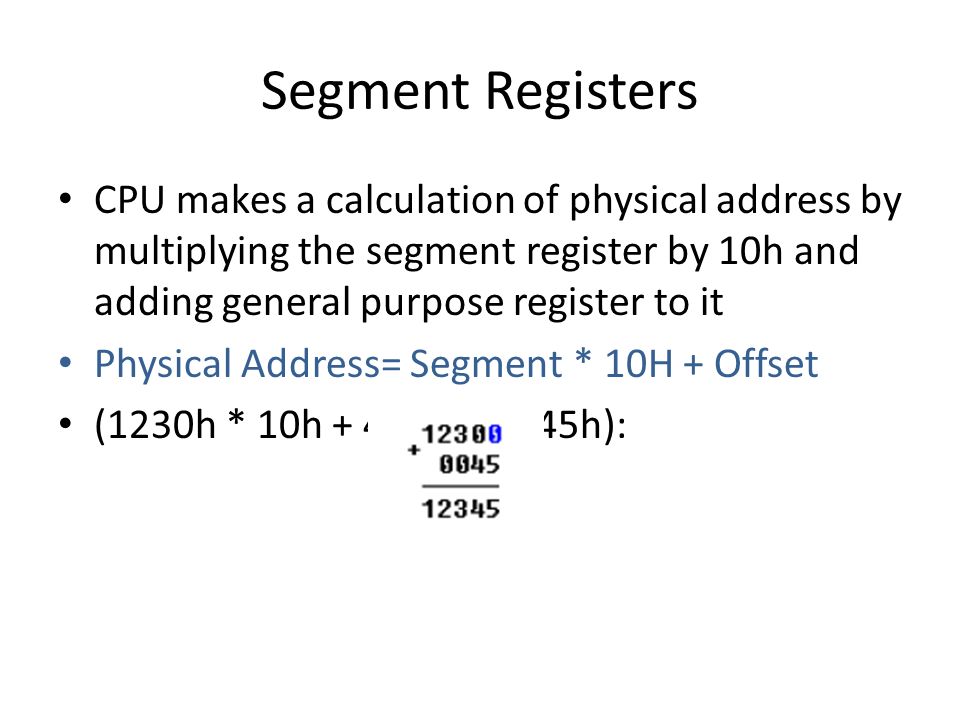

20 CPU makes a calculation of physical address by multiplying the segment register by 10h and adding general purpose register to it Physical Address= Segment * 10H + Offset (1230h * 10h + 45h = 12345h): Segment Registers

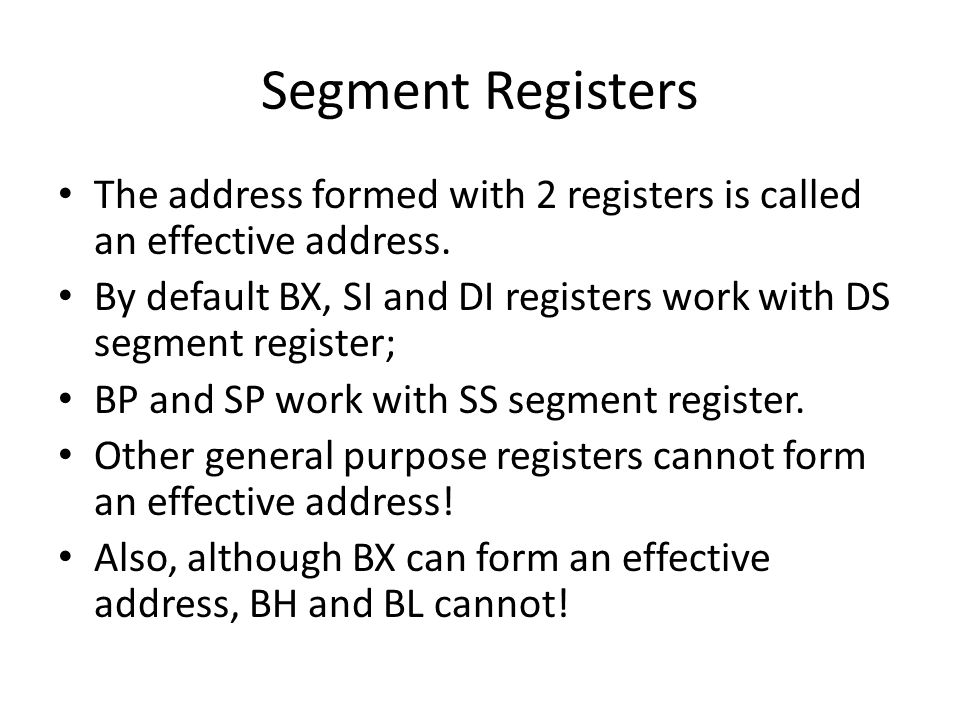

21 The address formed with 2 registers is called an effective address. By default BX, SI and DI registers work with DS segment register; BP and SP work with SS segment register. Other general purpose registers cannot form an effective address! Also, although BX can form an effective address, BH and BL cannot! Segment Registers

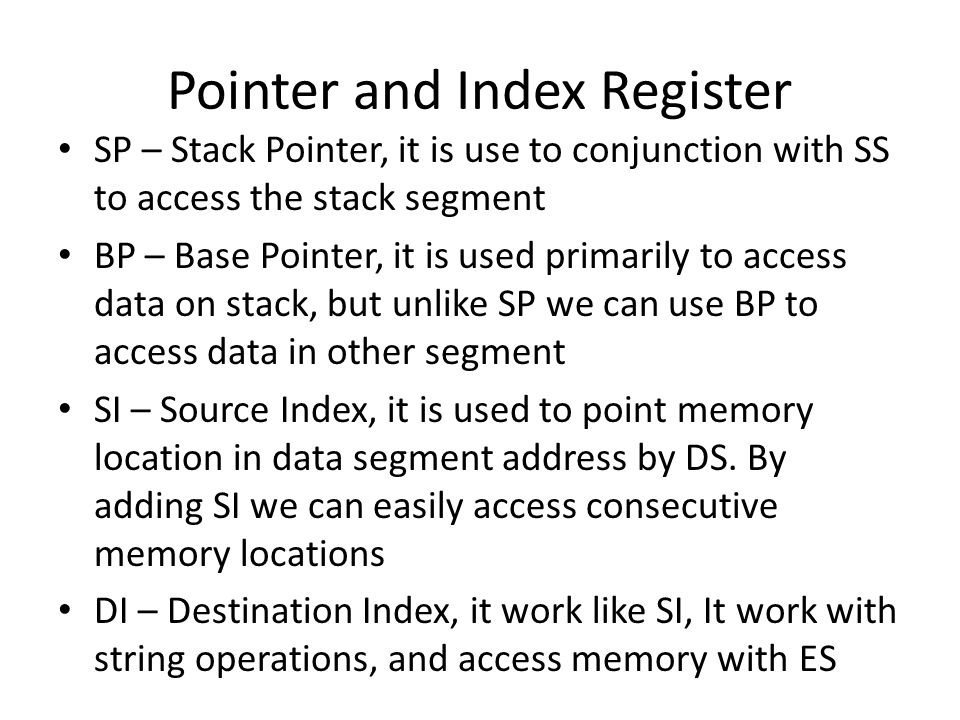

22 SP – Stack Pointer, it is use to conjunction with SS to access the stack segment BP – Base Pointer, it is used primarily to access data on stack, but unlike SP we can use BP to access data in other segment SI – Source Index, it is used to point memory location in data segment address by DS. By adding SI we can easily access consecutive memory locations DI – Destination Index, it work like SI, It work with string operations, and access memory with ES Pointer and Index Register

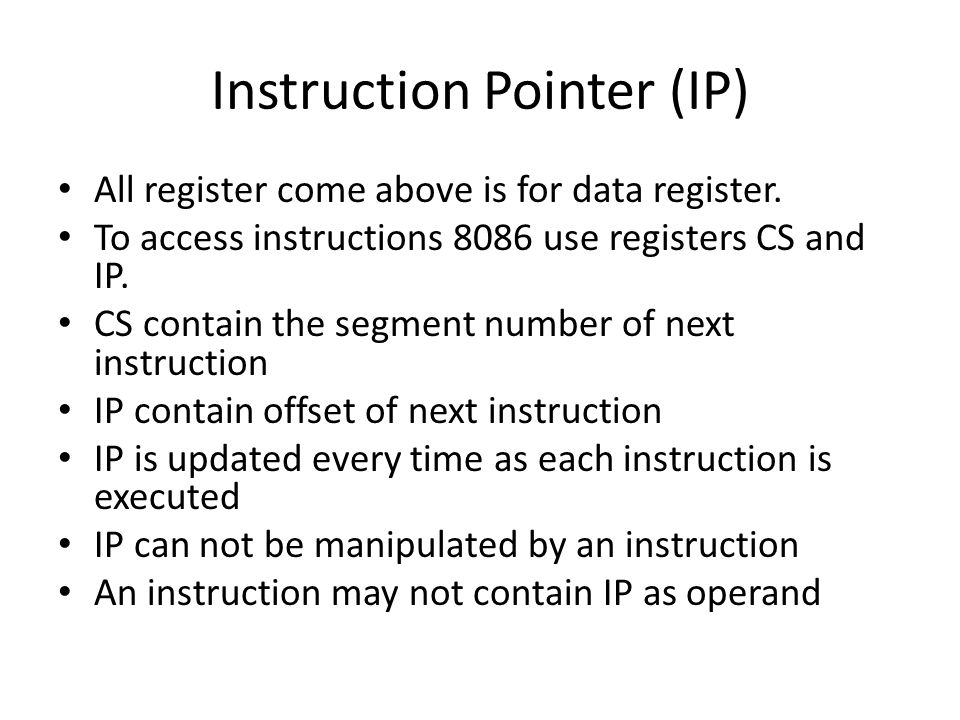

23 All register come above is for data register. To access instructions 8086 use registers CS and IP. CS contain the segment number of next instruction IP contain offset of next instruction IP is updated every time as each instruction is executed IP can not be manipulated by an instruction An instruction may not contain IP as operand Instruction Pointer (IP)
