1. Multiplexers Section 4.11-4.12

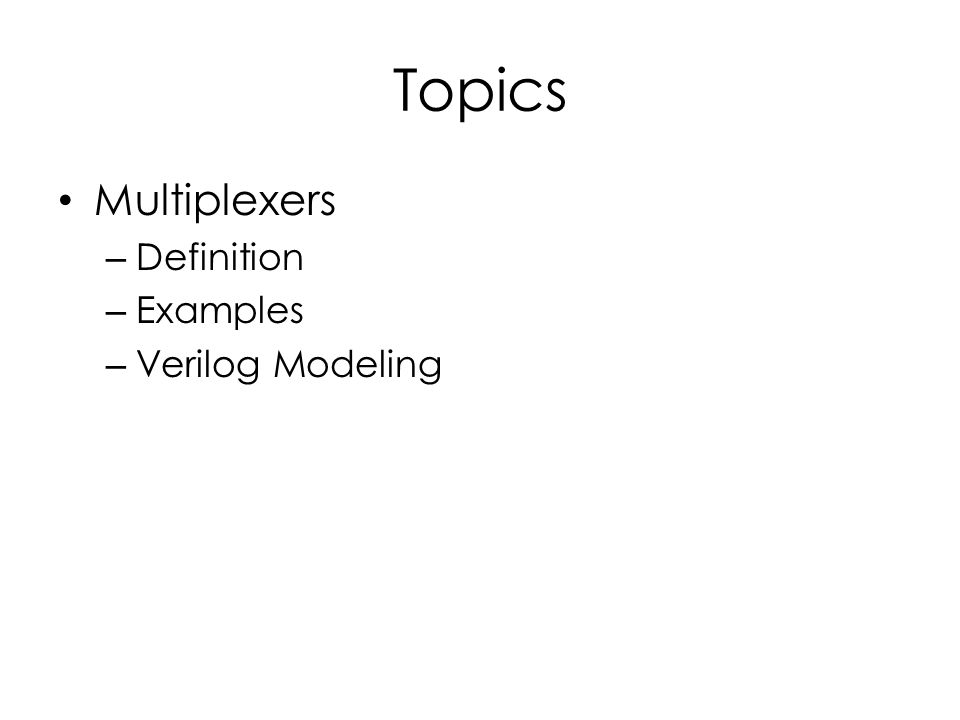

2. Topics Multiplexers – Definition – Examples – Verilog Modeling

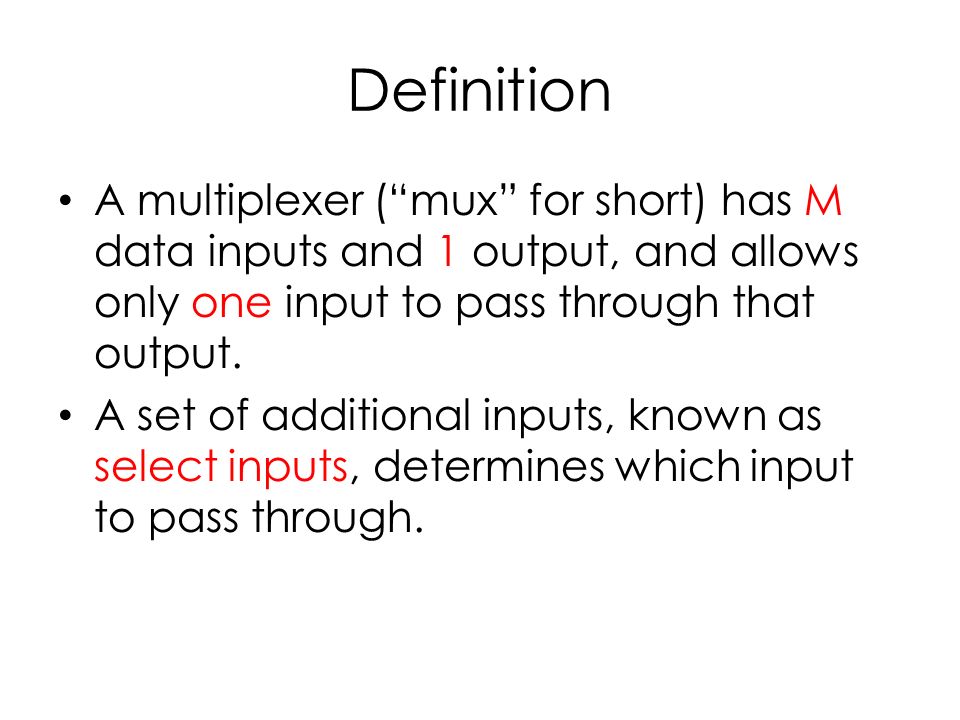

3. Definition A multiplexer (“mux” for short) has M data inputs and 1 output, and allows only one input to pass through that output. A set of additional inputs, known as select inputs, determines which input to pass through.

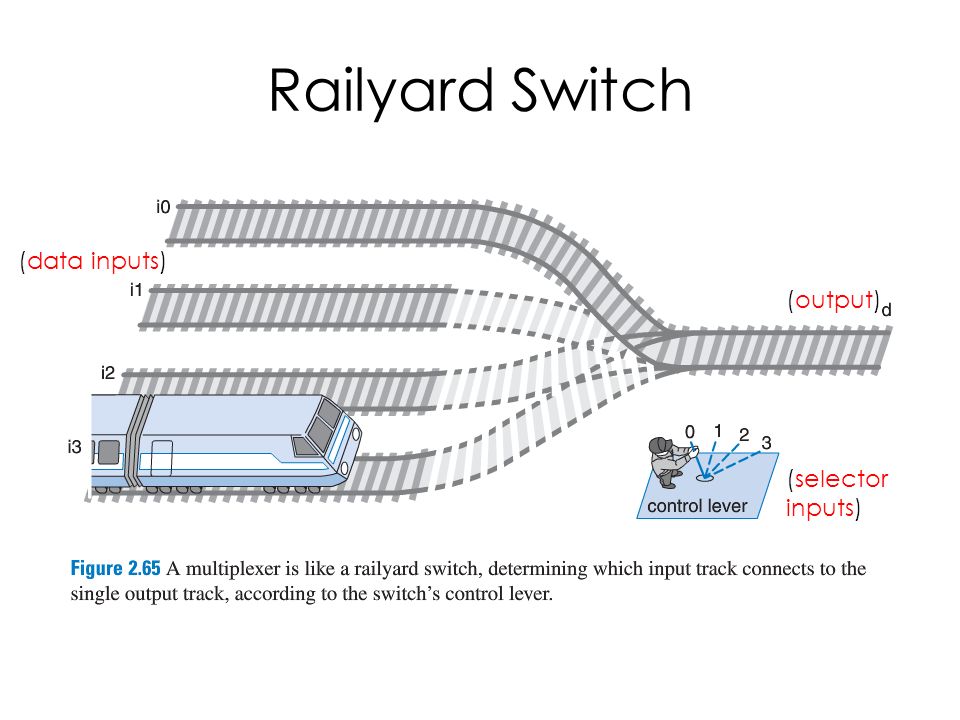

4. Railyard Switch (selector inputs) (output) (data inputs)

5. 2-to-1 mux A 2-input mux is controlled by a single control line s. If s=0, y=a and y=b if s=1.

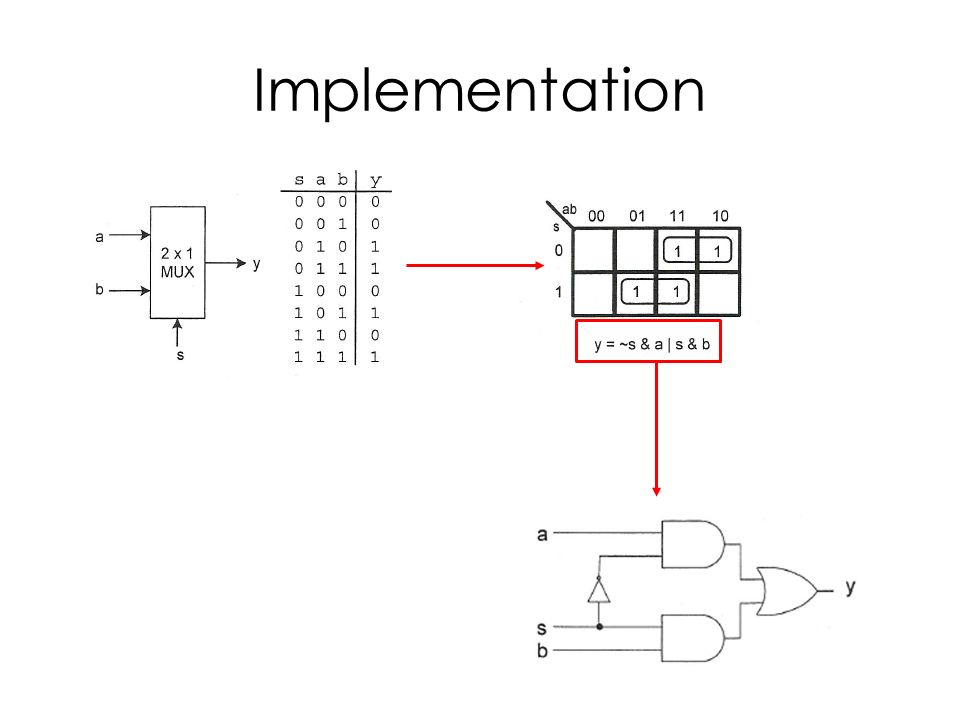

6. Implementation

7. Verilog Modeling Three Different Ways of Modeling a 2- to-1 MUX – Gate-level Modeling – Dataflow Modeling – Behavioral Modeling

8. Gate-Level Modeling sb A1 A2 O1 N1 Gate-level modeling uses instances of predefined/user-defined gates.

9. Module Template module module_name (,, ) endmodule Input, output wires reg Program Body

10. Choosing a Module Name module module_name (,, ) endmodule Input, output wires reg Program Body

11. Choosing a Module Name module module_name (,, ) endmodule Input, output wires reg Program Body sb A1 A2 O1 N1

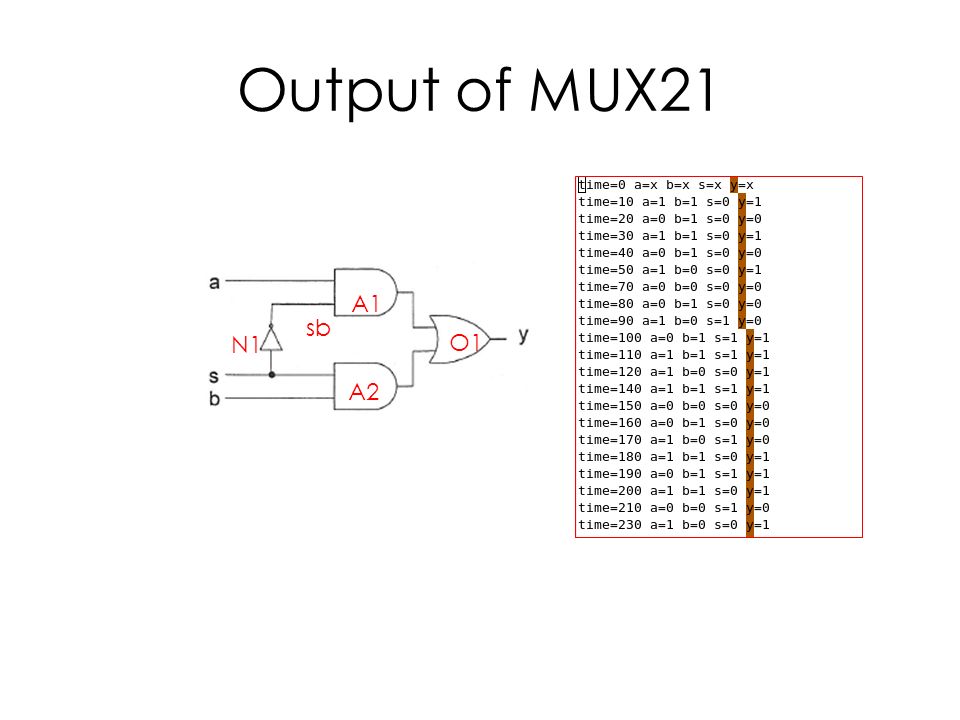

12. Output of MUX21 sb A1 A2 O1 N1

13. Data Flow Modeling of MUX21 Data flow modeling of a combinational logic uses a number of operators that act on operands to produce desired results. The keyword assign is used frequently in the dataflow modeling.

14. Behavior Modeling of MUX21 Behavioral modeling represents the digital circuits at a functional and algorithmic level. It is used mostly to describe sequential circuits, but can also be used to describe combinational circuits. Behavioral description use the keyword always. The event control expression Specifies when the statements will execute. The target output statement must be of reg data type.
