1. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Integral 5 modules and function EX Axel Maune

2. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting exchange line analog and digital

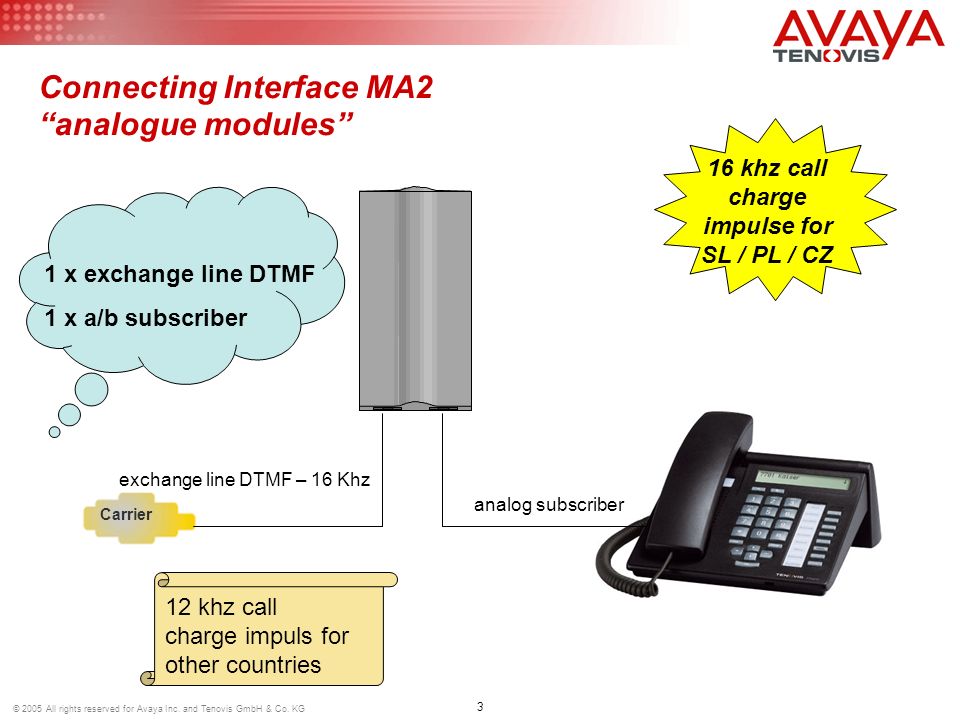

3. 3 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface MA2 “analogue modules” Carrier exchange line DTMF – 16 Khz analog subscriber 16 khz call charge impulse for SL / PL / CZ 12 khz call charge impuls for other countries 1 x exchange line DTMF 1 x a/b subscriber

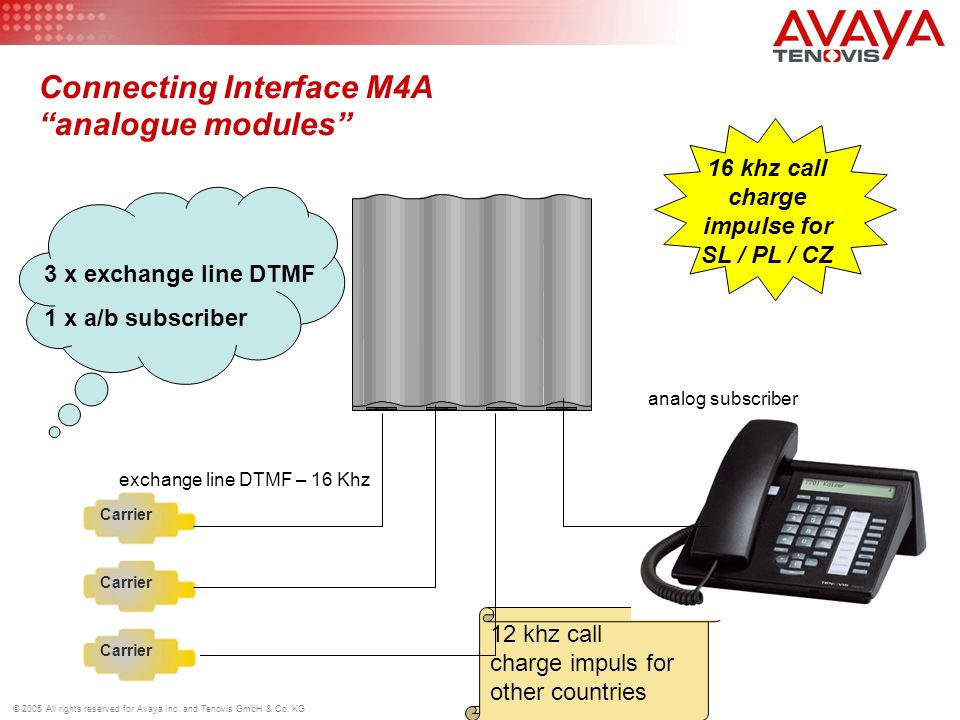

4. 4 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface M4A “analogue modules” 16 khz call charge impulse for SL / PL / CZ 12 khz call charge impuls for other countries 3 x exchange line DTMF 1 x a/b subscriber analog subscriber Carrier exchange line DTMF – 16 Khz Carrier

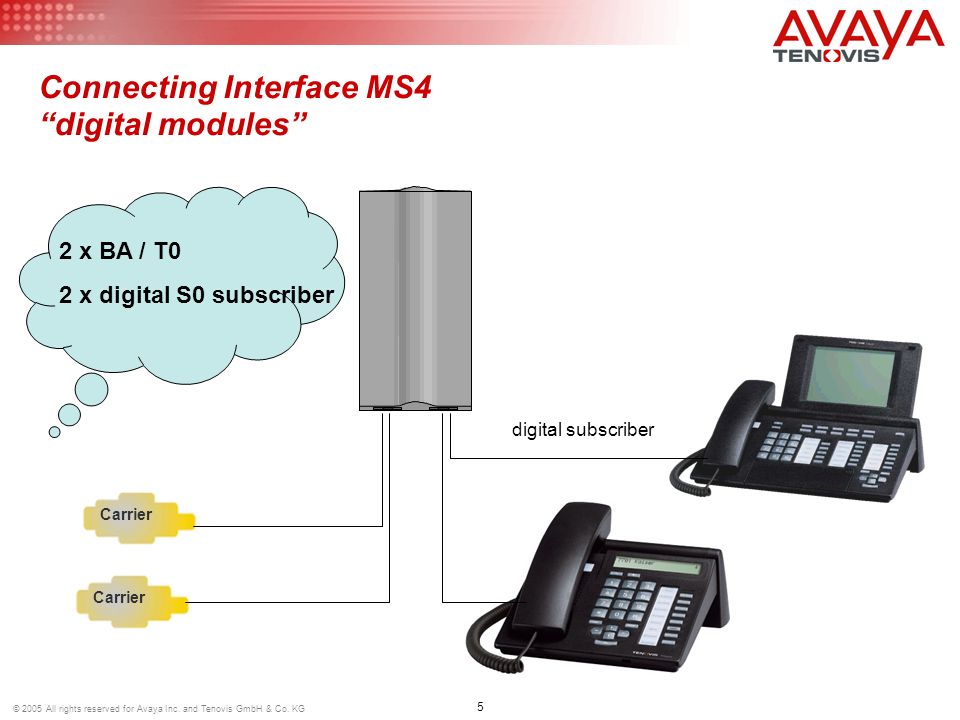

5. 5 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface MS4 “digital modules” Carrier 2 x BA / T0 2 x digital S0 subscriber Carrier digital subscriber

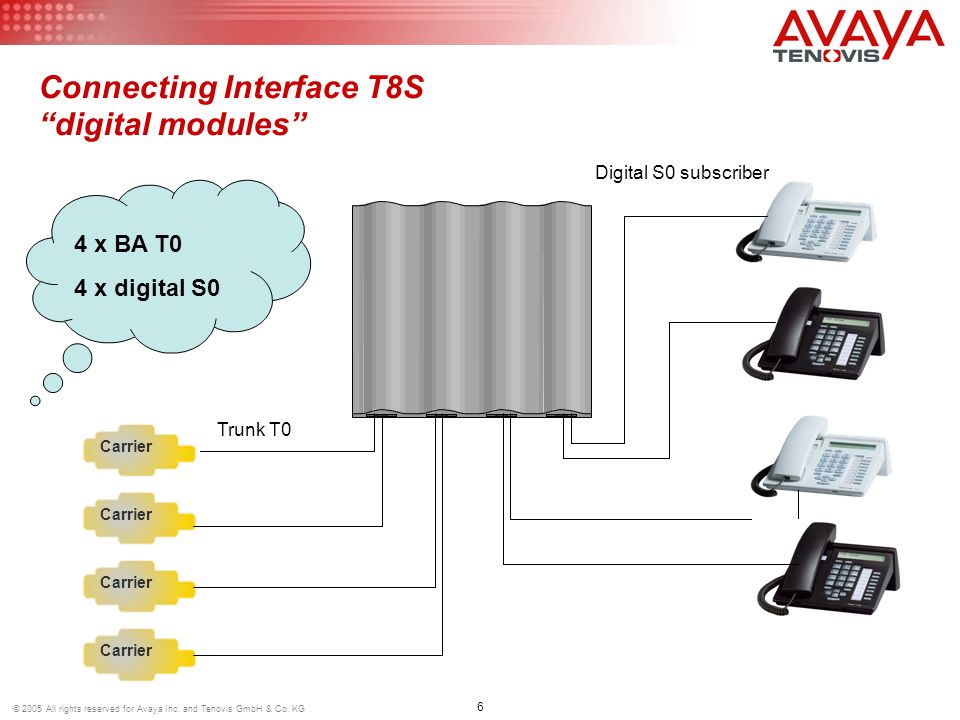

6. 6 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface T8S “digital modules” Carrier Digital S0 subscriber 4 x BA T0 4 x digital S0 Trunk T0 Carrier

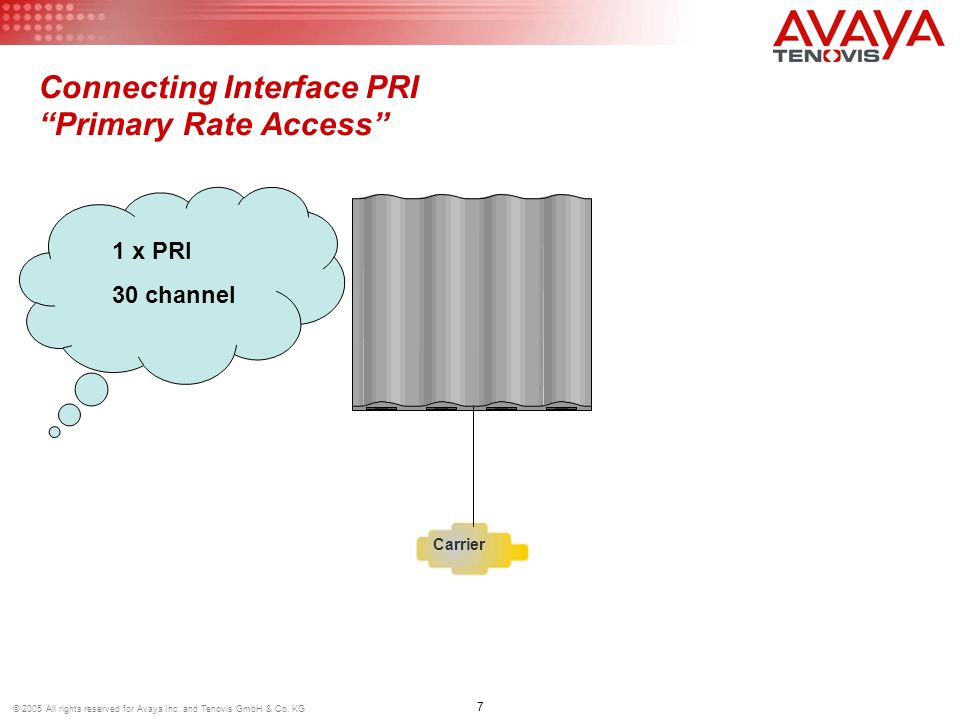

7. 7 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface PRI “Primary Rate Access” 1 x PRI 30 channel Carrier

8. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting subscriber analog and digital

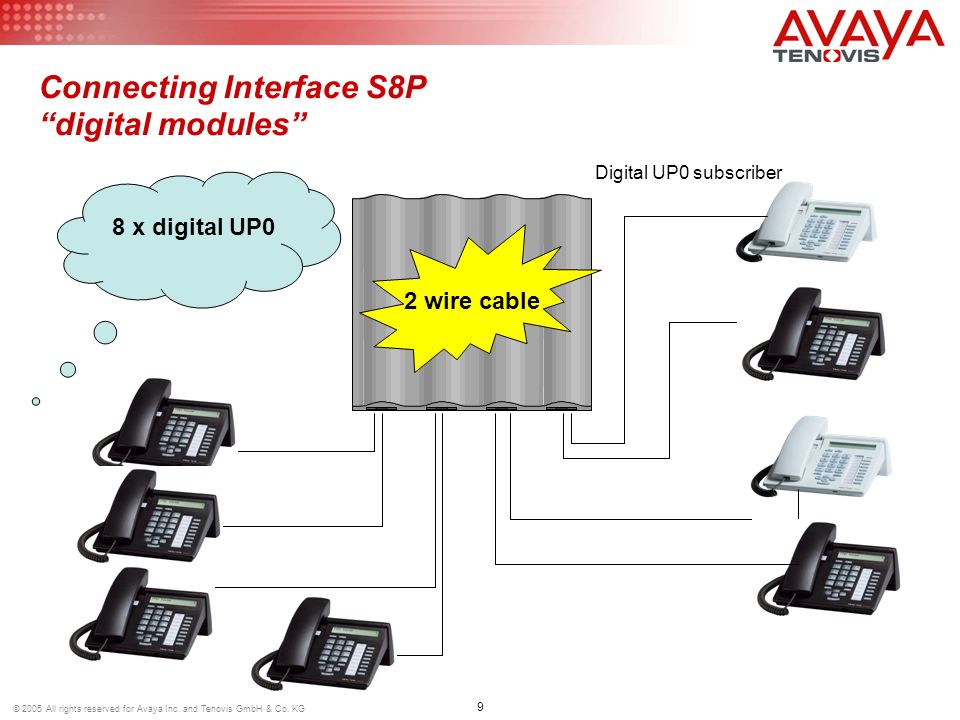

9. 9 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface S8P “digital modules” Digital UP0 subscriber 8 x digital UP0 2 wire cable

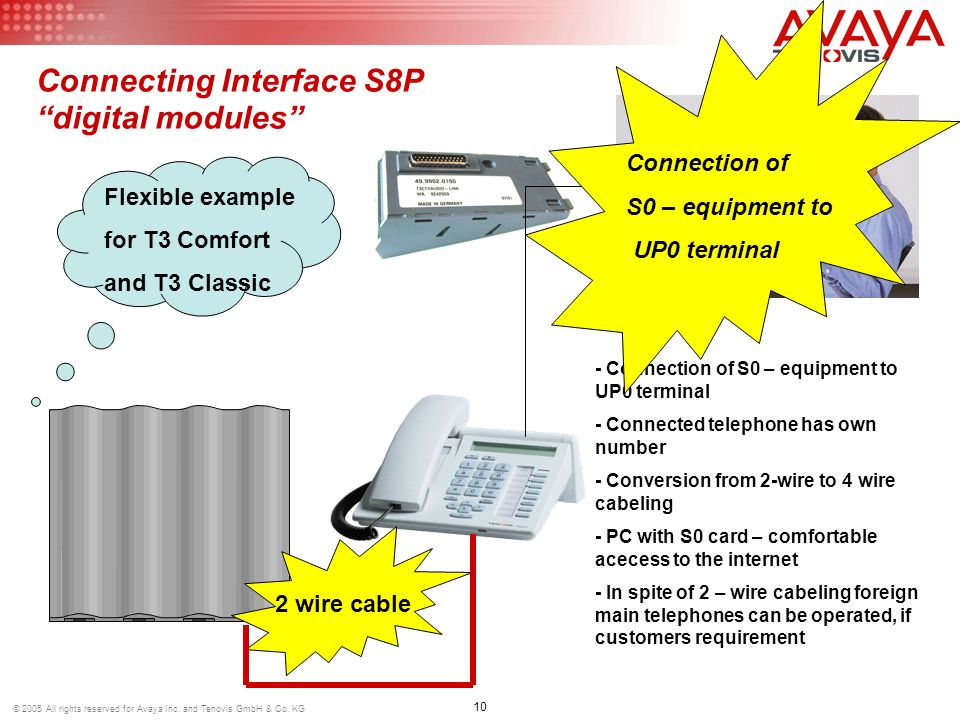

10. 10 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface S8P “digital modules” Digital UP0 subscriber Flexible example for T3 Comfort and T3 Classic 2 wire cable - Connection of S0 – equipment to UP0 terminal - Connected telephone has own number - Conversion from 2-wire to 4 wire cabeling - PC with S0 card – comfortable acecess to the internet - In spite of 2 – wire cabeling foreign main telephones can be operated, if customers requirement Connection of S0 – equipment to UP0 terminal

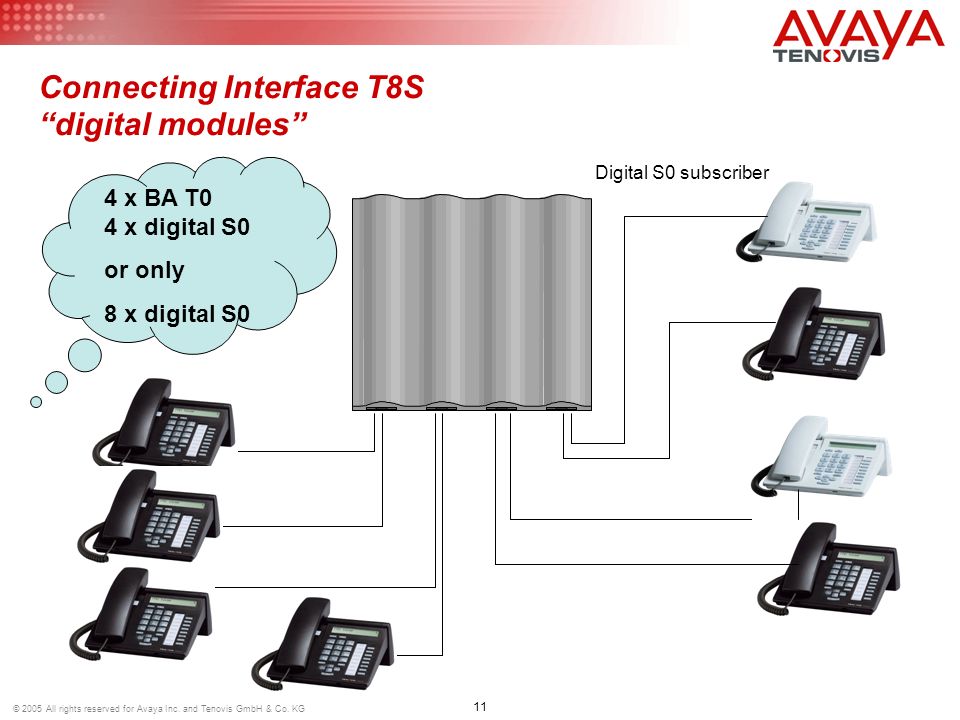

11. 11 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface T8S “digital modules” Digital S0 subscriber 4 x BA T0 4 x digital S0 or only 8 x digital S0

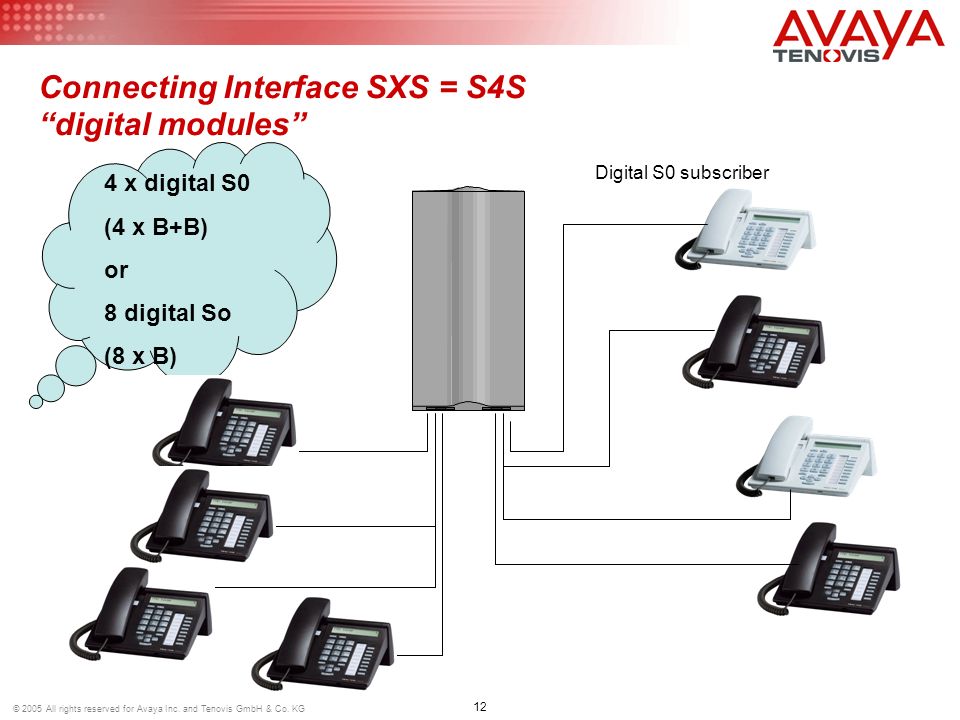

12. 12 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface SXS = S4S “digital modules” Digital S0 subscriber 4 x digital S0 (4 x B+B) or 8 digital So (8 x B)

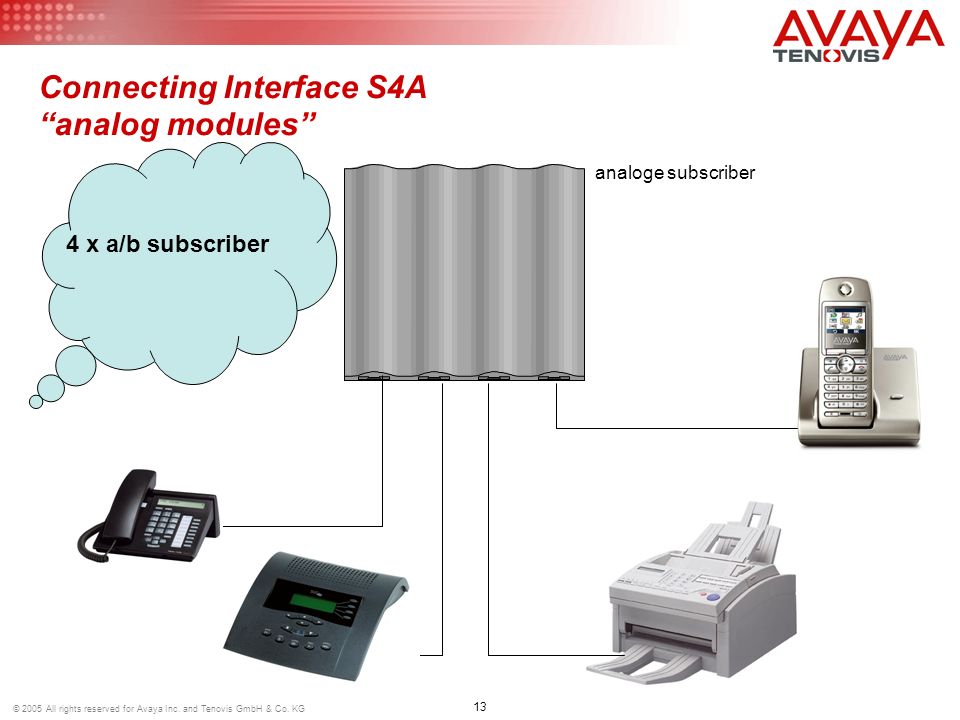

13. 13 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface S4A “analog modules” analoge subscriber 4 x a/b subscriber

14. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface DECT professional

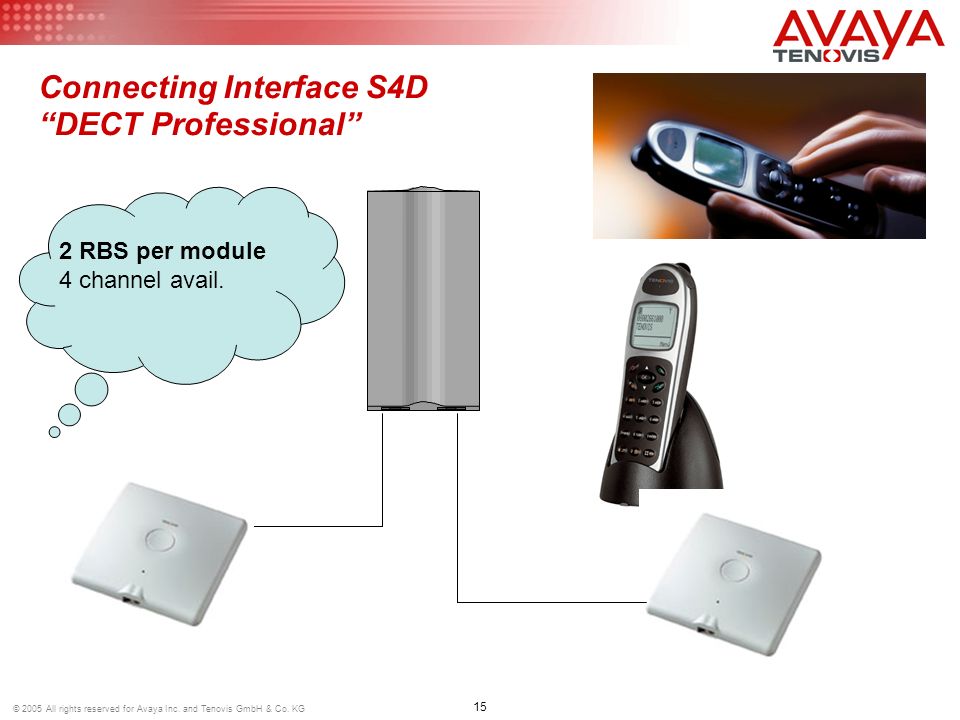

15. 15 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface S4D “DECT Professional” 2 RBS per module 4 channel avail.

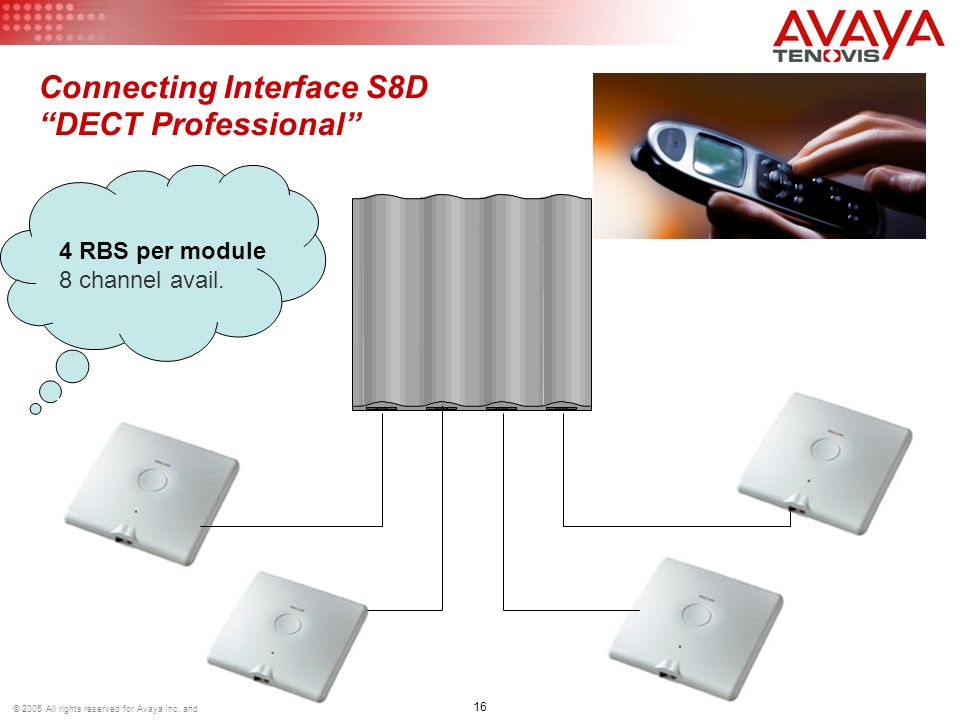

16. 16 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface S8D “DECT Professional” 4 RBS per module 8 channel avail.

17. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG DECT Comfort

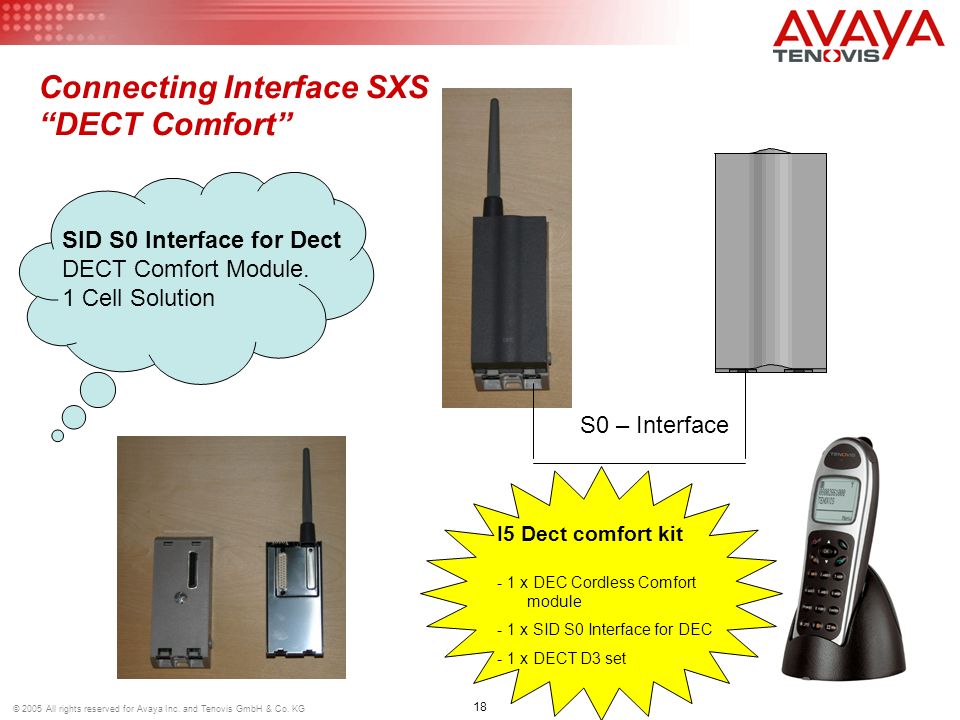

18. 18 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface SXS “DECT Comfort” SID S0 Interface for Dect DECT Comfort Module. 1 Cell Solution S0 – Interface - 1 x DECT D3 set - 1 x SID S0 Interface for DEC I5 Dect comfort kit - 1 x DEC Cordless Comfort module

19. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface DSI

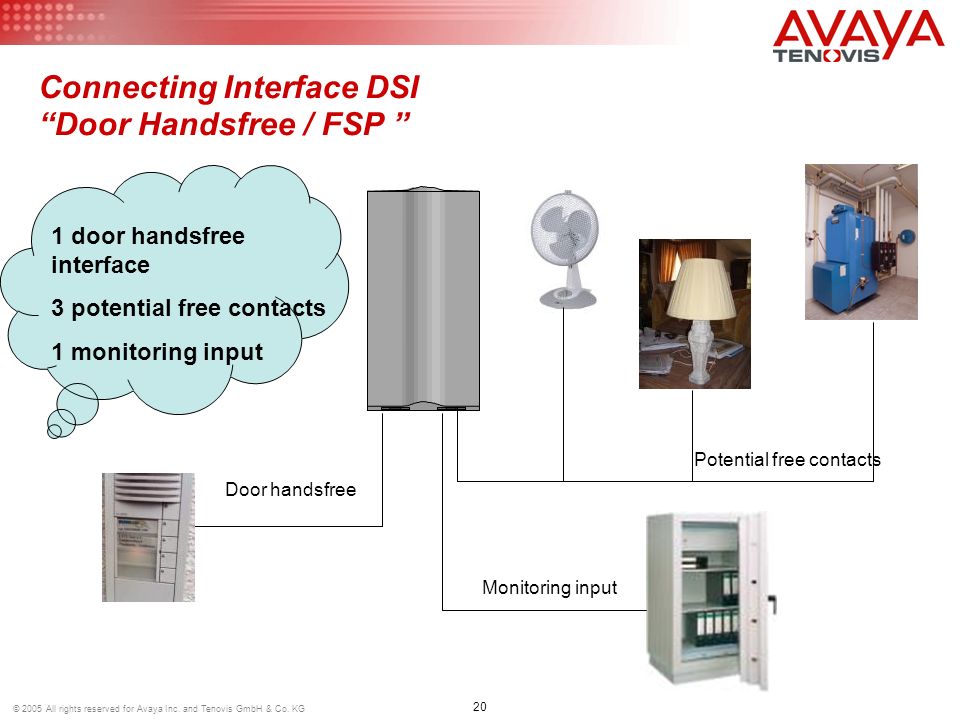

20. 20 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface DSI “Door Handsfree / FSP ” 1 door handsfree interface 3 potential free contacts 1 monitoring input Monitoring input Potential free contacts Door handsfree

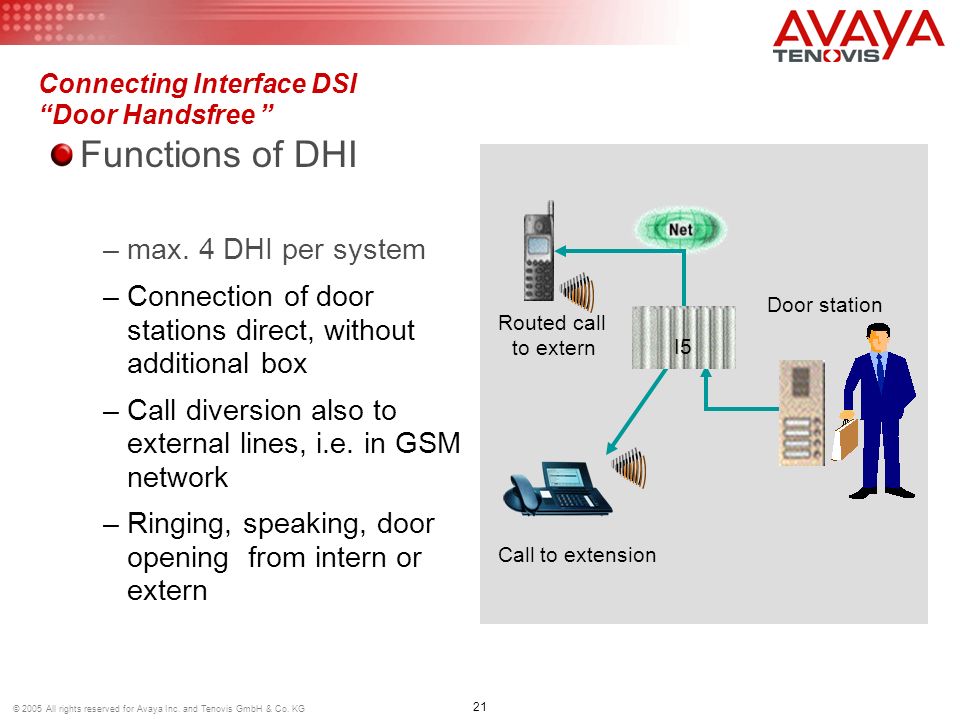

21. 21 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface DSI “Door Handsfree ” Functions of DHI –max. 4 DHI per system –Connection of door stations direct, without additional box –Call diversion also to external lines, i.e. in GSM network –Ringing, speaking, door opening from intern or extern Door station Call to extension Routed call to extern I5

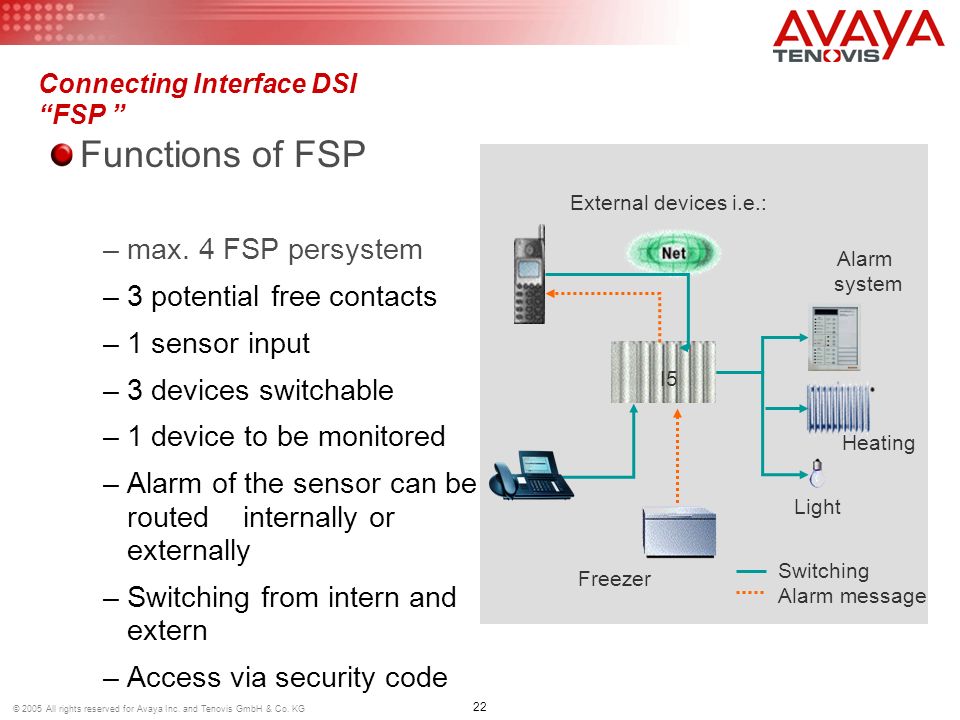

22. 22 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Connecting Interface DSI “FSP ” Functions of FSP –max. 4 FSP persystem –3 potential free contacts –1 sensor input –3 devices switchable –1 device to be monitored –Alarm of the sensor can be routed internally or externally –Switching from intern and extern –Access via security code I5 External devices i.e.: Switching Alarm message Alarm system Heating Light Freezer

23. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Integrated Voice-Mail-System CV1

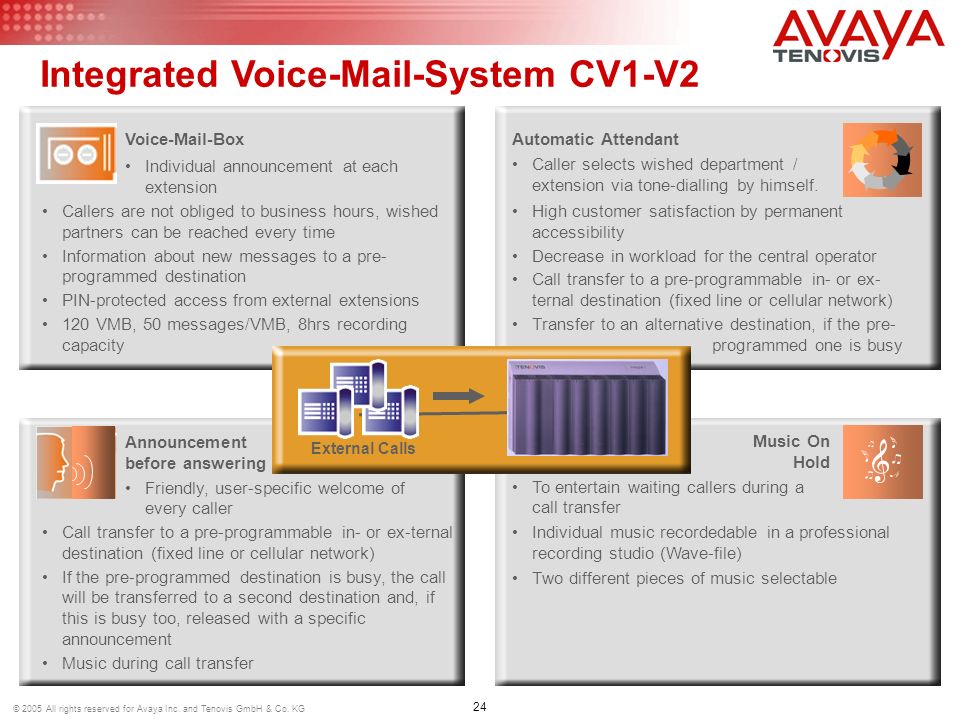

24. 24 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Automatic Attendant Caller selects wished department / extension via tone-dialling by himself. High customer satisfaction by permanent accessibility Decrease in workload for the central operator Call transfer to a pre-programmable in- or ex- ternal destination (fixed line or cellular network) Transfer to an alternative destination, if the pre- programmed one is busy Music On Hold To entertain waiting callers during a call transfer Individual music recordedable in a professional recording studio (Wave-file) Two different pieces of music selectable Voice-Mail-Box Individual announcement at each extension Callers are not obliged to business hours, wished partners can be reached every time Information about new messages to a pre- programmed destination PIN-protected access from external extensions 120 VMB, 50 messages/VMB, 8hrs recording capacity Announcement before answering Friendly, user-specific welcome of every caller Call transfer to a pre-programmable in- or ex-ternal destination (fixed line or cellular network) If the pre-programmed destination is busy, the call will be transferred to a second destination and, if this is busy too, released with a specific announcement Music during call transfer External Calls Integrated Voice-Mail-System CV1-V2

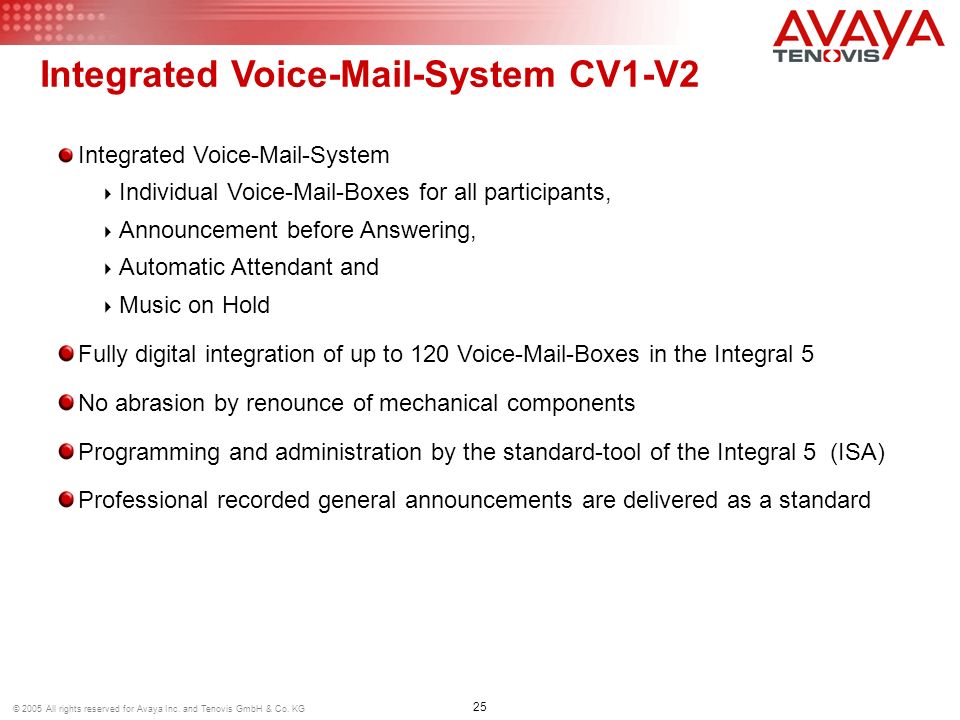

25. 25 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Integrated Voice-Mail-System  Individual Voice-Mail-Boxes for all participants,  Announcement before Answering,  Automatic Attendant and  Music on Hold Fully digital integration of up to 120 Voice-Mail-Boxes in the Integral 5 No abrasion by renounce of mechanical components Programming and administration by the standard-tool of the Integral 5 (ISA) Professional recorded general announcements are delivered as a standard Integrated Voice-Mail-System CV1-V2

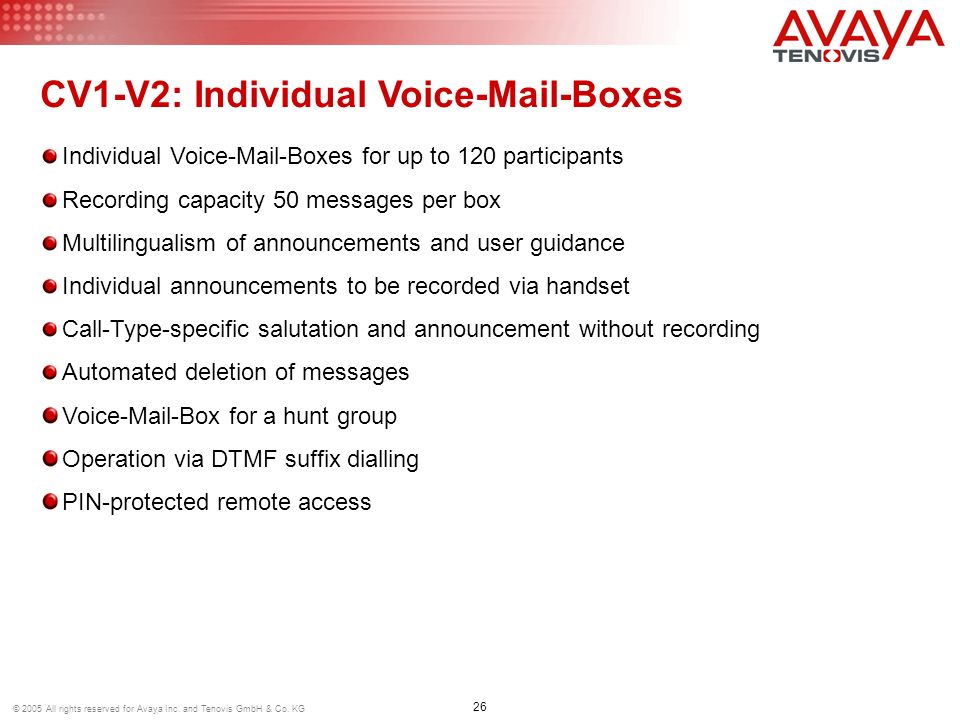

26. 26 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG Individual Voice-Mail-Boxes for up to 120 participants Recording capacity 50 messages per box Multilingualism of announcements and user guidance Individual announcements to be recorded via handset Call-Type-specific salutation and announcement without recording Automated deletion of messages Voice-Mail-Box for a hunt group Operation via DTMF suffix dialling PIN-protected remote access CV1-V2: Individual Voice-Mail-Boxes

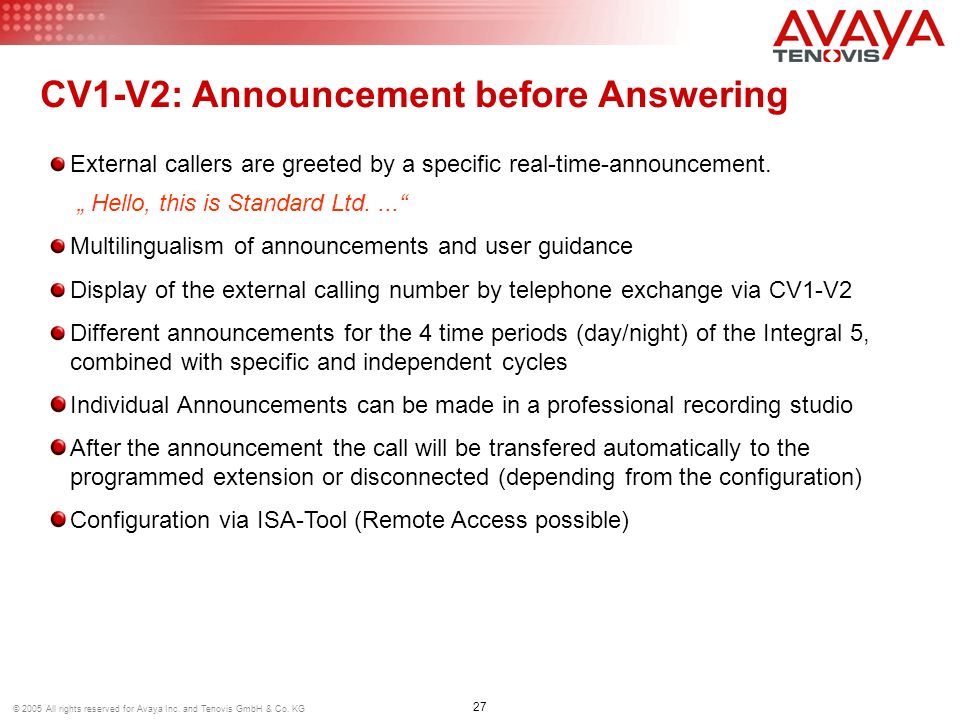

27. 27 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG External callers are greeted by a specific real-time-announcement. „ Hello, this is Standard Ltd....“ Multilingualism of announcements and user guidance Display of the external calling number by telephone exchange via CV1-V2 Different announcements for the 4 time periods (day/night) of the Integral 5, combined with specific and independent cycles Individual Announcements can be made in a professional recording studio After the announcement the call will be transfered automatically to the programmed extension or disconnected (depending from the configuration) Configuration via ISA-Tool (Remote Access possible) CV1-V2: Announcement before Answering

28. 28 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG An external caller is asked by a company-specific announcement to choose one of max. 8 destinations to be connected to. „call 1 for sales departement, 2 for service hotline,...“ Multilingualism of announcements and user guidance PIN-protected exchange to an external destination by suffix dialling of the target number Display of the external calling number by telephone exchange via CV1-V2 Different announcements for the 4 time periods (day/night) of the Integral 5, combined with specific and independent cycles Individual announcements can be made in a professional recording studio Configuration via ISA-Tool (Remote Access possible) CV1-V2: Automatic Attendant

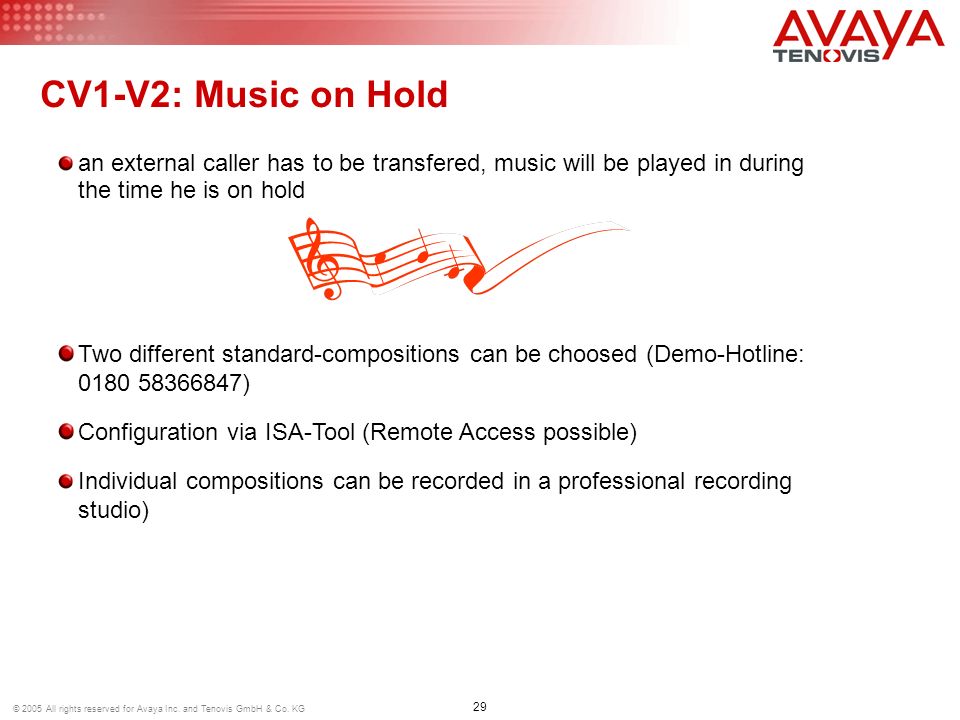

29. 29 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG an external caller has to be transfered, music will be played in during the time he is on hold Two different standard-compositions can be choosed (Demo-Hotline: 0180 58366847) Configuration via ISA-Tool (Remote Access possible) Individual compositions can be recorded in a professional recording studio) CV1-V2: Music on Hold

30. © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG V20 Cable Distributor and PB1 Uninterrupted power supply

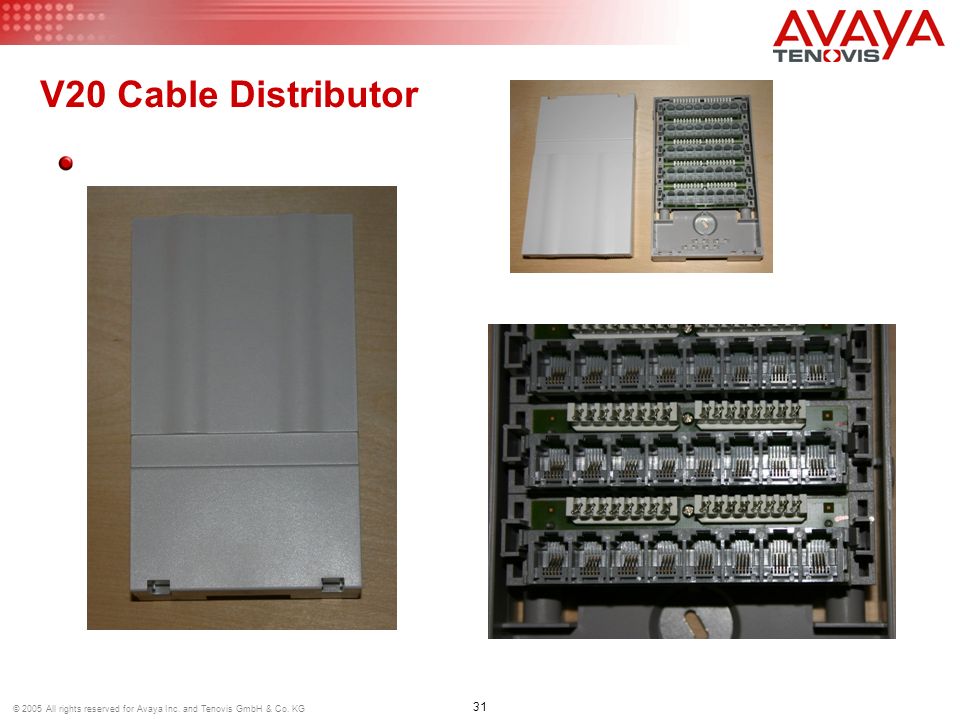

31. 31 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG V20 Cable Distributor

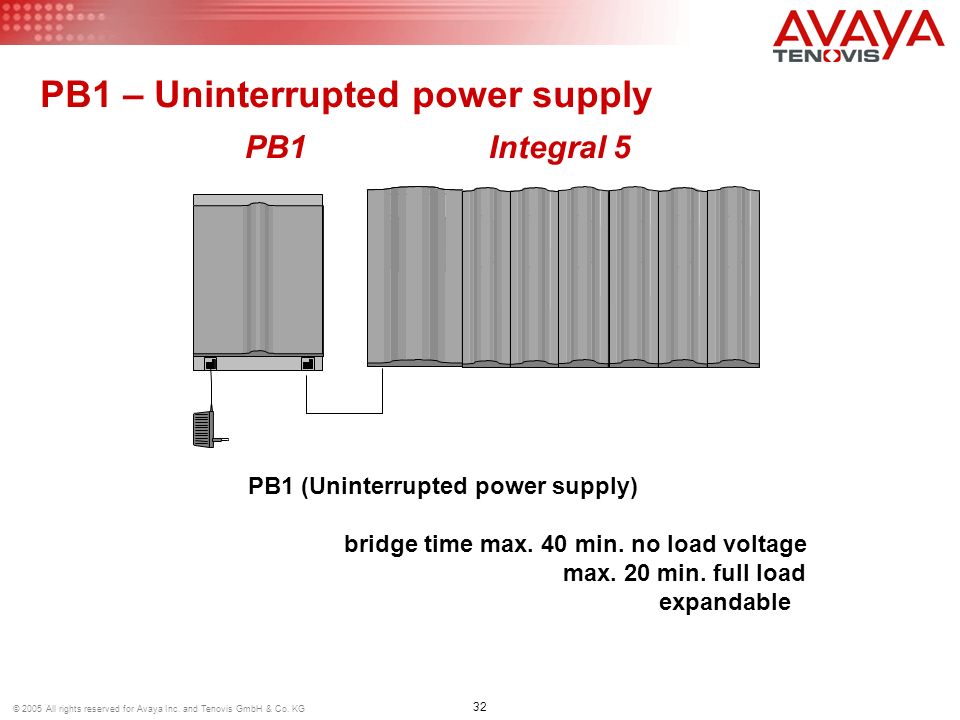

32. 32 © 2005 All rights reserved for Avaya Inc. and Tenovis GmbH & Co. KG PB1 – Uninterrupted power supply Integral 5PB1 PB1 (Uninterrupted power supply) bridge time max. 40 min. no load voltage max. 20 min. full load expandable
