1. 1 Analog – ISDN Converter Connected to Avaya Integral Enterprise PBX

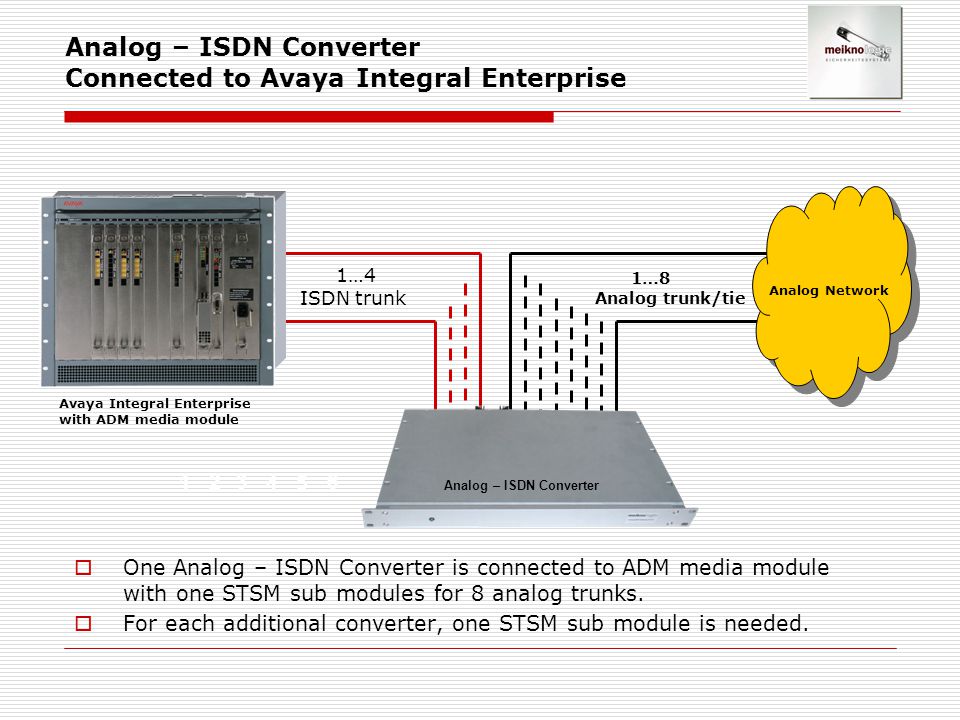

2. Analog – ISDN Converter Connected to Avaya Integral Enterprise 1…8 Analog trunk/tie 1…4 ISDN trunk 123 45 6 Avaya Integral Enterprise with ADM media module Analog – ISDN Converter Analog Network  One Analog – ISDN Converter is connected to ADM media module with one STSM sub modules for 8 analog trunks.  For each additional converter, one STSM sub module is needed.

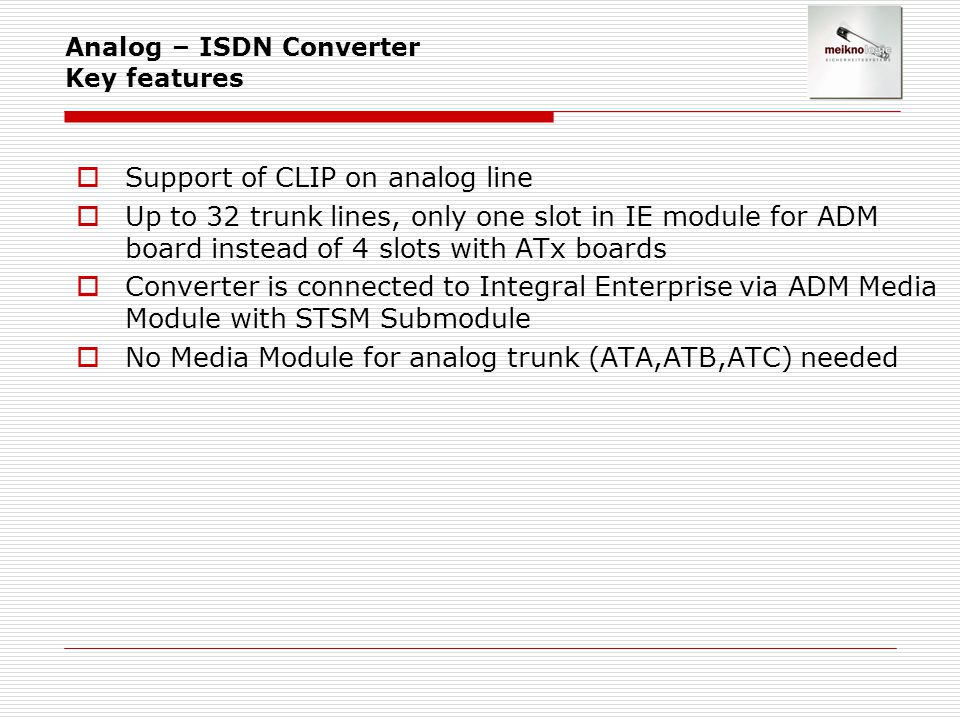

3.  Support of CLIP on analog line  Up to 32 trunk lines, only one slot in IE module for ADM board instead of 4 slots with ATx boards  Converter is connected to Integral Enterprise via ADM Media Module with STSM Submodule  No Media Module for analog trunk (ATA,ATB,ATC) needed Analog – ISDN Converter Key features

4. Power LED Analog – ISDN Converter Front view

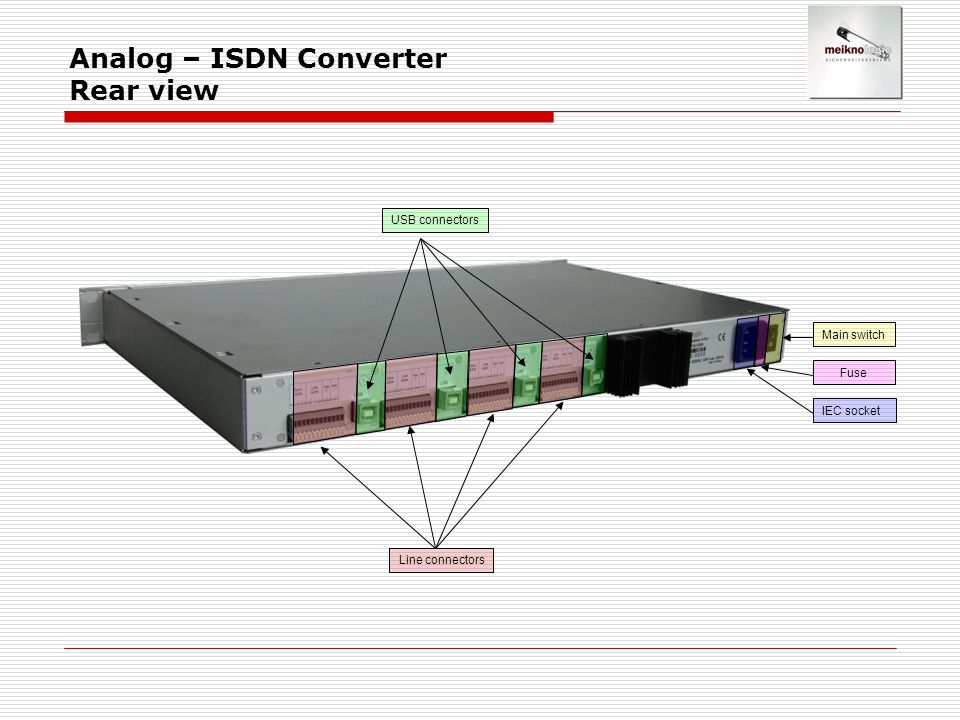

5. Analog – ISDN Converter Rear view Line connectors USB connectors IEC socket Main switch Fuse

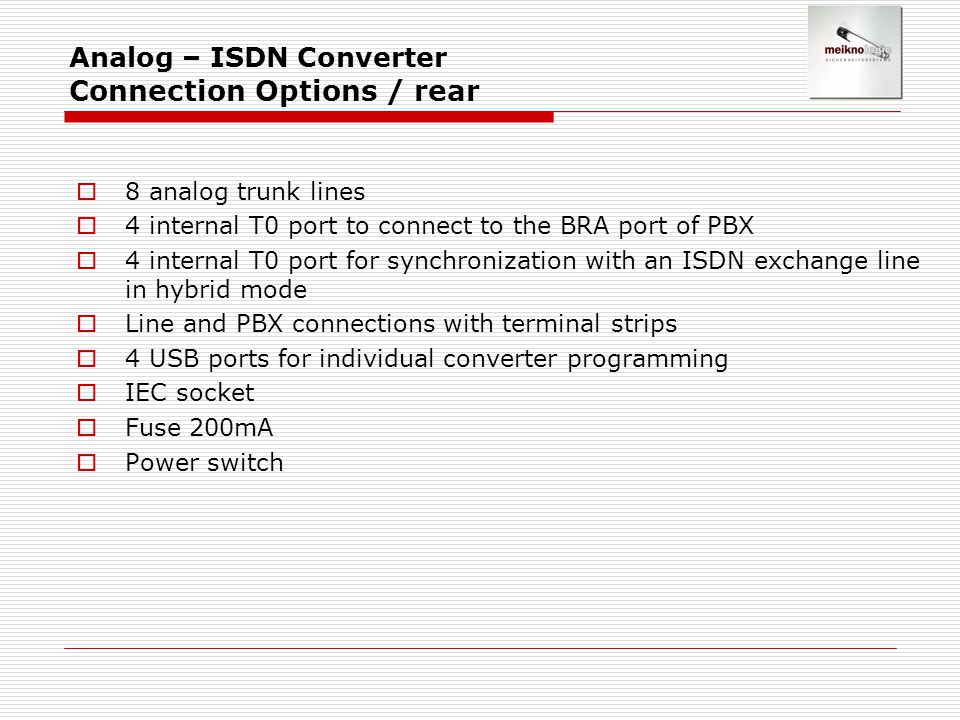

6.  8 analog trunk lines  4 internal T0 port to connect to the BRA port of PBX  4 internal T0 port for synchronization with an ISDN exchange line in hybrid mode  Line and PBX connections with terminal strips  4 USB ports for individual converter programming  IEC socket  Fuse 200mA  Power switch Analog – ISDN Converter Connection Options / rear

7. Analog – ISDN Converter Features  8 analog trunk line ports  4 internal T0 port for connection with BRA port of ISDN PBX  Caller ID (CLIP and CNIP) including date and time  Call forwarding (busy / no reply / unconditional)  Call brokerage (HOLD)  Conference calls (3PTY)  Automatic call back (CCBS)  Configuration software for Windows (2000/XP)

8.  Tone (DTMF) and Pulse dialling  Recognition of dial and busy tone  Number and name presentation (CLIP/CNIP) with date and time  Remedial suppression of the own number (CLIR)  Recognition of charge pulses (12 kHz / 16 kHz)  Flash at trunk line, duration adjustable  Call forwarding on busy, if nobody answers the call, permanent (CFB, CFNR, CFU)  Brokering (HOLD); flash time adjustable  Three-party conference call (3PTY)  Automatic callback to busy subscriber (CCBS)  Operating key sequences adjustable * If supported and activated by network provider Analog – ISDN Converter Trunk line features *

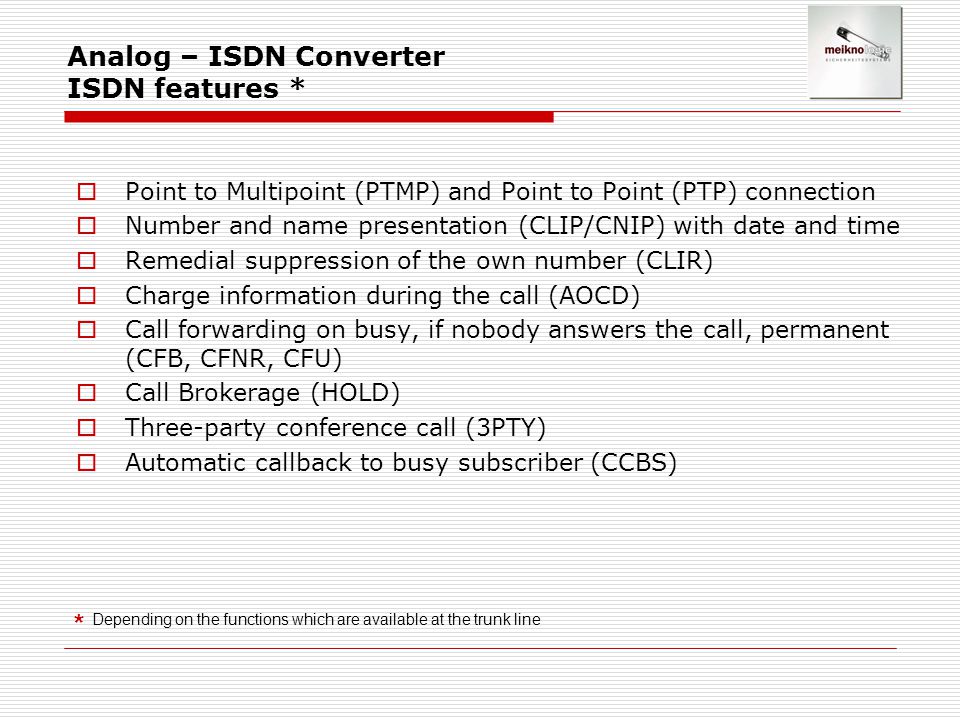

9.  Point to Multipoint (PTMP) and Point to Point (PTP) connection  Number and name presentation (CLIP/CNIP) with date and time  Remedial suppression of the own number (CLIR)  Charge information during the call (AOCD)  Call forwarding on busy, if nobody answers the call, permanent (CFB, CFNR, CFU)  Call Brokerage (HOLD)  Three-party conference call (3PTY)  Automatic callback to busy subscriber (CCBS) * Depending on the functions which are available at the trunk line Analog – ISDN Converter ISDN features *

10.  Operating voltage: 230V AC; +/-10 %; 50 Hz, Internal power supply, fuse 200mA  Power consumption 12 W min., 24 W max.  Exchange line connection: 8 analog ports, DTMF, CLIP/CNIP support  Internal S0: 4 BRA, Point-to-Multipoint Connection (PTMP), Euro ISDN (DSS-1)  S0-synchronisation port:Point-to-Multipoint (PTMP) or Point-to- Point (PTP) Connection  PC/data connection:USB (V1.1, compatible to V2.0)  Case:Metal, 1 HU, 19“ chassis with Alloy front panel  Dimensions:(w x h x d) 483 mm x 44,4 mm x 300 mm  Weight:approx. 3,2 kg  Safety:CE Analog – ISDN Converter Technical data

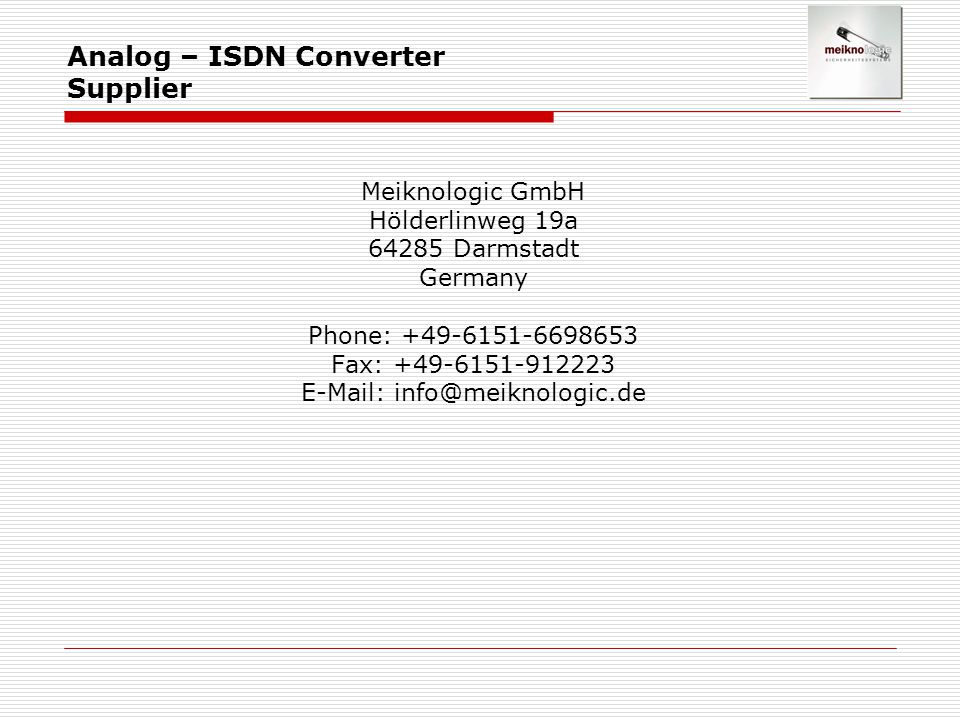

11. Meiknologic GmbH Hölderlinweg 19a 64285 Darmstadt Germany Phone: +49-6151-6698653 Fax: +49-6151-912223 E-Mail: info@meiknologic.de Analog – ISDN Converter Supplier
