Technical Training SW GT-S7230E (Prato) 2010. 10. 08

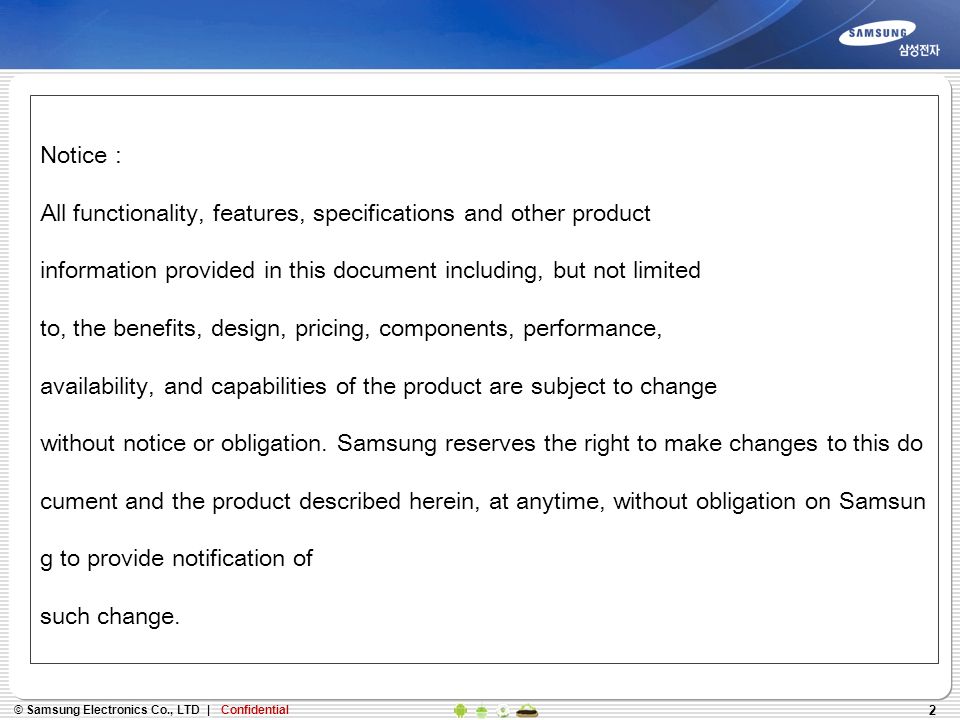

2 Notice : All functionality, features, specifications and other product information provided in this document including, but not limited to, the benefits, design, pricing, components, performance, availability, and capabilities of the product are subject to change without notice or obligation. Samsung reserves the right to make changes to this do cument and the product described herein, at anytime, without obligation on Samsun g to provide notification of such change.

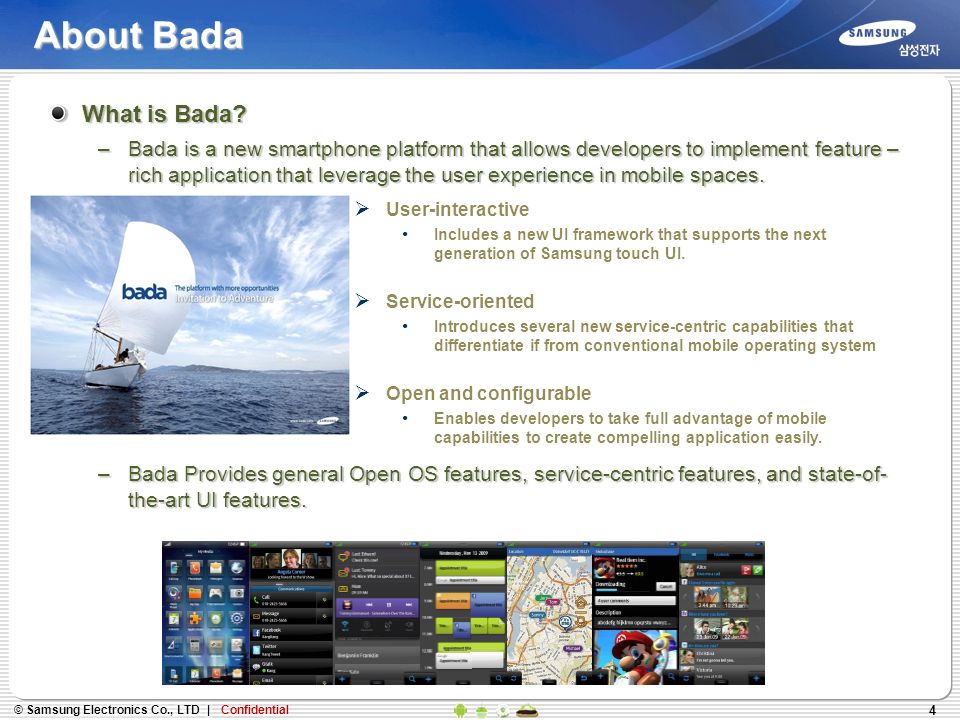

4 About Bada What is Bada? –Bada is a new smartphone platform that allows developers to implement feature – rich application that leverage the user experience in mobile spaces. –Bada Provides general Open OS features, service-centric features, and state-of- the-art UI features. User-interactive Includes a new UI framework that supports the next generation of Samsung touch UI. Service-oriented Introduces several new service-centric capabilities that differentiate if from conventional mobile operating system Open and configurable Enables developers to take full advantage of mobile capabilities to create compelling application easily.
5 About Prato (GT-S7230E) Prato (GT-S7230E) Widget Almighty Unified Multiple Widgets - Easy web access - Simple way to mobile internet - Combination with native function Unified Social Life Share life experiences - Ultimate messages - Multi SNS widget - Integrated contacts / calendar - Push email / IM Powerful Entertainment Rich entertainment - 3.5 pi ear jack & Sound alive - Music player & BGM - More fun music feature (Music recognition, Find similar) Find & Download Useful with Samsung Apps - Easy and quick access - Powerful download service - Provided differentiated Apps
6 S/W Download (1/4) Download : MultiLoader_v5.62 (schorl-V5_00_0_0-WHQL-submission- Win7x86_Win7x64_Vista64_Vista32_XP64_XP32. ) Download. ( + + USB ) microUSB volume up key Camera Key Power/Lock key
7 S/W Download (2/4) Port Search. MultiLoader,. (BRCM2153 / your COM port)
10 Key Strings S/W Version Check : *#1234# HW Version Check: *#2222# Factory Reset : *2767*3855# IMEI Check : *#06# LCD test mode: *#0*#

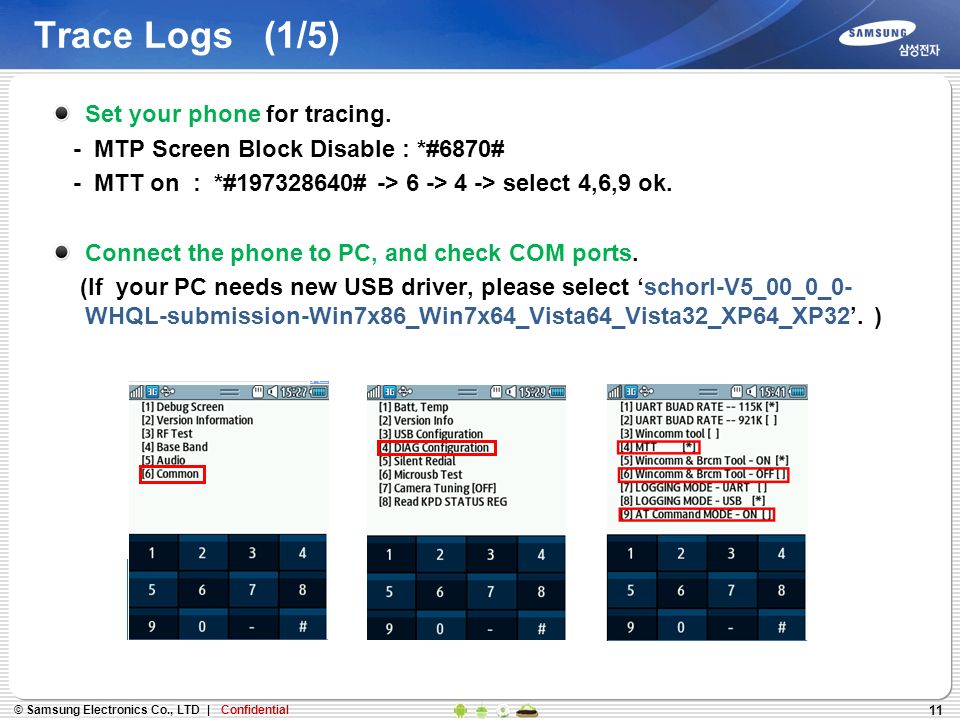

11 Trace Logs (1/5) Set your phone for tracing. - MTP Screen Block Disable : *#6870# - MTT on : *#197328640# -> 6 -> 4 -> select 4,6,9 ok. Connect the phone to PC, and check COM ports. (If your PC needs new USB driver, please select schorl-V5_00_0_0- WHQL-submission-Win7x86_Win7x64_Vista64_Vista32_XP64_XP32. )

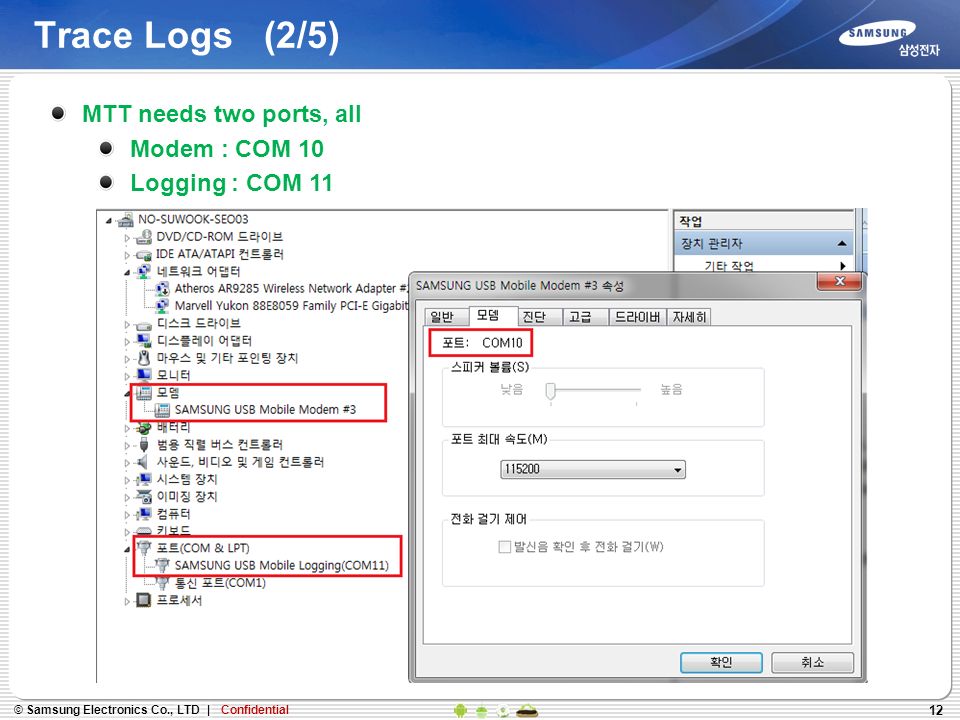

12 Trace Logs (2/5) MTT needs two ports, all Modem : COM 10 Logging : COM 11

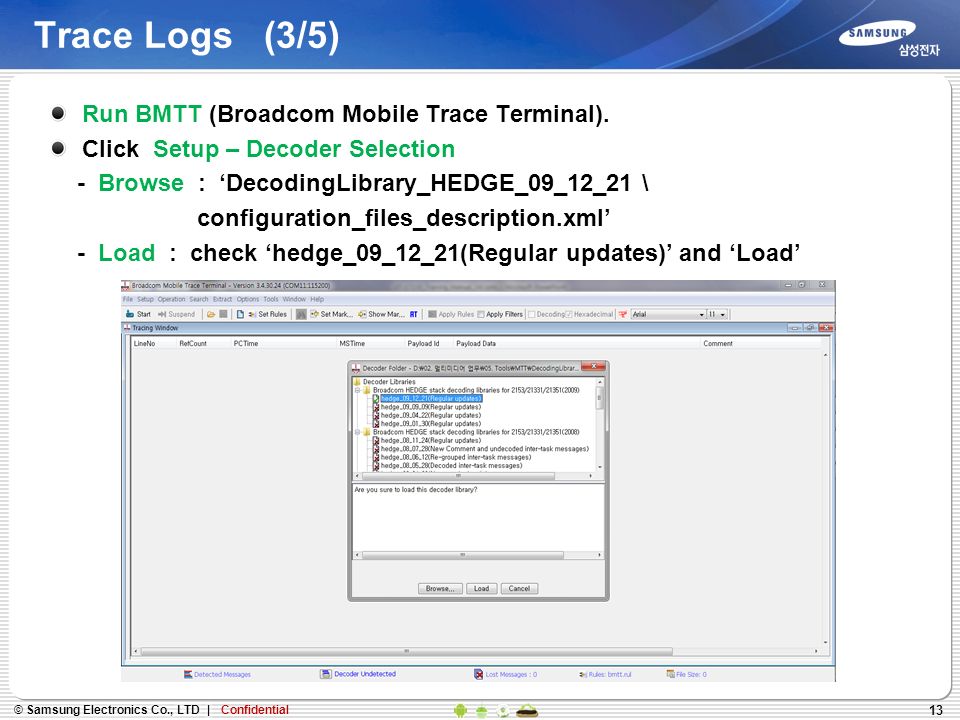

13 Trace Logs (3/5) Run BMTT (Broadcom Mobile Trace Terminal). Click Setup – Decoder Selection - Browse : DecodingLibrary_HEDGE_09_12_21 \ configuration_files_description.xml - Load : check hedge_09_12_21(Regular updates) and Load

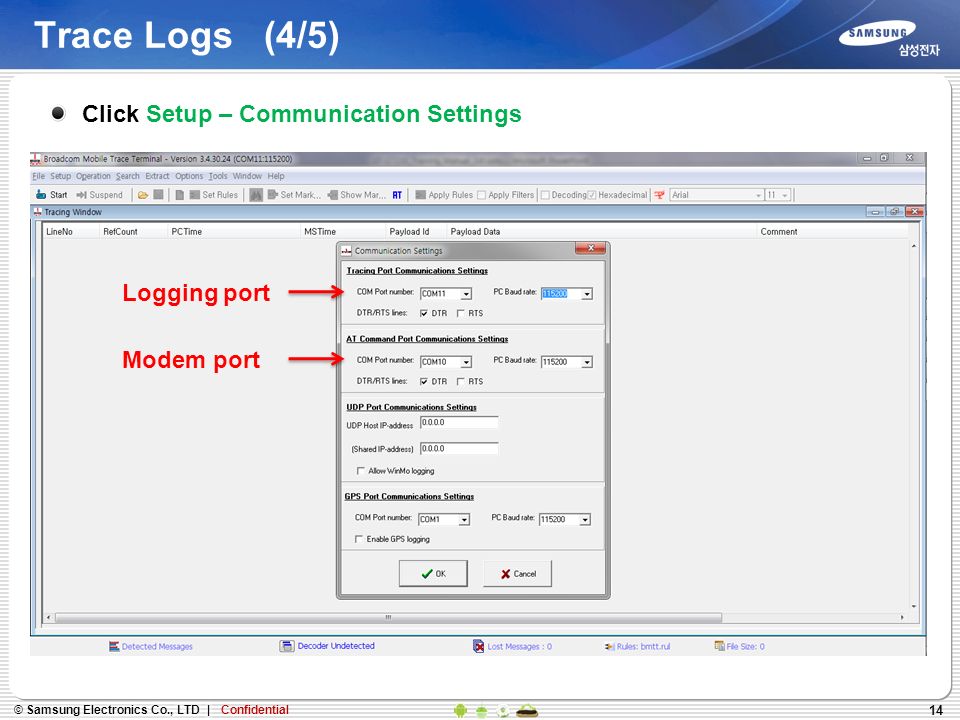

14 Trace Logs (4/5) Click Setup – Communication Settings Logging port Modem port

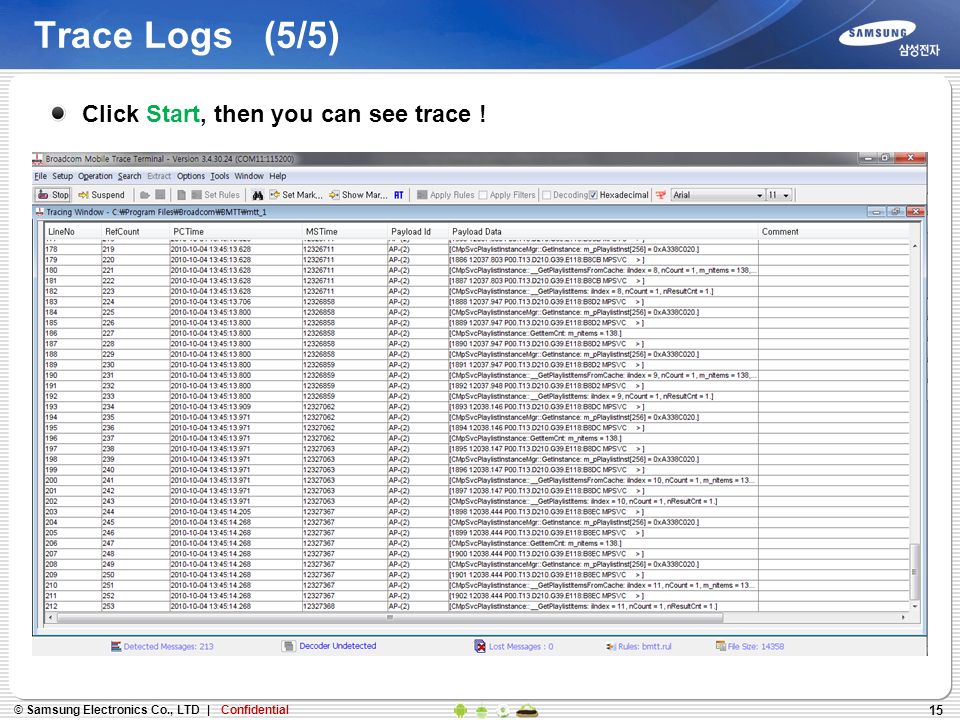

15 Trace Logs (5/5) Click Start, then you can see trace !

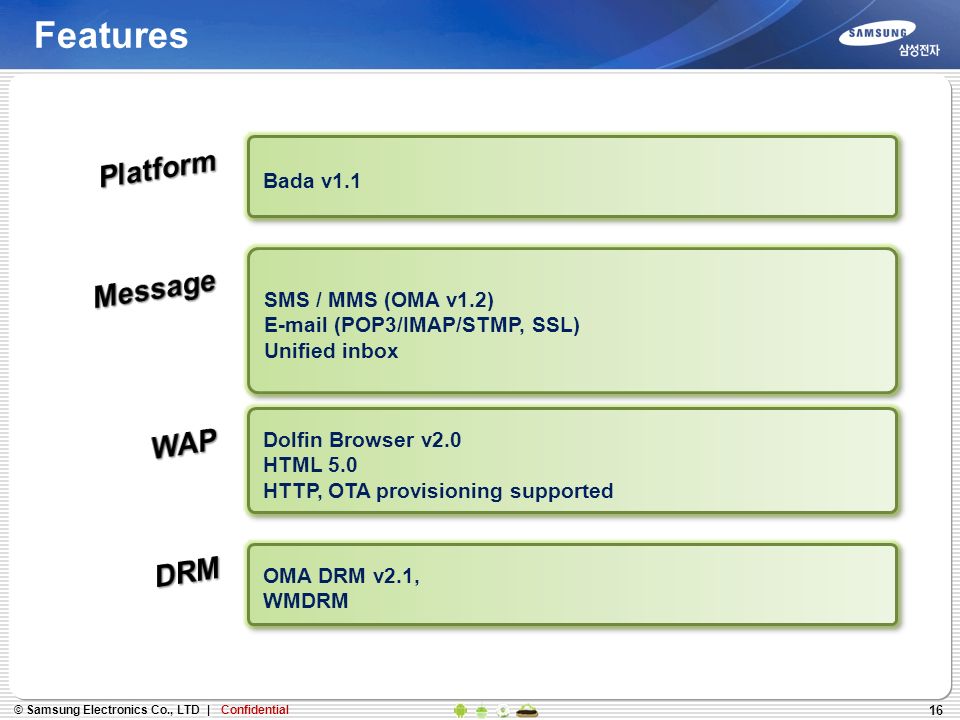

16 Features Bada v1.1 SMS / MMS (OMA v1.2) E-mail (POP3/IMAP/STMP, SSL) Unified inbox SMS / MMS (OMA v1.2) E-mail (POP3/IMAP/STMP, SSL) Unified inbox Dolfin Browser v2.0 HTML 5.0 HTTP, OTA provisioning supported Dolfin Browser v2.0 HTML 5.0 HTTP, OTA provisioning supported OMA DRM v2.1, WMDRM OMA DRM v2.1, WMDRM

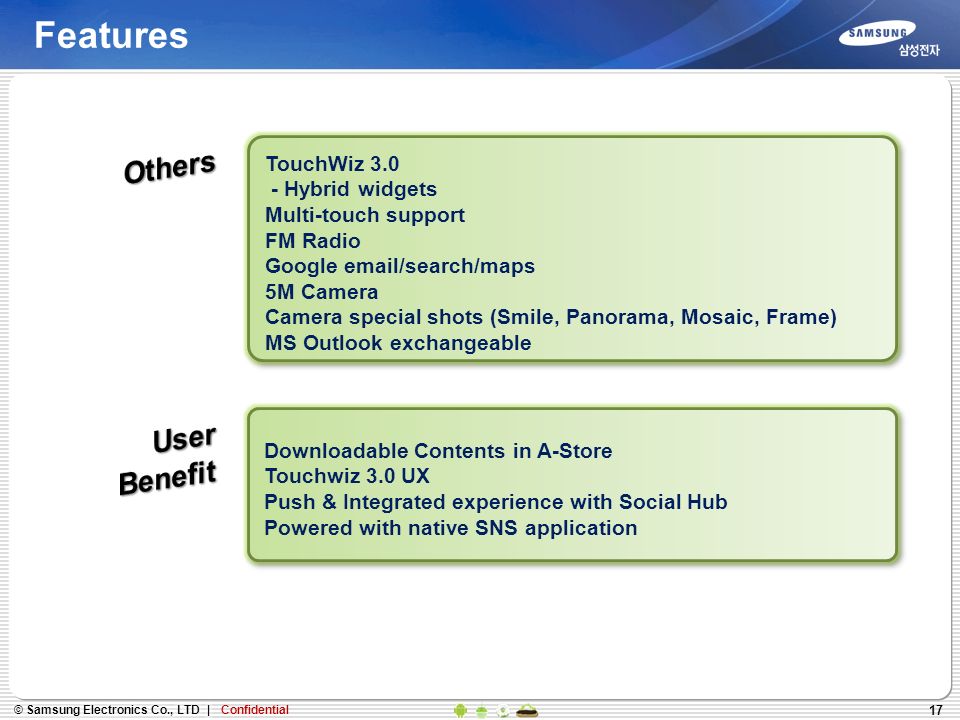

17 Features TouchWiz 3.0 - Hybrid widgets Multi-touch support FM Radio Google email/search/maps 5M Camera Camera special shots (Smile, Panorama, Mosaic, Frame) MS Outlook exchangeable TouchWiz 3.0 - Hybrid widgets Multi-touch support FM Radio Google email/search/maps 5M Camera Camera special shots (Smile, Panorama, Mosaic, Frame) MS Outlook exchangeable Downloadable Contents in A-Store Touchwiz 3.0 UX Push & Integrated experience with Social Hub Powered with native SNS application Downloadable Contents in A-Store Touchwiz 3.0 UX Push & Integrated experience with Social Hub Powered with native SNS application
