1 A Bronx Tale: Bus Rapid Transit in New York City


3 integrated systemFlexible, integrated, high performance system with a quality image and a strong brand identity. Essential elements – Speed – Reliability – Attractiveness Definition of BRT

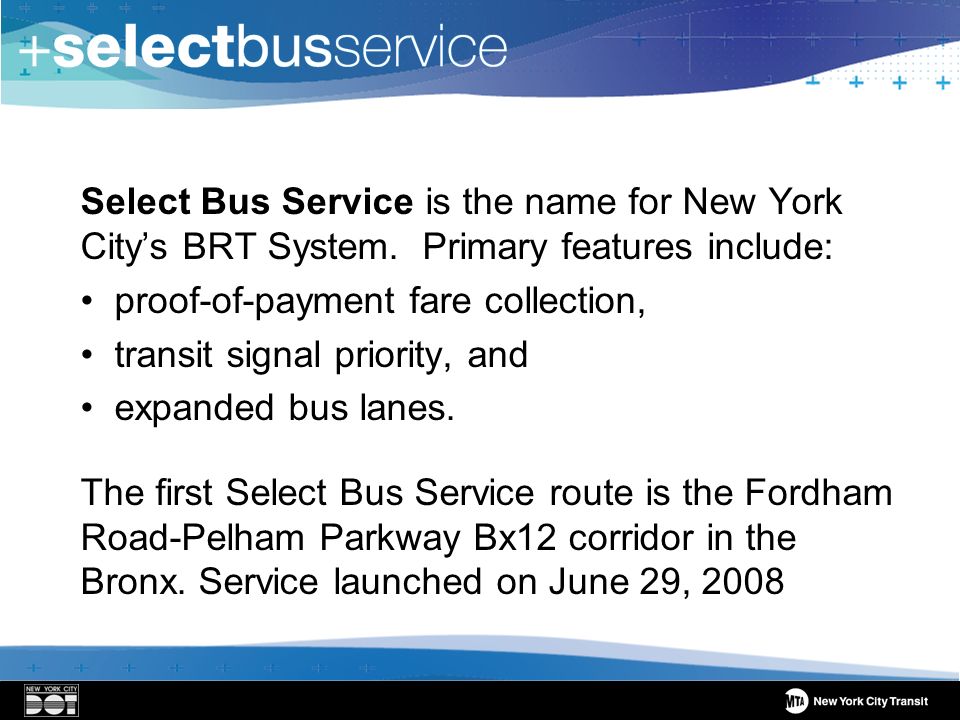

4 Select Bus Service is the name for New York Citys BRT System. Primary features include: proof-of-payment fare collection, transit signal priority, and expanded bus lanes. The first Select Bus Service route is the Fordham Road-Pelham Parkway Bx12 corridor in the Bronx. Service launched on June 29, 2008

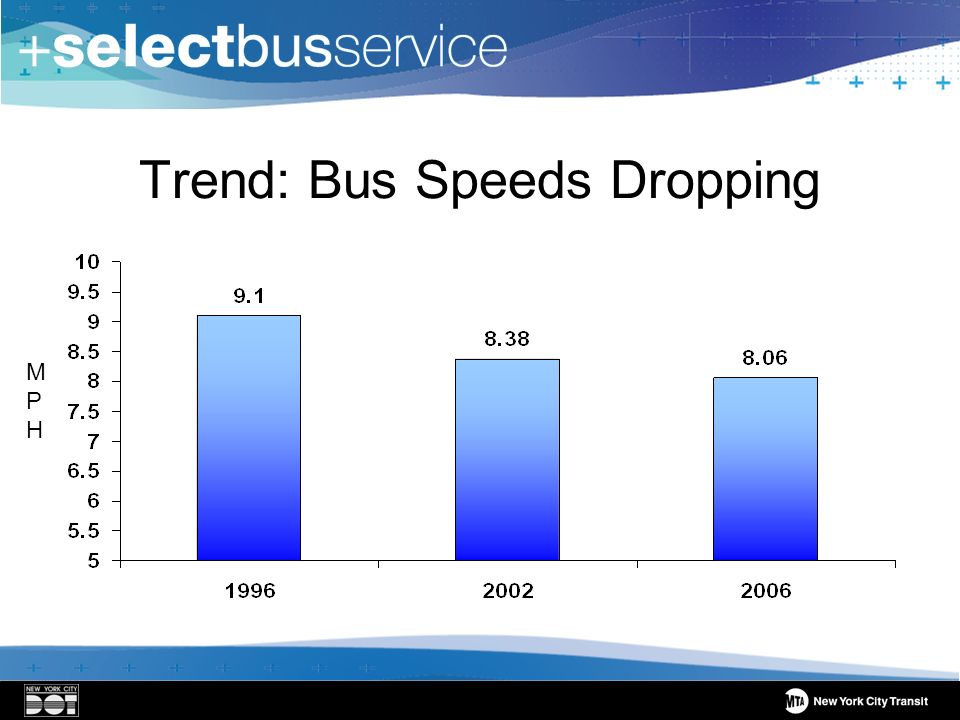

5 Trend: Bus Speeds Dropping MPHMPH

6 Slow Bus Travel in NYC

7 Sources of Bus Delay Other Delays 3%

8 BRT Corridor Screening

9 BRT Benefits are based on the following metrics: 1. Base BRT Ridership 2. Ability to support Frequent/All-Day Service 3. Potential Travel Time Savings 4. Ridership Trend/Future Growth 5. System Connectivity Potential Benefits

10 BRT Compatibility is based on the following metrics: 1. Traffic impacts on corridor 2. Parking regulation changes required 3. Ability to provide full range of station amenities 4. Extent of dedicated running ways on corridors BRT Compatibility

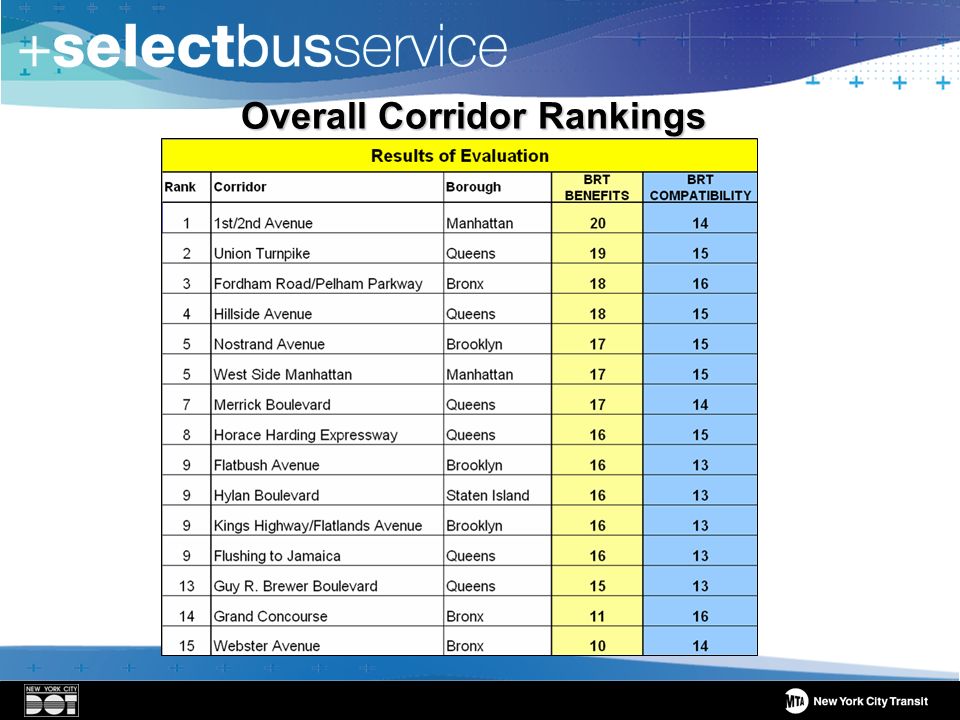

11 Overall Corridor Rankings

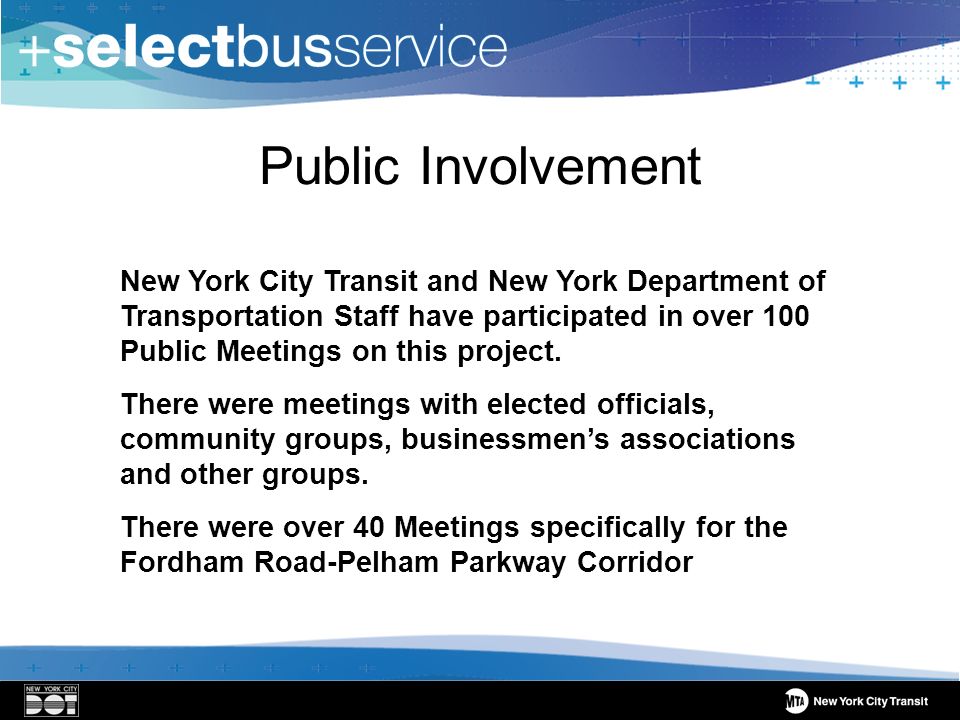

12 Public Involvement New York City Transit and New York Department of Transportation Staff have participated in over 100 Public Meetings on this project. There were meetings with elected officials, community groups, businessmens associations and other groups. There were over 40 Meetings specifically for the Fordham Road-Pelham Parkway Corridor

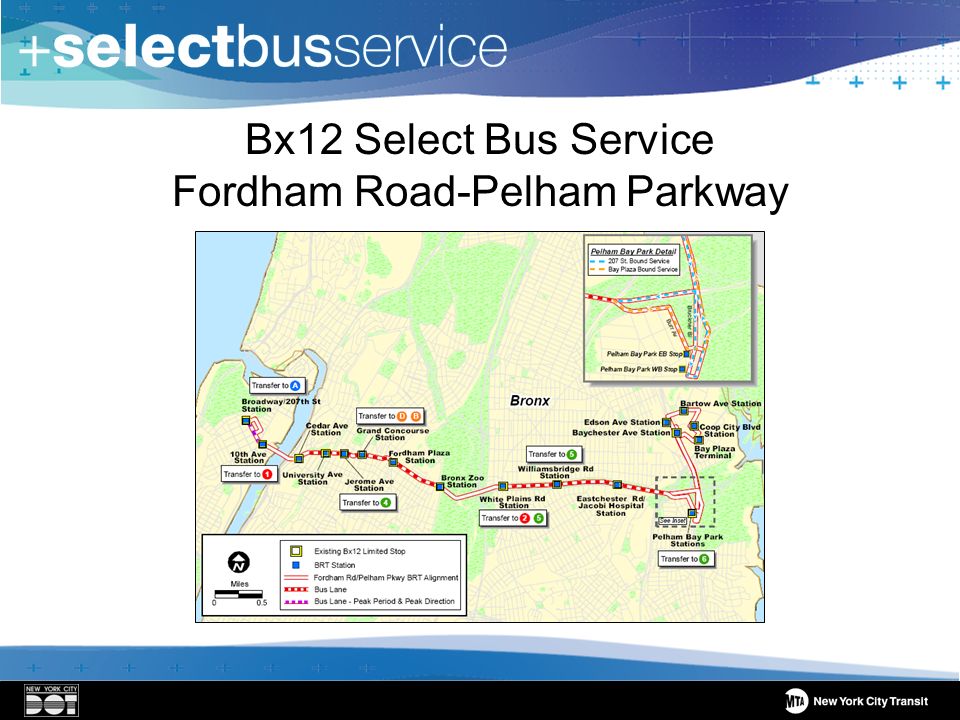

13 Bx12 Select Bus Service Fordham Road-Pelham Parkway

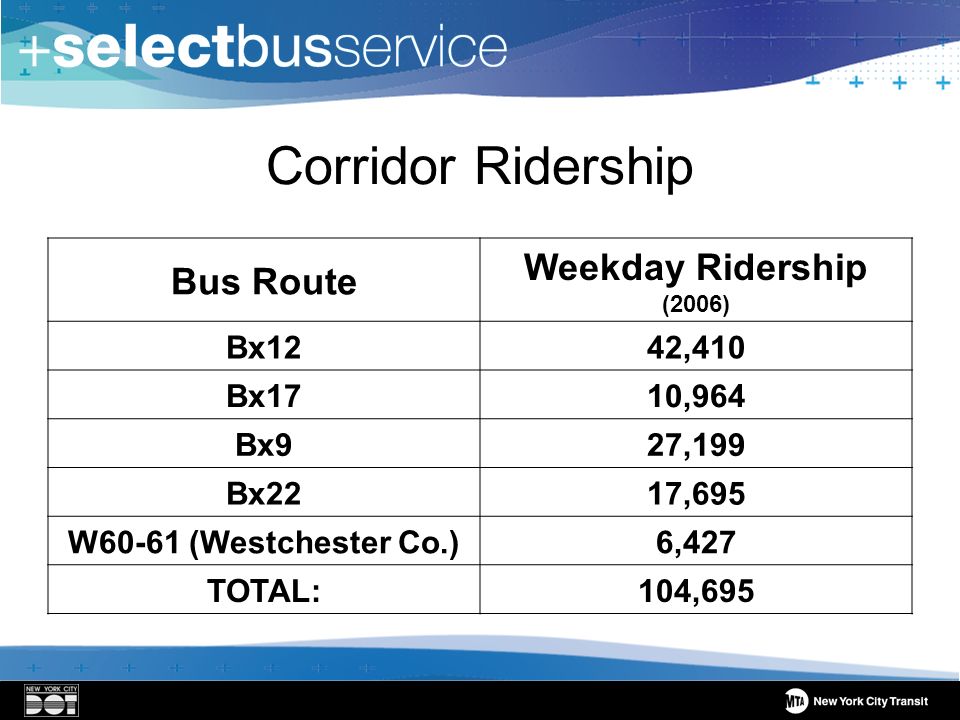

14 Corridor Ridership Bus Route Weekday Ridership (2006) Bx1242,410 Bx1710,964 Bx927,199 Bx2217,695 W60-61 (Westchester Co.)6,427 TOTAL:104,695

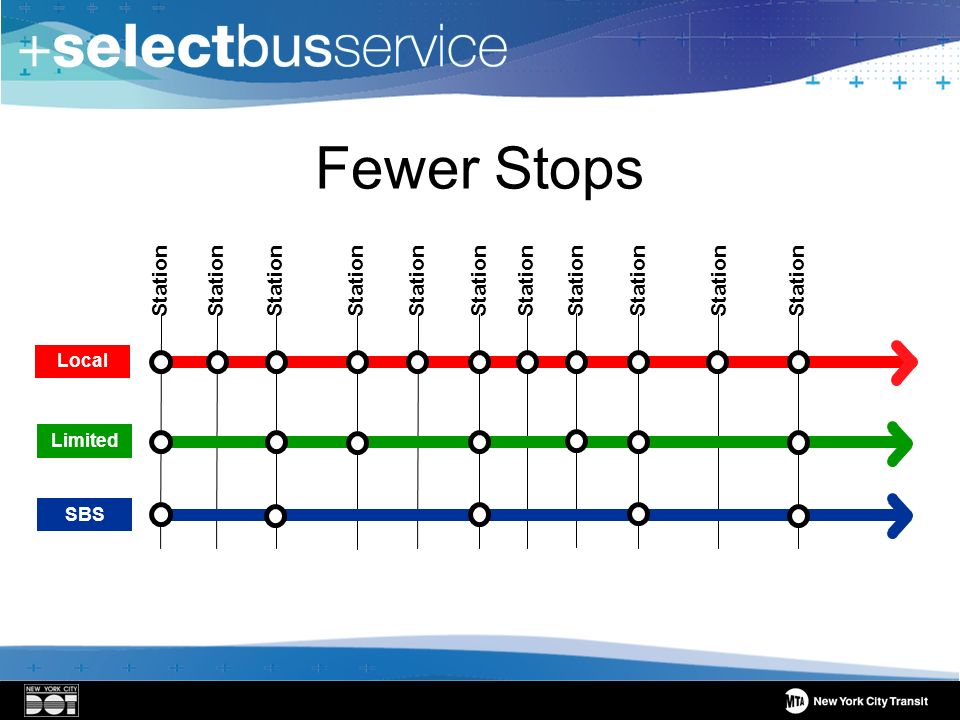

15 Fewer Stops Station SBS Station Local Limited

16 Expanded/Improved Bus Lanes Expanded: –Existing peak period bus lanes expanded to all-day operation –Bus lanes extended geographically Improved: –High visibility red bus lanes –Overhead signage –Increased NYPD bus lane enforcement

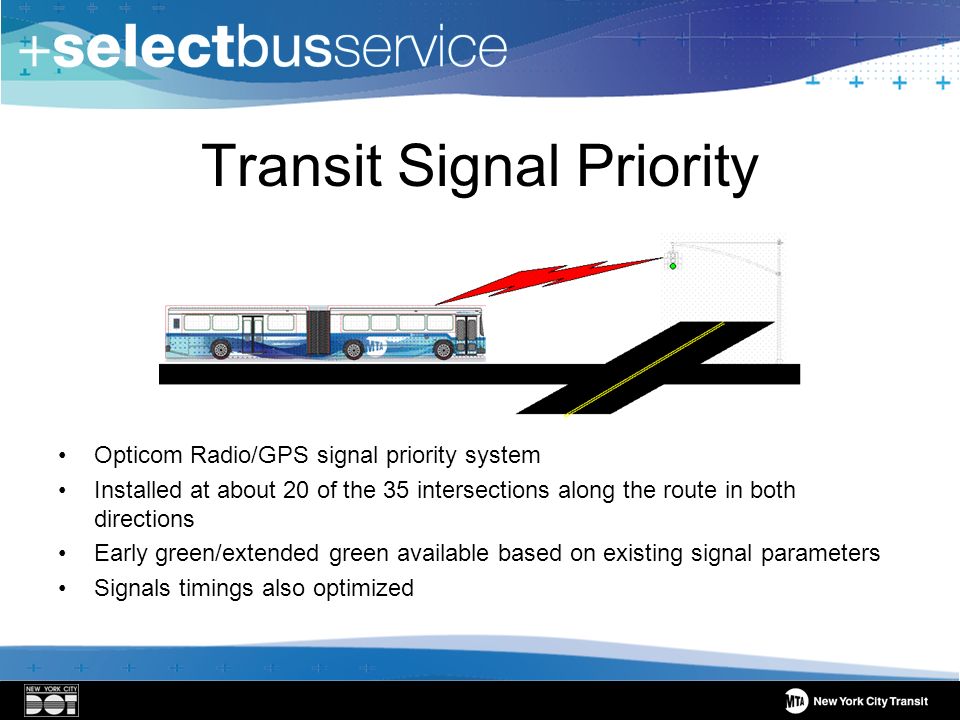

18 Transit Signal Priority Opticom Radio/GPS signal priority system Installed at about 20 of the 35 intersections along the route in both directions Early green/extended green available based on existing signal parameters Signals timings also optimized

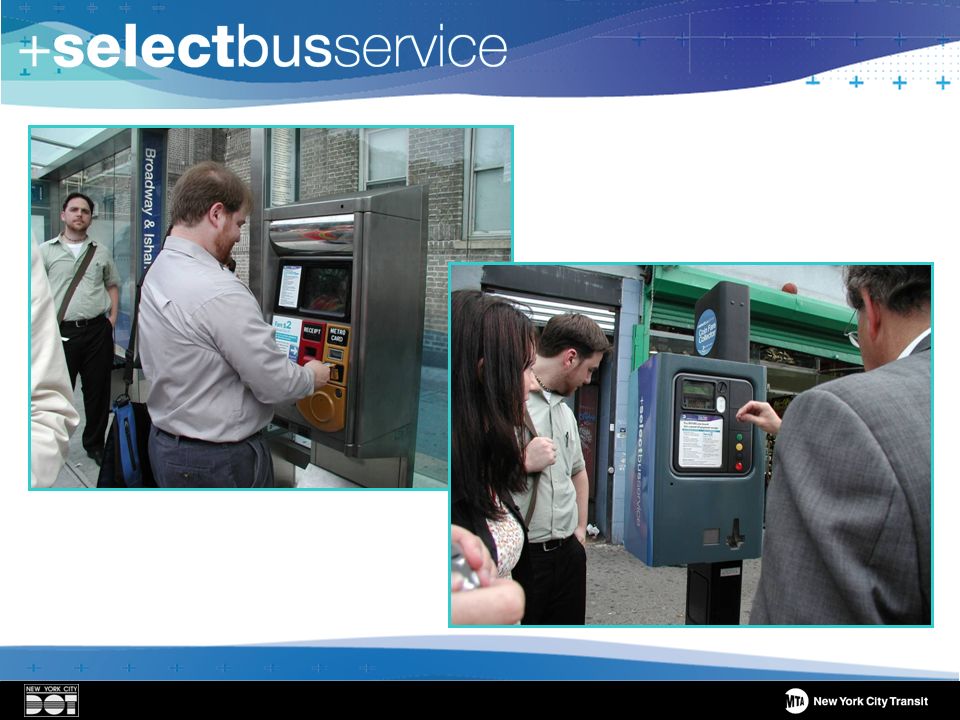

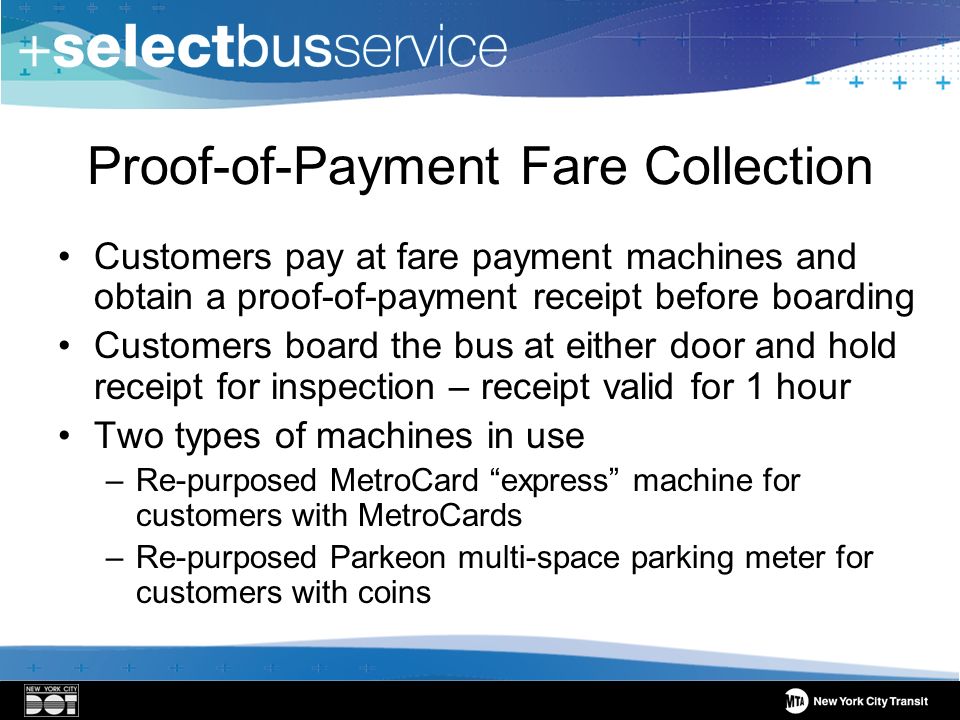

19 Proof-of-Payment Fare Collection Customers pay at fare payment machines and obtain a proof-of-payment receipt before boarding Customers board the bus at either door and hold receipt for inspection – receipt valid for 1 hour Two types of machines in use –Re-purposed MetroCard express machine for customers with MetroCards –Re-purposed Parkeon multi-space parking meter for customers with coins

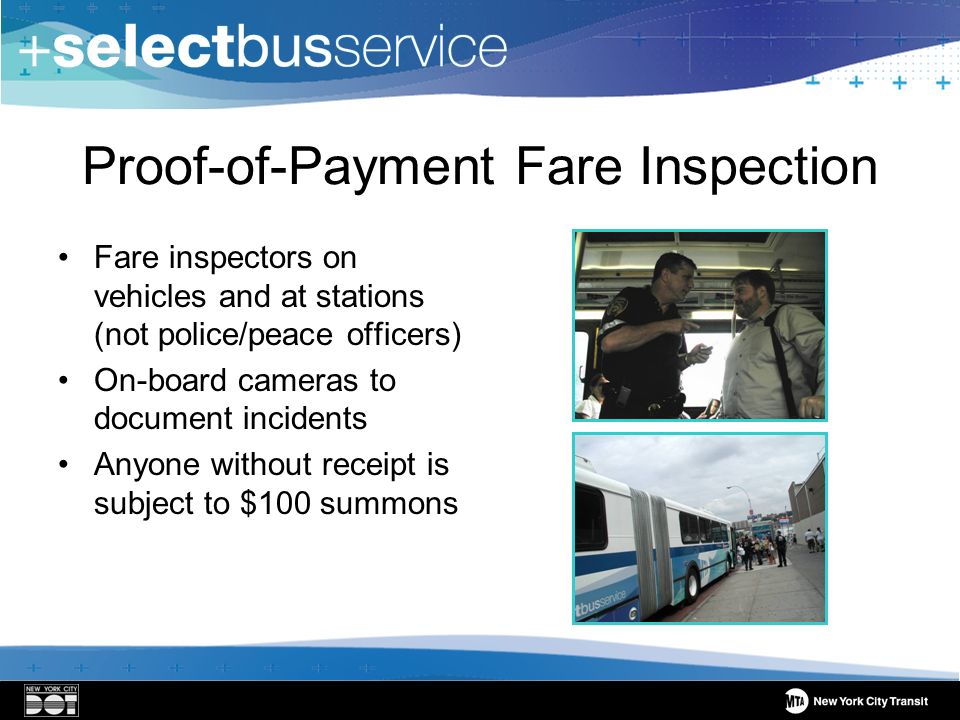

21 Proof-of-Payment Fare Inspection Fare inspectors on vehicles and at stations (not police/peace officers) On-board cameras to document incidents Anyone without receipt is subject to $100 summons

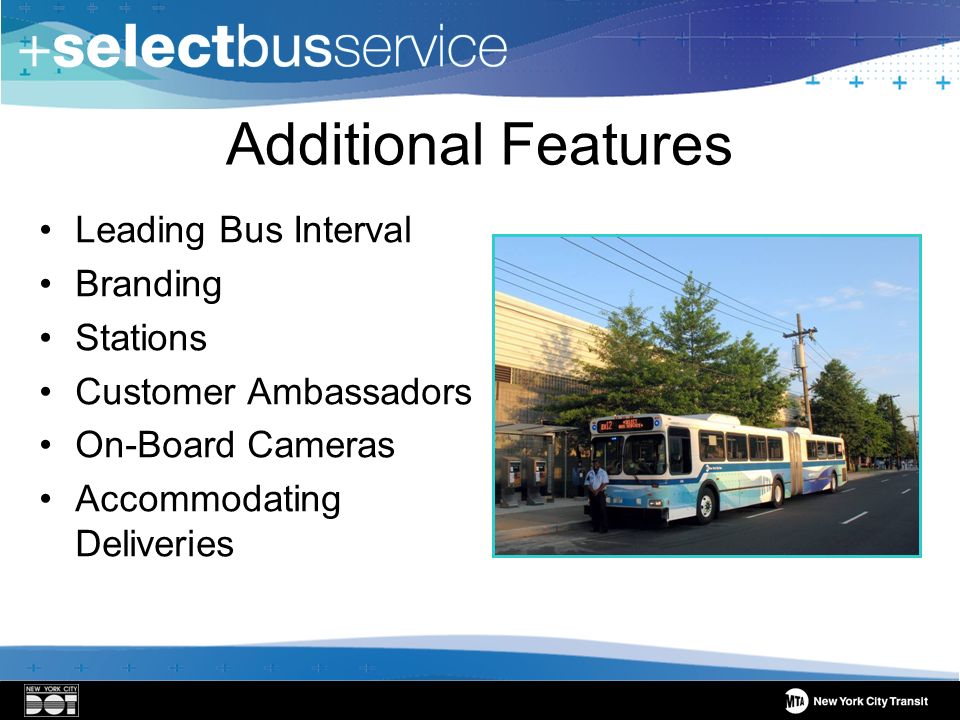

22 Additional Features Leading Bus Interval Branding Stations Customer Ambassadors On-Board Cameras Accommodating Deliveries

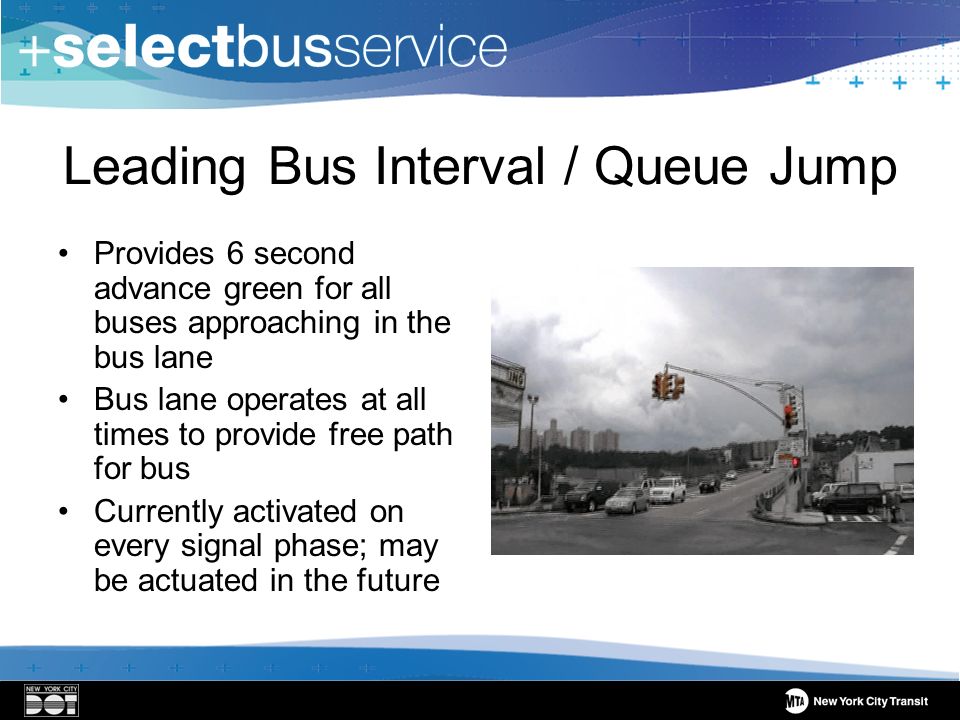

23 Leading Bus Interval / Queue Jump Provides 6 second advance green for all buses approaching in the bus lane Bus lane operates at all times to provide free path for bus Currently activated on every signal phase; may be actuated in the future

24 Branding

25 Special Marketing Elements

26 Stations

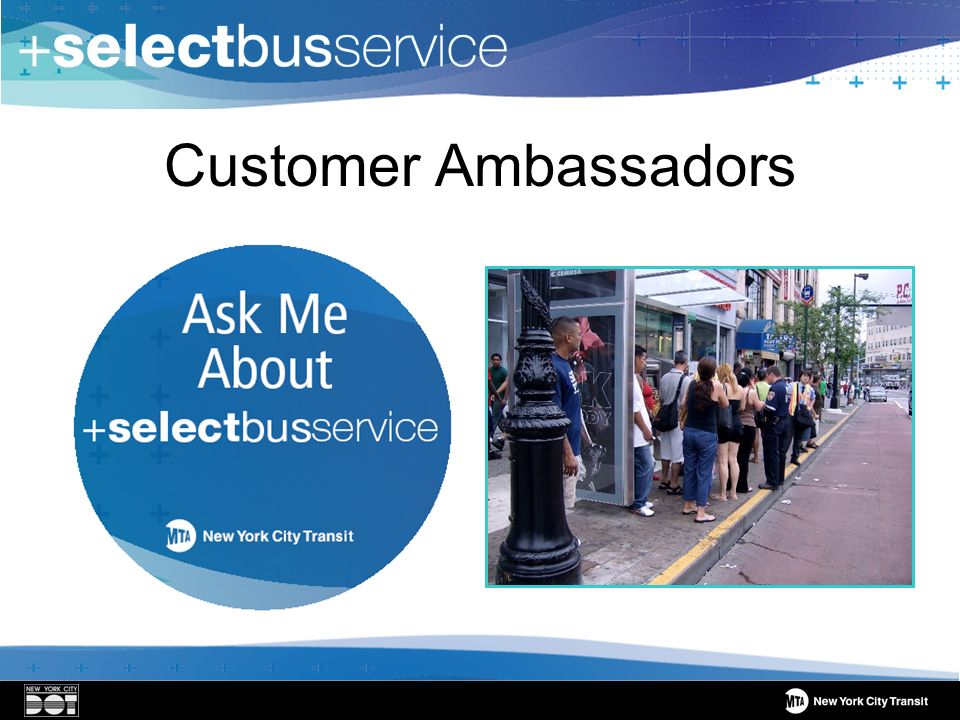

27 Customer Ambassadors

28 On-Board Cameras Currently used for security and liability protection Potential future uses –Bus lane enforcement –Running time

29 Fordham Road Delivery Window 12:00pm-14:00: North Side 10:00am-12:00: South Side

30 Costs Capital Costs for this project were very low. Approximately $10.5 M for a 8.5 Mile corridor. The increase in Annual Operating Costs is approximately $6M. This includes additional service, and new staff for maintaining fare equipment, revenue collection and enforcement.


32 Early Findings – Physical Elements Bus lanes operate well with proper enforcement; improved signs/markings also effective. NYPD issued over 7155 summonses since the start of the program TSP is working well; too early to fully measure effectiveness Shelters and station elements holding up well

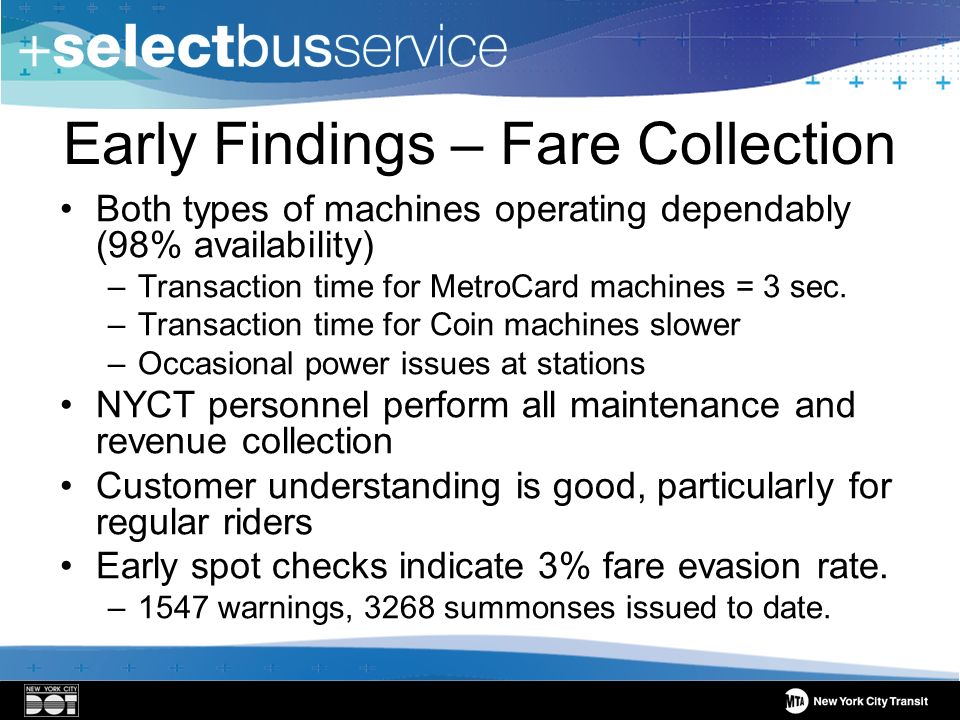

33 Early Findings – Fare Collection Both types of machines operating dependably (98% availability) –Transaction time for MetroCard machines = 3 sec. –Transaction time for Coin machines slower –Occasional power issues at stations NYCT personnel perform all maintenance and revenue collection Customer understanding is good, particularly for regular riders Early spot checks indicate 3% fare evasion rate. –1547 warnings, 3268 summonses issued to date.

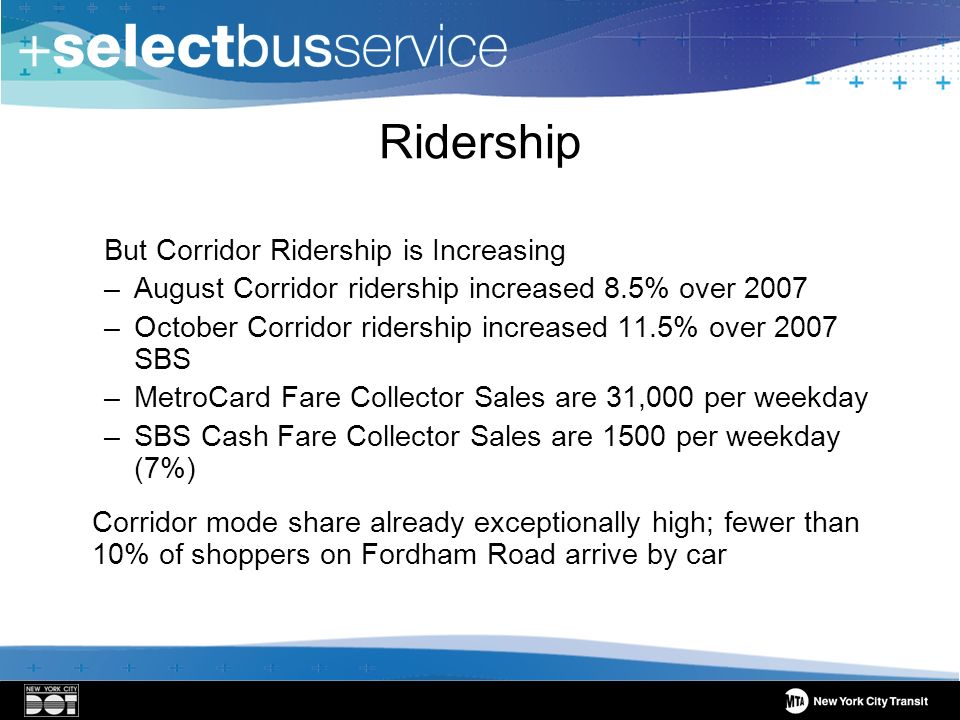

34 Ridership But Corridor Ridership is Increasing –August Corridor ridership increased 8.5% over 2007 –October Corridor ridership increased 11.5% over 2007 SBS –MetroCard Fare Collector Sales are 31,000 per weekday –SBS Cash Fare Collector Sales are 1500 per weekday (7%) Corridor mode share already exceptionally high; fewer than 10% of shoppers on Fordham Road arrive by car

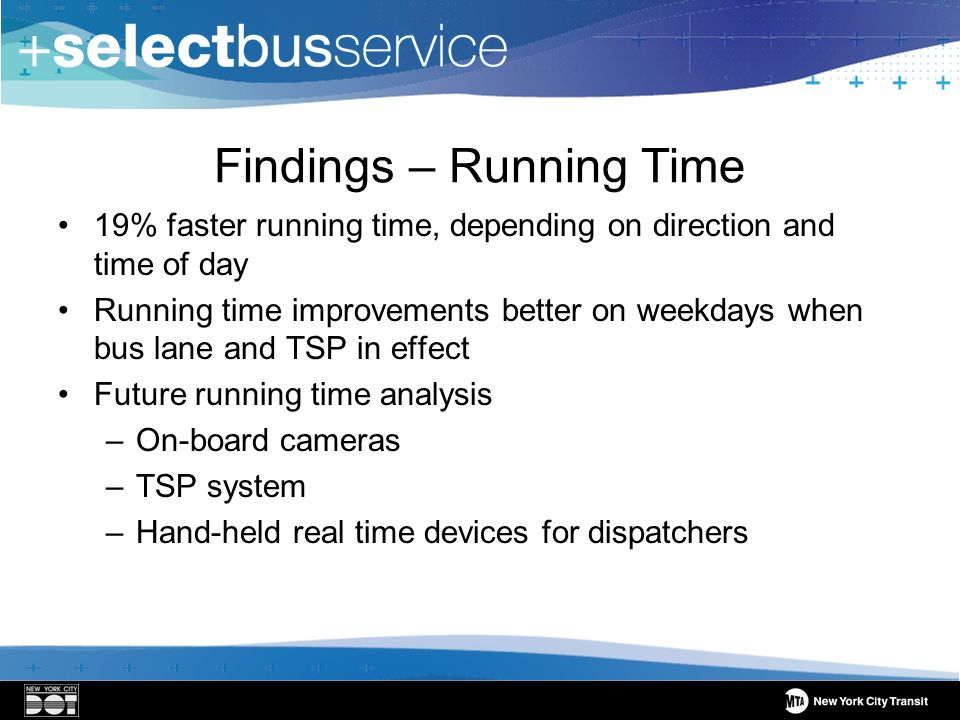

35 Findings – Running Time 19% faster running time, depending on direction and time of day Running time improvements better on weekdays when bus lane and TSP in effect Future running time analysis –On-board cameras –TSP system –Hand-held real time devices for dispatchers

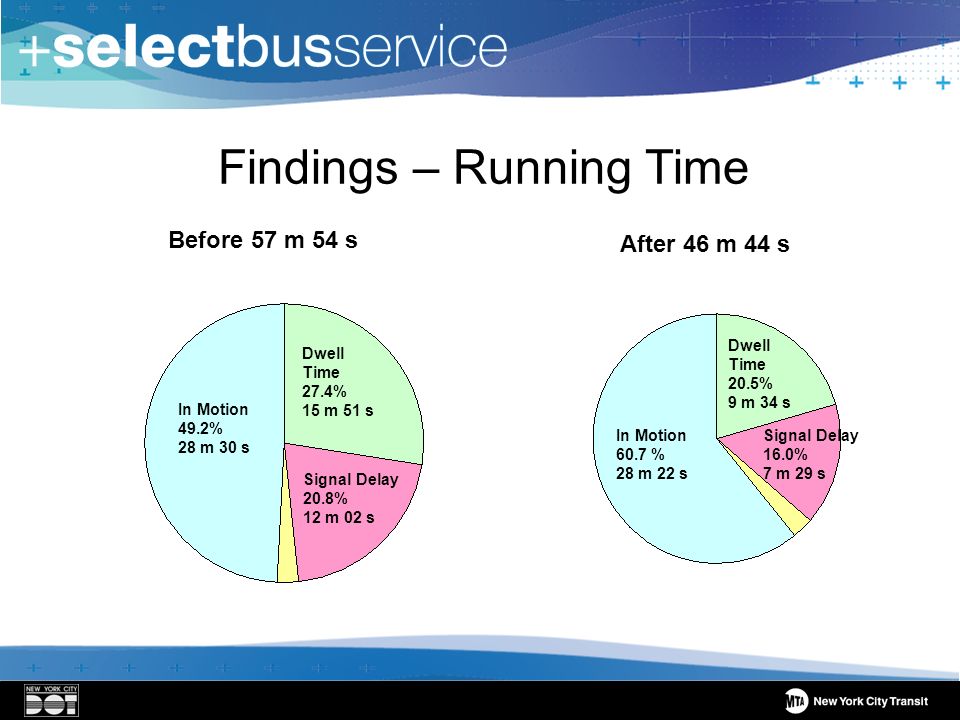

36 Findings – Running Time Before 57 m 54 s After 46 m 44 s In Motion 49.2% 28 m 30 s In Motion 60.7 % 28 m 22 s Dwell Time 27.4% 15 m 51 s Signal Delay 20.8% 12 m 02 s Dwell Time 20.5% 9 m 34 s Signal Delay 16.0% 7 m 29 s

37 Findings – Customer Response 89% of customers said that SBS service is better than the limited. Limited/BRT/SBS 74% of Customers said service improved since two months ago. 32% of local customers said service improved 30% of customers said that they were riding more frequently than before 68% of customers said that paying on the street was more convenient 84% of customers said that SBS was faster than the limited

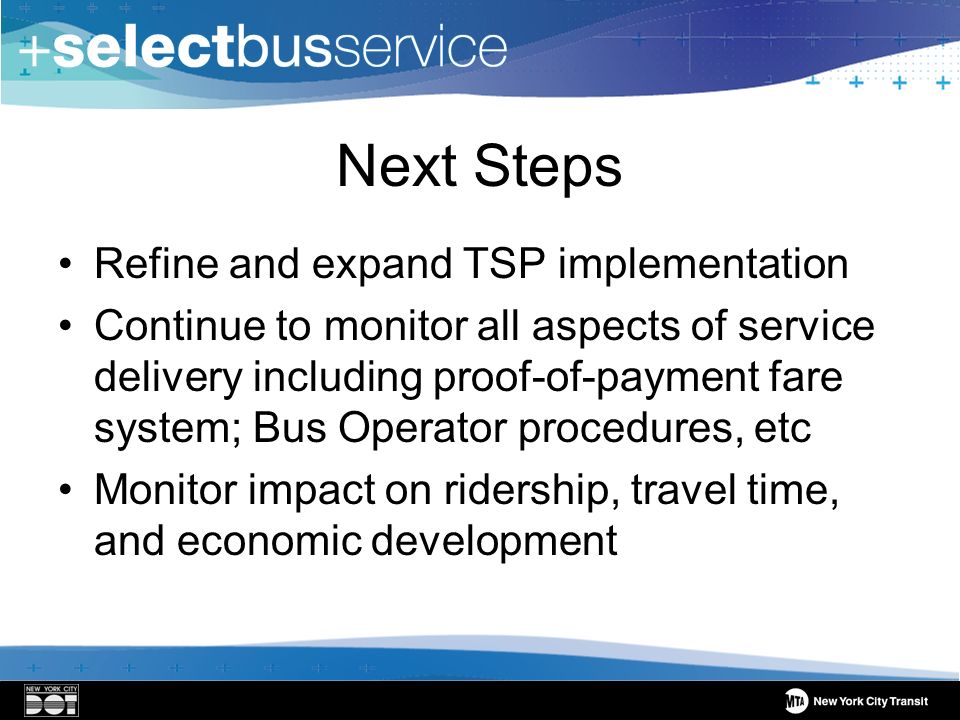

38 Next Steps Refine and expand TSP implementation Continue to monitor all aspects of service delivery including proof-of-payment fare system; Bus Operator procedures, etc Monitor impact on ridership, travel time, and economic development

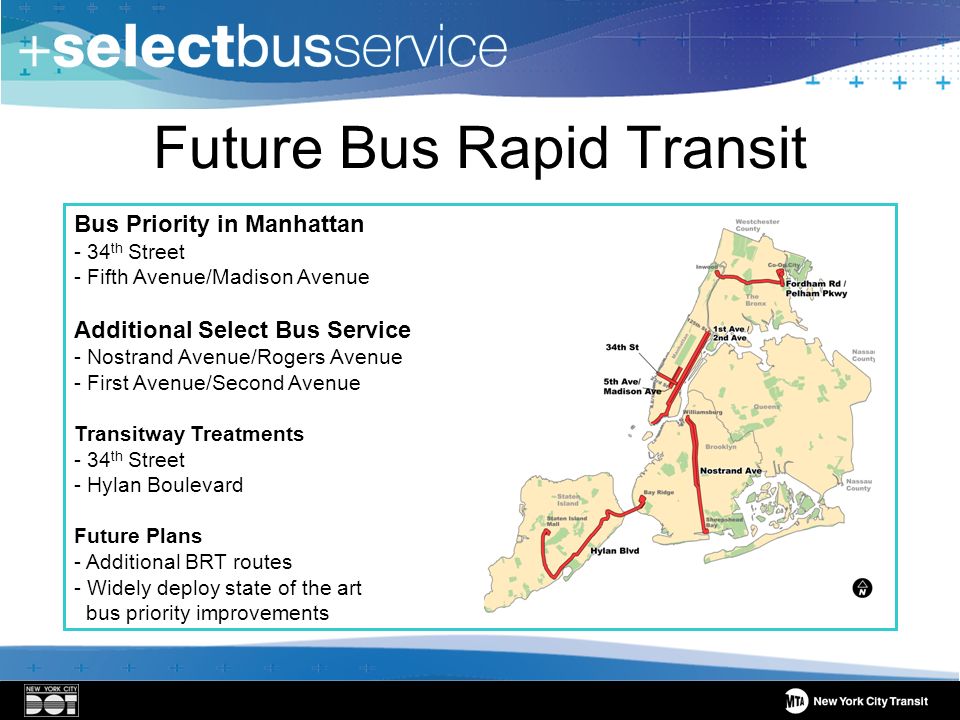

39 Future Bus Rapid Transit Bus Priority in Manhattan - 34 th Street - Fifth Avenue/Madison Avenue Additional Select Bus Service - Nostrand Avenue/Rogers Avenue - First Avenue/Second Avenue Transitway Treatments - 34 th Street - Hylan Boulevard Future Plans - Additional BRT routes - Widely deploy state of the art bus priority improvements
