1. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk RELIABLE READ ZONES FOR AUTO-ID SYSTEMS IN SUPPLY CHAINS Prof. Klaus Richter, Prof. Michael Schenk Fraunhofer Institute for Factory Operation and Automation IFF Magdeburg Germany STANDARDIZED SCREENING IN LOGISTICS AREAS MODE STIRRED CHAMBER AS NEW AUTO-ID TECHNOLOGY LOAD UNIT FINGERPRINT BY RFID / DEPTH IMAGING FOR MORE SECURITY

2. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Securing the Supply Chain Theses Security has become one of the most important cost drivers for logistics. Using advanced technologies in standardized environments is the best way to guarantee security. Multipurpose use of technologies for safety and security reduce the costs for logistics. Security audits are compulsory along the whole supply chain, from raw material delivery up to OEM / MRO / POS. Also see: Transportation & Logistics 2030. Volume 4: Securing the supply chain. PwC 2011, www.pwc.com/tl2030.

3. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Activities for Supply Chain Security (Selection) Also see: Transportation & Logistics 2030. Volume 4: Securing the supply chain. PwC 2011, www.pwc.com/tl2030.

4. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk The Goal: Standardized Screening in Logistics Areas Auto-ID and Telematics Projects in Long Process Chains Target MarketSome Facts Automotive Daimler: RFID based Automotive Network RAN 70000 tagged cargo carriers Germany – USA centralized info broker; high quality RFID tag, VDA 5510, 5501 Logistics DHL: swap bodies 800 customers, 20.000 contracted service units, 1 mio. messages/day centralized info broker; DHL telematics unit Fashion Gerry Weber; coming soon: S.Oliver, Adler … fashion companies e. g. Gerry Weber 180 shops, 25 mio. RFID/a passive RFID (tamper alarm, read protect, range reduction, status flag) Aircraft Lufthansa: RFID on spare parts R&D project 2010 RFID prototype: ATA spec. 2000, SAE AS 5678–DO160 Supplier Consolidation Center Warehouse MRO Shop

5. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Intelligent Standardized Logistics Zone Multipurpose of Technologies Intelligent Standardized Logistics Zone City Shop City Shop Cargo Hub MRO Shop Cargo Hub MRO Shop Smart Social Group Passenger Terminal Smart Infrastructure Smart Equipment Prozesssicherheit Process Safety Prozesssicherheit Process Safety Zivile Sicherheit Security Zivile Sicherheit Security Arbeitssicherheit Occupational Safety Arbeitssicherheit Occupational Safety Smart Vehicle Smart Freight Smart Vehicle Passenger Multipurpose of Technologies

6. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Fotos: ifak; Viktoria Kühne / IFF; Jan Möbius / MZ Navigation & Transportation Communication & Transportation Telematics & Logistics Saxony-Anhalt Galileo Test Bed Development Lab for Localization, Navigation and Communication in Transportation and Logistics Coordination Saxony-Anhalt Galileo Test Bed Structure

7. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Product Identification and Traceability at the IFF R&D at the Fraunhofer IFF and the Saxony-Anhalt Galileo Test Bed For MRO  Memory motor and tool management In long supply chains  Patented RFID chamber  RFID glove  Low cost depth imaging For city logistics and last mile  Secure swap bodies In internal logistics and infrastructure nodes  Hybrid localization Photos: Fraunhofer IFF and EBF

8. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Identification of Passive RFID in a Logistics Hub Function: Auto-ID Operating principle: UHF 860 – 960 MHz, backscatter technology EMC Electromagnetic compatibility – Emission and immunity 1 cm 3 1 m 3 10 m 3 100 m 3 HF-Technology 13,56 MHz Bulk reading Localization 100 m 3 Sensitivity Inductive coupling | near field  | fare field  Single reading

9. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Reliable Read Zones for Auto-ID in a Logistics Zone Function: Auto-ID Operating principle: UHF 860 – 960 MHz, mode stirred chamber EMC Electromagnetic compatibility – Emission and immunity 1 cm 3 1 m 3 10 m 3 100 m 3 HF-Technology 13,56 MHz Bulk reading localization 100 m 3 Sensitivity Inductive coupling | near field  | fare field  Single reading Bulk reading using stirring chamber IFF RFID Chamber Bulk reading using stirring chamber IFF RFID Chamber Bulk reading using stirring chamber IFF RFID Tunnel Gate Bulk reading using stirring chamber IFF RFID Tunnel Gate Excellent RFID reading performance Better radio coexistence to other RF applications Low energy output -> less false-positive readings

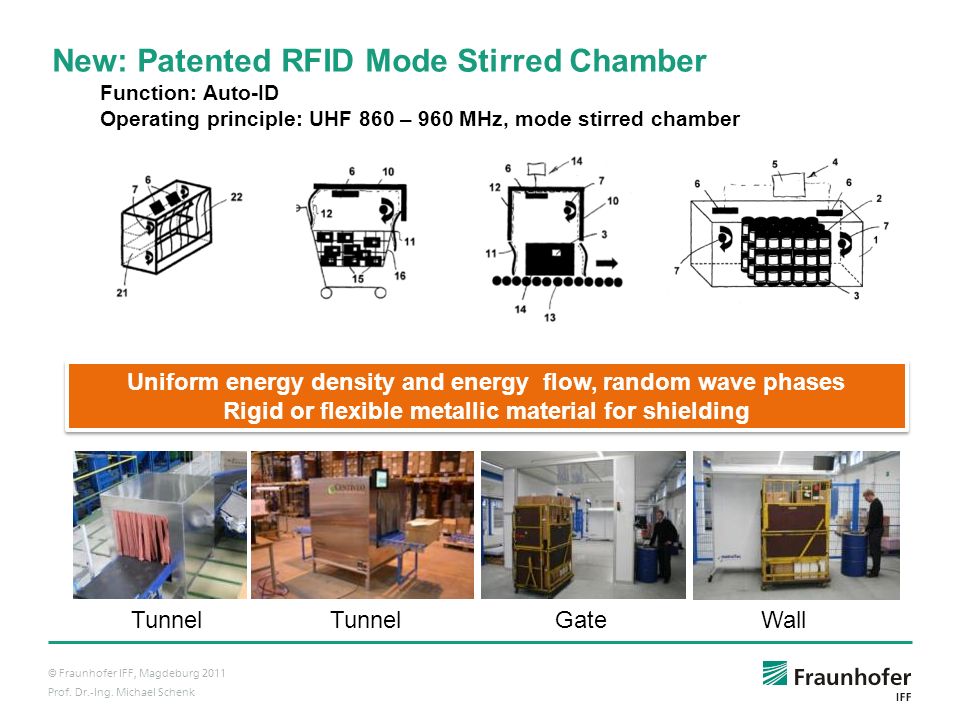

10. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk New: Patented RFID Mode Stirred Chamber Function: Auto-ID Operating principle: UHF 860 – 960 MHz, mode stirred chamber Uniform energy density and energy flow, random wave phases Rigid or flexible metallic material for shielding Uniform energy density and energy flow, random wave phases Rigid or flexible metallic material for shielding Tunnel Tunnel Gate Wall

11. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Where are Metallic Shielded Zones in the Supply Chain? A good environment for mode stirred chamber ProcessDeviceExample Sealing loading unitcontainer, ULD, swap body pallet with metallic cover mesh box TransportingVehicle with - cargo compartment - passenger compartment - engine compartment Checkfreight and cargo scanner passenger screening system loading gate, goods receipt locker room Handlingpassenger elevator goods lift Storingshelf storage room cooling chamber safe

12. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Where are Metallic Shielded Zones on Board? A good environment for mode stirred chamber Cargo compartment Passenger compartment Engine compartment

13. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Secure and Safe Cargo Compartment Cargo Compartment Check by Depth Imaging and RFID Real time security access controlRFID and depth imaging scan History scan ID: 21

14. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Secure Load Units Load Unit Fingerprint by Depth Imaging and RFID Load unitPictureDepth Imaging Scan Top View - Oblique View RFID Chemical Pallet ID: 0001 ID: 0002 ID: 0003 ID: 0004 ID: 0005 ID: 0006 …. Parcel Service ID: 0001 ID: 0002 ID: 0003 ID: 0004 ID: 0005 ID: 0006 …. Baggage Service ID: 0001 ID: 0002 ID: 0003 ID: 0004 ID: 0005 ID: 0006 ….

15. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Supplier  Consolidation Center  Warehouse  OEM POS MRO Shop Transparency in the supply chain for goods (item and case level) EAS - electronic article surveillance (item level) Transparency in the supply chain for cargo carrier (item level) Vertical Integration of RFID Solutions space for Supply Chain Transparency and EAS Multipurpose of RFID- Technologies - Tag tamper alarm - Read protect feature - Product status flag - Digital switch Multipurpose of RFID- Technologies - Tag tamper alarm - Read protect feature - Product status flag - Digital switch

16. © Fraunhofer IFF, Magdeburg 2011 Prof. Dr.-Ing. Michael Schenk Thank you for your attention! The monitoring of high value goods in international supply chain processes needs standardized screening in logistics areas to optimize costs and benefits. Auto-ID projects over all stages of vertical integration will combine supply chain transparency and EAS - this means: Process Safety and Security. RFID mode stirred chamber and low cost depth imaging may contribute to improve security and safety by a load unit fingerprint during the long supply chain. Summary Prof. Klaus Richter, klaus.richter@iff.fraunhofer.de
