1. Department of Computer Science University of Virginia The Practicality of Multi-Tag RFID Systems Leonid Bolotnyy Scott Krize Gabriel Robins

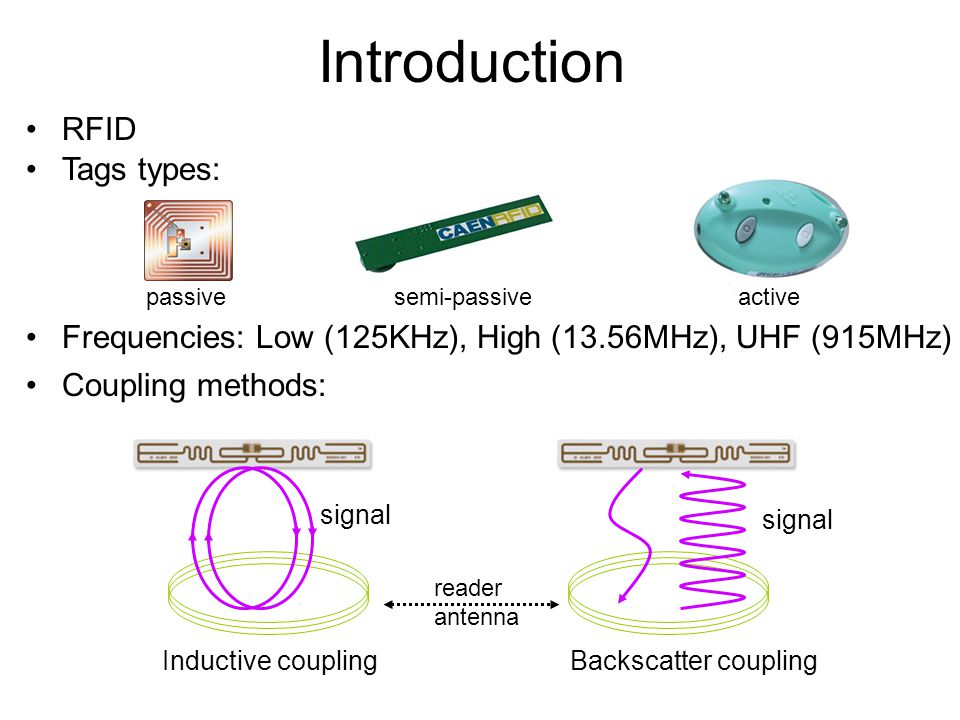

2. Introduction RFID passivesemi-passiveactive Tags types: Frequencies: Low (125KHz), High (13.56MHz), UHF (915MHz) Coupling methods: reader antenna signal Inductive couplingBackscatter coupling

3. History Auto-ID Center formed - 1999 EPCglobal formed - 2004 Radar invented - 1935 EAS invented - early 1960’s First RFID book published - 1999 First RFID patent filed - 1973 First RFID game marketed - 2006

4. Object Identification Bar-codes vs. RFID –line-of-sight –scanning rate Unreliability of object detection –radio noise is ubiquitous –temperature and humidity –objects/readers moving speed –liquids and metals are opaque to RF milk, water, juice metal-foil wrappers –object occlusion –number of objects grouped together –tag variability and receptivity –tag aging

5. Case Studies Defense Logistics Agency trials (2001) –3% of moving objects did not reach destination –20% of tags recorded at every checkpoint –2% of a tag type detected at 1 checkpoint –some tags registered on arrival but not departure Wal-Mart experiments (2005) –90% tag detection at case level –95% detection on conveyor belts –66% detection inside fully loaded pallets

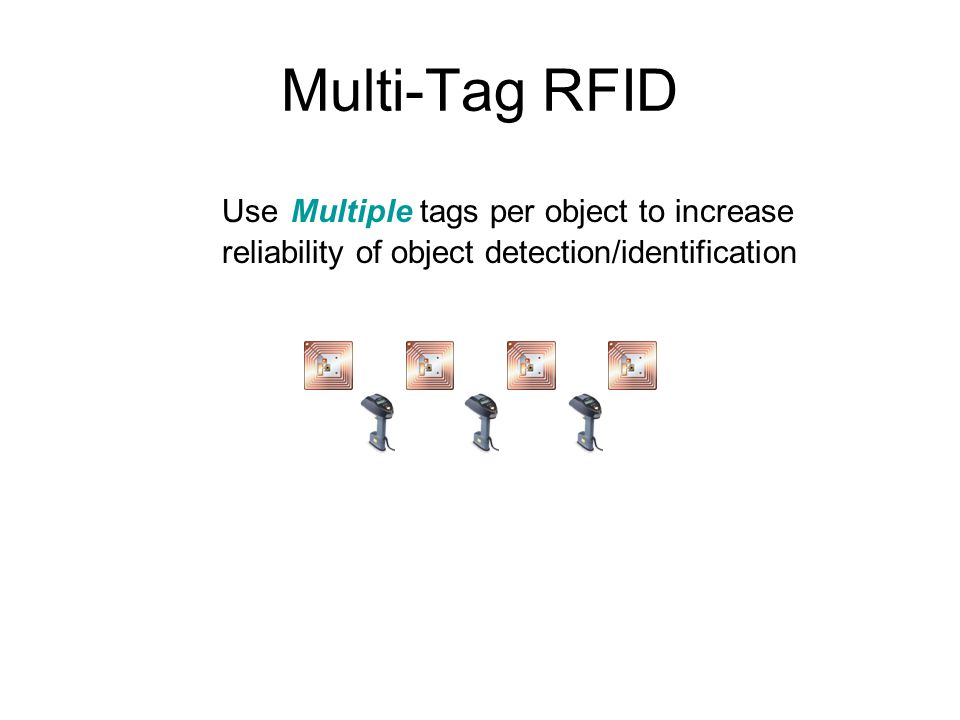

6. Multi-Tag RFID Use Multiple tags per object to increase reliability of object detection/identification

7. The Power of an Angle Inductive coupling: voltage ~ sin(β), distance ~ (power) 1/6 Far-field propagation: voltage ~ sin 2 (β), distance ~ (power) 1/2 B-field β Optimal Tag Placement: 1 4 3 2

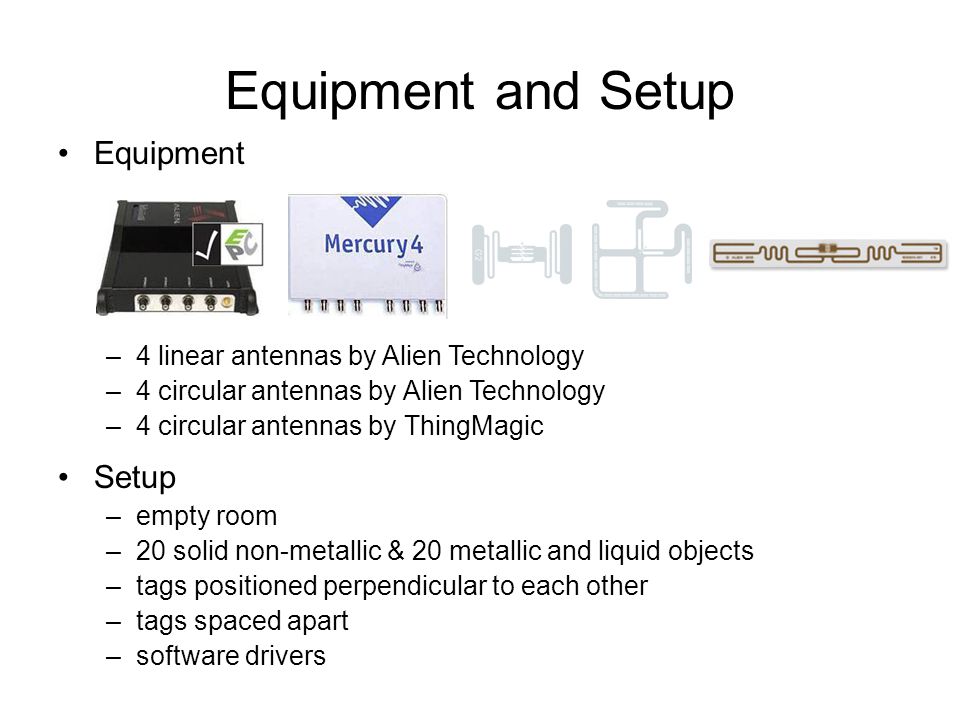

8. Equipment and Setup Equipment Setup –empty room –20 solid non-metallic & 20 metallic and liquid objects –tags positioned perpendicular to each other –tags spaced apart –software drivers –4 linear antennas by Alien Technology –4 circular antennas by Alien Technology –4 circular antennas by ThingMagic

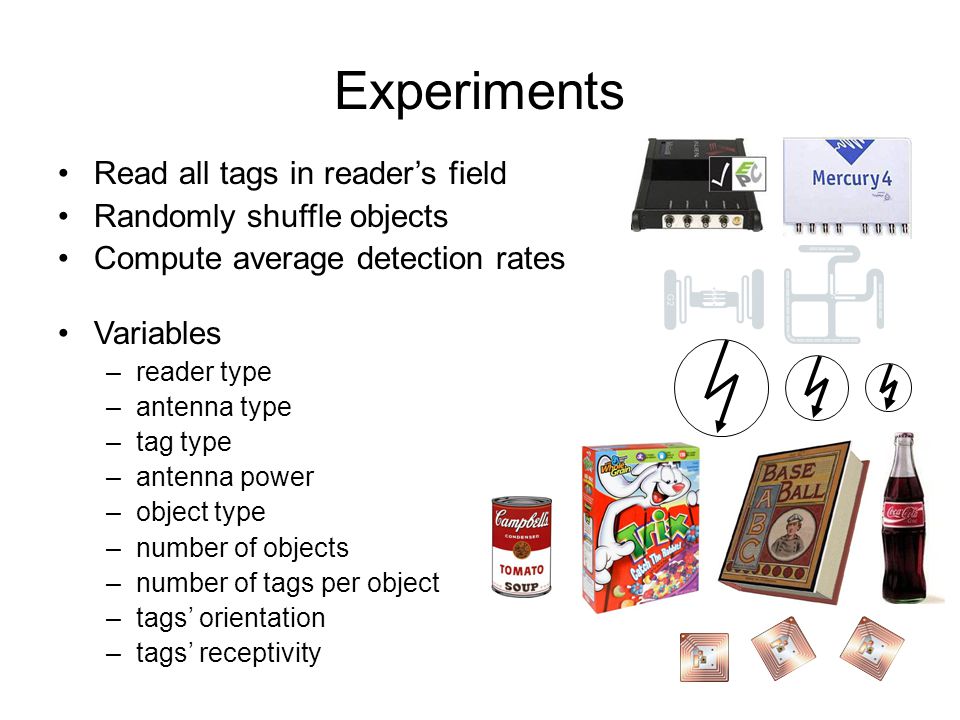

9. Experiments Read all tags in reader’s field Randomly shuffle objects Compute average detection rates Variables –reader type –antenna type –tag type –antenna power –object type –number of objects –number of tags per object –tags’ orientation –tags’ receptivity

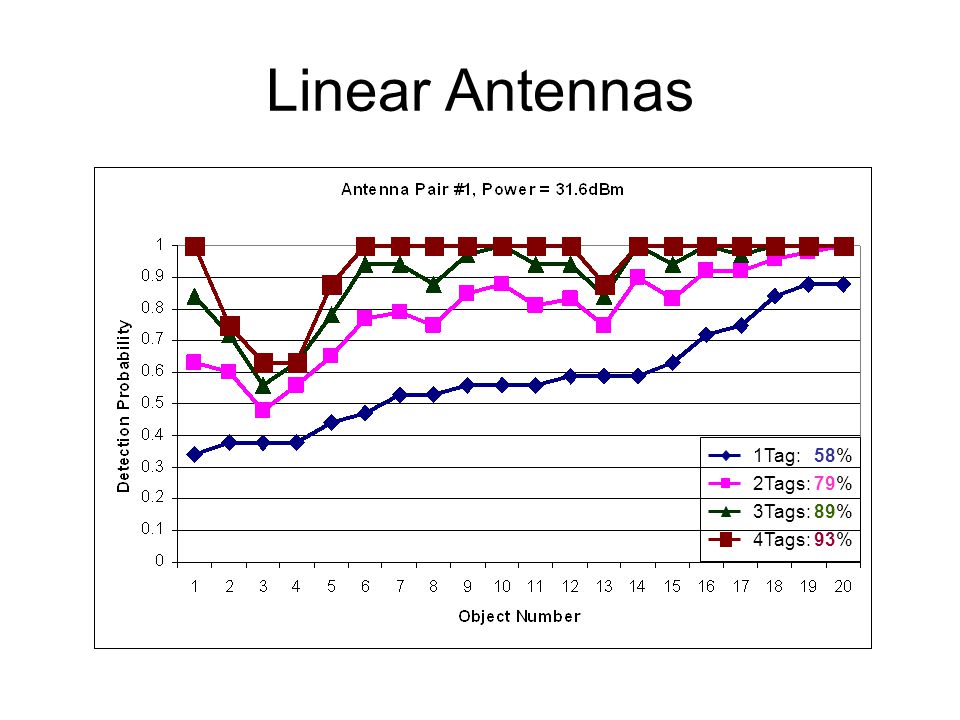

10. Linear Antennas 1Tag: 58% 2Tags: 79% 3Tags: 89% 4Tags: 93%

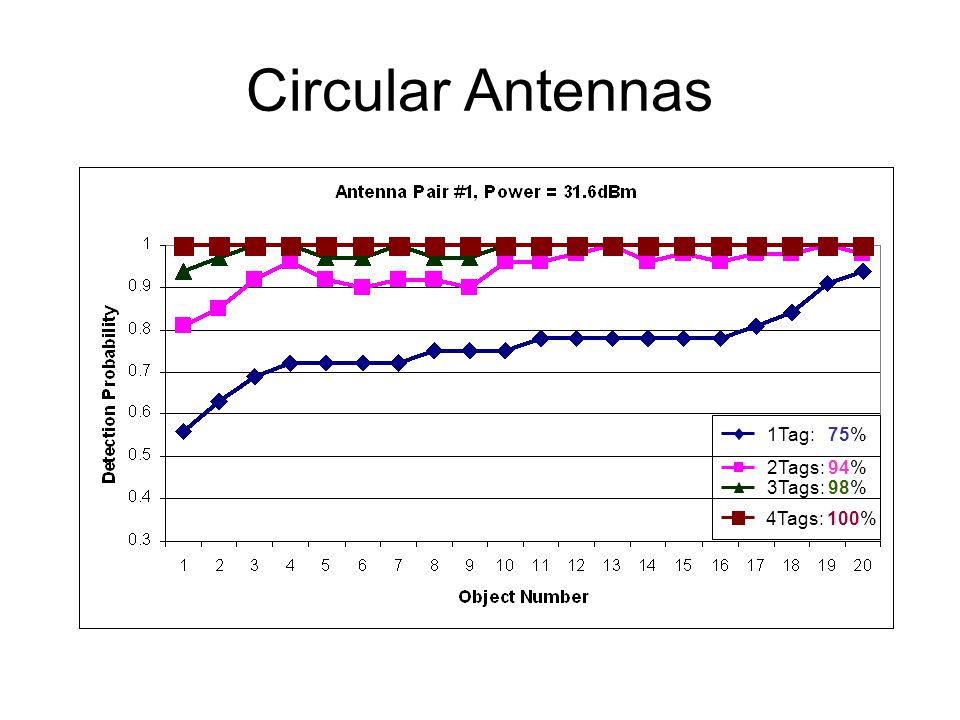

11. Circular Antennas 1Tag: 75% 2Tags: 94% 3Tags: 98% 4Tags: 100%

12. Linear Antennas vs. Multi-tags 1 Reader, 1 Tag 58.0% 2 Readers, 1 Tag 64.9% 1 Reader, 2 Tags 79.3% 2 Readers, 2 Tags 84.5% Δ=21.3% Δ=19.8% Δ= 5.2% Δ=14.4% Δ= 6.9%

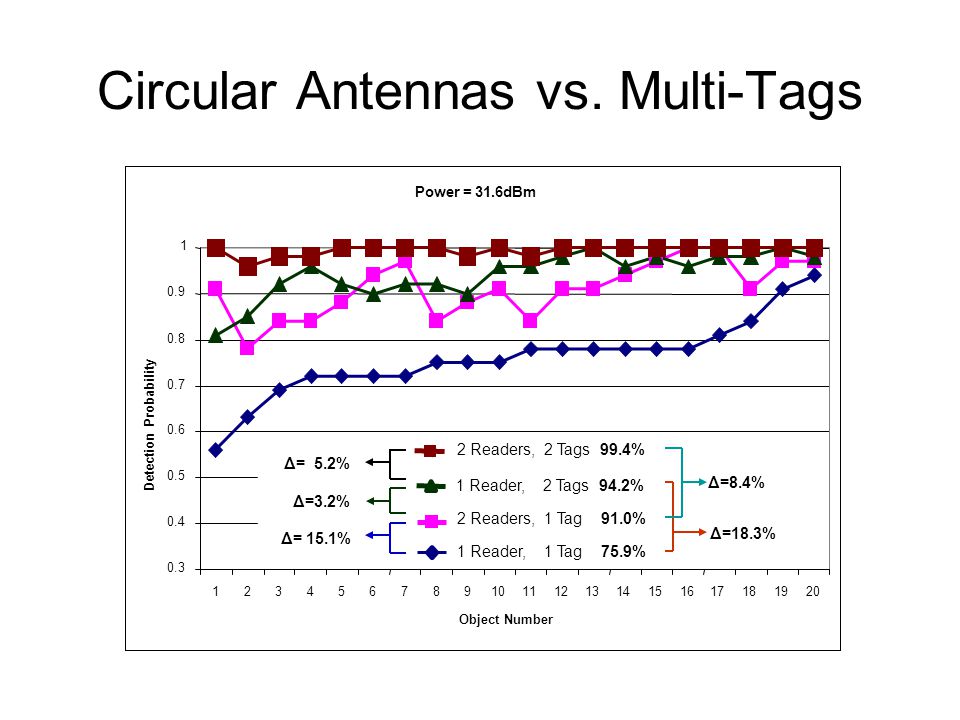

13. Circular Antennas vs. Multi-Tags Power = 31.6dBm 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1234567891011121314151617181920 Object Number Detection Probability 1 Reader, 1 Tag 75.9% 2 Readers, 1 Tag 91.0% 1 Reader, 2 Tags 94.2% 2 Readers, 2 Tags 99.4% Δ=18.3% Δ=8.4% Δ= 5.2% Δ=3.2% Δ= 15.1%

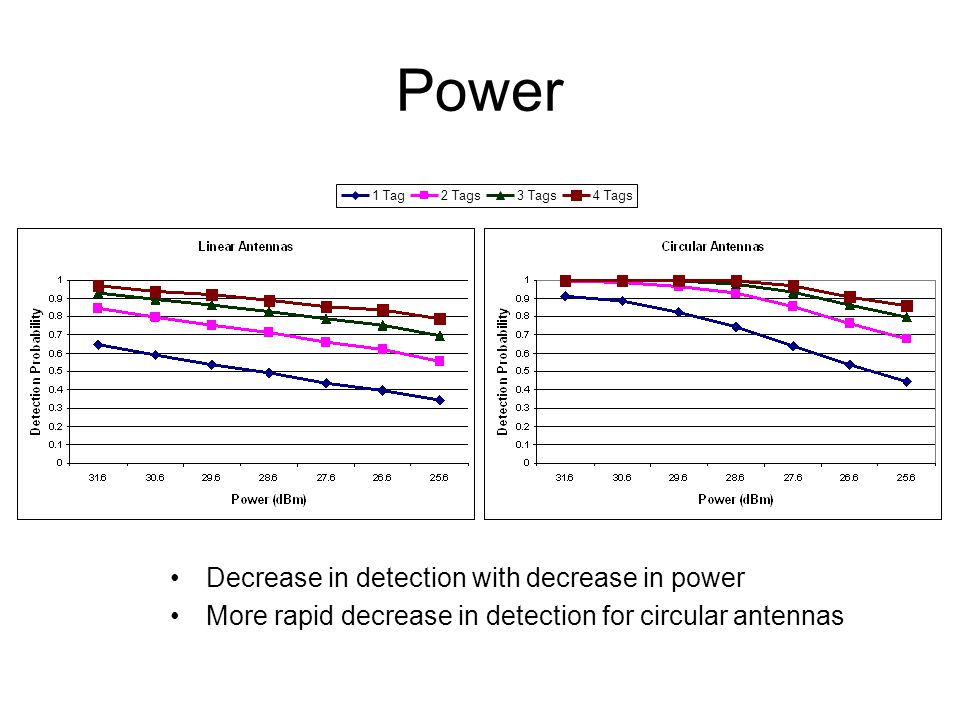

14. 1 Tag2 Tags3 Tags4 Tags Power Decrease in detection with decrease in power More rapid decrease in detection for circular antennas

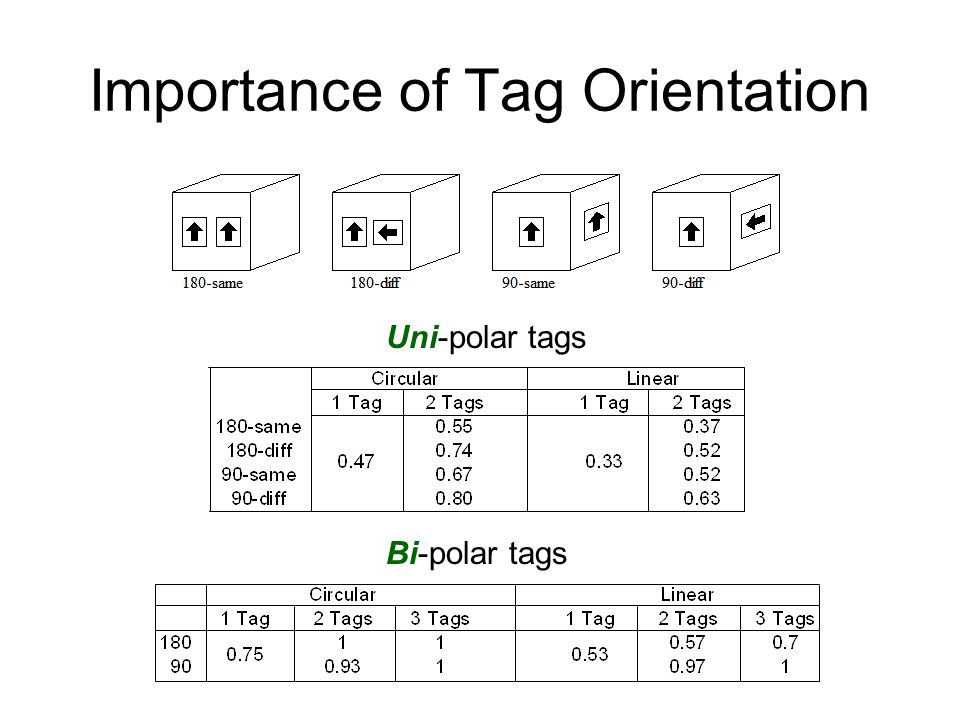

15. Importance of Tag Orientation Uni-polar tags Bi-polar tags

16. Controlling Variables 1.Radio noise 2.Tag variability 3.Reader variability 4.Reader power level 5.Distance to objects & type, # of antennas

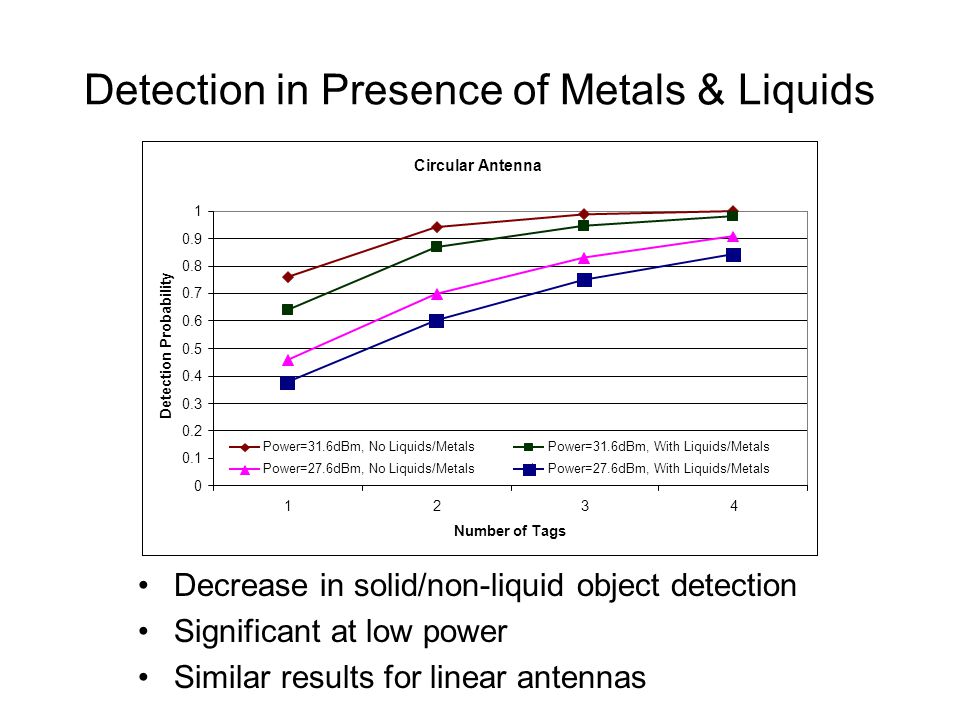

17. Detection in Presence of Metals & Liquids Power=31.6dBm, No Liquids/MetalsPower=31.6dBm, With Liquids/Metals Power=27.6dBm, No Liquids/Metals Power=27.6dBm, With Liquids/Metals Circular Antenna 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1234 Number of Tags Detection Probability Decrease in solid/non-liquid object detection Significant at low power Similar results for linear antennas

18. Low detection probabilities Drop in detection at low power Linear antennas outperform circular Multi-tags better than multiple readers Multi-Tags on Metals and Liquids

19. Varying Number of Objects Experiment 1: 15 solid non-metallic & 15 liquids and metals Experiment 2: 20 solid non-metallic & 20 liquids and metals Metals & Liquids ∆ : 3%-13%

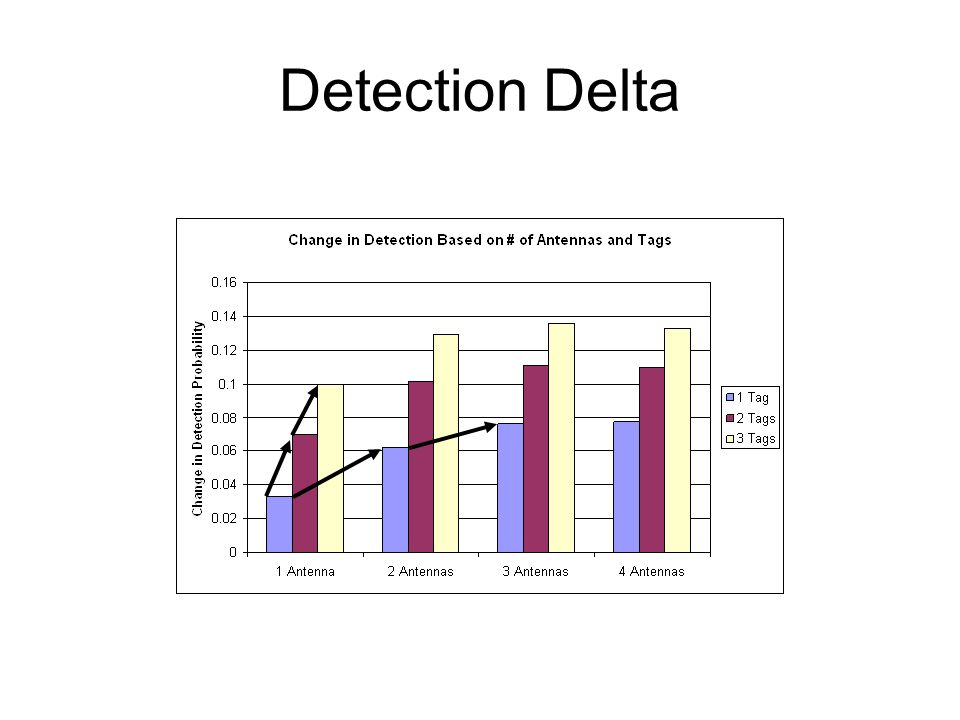

20. Detection Delta

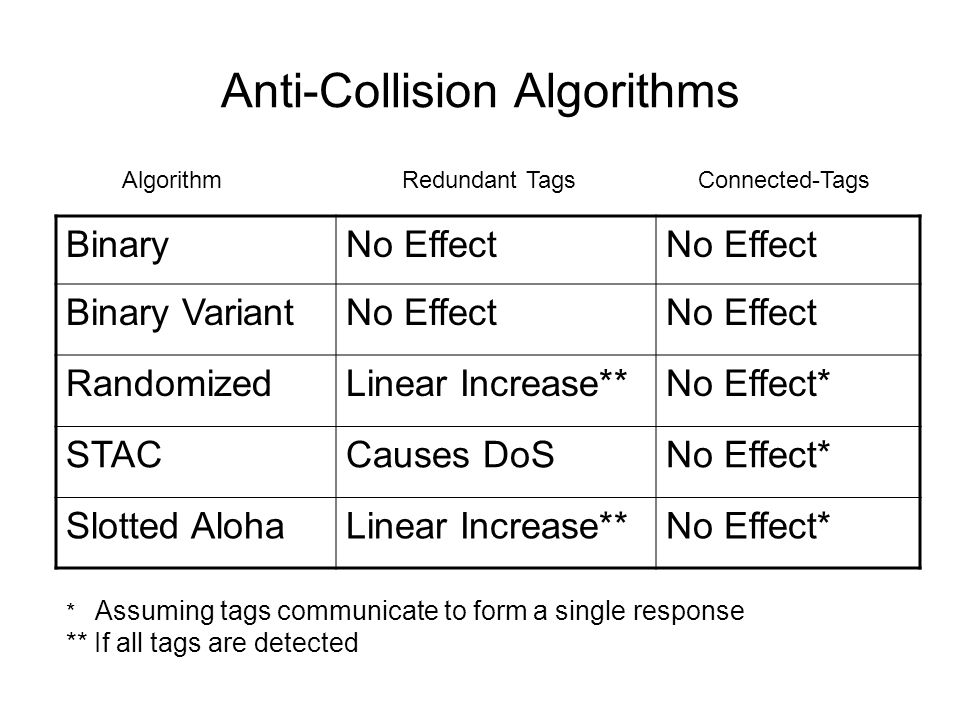

21. Anti-Collision Algorithms BinaryNo Effect Binary VariantNo Effect RandomizedLinear Increase**No Effect* STACCauses DoSNo Effect* Slotted AlohaLinear Increase**No Effect* AlgorithmRedundant TagsConnected-Tags * Assuming tags communicate to form a single response ** If all tags are detected

22. Applications of Multi-Tags ReliabilityAvailability Safety Localization

23. More Applications Tagging Bulk MaterialsPackaging Theft PreventionSecurity

24. Economics of Multi-Tags YearCost Rapid decrease in passive tag cost 5 cent tag expected in 2008 1 penny tag in a few years

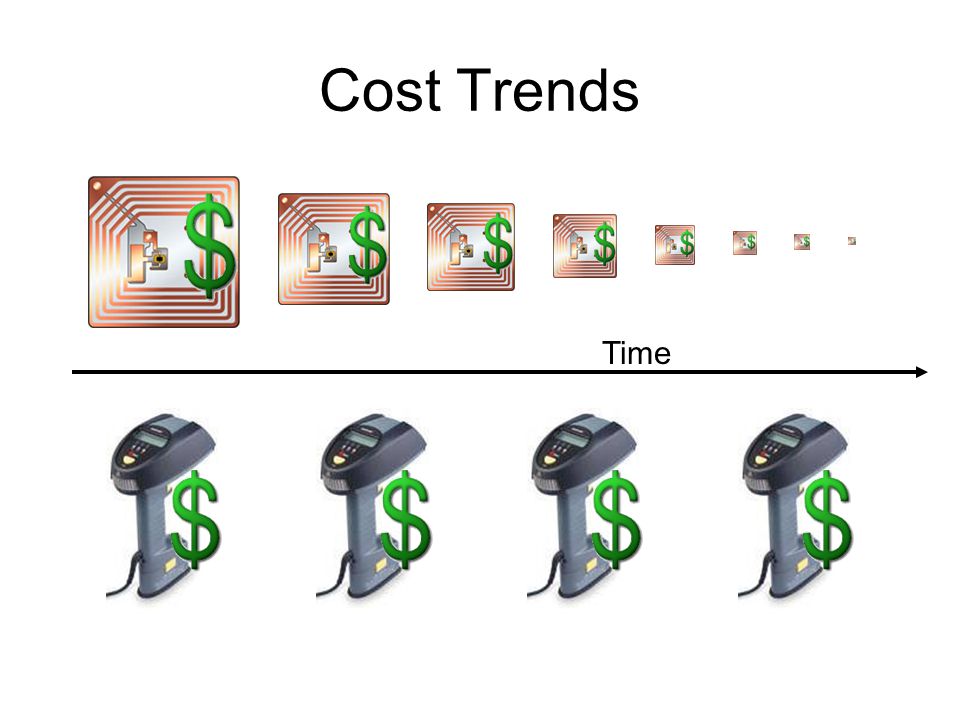

25. Cost Trends Time

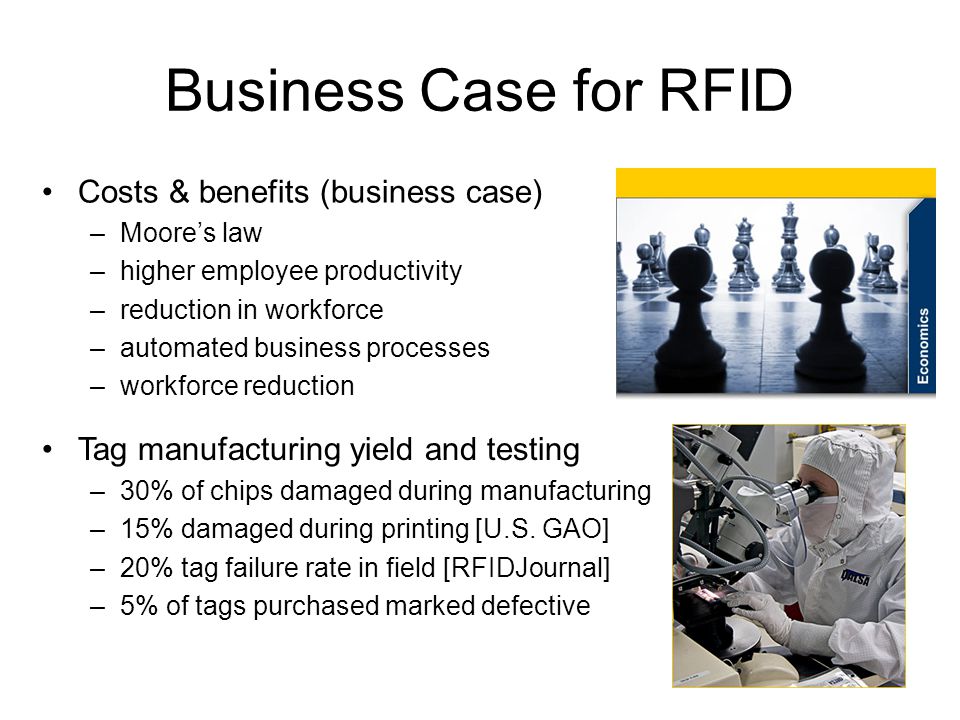

26. Business Case for RFID Costs & benefits (business case) –Moore’s law –higher employee productivity –reduction in workforce –automated business processes –workforce reduction Tag manufacturing yield and testing –30% of chips damaged during manufacturing –15% damaged during printing [U.S. GAO] –20% tag failure rate in field [RFIDJournal] –5% of tags purchased marked defective

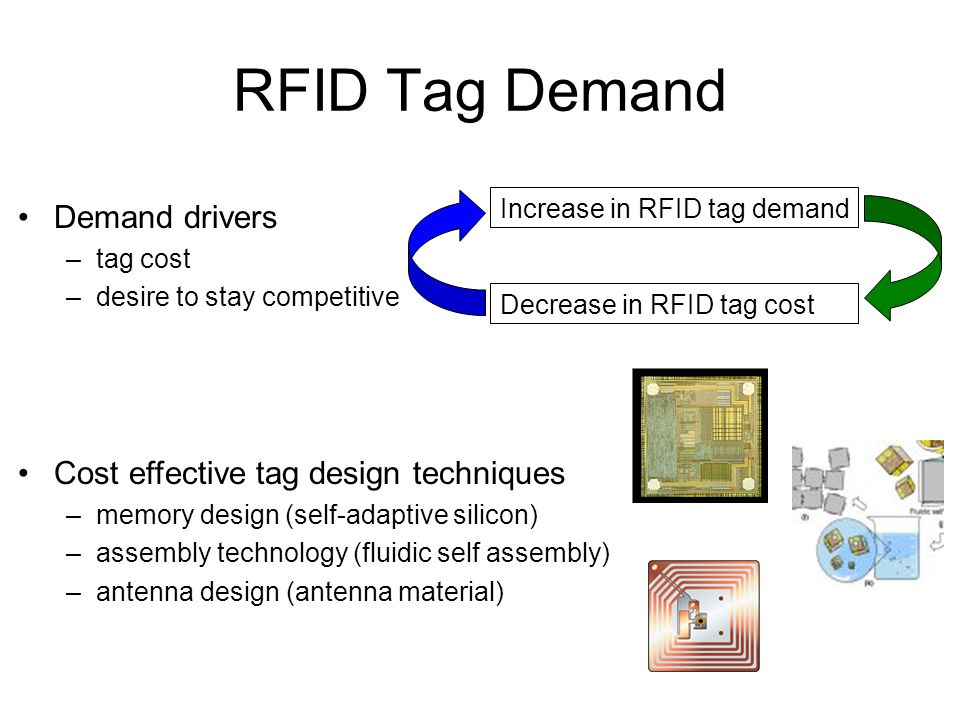

27. RFID Tag Demand Demand drivers –tag cost –desire to stay competitive Cost effective tag design techniques –memory design (self-adaptive silicon) –assembly technology (fluidic self assembly) –antenna design (antenna material) Increase in RFID tag demand Decrease in RFID tag cost

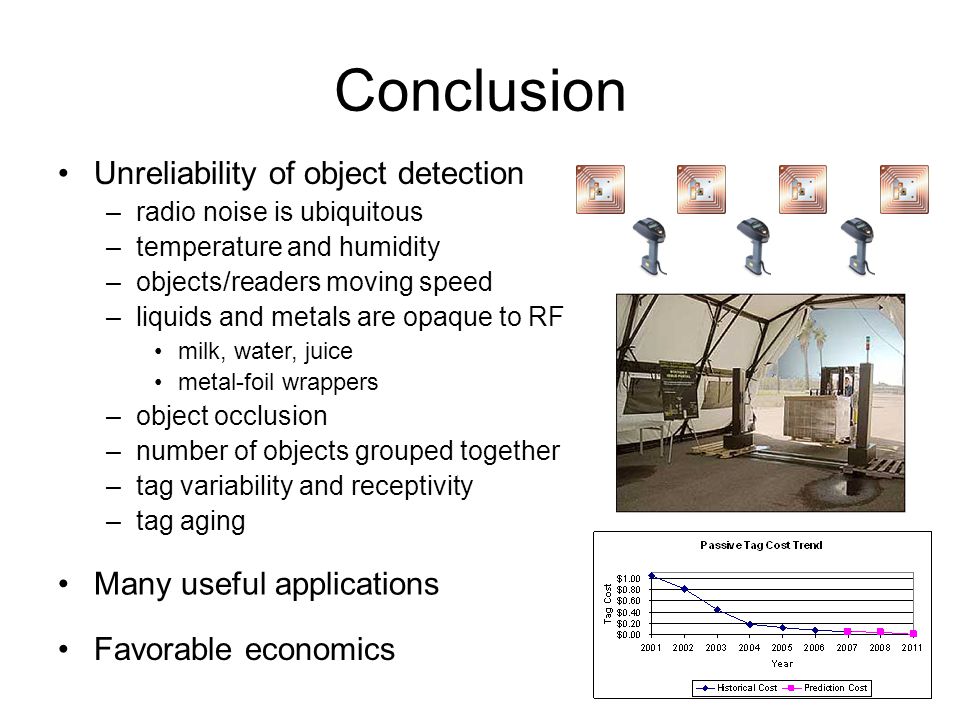

28. Conclusion Unreliability of object detection –radio noise is ubiquitous –temperature and humidity –objects/readers moving speed –liquids and metals are opaque to RF milk, water, juice metal-foil wrappers –object occlusion –number of objects grouped together –tag variability and receptivity –tag aging Many useful applications Favorable economics

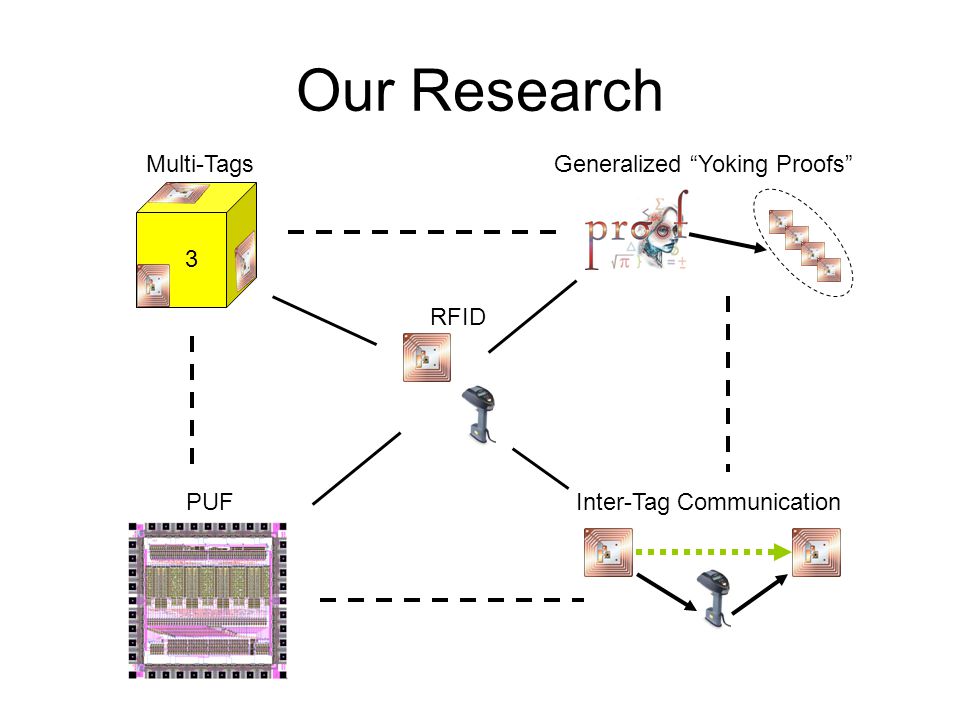

29. Our Research Generalized “Yoking Proofs” 3 Multi-Tags PUFInter-Tag Communication RFID

30. Thank You Questions?
