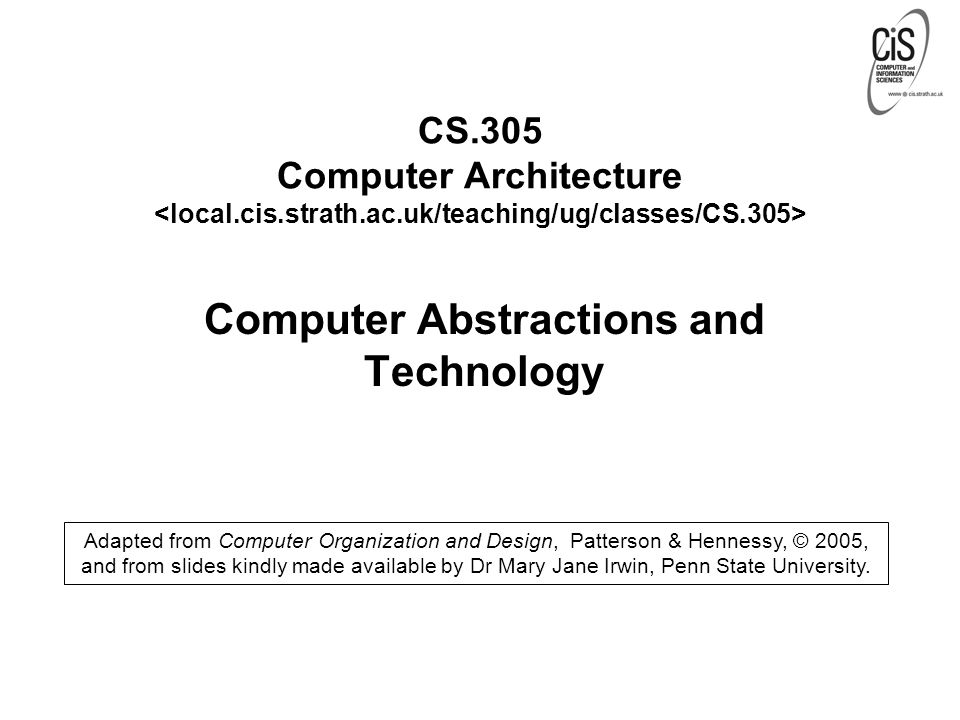

1. CS.305 Computer Architecture Computer Abstractions and Technology Adapted from Computer Organization and Design, Patterson & Hennessy, © 2005, and from slides kindly made available by Dr Mary Jane Irwin, Penn State University.

2. Instructions: Language of the ComputerCS305_03/2 Instruction Sets  Language of the Machine  We’ll be working with the MIPS instruction set architecture  Similar to other architectures developed since the 1980's  Almost 100 million MIPS processors manufactured in 2002  Used by NEC, Nintendo, Cisco, Silicon Graphics, Sony, …

3. Instructions: Language of the ComputerCS305_03/3 MIPS is a RISC  RISC - R educed I nstruction S et C omputer  RISC philosophy  fixed instruction lengths  load-store instruction sets  limited addressing modes  limited operations  MIPS, Sun SPARC, HP PA-RISC, IBM PowerPC, Intel (Compaq) Alpha, …  Instruction sets are measured by how well compilers use them as opposed to how well assembly language programmers use them Design goals: speed, cost (design, fabrication, test, packaging), size, power consumption, reliability, memory space (embedded systems)

4. Instructions: Language of the ComputerCS305_03/4 MIPS R3000 Instruction Set Architecture (ISA)  Instruction Categories  Computational  Load/Store  Jump and Branch  Floating Point coprocessor  Memory Management  Special R0 - R31 PC HI LO Registers  Instruction Formats  R - Register  I - Immediate  J - Jump

5. Instructions: Language of the ComputerCS305_03/5  Three basic formats: MIPS Instruction Formats R-formatoprsrtrdshamtfunct I-formatoprsrt16-bit address/number J-formatop26-bit address  Simple instructions - all 32 bits wide  Very structured, no unnecessary baggage  Rely on compiler to achieve performance — what are the compiler's goals?  [Suggests another version of the acronym RISC ;-)]  Q: Why only three basic formats?  A: Design Principle #1…

6. Instructions: Language of the ComputerCS305_03/6 Design Principle #1 Simplicity favours regularity  The fixed-width and limited number of instruction formats keeps the hardware simple  One example of this first underlying principle of hardware design in action

7. Instructions: Language of the ComputerCS305_03/7 Registers vs. Memory ProcessorI/O Control Datapath Memory Input Output  Arithmetic instructions operands must be registers, — only 32 registers provided  Compiler associates variables with registers  What about programs with lots of variables?

8. Instructions: Language of the ComputerCS305_03/8 Memory Organization  Viewed as a large, single-dimension array, with an address.  A memory address is an index into the array  "Byte addressing" means that the index points to a byte of memory. 0 1 2 3 4 5 6... 8 bits of data

9. Instructions: Language of the ComputerCS305_03/9 Memory Organization  Bytes are nice, but most data items use larger "words"  For MIPS, a word is 32 bits or 4 bytes.  2 32 bytes with byte addresses from 0 to 2 32 -1  2 30 words with byte addresses 0, 4, 8,... 2 32 -4  Words are aligned What are the least 2 significant bits of a word address? 0 4 8 12... 32 bits of data Registers hold 32 bits of data

10. Instructions: Language of the ComputerCS305_03/10  Instructions, like registers and words of data, are also 32 bits long  Example: add $t1,$s1,$s2  Registers have numbers, $t1=9,$s1=17,$s2=18  Above add 's machine language instruction encoding: Machine Language 00000010001100100100100000100000 oprsrtrdshamtfunct Can you guess what the field names, such as 'op', stand for?

11. Instructions: Language of the ComputerCS305_03/11 MIPS Computational Operations  Computational (arithmetic and logical) instructions have 3 operands. Example: C code: a = b + c MIPS ‘code’: add a, b, c (we’ll talk about registers in a bit) “The natural number of operands for an operation like addition is three…requiring every instruction to have exactly three operands, no more and no less, conforms to the philosophy of keeping the hardware simple”

12. Instructions: Language of the ComputerCS305_03/12 MIPS Arithmetic Instructions  MIPS assembly language arithmetic statement examples: add$t0,$s1,$s2 sub$t0,$s1,$s2  Each arithmetic instruction performs only one operation  Each arithmetic instruction fits in 32 bits and specifies exactly three operands destination  source1 op source2  Those operands are all contained in the datapath’s register file ( $t0,$s1,$s2 ) – indicated by $  Operand order is fixed (destination first in the assembly language statement)

13. Instructions: Language of the ComputerCS305_03/13 MIPS Arithmetic  Remember "Simplicity favors regularity"  Of course this complicates some things... C code: a = b + c + d; MIPS 'code': add a, b, c add a, a, d  Each register contains 32 bits  Operands must be registers, but only 32 registers available  Q: Why only 32 registers?  A: Design Principle #2…

14. Instructions: Language of the ComputerCS305_03/14 Design Principle #2 Smaller is Faster  Operands of arithmetic instructions cannot be arbitrary (program) variables; they must come from a limited number of special operands called registers.  One major difference between program variables and registers is the limited number of registers - 32 in MIPS.  A very large number of registers would increase the clock cycle time as electronic signals take longer the further they have to travel.  This is one illustration of this second underlying principle of hardware design

15. Instructions: Language of the ComputerCS305_03/15 Aside: MIPS Register Conventions Name Register Number Usage Preserved on call? $zero 0 The constant value 0 n.a. $at 1 Reserved for the assembler n.a. $v0-$v1 2-3 Values for results and expression evaluation no $a0-$a3 4-7 arguments no $t0-$t7 8-15 temporaries no $s0-$s7 16-23 saved yes $t8-$t9 24-25 More temporaries no $k0-$k1 26-27 Reserved for the operating system n.a. $gp 28 Global pointer yes $sp 29 Stack pointer yes $fp 30 Frame pointer yes $ra 31 Return address yes

16. Instructions: Language of the ComputerCS305_03/16 Aside: MIPS Register File  Holds thirty-two 32-bit registers  Two read ports and  One write port  Registers are  Faster than main memory But register files with more locations are slower (e.g., a 64 word file could be as much as 50% slower than a 32 word file) Read/write port increase impacts speed quadratically  Easier for a compiler to use  Convenient places to hold variables code density improves (since register are named with fewer bits than a memory location) write data Register File src1 addr src2 addr dst addr 32 bits src1 data src2 data 32 locations 32 5 5 5 write control

17. Instructions: Language of the ComputerCS305_03/17 Recap: R-format Instructions op opcode that specifies the operation rs register file address of the first source operand rt register file address of the second source operand rd register file address of the result’s destination shamt shift amount (for shift instructions) funct function code augmenting the opcode oprsrtrdshamtfunct 6-bits5-bits 6-bits

18. Instructions: Language of the ComputerCS305_03/18 Register Addressing Mode  The register address fields are rs, rt, and rd. Each field is 5-bits wide oprsrtrdshamtfunct 6-bits5-bits 6-bits Registers Register ($rd) Register addressing oprsrtrds…f… Register ($rt) Register ($rs)

19. Instructions: Language of the ComputerCS305_03/19 Load and Store Instructions  Example: C code: A[12] = h + A[8]; MIPS code: lw $t0,32($s3) add $t0,$s2,$t0 sw $t0,48($s3)  Destination is last in the store word AL statement  Remember arithmetic operands are registers, not memory! Can’t write: add 48($s3),$s2,32($s3)

20. Instructions: Language of the ComputerCS305_03/20 Our First Example  Can we figure out the code? swap(int v[], int k); { int temp; temp = v[k] v[k] = v[k+1]; v[k+1] = temp; } swap: muli $2,$5,4 add $2,$4,$2 lw $15,0($2) lw $16,4($2) sw $16,0($2) sw $15,4($2) jr $31 

21. Instructions: Language of the ComputerCS305_03/21 So far we’ve learned:  MIPS — loading words but addressing bytes — arithmetic on registers only  InstructionMeaning add $s1,$s2,$s3$s1 = $s2 + $s3 sub $s1,$s2,$s3$s1 = $s2 – $s3 lw $s1,100($s2)$s1 = Memory[$s2+100] sw $s1,100($s2)Memory[$s2+100] = $s1

22. Instructions: Language of the ComputerCS305_03/22  Consider load-word and store-word instructions and the design principle Simplicity Favours Regularity…  …so use another (existing) type of (32-bit) instruction format other than R-type:  I-type for data transfer instructions  Example: lw $t0,32($s2) MIPS Load/Store Instruction Format 3518932 oprsrt16-bit number/offset  Q: Why only a 16-bit number/offset?  A: Design Principle #3…

23. Instructions: Language of the ComputerCS305_03/23 Design Principle #3 Good Design Demands Good Compromises  A single (R-type) instruction format is not well suited to instructions - like lw and sw - that specify address as well as register operands. If the address field was to be allocated to one of the 5-bit fields, say, then such instructions could only address 32 (2 5 ) words!  The conflict between having instructions all the same length and the desire to have a single format leads to this third underlying principle of hardware design.  One compromise in MIPS is to have a small number of different fixed-width instruction formats rather than instructions of varying length. Multiple formats do complicate the hardware, but the complexity can be minimised by keeping them similar.

24. Instructions: Language of the ComputerCS305_03/24 MIPS Load/Store Memory Addressing  MIPS has two basic data transfer instructions for accessing memory: lw$t0, 4($s3) # load word from memory sw$t0, 8($s3) # store word to memory  Data is loaded into ( lw ) or stored from ( sw ) a register in the register file – a 5 bit address  The memory address – a 32 bit address – is formed by adding the contents of a base address register to an offset value  A 16-bit field means access is limited to memory locations within a region of  2 13 or 8,192 words (  2 15 or 32,768 bytes) of the address in the base register  Note that the offset can be positive or negative

25. Instructions: Language of the ComputerCS305_03/25 Base (displacement) Addressing Mode  Base (displacement) addressing – operand is at the memory location whose address is the sum of a register and a 16-bit constant contained within the instruction Memory Byte/Halfword/Word Base addressing oprsrtoffset Register ($rs)

26. Instructions: Language of the ComputerCS305_03/26  Instructions are bits  Programs are stored in memory  to be read or written just like data  Fetch & Execute Cycle  Instructions are fetched and put into a special register  Bits in the register "control" the subsequent actions  Fetch the “next” instruction and continue Stored Program Concept

27. Instructions: Language of the ComputerCS305_03/27  Decision making instructions  alter the control flow,  i.e., change the "next" instruction to be executed  MIPS conditional branch instructions: bne $t0,$t1,Label beq $t0,$t1,Label  Example: C MIPS if (i==j)bne $s0,$s1,Label h = i + j; add $s3,$s0,$s1 Label:.... Control

28. Instructions: Language of the ComputerCS305_03/28  MIPS unconditional branch instructions: j label  Example: CMIPS if (i!=j) beq $s4,$s5,Lab1 h=i+j;add $s3,$s4,$s5 else j Lab2 h=i-j;Lab1: sub $s3,$s4,$s5 Lab2:... Can you build a simple for loop? Control

29. Instructions: Language of the ComputerCS305_03/29 Recap:  InstructionMeaning add $s1,$s2,$s3$s1 = $s2 + $s3 sub $s1,$s2,$s3$s1 = $s2 – $s3 lw $s1,100($s2)$s1 = Memory[$s2+100] sw $s1,100($s2)Memory[$s2+100] = $s1 bne $s4,$s5,LabelNext ins. at Label if $s4≠$s5 beq $s4,$s5,LabelNext ins. at Label if $s4=$s5 j LabelNext ins. at Label  Formats: R-formatoprsrtrdshamtfunct I-formatoprsrt16-bit address/number J-formatop26-bit address

30. Instructions: Language of the ComputerCS305_03/30  We have: beq, bne, what about blt (branch-if-less- than)?  New instruction: slt $t0,$s1,$s2  if $s1 < $s2 then $t0 = 1 else $t0 = 0  Can use slt to synthesise " blt $s1,$s2,Label " — can now build general control structures  Note that the assembler needs a register to do this,  $at More Control 'Instructions'

31. Instructions: Language of the ComputerCS305_03/31  Constant (immediate) operands are frequently used in programs e.g., A = A + 4; B = B + 1; C = C - 16;  Possible approaches?  put 'typical constants' in memory and load them.  create hard-wired registers (like $zero) for constants like 1.  have special instructions that contain constants !  Note: small constants are very common (>50% of operands)  Q: Which instruction format(s) to use?  A: See Design Principle #4… Constants

32. Instructions: Language of the ComputerCS305_03/32 Design Principle #4 Make the Common Case Fast  Analysis of a large variety of compiled programs reveal that the vast majority of constants used are quite small numbers: >90% within the range of a 16- bit twos complement integer.  Obvious choice is to use the I-type format for instructions that have as an operand this most common case of constant.  Hence, these typical MIPS 'Immediate' instructions: addi $sp,$sp,4#$sp = $sp + 4 slti $t0,$s2,15#$t0 = 1 if $s2<15

33. Instructions: Language of the ComputerCS305_03/33  There must be a way to 'load' a 32-bit constant into a register. Compromise by using two instructions:  "Load Upper Immediate" ( lui ) instruction: lui $t0,1010101010101010b Zero filled What about larger constants?  Followed by a "logical or" ( ori ) instruction: ori $t0,$t0,1010101010101010b $t010101010101010100000000000000000 $t010101010101010100000000000000000 ori00000000000000001010101010101010 $t01010101010101010

34. Instructions: Language of the ComputerCS305_03/34  Assembly provides convenient symbolic representation  much easier than writing down numbers  e.g., destination first  Machine language is the underlying reality  e.g., destination is no longer first  Assembly can provide 'pseudoinstructions'  e.g., “move $t0,$t1” exists only in Assembly  would be implemented by “add $t0,$t1,$zero”  When considering performance you should count real instructions Assembly Language vs. Machine Language

35. Instructions: Language of the ComputerCS305_03/35  Instructions: bne $t4,$t5,Label Next instruction is at Label if $t4≠$t5 beq $t4,$t5,Label Next instruction is at Label if $t4=$t5 j Label Next instruction is at Label  Formats: Addresses in Branches and Jumps I-formatoprsrt16-bit address J-formatop26-bit address  Addresses are not 32 bits  How do we handle this with load and store instructions?

36. Instructions: Language of the ComputerCS305_03/36  Could specify a register (like lw and sw did) and add it to address (offset). Q: Which register?  A: Instruction Address Register (aka Program Counter - PC) Addresses in Branches  Instructions: bne $t4,$t5,Label Next instruction is at Label if $t4≠$t5 beq $t4,$t5,Label Next instruction is at Label if $t4=$t5  Format: I-formatoprsrt16-bit address (offset) PC-Relative addressing oprsrtoffset Program Counter (PC) ? ? ?

37. Instructions: Language of the ComputerCS305_03/37 Specifying Branch Destinations  Why PC?  its use is automatically implied by instruction PC gets updated (PC+4) during the fetch cycle so that it holds the address of the next instruction  limits the branch distance to -2 15 to +2 15 -1 instructions from the (instruction after the) branch instruction, but most branches are local anyway. (Principle of Locality). PC Add 32 offset 16 32 00 sign-extend from the low order 16 bits of the branch instruction branch dst address ? Add 4 32

38. Instructions: Language of the ComputerCS305_03/38  Jump instructions just use high order bits of PC  A compromise: such jumps are limited by address boundaries of 256 MB, i.e within blocks of 2 26 instructions. Addresses in Jumps  Instruction: j Label Next instruction is at Label  Format: J-formatop26-bit address PC 4 32 26 32 00 from the low order 26 bits of the jump instruction

39. Instructions: Language of the ComputerCS305_03/39 MIPS ISA So Far CategoryInstrOp CodeExampleMeaning Arithmetic (R & I format) add0 and 32add $s1, $s2, $s3$s1 = $s2 + $s3 subtract0 and 34sub $s1, $s2, $s3$s1 = $s2 - $s3 add immediate8addi $s1, $s2, 6$s1 = $s2 + 6 or immediate13ori $s1, $s2, 6$s1 = $s2 v 6 Data Transfer (I format) load word35lw $s1, 24($s2)$s1 = Memory($s2+24) store word43sw $s1, 24($s2)Memory($s2+24) = $s1 load byte32lb $s1, 25($s2)$s1 = Memory($s2+25) store byte40sb $s1, 25($s2)Memory($s2+25) = $s1 load upper imm15lui $s1, 6$s1 = 6 * 2 16 Cond. Branch (I & R format) br on equal4beq $s1, $s2, Lif ($s1==$s2) go to L br on not equal5bne $s1, $s2, Lif ($s1 !=$s2) go to L set on less than0 and 42slt $s1, $s2, $s3 if ($s2<$s3) $s1=1 else $s1=0 set on less than immediate 10slti $s1, $s2, 6 if ($s2<6) $s1=1 else $s1=0 Uncond. Jump (J & R format) jump2j 2500go to 10000 jump register0 and 8jr $t1go to $t1 jump and link3jal 2500go to 10000; $ra=PC+4

40. Instructions: Language of the ComputerCS305_03/40 Review of MIPS Operand Addressing Modes  Register addressing – operand is in a register  Base (displacement) addressing – operand is at the memory location whose address is the sum of a register and a 16-bit constant contained within the instruction  Register relative (indirect) with 0($a0)  Pseudo-direct with addr($zero)  Immediate addressing – operand is a 16-bit constant contained within the instruction op rs rt rd funct Register word operand base register op rs rt offset Memory word or byte operand op rs rt operand

41. Instructions: Language of the ComputerCS305_03/41 Review of MIPS Instruction Addressing Modes  PC-relative addressing –instruction address is the sum of the PC and a 16-bit constant contained within the instruction  Pseudo-direct addressing – instruction address is the 26-bit constant contained within the instruction concatenated with the upper 4 bits of the PC op rs rt offset Program Counter (PC) Memory branch destination instruction op jump address Program Counter (PC) Memory jump destination instruction||

42. Instructions: Language of the ComputerCS305_03/42 Instructions for Accessing Procedures  MIPS 'procedure call' instruction: jalProcedureAddress#jump and link  Saves PC+4 in register $ra ($31) to have a link to the next instruction for the procedure return  Instruction format (J-format):  Then can do procedure 'return' with a jr$ra#return  Instruction format (R-format): jal000011 26-bit address jr00000 rs 001000 oprsrtrdshamtfunct

43. Instructions: Language of the ComputerCS305_03/43 Aside: Spilling Registers  One of the general registers, $sp, is used to address the stack (which “grows” from high address to low address)  Push (a register onto the stack): subi $sp,$sp,4 sw $ra,0($sp)  Pop (a register off the stack): lw $ra,0($sp) addi $sp,$sp,4 low addr high addr $sptop of stack  What if the callee needs more registers and/or the procedure is recursive?  use a stack – a last-in-first-out queue – in memory for passing additional values or saving (recursive) return address(es)

44. Instructions: Language of the ComputerCS305_03/44 Example: Nested Procedure Calls - MIPS code A:...... jal B# Call B, save return addr in $ra... B:......# Get ready to call C subi $sp,$sp,4# Adjust ToS to make room to... sw $ra,0($sp)#...'push' the old return addr jal C# Call C, save return addr in $31 lw $ra,0($sp)# Restore B's return address... addi $sp,$sp,4#...and re-adjust ToS ('pop')... jr $ra# Return to proc that called B C:...... jr $ra# Return to proc that called C

45. Instructions: Language of the ComputerCS305_03/45 Passing Parameters to Procedures  Conventions for passing parameters - arguments - may vary from machine to machine, language to language, and even compiler to compiler.  MIPS uses $4 to $7 ($a0-$a3) as arguments.  There must also be a convention for preserving registers across procedure calls. The two usual conventions are:  Caller save. The calling procedure (caller) has the responsibility for preserving affected registers. The called procedure (callee) can then modify any registers without constraint.  Callee save. The callee has the responsibility for saving and restoring any registers that it might use. The calling procedure (caller) uses registers without worrying about their preservation.

46. Instructions: Language of the ComputerCS305_03/46 MIPS Pseudoinstructions  In keeping with design principles the MIPS ISA does not contain complex instructions as these could compromise the performance of all instructions.  However, a MIPS compiler/assembler can synthesise 'pseudoinstructions' from common variations of real instructions. Such pseudoinstructions simplify translation and programming.  Pseudoinstructions give MIPS a richer set of assembly language instructions than those implemented by hardware.  The assembler reserves one register, $at, that is used in the synthesis of many pseudoinstructions.  For example…

47. Instructions: Language of the ComputerCS305_03/47 Example MIPS Pseudoinstructions  PseudoinstructionReal MIPS  move $t0,$t1add $t0,$t1,$zero  clear $s0add $s0,$zero,$zero  blt $s1,$s2,labelslt $at,$s1,$s2 bne $at,$zero,label  bge $s1,$s2,labelslt $at,$s1,$s2 beq $at,$zero,label

48. Instructions: Language of the ComputerCS305_03/48 Summary of MIPS (RISC) Design Principles  Simplicity favors regularity  fixed size instructions – 32-bits  small number of instruction formats  opcode always the first 6 bits  Good design demands good compromises  three instruction formats  Smaller is faster  limited instruction set  limited number of registers in register file  limited number of addressing modes  Make the common case fast  arithmetic operands from the register file (load-store machine)  allow instructions to contain immediate operands

49. Instructions: Language of the ComputerCS305_03/49 Fallacies and Pitfalls  Fallacy: More powerful instructions mean higher performance.  Such instructions often do more work than is required in the frequent case or don't match the requirements of the language.  Pitfall: To obtain the highest performance, write in assembly language.  The increasing sophistication of modern compilers means that the gap between compiled code and 'hand-crafted' code is closing fast.  Even if the gap isn't closed completely, the drawbacks of writing in assembly language are longer time spent coding and debugging, the loss in portability, and difficulty of maintenance.  Pitfall: Forgetting that sequential word addresses in memory differ by 4, not by 1.
