1. Scaffolding Eric [Baaba Koro] & Pankaj & Ben Group 29 28.3.2013

2. Sub Titles Introduction Definition Scaffolding Standards Types of Scaffoldings Tube & Fittings Scaffolding Tube & Fittings Components PROPRIETARY SCAFFOLDING Particular Scaffolds and Scaffolding Structures Suspended Scaffolding Terminology Health & Safety, Guidelines Health and Safety in Employment Act 1992 NZ Scaffolding Scenario Scaffold companies guilty of safety failure 2008 Scaffolding fails inspection NZ Scaffolding Scenario Scaffold companies guilty of safety failures Health & Safety - Health and Safety in Employment Act 1992 Q & A References 2013-3-282References: http://www.rotoruadailypost.co.nz/news/scaffold-firm-guilty-of-safety-failures/1642338/

3. Definition 2013-3-28References:3

4. Scaffolding in New Zealand - Best Practice Guideline Policy Rules Definition:  Scaffolding Latin word: Scaffaldus Section 1.1.1 Scaffolding  Health and Safety in Employment Regulations 1995 under Clause 1.3.2 & Policy & legislation Rules Act.  Any structure or framework, swinging stage, suspended scaffolding, or boatswain's chair, of a temporary nature, used or intended to be used for the support or protection of workers for the purpose of carrying out their work or for the support of materials used in connection with any such work. Scaffolding includes any scaffolding erected as such and not dismantled, whether or not it is being used as scaffolding; and also includes any plank, coupling, fastening, fitting, equipment, item or device used in connection with the construction, erection, dismantling or use of scaffolding. 2013-3-28References:http://www.osh.govt.nz/publications/booklets/scaffolding-09/scaffolding_02.asp4

5. Scaffolding Standards  Scaffolding – General requirements AS/NZS1576.1  Structural Design Actions – General Principles. AS/NZS1170.0 2013-3-285 Reference: http://www.osh.govt.nz/publications/factsheets/scaffolds- with-screening-containment-sheeting-temp-roofs.html

6. Types of Scaffoldings Tube & Fittings Proprietary Others 2013-3-286References:

7. Tube & Fittings Scaffolding Tube and fitting scaffolds are generally not covered by manufacturer's specifications, engineer's certificates or producer statements 2013-3-28References:7

8. Tube & Fittings Components 2013-3-288References:  Tube

9. Tube & Fittings Components  Fittings Right Angle CouplerSwivel Coupler Putlog coupler or single coupler 2013-3-28References:9

10. Tube & Fittings Components  Fittings. Sleeve or external joiner Pin or Internal Joiner??????? 2013-3-28References:10

11. Tube & Fittings Components  Planks British Standards 2013-3-28References:11

12. Tube & Fittings Scaffolding Standard tube and fitting scaffold showing general scaffolding terminology 2013-3-2812References:

13. PROPRIETARY SCAFFOLDING Proprietary scaffolds have been designed by a chartered engineer as reflected in the manufacturer's specifications for the design and use of the equipment. 2013-3-28References:13

14. PROPRIETARY SCAFFOLDING  Modular proprietary systems (prefabricated) Ring scaffold node or connection point Kwikstage or system scaffold node 2013-3-28References:14

15. PROPRIETARY SCAFFOLDING  Modular proprietary systems (prefabricated) Rapid scaffold node or connection point Cuplock scaffold node or connection point 2013-3-28References:15

16. PROPRIETARY SCAFFOLDING General scaffolding terms applied to proprietary scaffolding 2013-3-28References:16

17. Particular Scaffolds and Scaffolding Structures  Mobile scaffolds  Rakers and outriggers  Scaffolds for roof edge protection (guard railing)  Scaffolding over verandahs, gantries or roofs  Cantilevered scaffolds  Heavy duty gantries  Vessel scaffolds  Hanging scaffolds  Tube and fitting hanging scaffold  Screening or containment sheeting  Mechanical lifting appliances on a scaffold  Mast-climbing work platforms  Barrow ramps  False work or propping  Timber scaffolds 2013-3-28References:17

18. Suspended Scaffolding  A suspended scaffold is a working platform that: Is suspended by ropes from overhead outriggers, needles, parapet hooks or brackets fixed to a building or structure. Is capable of being raised and lowered by hand haulage on fiber ropes, or by hoists that are either manually or mechanically operated using wire ropes. 2013-3-28References:18

19. Terminology  Scaffold area The horizontal length of a scaffold in meters times the average height of the scaffold will give the scaffold area in square meters. So: Length (m) x Average Height (m) = Area (m 2 ) The height of the scaffold may be taken from of the height of the top- working platform or alternatively from the top guardrail. 2013-3-2819References:

20. Health & Safety, Guidelines 2013-3-2820 References: http://www.elcosh.org/document/3529/d000532/Scaffold%2BSafety%2BFor%2BResidential%2BConstruction%2B Contractors.html?show_text=1 (Photo) Health and Safety in Employment Act 1992 Scaffolding

21. Health and Safety in Employment Act 1992 Under the Health and Safety in Employment Act 1992, ‘Serious Harm’ means death or a range of conditions that result in permanent loss of bodily function or temporary severe loss of bodily function 2013-3-28 References: www.dol.govt.nz/prevent-falls/information.asp 21

22. 2013-3-28References:22

23. 2008 Scaffolding fails inspection  59% of the scaffolding failed guard railing safety checks  51% failed on platform checks  A total of 63 Serious Harm incidents involving scaffolding were reported to the Department in the July-June 2006/07 year  45 Serious Harm incidents involving scaffolding had been reported, of which 12 occurred in Auckland. 2013-3-28 References:http:http://www.dol.govt.nz/news/media/2008/scaffolding-fails-again.asp 23

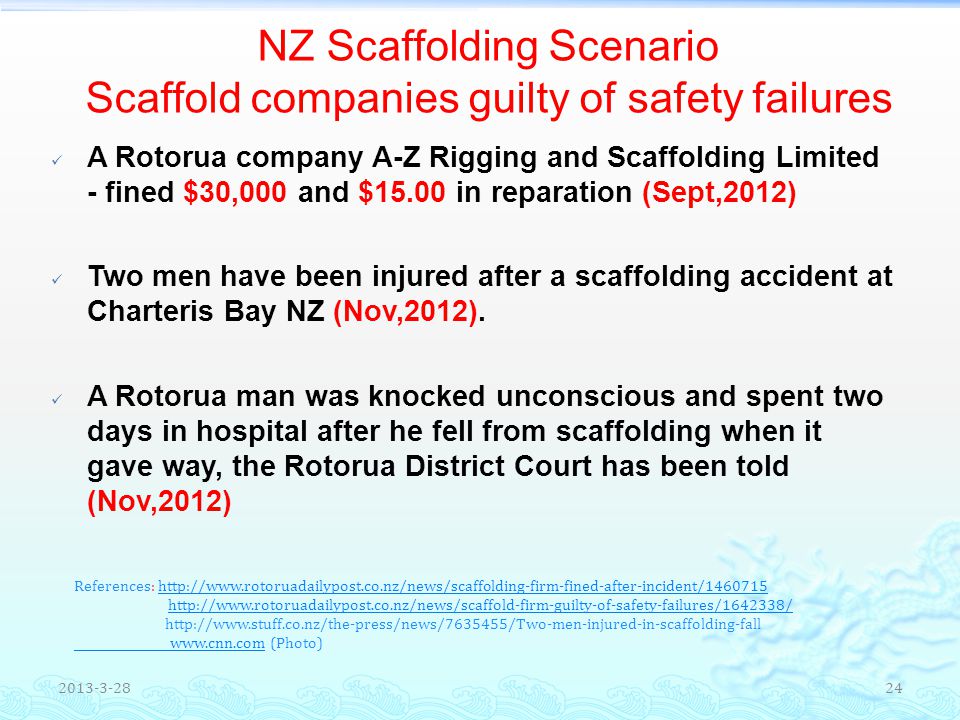

24. NZ Scaffolding Scenario Scaffold companies guilty of safety failures A Rotorua company A-Z Rigging and Scaffolding Limited - fined $30,000 and $15.00 in reparation (Sept,2012) Two men have been injured after a scaffolding accident at Charteris Bay NZ (Nov,2012). A Rotorua man was knocked unconscious and spent two days in hospital after he fell from scaffolding when it gave way, the Rotorua District Court has been told (Nov,2012) 2013-3-28 References: http://www.rotoruadailypost.co.nz/news/scaffolding-firm-fined-after-incident/1460715http://www.rotoruadailypost.co.nz/news/scaffolding-firm-fined-after-incident/1460715 http://www.rotoruadailypost.co.nz/news/scaffold-firm-guilty-of-safety-failures/1642338/ http://www.stuff.co.nz/the-press/news/7635455/Two-men-injured-in-scaffolding-fall www.cnn.comwww.cnn.com (Photo) 24

25. 2013-3-28References: http://www.stuff.co.nz/the-press/news/7635455/Two-men-injured-in-scaffolding-fall25 Strong winds tore a sheeted scaffolding system from this building.

26. Basic Health and Safety considerations when developing plans, designs or projects include the following: 1. Human Factors 2. Public Interactions 3. Environmental Factors 4. Emergency Provisions 2013-3-2826

27. Health & Safety  Scaffolds must be issued with the appropriate Certificate of Compliance and set of guidelines.  Scaffolding exceeding a height of 5m is notifiable to OSH.  Scaffolding must not be erected closer than 4m to any overhead power lines  Scaffolding must be protected from accidental damage by traffic and other causes  Sound and safe means of access should be provided to scaffolding platforms  Scaffolding over verandas, gantries or roofs should be certified as safe by a registered engineer 2013-3-2827Reference: http://www.otago.ac.nz/healthandsafety/hazardmanagement/buildingsafety.html

28. 2013-3-28Reference:http://dol.govt.nz/whss/state-of-workplace/sowh-2012.pdf28 The State of Workplace Health and Safety in New Zealand

29. 2013-3-28References:29

30. References / APA Retrieved on 25.3.2013 from http://dol.govt.nz/whss/state-of-workplace/sowh-2012.pdf http://www.otago.ac.nz/healthandsafety/hazardmanagement/buildingsafety.html http://www.stuff.co.nz/the-press/news/7635455/Two-men-injured-in-scaffolding-fall http://www.rotoruadailypost.co.nz/news/scaffolding-firm-fined-after-incident/1460715 http://www.rotoruadailypost.co.nz/news/scaffold-firm-guilty-of-safety-failures/1642338/ http://www.stuff.co.nz/the-press/news/7635455/Two-men-injured-in-scaffolding-fall www.dol.govt.nz/news/media/2008/scaffolding-fails-again.asp www.dol.govt.nz/prevent-falls/information.asp http://www.elcosh.org/document/3529/d000532/Scaffold%2BSafety%2BFor%2BResidential%2BConst ruction%2BContractors.html?show_text=1 (Photo) Web sites:  Retrieved web site on 26.3.2013 from www.cnn.com (Photo) 2013-3-2830

31. Thank you Any Q & A? 2013-3-2831References:
