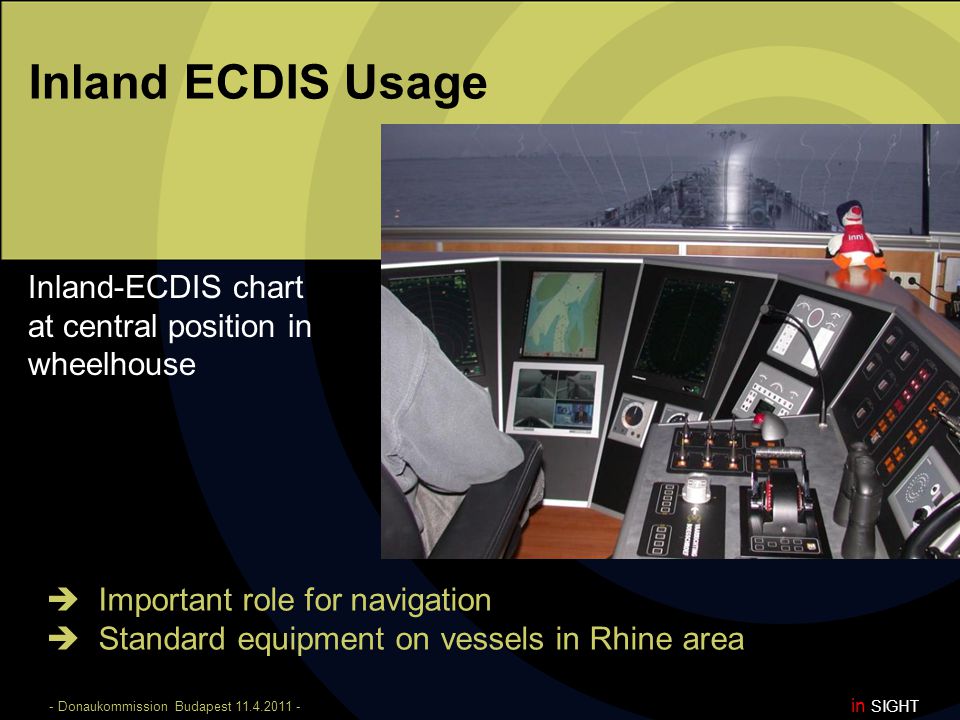

3. - Donaukommission Budapest 11.4.2011 - in SIGHT Inland ECDIS Usage Inland-ECDIS chart at central position in wheelhouse  Important role for navigation  Standard equipment on vessels in Rhine area

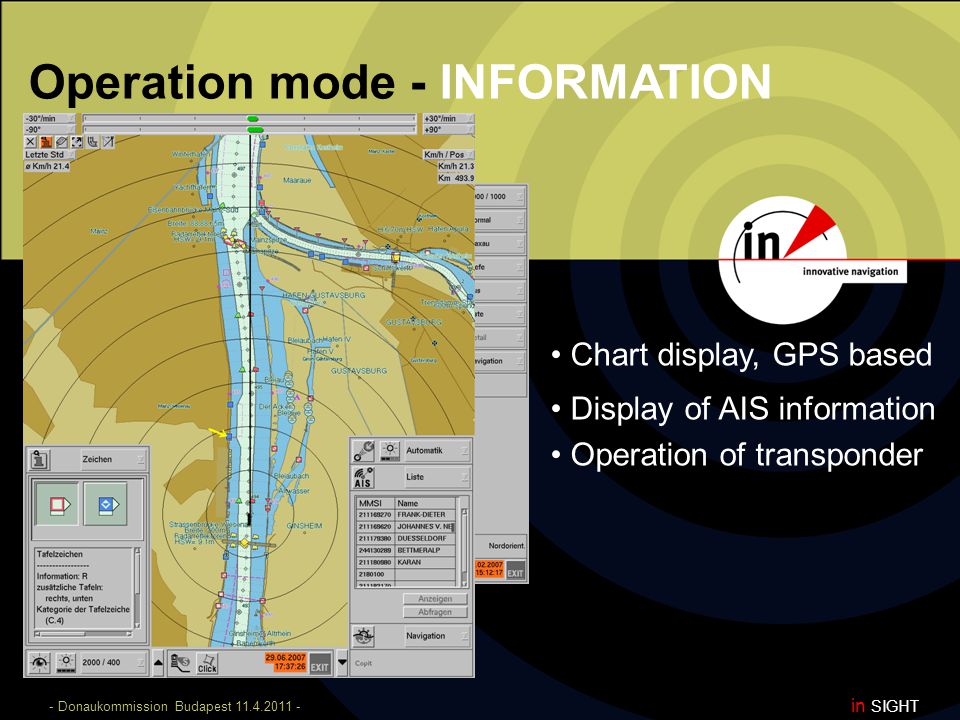

4. - Donaukommission Budapest 11.4.2011 - in SIGHT Operation mode - INFORMATION Chart display, GPS based Display of AIS information Operation of transponder

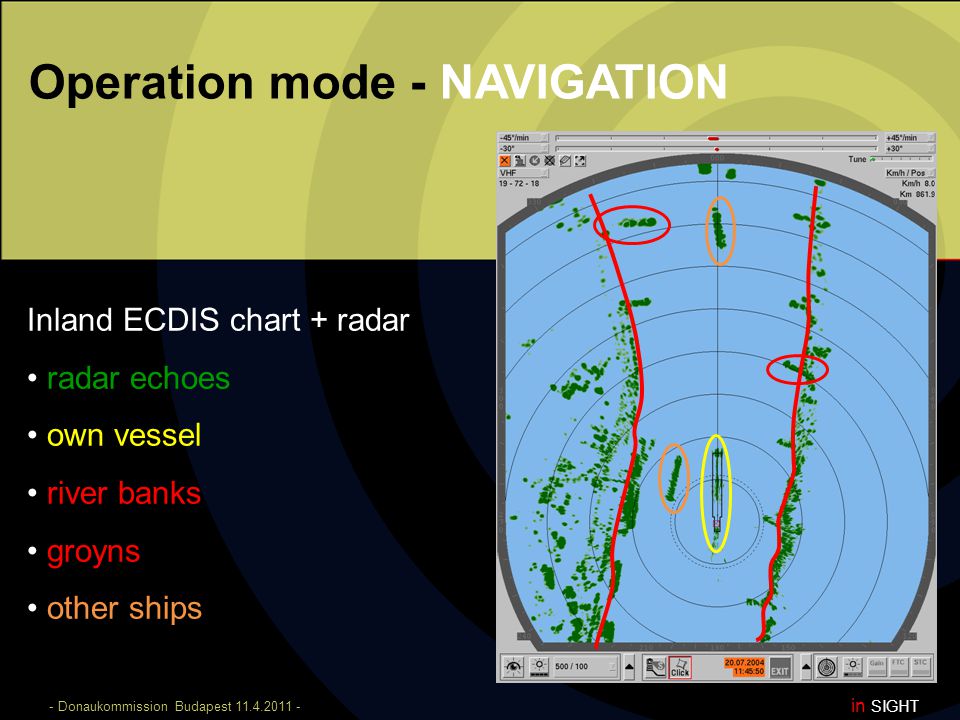

5. - Donaukommission Budapest 11.4.2011 - in SIGHT Operation mode - NAVIGATION Inland ECDIS chart + radar radar echoes own vessel river banks groyns other ships

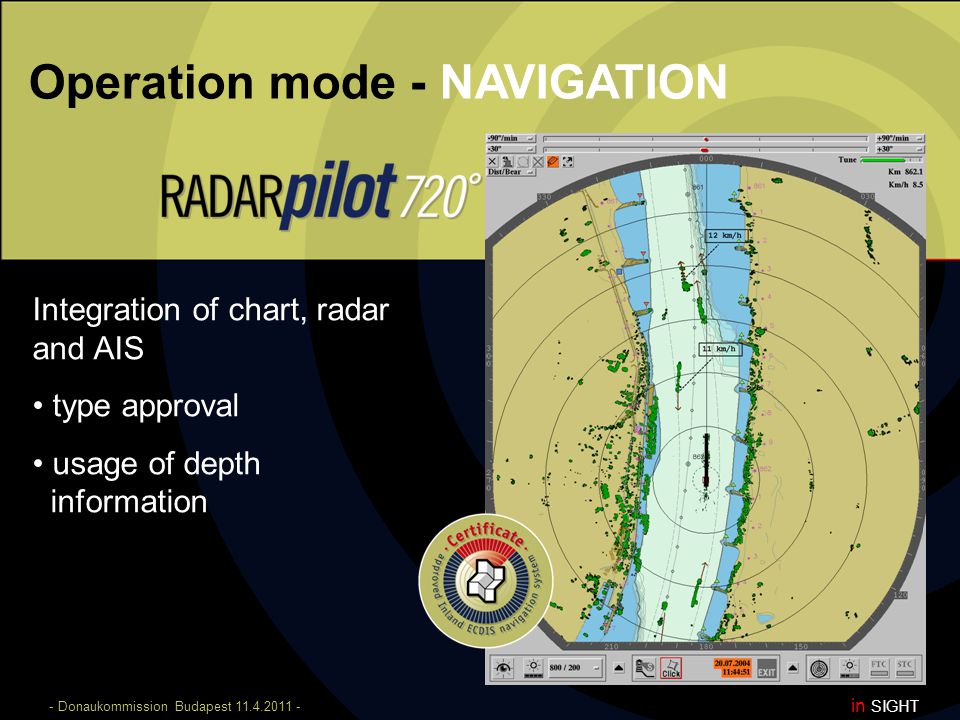

6. - Donaukommission Budapest 11.4.2011 - in SIGHT Integration of chart, radar and AIS type approval usage of depth information Operation mode - NAVIGATION

7. - Donaukommission Budapest 11.4.2011 - in SIGHT recording (black box) conning display target tracking (radar based with AIS fusion) guiding lines look ahead  optimal support of skipper Additional Features

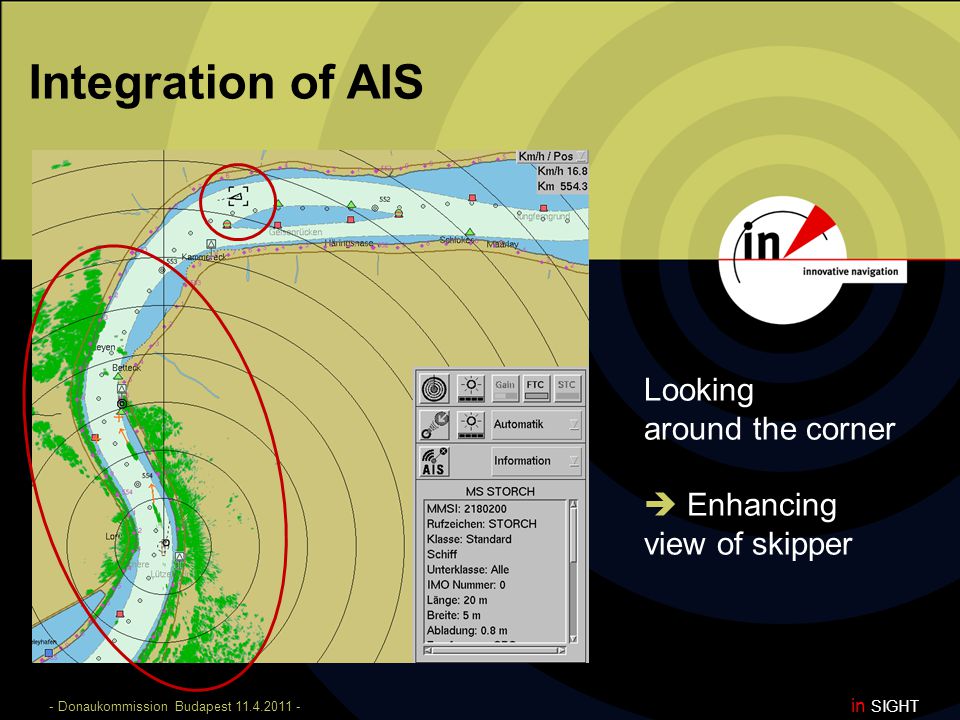

8. - Donaukommission Budapest 11.4.2011 - in SIGHT Integration of AIS Looking around the corner  Enhancing view of skipper

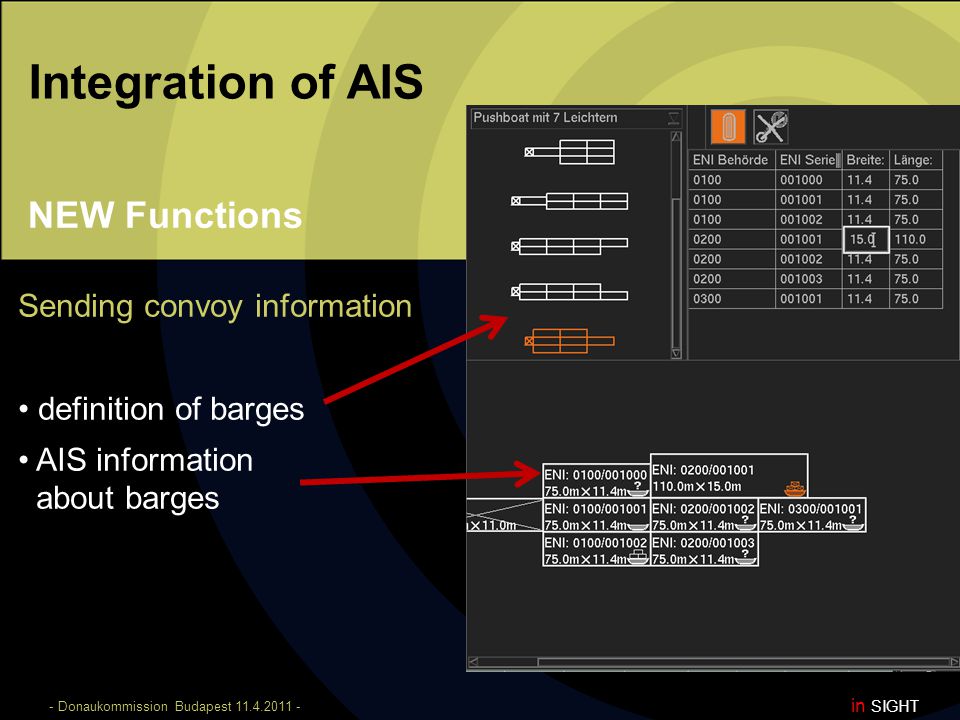

9. - Donaukommission Budapest 11.4.2011 - in SIGHT Sending convoy information definition of barges AIS information about barges Integration of AIS NEW Functions

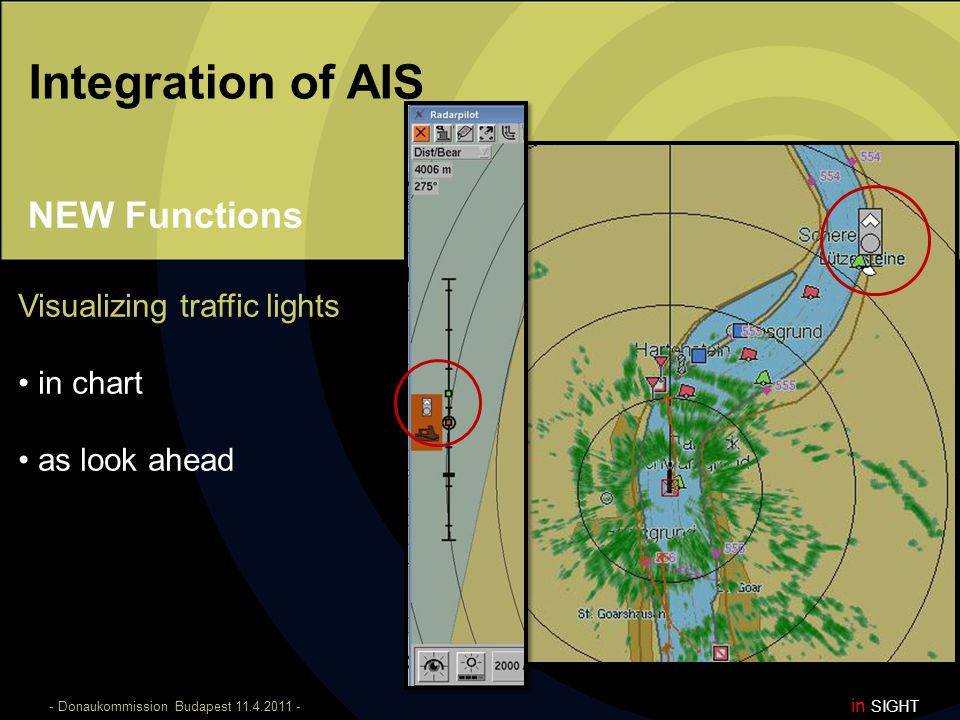

10. - Donaukommission Budapest 11.4.2011 - in SIGHT Integration of AIS Visualizing traffic lights in chart as look ahead NEW Functions

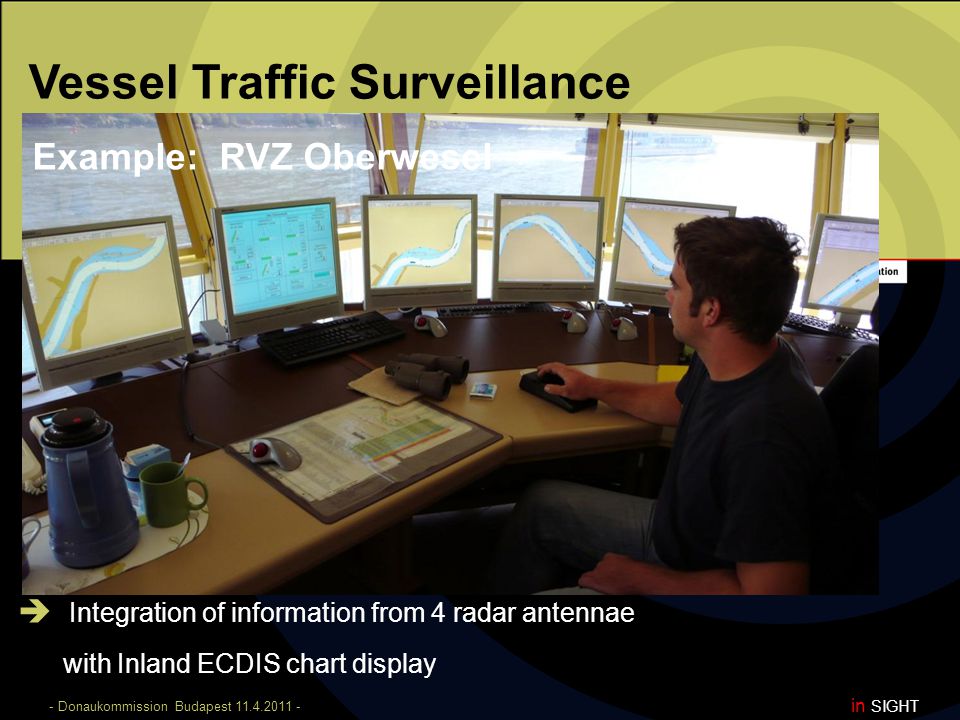

11. - Donaukommission Budapest 11.4.2011 - in SIGHT Vessel Traffic Surveillance  Integration of information from 4 radar antennae with Inland ECDIS chart display Example: RVZ Oberwesel

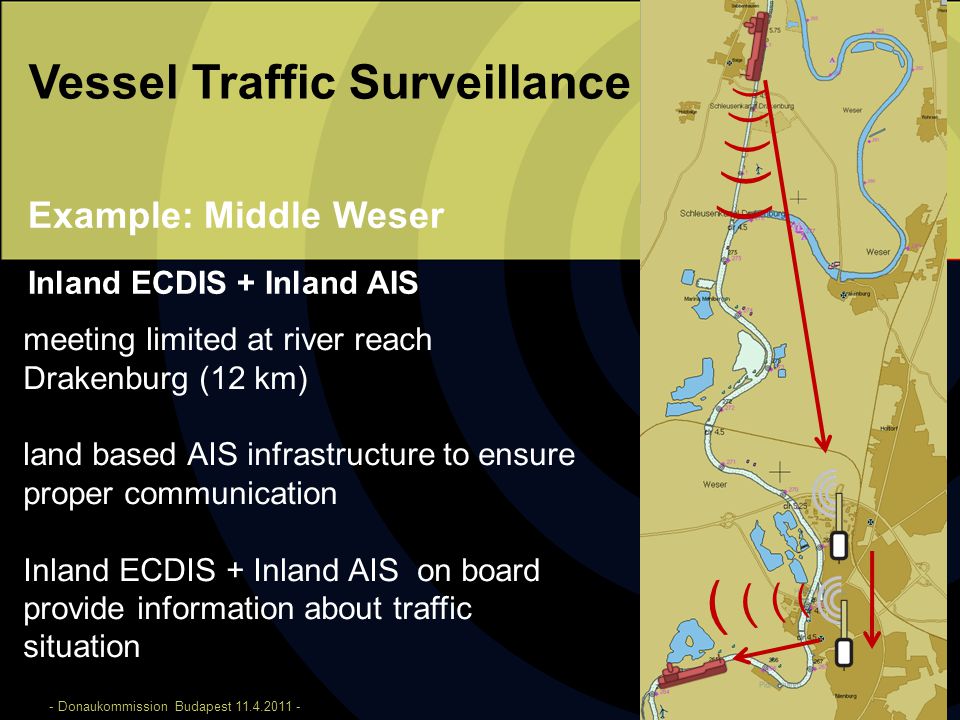

12. - Donaukommission Budapest 11.4.2011 - in SIGHT Inland ECDIS + Inland AIS meeting limited at river reach Drakenburg (12 km) land based AIS infrastructure to ensure proper communication Inland ECDIS + Inland AIS on board provide information about traffic situation ( ( ( ( ( ( ( Vessel Traffic Surveillance Example: Middle Weser

13. - Donaukommission Budapest 11.4.2011 - in SIGHT Inland ECDIS for Traffic Surveillance Inland New display application

14. - Donaukommission Budapest 11.4.2011 - in SIGHT Display for Traffic Surveillance Coastal

15. - Donaukommission Budapest 11.4.2011 - in SIGHT Display for Traffic Surveillance Coastal Track display

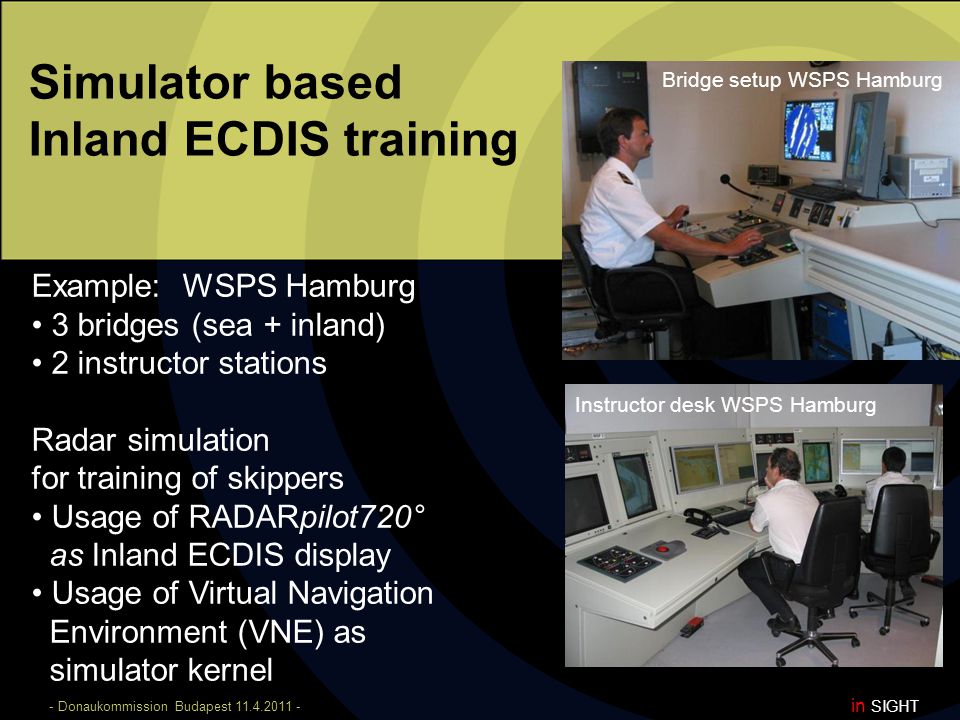

16. - Donaukommission Budapest 11.4.2011 - in SIGHT Simulator based Inland ECDIS training Example: WSPS Hamburg 3 bridges (sea + inland) 2 instructor stations Radar simulation for training of skippers Usage of RADARpilot720° as Inland ECDIS display Usage of Virtual Navigation Environment (VNE) as simulator kernel Instructor desk WSPS Hamburg Bridge setup WSPS Hamburg

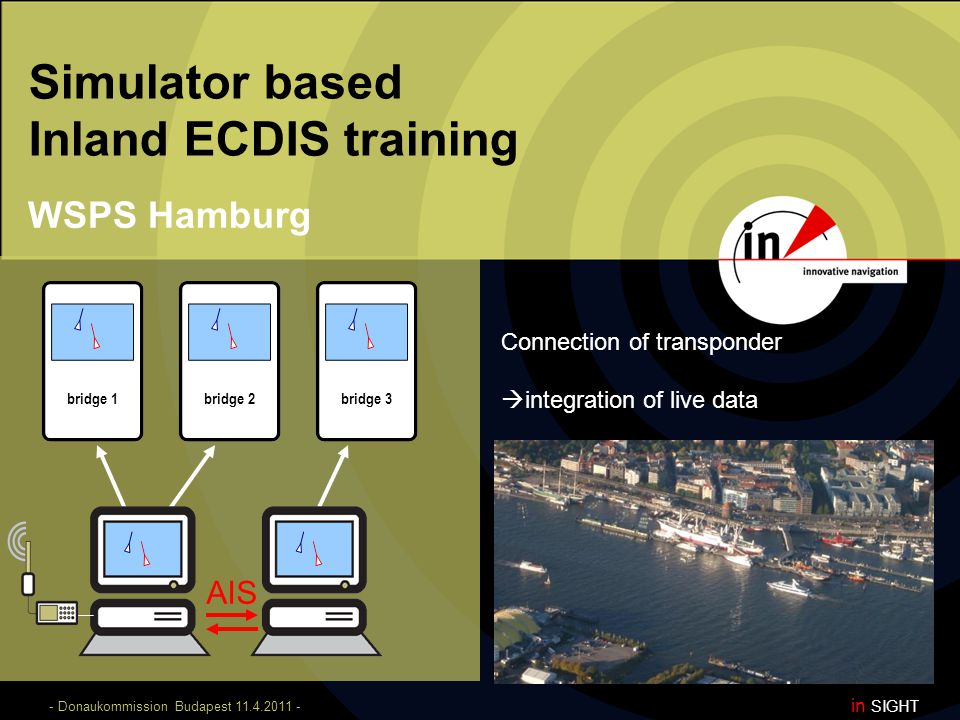

17. - Donaukommission Budapest 11.4.2011 - in SIGHT Simulator based Inland ECDIS training bridge 1bridge 2bridge 3 Connection of transponder  integration of live data AIS WSPS Hamburg

18. - Donaukommission Budapest 11.4.2011 - in SIGHT Simulator based Inland ECDIS training Training to steer different vessel types RADARpilot720° as integrated ECDIS navigation system
