1. Division Lecture L6.3

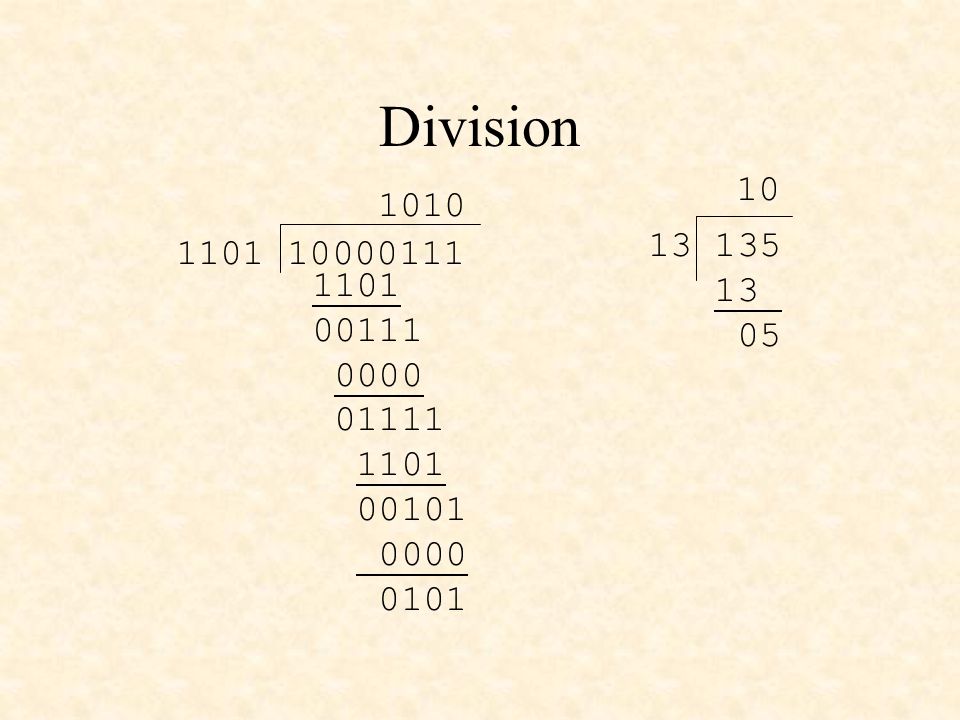

2. Division 1101 10000111 1010 1101 00111 0000 01111 1101 00101 0000 0101 13 135 13 05 10

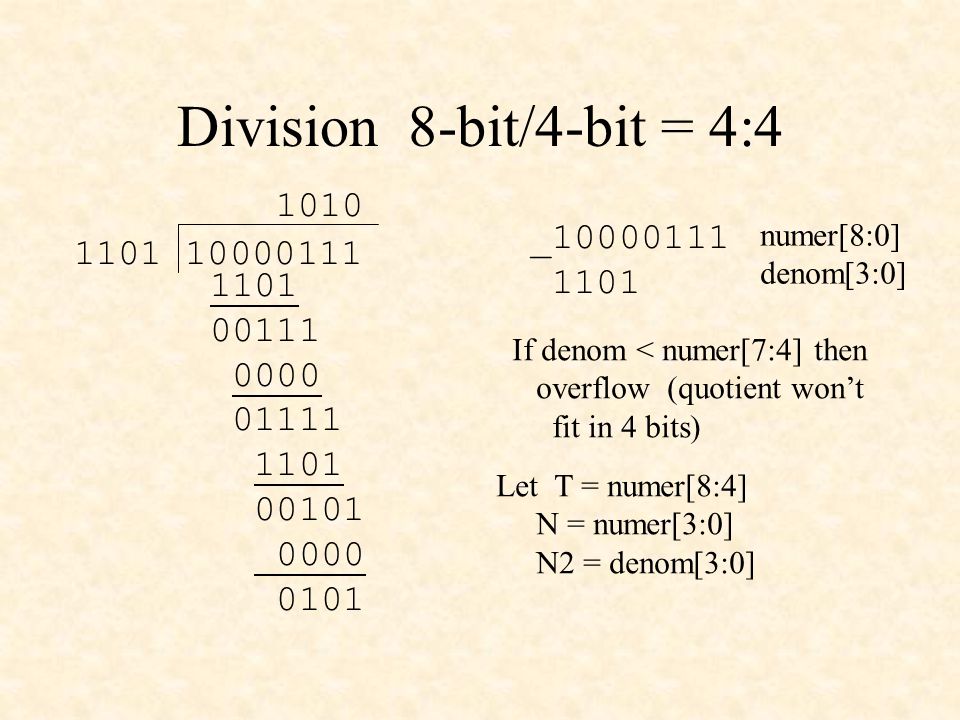

3. Division 8-bit/4-bit = 4:4 1101 10000111 1010 1101 00111 0000 01111 1101 00101 0000 0101 _10000111 1101 numer[8:0] denom[3:0] If denom < numer[7:4] then overflow (quotient won’t fit in 4 bits) Let T = numer[8:4] N = numer[3:0] N2 = denom[3:0]

4. Division 8-bit/4-bit = 4:4 1101 10000111 1010 1101 00111 0000 01111 1101 00101 0000 0101 100001110 1101 shl TN N2 for I in 0 to 3 loop shl T & N; if T[4:0] >= N2 then T := T - (0 & N2); N(0) := ‘1’; end if; end loop;

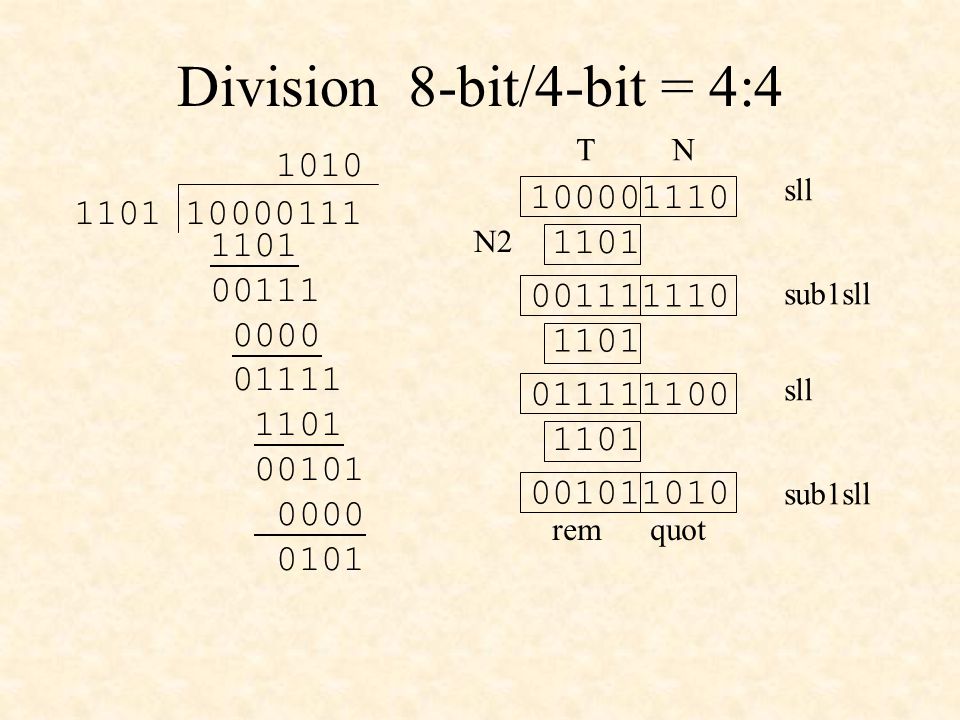

5. Division 8-bit/4-bit = 4:4 1101 10000111 1010 1101 00111 0000 01111 1101 00101 0000 0101 100001110 1101 sll TN N2 001111110 1101 sub1sll 011111100 1101 sll 001011010 sub1sll rem quot

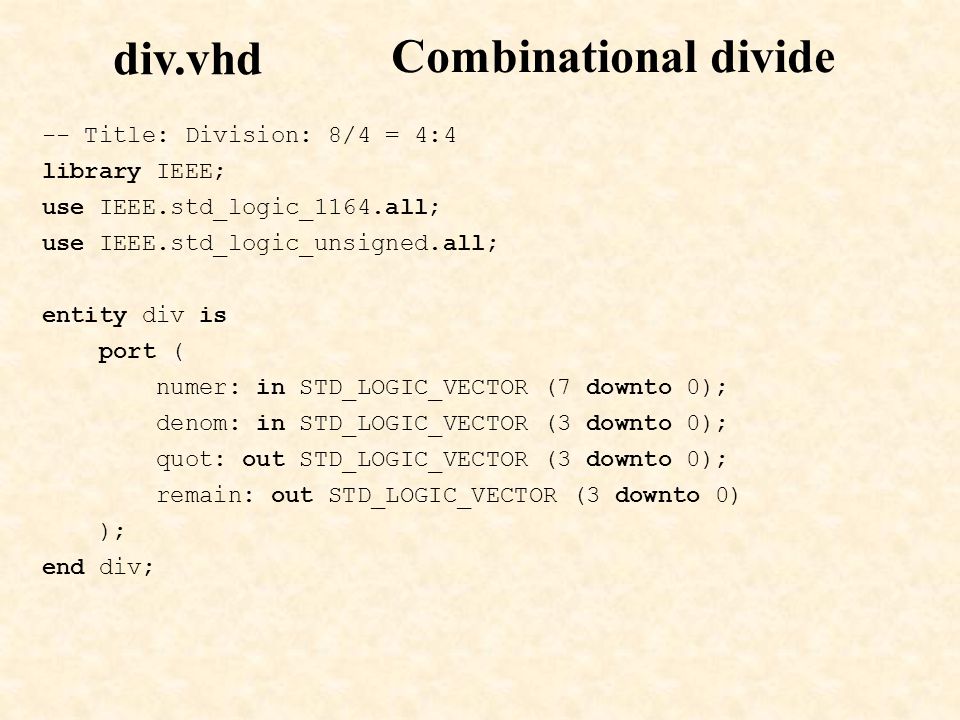

6. -- Title: Division: 8/4 = 4:4 library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity div is port ( numer: in STD_LOGIC_VECTOR (7 downto 0); denom: in STD_LOGIC_VECTOR (3 downto 0); quot: out STD_LOGIC_VECTOR (3 downto 0); remain: out STD_LOGIC_VECTOR (3 downto 0) ); end div; div.vhd Combinational divide

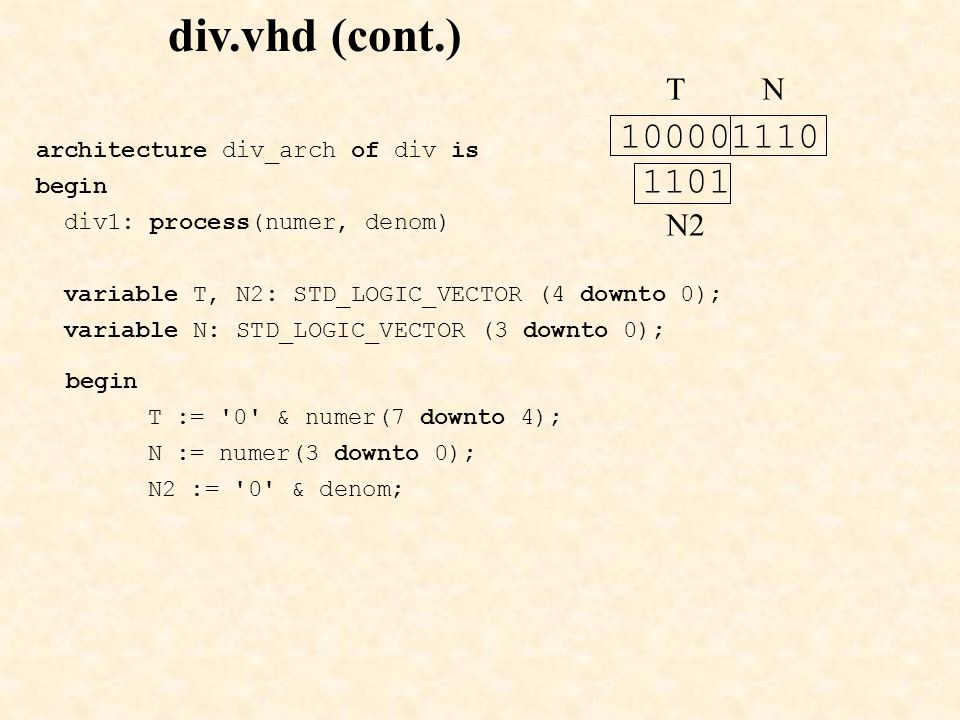

7. architecture div_arch of div is begin div1: process(numer, denom) variable T, N2: STD_LOGIC_VECTOR (4 downto 0); variable N: STD_LOGIC_VECTOR (3 downto 0); 100001110 1101 TN N2 begin T := '0' & numer(7 downto 4); N := numer(3 downto 0); N2 := '0' & denom; div.vhd (cont.)

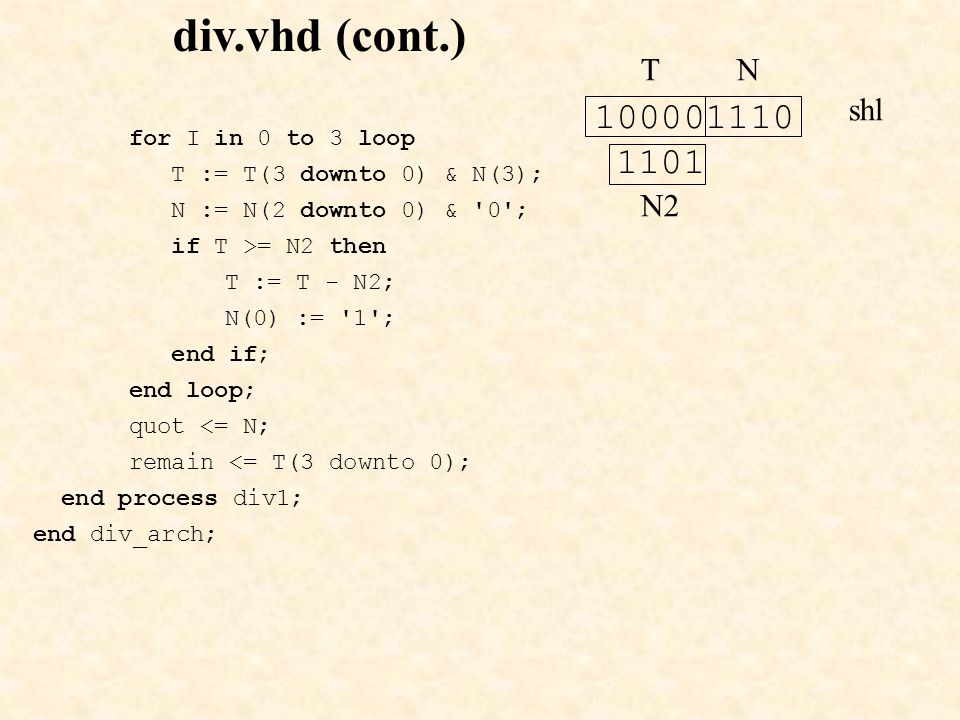

8. for I in 0 to 3 loop T := T(3 downto 0) & N(3); N := N(2 downto 0) & '0'; if T >= N2 then T := T - N2; N(0) := '1'; end if; end loop; quot <= N; remain <= T(3 downto 0); end process div1; end div_arch; 100001110 1101 shl TN N2 div.vhd (cont.)

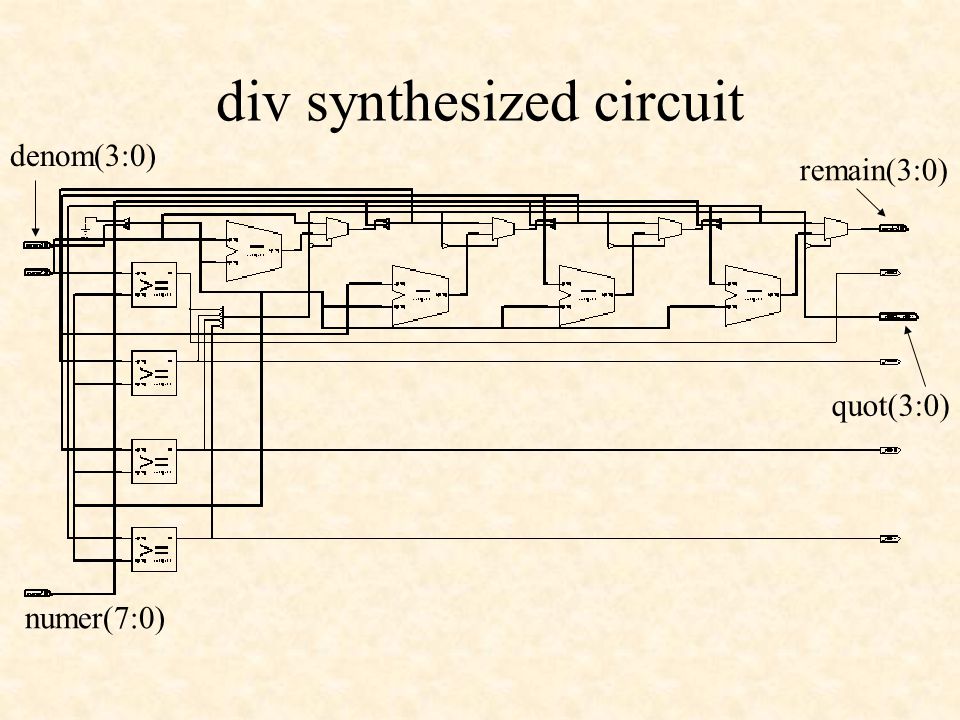

9. div synthesized circuit numer(7:0) denom(3:0) remain(3:0) quot(3:0)

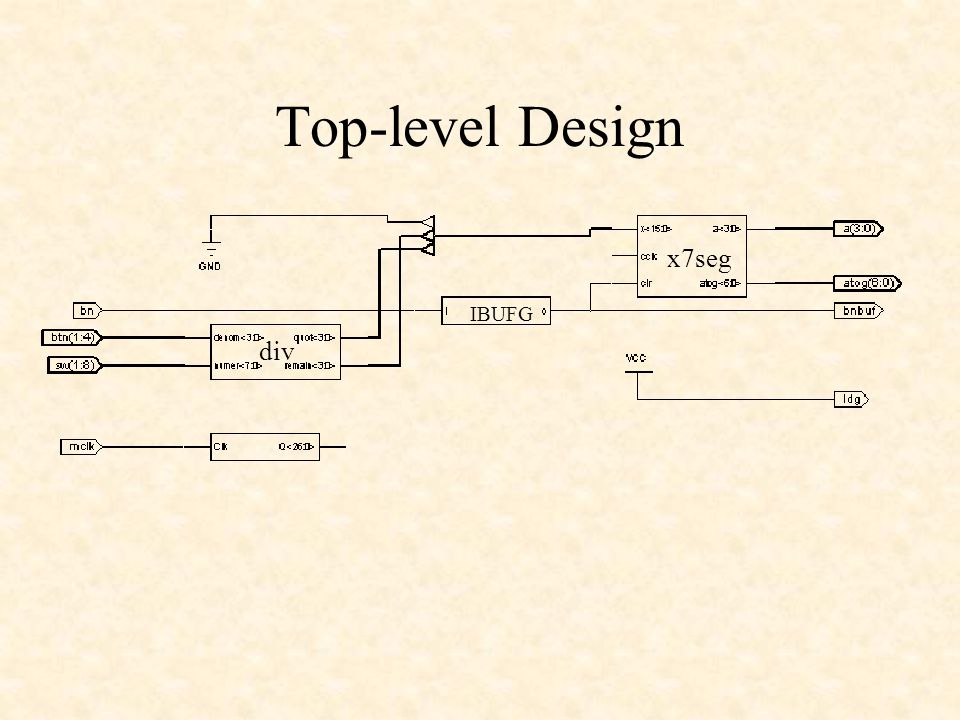

10. Top-level Design div x7seg IBUFG

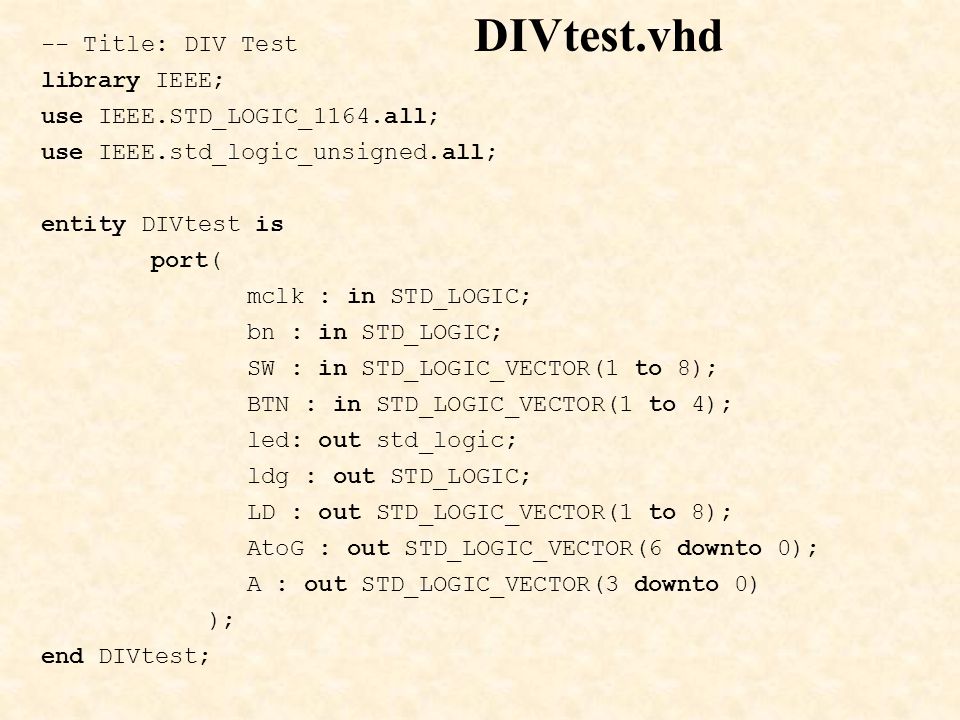

11. -- Title: DIV Test library IEEE; use IEEE.STD_LOGIC_1164.all; use IEEE.std_logic_unsigned.all; entity DIVtest is port( mclk : in STD_LOGIC; bn : in STD_LOGIC; SW : in STD_LOGIC_VECTOR(1 to 8); BTN : in STD_LOGIC_VECTOR(1 to 4); led: out std_logic; ldg : out STD_LOGIC; LD : out STD_LOGIC_VECTOR(1 to 8); AtoG : out STD_LOGIC_VECTOR(6 downto 0); A : out STD_LOGIC_VECTOR(3 downto 0) ); end DIVtest; DIVtest.vhd

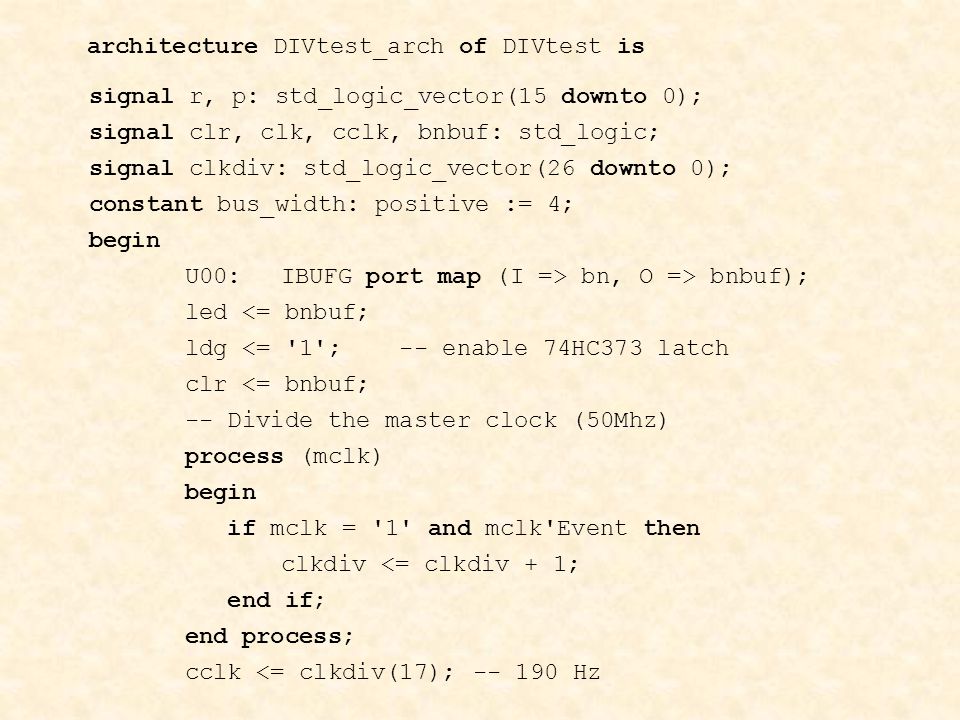

12. architecture DIVtest_arch of DIVtest is signal r, p: std_logic_vector(15 downto 0); signal clr, clk, cclk, bnbuf: std_logic; signal clkdiv: std_logic_vector(26 downto 0); constant bus_width: positive := 4; begin U00:IBUFG port map (I => bn, O => bnbuf); led <= bnbuf; ldg <= '1'; -- enable 74HC373 latch clr <= bnbuf; -- Divide the master clock (50Mhz) process (mclk) begin if mclk = '1' and mclk'Event then clkdiv <= clkdiv + 1; end if; end process; --clk <= mclk;-- 50 MHz WORKED ---clk <= clkdiv(0);-- 25 MHz WORKED -- clk <= clkdiv(1);-- 12.5 MHz -- clk <= clkdiv(24);-- 2 works -- clk <= bnbuf; cclk <= clkdiv(17);-- 190 Hz architecture DIVtest_arch of DIVtest is signal r, p: std_logic_vector(15 downto 0); signal clr, clk, cclk, bnbuf: std_logic; signal clkdiv: std_logic_vector(26 downto 0); constant bus_width: positive := 4; begin U00:IBUFG port map (I => bn, O => bnbuf); led <= bnbuf; ldg <= '1'; -- enable 74HC373 latch clr <= bnbuf; -- Divide the master clock (50Mhz) process (mclk) begin if mclk = '1' and mclk'Event then clkdiv <= clkdiv + 1; end if; end process; cclk <= clkdiv(17);-- 190 Hz

13. p(15 downto 12) <= "0000"; p(7 downto 4) <= "0000"; U1: div port map (numer => SW, denom =>BTN(1 to 4), quot => p(3 downto 0), remain =>p(11 downto 8)); U3: x7seg port map (x => p, cclk => cclk, clr => clr, AtoG => AtoG, A => A); LD <= SW; end DIVtest_arch;

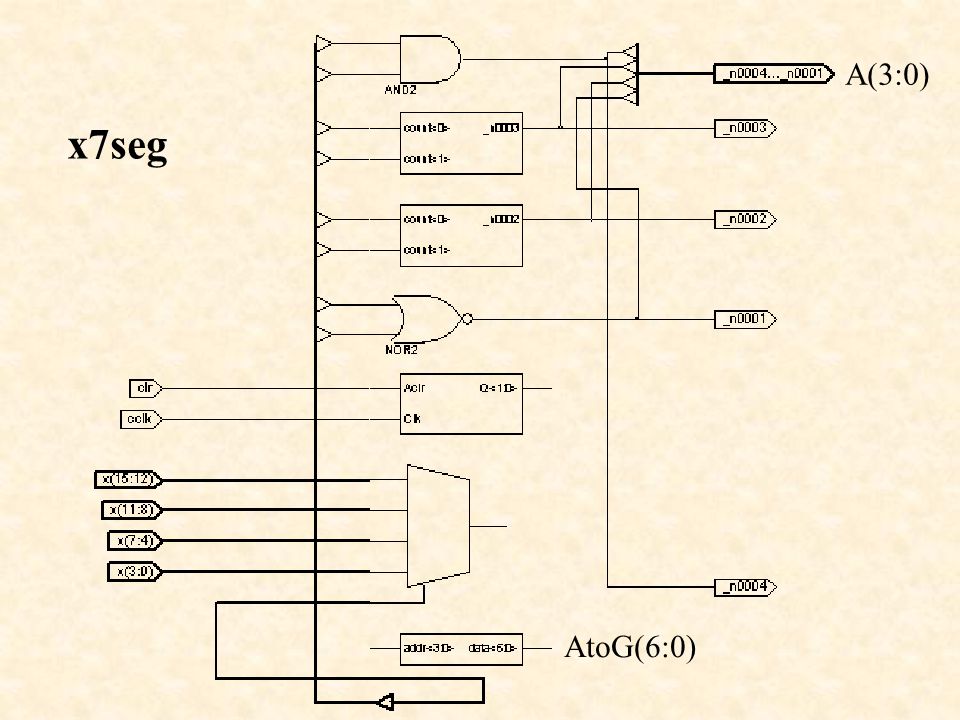

14. x7seg AtoG(6:0) A(3:0)

15. -- Title: Division: 2*width/width = width:width library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity divg is generic(width:positive); port ( numer: in STD_LOGIC_VECTOR (width+width-1 downto 0); denom: in STD_LOGIC_VECTOR (width-1 downto 0); quot: out STD_LOGIC_VECTOR (width-1 downto 0); remain: out STD_LOGIC_VECTOR (width-1 downto 0) ); end divg; divg.vhd

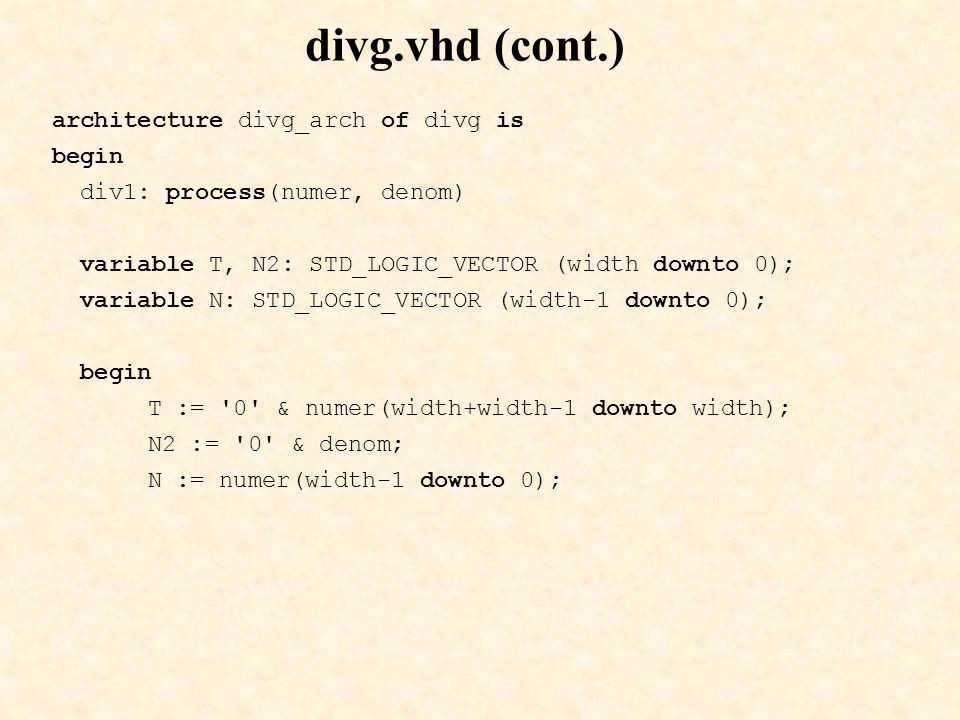

16. architecture divg_arch of divg is begin div1: process(numer, denom) variable T, N2: STD_LOGIC_VECTOR (width downto 0); variable N: STD_LOGIC_VECTOR (width-1 downto 0); begin T := '0' & numer(width+width-1 downto width); N2 := '0' & denom; N := numer(width-1 downto 0); divg.vhd (cont.)

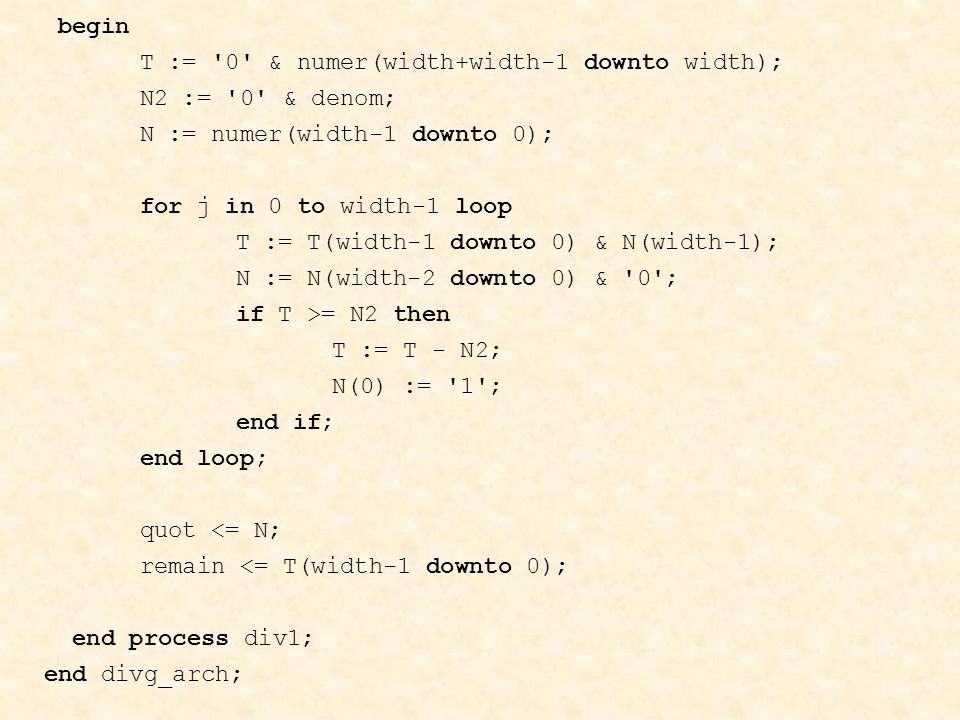

17. begin T := '0' & numer(width+width-1 downto width); N2 := '0' & denom; N := numer(width-1 downto 0); for j in 0 to width-1 loop T := T(width-1 downto 0) & N(width-1); N := N(width-2 downto 0) & '0'; if T >= N2 then T := T - N2; N(0) := '1'; end if; end loop; quot <= N; remain <= T(width-1 downto 0); end process div1; end divg_arch;

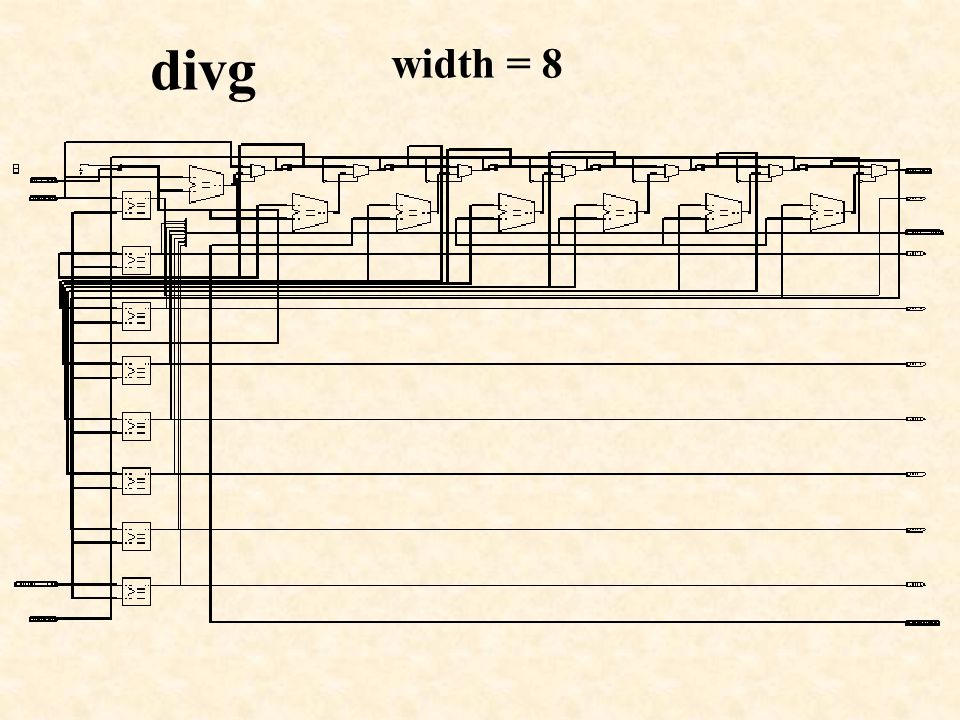

18. width = 8

19. divg
